Sayfa 0-12 - Isuzu EPC

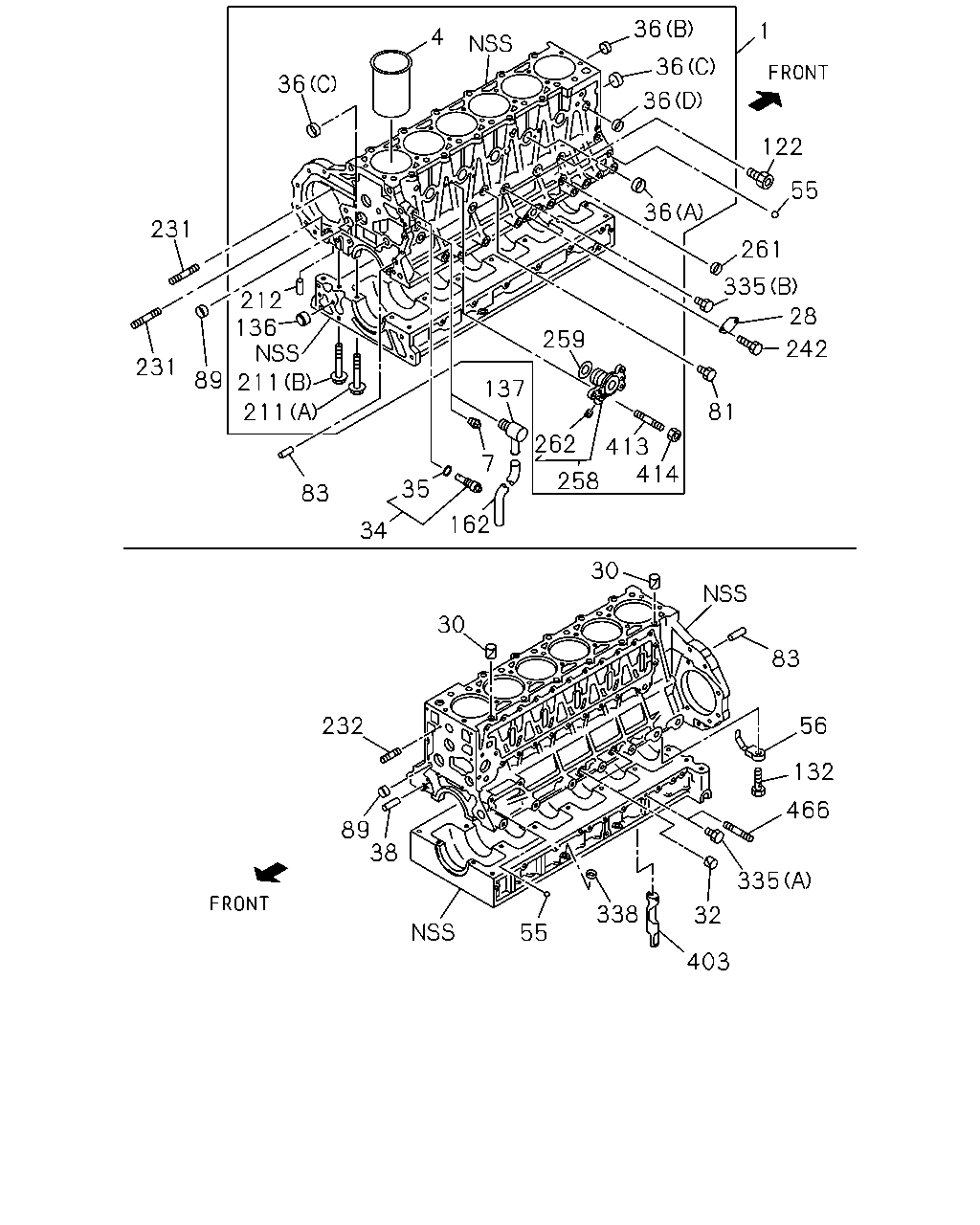

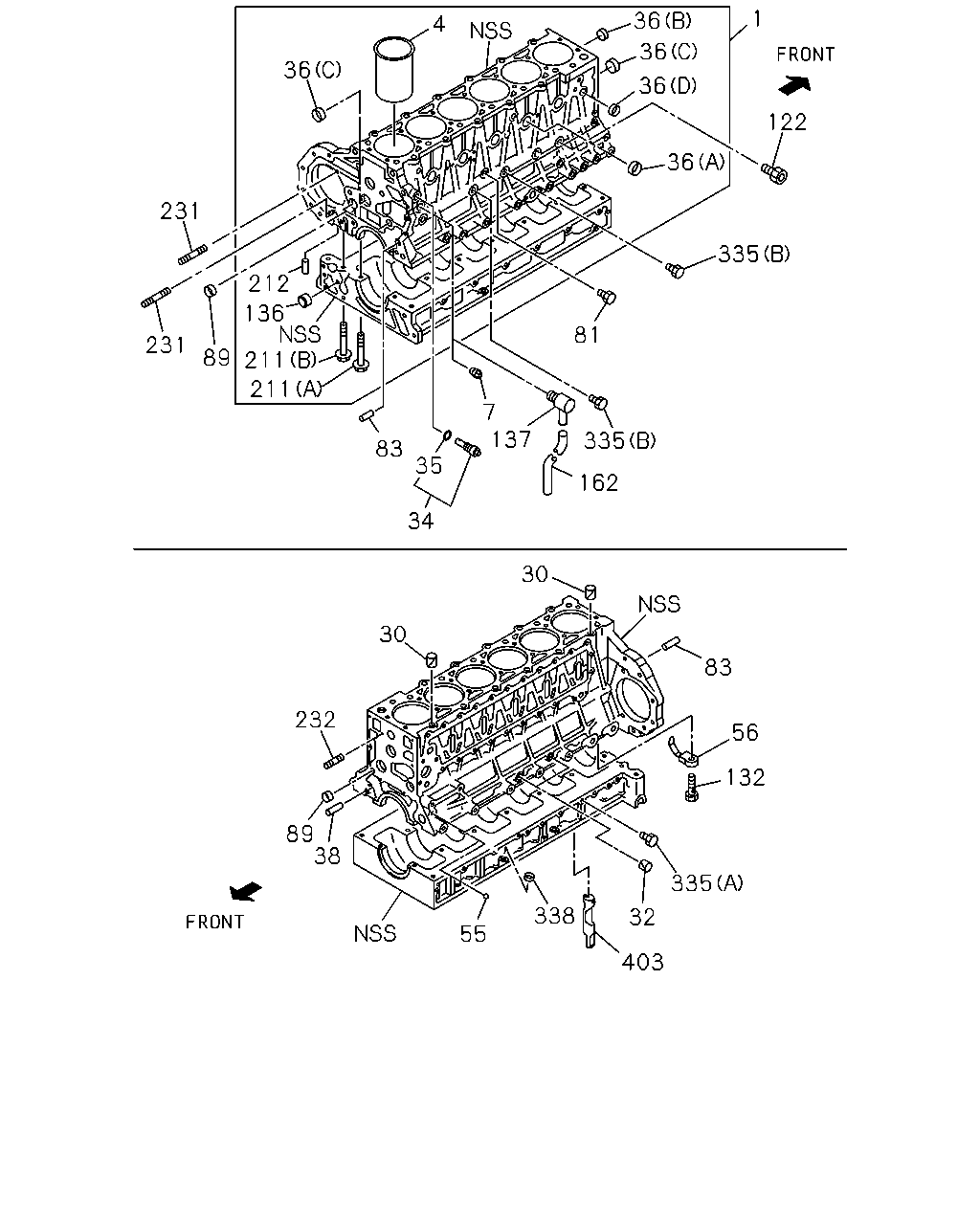

0-12 — CYLINDER BLOCK (#36718) — 446 parça

1 36 4 36 36 36 122 36 231 212 335 136 211 81 231 89 211 7 137 335 83 35 162 34 30 30 83 232 56 132 89 38 335 338 32 55 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-97602-024-2	01	1	0406-0504	●
1	BLOCK ASM; CYL	8-98005-410-2	01	1	0505-1012	●
1	BLOCK ASM; CYL	8-98180-708-0	01	1	1101-1209	●
1	BLOCK ASM; CYL	8-98206-963-0	01	1	1210-	●
1	BLOCK ASM; CYL	8-97600-415-0	01	1	0002-0010		●	●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0011-0405		●	●	●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0406-0504		●	●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0505-1012		●	●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1108		●	●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1109-1209	●	●	●
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-	●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9604-0010		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0011-0405		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0406-	●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9604-0010		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0011-0405		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0406-	●	●	●
7	PLUG; WATER DRAIN PT3/8	8-94397-338-0	01	1	1101-	●	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9604-0010		●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0011-0405		●	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0406-	●	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9604-0010		●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0011-0405		●	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0406-	●	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9604-0010		●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0011-0405		●	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0406-	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9604-0010		●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0011-0405		●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0406-	●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0505-1012		●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9604-0010		●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	0011-0405		●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0406-0504	●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0505-1012	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	1101-	●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9604-0010		●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0011-0405		●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0406-	●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9604-0010		●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0011-0405		●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0406-	●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9604-0010		●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0011-0405		●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0406-0502	●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-	●	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9604-0010		●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0011-0405		●	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0406-	●	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9604-0405		●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0011-0405				●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0406-	●	●	●
56	JET; OIL,PISTON COOLING AUSTRALIA EQUIPMENT(RR3)	8-94395-194-0	06	1	9604-9608		●
56	JET; OIL,PISTON COOLING EXC. AUSTRALIA EQUIPMENT(RR3)	8-94399-187-0	06	1	9604-9608		●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9604-9608			●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9609-9904		●	●
56	JET; OIL,PISTON COOLING EXC. EURO2 SPECIFICATION<THN>	8-94399-187-1	06	1	9905-		●
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	9905-			●
56	JET; OIL,PISTON COOLING EURO2 SPECIFICATION<THN>	8-94395-194-0	06	1	9905-0010		●
56	JET; OIL,PISTON COOLING EURO2 SPECIFICATION<THN>	8-94395-194-0	06	1	0011-0405		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0011-0405				●
56	JET; OIL,PISTON COOLING EURO2 SPECIFICATION<THN>	8-94395-194-0	06	1	0406-0703		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0406-0703	●
56	JET; OIL,PISTON COOLING EURO2 SPECIFICATION<THN>	8-98020-649-0	06	1	0704-1007		●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007	●
56	JET; OIL,PISTON COOLING EURO2 SPECIFICATION<THN>	8-98173-342-0	06	1	1008-		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-	●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	9604-9906		●	●
81	PLUG; WATER JACKET EXC. EURO2 SPECIFICATION<THN> M14	8-94399-225-0	01	1	9907-0010		●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	9907-0010			●
81	PLUG; WATER JACKET EXC. EURO2 SPECIFICATION<THN> M14	8-94399-225-0	01	1	0011-0311		●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	0011-0311			●	●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	0312-0405		●	●	●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	0406-0703	●	●	●
81	PLUG; WATER JACKET M14X16.5	8-97329-617-0	01	1	0704-	●	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9604-0010		●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0011-0306		●	●	●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307		●	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-0405		●	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0406-	●	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9604-0010		●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0011-0405		●	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0406-0908	●	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-	●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9604-0009		●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0010-0405		●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0406-	●	●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0406-	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9604-0010		●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0011-0405		●	●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0406-0704		●	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	0705-1108		●	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	1109-	●	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	0005-0010		●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	0011-0405		●	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0406-0812	●	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-	●	●	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9604-0010		●	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0011-0405		●	●	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0406-1012	●	●	●
162	HOSE; WATER DRAIN,C/BL L=290 SERVICED BY L=3000	0-03559-300-0	01	1	0406-1012	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9604-0010		●	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	0011-0206		●	●	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-0405		●	●	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0406-1012		●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9604-0010		●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0011-0405		●	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0406-0905	●	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-	●	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9604-0010		●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0011-0405		●	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0406-	●	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9604-0010		●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0011-0306		●	●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-0405		●	●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0406-	●	●	●
231	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M10X46.5 L=58.5	8-97066-386-1	02	1	9905-0010		●
231	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M10X46.5 L=58.5	8-97066-386-1	02	1	0011-0301		●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97066-386-1	02	1	0011-0301				●
231	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M10X46.5 L=58.5	8-97363-237-0	02	1	0302-0405		●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97363-237-0	02	1	0302-0405				●
231	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M10X46.5 L=58.5	8-97363-237-0	02	1	0406-		●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97363-237-0	02	1	0406-	●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9604-9904		●	●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	9905-0301		●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9905-0301			●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X25 L=40	0-49841-025-0	02	1	0302-0512		●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0512			●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X25 L=48.5	0-49241-025-0	02	1	0601-		●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9604-0010		●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0011-0405		●	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0406-0604	●	●	●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-	●	●	●
335	PLUG; C/BL,SIDE EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>,EURO2 SPECIFICATION<THN> (A) M8X6	8-94399-421-0	01	1	0406-0501		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0406-0501	●
335	PLUG; C/BL,SIDE EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>,EURO2 SPECIFICATION<THN> (A) M8X10	8-98003-416-0	01	1	0502-		●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9604-9904		●	●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	04	1	9905-9906		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9905-9906			●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9604-9609		●	●
335	PLUG; C/BL,SIDE EXC. KENYA EQUIPMENT(PQ2) (A) M8X6	8-94399-421-0	01	1	9610-9903		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9610-9903			●
335	PLUG; C/BL,SIDE EXC. KENYA EQUIPMENT(PQ2),EURO2 SPECIFICATION<THN> (A) M8X6	8-94399-421-0	01	1	9904-9904		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9904-9904			●
335	PLUG; C/BL,SIDE EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	05	1	9905-9906		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9907-0010		●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0011-0405		●	●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0406-0703		●	●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	0704-1108		●	●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	1109-	●	●	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9905-9906		●	●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (A) M8X6	8-94399-421-0	01	1	9907-0004		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9907-0004			●
335	PLUG; C/BL,SIDE EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>,EURO2 SPECIFICATION<THN> (A) M8X6	8-94399-421-0	01	1	0005-0405		●
335	PLUG; C/BL,SIDE EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M8X6	8-94399-421-0	01	1	0005-0405			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	03	1	0406-0703	●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	03	1	0704-	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9604-0010		●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0011-0405		●	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0406-0607	●	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-	●	●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9604-0010		●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0011-0405		●	●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0406-	●	●	●

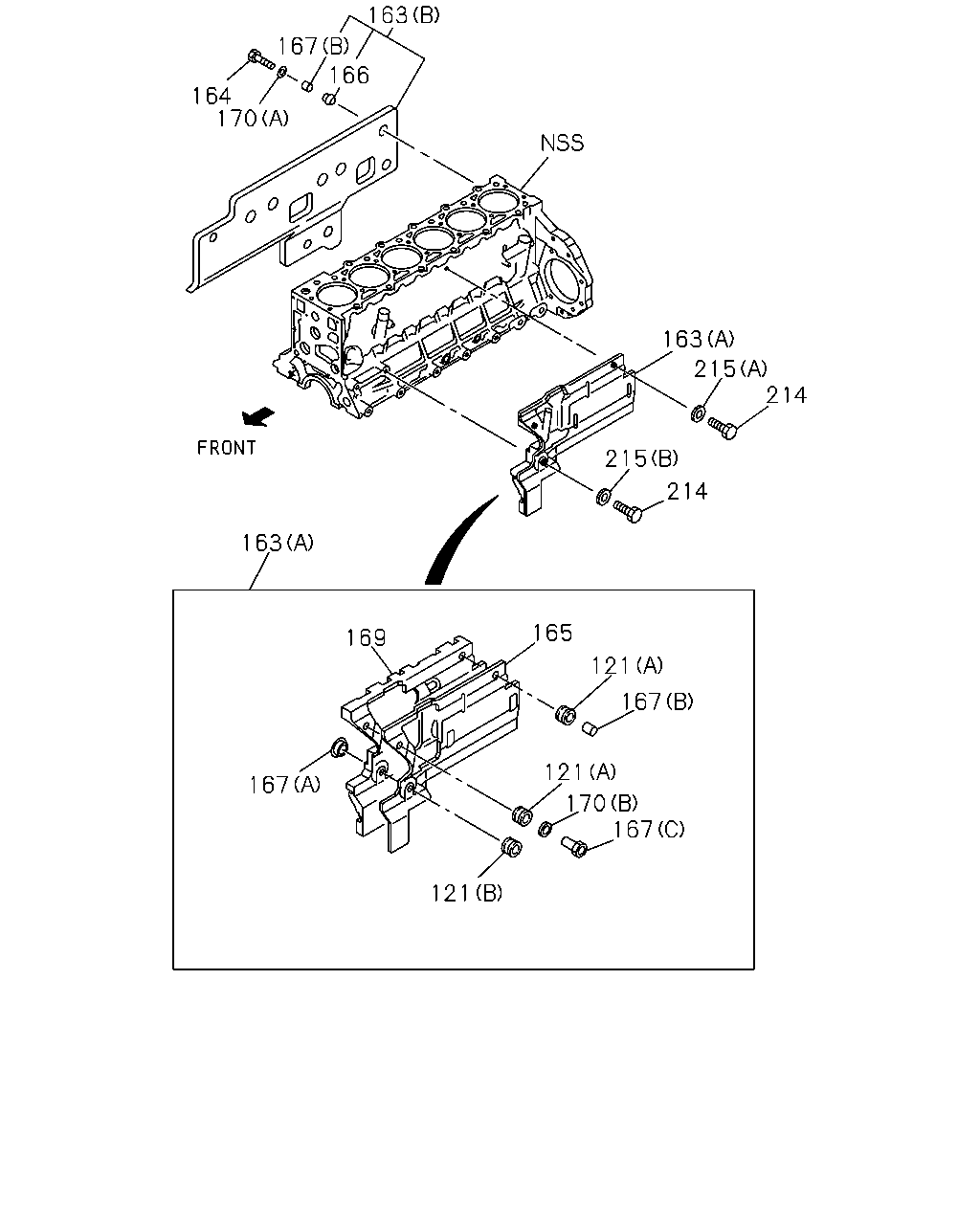

163 167 166 164 170 163 215 214 215 214 163 165 169 121 167 121 167 170 167 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	D
121	RUBBER; MTG,COVER AUSTRALIA EQUIPMENT(RR3) (A) OD=22	8-94140-428-1	02	1	9604-0004	●
121	RUBBER; MTG,COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) OD=22	8-94140-428-1	02	1	0005-	●
121	RUBBER; MTG,COVER AUSTRALIA EQUIPMENT(RR3) (B) OD=32	8-94396-221-0	01	1	9604-0004	●
121	RUBBER; MTG,COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) OD=32	8-94396-221-0	01	1	0005-	●
163	COVER ASM; C/BL SKIRT AUSTRALIA EQUIPMENT(RR3) (A)	8-94390-172-0	01	1	9604-0004	●
163	COVER ASM; C/BL SKIRT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94390-172-0	01	1	0005-	●
163	COVER ASM; C/BL SKIRT AUSTRALIA EQUIPMENT(RR3) (B)	8-94395-894-0	01	1	9604-0004	●
163	COVER ASM; C/BL SKIRT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B)	8-94395-894-0	01	1	0005-	●
163	COVER ASM; C/BL SKIRT (A)	8-97600-524-0	01	1	0011-0405		●
164	BOLT; COVER BLOCK SKIRT AUSTRALIA EQUIPMENT(RR3) M8X20	0-20800-820-0	04	1	9604-9610	●
164	BOLT; COVER BLOCK SKIRT AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28680-825-0	04	1	9611-0004	●
164	BOLT; COVER BLOCK SKIRT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●
164	BOLT; COVER BLOCK SKIRT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
165	COVER; C/BL SKIRT AUSTRALIA EQUIPMENT(RR3)	8-94395-694-1	01	1	9604-0004	●
165	COVER; C/BL SKIRT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94395-694-1	01	1	0005-	●
166	MOUNT; COVER BLOCK SKIRT AUSTRALIA EQUIPMENT(RR3) OD=22	8-94140-428-1	04	1	9604-0004	●
166	MOUNT; COVER BLOCK SKIRT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) OD=22	8-94140-428-1	04	1	0005-	●
167	TUBE; DIST,SIDE COVER AUSTRALIA EQUIPMENT(RR3) (B) OD=13 T=9.5	8-94140-427-1	05	1	9604-0004	●
167	TUBE; DIST,SIDE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) OD=13 T=9.5	8-94140-427-1	05	1	0005-	●
167	TUBE; DIST,SIDE COVER AUSTRALIA EQUIPMENT(RR3) (C) M10	8-94393-791-2	01	1	9604-0004	●
167	TUBE; DIST,SIDE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (C) M10	8-94393-791-2	01	1	0005-0010	●
167	TUBE; DIST,SIDE COVER (B) OD=13 T=9.5	8-94140-427-1	02	1	0011-0405		●
167	TUBE; DIST,SIDE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (C) M10	8-94393-791-2	01	1	0406-	●
167	TUBE; DIST,SIDE COVER AUSTRALIA EQUIPMENT(RR3) (A) OD=32 W/FLANGE	8-94397-356-1	01	1	9604-0004	●
167	TUBE; DIST,SIDE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) OD=32 W/FLANGE	8-94397-356-1	01	1	0005-	●
167	TUBE; DIST,SIDE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (C) M10	8-94393-791-2	01	1	0011-0405	●
167	TUBE; DIST,SIDE COVER (C) M10	8-94393-791-2	01	1	0011-0405		●
169	INSULATOR; SIDE COVER AUSTRALIA EQUIPMENT(RR3)	8-94390-173-0	01	1	9604-0004	●
169	INSULATOR; SIDE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94390-173-0	01	1	0005-	●
169	INSULATOR; SIDE COVER	8-97600-525-0	01	1	0011-0405		●
170	WASHER; COVER AUSTRALIA EQUIPMENT(RR3) (A) ID=8.4 OD=22	9-09160-708-0	04	1	9604-0004	●
170	WASHER; COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) ID=8.4 OD=22	9-09160-708-0	04	1	0005-0605	●
170	WASHER; COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) ID=8.4 OD=22	0-91610-708-0	04	1	0606-	●
170	WASHER; COVER AUSTRALIA EQUIPMENT(RR3) (B) ID=14 OD=22	9-47515-014-0	01	1	9604-0004	●
170	WASHER; COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) ID=14 OD=22	9-47515-014-0	01	1	0005-0010	●
170	WASHER; COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) ID=14 OD=22	9-47515-014-0	01	1	0011-0405	●
170	WASHER; COVER (B) ID=14 OD=22	9-47515-014-0	01	1	0011-0405		●
170	WASHER; COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) ID=14 OD=22	9-47515-014-0	01	1	0406-	●
214	BOLT; NOISE COVER AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE	0-28181-025-0	02	1	9604-0004	●
214	BOLT; NOISE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 FLANGE	0-28181-025-0	02	1	0005-0010	●
214	BOLT; NOISE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 FLANGE	0-28181-025-0	02	1	0011-0405	●
214	BOLT; NOISE COVER M10X25 FLANGE	0-28181-025-0	02	1	0011-0405		●
214	BOLT; NOISE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 FLANGE	0-28181-025-0	02	1	0406-0512	●
214	BOLT; NOISE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 FLANGE	0-28151-025-0	02	1	0601-	●
215	WASHER; PL,NOISE COVER AUSTRALIA EQUIPMENT(RR3) (A) ID=10.5 OD=22	9-09164-610-0	01	1	9604-0004	●
215	WASHER; PL,NOISE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) ID=10.5 OD=22	9-09164-610-0	01	1	0005-0605	●
215	WASHER; PL,NOISE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) ID=10.5 OD=22	0-91614-610-0	01	1	0606-	●
215	WASHER; PL,NOISE COVER AUSTRALIA EQUIPMENT(RR3) (B) ID=10.5 OD=32	9-09164-810-0	01	1	9604-0004	●
215	WASHER; PL,NOISE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) ID=10.5 OD=32	9-09164-810-0	01	1	0005-0605	●
215	WASHER; PL,NOISE COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●
215	WASHER; PL,NOISE COVER (A) ID=10.5 OD=22	9-09164-610-0	02	1	0011-0405		●

343 308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-3	06	1	0406-0706	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-246-6	06	1	0707-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-3	06	1	0406-0706	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-247-6	06	1	0707-	●
2	LINER SET; ENG CYL AUSTRALIA EQUIPMENT(RR3) GRADE=1X	1-87811-434-0	06	1	9604-9608		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-1	06	1	9609-9904		●	●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-665-9	06	1	9905-		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-9	06	1	9905-			●
2	LINER SET; ENG CYL AUSTRALIA EQUIPMENT(RR3) GRADE=3X	1-87811-435-0	06	1	9604-9608		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-1	06	1	9609-9904		●	●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-666-9	06	1	9905-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-9	06	1	9905-			●
2	LINER SET; ENG CYL EXC. AUSTRALIA EQUIPMENT(RR3) GRADE=1X	1-87811-436-0	06	1	9604-9608		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-436-0	06	1	9604-9608			●
2	LINER SET; ENG CYL EXC. AUSTRALIA EQUIPMENT(RR3) GRADE=3X	1-87811-437-0	06	1	9604-9608		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-437-0	06	1	9604-9608			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-917-1	06	1	9905-0010		●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-917-4	06	1	0011-0405		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-917-4	06	1	0011-0405				●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-917-8	06	1	0406-		●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-918-1	06	1	9905-0010		●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-918-4	06	1	0011-0405		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-918-4	06	1	0011-0405				●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-918-8	06	1	0406-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9604-0010		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0011-0405		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0406-	●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9604-0010		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0011-0405		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0406-	●	●	●
308	PROTECTOR; HEAT,HD COVER	8-98171-339-0	01	1	1006-1108		●	●
308	PROTECTOR; HEAT,HD COVER	8-98171-339-0	01	1	1109-	●	●	●
308	PROTECTOR; HEAT,HD COVER	8-94395-205-0	01	1	9604-9604		●	●
308	PROTECTOR; HEAT,HD COVER	8-94390-548-0	01	1	9605-9901		●	●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	9902-0010		●	●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	0011-0405		●	●	●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	0406-1005		●	●
308	PROTECTOR; HEAT,HD COVER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94391-759-2	01	1	1006-		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9604-0010		●	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	0011-0405		●	●	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	0406-0512		●	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	05	1	0601-1108		●	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	05	1	1109-	●	●	●

36 1 4 36 36 36 122 55 36 231 261 212 136 335 28 259 242 231 89 211 137 81 211 262 413 414 7 258 35 83 162 34 30 30 83 56 232 132 466 89 38 335 338 32 55 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-97602-024-2	01	1	0406-0504	●
1	BLOCK ASM; CYL	8-98005-410-2	01	1	0505-1012	●
1	BLOCK ASM; CYL	8-98180-708-0	01	1	1101-1209	●
1	BLOCK ASM; CYL	8-98206-963-0	01	1	1210-	●
1	BLOCK ASM; CYL	8-97600-415-0	01	1	0002-0010		●	●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0011-0405		●	●	●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0406-0504		●	●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0505-1012		●	●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1108		●	●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1109-1209	●	●	●
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-	●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9604-0010		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0011-0405		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0406-	●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9604-0010		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0011-0405		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0406-	●	●	●
7	PLUG; WATER DRAIN PT3/8	8-94397-338-0	01	1	1101-	●	●	●
28	COVER; OIL PORT	1-11219-163-0	01	1	9604-0010		●	●
28	COVER; OIL PORT	1-11219-163-0	01	1	0011-0405		●	●	●
28	COVER; OIL PORT	1-11219-163-0	01	1	0406-1108		●	●
28	COVER; OIL PORT	1-11219-163-0	01	1	1109-	●	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9604-0010		●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0011-0405		●	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0406-	●	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9604-0010		●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0011-0405		●	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0406-	●	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9604-0010		●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0011-0405		●	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0406-	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9604-0010		●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0011-0405		●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0406-	●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0505-1012		●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9604-0010		●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	0011-0405		●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0406-0504	●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0505-1012	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	1101-	●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9604-0010		●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0011-0405		●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0406-	●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9604-0010		●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0011-0405		●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0406-	●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9604-0010		●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0011-0405		●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0406-0502	●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-	●	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9604-0010		●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0011-0405		●	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0406-	●	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9604-0405		●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0011-0405				●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0406-	●	●	●
56	JET; OIL,PISTON COOLING AUSTRALIA EQUIPMENT(RR3)	8-94395-194-0	06	1	9604-9608		●
56	JET; OIL,PISTON COOLING EXC. AUSTRALIA EQUIPMENT(RR3)	8-94399-187-0	06	1	9604-9608		●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9604-9608			●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9609-9904		●	●
56	JET; OIL,PISTON COOLING EXC. EURO2 SPECIFICATION<THN>	8-94399-187-1	06	1	9905-		●
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	9905-			●
56	JET; OIL,PISTON COOLING EURO2 SPECIFICATION<THN>	8-94395-194-0	06	1	9905-0010		●
56	JET; OIL,PISTON COOLING EURO2 SPECIFICATION<THN>	8-94395-194-0	06	1	0011-0405		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0011-0405				●
56	JET; OIL,PISTON COOLING EURO2 SPECIFICATION<THN>	8-94395-194-0	06	1	0406-0703		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0406-0703	●
56	JET; OIL,PISTON COOLING EURO2 SPECIFICATION<THN>	8-98020-649-0	06	1	0704-1007		●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007	●
56	JET; OIL,PISTON COOLING EURO2 SPECIFICATION<THN>	8-98173-342-0	06	1	1008-		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-	●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	9604-9906		●	●
81	PLUG; WATER JACKET EXC. EURO2 SPECIFICATION<THN> M14	8-94399-225-0	01	1	9907-0010		●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	9907-0010			●
81	PLUG; WATER JACKET EXC. EURO2 SPECIFICATION<THN> M14	8-94399-225-0	01	1	0011-0311		●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	0011-0311			●	●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	0312-0405		●	●	●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	0406-0703	●	●	●
81	PLUG; WATER JACKET M14X16.5	8-97329-617-0	01	1	0704-	●	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9604-0010		●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0011-0306		●	●	●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307		●	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-0405		●	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0406-	●	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9604-0010		●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0011-0405		●	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0406-0908	●	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-	●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9604-0009		●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0010-0405		●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0406-	●	●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0406-	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9604-0010		●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0011-0405		●	●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0406-0704		●	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	0705-1108		●	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	1109-	●	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	0005-0010		●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	0011-0405		●	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0406-0812	●	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-	●	●	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9604-0010		●	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0011-0405		●	●	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0406-1012	●	●	●
162	HOSE; WATER DRAIN,C/BL L=290 SERVICED BY L=3000	0-03559-300-0	01	1	0406-1012	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9604-0010		●	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	0011-0206		●	●	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-0405		●	●	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0406-1012		●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9604-0010		●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0011-0405		●	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0406-0905	●	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-	●	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9604-0010		●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0011-0405		●	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0406-	●	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9604-0010		●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0011-0306		●	●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-0405		●	●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0406-	●	●	●
231	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M10X46.5 L=58.5	8-97066-386-1	02	1	9905-0010		●
231	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M10X46.5 L=58.5	8-97066-386-1	02	1	0011-0301		●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97066-386-1	02	1	0011-0301				●
231	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M10X46.5 L=58.5	8-97363-237-0	02	1	0302-0405		●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97363-237-0	02	1	0302-0405				●
231	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M10X46.5 L=58.5	8-97363-237-0	02	1	0406-		●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97363-237-0	02	1	0406-	●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9604-9904		●	●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	9905-0301		●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9905-0301			●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X25 L=40	0-49841-025-0	02	1	0302-0512		●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0512			●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X25 L=48.5	0-49241-025-0	02	1	0601-		●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9604-0010		●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0011-0405		●	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0406-0604	●	●	●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-	●	●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9604-0010		●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	0011-0405		●	●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	0406-0512		●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28050-816-0	02	1	0601-1108		●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28050-816-0	02	1	1109-	●	●	●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0505-0507		●	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0505-0507		●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9604-0010		●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0011-0307		●	●	●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0505-0507		●	●
335	PLUG; C/BL,SIDE EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>,EURO2 SPECIFICATION<THN> (A) M8X6	8-94399-421-0	01	1	0406-0501		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0406-0501	●
335	PLUG; C/BL,SIDE EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>,EURO2 SPECIFICATION<THN> (A) M8X10	8-98003-416-0	01	1	0502-		●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9604-9904		●	●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	04	1	9905-9906		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9905-9906			●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9604-9609		●	●
335	PLUG; C/BL,SIDE EXC. KENYA EQUIPMENT(PQ2) (A) M8X6	8-94399-421-0	01	1	9610-9903		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9610-9903			●
335	PLUG; C/BL,SIDE EXC. KENYA EQUIPMENT(PQ2),EURO2 SPECIFICATION<THN> (A) M8X6	8-94399-421-0	01	1	9904-9904		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9904-9904			●
335	PLUG; C/BL,SIDE EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	05	1	9905-9906		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9907-0010		●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0011-0405		●	●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0406-0703		●	●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	0704-1108		●	●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	1109-	●	●	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9905-9906		●	●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (A) M8X6	8-94399-421-0	01	1	9907-0004		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9907-0004			●
335	PLUG; C/BL,SIDE EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>,EURO2 SPECIFICATION<THN> (A) M8X6	8-94399-421-0	01	1	0005-0405		●
335	PLUG; C/BL,SIDE EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M8X6	8-94399-421-0	01	1	0005-0405			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	03	1	0406-0703	●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	03	1	0704-	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9604-0010		●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0011-0405		●	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0406-0607	●	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-	●	●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9604-0010		●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0011-0405		●	●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0406-	●	●	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0505-0507		●	●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0505-0507		●	●
466	STUD; FUEL FILTER BRKT EURO2 SPECIFICATION<THN> M8X20 L=32	1-09305-005-0	01	1	9905-0010		●
466	STUD; FUEL FILTER BRKT EURO2 SPECIFICATION<THN> M8X20 L=32	1-09305-005-0	01	1	0011-0405		●
466	STUD; FUEL FILTER BRKT M8X20 L=32	1-09305-005-0	01	1	0011-0405				●
466	STUD; FUEL FILTER BRKT EURO2 SPECIFICATION<THN> M8X20 L=32	1-09305-005-0	01	1	0406-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
