◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#36713) — 194 parça
çizim 152405
274 271 268 209 285 281 280 283 282 284
BalonParca AdiParca NoAdetTipApplied Date A B C
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 9510-0708 ● ● ●
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709- ● ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9510-0604 ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ●
268 SCREW; CLIP
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9510- ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 9510-0708 ● ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709- ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9510-0604 ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ●
274 SCREW; CLIP
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9510- ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-3 01 1 9510- ● ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 9510- ● ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 		9-09110-510-0 04 1 9510-9606 ● ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9607-0602 ● ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 9510-0603 ● ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		0-91510-510-0 04 1 0604- ● ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER 		0-50041-020-0 04 1 9510-9606 ● ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 9607-0512 ● ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 0601- ● ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 		9-09110-510-0 04 1 9510-9606 ● ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9607-0602 ● ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
çizim 152407
156 141 141 143 141 144 157 157 153 149 159 158 162 162 161 160 163 163 163 163 167 166 169
BalonParca AdiParca NoAdetTipApplied Date A B C
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9510-1501 ● ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		8-98257-407-0 01 1 1502- ● ● ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9510-0004 ● ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9510-0004 ● ● ●
143 GUIDE; BOOT,TIE ROD END
FRONT AXLE F063(FS7) 		1-85229-013-0 01 1 0005- ● ●
144 BASE; BOOT GUIDE,TIE ROD END
FRONT AXLE F063(FS7) 		1-85229-009-0 01 1 0005- ● ●
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 9510-9802 ● ●
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 9803-0004 ● ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0005- ● ● ●
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 9510- ● ● ●
157 REPLACER KIT; RETURN SPR
(A) ID=16 		1-85237-002-0 01 1 9510-0004 ● ● ●
157 REPLACER KIT; RETURN SPR
(B) 		9-85231-554-0 01 1 9510-0211 ● ● ●
157 REPLACER KIT; RETURN SPR
(B) 		9-85231-554-0 01 1 0212- ● ●
157 REPLACER KIT; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		9-85231-554-0 01 1 0212- ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9510-0211 ● ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0212- ● ●
158 SETTING TOOL; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-85221-231-0 01 1 0212- ●
159 REMOVER; RETURN SPR
ID=12.5 		9-85231-555-0 01 1 9510-0211 ● ● ●
159 REMOVER; RETURN SPR
ID=12.5 		9-85231-555-0 01 1 0212- ● ●
159 REMOVER; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.5 		9-85231-555-0 01 1 0212- ●
160 REMOVER; NEEDLE BRG
FRONT AXLE F063(FS7) L=220 		1-85238-001-0 01 1 0005- ● ●
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 9510-0004 ● ● ●
160 REMOVER; NEEDLE BRG
FRONT AXLE F049(FS4) L=228 		1-85238-010-0 01 1 0005- ● ●
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 0005- ●
161 REMOVER; TIE ROD ARM
FRONT AXLE F063(FS7) 		1-85176-001-0 01 1 0005- ● ●
161 REMOVER; TIE ROD ARM 9-85141-603-0 01 1 9510-0004 ● ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=181 		1-85238-008-0 01 1 9510- ● ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=213 		1-85238-009-0 01 1 9510- ● ● ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) L=195 		1-85221-162-1 01 1 0005- ● ● ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (D) L=150 		1-85221-163-0 01 1 0005- ● ● ●
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 9510-0004 ● ● ●
163 TOOL; SETTING
(D) L=150 		1-85221-163-0 01 1 9510-0004 ● ● ●
163 TOOL; SETTING
(A) OD=120 		1-85221-164-0 01 1 9510-0004 ● ● ●
163 TOOL; SETTING
(B) L=150 		9-85221-248-0 01 1 9510-0004 ● ● ●
163 TOOL; SETTING
(C) L=350 		9-85221-310-0 01 1 9510-0004 ● ● ●
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 9510-9510 ● ●
166 ALIGNER; CLU RELEASE LEVER
ISUZU M/T<X9A> L=480 		1-85253-011-0 01 1 9510-9510 ●
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 9511-9607 ● ●
166 ALIGNER; CLU RELEASE LEVER
15" CLUTCH(RE9),14" CLUTCH(WF6) L=480 		1-85253-011-0 01 1 9511-9607 ●
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 9608-0004 ● ●
166 ALIGNER; CLU RELEASE LEVER
15" CLUTCH(RE9),14" CLUTCH(WF6) ISUZU M/T<X9A> L=480 		1-85253-011-0 01 1 9608-0004 ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 9510-9607 ● ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 9608-9802 ● ●
167 ALIGNER; CLU PILOT
ISUZU M/T<X9A> L=185 		1-85253-012-0 01 1 9608-9802 ●
167 ALIGNER; CLU PILOT
15" CLUTCH(RE9) ISUZU M/T<X9A> L=185 		1-85253-012-0 01 1 9803-0601 ●
167 ALIGNER; CLU PILOT
6HE1 TC ENG(57L) 15" CLUTCH(RE9) ISUZU M/T<X9A> L=185 		1-85253-012-0 01 1 0602-0607 ●
167 ALIGNER; CLU PILOT
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) 15" CLUTCH(RE9) ISUZU M/T<X9A> L=185 		1-85253-012-0 01 1 0608- ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 9803- ● ●
167 ALIGNER; CLU PILOT
14" CLUTCH(WF6) ISUZU M/T<X9A> L=185 		1-85253-008-0 01 1 9803- ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9510-0004 ● ● ●

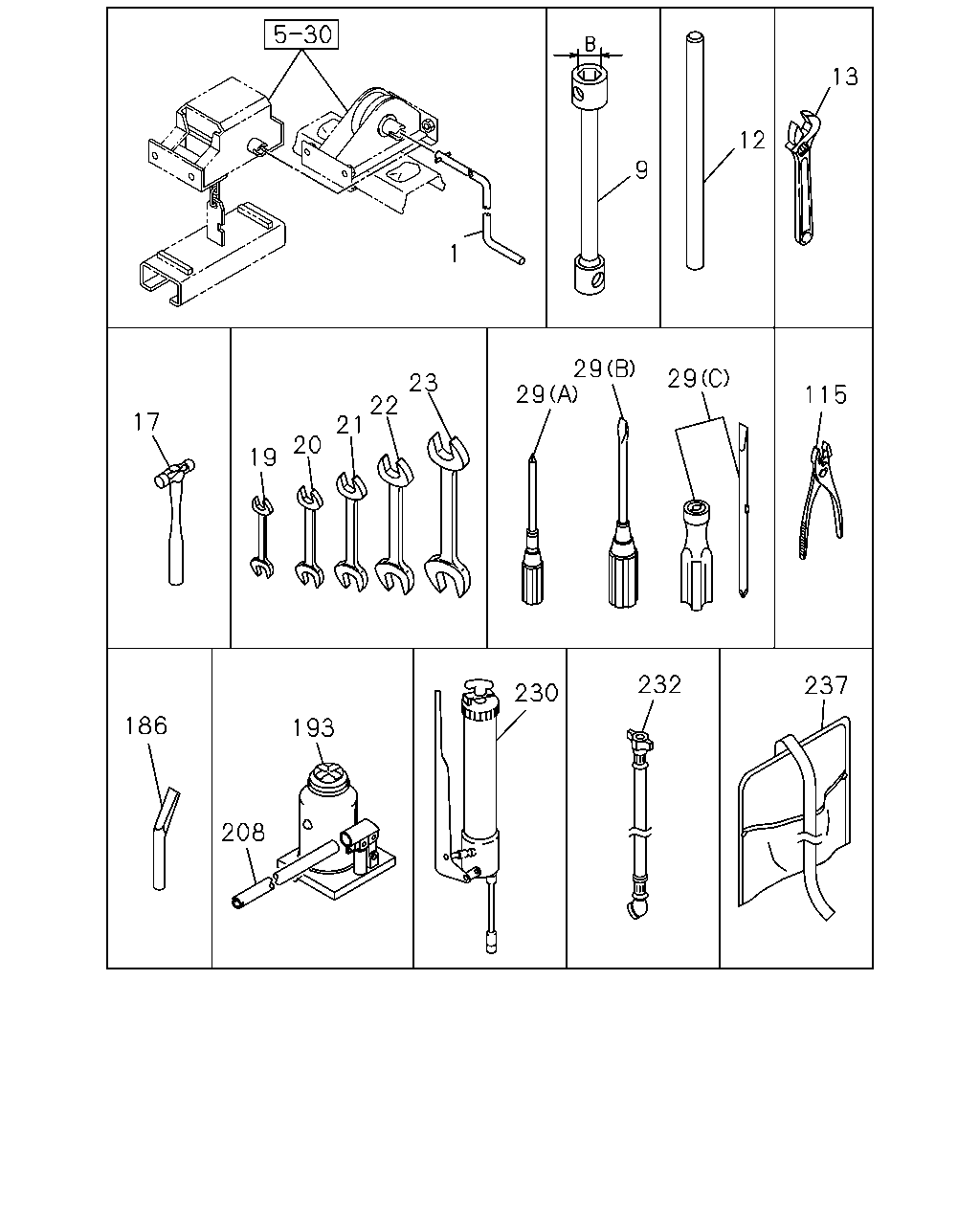

çizim 152408
13 12 9 1 29 29 23 22 21 29 115 17 20 19 232 237 230 186 193 208
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 9510- ● ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD22.5X7.50 162-12(Q87) B=33X30 L=450 		1-85111-033-1 01 1 9510-1601 ● ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD22.5X7.50 162-12(Q87) B=33X30 L=450 		8-98316-700-0 01 1 1602- ● ● ●
9 WRENCH; WHEEL PIN
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440 		1-85113-015-1 01 1 9510-1601 ● ● ●
9 WRENCH; WHEEL PIN
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=445 		8-98316-703-0 01 1 1602- ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9510-1501 ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502- ● ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9510-0208 ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0209-0211 ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0212-1407 ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408- ● ● ●
17 HAMMER 9-85121-406-0 01 1 9510-0208 ● ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0209- ● ● ●
19 WRENCH; 7X8
8X10 		9-99592-108-0 01 1 9510-9602 ● ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9510-0208 ● ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0209-0607 ● ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0608- ● ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9510-0208 ● ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0209-0607 ● ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0608- ● ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9510-0208 ● ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0209-0607 ● ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0608- ● ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9510-0208 ● ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0209-0607 ● ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0608- ● ● ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 9510-0208 ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=285 		1-85151-004-0 01 1 0209-0611 ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=275 		8-98061-105-0 01 1 0612- ● ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9510- ● ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 9510-0208 ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=190 		9-09595-522-0 01 1 0209- ● ● ●
115 PLIER 5-85171-001-0 01 1 9510-9602 ● ● ●
115 PLIER 5-85171-002-0 01 1 9603-0208 ● ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0209-1410 ● ● ●
115 PLIER
TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411- ● ● ●
186 ADJUSTER; BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47165-066-0 01 1 9510-0211 ● ● ●
186 ADJUSTER; BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TOOL A KIT<SK9>,TOOL B KIT<SL1> 		1-47165-066-0 01 1 0212- ● ● ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 10TON 		1-85510-025-0 01 1 0306-0504 ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 9510-0305 ● ● ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON 		1-85510-013-1 01 1 0306-0504 ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 0306-0504 ●
193 JACK ASM
10TON 		8-97607-599-0 01 1 0505- ● ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9510-0105 ● ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-1107 ● ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108- ● ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9510-0208 ● ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0209- ● ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 9510-0004 ● ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 0005- ● ●
237 BAG; TOOL 8-97130-902-1 01 1 9510- ● ● ●

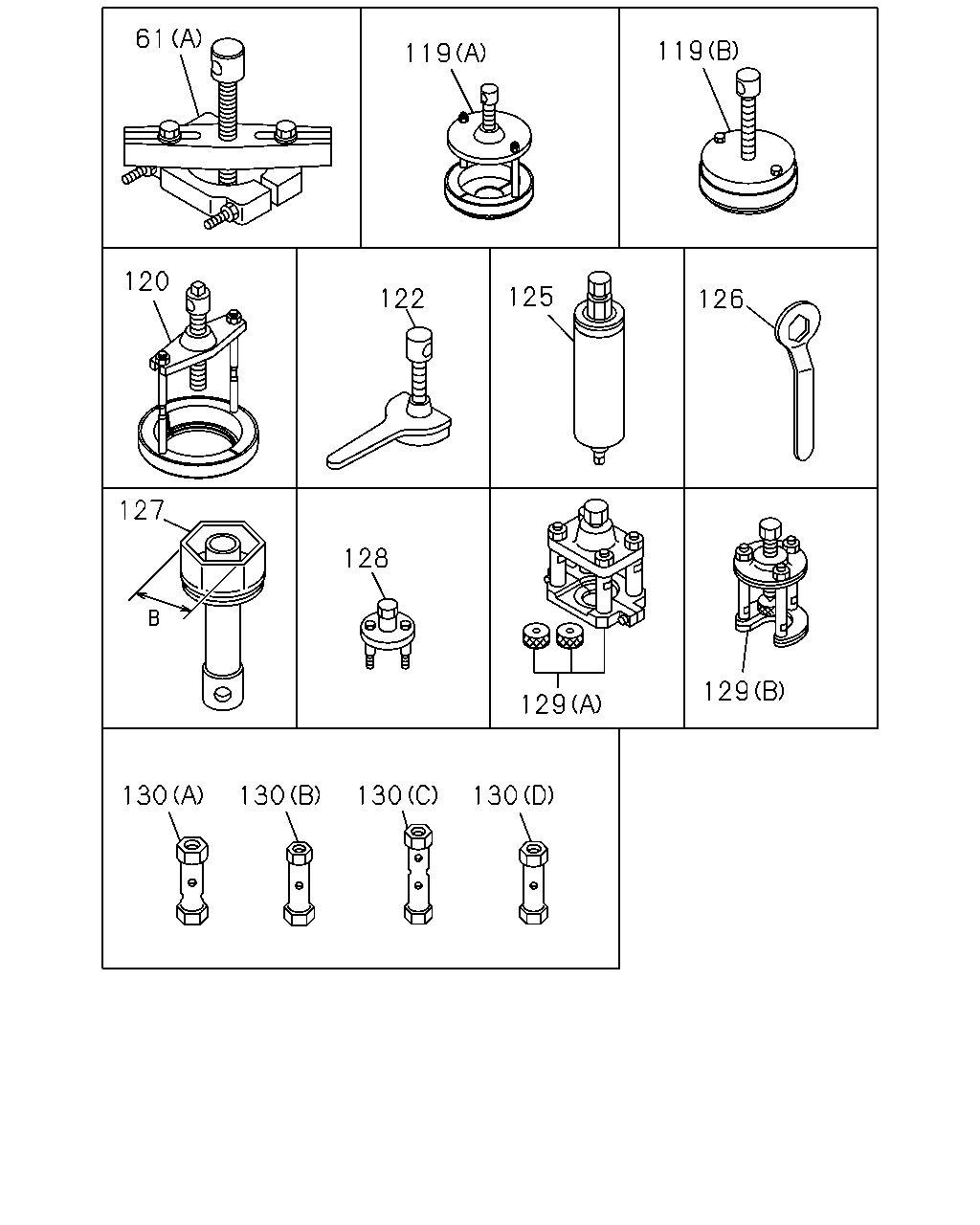

çizim 152413
61 119 119 120 125 122 126 127 128 129 129 130 130 130 130
BalonParca AdiParca NoAdetTipApplied Date A B C
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9510- ● ● ●
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9803-0004 ● ● ●
119 PULLER ASM; TOP GEAR BRG
(A) 		9-85210-185-0 01 1 9510-0004 ● ● ●
119 PULLER ASM; TOP GEAR BRG
(B) 		9-85210-186-0 01 1 9510-0004 ● ● ●
120 PULLER ASM; MAIN REAR BRG 9-85210-192-0 01 1 9510-0004 ● ● ●
122 PULLER ASM; COUNTER FRT 9-85210-129-1 01 1 9510-0004 ● ● ●
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 9510-0004 ● ● ●
126 WRENCH; FRT HUB BRG NUT
FRONT AXLE F063(FS7) L=350 B=75 		1-85110-002-1 01 1 0005- ● ●
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 9510-0004 ● ● ●
127 WRENCH ASM; HUB BRG NUT
B=98 L=305 		9-85113-533-2 01 1 9510- ● ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9510- ● ● ●
129 PULLER ASM; PITMAN ARM
FRONT AXLE F063(FS7) (B) 		1-85210-011-0 01 1 9803- ● ●
129 PULLER ASM; PITMAN ARM
(A) 		9-85210-147-0 02 1 9510-9802 ● ● ●
129 PULLER ASM; PITMAN ARM
EXC. FRONT AXLE F063(FS7) (A) 		9-85210-147-0 01 1 9803-0004 ● ●
129 PULLER ASM; PITMAN ARM
(A) 		9-85210-147-0 01 1 9803-0004 ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9510-0004 ● ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9510-0004 ● ● ●
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 9510-0004 ● ● ●
130 WRENCH; BOX
(C) B=41 & 46 L=165 		9-85113-401-0 01 1 9510-0004 ● ● ●

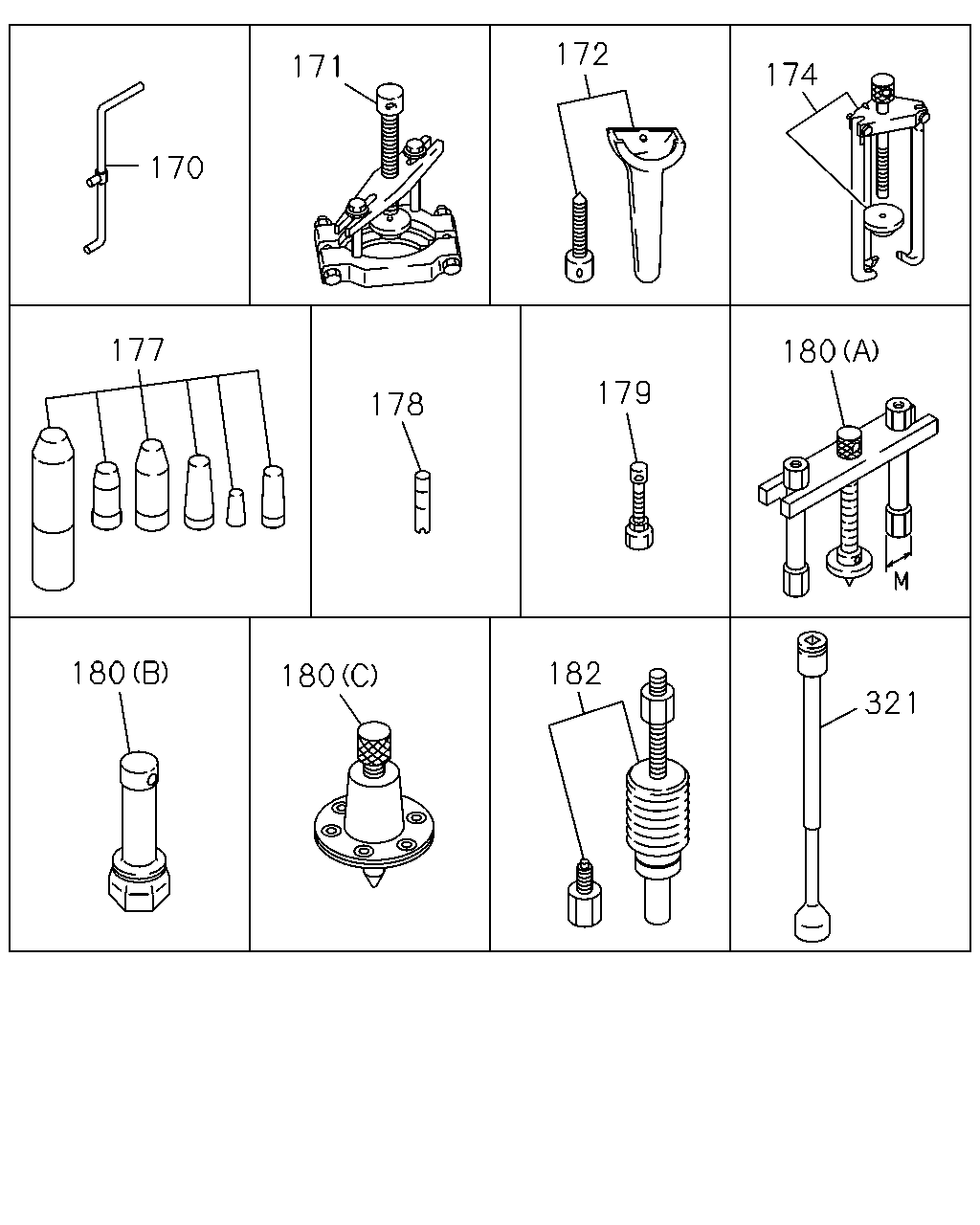

çizim 152414
172 171 174 170 177 180 179 178 180 182 180 321
BalonParca AdiParca NoAdetTipApplied Date A B C
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9510-0004 ● ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9510-0004 ● ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9510-0004 ● ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9510- ● ● ●
177 SETTING TOOL KIT 9-85220-040-0 01 1 9510-0004 ● ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9510- ● ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9510-0004 ● ● ●
180 PULLER; FRT & RR HUB
(B) L=260 B=90 		9-85113-534-0 01 1 9510-0004 ● ●
180 PULLER; FRT & RR HUB
(C) 		1-85210-002-0 01 1 9510-0004 ● ● ●
180 PULLER; FRT & RR HUB
(A) M20 		9-85210-187-0 01 1 9510-0004 ● ● ●
182 REMOVER ASM 9-85210-095-0 01 1 9510-0004 ● ● ●
321 SOCKET; PROP SHAFT
L=300 		1-85115-024-0 01 1 9510-9802 ● ●
321 SOCKET; PROP SHAFT
L=300 		1-85115-024-0 01 1 9803-0004 ● ● ●

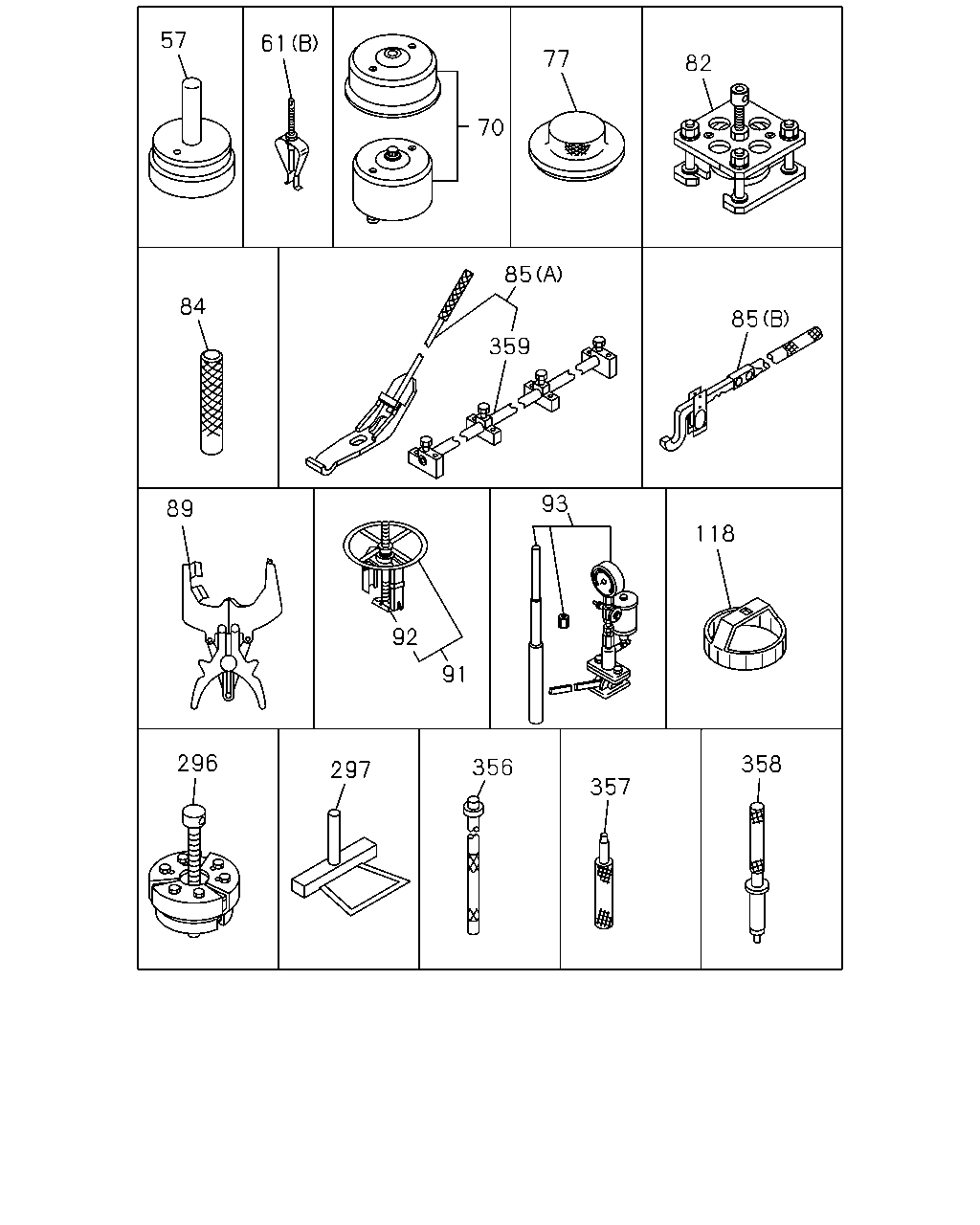

çizim 152468
57 61 77 82 70 85 84 85 359 93 89 118 92 91 296 358 356 297 357
BalonParca AdiParca NoAdetTipApplied Date A B C
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 9510-0004 ● ● ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9510- ● ● ●
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9803-0004 ● ● ●
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 9510-0004 ● ● ●
77 TOOL; SETTING,CYL LINER
6HE1 TC ENG(57L) 		8-94396-816-0 01 1 9511-9609 ●
77 TOOL; SETTING,CYL LINER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-816-0 01 1 9610-0510 ●
77 TOOL; SETTING,CYL LINER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 		8-94396-816-0 01 1 0511- ●
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 9510-0004 ● ● ●
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 9510-0004 ● ● ●
84 REPLACER; VALVE SEAL
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		8-94396-815-0 01 1 0005- ● ●
85 REPLACER ASM; VALVE SPR
6HH1 STD 4VALVE ENG(1A6) (B) 		8-94391-528-0 01 1 0005-0602 ● ●
85 REPLACER ASM; VALVE SPR
(B) 		8-94391-528-0 01 1 0005-0602 ●
85 REPLACER ASM; VALVE SPR
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) (B) 		8-94391-528-0 01 1 0603- ● ●
85 REPLACER ASM; VALVE SPR
(B) 		8-94391-528-0 01 1 0603- ●
85 REPLACER ASM; VALVE SPR
(A) 		8-94396-861-0 01 1 9510-0004 ● ● ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 9510-0004 ● ● ●
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 9510-0004 ● ● ●
91 REPLACER ASM; CYL LINER
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		8-94396-849-0 01 1 0005- ● ●
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 9510-0004 ● ● ●
92 ANKLE; REPLACER,CYL LINER
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		8-94396-821-0 01 1 0005- ● ●
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9510-0004 ● ● ●
93 SETTING KIT; VALVE GUIDE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		1-85220-001-0 01 1 0005- ● ●
118 WRENCH; OIL FILTER 1-85221-097-0 01 1 9510-0004 ● ● ●
296 REPLACER; SLINGER 8-94396-858-0 01 1 9510-0004 ● ● ●
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 9510-0004 ● ● ●
356 TOOL; SETTING,OIL SEAL,CYL HEAD
6HK1 TCC ENG(81L) 		8-94391-527-0 01 1 0603- ●
357 REPLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) 		8-94391-555-0 01 1 0005-0602 ● ●
357 REPLACER; NOZZLE SLEEVE 8-94391-555-0 01 1 0005-0602 ●
357 REPLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) 		8-94391-555-0 01 1 0603- ● ●
357 REPLACER; NOZZLE SLEEVE 8-94391-555-0 01 1 0603- ●
358 PLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) 		8-94391-556-0 01 1 0005-0602 ● ●
358 PLACER; NOZZLE SLEEVE 8-94391-556-0 01 1 0005-0602 ●
358 PLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) 		8-94391-556-0 01 1 0603- ● ●
358 PLACER; NOZZLE SLEEVE 8-94391-556-0 01 1 0603- ●
359 PIVOT
6HH1 STD 4VALVE ENG(1A6) 		8-94396-862-0 01 1 0005-0602 ● ●
359 PIVOT 8-94396-862-0 01 1 0005-0602 ●
359 PIVOT
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) 		8-94396-862-0 01 1 0603- ● ●
359 PIVOT 8-94396-862-0 01 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
