◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#36711) — 57 parça

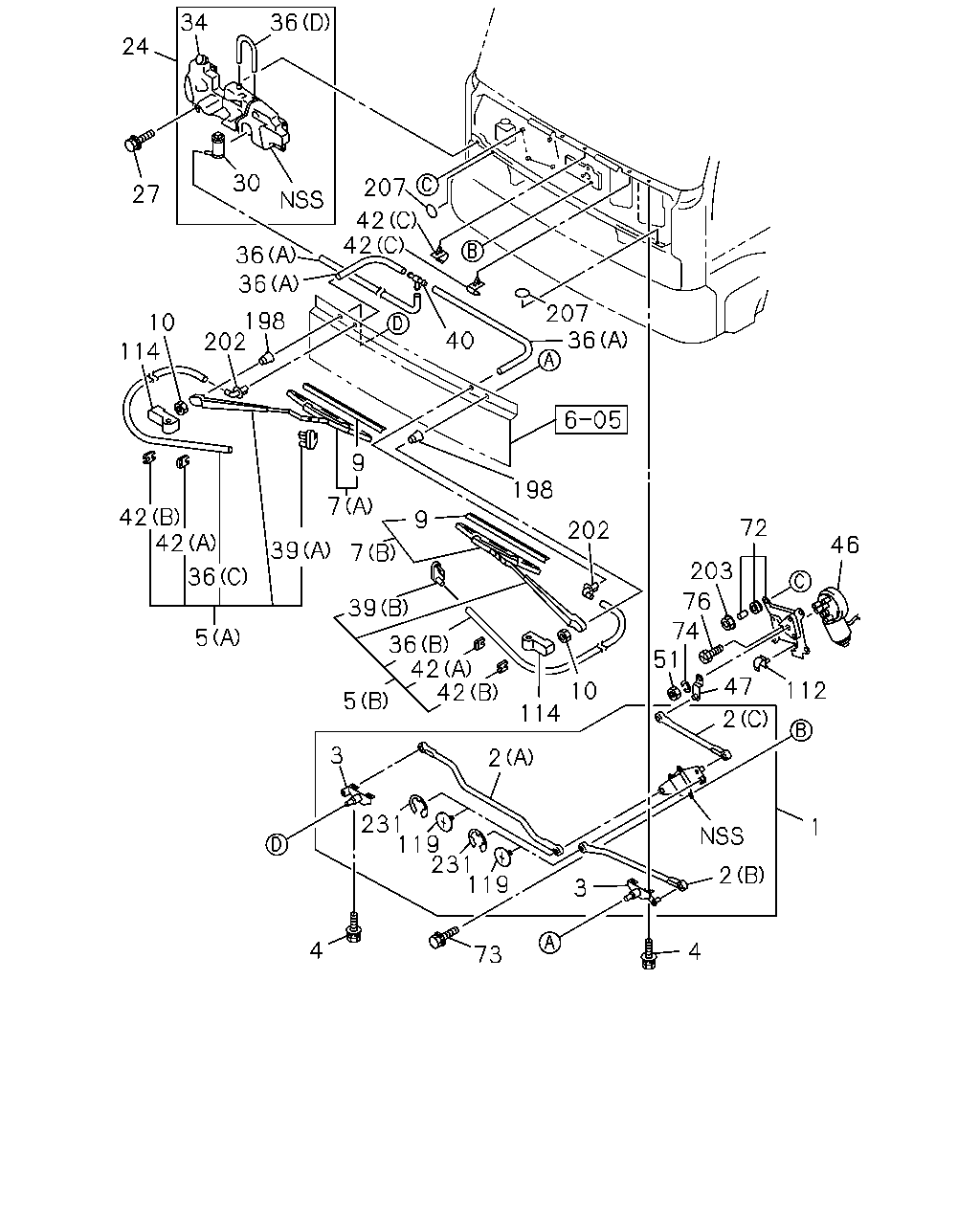

çizim 152420
34 36 24 30 207 27 42 42 36 36 207 36 198 202 10 114 40 9 198 7 42 42 9 72 202 46 39 7 203 36 76 74 51 39 5 36 42 42 47 112 10 5 114 2 3 2 231 119 231 119 1 2 3 4 4 73
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINK ASM; FRT WIPER 1-86810-002-6 01 1 9510-9705 ● ● ●
1 LINK ASM; FRT WIPER 1-83312-137-3 01 1 9706- ● ● ●
2 LINK; FRT WIPER
(A) 		1-86810-064-0 01 1 9510-9705 ● ● ●
2 LINK; FRT WIPER
(B) 		1-83312-142-2 01 1 9706- ● ● ●
2 LINK; FRT WIPER
(B) 		1-86810-065-0 01 1 9510-9705 ● ● ●
2 LINK; FRT WIPER
(A) 		1-83312-143-2 01 1 9706- ● ● ●
2 LINK; FRT WIPER
(C) 		1-86810-066-2 01 1 9510- ● ● ●
3 PIVOT ASM; FRT WIPER 1-86810-067-2 02 1 9510- ● ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0904 ● ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ● ●
5 ARM; WIPER
(B) 		1-86810-143-0 01 1 9510-0205 ● ● ●
5 ARM; WIPER
(B) 		1-83315-087-0 01 1 0206- ● ● ●
5 ARM; WIPER
(A) 		1-86810-142-0 01 1 9510-0205 ● ● ●
5 ARM; WIPER
(A) 		1-83315-089-0 01 1 0206- ● ● ●
7 BLADE; WIPER
(A),(B) BEST VALUE PARTS 		5-87610-035-0 02 1 9510- ● ● ●
7 BLADE; WIPER
(B) 		1-86810-020-0 01 1 9510-9703 ● ● ●
7 BLADE; WIPER
(B) 		1-83315-046-2 01 1 9704- ● ● ●
7 BLADE; WIPER
(A) 		1-86810-019-0 01 1 9510-9703 ● ● ●
7 BLADE; WIPER
(A) 		1-83315-045-2 01 1 9704- ● ● ●
9 RUBBER; FRT WIPER BLADE
L=550 		1-86810-033-0 02 1 9510-9703 ● ● ●
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 9704- ● ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 9510- ● ● ●
24 TANK ASM; WASHER 1-86815-013-7 01 1 9510- ● ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9510- ● ● ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 9510- ● ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 9510- ● ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 9510- ● ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 9510- ● ● ●
36 HOSE; WASHER
(B) L=660 		1-86810-037-0 01 1 9510- ● ● ●
36 HOSE; WASHER
(C) L=680 		1-86810-036-0 01 1 9510-0011 ● ● ●
36 HOSE; WASHER
(C) L=670 		1-86810-147-0 01 1 0012- ● ● ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-86810-040-0 01 1 9510-0205 ● ● ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-83315-085-0 01 1 0206- ● ● ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-86810-041-0 01 1 9510-0205 ● ● ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-83315-086-0 01 1 0206- ● ● ●
40 JOINT; WASHER HOSE
3WAY 		1-83338-005-0 01 1 9510- ● ● ●
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 9510- ● ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 9510- ● ● ●
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 9510- ● ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-059-2 01 1 9510- ● ● ●
47 ARM; CRANK,WIPER MOTOR 1-86810-060-0 01 1 9510- ● ● ●
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 9510- ● ● ●
72 BRACKET; WIPER MOTOR 1-86810-056-0 01 1 9510- ● ● ●
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-0904 ● ● ●
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ● ●
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 9510- ● ● ●
76 SCREW; BRKT TO WIPER MOTOR
M6X14 W/WASHER 		1-86810-062-0 03 1 9510-9802 ● ● ●
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 9803- ● ● ●
112 CLIP; HARNESS,WIPER MOTOR 1-86810-061-0 01 1 9510- ● ● ●
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 9510- ● ● ●
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 9706-0805 ● ● ●
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 9510- ● ● ●
202 GROMMET; WIPER 1-86815-003-2 02 1 9510- ● ● ●
203 NUT; WIPER MOTOR
M8 FLANGE 		8-94279-517-0 04 1 9510-9611 ● ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9612- ● ● ●
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9510- ● ● ●
231 RING; STOPPER 8-98120-195-0 02 1 0806- ● ● ●
