Sayfa 8-75 - Isuzu EPC

8-75 — CONDENSER (#36710) — 361 parça

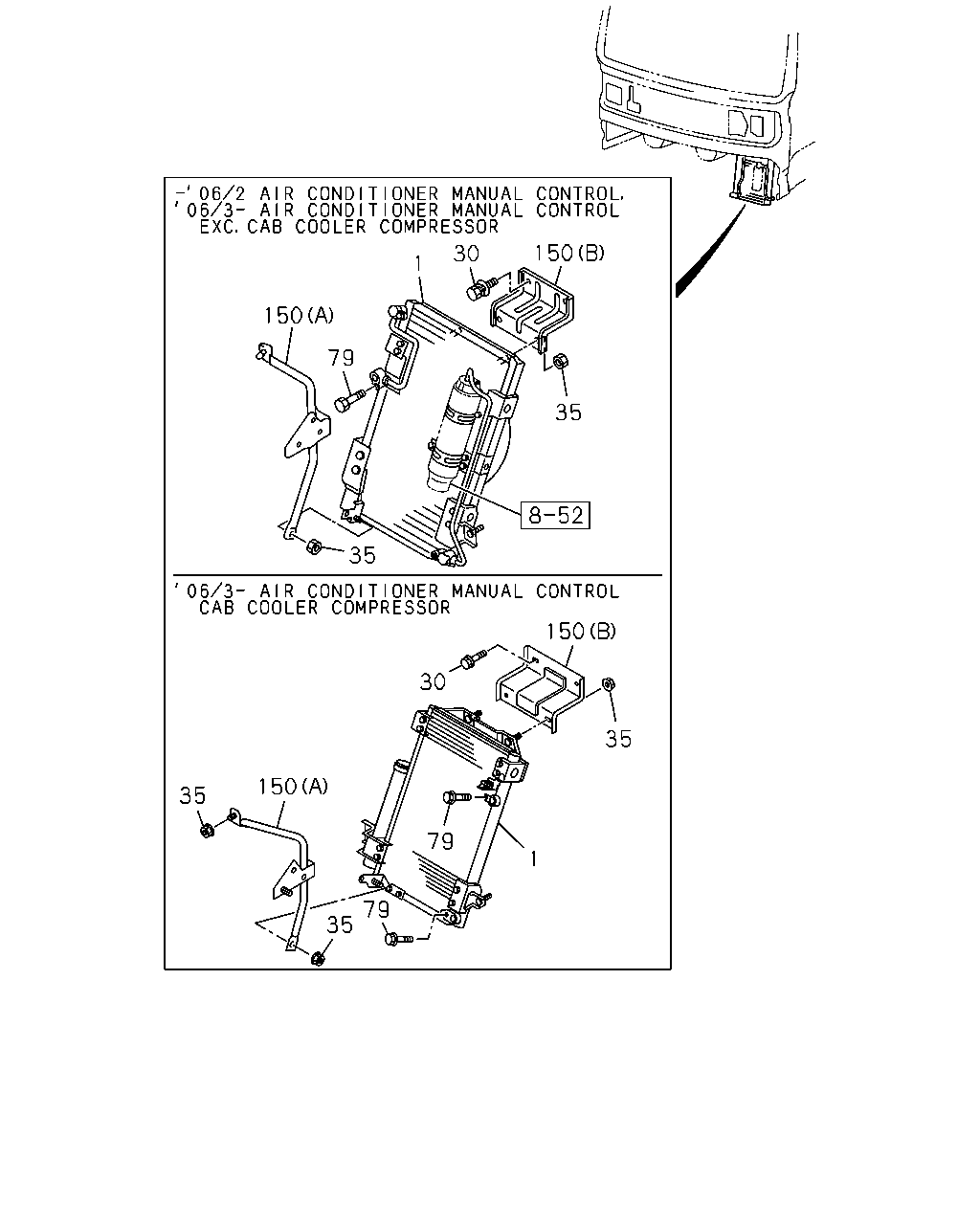

150 30 1 150 79 35 35 150 30 35 150 35 79 1 79 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83534-250-3	01	1	0603-	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9803-0209	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0210-0210	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0211-0602	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0603-		●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83534-211-2	01	1	0603-	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9803-0210	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0211-0904	●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	9803-0210	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	0211-0602	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> M6X25 FLANGE	0-28050-625-0	02	1	0603-	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	9803-0210	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0211-0602	●	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0603-		●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> M8X35	8-97103-452-0	01	1	0603-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83571-986-0	01	1	0603-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (A)	1-83573-099-2	01	1	0603-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-786-1	01	1	9803-0210	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-786-1	01	1	0211-0602	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-786-1	01	1	0603-		●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (B)	1-83571-786-1	01	1	0603-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-067-0	01	1	9803-9803	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-785-2	01	1	9804-0210	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-785-2	01	1	0211-0602	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-785-2	01	1	0603-		●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (A)	1-83571-785-2	01	1	0603-	●

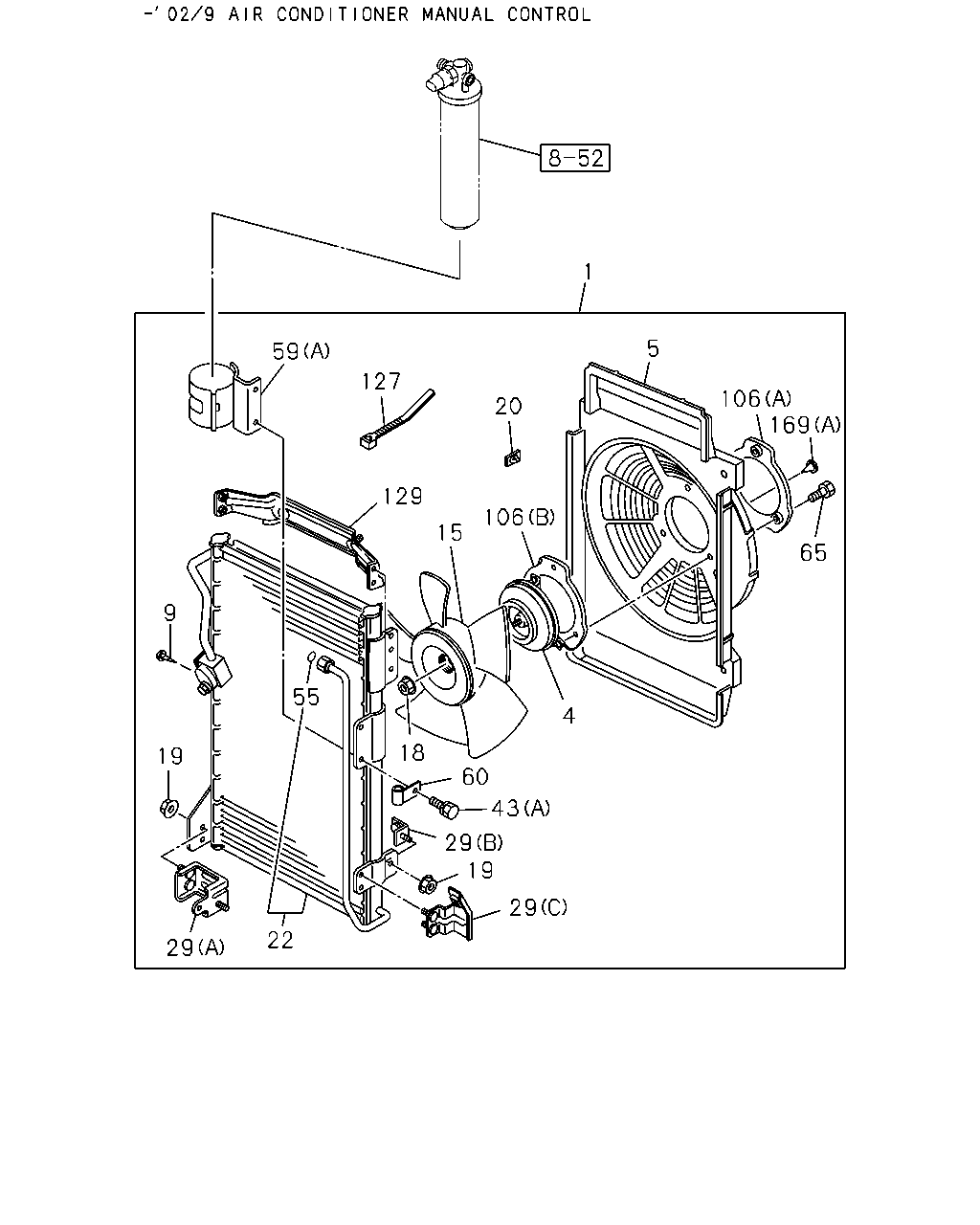

1 5 59 127 106 169 20 129 106 15 65 9 55 4 18 19 60 43 29 19 29 22 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83534-250-3	01	1	0603-	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9803-0209	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0210-0210	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0211-0602	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0603-		●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83534-211-2	01	1	0603-	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83561-139-3	01	1	0603-0703	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	8-98014-458-0	01	1	0704-	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	9803-0209	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0210-0210	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0211-0602	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0603-		●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83561-156-1	01	1	0603-	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83539-380-0	01	1	0603-	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	9803-0209	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0210-0210	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0211-0602	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0603-		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83539-343-0	01	1	0603-	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> M6X14	1-83539-382-0	04	1	0603-	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-374-0	01	1	0104-0209	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83561-140-0	01	1	0603-	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	9803-0209	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0210-0210	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0211-0602	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0603-		●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83561-158-0	01	1	0603-	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83539-313-0	01	1	0603-	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	9803-0210	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	0211-0602	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	0603-		●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	8-97018-672-0	01	1	0603-	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	11	1	9803-0209	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	02	1	0210-0210	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	02	1	0211-0602	●	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	02	1	0603-		●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83539-235-0	02	1	0603-	●
20	CLIP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94364-751-0	01	1	9803-0209	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83534-261-0	01	1	0603-1409	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	8-98275-189-0	01	1	1410-	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	9803-0209	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0210-0210	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0211-0602	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0603-		●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83534-224-0	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (E)	1-83573-278-0	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (F)	1-83573-279-0	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (G)	1-83573-280-0	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	9803-0210	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	0211-0602	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	0603-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (A)	1-83539-227-1	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	9803-0209	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	9803-0209	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83539-348-1	01	1	0210-0210	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83539-348-1	01	1	0211-0602	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83539-348-1	01	1	0603-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (D)	1-83539-348-1	01	1	0603-	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-975-0	02	1	0210-0210	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-975-0	02	1	0211-0602	●	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-975-0	02	1	0603-		●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (B)	1-83579-975-0	02	1	0603-	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 W/FLANGE	1-83539-260-0	06	1	9803-0209	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97018-671-0	03	1	0210-0210	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97018-671-0	03	1	0211-0602	●	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97018-671-0	03	1	0603-		●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (C)	8-97018-671-0	03	1	0603-	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	9803-0210	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	0211-0602	●	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	0603-		●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	8-97161-776-0	01	1	0603-	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-344-0	01	1	0210-0210	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-344-0	01	1	0211-0602	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-344-0	01	1	0603-		●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (B)	1-83539-344-0	01	1	0603-	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-346-0	01	1	0210-0210	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-346-0	01	1	0211-0602	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-346-0	01	1	0603-		●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (C)	1-83539-346-0	01	1	0603-	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-228-2	01	1	9803-0210	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-228-2	01	1	0211-0602	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-228-2	01	1	0603-		●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (A)	1-83539-228-2	01	1	0603-	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83574-266-0	01	1	0603-	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	9803-0210	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	0211-0602	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	0603-		●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83539-234-0	01	1	0603-	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> M6X16	8-97096-525-0	04	1	0603-	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	9803-0209	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0210-0210	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0211-0602	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0603-		●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	8-97117-796-0	03	1	0603-	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-243-0	01	1	9803-0209	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-345-0	01	1	0210-0210	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-345-0	01	1	0211-0602	●	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-345-0	01	1	0603-		●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (C)	1-83539-345-0	01	1	0603-	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-244-0	01	1	9803-0209	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9803-0209	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94158-260-0	01	1	0210-0210	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94158-260-0	01	1	0211-0602	●	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94158-260-0	01	1	0603-		●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	8-94158-260-0	01	1	0603-	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83573-129-0	01	1	0603-	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	9803-0209	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-347-1	01	1	0210-0210	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-347-1	01	1	0211-0602	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-347-1	01	1	0603-		●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83539-347-1	01	1	0603-	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-975-0	04	1	0210-0210	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-975-0	04	1	0211-0602	●	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-975-0	04	1	0603-		●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (C)	1-83579-975-0	04	1	0603-	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94248-807-0	01	1	9803-0209	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-974-0	08	1	0210-0210	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-974-0	08	1	0211-0602	●	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-974-0	08	1	0603-		●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (B)	1-83579-974-0	08	1	0603-	●

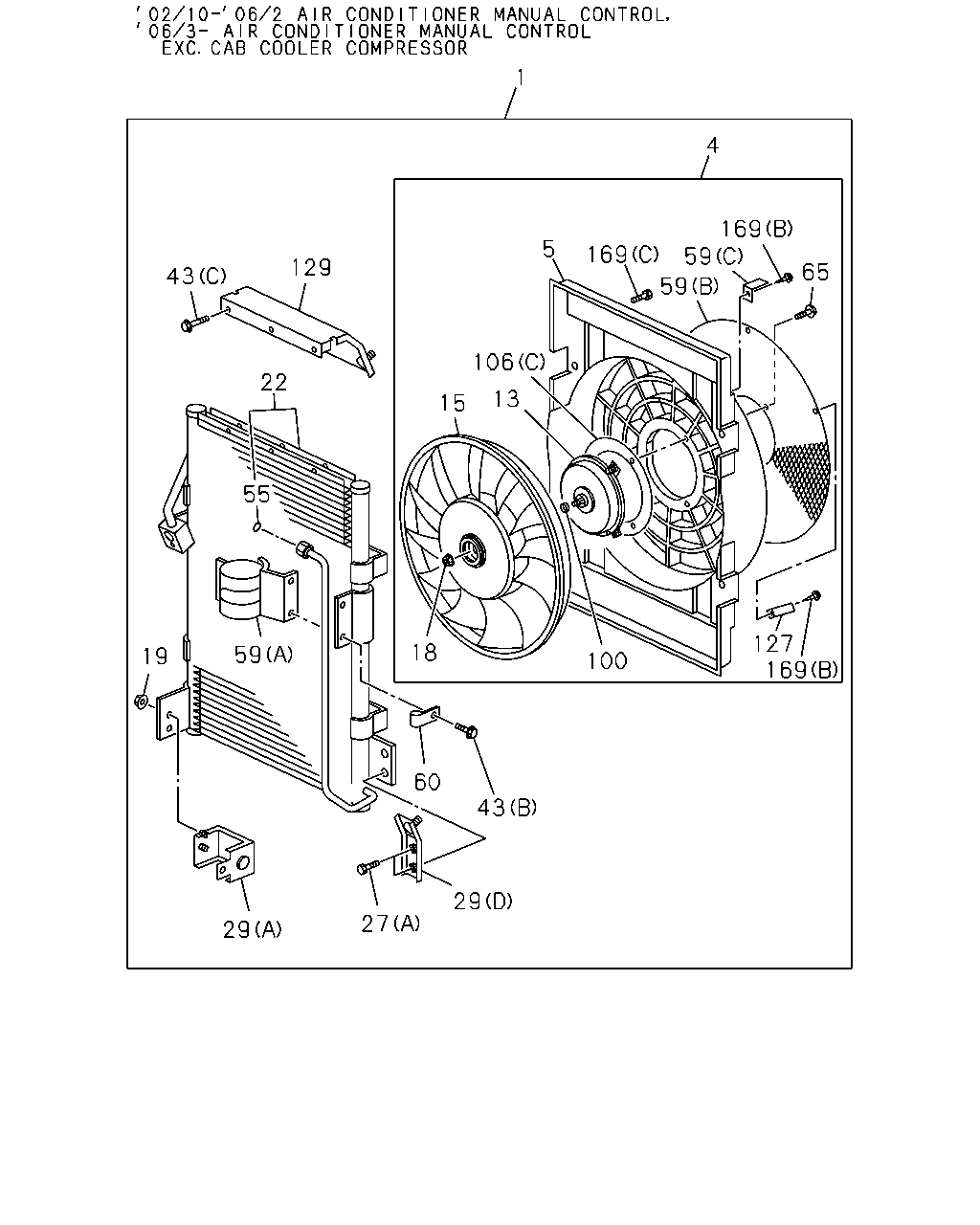

1 4 169 59 5 169 129 65 43 59 106 22 13 15 55 127 169 18 59 19 100 60 43 29 27 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83534-250-3	01	1	0603-	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9803-0209	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0210-0210	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0211-0602	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0603-		●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83534-211-2	01	1	0603-	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83561-139-3	01	1	0603-0703	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	8-98014-458-0	01	1	0704-	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	9803-0209	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0210-0210	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0211-0602	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0603-		●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83561-156-1	01	1	0603-	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83539-380-0	01	1	0603-	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	9803-0209	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0210-0210	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0211-0602	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0603-		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83539-343-0	01	1	0603-	●
13	MOTOR; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-157-1	01	1	0210-0210	●
13	MOTOR; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-157-1	01	1	0211-0602	●	●
13	MOTOR; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-157-1	01	1	0603-		●
13	MOTOR; FAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83561-157-1	01	1	0603-	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83561-140-0	01	1	0603-	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	9803-0209	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0210-0210	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0211-0602	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0603-		●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83561-158-0	01	1	0603-	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83539-313-0	01	1	0603-	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	9803-0210	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	0211-0602	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	0603-		●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	8-97018-672-0	01	1	0603-	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	11	1	9803-0209	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	02	1	0210-0210	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	02	1	0211-0602	●	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	02	1	0603-		●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83539-235-0	02	1	0603-	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83534-261-0	01	1	0603-1409	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	8-98275-189-0	01	1	1410-	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	9803-0209	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0210-0210	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0211-0602	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0603-		●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83534-224-0	01	1	0603-	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (C) M6X14	1-83539-382-0	02	1	0603-	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B) M5X25	8-97178-770-0	02	1	0603-	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-975-0	02	1	0210-0210	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-975-0	02	1	0211-0602	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-975-0	02	1	0603-		●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (A)	1-83579-975-0	02	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (E)	1-83573-278-0	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (F)	1-83573-279-0	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (G)	1-83573-280-0	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	9803-0210	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	0211-0602	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	0603-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (A)	1-83539-227-1	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	9803-0209	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	9803-0209	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83539-348-1	01	1	0210-0210	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83539-348-1	01	1	0211-0602	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83539-348-1	01	1	0603-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (D)	1-83539-348-1	01	1	0603-	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-975-0	02	1	0210-0210	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-975-0	02	1	0211-0602	●	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-975-0	02	1	0603-		●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (B)	1-83579-975-0	02	1	0603-	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 W/FLANGE	1-83539-260-0	06	1	9803-0209	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97018-671-0	03	1	0210-0210	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97018-671-0	03	1	0211-0602	●	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97018-671-0	03	1	0603-		●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (C)	8-97018-671-0	03	1	0603-	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	9803-0210	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	0211-0602	●	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	0603-		●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	8-97161-776-0	01	1	0603-	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-344-0	01	1	0210-0210	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-344-0	01	1	0211-0602	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-344-0	01	1	0603-		●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (B)	1-83539-344-0	01	1	0603-	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-346-0	01	1	0210-0210	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-346-0	01	1	0211-0602	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-346-0	01	1	0603-		●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (C)	1-83539-346-0	01	1	0603-	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-228-2	01	1	9803-0210	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-228-2	01	1	0211-0602	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-228-2	01	1	0603-		●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (A)	1-83539-228-2	01	1	0603-	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83574-266-0	01	1	0603-	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	9803-0210	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	0211-0602	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	0603-		●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83539-234-0	01	1	0603-	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> M6X16	8-97096-525-0	04	1	0603-	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	9803-0209	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0210-0210	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0211-0602	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0603-		●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	8-97117-796-0	03	1	0603-	●
100	COLLAR; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-349-0	01	1	0210-0210	●
100	COLLAR; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-349-0	01	1	0211-0602	●	●
100	COLLAR; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-349-0	01	1	0603-		●
100	COLLAR; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83539-349-0	01	1	0603-	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-243-0	01	1	9803-0209	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-345-0	01	1	0210-0210	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-345-0	01	1	0211-0602	●	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-345-0	01	1	0603-		●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (C)	1-83539-345-0	01	1	0603-	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-244-0	01	1	9803-0209	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9803-0209	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94158-260-0	01	1	0210-0210	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94158-260-0	01	1	0211-0602	●	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94158-260-0	01	1	0603-		●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	8-94158-260-0	01	1	0603-	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83573-129-0	01	1	0603-	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	9803-0209	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-347-1	01	1	0210-0210	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-347-1	01	1	0211-0602	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-347-1	01	1	0603-		●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83539-347-1	01	1	0603-	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-975-0	04	1	0210-0210	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-975-0	04	1	0211-0602	●	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-975-0	04	1	0603-		●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (C)	1-83579-975-0	04	1	0603-	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94248-807-0	01	1	9803-0209	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-974-0	08	1	0210-0210	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-974-0	08	1	0211-0602	●	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-974-0	08	1	0603-		●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (B)	1-83579-974-0	08	1	0603-	●

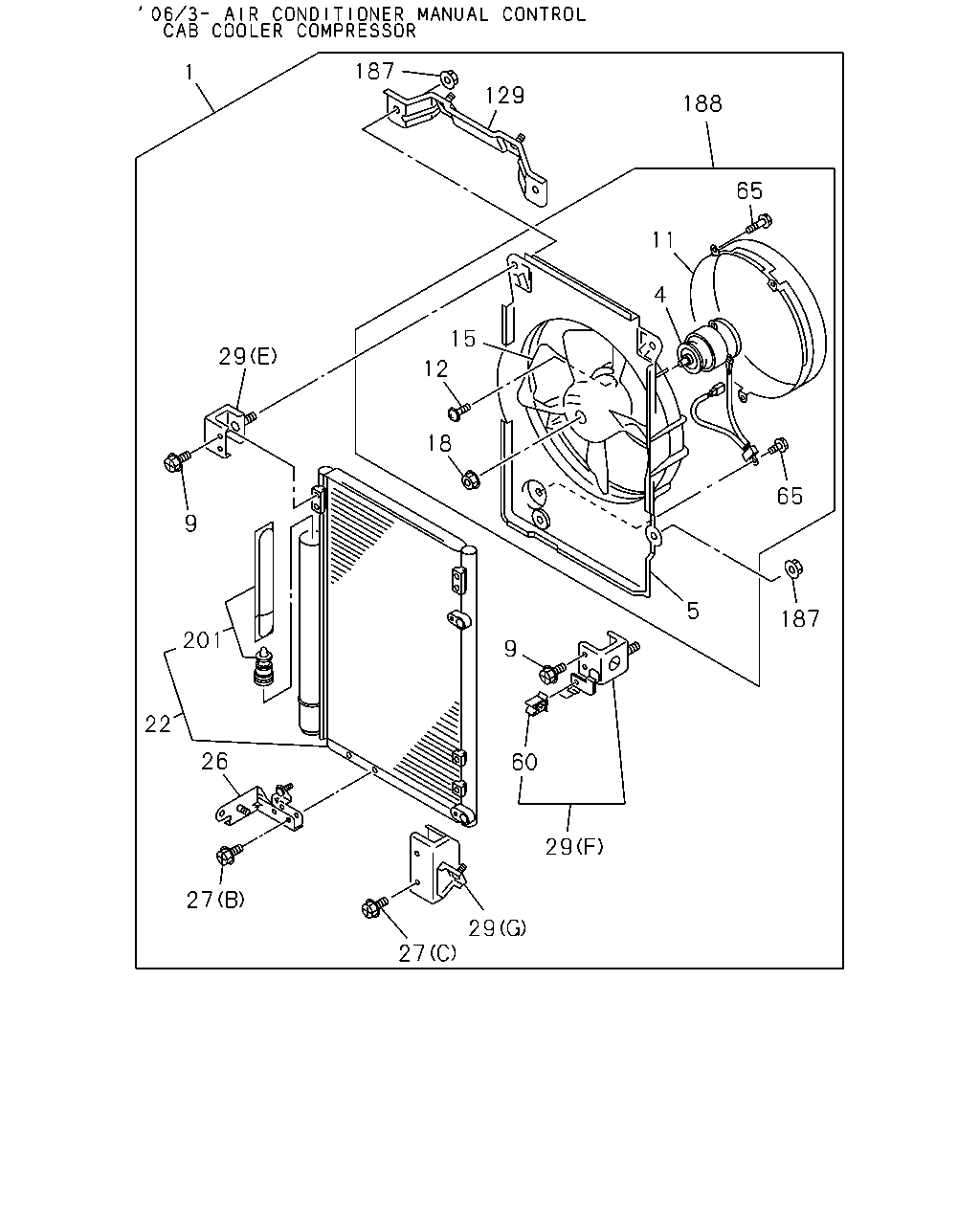

187 1 129 188 65 11 4 15 29 12 18 65 9 5 187 201 9 22 26 60 29 27 29 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83534-250-3	01	1	0603-	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9803-0209	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0210-0210	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0211-0602	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0603-		●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83534-211-2	01	1	0603-	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83561-139-3	01	1	0603-0703	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	8-98014-458-0	01	1	0704-	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	9803-0209	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0210-0210	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0211-0602	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0603-		●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83561-156-1	01	1	0603-	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83539-380-0	01	1	0603-	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	9803-0209	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0210-0210	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0211-0602	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0603-		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83539-343-0	01	1	0603-	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> M6X14	1-83539-382-0	04	1	0603-	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-374-0	01	1	0104-0209	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83539-381-0	01	1	0603-	●
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83539-314-0	03	1	0603-	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83561-140-0	01	1	0603-	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	9803-0209	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0210-0210	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0211-0602	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0603-		●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83561-158-0	01	1	0603-	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83539-313-0	01	1	0603-	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	9803-0210	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	0211-0602	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	0603-		●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	8-97018-672-0	01	1	0603-	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83534-261-0	01	1	0603-1409	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	8-98275-189-0	01	1	1410-	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	9803-0209	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0210-0210	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0211-0602	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0603-		●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83534-224-0	01	1	0603-	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83573-281-0	01	1	0603-	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (C) M6X14	1-83539-382-0	02	1	0603-	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B) M5X25	8-97178-770-0	02	1	0603-	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-975-0	02	1	0210-0210	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-975-0	02	1	0211-0602	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-975-0	02	1	0603-		●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (A)	1-83579-975-0	02	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (E)	1-83573-278-0	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (F)	1-83573-279-0	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (G)	1-83573-280-0	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	9803-0210	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	0211-0602	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	0603-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (A)	1-83539-227-1	01	1	0603-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	9803-0209	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	9803-0209	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83539-348-1	01	1	0210-0210	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83539-348-1	01	1	0211-0602	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83539-348-1	01	1	0603-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> (D)	1-83539-348-1	01	1	0603-	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83574-266-0	01	1	0603-	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	9803-0210	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	0211-0602	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	0603-		●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83539-234-0	01	1	0603-	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> M6X16	8-97096-525-0	04	1	0603-	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	9803-0209	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0210-0210	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0211-0602	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0603-		●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	8-97117-796-0	03	1	0603-	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83573-129-0	01	1	0603-	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	9803-0209	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-347-1	01	1	0210-0210	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-347-1	01	1	0211-0602	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-347-1	01	1	0603-		●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4>	1-83539-347-1	01	1	0603-	●
187	NUT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> M6	1-83539-354-0	04	1	0603-	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83561-184-1	01	1	0603-	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83535-097-0	01	1	0603-1409	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	8-98282-482-0	01	1	1410-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
