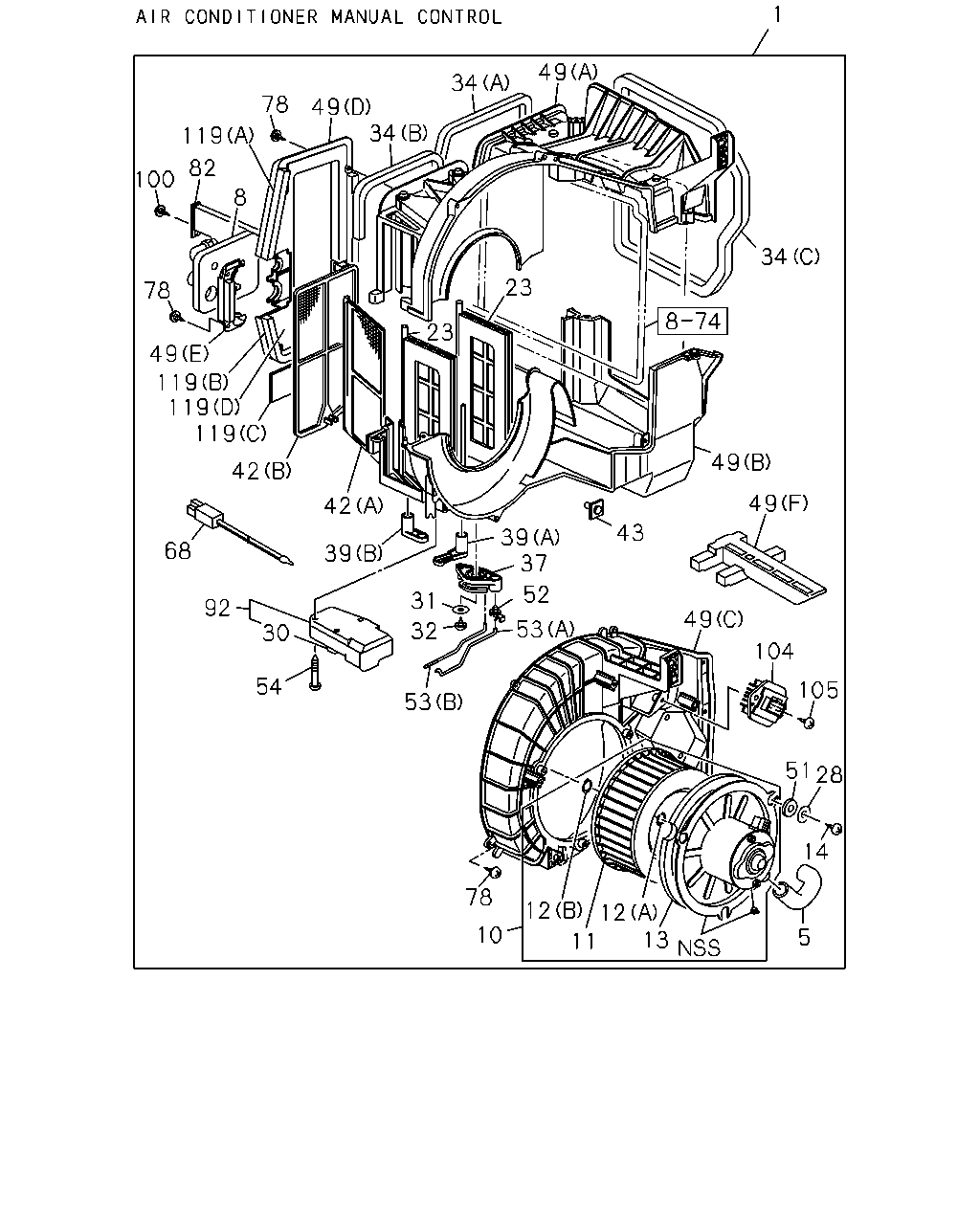

8-73 — BLOWER UNIT (#36708) — 451 parça
çizim 152418
49 34 1 78 49 34 119 46 58 34 8 23 78 23 49 119 119 119 49 42 42 119 39 34 39 37 43 52 31 49 92 32 53 104 30 105 53 54 51 28 14 78 12 12 10 13 11 97 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) 		1-83561-180-2 01 1 0604- ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-105-9 01 1 9510-0703 ● ●
1 BLOWER ASM 1-83561-105-9 01 1 9510-0703 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98065-903-0 01 1 0704- ● ●
1 BLOWER ASM 8-98065-903-0 01 1 0704- ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-150-4 01 1 9803-0210 ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-150-4 01 1 0211-0603 ● ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-150-5 01 1 0604- ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-83561-150-5 01 1 0604- ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-140-0 01 1 9510-9802 ● ●
5 HOSE; AIR 1-83563-140-0 01 1 9510-9802 ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-140-0 01 1 9803- ● ●
5 HOSE; AIR 1-83563-140-0 01 1 9803- ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-801-1 01 1 9510- ● ●
8 SEAL; BLOWER UNIT 1-83579-801-1 01 1 9510- ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 9803-0210 ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 0211- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-100-1 01 1 9510-9802 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-100-1 01 1 9510-9802 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-100-1 01 1 9803-9901 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-100-1 01 1 9803-9901 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-161-0 01 1 9902- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 9902- ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-635-0 01 1 9510-9802 ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 9510-9802 ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-635-0 01 1 9803- ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 9803- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		5-83569-088-0 01 1 9803- ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9803- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		5-83569-088-0 01 1 9510-9802 ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9510-9802 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94243-962-0 01 1 9510-9802 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9510-9802 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94243-962-0 01 1 9803- ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9803- ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-636-0 01 1 9510-9802 ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9510-9802 ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-636-0 01 1 9803- ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9803- ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 03 1 9510-9901 ● ●
14 SCREW; COVER TO CASE 8-97130-601-0 03 1 9510-9901 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 03 1 9902-0004 ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 9902-0004 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 03 1 0005-0603 ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0005-0603 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 03 1 0604- ● ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M5X20 		9-09829-324-1 03 1 0604- ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0604- ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 04 1 9803-0004 ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 0005-0210 ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 0211-0603 ● ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 0604- ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-97130-601-0 03 1 0604- ●
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) 		1-83579-797-0 02 1 0604- ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 9510-9802 ● ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 9510-9802 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 9803-0603 ● ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 9803-0603 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 0604- ●
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-83579-637-0 02 1 0604- ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 0604- ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0604- ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-170-0 03 1 9510-9802 ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9510-9802 ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-170-0 03 1 9803- ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9803- ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-345-1 01 1 9510-9802 ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9510-9802 ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-345-1 01 1 9803- ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9803- ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-095-0 01 1 9510-9802 ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 9510-9802 ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-095-0 01 1 9803- ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 9803- ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 01 1 9510-9901 ● ●
32 SCREW; LEVER 8-97130-601-0 01 1 9510-9901 ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 9902-0603 ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 9902-0603 ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 0604- ● ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M5X20 		9-09829-324-1 01 1 0604- ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0604- ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 0005-0210 ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 0211-0603 ● ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 0604- ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-97130-601-0 01 1 0604- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-633-2 01 1 9803- ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9803- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-634-2 01 1 9803- ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 9803- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-644-0 01 1 9803- ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 9803- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-633-2 01 1 9510-9802 ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9510-9802 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-634-1 01 1 9510-9802 ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-1 01 1 9510-9802 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-644-0 01 1 9510-9802 ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 9510-9802 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-687-0 01 1 9510-9901 ● ●
34 LINING; BLOWER UNIT
(D) 		1-83579-687-0 01 1 9510-9901 ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-344-0 01 1 9510-9802 ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 9510-9802 ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-344-0 01 1 9803- ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 9803- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-342-0 01 1 9803- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 9803- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-342-0 01 1 9510-9802 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 9510-9802 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-343-0 01 1 9510-9802 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 9510-9802 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-343-0 01 1 9803- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 9803- ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-643-3 01 1 9803- ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 9803- ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-642-3 02 1 9510-9510 ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-642-3 02 1 9510-9510 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-643-2 01 1 9510-9802 ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-2 01 1 9510-9802 ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 9803-0210 ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 0211- ● ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 04 1 9803- ● ●
43 BOLT; CASE 1-83579-657-2 04 1 9803- ●
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83571-870-1 01 1 9510- ● ●
46 PLATE; BLOWER UNIT 1-83571-870-1 01 1 9510- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) 		1-83564-406-1 01 1 0604- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-337-4 01 1 9803- ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 9803- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83564-339-1 01 1 9803- ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 9803- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-351-1 01 1 9803- ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 9803- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83564-353-1 01 1 9803- ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 9803- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-337-4 01 1 9510-9802 ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 9510-9802 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83564-339-1 01 1 9510-9802 ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 9510-9802 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-351-0 01 1 9510-9802 ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-0 01 1 9510-9802 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-352-5 01 1 9510- ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-352-5 01 1 9510- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83564-353-0 01 1 9510-9802 ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-0 01 1 9510-9802 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 9803-0210 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 0211- ● ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 9803-0210 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 0211-0603 ● ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 0604- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-83564-336-6 01 1 0604- ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-496-0 03 1 9510-9802 ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9510-9802 ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-496-0 03 1 9803- ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9803- ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-488-0 02 1 9510-9901 ● ●
52 CLIP; LEVER TO CASE 1-83579-488-0 02 1 9510-9901 ●
52 CLIP; LEVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 9803-9901 ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 02 1 9902- ● ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 9902- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-638-0 01 1 9803- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 9803- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-638-0 01 1 9510-9802 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 9510-9802 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-639-0 01 1 9510-9802 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9510-9802 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-639-0 01 1 9803- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9803- ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9510-9802 ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9510-9802 ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9803- ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9803- ●
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 01 1 9510- ● ●
58 SCREW; PLATE TO CASE
M4X16 		8-94324-850-0 01 1 9510- ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 17 1 9510-9802 ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 9510-9802 ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 17 1 9803- ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 9803- ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-640-0 01 1 9510-9802 ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-0 01 1 9510-9802 ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-640-1 01 1 9803- ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 9803- ●
97 PLUG; FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-248-0 01 1 9510-9702 ● ●
97 PLUG; FAN MOTOR 1-83579-248-0 01 1 9510-9702 ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-092-0 01 1 0012-0210 ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-092-0 01 1 0211-0603 ● ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-092-0 01 1 0604-0703 ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-83519-092-0 01 1 0604-0703 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-092-0 01 1 0704- ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-83519-092-0 01 1 0704- ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-092-0 01 1 0704- ●
104 RESISTOR; BLOWER UNIT 1-83519-092-0 01 1 0704- ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) 		1-83519-093-0 01 1 0604- ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-073-1 01 1 9510-9802 ● ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9510-9802 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-073-1 01 1 9803-0011 ● ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9803-0011 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-073-1 01 1 0012-0703 ● ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 0012-0703 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 02 1 9510-9802 ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9510-9802 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 02 1 9803- ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9803- ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) 		1-83579-961-0 01 1 0604- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-670-1 01 1 9803- ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 9803- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-671-1 01 1 9803- ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 9803- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-672-0 01 1 9803-9901 ● ●
119 LINING; CASE
(C) 		1-83579-672-0 01 1 9803-9901 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-672-0 01 1 9902-0007 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-673-1 01 1 9803-9901 ● ●
119 LINING; CASE
(D) 		1-83579-673-1 01 1 9803-9901 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 9902-0210 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 0211-0603 ● ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 0604- ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (D) 		1-83579-673-2 01 1 0604- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-670-0 01 1 9510-9802 ● ●
119 LINING; CASE
(A) 		1-83579-670-0 01 1 9510-9802 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-671-0 01 1 9510-9802 ● ●
119 LINING; CASE
(B) 		1-83579-671-0 01 1 9510-9802 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-672-0 01 1 9510-9802 ● ●
119 LINING; CASE
(C) 		1-83579-672-0 01 1 9510-9802 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-673-1 01 1 9510-9802 ● ●
119 LINING; CASE
(D) 		1-83579-673-1 01 1 9510-9802 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83579-839-0 02 1 9510- ● ●
119 LINING; CASE
(E) 		1-83579-839-0 02 1 9510- ●
çizim 152423
1 49 34 78 49 34 119 82 100 8 34 23 78 23 49 119 119 119 49 42 49 42 39 37 43 68 39 52 31 92 49 53 32 30 104 54 105 53 51 28 14 78 12 12 13 10 5 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) 		1-83561-180-2 01 1 0604- ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-105-9 01 1 9510-0703 ● ●
1 BLOWER ASM 1-83561-105-9 01 1 9510-0703 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98065-903-0 01 1 0704- ● ●
1 BLOWER ASM 8-98065-903-0 01 1 0704- ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-150-4 01 1 9803-0210 ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-150-4 01 1 0211-0603 ● ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-150-5 01 1 0604- ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-83561-150-5 01 1 0604- ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-140-0 01 1 9510-9802 ● ●
5 HOSE; AIR 1-83563-140-0 01 1 9510-9802 ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-140-0 01 1 9803- ● ●
5 HOSE; AIR 1-83563-140-0 01 1 9803- ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-801-1 01 1 9510- ● ●
8 SEAL; BLOWER UNIT 1-83579-801-1 01 1 9510- ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 9803-0210 ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 0211- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-100-1 01 1 9510-9802 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-100-1 01 1 9510-9802 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-100-1 01 1 9803-9901 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-100-1 01 1 9803-9901 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-161-0 01 1 9902- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 9902- ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-635-0 01 1 9510-9802 ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 9510-9802 ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-635-0 01 1 9803- ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 9803- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		5-83569-088-0 01 1 9803- ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9803- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		5-83569-088-0 01 1 9510-9802 ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9510-9802 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94243-962-0 01 1 9510-9802 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9510-9802 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94243-962-0 01 1 9803- ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9803- ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-636-0 01 1 9510-9802 ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9510-9802 ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-636-0 01 1 9803- ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9803- ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 03 1 9510-9901 ● ●
14 SCREW; COVER TO CASE 8-97130-601-0 03 1 9510-9901 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 03 1 9902-0004 ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 9902-0004 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 03 1 0005-0603 ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0005-0603 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 03 1 0604- ● ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M5X20 		9-09829-324-1 03 1 0604- ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0604- ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 04 1 9803-0004 ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 0005-0210 ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 0211-0603 ● ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 0604- ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-97130-601-0 03 1 0604- ●
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) 		1-83579-797-0 02 1 0604- ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 9510-9802 ● ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 9510-9802 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 9803-0603 ● ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 9803-0603 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 0604- ●
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-83579-637-0 02 1 0604- ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 0604- ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0604- ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-170-0 03 1 9510-9802 ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9510-9802 ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-170-0 03 1 9803- ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9803- ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-345-1 01 1 9510-9802 ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9510-9802 ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-345-1 01 1 9803- ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9803- ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-095-0 01 1 9510-9802 ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 9510-9802 ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-095-0 01 1 9803- ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 9803- ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 01 1 9510-9901 ● ●
32 SCREW; LEVER 8-97130-601-0 01 1 9510-9901 ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 9902-0603 ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 9902-0603 ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 0604- ● ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M5X20 		9-09829-324-1 01 1 0604- ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0604- ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 0005-0210 ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 0211-0603 ● ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 0604- ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-97130-601-0 01 1 0604- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-633-2 01 1 9803- ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9803- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-634-2 01 1 9803- ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 9803- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-644-0 01 1 9803- ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 9803- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-633-2 01 1 9510-9802 ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9510-9802 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-634-1 01 1 9510-9802 ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-1 01 1 9510-9802 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-644-0 01 1 9510-9802 ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 9510-9802 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-687-0 01 1 9510-9901 ● ●
34 LINING; BLOWER UNIT
(D) 		1-83579-687-0 01 1 9510-9901 ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-344-0 01 1 9510-9802 ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 9510-9802 ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-344-0 01 1 9803- ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 9803- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-342-0 01 1 9803- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 9803- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-342-0 01 1 9510-9802 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 9510-9802 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-343-0 01 1 9510-9802 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 9510-9802 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-343-0 01 1 9803- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 9803- ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-643-3 01 1 9803- ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 9803- ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-642-3 02 1 9510-9510 ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-642-3 02 1 9510-9510 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-643-2 01 1 9510-9802 ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-2 01 1 9510-9802 ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 9803-0210 ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 0211- ● ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 04 1 9803- ● ●
43 BOLT; CASE 1-83579-657-2 04 1 9803- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) 		1-83564-406-1 01 1 0604- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-337-4 01 1 9803- ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 9803- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83564-339-1 01 1 9803- ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 9803- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-351-1 01 1 9803- ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 9803- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83564-353-1 01 1 9803- ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 9803- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-337-4 01 1 9510-9802 ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 9510-9802 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83564-339-1 01 1 9510-9802 ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 9510-9802 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-351-0 01 1 9510-9802 ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-0 01 1 9510-9802 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-352-5 01 1 9510- ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-352-5 01 1 9510- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83564-353-0 01 1 9510-9802 ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-0 01 1 9510-9802 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 9803-0210 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 0211- ● ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 9803-0210 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 0211-0603 ● ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 0604- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-83564-336-6 01 1 0604- ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-496-0 03 1 9510-9802 ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9510-9802 ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-496-0 03 1 9803- ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9803- ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-488-0 02 1 9510-9901 ● ●
52 CLIP; LEVER TO CASE 1-83579-488-0 02 1 9510-9901 ●
52 CLIP; LEVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 9803-9901 ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 02 1 9902- ● ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 9902- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-638-0 01 1 9803- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 9803- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-638-0 01 1 9510-9802 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 9510-9802 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-639-0 01 1 9510-9802 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9510-9802 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-639-0 01 1 9803- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9803- ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9510-9802 ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9510-9802 ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9803- ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9803- ●
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) 		1-83544-035-1 01 1 0604- ●
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 9803-0210 ●
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 0211-0603 ● ●
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 0604- ●
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-83544-026-1 01 1 0604- ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 17 1 9510-9802 ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 9510-9802 ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 17 1 9803- ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 9803- ●
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-871-1 01 1 9803-0210 ●
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-871-1 01 1 0211- ● ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-640-0 01 1 9510-9802 ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-0 01 1 9510-9802 ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-640-1 01 1 9803- ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 9803- ●
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 9803-0210 ●
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 0211- ● ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-092-0 01 1 0012-0210 ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-092-0 01 1 0211-0603 ● ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-092-0 01 1 0604-0703 ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-83519-092-0 01 1 0604-0703 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-092-0 01 1 0704- ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-83519-092-0 01 1 0704- ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-092-0 01 1 0704- ●
104 RESISTOR; BLOWER UNIT 1-83519-092-0 01 1 0704- ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) 		1-83519-093-0 01 1 0604- ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-073-1 01 1 9510-9802 ● ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9510-9802 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-073-1 01 1 9803-0011 ● ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9803-0011 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-073-1 01 1 0012-0703 ● ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 0012-0703 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 02 1 9510-9802 ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9510-9802 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 02 1 9803- ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9803- ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) 		1-83579-961-0 01 1 0604- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-670-1 01 1 9803- ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 9803- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-671-1 01 1 9803- ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 9803- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-672-0 01 1 9803-9901 ● ●
119 LINING; CASE
(C) 		1-83579-672-0 01 1 9803-9901 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-672-0 01 1 9902-0007 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-673-1 01 1 9803-9901 ● ●
119 LINING; CASE
(D) 		1-83579-673-1 01 1 9803-9901 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 9902-0210 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 0211-0603 ● ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 0604- ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (D) 		1-83579-673-2 01 1 0604- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-670-0 01 1 9510-9802 ● ●
119 LINING; CASE
(A) 		1-83579-670-0 01 1 9510-9802 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-671-0 01 1 9510-9802 ● ●
119 LINING; CASE
(B) 		1-83579-671-0 01 1 9510-9802 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-672-0 01 1 9510-9802 ● ●
119 LINING; CASE
(C) 		1-83579-672-0 01 1 9510-9802 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-673-1 01 1 9510-9802 ● ●
119 LINING; CASE
(D) 		1-83579-673-1 01 1 9510-9802 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83579-839-0 02 1 9510- ● ●
119 LINING; CASE
(E) 		1-83579-839-0 02 1 9510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
