◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#36707) — 156 parça

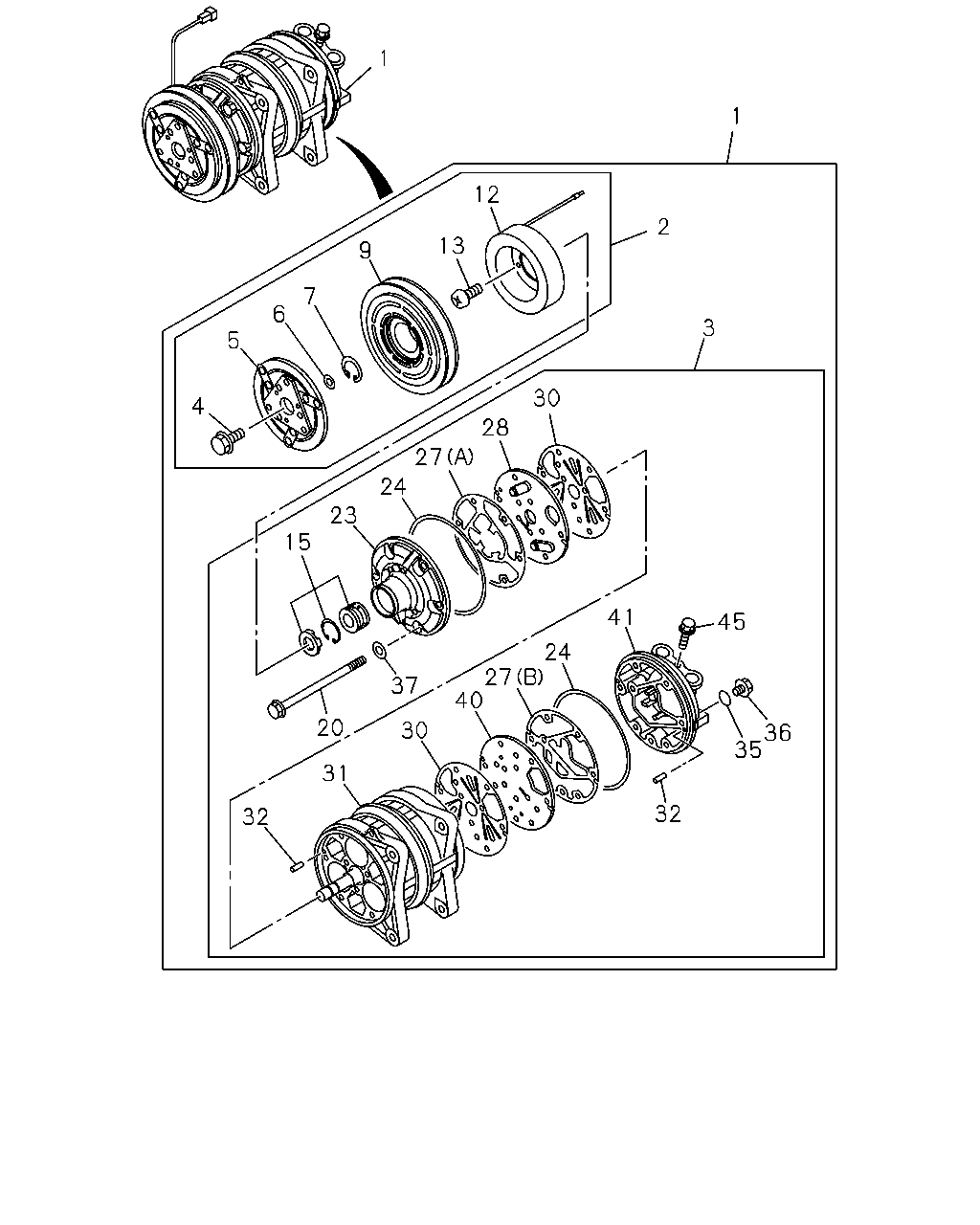

çizim 152406
1 1 12 2 13 9 7 6 3 5 30 4 28 27 24 23 15 41 45 24 27 40 37 20 30 36 35 31 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-83532-252-1 01 1 1502-1502 ● ●
1 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-83532-252-1 01 1 1502-1502 ● ●
1 COMPRESSOR ASM; A/C
6HK1 TCC ENG(81L) 		1-83532-314-0 01 1 0603- ●
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 9803-0210 ●
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0211-0602 ● ●
1 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0603-0811 ● ●
1 COMPRESSOR ASM; A/C
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0812-1404 ● ●
1 COMPRESSOR ASM; A/C
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 1405-1502 ● ●
1 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FLUID DRIVE FAN<KA3>,EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-83532-287-1 01 1 1405-1502 ● ●
1 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-83532-287-1 01 1 1405-1502 ● ●
1 COMPRESSOR ASM; A/C
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 1503- ● ●
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-037-0 01 1 9803-0210 ●
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-037-0 01 1 0211-0602 ● ●
2 CLUTCH; MAGNET,A/C
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-037-0 01 1 0603-0811 ● ●
2 CLUTCH; MAGNET,A/C
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-037-0 01 1 0812- ● ●
3 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-83532-263-1 01 1 1502-1502 ● ●
3 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-83532-263-1 01 1 1502-1502 ● ●
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 9803-0210 ●
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 0211-0602 ● ●
3 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 0603-0811 ● ●
3 COMPRESSOR ASM; A/C
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 0812-1404 ● ●
3 COMPRESSOR ASM; A/C
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 1405-1502 ● ●
3 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FLUID DRIVE FAN<KA3>,EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-83532-290-0 01 1 1405-1502 ● ●
3 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-83532-290-0 01 1 1405-1502 ● ●
3 COMPRESSOR ASM; A/C
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 1503- ● ●
4 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-439-0 01 1 0005-0210 ●
4 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-439-0 01 1 0211-0602 ● ●
4 BOLT; MAGNET CLU
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-439-0 01 1 0603-0811 ● ●
4 BOLT; MAGNET CLU
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-439-0 01 1 0812- ● ●
5 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97034-788-0 01 1 0005-0210 ●
5 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97034-788-0 01 1 0211-0602 ● ●
5 ARMATURE ASM; MAGNET CLU,A/C
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97034-788-0 01 1 0603-0811 ● ●
5 ARMATURE ASM; MAGNET CLU,A/C
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97034-788-0 01 1 0812- ● ●
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.1 		8-94120-721-0 AR 1 0005-0210 ●
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.1 		8-94120-721-0 AR 1 0211-0602 ● ●
6 SHIM; MAGNET CLU
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.1 		8-94120-721-0 AR 1 0603-0811 ● ●
6 SHIM; MAGNET CLU
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.1 		8-94120-721-0 AR 1 0812- ● ●
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.3 		8-94120-722-0 AR 1 0005-0210 ●
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.3 		8-94120-722-0 AR 1 0211-0602 ● ●
6 SHIM; MAGNET CLU
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.3 		8-94120-722-0 AR 1 0603-0811 ● ●
6 SHIM; MAGNET CLU
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.3 		8-94120-722-0 AR 1 0812- ● ●
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.5 		8-94120-723-0 AR 1 0005-0210 ●
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.5 		8-94120-723-0 AR 1 0211-0602 ● ●
6 SHIM; MAGNET CLU
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.5 		8-94120-723-0 AR 1 0603-0811 ● ●
6 SHIM; MAGNET CLU
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.5 		8-94120-723-0 AR 1 0812- ● ●
7 RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-724-0 01 1 0005-0210 ●
7 RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-724-0 01 1 0211-0602 ● ●
7 RING; SNAP,PULLEY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-724-0 01 1 0603-0811 ● ●
7 RING; SNAP,PULLEY
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-724-0 01 1 0812- ● ●
9 PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-609-1 01 1 0005-0210 ●
9 PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-609-1 01 1 0211-0602 ● ●
9 PULLEY; MAGNET CLU
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-609-1 01 1 0603-0811 ● ●
9 PULLEY; MAGNET CLU
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-609-1 01 1 0812- ● ●
12 COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-091-0 01 1 0005-0210 ●
12 COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-091-0 01 1 0211-0602 ● ●
12 COIL; FIELD,MAGNET CLU
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-091-0 01 1 0603-0811 ● ●
12 COIL; FIELD,MAGNET CLU
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-091-0 01 1 0812- ● ●
13 SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-727-0 03 1 0005-0210 ●
13 SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-727-0 03 1 0211-0602 ● ●
13 SCREW; COIL FIELD
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-727-0 03 1 0603-0811 ● ●
13 SCREW; COIL FIELD
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-727-0 03 1 0812- ● ●
15 SEAL; SHAFT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-090-0 01 1 0005-0210 ●
15 SEAL; SHAFT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-090-0 01 1 0211-0602 ● ●
15 SEAL; SHAFT
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-090-0 01 1 0603-0811 ● ●
15 SEAL; SHAFT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-090-0 01 1 0812- ● ●
20 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-738-0 06 1 0005-0210 ●
20 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-738-0 06 1 0211-0602 ● ●
20 BOLT; CMPR
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-738-0 06 1 0603-0811 ● ●
20 BOLT; CMPR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-738-0 06 1 0812- ● ●
23 HEAD; CYL,FRT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-401-0 01 1 0005-0210 ●
23 HEAD; CYL,FRT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-401-0 01 1 0211-0602 ● ●
23 HEAD; CYL,FRT
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-401-0 01 1 0603-0811 ● ●
23 HEAD; CYL,FRT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-401-0 01 1 0812- ● ●
24 GASKET; CMPR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-83579-951-0 02 1 1502-1502 ● ●
24 GASKET; CMPR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-83579-951-0 02 1 1502-1502 ● ●
24 GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-953-0 02 1 0005-0210 ●
24 GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-953-0 02 1 0211-0602 ● ●
24 GASKET; CMPR
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-953-0 02 1 0603-0811 ● ●
24 GASKET; CMPR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-953-0 02 1 0812-1404 ● ●
24 GASKET; CMPR
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-953-0 02 1 1405-1502 ● ●
24 GASKET; CMPR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FLUID DRIVE FAN<KA3>,EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-83579-953-0 02 1 1405-1502 ● ●
24 GASKET; CMPR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-83579-953-0 02 1 1405-1502 ● ●
24 GASKET; CMPR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-953-0 02 1 1503- ● ●
27 GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97170-930-0 01 1 0005-0210 ●
27 GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97170-930-0 01 1 0211-0602 ● ●
27 GASKET; CYL HD
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97170-930-0 01 1 0603-0811 ● ●
27 GASKET; CYL HD
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97170-930-0 01 1 0812- ● ●
27 GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97170-933-0 01 1 0005-0210 ●
27 GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97170-933-0 01 1 0211-0602 ● ●
27 GASKET; CYL HD
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97170-933-0 01 1 0603-0811 ● ●
27 GASKET; CYL HD
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97170-933-0 01 1 0812- ● ●
28 PLATE; VLV,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-932-1 01 1 0005-0210 ●
28 PLATE; VLV,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-932-1 01 1 0211-0602 ● ●
28 PLATE; VLV,CMPR
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-932-1 01 1 0603-0811 ● ●
28 PLATE; VLV,CMPR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-932-1 01 1 0812- ● ●
30 VALVE; SUCTION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97134-755-0 02 1 0005-0210 ●
30 VALVE; SUCTION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97134-755-0 02 1 0211-0602 ● ●
30 VALVE; SUCTION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97134-755-0 02 1 0603-0811 ● ●
30 VALVE; SUCTION
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97134-755-0 02 1 0812- ● ●
31 CYLINDER & SHAFT ASM; AIR CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97138-175-0 01 1 0005-0210 ●
31 CYLINDER & SHAFT ASM; AIR CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97138-175-0 01 1 0211-0602 ● ●
31 CYLINDER & SHAFT ASM; AIR CMPR
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97138-175-0 01 1 0603-0811 ● ●
31 CYLINDER & SHAFT ASM; AIR CMPR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97138-175-0 01 1 0812- ● ●
32 PIN; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94154-711-0 04 1 0005-0210 ●
32 PIN; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94154-711-0 04 1 0211-0602 ● ●
32 PIN; CMPR
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94154-711-0 04 1 0603-0811 ● ●
32 PIN; CMPR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94154-711-0 04 1 0812- ● ●
35 GASKET; PLUG,CYL
AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97081-395-0 01 1 0005-0210 ●
35 GASKET; PLUG,CYL
AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97081-395-0 01 1 0211-0602 ● ●
35 GASKET; PLUG,CYL
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97081-395-0 01 1 0603-0811 ● ●
35 GASKET; PLUG,CYL
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97081-395-0 01 1 0812- ● ●
36 PLUG; CYL
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-473-0 01 1 0005-0210 ●
36 PLUG; CYL
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-473-0 01 1 0211-0602 ● ●
36 PLUG; CYL
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-473-0 01 1 0603-0811 ● ●
36 PLUG; CYL
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-473-0 01 1 0812- ● ●
37 GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-739-0 06 1 0005-0210 ●
37 GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-739-0 06 1 0211-0602 ● ●
37 GASKET; CMPR
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-739-0 06 1 0603-0811 ● ●
37 GASKET; CMPR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-739-0 06 1 0812- ● ●
40 PLATE; VLV,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-931-1 01 1 0005-0210 ●
40 PLATE; VLV,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-931-1 01 1 0211-0602 ● ●
40 PLATE; VLV,RR
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-931-1 01 1 0603-0811 ● ●
40 PLATE; VLV,RR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-931-1 01 1 0812- ● ●
41 HEAD; CYL,RR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97081-405-1 01 1 1502-1502 ● ●
41 HEAD; CYL,RR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97081-405-1 01 1 1502-1502 ● ●
41 HEAD; CYL,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-402-0 01 1 0005-0210 ●
41 HEAD; CYL,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-402-0 01 1 0211-0602 ● ●
41 HEAD; CYL,RR
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-402-0 01 1 0603-0811 ● ●
41 HEAD; CYL,RR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-402-0 01 1 0812-1404 ● ●
41 HEAD; CYL,RR
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-402-0 01 1 1405-1502 ● ●
41 HEAD; CYL,RR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FLUID DRIVE FAN<KA3>,EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97178-402-0 01 1 1405-1502 ● ●
41 HEAD; CYL,RR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		8-97178-402-0 01 1 1405-1502 ● ●
41 HEAD; CYL,RR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-402-0 01 1 1503- ● ●
45 BOLT; PLATE TO CYL HD
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97205-574-0 01 1 1502-1502 ● ●
45 BOLT; PLATE TO CYL HD
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97205-574-0 01 1 1502-1502 ● ●
45 BOLT; PLATE TO CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 0005-0210 ●
45 BOLT; PLATE TO CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 0211-0602 ● ●
45 BOLT; PLATE TO CYL HD
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 0603-0811 ● ●
45 BOLT; PLATE TO CYL HD
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 0812-1404 ● ●
45 BOLT; PLATE TO CYL HD
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 1405-1502 ● ●
45 BOLT; PLATE TO CYL HD
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FLUID DRIVE FAN<KA3>,EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 1405-1502 ● ●
45 BOLT; PLATE TO CYL HD
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 1405-1502 ● ●
45 BOLT; PLATE TO CYL HD
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 1503- ● ●

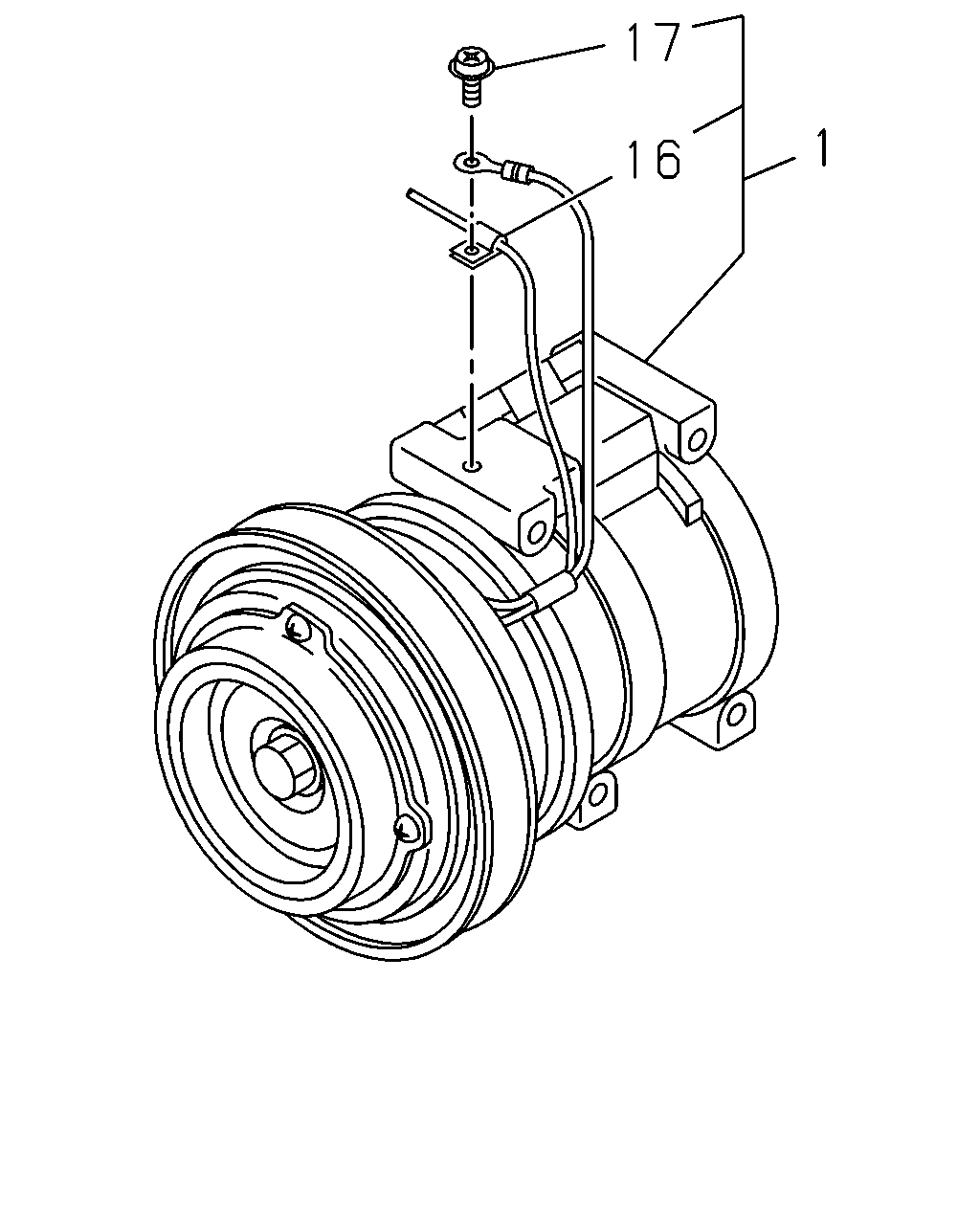

çizim 152477
17 1 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-83532-252-1 01 1 1502-1502 ● ●
1 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-83532-252-1 01 1 1502-1502 ● ●
1 COMPRESSOR ASM; A/C
6HK1 TCC ENG(81L) 		1-83532-314-0 01 1 0603- ●
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 9803-0210 ●
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0211-0602 ● ●
1 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0603-0811 ● ●
1 COMPRESSOR ASM; A/C
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0812-1404 ● ●
1 COMPRESSOR ASM; A/C
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 1405-1502 ● ●
1 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FLUID DRIVE FAN<KA3>,EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-83532-287-1 01 1 1405-1502 ● ●
1 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-83532-287-1 01 1 1405-1502 ● ●
1 COMPRESSOR ASM; A/C
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 1503- ● ●
16 CLIP; WIRE,MAGNET CLU
6HK1 TCC ENG(81L) 		1-83579-893-0 01 1 0603- ●
17 SCREW; WIRE CLIP MAGNET CLU
6HK1 TCC ENG(81L) 		5-81129-130-0 01 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
