8-60 — HEATER UNIT; FRONT (#36706) — 364 parça

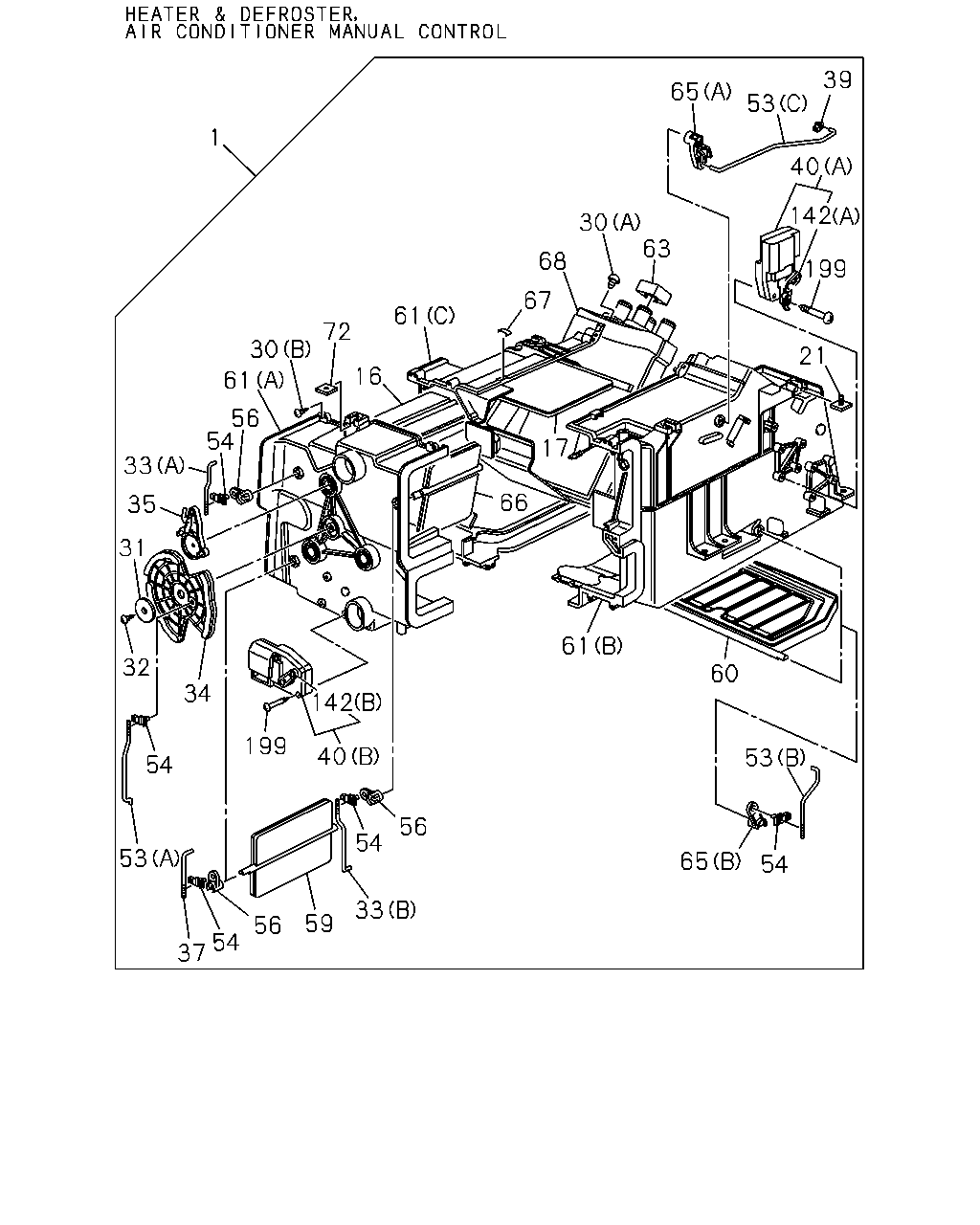

çizim 152403
39 65 53 1 40 30 63 68 199 67 61 72 30 21 16 61 56 54 17 33 66 35 31 61 32 60 34 142 199 40 53 54 56 54 53 65 54 33 59 56 54 37 142
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEATER UNIT
HEATER & DEFROSTER(C41) 		1-83511-129-7 01 1 9510-9802 ● ●
1 HEATER UNIT 1-83511-129-7 01 1 9510-9802 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83511-129-8 01 1 9803-0109 ● ●
1 HEATER UNIT 1-83511-129-8 01 1 9803-0109 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83511-175-1 01 1 0110-1409 ● ●
1 HEATER UNIT 1-83511-175-1 01 1 0110-1409 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98238-476-0 01 1 1410- ● ●
1 HEATER UNIT 8-98238-476-0 01 1 1410- ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83511-139-3 01 1 9510- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 9510-9802 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 9510-9802 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 9803- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 9803- ●
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41) 		1-83579-628-1 01 1 9510-9802 ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 9510-9802 ●
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-628-1 01 1 9803- ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 9803- ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-0 02 1 9510-9802 ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-0 02 1 9510-9802 ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 9803- ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 9803- ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20 		9-09829-324-1 01 1 0005-1409 ● ●
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 0005-1409 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 		8-94248-820-0 01 1 1410- ● ●
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1410- ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) (A) M5X20 		9-09829-324-1 01 1 9510-9702 ● ●
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 9510-9702 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16 		8-94324-850-0 12 1 9510-9802 ● ●
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 9510-9802 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16 		8-94324-850-0 12 1 9803-0011 ● ●
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 9803-0011 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16 		8-94324-850-0 12 1 0012- ● ●
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 0012- ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16 		8-94324-850-0 11 1 0012- ● ●
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 9510-9802 ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9510-9802 ●
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 9803- ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9803- ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 01 1 9510-9802 ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9510-9802 ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 9803-1409 ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9803-1409 ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 		8-94248-820-0 01 1 1410- ● ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410- ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 02 1 9510- ● ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 9510-9802 ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 9510-9802 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 9803- ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 9803- ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-621-0 01 1 9510-9802 ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 9510-9802 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-621-0 01 1 9803-0011 ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 9803-0011 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0012- ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0012- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 9510-9802 ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 9510-9802 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 9803- ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 9803- ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 03 1 9510-9802 ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 9510-9802 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 03 1 9803-0011 ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 9803-0011 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 0012- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0012- ●
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 02 1 0012- ● ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 9510-9802 ● ●
37 ROD; LEVER 1-83579-620-1 01 1 9510-9802 ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 9803- ● ●
37 ROD; LEVER 1-83579-620-1 01 1 9803- ●
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 		1-83574-136-0 01 1 9510-9802 ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 9510-9802 ●
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 9803- ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 9803- ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-650-0 01 1 9510-9802 ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-0 01 1 9510-9802 ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 9803- ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 9803- ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-0 01 1 9510-9802 ● ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-0 01 1 9510-9802 ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 9803- ● ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 9803- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) 		1-83579-623-0 01 1 9510-9802 ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 9510-9802 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 9803- ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 9803- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (C) 		1-83579-624-0 01 1 9510-9802 ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 9510-9802 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 9803- ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 9803- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 9510-9802 ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 9510-9802 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 9803- ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 9803- ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41) 		1-83579-488-0 05 1 9510-9702 ● ●
54 CLIP; SHUTTER LEVER 1-83579-488-0 05 1 9510-9702 ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41) 		8-94248-794-0 05 1 9703-9802 ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 9703-9802 ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 9803- ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 9803- ●
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-488-0 04 1 9510-0011 ● ●
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 03 1 0012- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 03 1 9510-9802 ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 9510-9802 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 03 1 9803-0011 ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 9803-0011 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0012- ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0012- ●
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 02 1 0012- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-1 01 1 9510-9802 ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-1 01 1 9510-9802 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 9803- ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 9803- ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41) 		1-83579-629-0 01 1 9510-9802 ● ●
60 DOOR; MIX,HTR UNIT 1-83579-629-0 01 1 9510-9802 ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-629-0 01 1 9803-0109 ● ●
60 DOOR; MIX,HTR UNIT 1-83579-629-0 01 1 9803-0109 ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-084-0 01 1 0110- ● ●
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0110- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98299-713-0 01 1 1410- ● ●
61 CASE; HTR UNIT
(B) 		8-98299-713-0 01 1 1410- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98299-715-0 01 1 1410- ● ●
61 CASE; HTR UNIT
(A) 		8-98299-715-0 01 1 1410- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-401-0 01 1 9703-9802 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 9703-9802 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-401-0 01 1 9803-0011 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 9803-0011 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0012-1409 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0012-1409 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 1410- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		1-83564-402-0 01 1 9703-9802 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 9703-9802 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-402-0 01 1 9803-0011 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 9803-0011 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0012-1409 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0012-1409 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 1410- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-323-5 01 1 9510-9702 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 9510-9702 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-323-5 01 1 9703-0011 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 9510-9802 ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 9510-9802 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 9803- ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 9803- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-347-3 01 1 9510-9702 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 9510-9702 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-347-3 01 1 9703-0011 ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		1-83579-557-0 02 1 9510-9802 ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 9510-9802 ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 9803- ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 9803- ●
63 LINING; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83578-033-0 01 1 0012- ● ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) (A) 		1-83564-327-0 01 1 9510-9802 ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 9510-9802 ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-327-0 01 1 9803- ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 9803- ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) (B) 		1-83564-328-1 01 1 9510-9802 ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 9510-9802 ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-328-1 01 1 9803- ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 9803- ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 9510-9802 ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 9510-9802 ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 9803- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 9803- ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 9510-9802 ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 9510-9802 ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 9803- ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 9803- ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		1-83562-078-1 01 1 9510-9802 ● ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 9510-9802 ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-078-1 01 1 9803-1409 ● ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 9803-1409 ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98238-475-0 01 1 1410- ● ●
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410- ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-0 02 1 9510-9802 ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-0 02 1 9510-9802 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 9803- ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 9803- ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41) (B) 		1-83564-345-1 01 1 9703-9802 ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 9703-9802 ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-345-1 01 1 9803-0011 ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 9803-0011 ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 0012- ● ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0012- ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0012- ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 0012- ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41) 		8-94348-809-0 04 1 9510-9802 ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 9510-9802 ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 9803- ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 9803- ●
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9510- ● ●
çizim 152410
1 76 5 132 77 67 61 30 72 21 61 16 104 63 56 33 35 66 31 54 104 56 61 32 34 199 40 104 138 54 54 53 33 56 54 59 37 104 142
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEATER UNIT
HEATER & DEFROSTER(C41) 		1-83511-129-7 01 1 9510-9802 ● ●
1 HEATER UNIT 1-83511-129-7 01 1 9510-9802 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83511-129-8 01 1 9803-0109 ● ●
1 HEATER UNIT 1-83511-129-8 01 1 9803-0109 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83511-175-1 01 1 0110-1409 ● ●
1 HEATER UNIT 1-83511-175-1 01 1 0110-1409 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98238-476-0 01 1 1410- ● ●
1 HEATER UNIT 8-98238-476-0 01 1 1410- ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83511-139-3 01 1 9510- ● ●
5 SCREW; BRKT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 01 1 0012- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 9510-9802 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 9510-9802 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 9803- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 9803- ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-0 02 1 9510-9802 ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-0 02 1 9510-9802 ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 9803- ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 9803- ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20 		9-09829-324-1 01 1 0005-1409 ● ●
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 0005-1409 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 		8-94248-820-0 01 1 1410- ● ●
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1410- ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) (A) M5X20 		9-09829-324-1 01 1 9510-9702 ● ●
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 9510-9702 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16 		8-94324-850-0 12 1 9510-9802 ● ●
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 9510-9802 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16 		8-94324-850-0 12 1 9803-0011 ● ●
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 9803-0011 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16 		8-94324-850-0 12 1 0012- ● ●
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 0012- ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16 		8-94324-850-0 11 1 0012- ● ●
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 9510-9802 ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9510-9802 ●
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 9803- ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9803- ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 01 1 9510-9802 ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9510-9802 ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 9803-1409 ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9803-1409 ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 		8-94248-820-0 01 1 1410- ● ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410- ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 02 1 9510- ● ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 9510-9802 ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 9510-9802 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 9803- ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 9803- ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-621-0 01 1 9510-9802 ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 9510-9802 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-621-0 01 1 9803-0011 ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 9803-0011 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0012- ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0012- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 9510-9802 ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 9510-9802 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 9803- ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 9803- ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 03 1 9510-9802 ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 9510-9802 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 03 1 9803-0011 ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 9803-0011 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 0012- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0012- ●
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 02 1 0012- ● ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 9510-9802 ● ●
37 ROD; LEVER 1-83579-620-1 01 1 9510-9802 ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 9803- ● ●
37 ROD; LEVER 1-83579-620-1 01 1 9803- ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-650-0 01 1 9510-9802 ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-0 01 1 9510-9802 ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 9803- ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 9803- ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-0 01 1 9510-9802 ● ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-0 01 1 9510-9802 ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 9803- ● ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 9803- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) 		1-83579-623-0 01 1 9510-9802 ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 9510-9802 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 9803- ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 9803- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (C) 		1-83579-624-0 01 1 9510-9802 ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 9510-9802 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 9803- ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 9803- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 9510-9802 ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 9510-9802 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 9803- ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 9803- ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41) 		1-83579-488-0 05 1 9510-9702 ● ●
54 CLIP; SHUTTER LEVER 1-83579-488-0 05 1 9510-9702 ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41) 		8-94248-794-0 05 1 9703-9802 ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 9703-9802 ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 9803- ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 9803- ●
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-488-0 04 1 9510-0011 ● ●
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 03 1 0012- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 03 1 9510-9802 ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 9510-9802 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 03 1 9803-0011 ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 9803-0011 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0012- ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0012- ●
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 02 1 0012- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-1 01 1 9510-9802 ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-1 01 1 9510-9802 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 9803- ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 9803- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98299-713-0 01 1 1410- ● ●
61 CASE; HTR UNIT
(B) 		8-98299-713-0 01 1 1410- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98299-715-0 01 1 1410- ● ●
61 CASE; HTR UNIT
(A) 		8-98299-715-0 01 1 1410- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-401-0 01 1 9703-9802 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 9703-9802 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-401-0 01 1 9803-0011 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 9803-0011 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0012-1409 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0012-1409 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 1410- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		1-83564-402-0 01 1 9703-9802 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 9703-9802 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-402-0 01 1 9803-0011 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 9803-0011 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0012-1409 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0012-1409 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 1410- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-323-5 01 1 9510-9702 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 9510-9702 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-323-5 01 1 9703-0011 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 9510-9802 ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 9510-9802 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 9803- ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 9803- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-347-3 01 1 9510-9702 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 9510-9702 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-347-3 01 1 9703-0011 ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		1-83579-557-0 02 1 9510-9802 ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 9510-9802 ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 9803- ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 9803- ●
63 LINING; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83578-033-0 01 1 0012- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 9510-9802 ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 9510-9802 ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 9803- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 9803- ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 9510-9802 ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 9510-9802 ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 9803- ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 9803- ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-0 02 1 9510-9802 ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-0 02 1 9510-9802 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 9803- ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 9803- ●
76 BRACKET; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83573-194-0 01 1 0012- ● ●
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-802-0 01 1 9510-0011 ● ●
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97102-661-0 01 1 0012- ● ●
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-617-0 01 1 9510- ● ●
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-618-0 01 1 9510- ● ●
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-94328-657-0 04 1 9510- ● ●
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-94387-703-0 01 1 0012- ● ●
132 BRACKET; HTR CORE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83573-195-0 01 1 0012- ● ●
138 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-599-2 01 1 9510-0011 ● ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41) (B) 		1-83564-345-1 01 1 9703-9802 ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 9703-9802 ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-345-1 01 1 9803-0011 ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 9803-0011 ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 0012- ● ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0012- ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0012- ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 0012- ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41) 		8-94348-809-0 04 1 9510-9802 ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 9510-9802 ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 9803- ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 9803- ●
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
