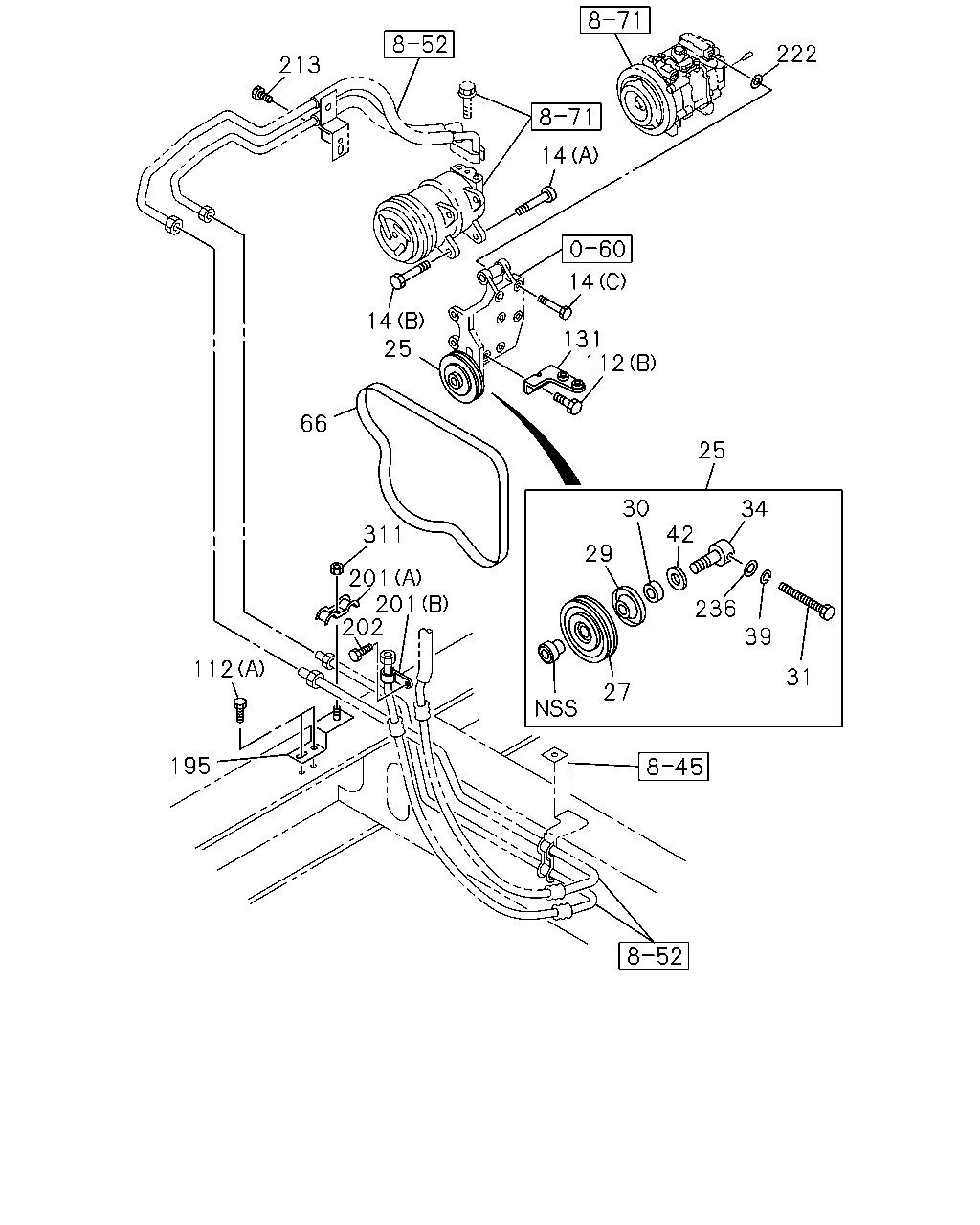

8-50 — AIR CONDITIONING SYSTEM; FRONT (#36704) — 80 parça

222 213 14 14 14 25 131 112 66 25 30 34 42 311 29 201 201 202 236 39 112 31 27 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BOLT; CMPR 6HK1 TCC ENG(81L) (C) M8X80 FLANGE	0-28050-880-0	04	1	0603-	●
14	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X45 FLANGE	0-28081-045-0	02	1	9803-0210	●
14	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X45 FLANGE	0-28081-045-0	02	1	0211-0512	●	●
14	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X45 FLANGE	0-28051-045-0	02	1	0601-0602	●	●
14	BOLT; CMPR 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X45 FLANGE	0-28051-045-0	02	1	0603-0811	●	●
14	BOLT; CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X45 FLANGE	0-28051-045-0	02	1	0812-	●	●
14	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE	0-28681-035-0	02	1	9803-0210	●
14	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE	0-28681-035-0	02	1	0211-0512	●	●
14	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-0602	●	●
14	BOLT; CMPR 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE	0-28651-035-0	02	1	0603-0811	●	●
14	BOLT; CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE	0-28651-035-0	02	1	0812-	●	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	9803-0210	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	0211-	●	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-116-0	01	1	9803-0210	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-116-0	01	1	0211-	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	9803-0210	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0211-	●	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	9803-0210	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0211-	●	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	9803-0210	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	0211-	●	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	9803-0210	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0211-	●	●
39	WASHER; LK,ADJ BOLT AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	9803-0210	●
39	WASHER; LK,ADJ BOLT AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	0211-	●	●
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97014-636-0	01	1	9803-0210	●
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97014-636-0	01	1	0211-	●	●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1082	1-13671-256-0	01	1	0201-0210	●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1082	1-13671-256-0	01	1	0211-1402	●	●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1077	8-98253-452-0	01	1	1403-	●	●
66	BELT; A/C CMPR 6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110	8-94395-172-0	01	1	0603-0811	●
66	BELT; A/C CMPR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110	8-94395-172-0	01	1	0812-	●
66	BELT; A/C CMPR 6HE1 TCC ENG(76L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110	8-94395-172-0	01	1	9803-0602	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9803-0210	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9812-0010	●
112	BOLT; STAY 6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) (B) M8X16 FLANGE	0-28080-816-0	02	1	0011-0210	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	0011-0210	●
112	BOLT; STAY 6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) (B) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
112	BOLT; STAY 6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0811	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0811	●	●
112	BOLT; STAY 6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28050-816-0	02	1	0812-	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0812-	●	●
112	BOLT; STAY 6HE1 TCC ENG(76L) (B) M8X16 FLANGE	0-28080-816-0	02	1	9803-9811	●
131	STAY; CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	9812-0010	●
131	STAY; CMPR BRKT 6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41)	8-94393-451-0	01	1	0011-0210	●	●
131	STAY; CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	0011-0210	●
131	STAY; CMPR BRKT 6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41)	8-94393-451-0	01	1	0211-0811	●	●
131	STAY; CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	0211-0811	●	●
131	STAY; CMPR BRKT 6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN>	8-94393-451-0	01	1	0812-	●	●
131	STAY; CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	0812-	●	●
131	STAY; CMPR BRKT 6HE1 TCC ENG(76L)	8-94393-451-0	01	1	9803-9811	●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-172-0	01	1	0302-	●	●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-088-0	01	1	9803-0210	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9803-0210	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0211-	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	9803-0210	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	0211-0606	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	0-95235-836-0	01	1	0607-	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	01	1	9803-0210	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> M6X25 FLANGE	0-28050-625-0	02	1	0603-	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	02	1	9803-0210	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE	0-28681-035-0	01	1	9806-0210	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE	0-28681-035-0	01	1	0211-0306	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	01	1	0307-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28051-045-0	01	1	0601-0602	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28051-045-0	01	1	0603-		●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> M10X45 FLANGE	0-28051-045-0	01	1	0603-	●
222	GASKET; CONNECTOR 6HK1 TCC ENG(81L) ID=8.4 OD=19	5-11779-001-0	04	1	0603-	●
236	WASHER; PL,ADJ BOLT AIR CONDITIONER MANUAL CONTROL(C60)	1-09503-216-0	01	1	9803-0210	●
236	WASHER; PL,ADJ BOLT AIR CONDITIONER MANUAL CONTROL(C60)	1-09503-216-0	01	1	0211-	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9803-0210	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
