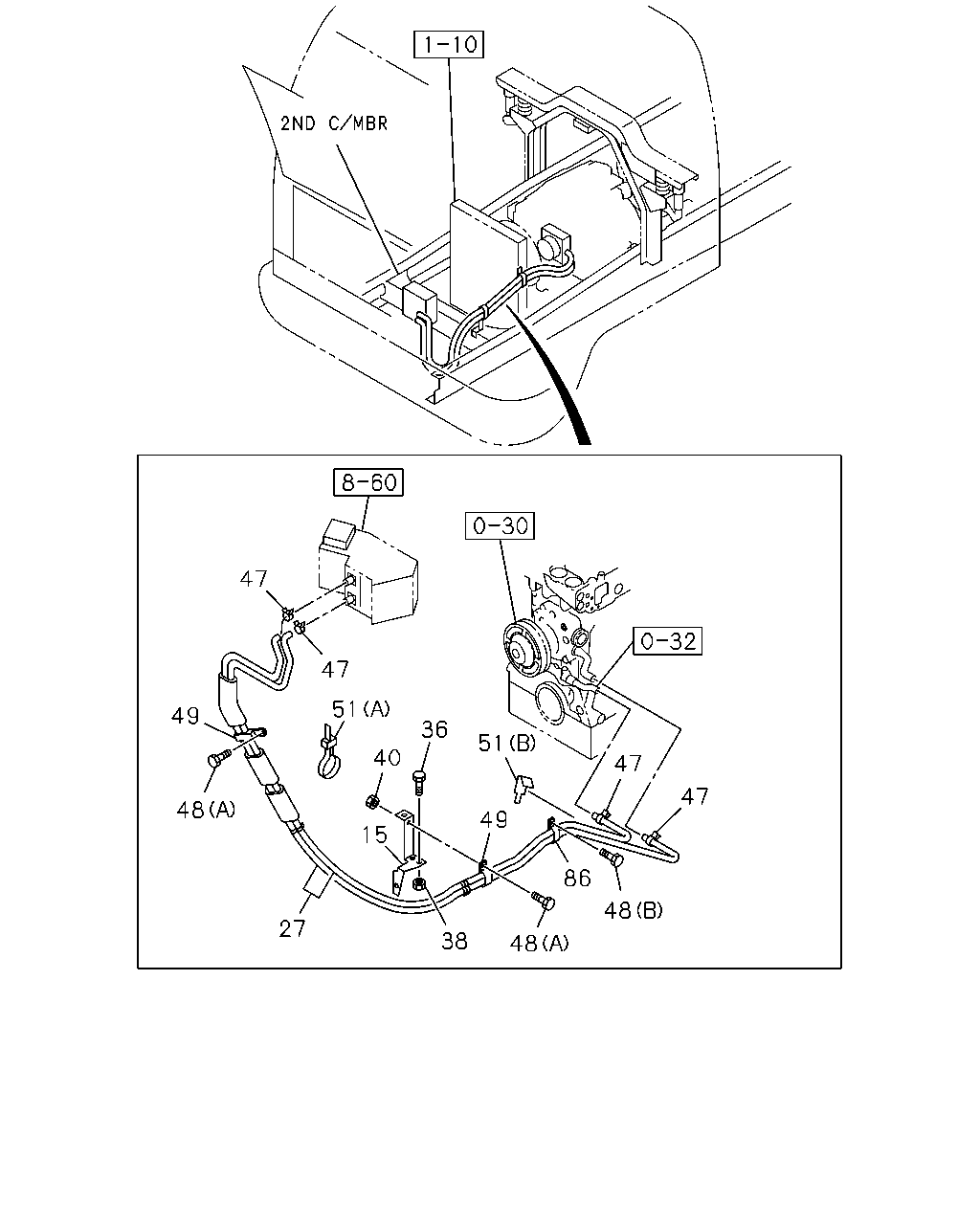

15 |
BRACKET; WATER HOSE
|
1-83571-844-1 |
01 |
1 |
9510-0010 |
● |
● |
● |
| |
15 |
BRACKET; WATER HOSE
6HH1 STD ENG(65L)
NEW ZEALAND EQUIPMENT(PK5)
|
1-83571-844-2 |
01 |
1 |
0011- |
● |
● |
● |
| |
15 |
BRACKET; WATER HOSE
EXC. NEW ZEALAND EQUIPMENT(PK5)
|
1-83571-844-2 |
01 |
1 |
0011- |
|
● |
|
| |
15 |
BRACKET; WATER HOSE
6HH1 STD 4VALVE ENG(1A6)
NEW ZEALAND EQUIPMENT(PK5)
|
1-83573-070-1 |
01 |
1 |
0011-0602 |
|
● |
|
| |
15 |
BRACKET; WATER HOSE
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L)
NEW ZEALAND EQUIPMENT(PK5)
|
1-83573-070-1 |
01 |
1 |
0603- |
|
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1 TCC ENG(81L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-790-0 |
01 |
1 |
0603- |
|
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HE1 TC ENG(57L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
EURO2 SPECIFICATION<THN>
|
1-83565-660-1 |
01 |
1 |
0511- |
|
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41)
|
1-83565-586-5 |
01 |
1 |
9510-9802 |
● |
|
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-83565-586-5 |
01 |
1 |
9510-9802 |
|
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41)
|
1-83565-586-6 |
01 |
1 |
9803-9912 |
● |
|
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-83565-586-6 |
01 |
1 |
9803-9912 |
|
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41)
|
1-83565-748-0 |
01 |
1 |
0001-0004 |
● |
|
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-83565-748-0 |
01 |
1 |
0001-0004 |
|
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41)
AUSTRALIA EQUIPMENT(RR3)
|
1-83565-627-1 |
01 |
1 |
9510-9802 |
|
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
|
1-83565-627-1 |
01 |
1 |
9510-9802 |
|
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
AUSTRALIA EQUIPMENT(RR3)
|
1-83565-627-2 |
01 |
1 |
9803-0004 |
|
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
|
1-83565-627-2 |
01 |
1 |
9803-0004 |
|
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-748-0 |
01 |
1 |
0005-0510 |
● |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
|
1-83565-748-0 |
01 |
1 |
0005-0510 |
|
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1
TCC ENG(76L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-748-0 |
01 |
1 |
0511- |
● |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HE1 TC ENG(57L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
EXC. EURO2 SPECIFICATION<THN>
|
1-83565-748-0 |
01 |
1 |
0511- |
|
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
|
1-83565-748-0 |
01 |
1 |
0511- |
|
|
● |
| |
36 |
BOLT; BRKT
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9510-9606 |
● |
● |
● |
| |
36 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9801 |
● |
● |
● |
| |
36 |
BOLT; BRKT
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9802-0512 |
● |
● |
● |
| |
36 |
BOLT; BRKT
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
● |
● |
| |
38 |
NUT; BRKT
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
● |
● |
● |
| |
38 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-0602 |
● |
● |
● |
| |
38 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41)
M8
|
9-09110-408-0 |
01 |
1 |
9510-9606 |
● |
● |
|
| |
40 |
NUT; CLIP
M8
|
9-09110-408-0 |
01 |
1 |
9510-9606 |
|
|
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9802 |
● |
● |
|
| |
40 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9802 |
|
|
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9803-0602 |
● |
● |
|
| |
40 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9803-0602 |
|
|
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
● |
|
| |
40 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
|
|
● |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=22
|
8-94382-401-0 |
04 |
1 |
9510-9802 |
● |
● |
|
| |
47 |
CLAMP; WATER HOSE,HTR
ID=22
|
8-94382-401-0 |
04 |
1 |
9510-9802 |
|
|
● |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=22
|
8-94382-401-0 |
04 |
1 |
9803-0611 |
● |
● |
|
| |
47 |
CLAMP; WATER HOSE,HTR
ID=22
|
8-94382-401-0 |
04 |
1 |
9803-0611 |
|
|
● |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=22
|
8-97359-141-0 |
04 |
1 |
0612- |
● |
● |
|
| |
47 |
CLAMP; WATER HOSE,HTR
ID=22
|
8-97359-141-0 |
04 |
1 |
0612- |
|
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9510-9606 |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9510-9606 |
|
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9607-9802 |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9607-9802 |
|
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9803-0512 |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9803-0512 |
|
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601-0602 |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601-0602 |
|
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0603- |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
6HK1 TCC ENG(81L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0603- |
|
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0603- |
|
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9510-9802 |
|
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9803- |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9803- |
|
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-9801 |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-9801 |
|
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9902-0512 |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9902-0512 |
|
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
|
|
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9510-9802 |
● |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9510-9802 |
|
|
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9803-9901 |
● |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9803-9901 |
|
|
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9902-0602 |
● |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9902-0602 |
|
|
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
0603- |
● |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
6HK1 TCC ENG(81L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
0603- |
|
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
0603- |
|
|
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9902- |
● |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9902- |
|
|
● |
| |
51 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
(B)
L=170
|
1-83574-139-0 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
(B)
L=170
|
1-83574-139-0 |
01 |
1 |
9510-9802 |
|
|
● |
| |
51 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
L=170
|
1-83574-139-0 |
01 |
1 |
9803-0607 |
● |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
(B)
L=170
|
1-83574-139-0 |
01 |
1 |
9803-0607 |
|
|
● |
| |
51 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
L=170
|
1-83574-139-0 |
01 |
1 |
0608-1205 |
● |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC
ENG(81L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
L=170
|
1-83574-139-0 |
01 |
1 |
0608-1205 |
|
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
(B)
L=170
|
1-83574-139-0 |
01 |
1 |
0608-1205 |
|
|
● |
| |
51 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
L=170
|
8-98166-021-0 |
01 |
1 |
1206- |
● |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC
ENG(81L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
L=170
|
8-98166-021-0 |
01 |
1 |
1206- |
|
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
(B)
L=170
|
8-98166-021-0 |
01 |
1 |
1206- |
|
|
● |
| |
51 |
CLIP; WATER HOSE,HTR
6HE1 TC ENG(57L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
EURO2 SPECIFICATION<THN>
(A)
L=500
|
1-09707-082-1 |
01 |
1 |
0005- |
|
● |
|
| |
86 |
CLIP; HTR HOSE
HEATER & DEFROSTER(C41)
|
1-83571-049-1 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
86 |
CLIP; HTR HOSE
|
1-83571-049-1 |
01 |
1 |
9510-9802 |
|
|
● |
| |
86 |
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83571-049-1 |
01 |
1 |
9803- |
● |
● |
|
| |
86 |
CLIP; HTR HOSE
|
1-83571-049-1 |
01 |
1 |
9803- |
|
|
● |
