Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#36702) — 216 parça

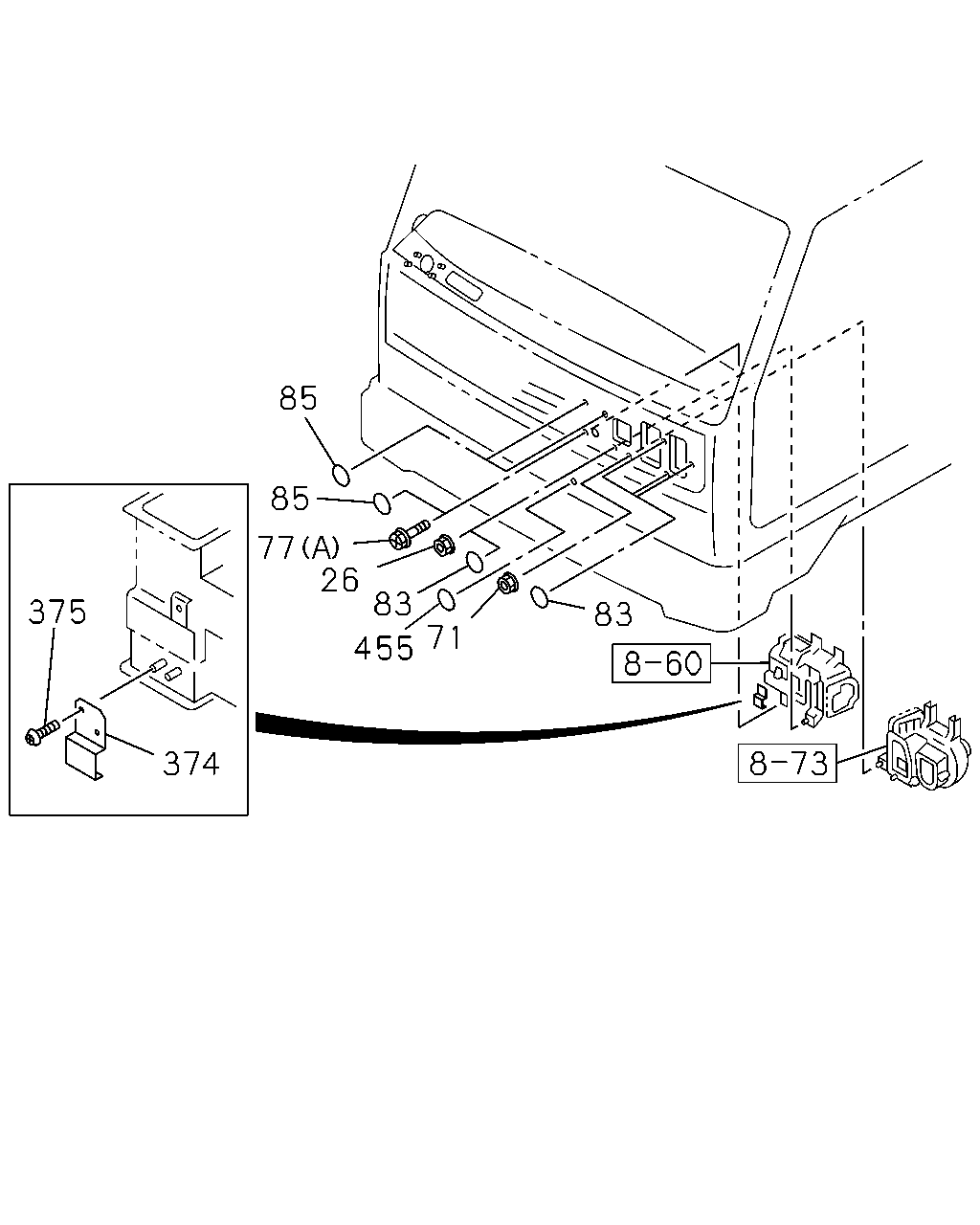

85 85 77 26 83 375 83 71 455 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	NUT; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802			●
26	NUT; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-0210	●
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-0210		●
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-0210			●
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-	●	●
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-			●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9510-9802	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9510-9802			●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9803-0210	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9803-0210		●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9803-0210			●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0211-	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0211-			●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-0	02	1	9510-9802	●	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	9510-9802			●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	9803-0210	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	9803-0210		●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	9803-0210			●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	0211-	●	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0211-			●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802			●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0210	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0210		●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0210			●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-			●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9510-9802	●	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9803-0210	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9803-0210		●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	0211-	●	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9510-9802	●	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9803-0210	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9803-0210		●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	0211-	●	●
374	HOLDER; DUCT HEATER & DEFROSTER(C41)	1-76398-012-1	01	1	9510-9802	●	●
374	HOLDER; DUCT	1-76398-012-1	01	1	9510-9802			●
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	9803-	●	●
374	HOLDER; DUCT	1-76398-012-1	01	1	9803-			●
375	SCREW; HOLDER HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9510-9802	●	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	9510-9802			●
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9803-	●	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	9803-			●
455	SEAL; CLIP HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9903-	●	●

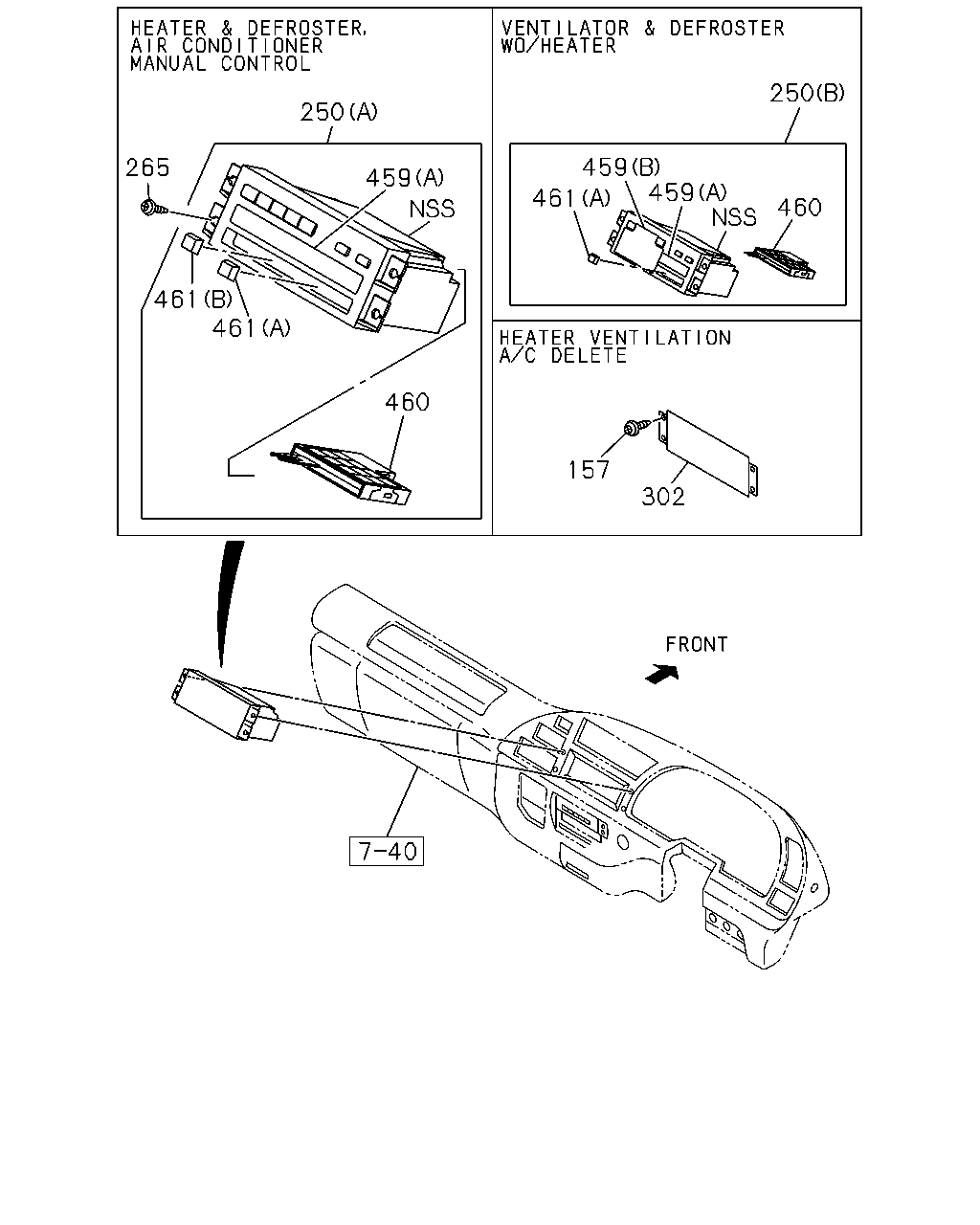

250 250 459 459 265 459 461 460 461 461 460 157 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
157	SCREW EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9510-0004	●	●
157	SCREW EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0210	●
157	SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0210		●
157	SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0211-0604	●	●
157	SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-	●	●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41) (A)	1-83543-033-2	01	1	9510-9802	●	●
250	CONTROL ASM; A/C (A)	1-83543-033-2	01	1	9510-9802			●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-033-2	01	1	9803-9909	●	●
250	CONTROL ASM; A/C (A)	1-83543-033-2	01	1	9803-9909			●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-050-0	01	1	9910-	●	●
250	CONTROL ASM; A/C (A)	1-83543-050-0	01	1	9910-			●
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83543-034-1	01	1	9510-	●	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9510-0004	●	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9510-0004			●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0210	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0210		●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0210			●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0211-0604	●	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0211-0604			●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-	●	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-			●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72438-140-1	01	1	9510-9802	●	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72438-140-1	01	1	9803-0210	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72438-140-1	01	1	9803-0210		●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72438-140-1	01	1	0211-	●	●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-013-0	01	1	0005-	●	●
459	PANEL; CONTROL ASM,A/C (A)	1-83549-013-0	01	1	0005-			●
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83549-017-0	01	1	0005-	●	●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	0005-	●	●
460	SWITCH; CONTROL ASM,A/C	1-82489-006-0	01	1	0005-			●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	0005-	●	●
461	KNOB; CONTROL ASM,A/C (B)	1-83549-015-0	01	1	0005-			●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	0005-	●	●
461	KNOB; CONTROL ASM,A/C (A)	1-83549-016-0	01	1	0005-			●

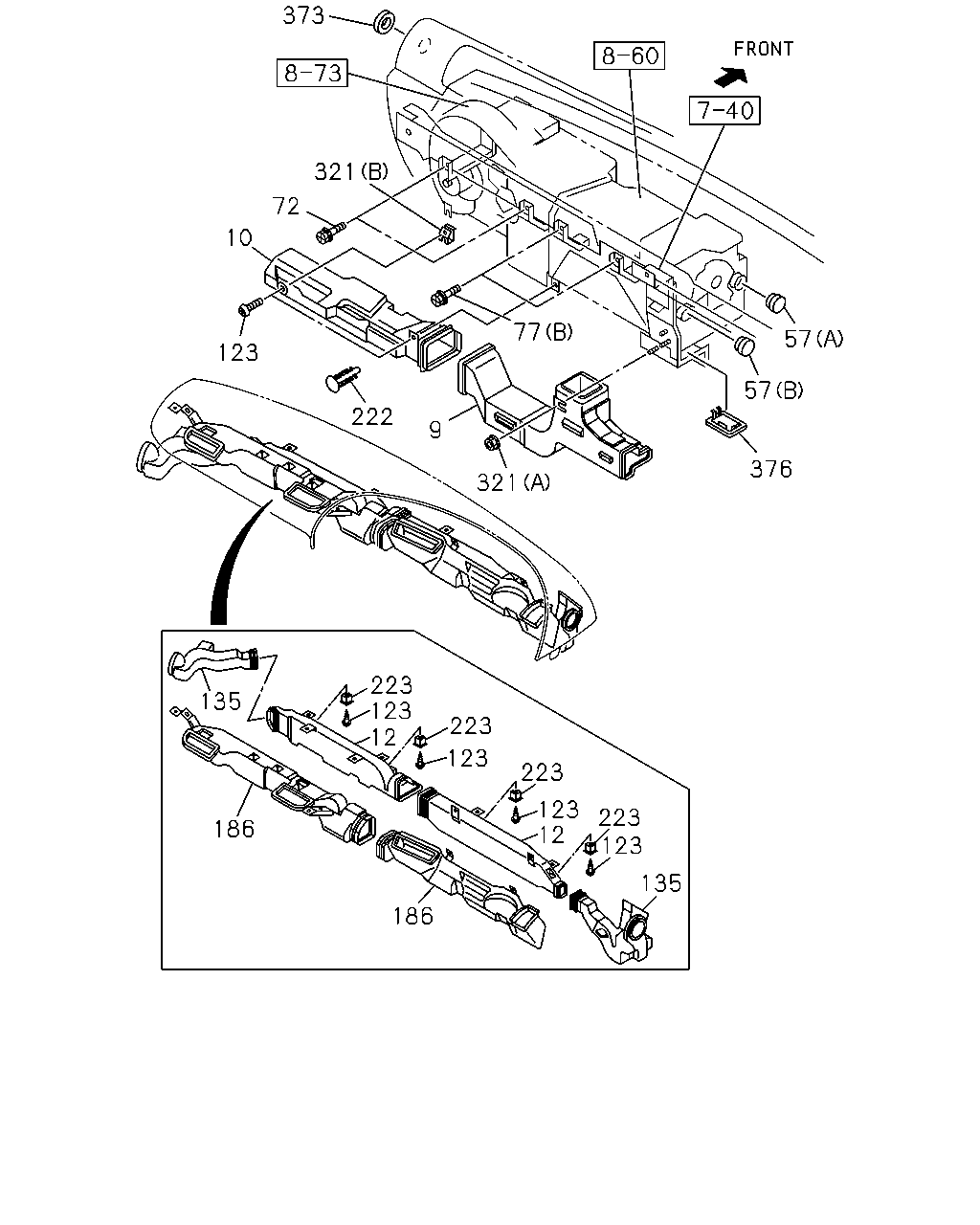

373 321 72 10 77 57 123 57 222 9 376 321 223 123 12 135 223 123 223 123 12 223 123 186 135 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-370-3	01	1	9510-9801	●	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-370-3	01	1	9510-9801			●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-409-0	01	1	9802-9805	●	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-409-0	01	1	9802-9805			●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-409-0	01	1	9806-0006	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-409-0	01	1	9806-0006		●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-409-0	01	1	9806-0006			●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-426-2	01	1	0007-0210	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-426-2	01	1	0007-0210		●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-426-2	01	1	0007-0210			●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-426-2	01	1	0211-	●	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-426-2	01	1	0211-			●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41)	1-76378-278-7	01	1	9510-9801	●	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-278-7	01	1	9510-9801			●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41)	1-76378-413-0	01	1	9802-9805	●	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-413-0	01	1	9802-9805			●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41)	1-76378-413-0	01	1	9806-0210	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-413-0	01	1	9806-0210		●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-413-0	01	1	9806-0210			●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-413-0	01	1	0211-	●	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-413-0	01	1	0211-			●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-321-6	01	1	9805-0004	●	●
12	NOZZLE; DEFROSTER	1-76378-321-6	01	1	9805-0004			●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-321-6	01	1	0005-0210	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-321-6	01	1	0005-0210		●
12	NOZZLE; DEFROSTER	1-76378-321-6	01	1	0005-0210			●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-321-6	01	1	0211-	●	●
12	NOZZLE; DEFROSTER	1-76378-321-6	01	1	0211-			●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-172-6	01	1	9805-0004	●	●
12	NOZZLE; DEFROSTER	1-76377-172-6	01	1	9805-0004			●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-172-7	01	1	0005-0210	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-172-7	01	1	0005-0210		●
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	0005-0210			●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-172-7	01	1	0211-	●	●
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	0211-			●
57	COVER; INL DUCT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-617-0	01	1	0205-	●	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41) (A)	1-83579-617-0	02	1	9510-9802	●	●
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	9510-9802			●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-617-0	02	1	9803-	●	●
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	9803-			●
57	COVER; INL DUCT HEATER & DEFROSTER(C41) (B)	1-83579-618-0	01	1	9510-9802	●	●
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	9510-9802			●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-618-0	01	1	9803-	●	●
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	9803-			●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802			●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0210	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0210		●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0210			●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-			●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-0	02	1	9510-9802	●	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	9510-9802			●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	9803-0210	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	9803-0210		●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	9803-0210			●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	0211-	●	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0211-			●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802			●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0210	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0210		●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0210			●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-			●
123	SCREW; DUCT HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9510-9802	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9510-9802			●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9803-	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9803-			●
123	SCREW; DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9510-9802	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9510-9802			●
123	SCREW; DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9803-0210	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9803-0210		●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9803-0210			●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	0211-	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	0211-			●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-253-4	01	1	9805-0004	●	●
135	HOSE; DEFROSTER	1-76378-253-4	01	1	9805-0004			●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-253-4	01	1	0005-0210	●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-253-4	01	1	0005-0210		●
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0005-0210			●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-253-4	01	1	0211-	●	●
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0211-			●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-252-7	01	1	9805-0004	●	●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	9805-0004			●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-252-7	01	1	0005-0210	●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-252-7	01	1	0005-0210		●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0005-0210			●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-252-7	01	1	0211-	●	●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0211-			●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-322-9	01	1	9805-9903	●	●
186	DUCT; VENTILATOR	1-76378-322-9	01	1	9805-9903			●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-418-0	01	1	9904-0004	●	●
186	DUCT; VENTILATOR	1-76378-418-0	01	1	9904-0004			●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-418-0	01	1	0005-0210	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-418-0	01	1	0005-0210		●
186	DUCT; VENTILATOR	1-76378-418-0	01	1	0005-0210			●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-418-0	01	1	0211-	●	●
186	DUCT; VENTILATOR	1-76378-418-0	01	1	0211-			●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-173-6	01	1	9805-0004	●	●
186	DUCT; VENTILATOR	1-76377-173-6	01	1	9805-0004			●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-173-6	01	1	0005-0210	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-173-6	01	1	0005-0210		●
186	DUCT; VENTILATOR	1-76377-173-6	01	1	0005-0210			●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-173-6	01	1	0211-0710	●	●
186	DUCT; VENTILATOR	1-76377-173-6	01	1	0211-0710			●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-246-0	01	1	0711-	●	●
186	DUCT; VENTILATOR	1-76377-246-0	01	1	0711-			●
222	FASTENER; DUCT HEATER & DEFROSTER(C41) ID=6 OD=16 L=18	8-94178-705-0	01	1	9802-9910	●	●
222	FASTENER; DUCT ID=6 OD=16 L=18	8-94178-705-0	01	1	9802-9910			●
222	FASTENER; DUCT HEATER & DEFROSTER(C41) ID=6 OD=16 L=18	8-94178-705-0	01	1	9911-0210	●
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=6 OD=16 L=18	8-94178-705-0	01	1	9911-0210		●
222	FASTENER; DUCT ID=6 OD=16 L=18	8-94178-705-0	01	1	9911-0210			●
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=6 OD=16 L=18	8-94178-705-0	01	1	0211-	●	●
222	FASTENER; DUCT ID=6 OD=16 L=18	8-94178-705-0	01	1	0211-			●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9510-9802	●	●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9510-9802			●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9803-0210	●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9803-0210		●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9803-0210			●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0211-	●	●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0211-			●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41) (A) M6 FLANGE	0-91150-106-0	01	1	9510-9802	●	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91150-106-0	01	1	9510-9802			●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91150-106-0	01	1	9803-0602	●	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91150-106-0	01	1	9803-0602			●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91180-106-0	01	1	0603-			●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41) (B) M5	1-09984-150-0	01	1	9510-9802	●	●
321	NUT; DUCT FIX (B) M5	1-09984-150-0	01	1	9510-9802			●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-150-0	01	1	9803-0409	●	●
321	NUT; DUCT FIX (B) M5	1-09984-150-0	01	1	9803-0409			●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-196-0	01	1	0410-	●	●
321	NUT; DUCT FIX (B) M5	1-09984-196-0	01	1	0410-			●
373	RUBBER; JOINT	1-76378-291-0	02	1	9510-	●	●	●
376	COVER; BED HEATER HEATER & DEFROSTER(C41)	1-83579-599-2	01	1	9510-9702	●	●
376	COVER; BED HEATER	1-83579-599-2	01	1	9510-9702			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
