◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#36700) — 191 parça

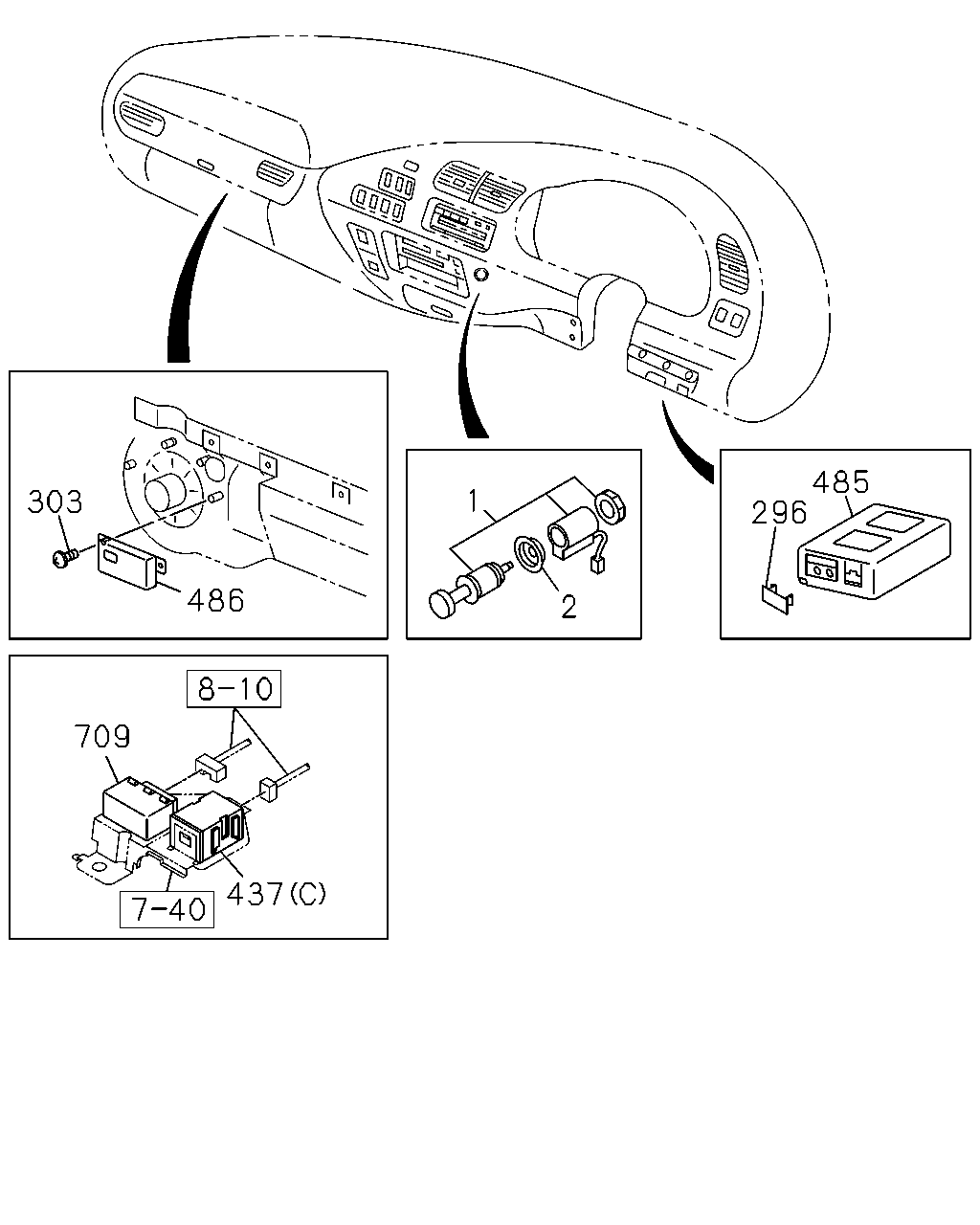

çizim 152388
485 296 1 303 486 2 709 437
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9510-0108 ● ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9510- ● ● ●
296 COVER; CONT UNIT 1-82549-010-0 01 1 9803-0004 ● ● ●
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 9911- ●
437 CONVERTER; DC
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (C) KOITO 		8-97359-129-0 01 1 0602- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 9807-0004 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-1 01 1 0005-0008 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (D) MITSUBISHI 		1-84122-034-1 01 1 0009-0603 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (D) METRO DENSO 		8-98046-423-0 01 1 0604- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-0 01 1 9905-9907 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 9908-0004 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9510-0004 ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0005-0402 ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410 ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411- ● ● ●
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 9803- ●
709 RESISTOR; HD LAMP LEVELING
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-97359-130-1 01 1 0602- ●

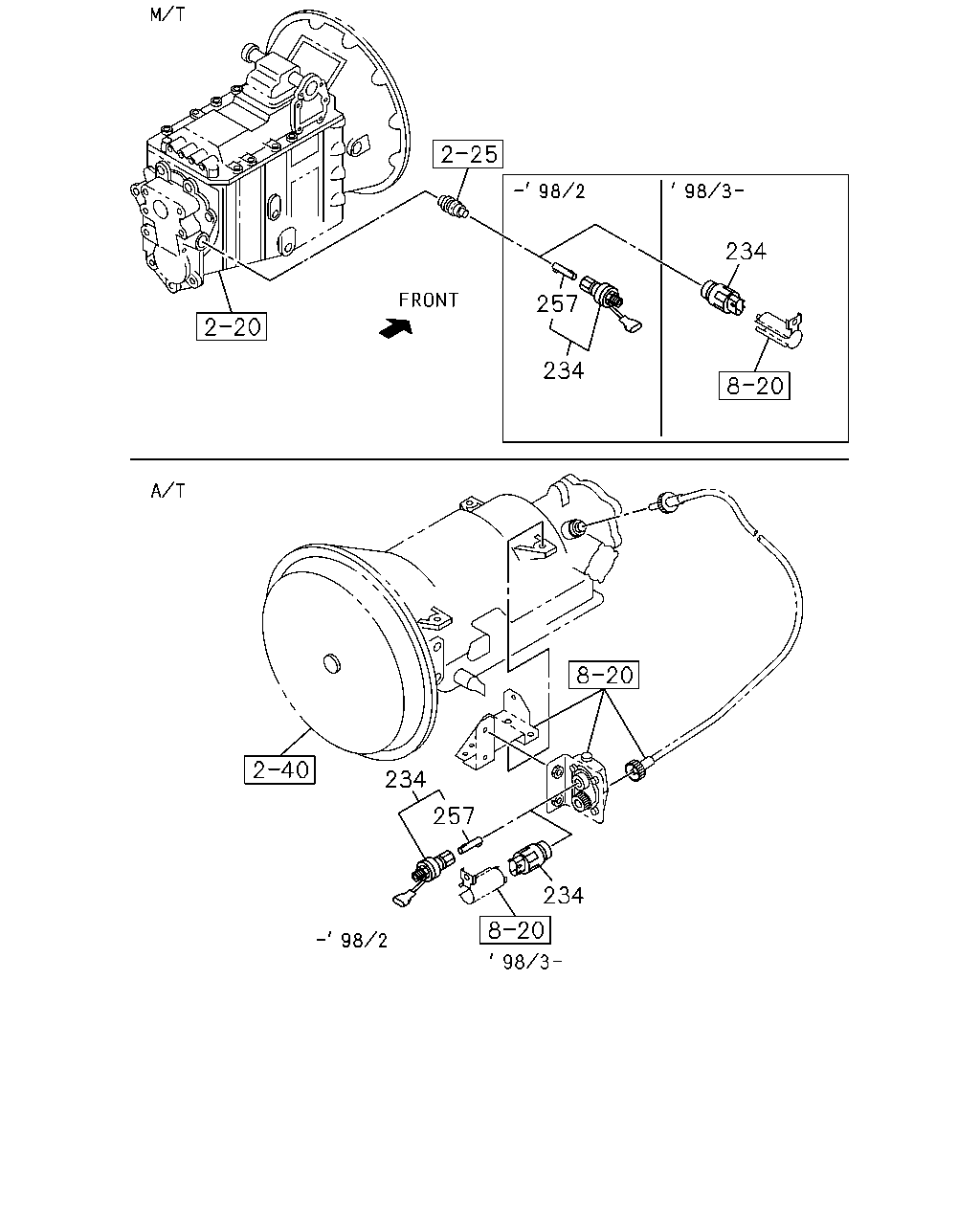

çizim 152390
234 257 234 234 257 234
BalonParca AdiParca NoAdetTipApplied Date A B C
234 SENSOR; VEHICLE SPD 1-83127-241-1 01 1 9510-9802 ● ● ●
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 9803-0202 ● ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203- ● ● ●
257 KEY; SPEED SENSOR 1-83129-126-0 01 1 9510-9802 ● ● ●

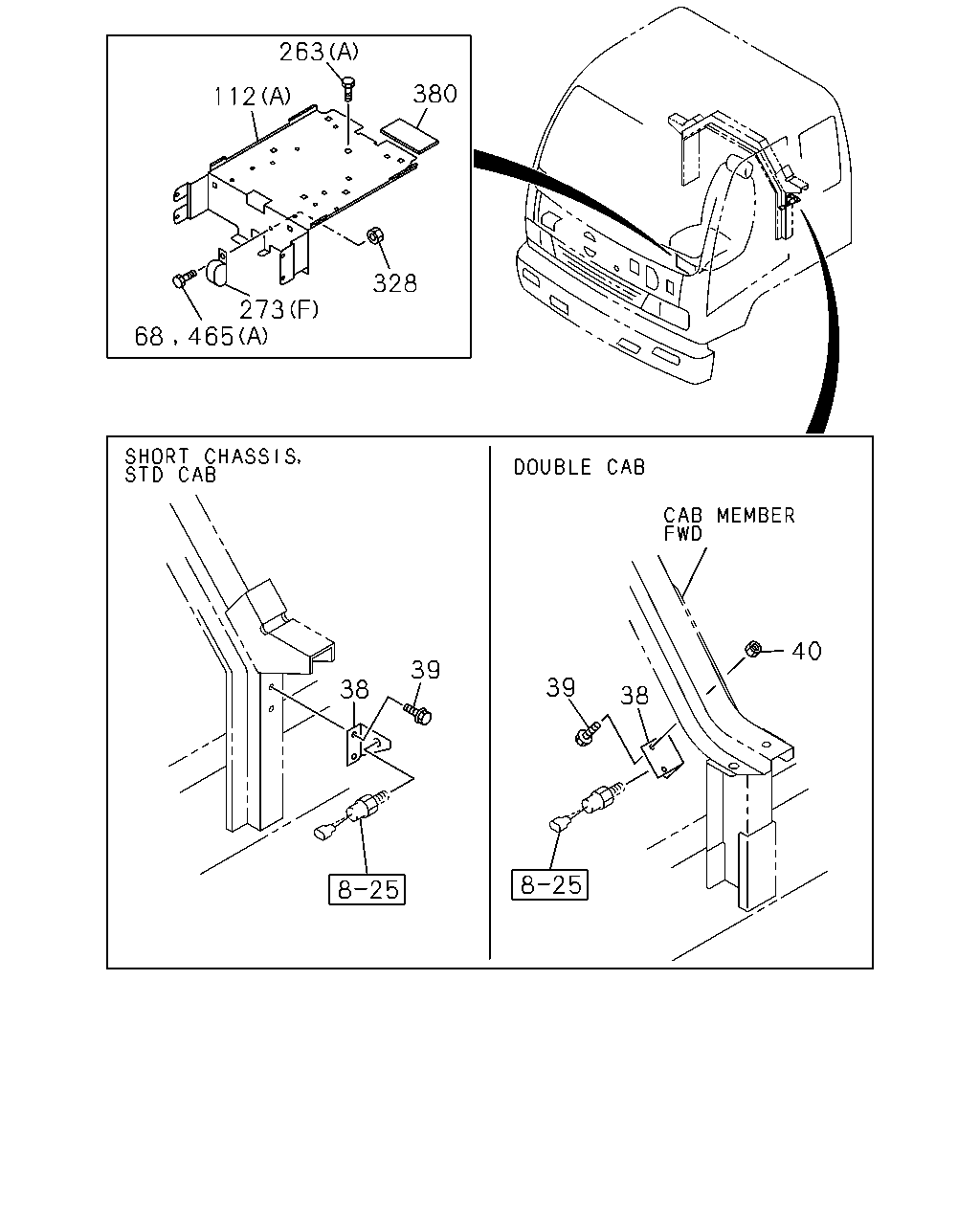

çizim 152395
263 380 112 328 273 40 39 39 38 38 68 465
BalonParca AdiParca NoAdetTipApplied Date A B C
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82699-351-0 01 1 9510-0004 ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) 		1-82699-351-0 01 1 0005-0211 ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> 		1-82699-351-0 01 1 0212- ●
38 BRACKET; SW,STARTER SUB 1-82699-370-0 01 1 9510-0004 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9802-0004 ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9802-0004 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0211 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 		9-09110-408-0 02 1 9510-9606 ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
68 BOLT; BRKT
A/T<X9D> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9803-9804 ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907 ● ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908-0004 ● ●
112 BRACKET; CONT UNIT
EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> (B) 		1-75558-566-0 02 1 0604- ●
112 BRACKET; CONT UNIT
A/T<X9D> (A) 		1-75557-465-2 01 1 9803-9804 ●
263 BOLT; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0212- ●
263 BOLT; CONT UNIT
A/T<X9D> (A) M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 9803-9804 ●
273 CLIP; HARNESS
6HK1 TCC ENG(81L) (H) ID=35 L=35 		1-09700-726-0 01 1 0603- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (G) ID=12-16 & 12-16 		1-09709-191-0 03 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=11.5 & 14.5 		8-94314-293-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		8-97101-436-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		9-09525-085-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		0-95235-085-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		9-09525-536-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		0-95235-536-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		9-09525-536-0 02 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		0-95235-536-0 02 1 0607- ●
273 CLIP; HARNESS
A/T<X9D> (F) ID=42.7 L=38 		1-09700-583-1 02 1 9803-9804 ●
328 NUT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905-9907 ● ●
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6 FLANGE 		0-91150-106-0 04 1 9908-9911 ● ●
380 SEAL
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) OD=25 BLACK 		1-76798-019-0 02 1 0201- ● ●
380 SEAL
6HH1 STD 4VALVE ENG(1A6) EXC. NEW ZEALAND EQUIPMENT(PK5) OD=25 BLACK 		1-76798-019-0 02 1 0201- ●
380 SEAL
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OD=25 BLACK 		1-76798-019-0 02 1 0201- ●
380 SEAL
A/T<X9D> 100X30 		1-72498-014-1 03 1 9803-9804 ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0603- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
465 BOLT; CLIP
A/T<X9D> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9804 ●

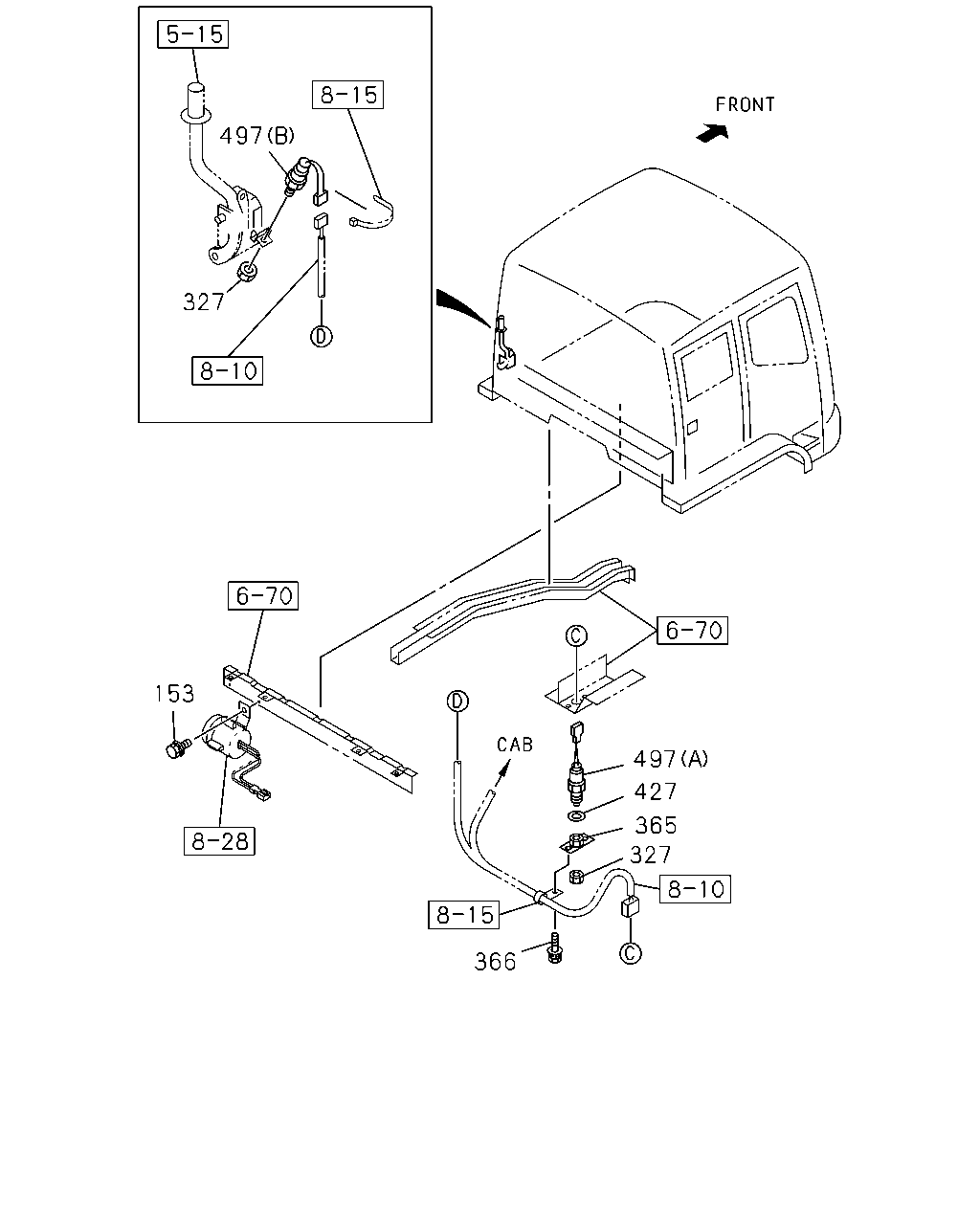

çizim 152401
497 327 153 497 427 365 327 366
BalonParca AdiParca NoAdetTipApplied Date A B C
153 BOLT; BUZZER FIX
M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9510- ●
327 NUT; SWITCH
M16 		9-99111-416-0 02 1 9803-0512 ●
327 NUT; SWITCH
M16 		0-91111-516-0 02 1 0601- ●
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 9510- ●
366 BOLT; PLATE,SW,CAB TILT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510- ●
427 WASHER; PL,SWITCH
ID=17 		9-09160-516-0 01 1 9510-0605 ●
427 WASHER; PL,SWITCH
ID=17 OD=30 		0-91610-516-0 01 1 0606- ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9510- ●
497 SWITCH; CAB TILT
(B) STAMP NO 		1-82380-126-0 01 1 9510- ●

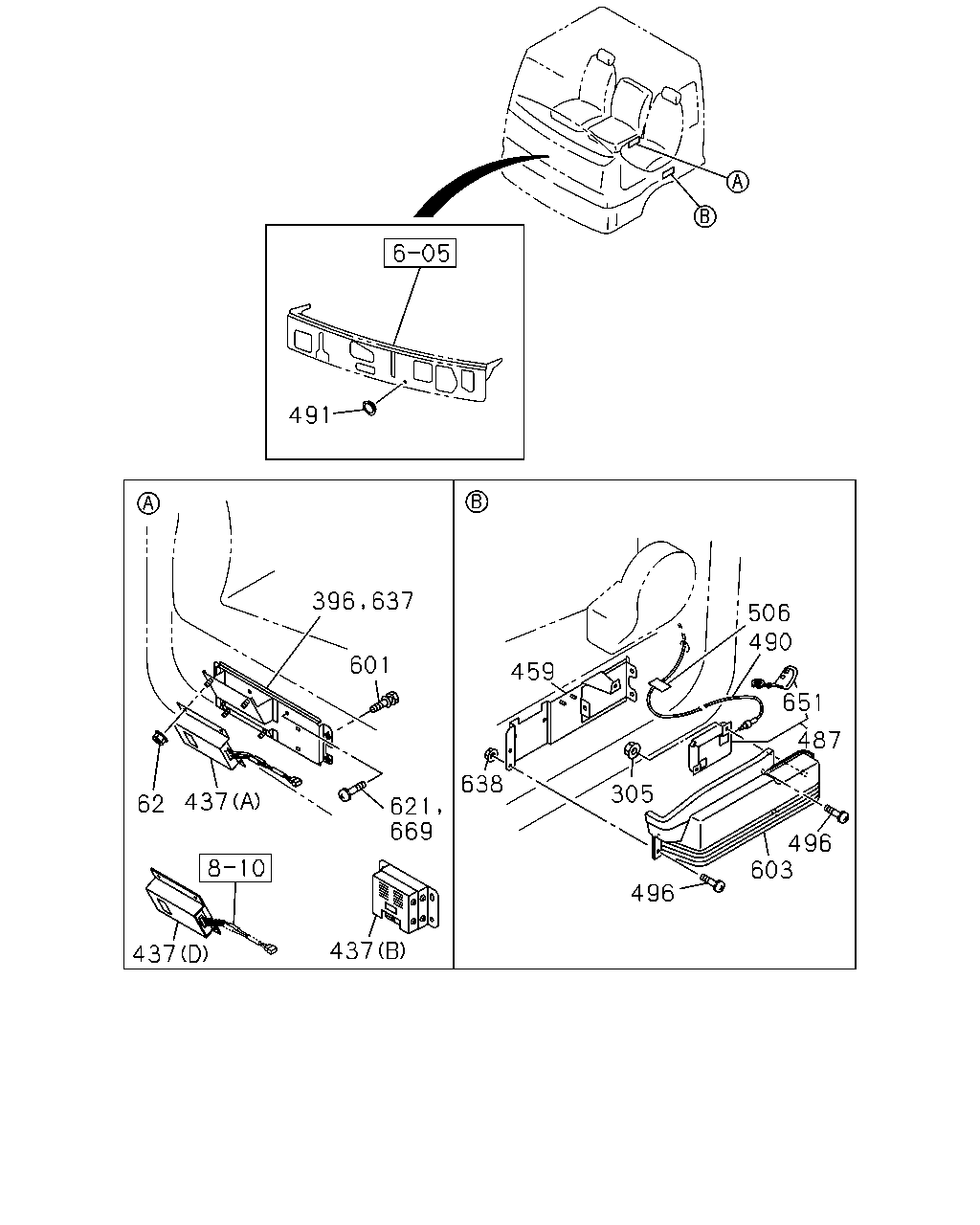

çizim 152428
491 396 506 490 601 459 651 487 638 305 437 62 621 669 496 603 496 437 437 637
BalonParca AdiParca NoAdetTipApplied Date A B C
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 02 1 9811-0004 ● ●
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 02 1 0005-0602 ●
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91180-106-0 02 1 0603- ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0212-0809 ●
396 BRACKET
ELEC OUTLET 12V<TAW> 		1-75557-483-0 01 1 9905-9907 ● ●
396 BRACKET
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 		1-75557-483-1 01 1 9908-0004 ● ●
437 CONVERTER; DC
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (C) KOITO 		8-97359-129-0 01 1 0602- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 9807-0004 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-1 01 1 0005-0008 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (D) MITSUBISHI 		1-84122-034-1 01 1 0009-0603 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (D) METRO DENSO 		8-98046-423-0 01 1 0604- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-0 01 1 9905-9907 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 9908-0004 ● ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> 		1-75558-488-5 01 1 9811-0004 ● ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> 		1-75558-488-5 01 1 0005- ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86855-033-2 01 1 0212-0809 ●
490 ANTENNA; AUTO REMOTE DOOR LOCK
REMOTE CONT DOOR LOCK<SLG> 		1-86855-023-1 01 1 0212-0809 ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9510-9609 ● ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9610-0004 ● ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 9610-0004 ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0005-0112 ● ●
491 PLUG; HOLE,CONT UNIT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> OD=54.5 		1-73907-309-0 01 1 0201-0602 ● ●
491 PLUG; HOLE,CONT UNIT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0201-0602 ● ●
491 PLUG; HOLE,CONT UNIT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> OD=54.5 		1-73907-309-0 01 1 0603- ● ●
491 PLUG; HOLE,CONT UNIT
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0603- ●
491 PLUG; HOLE,CONT UNIT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0603- ●
491 PLUG; HOLE,CONT UNIT
EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> OD=54.5 		1-73907-309-0 01 1 0603- ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9811-0004 ● ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0005-0703 ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0704- ●
506 TAPE; ANTENNA
REMOTE CONT DOOR LOCK<SLG> 100X30 		1-74998-068-0 06 1 0803-0809 ●
601 BOLT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0005-0703 ●
601 BOLT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0704- ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		1-72538-160-2 01 1 9811-0004 ● ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		1-72538-160-3 01 1 0005-0810 ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		8-97589-725-0 01 1 0811- ●
621 SCREW
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/PL WASHER 		1-09981-380-0 04 1 9912-0004 ● ●
637 BRACKET; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> 		1-75557-483-1 01 1 0005- ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9811-0004 ● ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 0005-0602 ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91180-106-0 04 1 0603- ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86860-008-0 01 1 0212-0809 ●
669 SCREW; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/PL WASHER 		1-09981-380-0 04 1 0005- ●

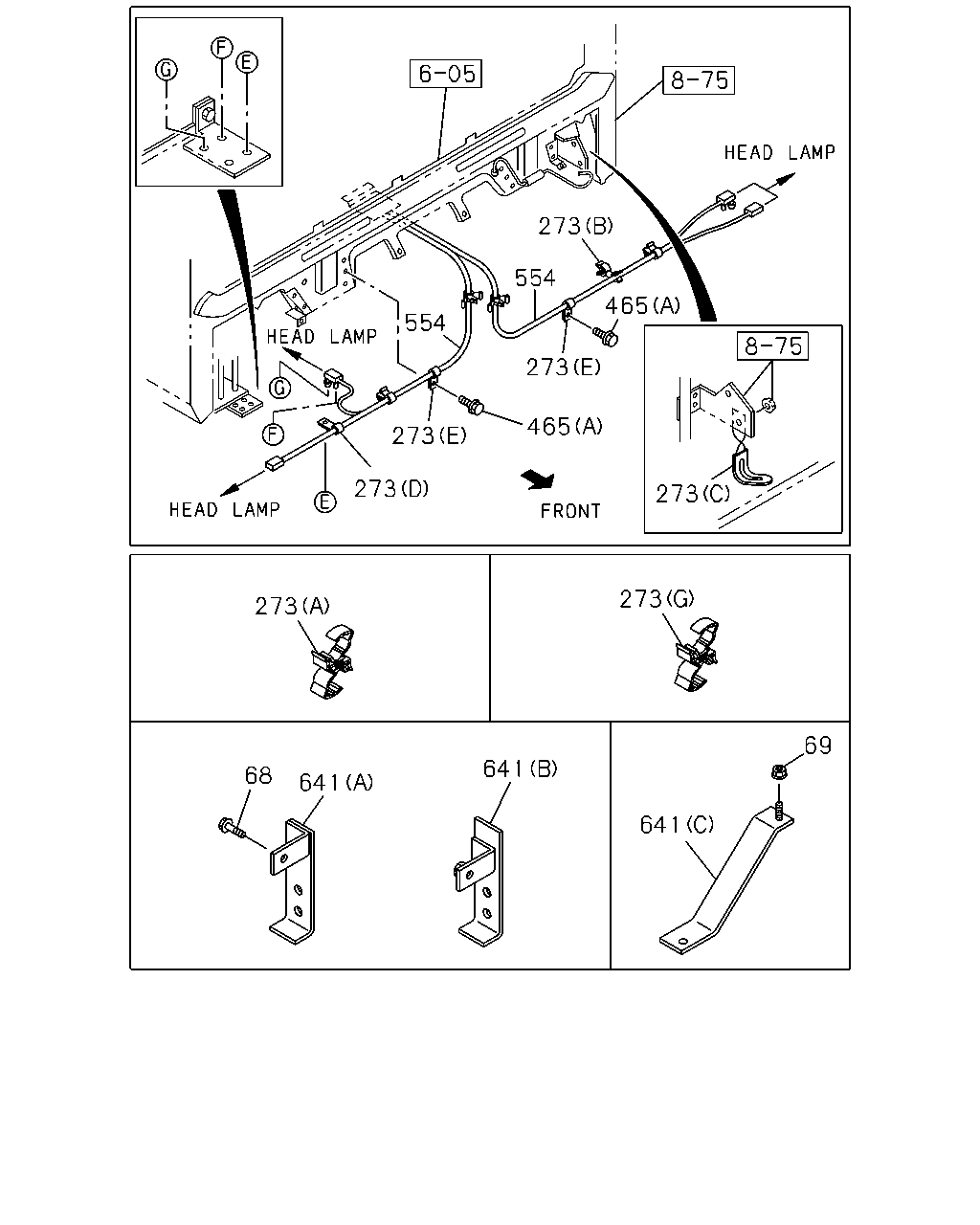

çizim 152442
273 554 465 554 273 465 273 273 273 273 273 69 641 68 641 641
BalonParca AdiParca NoAdetTipApplied Date A B C
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
68 BOLT; BRKT
A/T<X9D> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9803-9804 ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907 ● ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908-0004 ● ●
69 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0212-0602 ●
69 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
273 CLIP; HARNESS
6HK1 TCC ENG(81L) (H) ID=35 L=35 		1-09700-726-0 01 1 0603- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (G) ID=12-16 & 12-16 		1-09709-191-0 03 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=11.5 & 14.5 		8-94314-293-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		8-97101-436-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		9-09525-085-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		0-95235-085-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		9-09525-536-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		0-95235-536-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		9-09525-536-0 02 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		0-95235-536-0 02 1 0607- ●
273 CLIP; HARNESS
A/T<X9D> (F) ID=42.7 L=38 		1-09700-583-1 02 1 9803-9804 ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0603- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
465 BOLT; CLIP
A/T<X9D> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9804 ●
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-076-6 01 1 0212- ●
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-077-5 01 1 0212- ●
641 BRACKET; CLIP,HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-82698-073-1 01 1 0212-0309 ●
641 BRACKET; CLIP,HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-82698-503-0 01 1 0310- ●
641 BRACKET; CLIP,HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82698-072-2 01 1 0212- ●

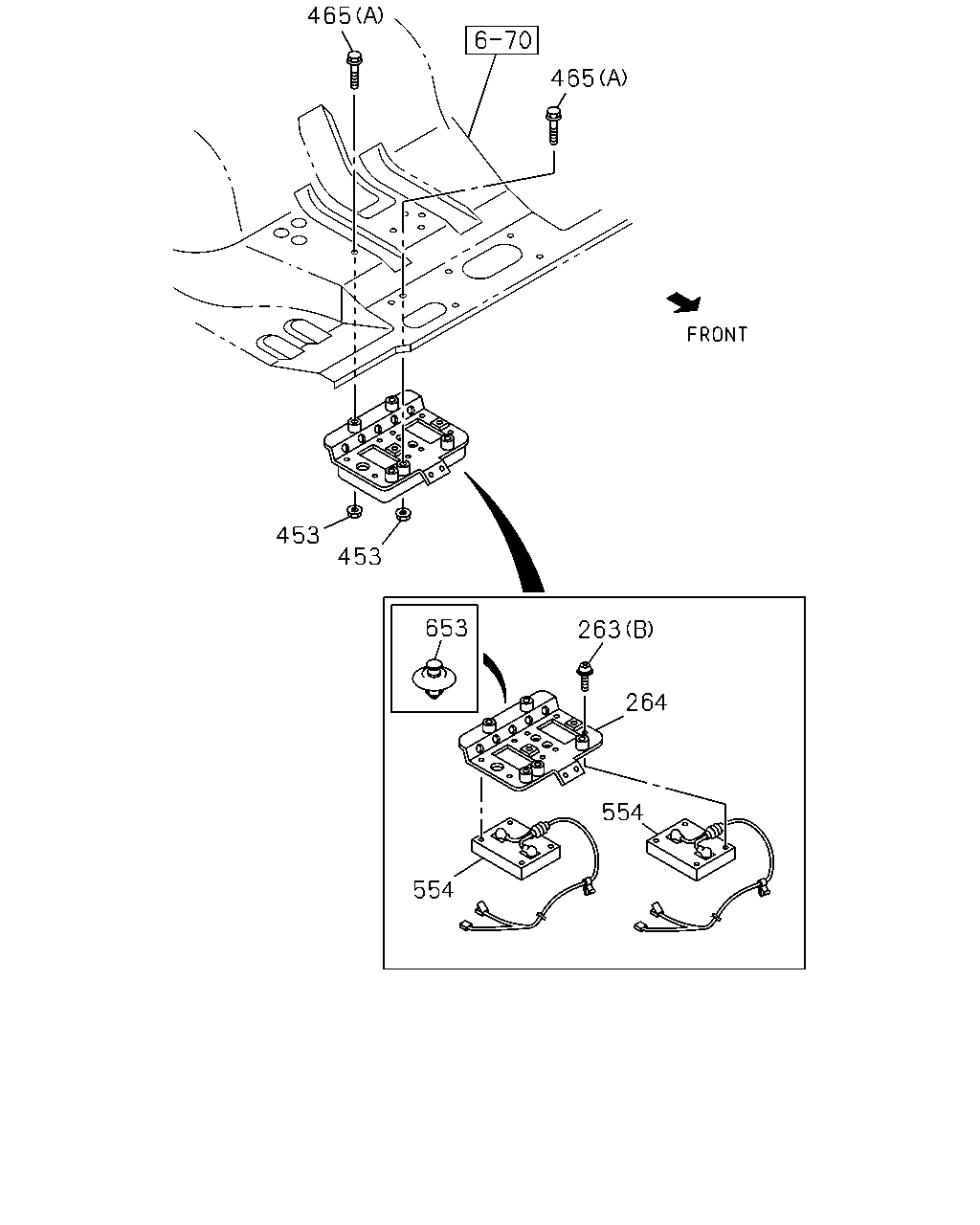

çizim 152464
465 465 453 453 653 263 264 554 554
BalonParca AdiParca NoAdetTipApplied Date A B C
263 BOLT; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0212- ●
263 BOLT; CONT UNIT
A/T<X9D> (A) M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 9803-9804 ●
264 BRACKET; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82547-037-5 01 1 0212- ●
453 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91150-108-0 04 1 0212-0602 ●
453 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91180-108-0 04 1 0603- ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0603- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
465 BOLT; CLIP
A/T<X9D> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9804 ●
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-076-6 01 1 0212- ●
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-077-5 01 1 0212- ●
653 CLIP; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> D8X13.5 		1-09987-248-1 01 1 0212- ●

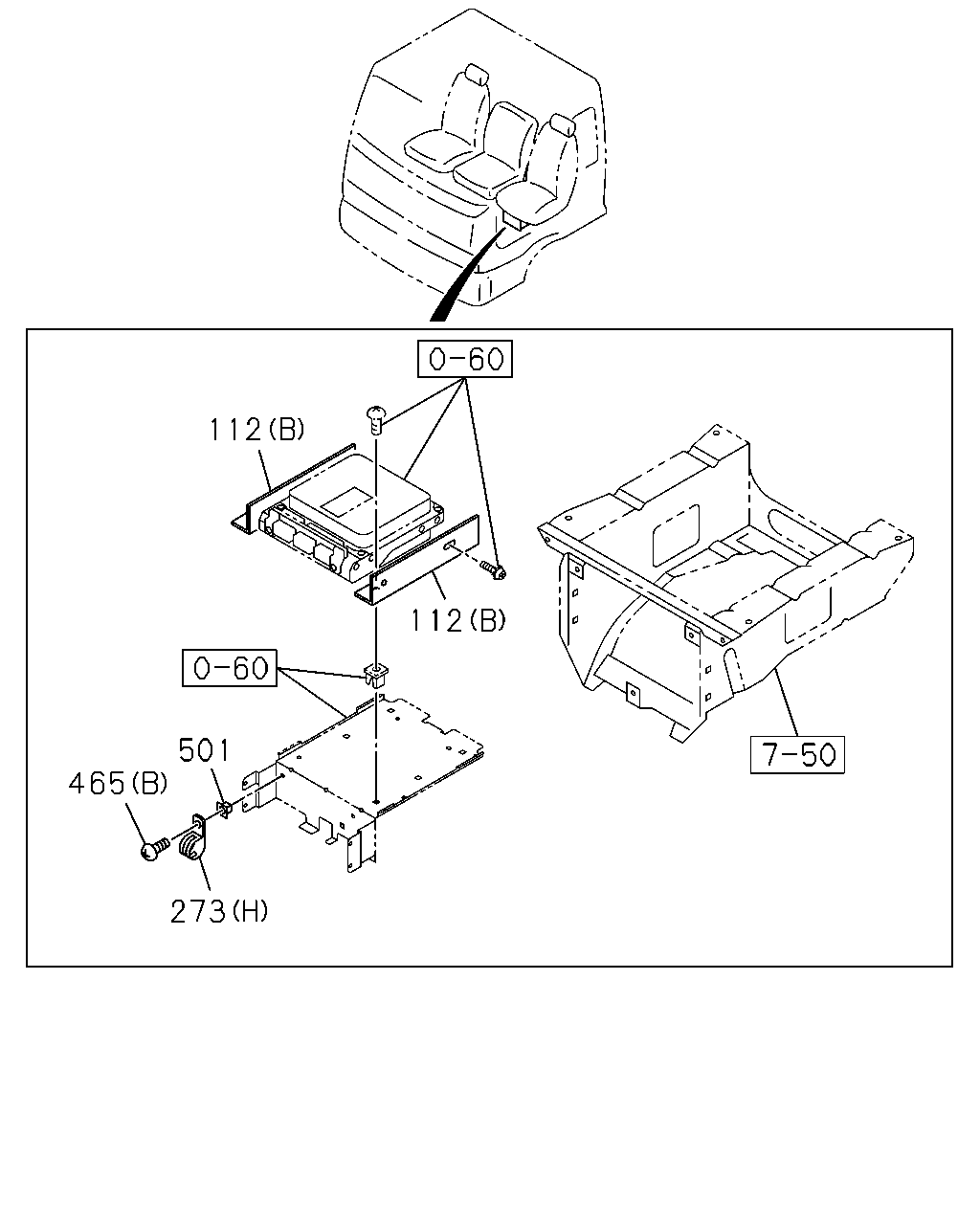

çizim 152467
112 112 501 465 273
BalonParca AdiParca NoAdetTipApplied Date A B C
112 BRACKET; CONT UNIT
EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> (B) 		1-75558-566-0 02 1 0604- ●
112 BRACKET; CONT UNIT
A/T<X9D> (A) 		1-75557-465-2 01 1 9803-9804 ●
273 CLIP; HARNESS
6HK1 TCC ENG(81L) (H) ID=35 L=35 		1-09700-726-0 01 1 0603- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (G) ID=12-16 & 12-16 		1-09709-191-0 03 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=11.5 & 14.5 		8-94314-293-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		8-97101-436-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		9-09525-085-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		0-95235-085-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		9-09525-536-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		0-95235-536-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		9-09525-536-0 02 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		0-95235-536-0 02 1 0607- ●
273 CLIP; HARNESS
A/T<X9D> (F) ID=42.7 L=38 		1-09700-583-1 02 1 9803-9804 ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0603- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
465 BOLT; CLIP
A/T<X9D> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9804 ●
501 GROMMET; SCREW
6HK1 TCC ENG(81L) D=9.7X9.7 L=8 		8-94222-314-0 01 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
