◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#3670) — 63 parça
çizim 6008
67 94 93 356 54 58 52 59 52
BalonParca AdiParca NoAdetTipApplied Date
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> NIKKO 		1-83460-010-0 01 1 9002-9112
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> NIKKO 		8-97061-718-0 01 1 9201-9306
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> NIKKO 		1-83460-052-0 01 1 9307-
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X25 		9-01911-025-0 01 1 9002-9002
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER 		0-50041-025-0 01 1 9003-9006
58 BUZZER; AIR PRESSURE WARNING 1-83460-005-0 01 1 9002-
59 SCREW; BUZZER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002-
67 BUZZER; ENG OVERRUN
ENGINE OVERRUN BUZZER<SK4> 		1-83460-032-0 01 1 9002-
67 BUZZER; ENG OVERRUN
EXH HEAT WARNING<W50> EXC. ENGINE OVERRUN BUZZER<SK4> 		1-83460-032-0 01 1 9002-
93 NUT; CONSENT TO BLIND PNL
M5 FLANGE 		5-09440-003-0 02 1 9002-
94 SCREW; CONSENT TO BLIND PNL 1-09981-282-0 02 1 9002-
356 DIODE; TRAILER HAND BRK
1.1A 2P 		8-94249-985-0 01 1 9002-

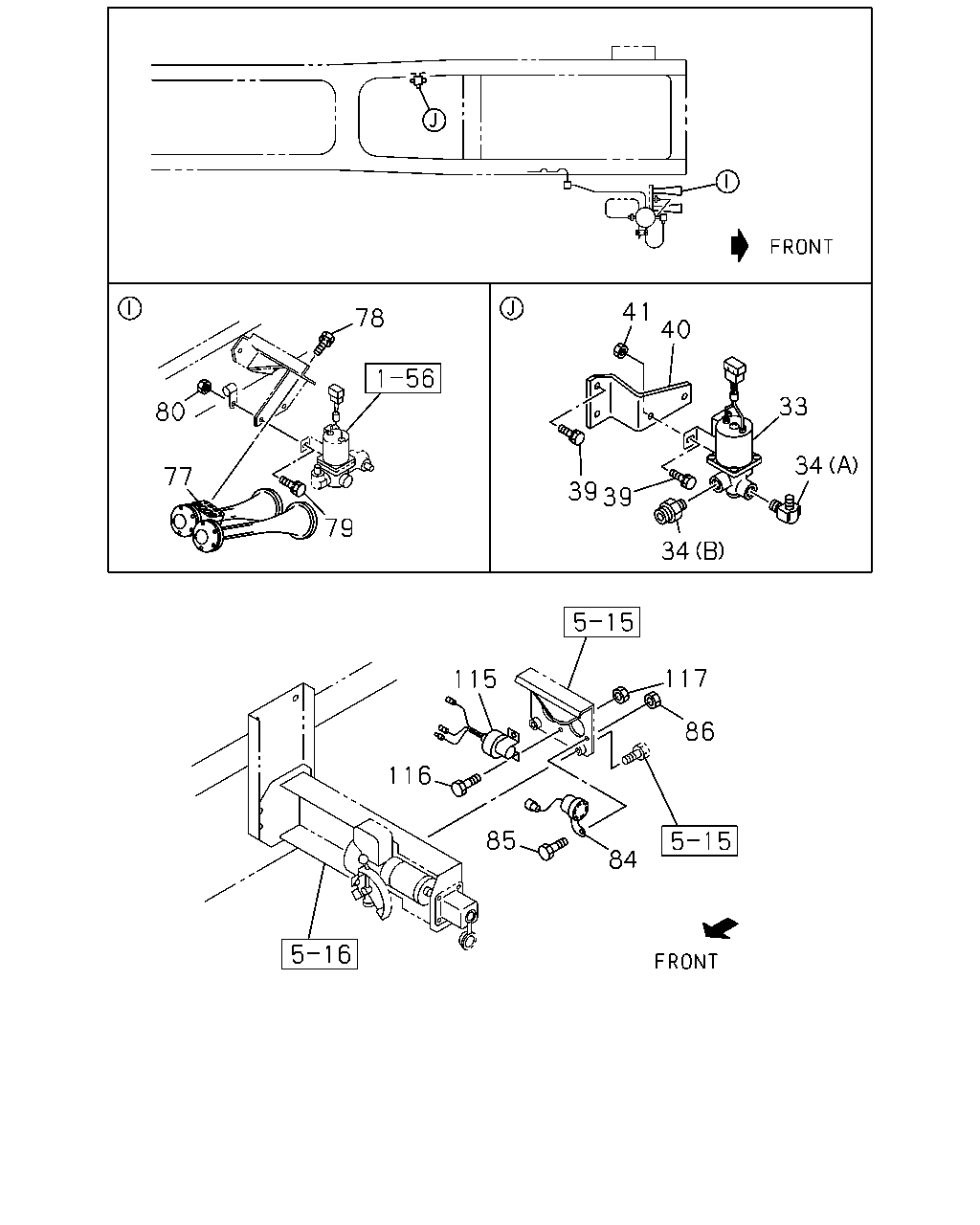

çizim 36434
41 78 40 33 80 34 77 39 39 79 34 117 115 86 116 85 84
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-305-0 01 1 9002-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-09650-117-1 01 1 9002-9302
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-09650-430-0 01 1 9303-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		9-09902-386-0 01 1 9002-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9204
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28080-820-0 02 1 9303-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 W/LK WASHER 		9-01900-830-0 02 1 9002-9204
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE 		0-28080-830-0 02 1 9303-
40 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47476-464-1 01 1 9002-
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 		9-09110-408-0 04 1 9002-
77 HORN ASM 1-83430-017-0 01 1 9002-
78 BOLT; AIR HORN
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9204
78 BOLT; AIR HORN
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28080-820-0 02 1 9303-
79 BOLT; MAG VLV
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9204
79 BOLT; MAG VLV
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302
79 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9303-
80 NUT; MAG VLV
M8 		9-09110-408-0 02 1 9002-
84 BUZZER; POWER CAB TILT
AUTO CAB TILT<WV2> NIKKO 		1-83460-054-0 01 1 9307-
85 BOLT; BUZZER,POWER CAB TILT
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9307-
86 NUT; BUZZER
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 9307-
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> NIKKO 		1-81171-071-0 01 1 9307-
116 BOLT; RELAY FIX
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9307-
117 NUT; RELAY FIX
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9307-

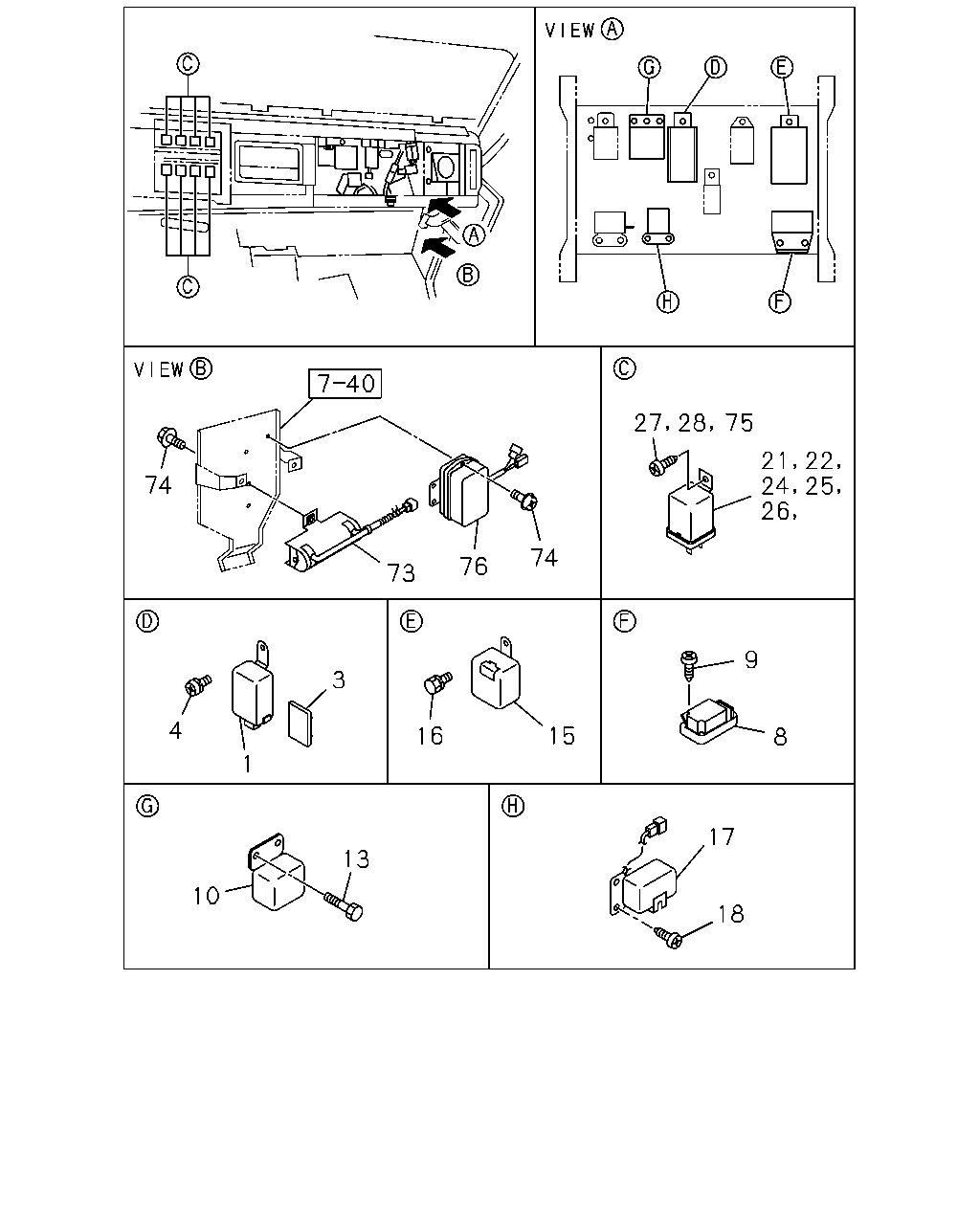

çizim 36605
75 26 74 74 76 73 9 3 4 16 15 8 1 17 13 10 18 27 28 21 22 25 24
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-030-0 01 1 9002-9509
1 UNIT; FLASHER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-83470-030-0 01 1 9510-
1 UNIT; FLASHER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-83470-061-0 01 1 9510-
3 SEAL; SILENT,RELAY 1-73368-001-0 01 1 9002-
4 SCREW; FLASHER UNIT
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		1-82550-095-3 01 1 9002-
9 SCREW; WIPER RELAY
INTERMITTENT WIPER<C13> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002-
10 DETECTOR ASM; FUEL 1-81553-001-0 01 1 9002-
13 BOLT; FUEL DETECTOR
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9203-
15 RELAY; STOP & TAIL WARNING 1-82550-143-2 01 1 9002-
16 SCREW; RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-
16 SCREW; RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002-
17 TIMER; SEAT BELT
SAUDI ARABIA EQUIPMENT(WH1) 		1-82550-183-1 01 1 9002-9306
18 SCREW; TIMER
SAUDI ARABIA EQUIPMENT(WH1) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002-9306
21 RELAY; TRAILER TAIL
GREEN 		1-82550-146-0 01 1 9002-
22 RELAY; STOP LAMP
GREEN 		1-82550-146-0 01 1 9002-
24 RELAY; LIGHTING
GREEN 		1-82550-146-0 02 1 9002-
25 RELAY; TAIL LAMP
GREEN 		1-82550-146-0 01 1 9002-
26 RELAY; CONSENT
GREEN 		1-82550-146-0 01 1 9002-
27 SCREW; SET,LIGHTING RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002-
28 SCREW; SET,TAIL LAMP RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-
73 RESISTOR; RELAY
INTAKE HEATER<SL2> 		1-81375-004-1 01 1 9002-
74 SCREW; RESISTOR
INTAKE HEATER<SL2> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 04 1 9002-
75 SCREW; STOP LAMP RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-
76 TIMER; INT HTR
INTAKE HEATER<SL2> 		1-82550-132-1 01 1 9002-
