◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#367) — 18 parça

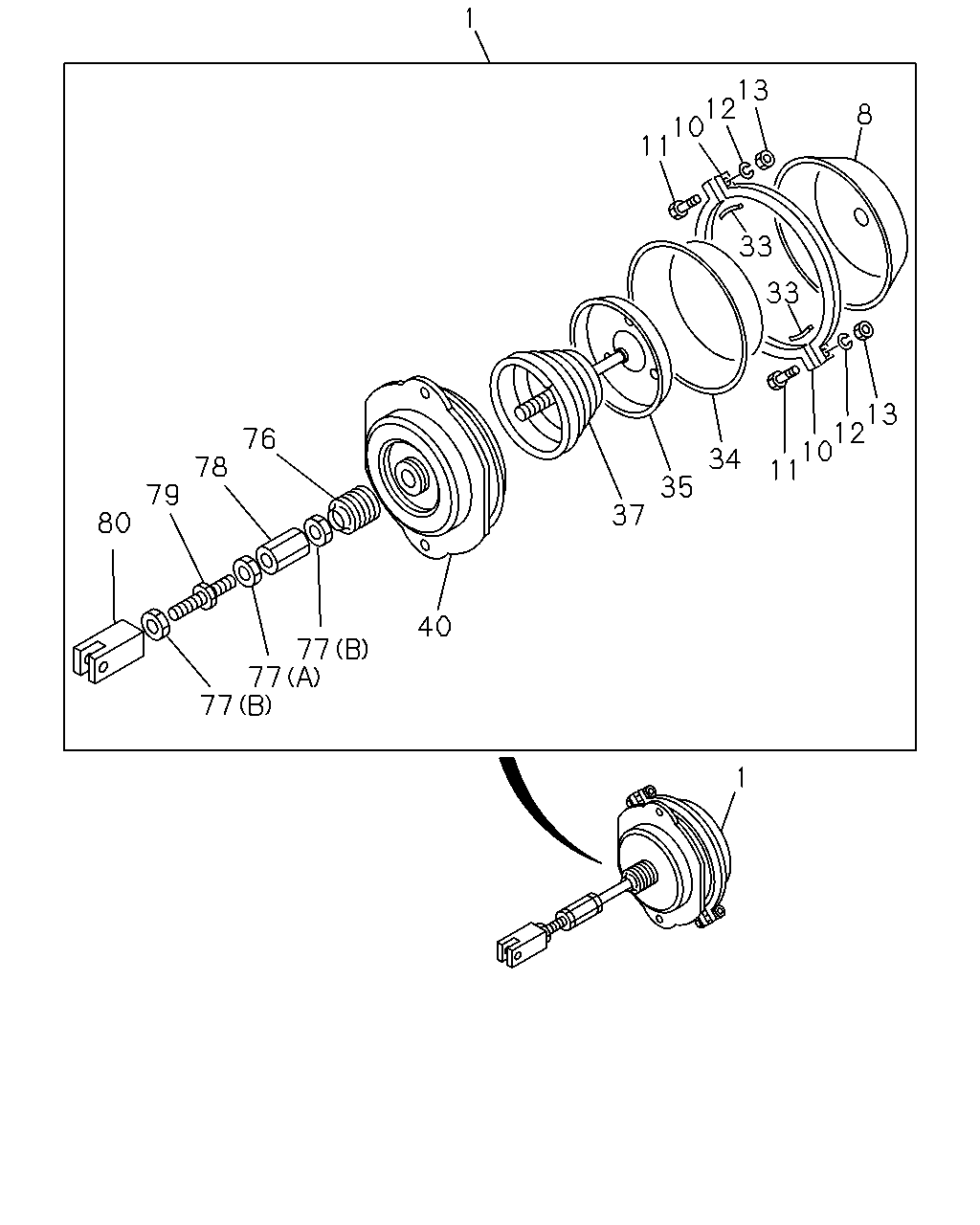

çizim 95428
1 13 12 10 11 8 33 33 13 12 10 11 76 34 78 35 79 37 80 40 77 77 77 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-218-3 01 1 9202- ● ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-217-3 01 1 9202- ● ●
8 SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-031-0 02 1 9202- ● ●
10 RING; CLAMP,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-016-0 04 1 9202- ● ●
11 BOLT; CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-035-0 04 1 9202- ● ●
12 WASHER; LK,CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2 		9-09150-510-0 04 1 9202- ● ●
13 NUT; CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09110-510-0 04 1 9202- ● ●
33 RETAINER; DIAPH
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-044-0 04 1 9202- ● ●
34 DIAPHRAGM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48252-026-0 02 1 9202- ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-024-0 02 1 9202- ● ●
37 SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48255-008-0 02 1 9202- ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-032-0 02 1 9202- ● ●
76 GUARD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-096-0 02 1 9202- ● ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48253-021-0 02 1 9202- ● ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		9-88510-432-0 04 1 9202- ● ●
78 TURNBACKLE; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-023-0 02 1 9202- ● ●
79 STUD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-022-0 02 1 9202- ● ●
80 CLEVIS; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-020-0 02 1 9202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
