◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#36695) — 1277 parça

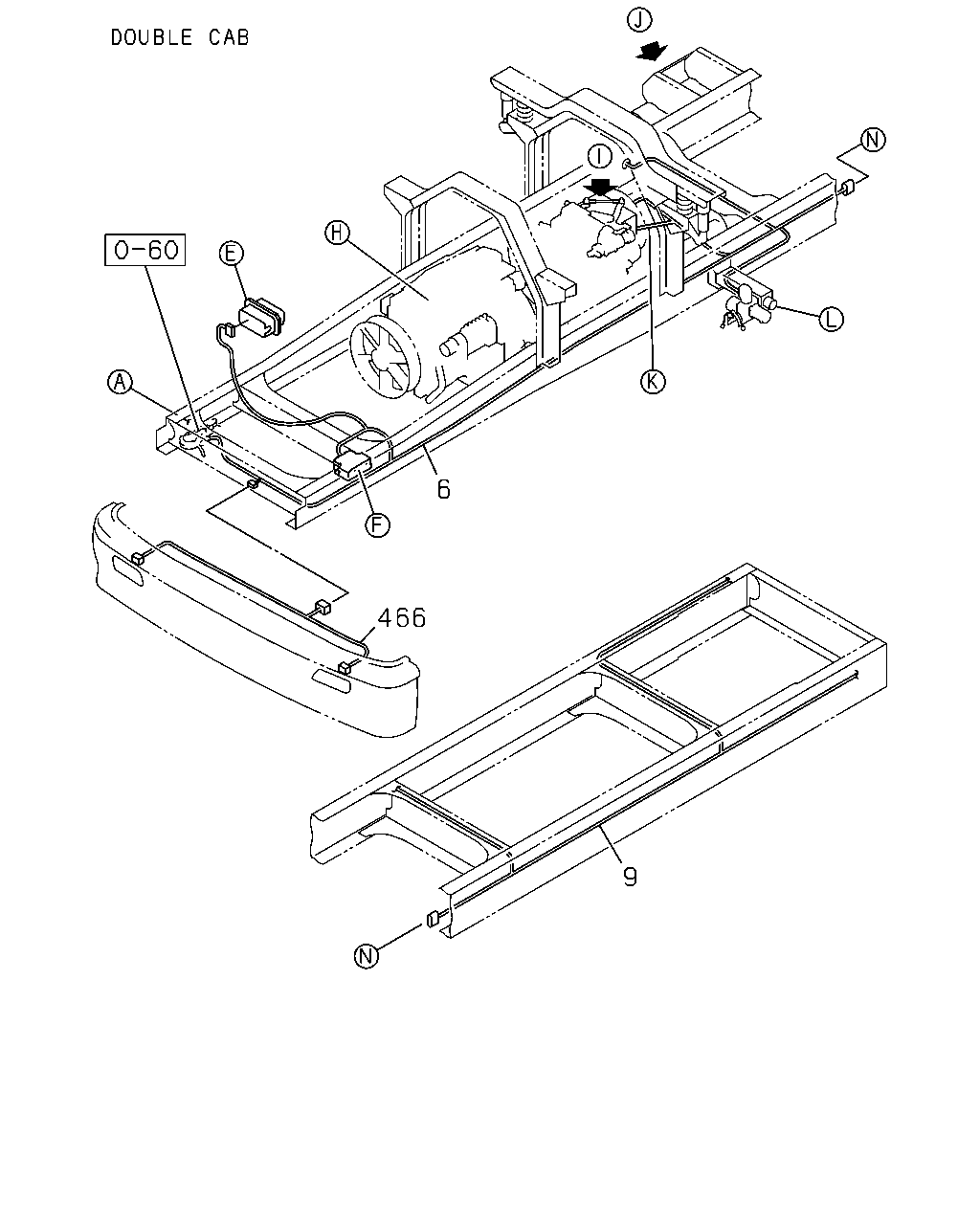

çizim 152369
6 466 9
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
6HK1 TCC ENG(81L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82678-310-0 01 1 0603- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82678-236-0 01 1 0511- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82676-891-1 01 1 0212-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-468-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-016-2 01 1 9510-9802 ● ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82639-016-2 01 1 9803-0004 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82639-016-2 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-998-2 01 1 0005-0010 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-998-2 01 1 0011-0401 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-462-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-012-2 01 1 9510-9609 ● ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-012-2 01 1 9610-9802 ● ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-012-2 01 1 9803-0004 ● ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82672-997-2 01 1 0005-0401 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82672-997-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82677-461-0 01 1 0402- ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82677-461-0 01 1 0402- ●
6 HARNESS; FRAME
THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-015-2 01 1 9510-9802 ● ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82639-901-0 01 1 9608-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82670-485-0 01 1 9803-0004 ●
6 HARNESS; FRAME 1-82673-010-2 01 1 0005-0401 ●
6 HARNESS; FRAME 1-82677-469-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-014-3 01 1 9510-9607 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-014-3 01 1 9608-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82670-483-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-999-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-463-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-043-0 01 1 9610-9612 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-197-0 01 1 9701-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82670-197-1 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-013-2 01 1 9510-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82673-001-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82673-001-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0402-0510 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0402-0510 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0511-0607 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0511-0607 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0608- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0608- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-82670-960-1 01 1 0011- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-044-0 01 1 0011-0102 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-716-1 01 1 0103-0211 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-716-2 01 1 0212-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-467-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) 		1-82639-387-3 01 1 9510-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) 		1-82670-484-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-82672-979-1 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-82673-007-1 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) 		1-82639-148-3 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82673-008-1 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82675-064-0 01 1 0107-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82675-064-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82675-063-0 01 1 0107-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82675-063-0 01 1 0212- ●
9 HARNESS; FRAME,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-040-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-494-0 01 1 9803- ●
9 HARNESS; FRAME,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-037-0 01 1 9510- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) 		1-82639-046-3 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) 		1-82670-500-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR 1-82672-972-0 01 1 0005- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82639-041-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82670-495-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-495-0 01 1 0005-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-495-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) 		1-82639-050-0 01 1 9510-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-050-0 01 1 0005-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-050-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-042-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-496-0 01 1 9803-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-496-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-038-0 01 1 9510-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-038-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-043-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-497-0 01 1 9803-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-497-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-039-0 01 1 9510-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-039-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82639-044-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82670-498-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-498-0 01 1 0005-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-498-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) 		1-82639-051-0 01 1 9510-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-051-0 01 1 0005-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-051-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) 		1-82639-047-3 01 1 9510-9802 ● ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) 		1-82670-501-0 01 1 9803-0004 ● ●
466 HARNESS; BUMPER
HEADLAMPS RECTANGULAR<TR4> 		1-82638-996-1 01 1 9510-0004 ● ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 9510-0004 ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 9510-0004 ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 0005-0601 ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0005-0601 ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 0602- ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0602- ●

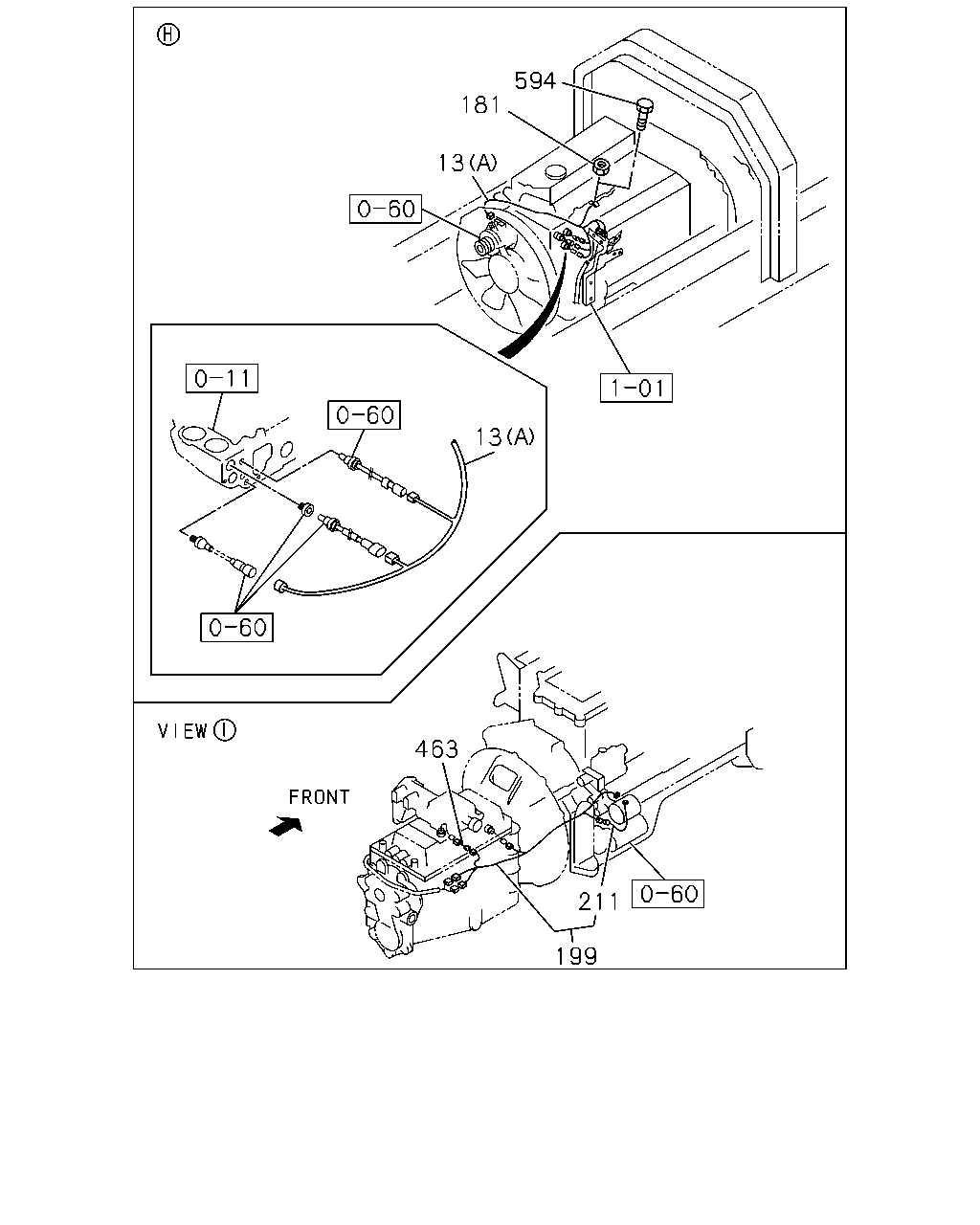

çizim 152374
594 181 13 13 463 211 199
BalonParca AdiParca NoAdetTipApplied Date A B C
13 HARNESS; ENG
6HK1 TCC ENG(81L) (B) 		1-82640-950-7 01 1 0603- ●
13 HARNESS; ENG
EXC. THAILAND EQUIPMENT(PM9) (A) 		1-82640-714-0 01 1 9510-9609 ●
13 HARNESS; ENG
EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A) 		1-82640-714-0 01 1 9510-9609 ●
13 HARNESS; ENG
EXC. THAILAND EQUIPMENT(PM9) (A) 		1-82640-714-0 01 1 9610-9802 ●
13 HARNESS; ENG
EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 9610-9802 ●
13 HARNESS; ENG
(A) 		1-82640-714-0 01 1 9803-0004 ●
13 HARNESS; ENG
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 9803-0004 ●
13 HARNESS; ENG
EXC. EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 0005-0010 ● ●
13 HARNESS; ENG
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 0011- ● ●
13 HARNESS; ENG
THAILAND EQUIPMENT(PM9) (A) 		1-82640-716-0 01 1 9510-9802 ● ●
13 HARNESS; ENG
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82641-019-2 01 1 0011-0602 ● ●
13 HARNESS; ENG
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82641-019-2 01 1 0603- ● ●
13 HARNESS; ENG
EURO2 SPECIFICATION<THN> (A) 		1-82640-793-1 01 1 9610-9802 ●
13 HARNESS; ENG
EURO2 SPECIFICATION<THN> (A) 		1-82640-982-0 01 1 9803-0004 ●
13 HARNESS; ENG
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A) 		1-82640-982-0 01 1 0005- ●
13 HARNESS; ENG
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82640-715-1 01 1 9510-0004 ● ●
13 HARNESS; ENG
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A) 		1-82641-138-0 01 1 0005- ● ●
13 HARNESS; ENG
(A) 		1-82641-138-0 01 1 0005- ●
181 NUT; GLOW PLUG HARNESS
EXC. THAILAND EQUIPMENT(PM9) M4 FLANGE 		5-09440-007-0 01 1 9510-9802 ● ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 9510-9802 ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 9803-0004 ● ● ●
181 NUT; GLOW PLUG HARNESS
6HH1 STD ENG(65L) M4 FLANGE 		5-09440-007-0 01 1 0005-0602 ●
181 NUT; GLOW PLUG HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) M4 FLANGE 		5-09440-007-0 01 1 0005-0602 ●
181 NUT; GLOW PLUG HARNESS
6HH1 STD ENG(65L) M4 FLANGE 		5-09440-007-0 01 1 0603- ●
181 NUT; GLOW PLUG HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) M4 FLANGE 		5-09440-007-0 01 1 0603- ●
199 HARNESS; STARTER
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82641-302-1 01 1 0603-0607 ●
199 HARNESS; STARTER
6HK1 TCC ENG(81L) ISUZU M/T<X9A> 		1-82641-302-2 01 1 0608- ●
199 HARNESS; STARTER 1-82640-718-2 01 1 9510-9607 ●
199 HARNESS; STARTER
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82640-718-2 01 1 9510-9607 ●
199 HARNESS; STARTER 1-82640-718-2 01 1 9608-9712 ●
199 HARNESS; STARTER
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82640-718-2 01 1 9608-9712 ●
199 HARNESS; STARTER
EXC. FLYWHEEL HOUSING FC<E1R> 		1-82640-718-2 01 1 9801-9802 ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) ISUZU M/T<X9A> EXC. FLYWHEEL HOUSING FC<E1R>,NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82640-718-2 01 1 9801-9802 ●
199 HARNESS; STARTER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> 		1-82640-718-2 01 1 9801-9802 ●
199 HARNESS; STARTER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82640-718-2 01 1 9801-9802 ●
199 HARNESS; STARTER
EXC. FLYWHEEL HOUSING FC<E1R> 		1-82640-718-2 01 1 9803-0004 ●
199 HARNESS; STARTER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> 		1-82640-718-2 01 1 9803-0004 ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) ISUZU M/T<X9A> EXC. FLYWHEEL HOUSING FC<E1R>,NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82640-718-2 01 1 9803-0004 ●
199 HARNESS; STARTER
6HH1 STD 4VALVE ENG(1A6) 		1-82640-718-3 01 1 0005-0010 ● ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> 		1-82640-718-3 01 1 0005-0010 ●
199 HARNESS; STARTER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> 		1-82640-718-3 01 1 0005-0010 ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) ISUZU M/T<X9A> EXC. FLYWHEEL HOUSING FC<E1R>,NEW ZEALAND EQUIPMENT(PK5) 		1-82640-718-3 01 1 0005-0010 ●
199 HARNESS; STARTER 1-82640-718-3 01 1 0005-0010 ●
199 HARNESS; STARTER
6HH1 STD 4VALVE ENG(1A6) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82640-718-5 01 1 0011- ● ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) ISUZU M/T<X9A> EXC. FLYWHEEL HOUSING FC<E1R>,NEW ZEALAND EQUIPMENT(PK5) 		1-82640-718-5 01 1 0011- ● ●
199 HARNESS; STARTER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> 		1-82640-718-5 01 1 0011- ●
199 HARNESS; STARTER 1-82640-718-5 01 1 0011- ●
199 HARNESS; STARTER
FLYWHEEL HOUSING FC<E1R> 		1-82640-972-0 01 1 9801-0004 ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) FLYWHEEL HOUSING FC<E1R> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82640-972-0 01 1 9801-0004 ●
199 HARNESS; STARTER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> 		1-82640-972-0 01 1 9801-0004 ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) FLYWHEEL HOUSING FC<E1R> 		1-82640-972-2 01 1 0005- ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) FLYWHEEL HOUSING FC<E1R> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82640-972-2 01 1 0005- ●
199 HARNESS; STARTER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> 		1-82640-972-2 01 1 0005- ●
199 HARNESS; STARTER
A/T<X9D> 		1-82640-720-3 01 1 9608-0105 ●
199 HARNESS; STARTER
A/T<X9D> 		1-82641-206-2 01 1 0106- ●
199 HARNESS; STARTER
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82640-668-2 01 1 9510-9607 ●
199 HARNESS; STARTER
AUSTRALIA EQUIPMENT(RR3) 		1-82640-668-2 01 1 9510-9607 ●
199 HARNESS; STARTER
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> 		1-82640-668-2 01 1 9608-9712 ●
199 HARNESS; STARTER
AUSTRALIA EQUIPMENT(RR3) 		1-82640-668-2 01 1 9608-9712 ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) ISUZU M/T<X9A> NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) EXC. FLYWHEEL HOUSING FC<E1R> 		1-82640-668-2 01 1 9801-0004 ● ●
199 HARNESS; STARTER
AUSTRALIA EQUIPMENT(RR3) 		1-82640-668-2 01 1 9801-0004 ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. FLYWHEEL HOUSING FC<E1R> 		1-82640-668-5 01 1 0005- ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) FLYWHEEL HOUSING FC<E1R> ISUZU M/T<X9A> NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82640-974-0 01 1 9801-0004 ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) FLYWHEEL HOUSING FC<E1R> ISUZU M/T<X9A> 		1-82640-974-2 01 1 0005- ●
199 HARNESS; STARTER
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. FLYWHEEL HOUSING FC<E1R> 		1-82640-962-5 01 1 0011- ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 9510-9712 ● ●
211 WIRE; FUSIBLE LINK,STARTER
AUSTRALIA EQUIPMENT(RR3) WHITE 		1-82659-124-0 01 1 9510-9712 ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-1 01 1 9801- ● ● ●
463 HARNESS; SW,BACK UP
MLD7 M/T<X9Z> 		1-82639-608-1 01 1 9601- ● ● ●
594 BOLT; GLOW PLUG HARNESS
6HH1 STD 4VALVE ENG(1A6) M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0005-0602 ● ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0005-0602 ●
594 BOLT; GLOW PLUG HARNESS
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0603-0604 ● ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0603-0604 ●
594 BOLT; GLOW PLUG HARNESS
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0605- ● ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0605- ●

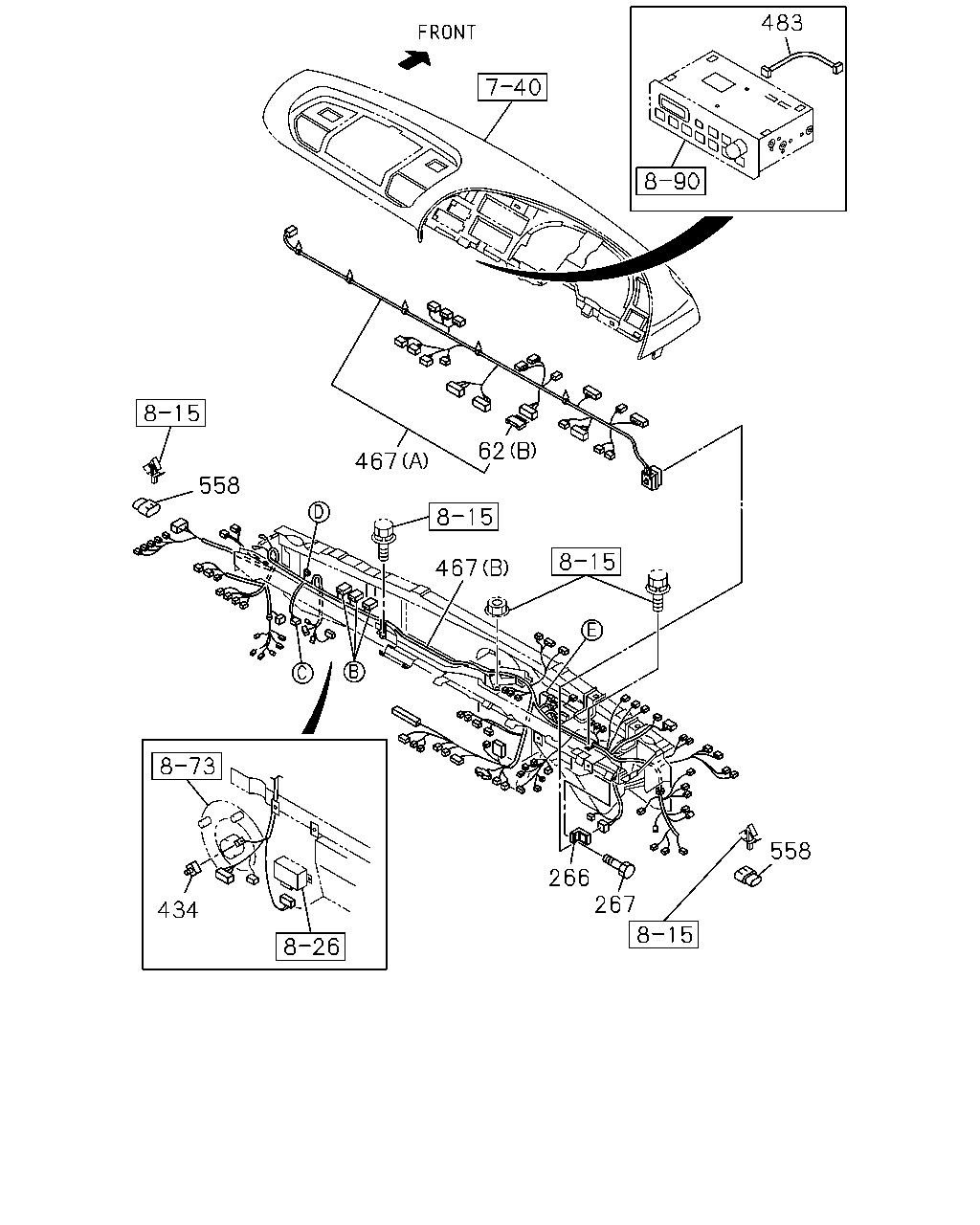

çizim 152376
483 62 467 558 467 558 266 267 434
BalonParca AdiParca NoAdetTipApplied Date A B C
62 DIODE; HARNESS
(B) 10P BROWN 		1-82699-601-0 AR 1 9510- ● ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 9510- ● ● ●
62 DIODE; HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9510- ● ● ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 9510- ● ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 9510- ● ● ●
434 CONNECTOR; SHORT CIRCUIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82691-051-0 01 1 0212- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-863-2 01 1 0603- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82662-207-0 01 1 0603- ●
467 HARNESS; FACIA
POWER WINDOW<A30> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-754-2 01 1 0506- ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82661-698-2 01 1 0211- ● ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82661-697-2 01 1 0211- ● ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82661-621-4 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82661-620-4 01 1 0212- ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
ISUZU M/T<X9A> HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
(B) 		1-82629-270-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-708-2 01 1 9510-9609 ● ●
467 HARNESS; FACIA
(A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
(A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
(A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-265-6 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5) ,THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
ISUZU M/T<X9A> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5) ,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-242-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-689-3 01 1 9510-9609 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-689-5 01 1 9610-9802 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-689-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B) 		1-82625-691-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82627-074-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-707-2 01 1 9510-9609 ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>, EURO2 SPECIFICATION<THN> (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-7 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-7 01 1 0211- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-690-3 01 1 9510-9609 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-690-5 01 1 9610-9802 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. AUSTRALIA EQUIPMENT(RR3),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-690-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-264-6 01 1 0005- ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-737-1 01 1 9510-9609 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82625-737-2 01 1 9610-9802 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-737-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82627-088-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82627-089-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B) 		1-82625-694-4 01 1 9510-9607 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-694-6 01 1 9608-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82627-079-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-079-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82625-696-6 01 1 9608-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82627-081-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-081-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82628-142-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82628-147-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-1 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-2 01 1 9803-0004 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0005-0601 ● ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82629-245-5 01 1 0602- ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0602- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-738-1 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82625-738-2 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-738-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82629-240-5 01 1 0005- ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-746-0 01 1 9610-9612 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-1 01 1 9701-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-4 01 1 9803-0004 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0005-0210 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0211- ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), EURO2 SPECIFICATION<THN> (B) 		1-82627-076-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82625-695-4 01 1 9510-9607 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82625-695-6 01 1 9608-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82627-078-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-078-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82629-294-2 01 1 0005- ● ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82625-697-6 01 1 9608-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82627-080-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-080-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-747-0 01 1 9610-9612 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-1 01 1 9701-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-244-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82628-143-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) 		1-82629-263-5 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82628-148-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0011-0601 ● ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0011-0601 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-5 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-905-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5) (B) 		1-82629-905-5 01 1 0212- ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-065-3 01 1 9510-9802 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82627-082-2 01 1 9803-9806 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-082-3 01 1 9807-0004 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> (B) 		1-82628-146-1 01 1 9807-0004 ●
483 HARNESS; EXT,RADIO
RADIO CLARION(SK2) 		8-98075-645-0 01 1 0703- ● ●
558 CONNECTOR; HARNESS
EXC. POWER WINDOW<A30> 2P 		1-82690-666-0 02 1 9510- ● ●
558 CONNECTOR; HARNESS
2P 		1-82690-666-0 02 1 9510- ●
558 CONNECTOR; HARNESS
HONG KONG EQUIPMENT(PQ1) EXC. AIR CONDITIONER MANUAL CONTROL(C60) 3P 		1-82690-667-0 01 1 9805-0004 ●

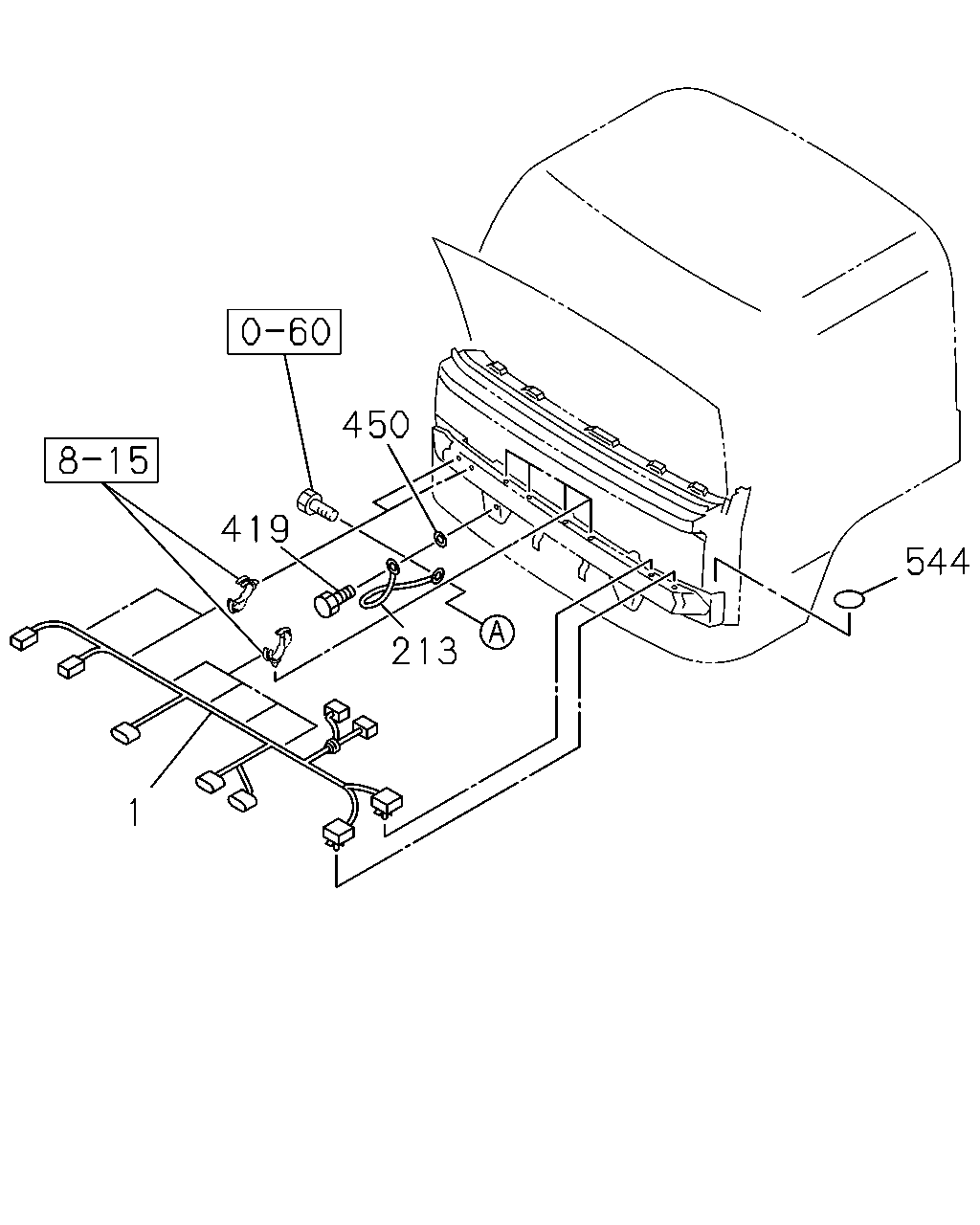

çizim 152377
450 419 544 213 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82629-662-1 01 1 0603- ●
1 HARNESS; CAB 1-82625-717-1 01 1 9510-9802 ●
1 HARNESS; CAB
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82625-717-1 01 1 9510-9802 ● ●
1 HARNESS; CAB 1-82625-717-1 01 1 9803-0004 ●
1 HARNESS; CAB
EXC. AIR CONDITIONER MANUAL CONTROL(C60), AUSTRALIA EQUIPMENT(RR3) 		1-82625-717-1 01 1 9803-0004 ●
1 HARNESS; CAB
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82625-717-1 01 1 9803-0004 ●
1 HARNESS; CAB 1-82625-717-1 01 1 0005-0010 ●
1 HARNESS; CAB
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82625-717-1 01 1 0005-0010 ●
1 HARNESS; CAB
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-82625-717-1 01 1 0005-0010 ●
1 HARNESS; CAB 1-82625-717-1 01 1 0011-0210 ●
1 HARNESS; CAB
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82625-717-1 01 1 0011-0210 ●
1 HARNESS; CAB
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60),NEW ZEALAND EQUIPMENT(PK5) 		1-82625-717-1 01 1 0011-0210 ●
1 HARNESS; CAB
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-82625-717-1 01 1 0011-0210 ●
1 HARNESS; CAB
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82625-717-1 01 1 0211-0308 ●
1 HARNESS; CAB
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82625-717-1 01 1 0211-0308 ●
1 HARNESS; CAB
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60),NEW ZEALAND EQUIPMENT(PK5) 		1-82625-717-1 01 1 0211-0308 ●
1 HARNESS; CAB
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-82625-717-1 01 1 0211-0308 ●
1 HARNESS; CAB
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82625-717-1 01 1 0309-0601 ●
1 HARNESS; CAB
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82625-717-1 01 1 0309-0601 ●
1 HARNESS; CAB
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-82625-717-1 01 1 0309-0601 ●
1 HARNESS; CAB
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82625-717-1 01 1 0602- ●
1 HARNESS; CAB
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82625-717-1 01 1 0602- ●
1 HARNESS; CAB
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60),NEW ZEALAND EQUIPMENT(PK5) 		1-82625-717-1 01 1 0602- ●
1 HARNESS; CAB
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-82625-717-1 01 1 0602- ●
1 HARNESS; CAB
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82629-909-1 01 1 0011-0308 ●
1 HARNESS; CAB
AUSTRALIA EQUIPMENT(RR3) 		1-82626-256-0 01 1 9510-9802 ● ●
1 HARNESS; CAB
AUSTRALIA EQUIPMENT(RR3) 		1-82626-256-0 01 1 9803-0004 ● ●
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82626-256-0 01 1 9803-0004 ●
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D> 		1-82626-365-0 01 1 0005-0210 ●
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> 		1-82626-365-0 01 1 0005-0210 ●
1 HARNESS; CAB 1-82626-365-0 01 1 0005-0210 ●
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82626-365-0 01 1 0211-0601 ●
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D> 		1-82626-365-0 01 1 0211-0601 ●
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> 		1-82626-365-0 01 1 0211-0601 ●
1 HARNESS; CAB 1-82626-365-0 01 1 0211-0601 ●
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82626-365-0 01 1 0602- ●
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D> 		1-82626-365-0 01 1 0602- ●
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82626-365-0 01 1 0602- ●
1 HARNESS; CAB 1-82626-365-0 01 1 0602- ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 9510- ● ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-9805 ● ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9806-1201 ● ● ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202- ● ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		9-09164-608-0 01 1 0205-0605 ● ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9510-9802 ● ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9803-0210 ● ●
544 SEAL; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9803-0210 ●
544 SEAL; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0211- ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 0211- ●

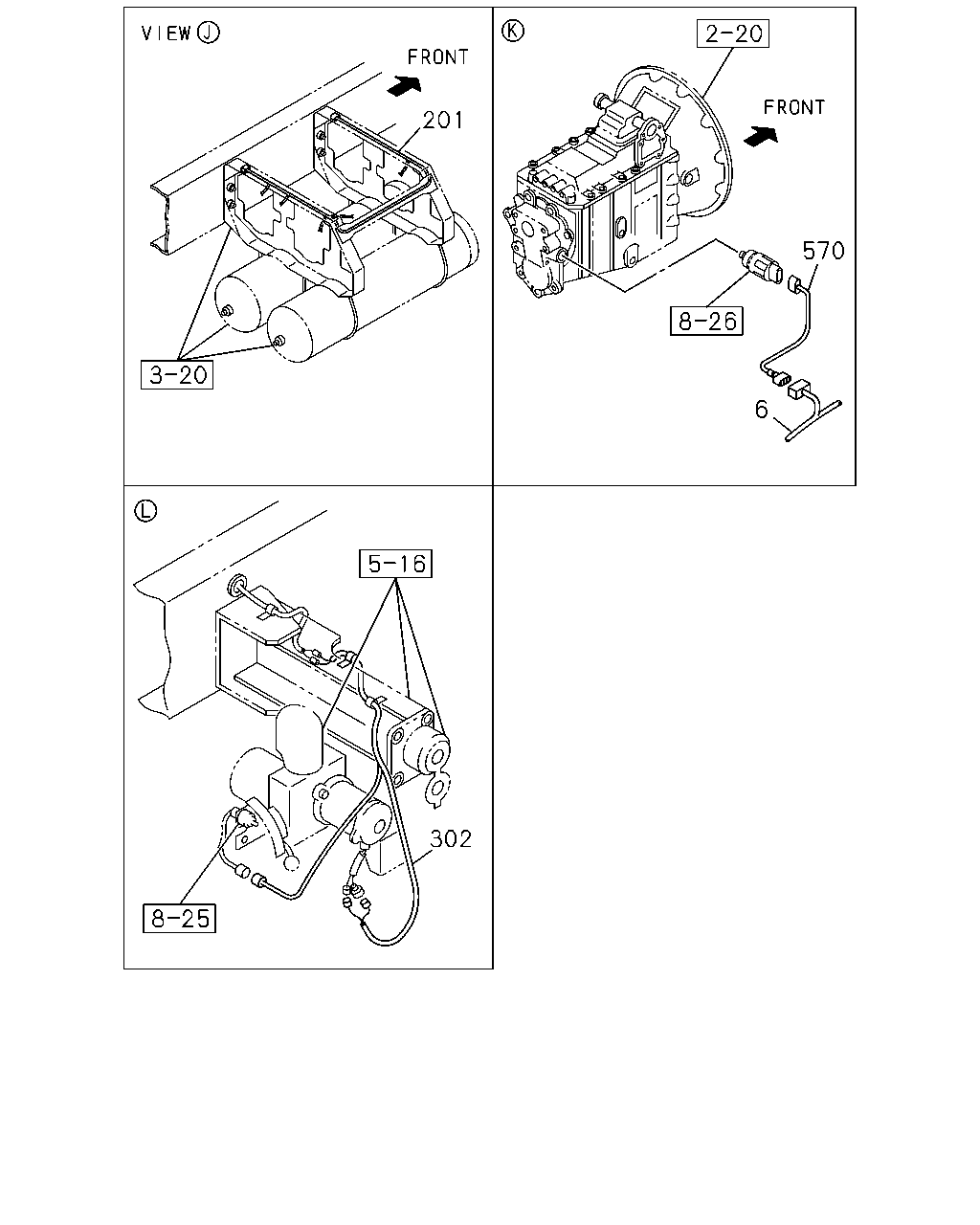

çizim 152378
201 570 6 302
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
6HK1 TCC ENG(81L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82678-310-0 01 1 0603- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82678-236-0 01 1 0511- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82676-891-1 01 1 0212-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-468-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-016-2 01 1 9510-9802 ● ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82639-016-2 01 1 9803-0004 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82639-016-2 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-998-2 01 1 0005-0010 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-998-2 01 1 0011-0401 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-462-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-012-2 01 1 9510-9609 ● ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-012-2 01 1 9610-9802 ● ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-012-2 01 1 9803-0004 ● ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82672-997-2 01 1 0005-0401 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82672-997-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82677-461-0 01 1 0402- ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82677-461-0 01 1 0402- ●
6 HARNESS; FRAME
THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-015-2 01 1 9510-9802 ● ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82639-901-0 01 1 9608-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82670-485-0 01 1 9803-0004 ●
6 HARNESS; FRAME 1-82673-010-2 01 1 0005-0401 ●
6 HARNESS; FRAME 1-82677-469-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-014-3 01 1 9510-9607 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-014-3 01 1 9608-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82670-483-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-999-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-463-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-043-0 01 1 9610-9612 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-197-0 01 1 9701-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82670-197-1 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-013-2 01 1 9510-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82673-001-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82673-001-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0402-0510 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0402-0510 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0511-0607 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0511-0607 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0608- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0608- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-82670-960-1 01 1 0011- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-044-0 01 1 0011-0102 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-716-1 01 1 0103-0211 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-716-2 01 1 0212-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-467-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) 		1-82639-387-3 01 1 9510-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) 		1-82670-484-0 01 1 9803-0004 ●
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) 		1-82673-721-0 01 1 0212- ●
201 HARNESS; AIR TANK 1-82638-999-1 01 1 9510-9802 ●
201 HARNESS; AIR TANK
EXC. BRAKE REGULATION ADR<TDU> 		1-82638-999-1 01 1 9510-9802 ●
201 HARNESS; AIR TANK
DUAL AIR GAUGE<UG2> 		1-82670-504-2 01 1 9803-0211 ● ●
201 HARNESS; AIR TANK 1-82670-504-2 01 1 9803-0211 ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> 		1-82670-504-2 01 1 0212- ● ●
201 HARNESS; AIR TANK 1-82670-504-2 01 1 0212- ●
201 HARNESS; AIR TANK
BRAKE REGULATION ADR<TDU> 		1-82638-507-1 01 1 9510-9802 ●
201 HARNESS; AIR TANK 1-82638-507-1 01 1 9510-9802 ●
201 HARNESS; AIR TANK
EXC. DUAL AIR GAUGE<UG2> 		1-82670-503-2 01 1 9803-0211 ● ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> 		1-82670-503-2 01 1 0212- ● ●
302 HARNESS; POWER CAB TILT 1-82639-388-4 01 1 9510- ●
570 HARNESS; SPEED SENSOR
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 		1-82670-012-0 01 1 9803-0401 ● ● ●
570 HARNESS; SPEED SENSOR
A/T<X9D> 		1-82670-078-0 01 1 9803-0401 ●

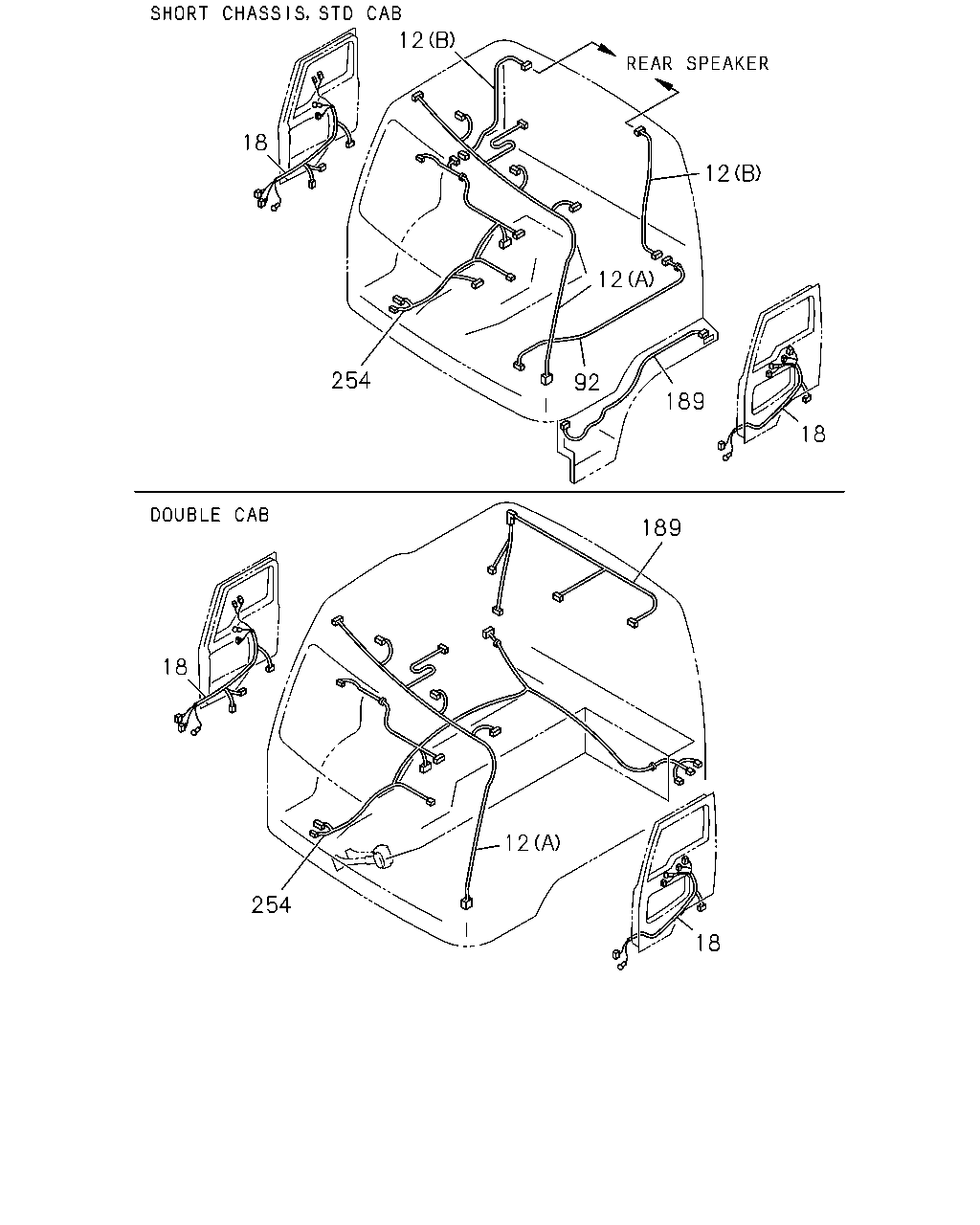

çizim 152379
12 18 12 12 254 92 189 18 189 18 12 254 18
BalonParca AdiParca NoAdetTipApplied Date A B C
12 HARNESS; ROOF
MAP LAMP<C85> LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (A) 		1-82661-618-1 01 1 0212- ●
12 HARNESS; ROOF
MAP LAMP<C85> LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82661-617-1 01 1 0212- ●
12 HARNESS; ROOF
HIGH ROOF<S2F> (A) 		1-82625-714-4 01 1 9510-0004 ●
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> (A) 		1-82625-714-4 01 1 9510-0004 ●
12 HARNESS; ROOF
HIGH ROOF<S2F> (A) 		1-82625-714-4 01 1 0005-0005 ●
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-82625-714-4 01 1 0005-0005 ●
12 HARNESS; ROOF
HIGH ROOF<S2F> (A) 		1-82625-714-6 01 1 0006- ●
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-82625-714-6 01 1 0006- ●
12 HARNESS; ROOF
(A) 		1-82625-714-6 01 1 0006- ●
12 HARNESS; ROOF
LOW ROOF<6XQ> (A) 		1-82625-713-4 01 1 9510- ● ●
12 HARNESS; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> (A) 		1-82625-715-2 01 1 9510-0004 ●
12 HARNESS; ROOF
(A) 		1-82625-715-2 01 1 9510-0004 ●
12 HARNESS; ROOF
(A) 		1-82625-715-2 01 1 0005-0005 ●
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (A) 		1-82625-716-2 01 1 9510-9802 ●
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-716-3 01 1 9803-0211 ●
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> EXC. MAP LAMP<C85>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-716-4 01 1 0212- ●
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (A) 		1-82627-090-2 01 1 9803-0211 ●
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> EXC. MAP LAMP<C85> (A) 		1-82627-090-3 01 1 0212- ●
12 HARNESS; ROOF
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> (B) 		1-82626-753-0 02 1 9803-0004 ●
18 HARNESS; DOOR
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<SLG> 		1-82629-302-1 01 1 0212- ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82625-723-1 01 1 9510-9610 ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82626-789-0 01 1 9611-9904 ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-585-0 01 1 9905-0211 ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. REMOTE CONT DOOR LOCK<SLG> 		1-82628-585-0 01 1 0212- ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82625-721-1 01 1 9510-9610 ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82626-787-0 01 1 9611-9904 ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-583-0 01 1 9905-0101 ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82628-583-0 01 1 0102- ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82660-348-0 01 1 0102- ●
18 HARNESS; DOOR 1-82625-719-2 02 1 9510-9610 ●
18 HARNESS; DOOR 1-82626-785-0 02 1 9611-9904 ●
18 HARNESS; DOOR 1-82628-581-0 02 1 9905- ●
92 HARNESS; FLOOR
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82626-752-0 01 1 9803-9806 ●
92 HARNESS; FLOOR
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> EXC. ELEC OUTLET 12V<TAW> 		1-82626-752-0 01 1 9807-0004 ●
189 HARNESS; EXT 1-82625-673-2 02 1 9510- ● ●
189 HARNESS; EXT 1-82625-498-0 01 1 9510-9602 ●
189 HARNESS; EXT 1-82625-774-0 01 1 9603- ●
254 HARNESS; CAB FLOOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> 		1-82662-865-0 01 1 0602- ●
254 HARNESS; CAB FLOOR
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82662-864-0 01 1 0602- ●
254 HARNESS; CAB FLOOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> 		1-82661-856-1 01 1 0303-0601 ●
254 HARNESS; CAB FLOOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-82661-856-1 01 1 0602- ●
254 HARNESS; CAB FLOOR
REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> 		1-82661-619-0 01 1 0212-0302 ●
254 HARNESS; CAB FLOOR
REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82661-619-2 01 1 0303-0601 ●
254 HARNESS; CAB FLOOR
REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-82661-619-2 01 1 0602- ●
254 HARNESS; CAB FLOOR 1-82625-711-2 01 1 9510-9607 ● ●
254 HARNESS; CAB FLOOR 1-82625-711-4 01 1 9608-9802 ●
254 HARNESS; CAB FLOOR
ISUZU M/T<X9A> 		1-82625-711-4 01 1 9608-9802 ●
254 HARNESS; CAB FLOOR 1-82625-711-4 01 1 9803-0004 ●
254 HARNESS; CAB FLOOR
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82625-711-4 01 1 9803-0004 ●
254 HARNESS; CAB FLOOR
A/T<X9D> 		1-82625-712-1 01 1 9608-9802 ●
254 HARNESS; CAB FLOOR
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> A/T<X9D> 		1-82627-085-1 01 1 9803-9806 ●
254 HARNESS; CAB FLOOR
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> A/T<X9D> EXC. ELEC OUTLET 12V<TAW> 		1-82627-085-1 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
A/T<X9D> EXC. ELEC OUTLET 12V<TAW> 		1-82629-308-3 01 1 0005- ●
254 HARNESS; CAB FLOOR
A/T<X9D> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82627-086-1 01 1 9803-9806 ●
254 HARNESS; CAB FLOOR
A/T<X9D> EXC. ELEC OUTLET 12V<TAW>,SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82627-086-1 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82628-128-4 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> 		1-82628-128-5 01 1 0005-0211 ●
254 HARNESS; CAB FLOOR
ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> EXC. REMOTE CONT DOOR LOCK<SLG>,HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82628-128-6 01 1 0212- ●
254 HARNESS; CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> ISUZU M/T<X9A> 		1-82628-129-4 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82627-084-1 01 1 9803-9806 ●
254 HARNESS; CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW>,SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82627-084-1 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) SPEAKER SYSTEM RR 2 SPEAKERS<TLS> ISUZU M/T<X9A> 		1-82627-083-1 01 1 9803-9806 ●
254 HARNESS; CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) SPEAKER SYSTEM RR 2 SPEAKERS<TLS> ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW> 		1-82627-083-1 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR 1-82629-307-3 01 1 0005- ●
254 HARNESS; CAB FLOOR
ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW> 		1-82629-307-3 01 1 0005- ●
254 HARNESS; CAB FLOOR
ELEC OUTLET 12V<TAW> A/T<X9D> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82628-132-4 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
ELEC OUTLET 12V<TAW> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> A/T<X9D> 		1-82628-133-4 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR 1-82626-064-1 01 1 9510-9806 ●
254 HARNESS; CAB FLOOR
EXC. FULL TRACTOR TRUCK(RD6),ELEC OUTLET 12V<TAW> 		1-82626-064-2 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
ELEC OUTLET 12V<TAW> 		1-82628-136-2 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
FULL TRACTOR TRUCK(RD6) EXC. ELEC OUTLET 12V<TAW> 		1-82627-087-1 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR 1-82629-310-3 01 1 0005- ●

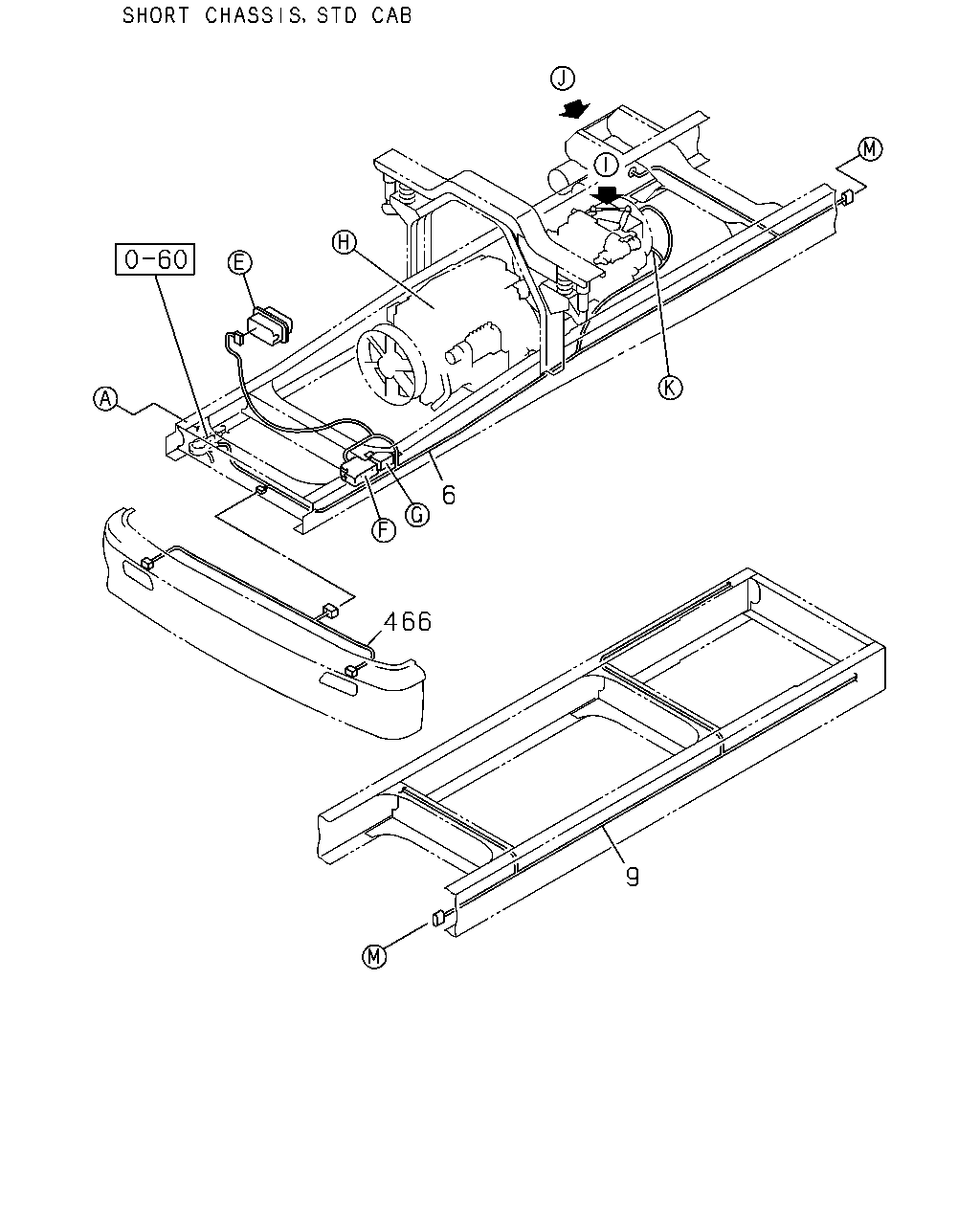

çizim 152380
6 466 9
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
6HK1 TCC ENG(81L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82678-310-0 01 1 0603- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82678-236-0 01 1 0511- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82676-891-1 01 1 0212-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-468-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-016-2 01 1 9510-9802 ● ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82639-016-2 01 1 9803-0004 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82639-016-2 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-998-2 01 1 0005-0010 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-998-2 01 1 0011-0401 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-462-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-012-2 01 1 9510-9609 ● ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-012-2 01 1 9610-9802 ● ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-012-2 01 1 9803-0004 ● ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82672-997-2 01 1 0005-0401 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82672-997-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82677-461-0 01 1 0402- ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82677-461-0 01 1 0402- ●
6 HARNESS; FRAME
THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-015-2 01 1 9510-9802 ● ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82639-901-0 01 1 9608-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82670-485-0 01 1 9803-0004 ●
6 HARNESS; FRAME 1-82673-010-2 01 1 0005-0401 ●
6 HARNESS; FRAME 1-82677-469-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-014-3 01 1 9510-9607 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-014-3 01 1 9608-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82670-483-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-999-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-463-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-043-0 01 1 9610-9612 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-197-0 01 1 9701-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82670-197-1 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-013-2 01 1 9510-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82673-001-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82673-001-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0402-0510 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0402-0510 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0511-0607 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0511-0607 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0608- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0608- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-82670-960-1 01 1 0011- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-044-0 01 1 0011-0102 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-716-1 01 1 0103-0211 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-716-2 01 1 0212-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-467-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) 		1-82639-387-3 01 1 9510-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) 		1-82670-484-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-82672-979-1 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-82673-007-1 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) 		1-82639-148-3 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82673-008-1 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82675-064-0 01 1 0107-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82675-064-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82675-063-0 01 1 0107-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82675-063-0 01 1 0212- ●
9 HARNESS; FRAME,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-040-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-494-0 01 1 9803- ●
9 HARNESS; FRAME,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-037-0 01 1 9510- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) 		1-82639-046-3 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) 		1-82670-500-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR 1-82672-972-0 01 1 0005- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82639-041-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82670-495-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-495-0 01 1 0005-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-495-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) 		1-82639-050-0 01 1 9510-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-050-0 01 1 0005-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-050-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-042-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-496-0 01 1 9803-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-496-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-038-0 01 1 9510-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-038-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-043-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-497-0 01 1 9803-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-497-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-039-0 01 1 9510-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-039-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82639-044-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82670-498-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-498-0 01 1 0005-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-498-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) 		1-82639-051-0 01 1 9510-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-051-0 01 1 0005-0211 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-051-0 01 1 0212- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) 		1-82639-047-3 01 1 9510-9802 ● ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) 		1-82670-501-0 01 1 9803-0004 ● ●
466 HARNESS; BUMPER
HEADLAMPS RECTANGULAR<TR4> 		1-82638-996-1 01 1 9510-0004 ● ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 9510-0004 ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 9510-0004 ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 0005-0601 ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0005-0601 ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 0602- ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0602- ●
çizim 152384
467 4 41 5 62 4 62 5 467 431 276 277 265 62 262 6 264 467 307 6 10 307 280 27 280 27
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 7.5AX13 		1-82510-421-0 01 1 0603- ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX16 		1-82510-397-0 01 1 0005- ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (B) 15AX16 		1-82510-397-0 01 1 0005- ●
4 BOX ASM; FUSE,HARNESS
(B) 7.5AX18 		1-82510-422-0 01 1 0005-0010 ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (B) 7.5AX18 		1-82510-422-0 01 1 0005-0010 ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 7.5AX18 		1-82510-422-0 01 1 0011- ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) 7.5AX18 		1-82510-422-0 01 1 0011- ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX13 		1-82510-421-0 01 1 9510-9612 ● ● ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX13 		1-82510-421-0 01 1 9701-0004 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX11 		1-82510-431-0 01 1 9510-9609 ● ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX11 		1-82510-431-0 01 1 9610-9612 ● ●
4 BOX ASM; FUSE,HARNESS
EXC. EURO2 SPECIFICATION<THN> (B) 15AX11 		1-82510-431-0 01 1 9610-9612 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-265-0 01 1 9701-9802 ● ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (A) 7.5AX14 		1-82510-265-0 01 1 9701-9802 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-486-0 01 1 9711-0004 ● ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (A) 7.5AX14 		1-82510-486-0 01 1 9711-0004 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX14 		1-82510-486-0 01 1 0005-0203 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-486-0 01 1 0005-0203 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 15AX15 		1-82510-521-0 01 1 0204-0602 ●
4 BOX ASM; FUSE,HARNESS
(A) 15AX15 		1-82510-521-0 01 1 0204-0602 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) (A) 15AX15 		1-82510-521-0 01 1 0603- ●
4 BOX ASM; FUSE,HARNESS
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,AIR CONDITIONER MANUAL CONTROL(C60),MIR STAY O/S W/REMOTE<TBA> (A) 15AX15 		1-82510-521-0 01 1 0603- ●
4 BOX ASM; FUSE,HARNESS
(A) 15AX15 		1-82510-521-0 01 1 0603- ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (B) 15AX12 		1-82510-432-0 01 1 9701-9806 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> EXC. ELEC OUTLET 12V<TAW> (B) 15AX12 		1-82510-432-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> ELEC OUTLET 12V<TAW> (B) 15AX13 		1-82510-475-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
EURO2 SPECIFICATION<THN> (B) 7.5AX2 15AX11 		1-82510-471-0 01 1 9610-9612 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX13 		1-82510-475-0 01 1 9701-9710 ● ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (B) 15AX13 		1-82510-475-0 01 1 9701-9710 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX14 		1-82510-472-0 01 1 9711-9806 ● ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (B) 15AX14 		1-82510-472-0 01 1 9711-9806 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX14 		1-82510-472-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW> (B) 15AX14 		1-82510-472-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
EXC. ELEC OUTLET 12V<TAW> (B) 15AX14 		1-82510-472-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (B) 15AX14 		1-82510-472-0 01 1 0005-0203 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX15 		1-82510-391-0 01 1 0204-0207 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX15 		1-82510-391-0 01 1 0208- ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (A) 7.5AX15 		1-82510-391-0 01 1 0208- ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> ELEC OUTLET 12V<TAW> (B) 15AX15 		1-82510-521-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
ELEC OUTLET 12V<TAW> (B) 15AX15 		1-82510-521-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX15 		1-82510-521-0 01 1 0005-0203 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-486-0 01 1 0204- ●
4 BOX ASM; FUSE,HARNESS
6HH1 STD 4VALVE ENG(1A6) ISUZU M/T<X9A> (A) 7.5AX16 		1-82510-395-0 01 1 0011-0207 ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 9510- ● ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 9510- ● ● ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82678-310-0 01 1 0603- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82678-236-0 01 1 0511- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82676-891-1 01 1 0212-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-468-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-016-2 01 1 9510-9802 ● ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82639-016-2 01 1 9803-0004 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82639-016-2 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-998-2 01 1 0005-0010 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-998-2 01 1 0011-0401 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-462-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-012-2 01 1 9510-9609 ● ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-012-2 01 1 9610-9802 ● ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-012-2 01 1 9803-0004 ● ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82672-997-2 01 1 0005-0401 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82672-997-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82677-461-0 01 1 0402- ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82677-461-0 01 1 0402- ●
6 HARNESS; FRAME
THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-015-2 01 1 9510-9802 ● ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82639-901-0 01 1 9608-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82670-485-0 01 1 9803-0004 ●
6 HARNESS; FRAME 1-82673-010-2 01 1 0005-0401 ●
6 HARNESS; FRAME 1-82677-469-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-014-3 01 1 9510-9607 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-014-3 01 1 9608-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82670-483-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-999-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-463-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-043-0 01 1 9610-9612 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-197-0 01 1 9701-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82670-197-1 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-013-2 01 1 9510-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82673-001-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82673-001-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0402-0510 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0402-0510 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0511-0607 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0511-0607 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0608- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0608- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-82670-960-1 01 1 0011- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-044-0 01 1 0011-0102 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-716-1 01 1 0103-0211 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-716-2 01 1 0212-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-467-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) 		1-82639-387-3 01 1 9510-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) 		1-82670-484-0 01 1 9803-0004 ●
10 BOX; FUSE,HARNESS
6HK1 TCC ENG(81L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82510-408-0 01 1 0603- ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 9510-0601 ● ● ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0602-0607 ● ●
10 BOX; FUSE,HARNESS
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		1-82510-409-0 01 1 0602-0607 ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0608- ● ●
10 BOX; FUSE,HARNESS
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		1-82510-409-0 01 1 0608- ●
10 BOX; FUSE,HARNESS
6HK1 TCC ENG(81L) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82510-409-0 01 1 0608- ●
27 FUSE UNIT
6HK1 TCC ENG(81L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> (A) 40A GREEN 		8-94468-662-0 04 1 0603- ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 9510-0601 ● ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0602-0607 ● ●
27 FUSE UNIT
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) 40A GREEN 		8-94468-662-0 03 1 0602-0607 ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0608- ● ●
27 FUSE UNIT
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) 40A GREEN 		8-94468-662-0 03 1 0608- ●
27 FUSE UNIT
6HK1 TCC ENG(81L) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 40A GREEN 		8-94468-662-0 03 1 0608- ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 9510- ● ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9510- ● ● ●
62 DIODE; HARNESS
(B) 10P BROWN 		1-82699-601-0 AR 1 9510- ● ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 9510- ● ● ●
62 DIODE; HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9510- ● ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 9510- ● ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9510- ● ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 9510- ● ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 9510- ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9510-0512 ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9610-0004 ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0011-0602 ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0603-0801 ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0802- ●
280 NUT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8 		9-09110-408-0 02 1 0011-0512 ●
280 NUT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8 		0-91110-508-0 02 1 0601-0602 ●
280 NUT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8 		0-91110-508-0 02 1 0603- ●
307 BOX; ENG HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) BOX 		1-82698-070-1 01 1 0011-0602 ●
307 BOX; ENG HARNESS
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) BOX 		1-82698-070-1 01 1 0603- ●
307 BOX; ENG HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) COVER 		1-82698-138-0 01 1 0011-0602 ●
307 BOX; ENG HARNESS
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) COVER 		1-82698-138-0 01 1 0603- ●
431 CONNECTOR; JOINT
A/T<X9D> 3P & 3P 		1-82698-170-0 01 1 0204-0207 ●
431 CONNECTOR; JOINT
A/T<X9D> 3P & 3P 		1-82698-170-0 02 1 0208- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-863-2 01 1 0603- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82662-207-0 01 1 0603- ●
467 HARNESS; FACIA
POWER WINDOW<A30> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-754-2 01 1 0506- ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82661-698-2 01 1 0211- ● ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82661-697-2 01 1 0211- ● ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82661-621-4 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82661-620-4 01 1 0212- ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
ISUZU M/T<X9A> HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
(B) 		1-82629-270-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-708-2 01 1 9510-9609 ● ●
467 HARNESS; FACIA
(A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
(A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
(A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-265-6 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5) ,THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
ISUZU M/T<X9A> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5) ,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-242-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-689-3 01 1 9510-9609 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-689-5 01 1 9610-9802 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-689-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B) 		1-82625-691-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82627-074-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-707-2 01 1 9510-9609 ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>, EURO2 SPECIFICATION<THN> (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-7 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-7 01 1 0211- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-690-3 01 1 9510-9609 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-690-5 01 1 9610-9802 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. AUSTRALIA EQUIPMENT(RR3),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-690-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-264-6 01 1 0005- ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-737-1 01 1 9510-9609 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82625-737-2 01 1 9610-9802 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-737-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82627-088-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82627-089-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B) 		1-82625-694-4 01 1 9510-9607 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-694-6 01 1 9608-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82627-079-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-079-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82625-696-6 01 1 9608-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82627-081-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-081-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82628-142-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82628-147-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-1 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-2 01 1 9803-0004 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0005-0601 ● ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82629-245-5 01 1 0602- ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0602- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-738-1 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82625-738-2 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-738-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82629-240-5 01 1 0005- ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-746-0 01 1 9610-9612 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-1 01 1 9701-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-4 01 1 9803-0004 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0005-0210 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0211- ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), EURO2 SPECIFICATION<THN> (B) 		1-82627-076-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82625-695-4 01 1 9510-9607 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82625-695-6 01 1 9608-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82627-078-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-078-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82629-294-2 01 1 0005- ● ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82625-697-6 01 1 9608-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82627-080-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-080-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-747-0 01 1 9610-9612 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-1 01 1 9701-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-244-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82628-143-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) 		1-82629-263-5 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82628-148-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0011-0601 ● ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0011-0601 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-5 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-905-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5) (B) 		1-82629-905-5 01 1 0212- ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-065-3 01 1 9510-9802 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82627-082-2 01 1 9803-9806 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-082-3 01 1 9807-0004 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> (B) 		1-82628-146-1 01 1 9807-0004 ●
çizim 152392
467 6 573 6 277 296 275 298 297
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
6HK1 TCC ENG(81L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82678-310-0 01 1 0603- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82678-236-0 01 1 0511- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82676-891-1 01 1 0212-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-468-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-016-2 01 1 9510-9802 ● ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82639-016-2 01 1 9803-0004 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82639-016-2 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-998-2 01 1 0005-0010 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-998-2 01 1 0011-0401 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-462-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-012-2 01 1 9510-9609 ● ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-012-2 01 1 9610-9802 ● ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-012-2 01 1 9803-0004 ● ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82672-997-2 01 1 0005-0401 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82672-997-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82677-461-0 01 1 0402- ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82677-461-0 01 1 0402- ●
6 HARNESS; FRAME
THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-015-2 01 1 9510-9802 ● ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82639-901-0 01 1 9608-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82670-485-0 01 1 9803-0004 ●
6 HARNESS; FRAME 1-82673-010-2 01 1 0005-0401 ●
6 HARNESS; FRAME 1-82677-469-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-014-3 01 1 9510-9607 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-014-3 01 1 9608-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82670-483-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-999-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-463-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-043-0 01 1 9610-9612 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-197-0 01 1 9701-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82670-197-1 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-013-2 01 1 9510-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82673-001-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82673-001-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0402-0510 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0402-0510 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0511-0607 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0511-0607 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		1-82677-464-0 01 1 0608- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-464-0 01 1 0608- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-82670-960-1 01 1 0011- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-044-0 01 1 0011-0102 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-716-1 01 1 0103-0211 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-716-2 01 1 0212-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-467-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) 		1-82639-387-3 01 1 9510-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) 		1-82670-484-0 01 1 9803-0004 ●
275 BOX ASM; FRAME HARNESS
EURO2 SPECIFICATION<THN> 		1-82699-378-0 01 1 9610-0004 ●
275 BOX ASM; FRAME HARNESS
EURO2 SPECIFICATION<THN> 		1-82699-378-0 01 1 0005- ● ●
275 BOX ASM; FRAME HARNESS 1-82699-378-0 01 1 0005- ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9510-0512 ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9610-0004 ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0011-0602 ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0603-0801 ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0802- ●
296 BRACKET; HARNESS BOX
EURO2 SPECIFICATION<THN> 		1-82699-923-0 01 1 9610-0004 ●
296 BRACKET; HARNESS BOX
EURO2 SPECIFICATION<THN> 		1-82699-923-0 01 1 0005- ● ●
296 BRACKET; HARNESS BOX 1-82699-923-0 01 1 0005- ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 02 1 9610-0004 ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ●
297 BOLT; BOX BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
297 BOLT; BOX BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 02 1 9610-0004 ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
298 NUT; BOX BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
298 NUT; BOX BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-863-2 01 1 0603- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82662-207-0 01 1 0603- ●
467 HARNESS; FACIA
POWER WINDOW<A30> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-754-2 01 1 0506- ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82661-698-2 01 1 0211- ● ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82661-697-2 01 1 0211- ● ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82661-621-4 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82661-620-4 01 1 0212- ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
ISUZU M/T<X9A> HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
(B) 		1-82629-270-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-708-2 01 1 9510-9609 ● ●
467 HARNESS; FACIA
(A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
(A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
(A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-265-6 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5) ,THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
ISUZU M/T<X9A> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5) ,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-242-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-689-3 01 1 9510-9609 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-689-5 01 1 9610-9802 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-689-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B) 		1-82625-691-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82627-074-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-707-2 01 1 9510-9609 ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>, EURO2 SPECIFICATION<THN> (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-7 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-7 01 1 0211- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-690-3 01 1 9510-9609 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-690-5 01 1 9610-9802 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. AUSTRALIA EQUIPMENT(RR3),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-690-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-264-6 01 1 0005- ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-737-1 01 1 9510-9609 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82625-737-2 01 1 9610-9802 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-737-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82627-088-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82627-089-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B) 		1-82625-694-4 01 1 9510-9607 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-694-6 01 1 9608-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82627-079-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-079-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82625-696-6 01 1 9608-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82627-081-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-081-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82628-142-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82628-147-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-1 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-2 01 1 9803-0004 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0005-0601 ● ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82629-245-5 01 1 0602- ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0602- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-738-1 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82625-738-2 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-738-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82629-240-5 01 1 0005- ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-746-0 01 1 9610-9612 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-1 01 1 9701-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-4 01 1 9803-0004 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0005-0210 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0211- ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), EURO2 SPECIFICATION<THN> (B) 		1-82627-076-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82625-695-4 01 1 9510-9607 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82625-695-6 01 1 9608-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82627-078-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-078-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82629-294-2 01 1 0005- ● ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82625-697-6 01 1 9608-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82627-080-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-080-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-747-0 01 1 9610-9612 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-1 01 1 9701-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-244-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82628-143-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) 		1-82629-263-5 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82628-148-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0011-0601 ● ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0011-0601 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-5 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-905-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5) (B) 		1-82629-905-5 01 1 0212- ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-065-3 01 1 9510-9802 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82627-082-2 01 1 9803-9806 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-082-3 01 1 9807-0004 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> (B) 		1-82628-146-1 01 1 9807-0004 ●
573 HARNESS; CONTROL UNIT
6HK1 TCC ENG(81L) (B) 		1-82661-390-2 01 1 0603- ●
573 HARNESS; CONTROL UNIT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) 		1-82629-908-2 01 1 0011- ● ●
573 HARNESS; CONTROL UNIT
EURO2 SPECIFICATION<THN> (A) 		1-82626-745-3 01 1 9610-0004 ●
573 HARNESS; CONTROL UNIT
EURO2 SPECIFICATION<THN> (A) 		1-82626-745-4 01 1 0005- ● ●
573 HARNESS; CONTROL UNIT
(A) 		1-82626-745-4 01 1 0005- ●
çizim 152416
488 467 573 13 486
BalonParca AdiParca NoAdetTipApplied Date A B C
13 HARNESS; ENG
6HK1 TCC ENG(81L) (B) 		1-82640-950-7 01 1 0603- ●
13 HARNESS; ENG
EXC. THAILAND EQUIPMENT(PM9) (A) 		1-82640-714-0 01 1 9510-9609 ●
13 HARNESS; ENG
EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A) 		1-82640-714-0 01 1 9510-9609 ●
13 HARNESS; ENG
EXC. THAILAND EQUIPMENT(PM9) (A) 		1-82640-714-0 01 1 9610-9802 ●
13 HARNESS; ENG
EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 9610-9802 ●
13 HARNESS; ENG
(A) 		1-82640-714-0 01 1 9803-0004 ●
13 HARNESS; ENG
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 9803-0004 ●
13 HARNESS; ENG
EXC. EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 0005-0010 ● ●
13 HARNESS; ENG
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 0011- ● ●
13 HARNESS; ENG
THAILAND EQUIPMENT(PM9) (A) 		1-82640-716-0 01 1 9510-9802 ● ●
13 HARNESS; ENG
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82641-019-2 01 1 0011-0602 ● ●
13 HARNESS; ENG
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82641-019-2 01 1 0603- ● ●
13 HARNESS; ENG
EURO2 SPECIFICATION<THN> (A) 		1-82640-793-1 01 1 9610-9802 ●
13 HARNESS; ENG
EURO2 SPECIFICATION<THN> (A) 		1-82640-982-0 01 1 9803-0004 ●
13 HARNESS; ENG
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A) 		1-82640-982-0 01 1 0005- ●
13 HARNESS; ENG
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82640-715-1 01 1 9510-0004 ● ●
13 HARNESS; ENG
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A) 		1-82641-138-0 01 1 0005- ● ●
13 HARNESS; ENG
(A) 		1-82641-138-0 01 1 0005- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-863-2 01 1 0603- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82662-207-0 01 1 0603- ●
467 HARNESS; FACIA
POWER WINDOW<A30> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-754-2 01 1 0506- ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82661-698-2 01 1 0211- ● ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82661-697-2 01 1 0211- ● ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82661-621-4 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82661-620-4 01 1 0212- ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
ISUZU M/T<X9A> HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
(B) 		1-82629-270-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-708-2 01 1 9510-9609 ● ●
467 HARNESS; FACIA
(A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
(A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
(A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-265-6 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5) ,THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
ISUZU M/T<X9A> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5) ,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-242-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-689-3 01 1 9510-9609 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-689-5 01 1 9610-9802 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-689-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B) 		1-82625-691-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82627-074-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-707-2 01 1 9510-9609 ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>, EURO2 SPECIFICATION<THN> (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-7 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-7 01 1 0211- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-690-3 01 1 9510-9609 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-690-5 01 1 9610-9802 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. AUSTRALIA EQUIPMENT(RR3),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-690-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-264-6 01 1 0005- ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-737-1 01 1 9510-9609 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82625-737-2 01 1 9610-9802 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-737-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82627-088-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82627-089-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B) 		1-82625-694-4 01 1 9510-9607 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-694-6 01 1 9608-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82627-079-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-079-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82625-696-6 01 1 9608-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82627-081-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-081-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82628-142-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82628-147-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-1 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-2 01 1 9803-0004 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0005-0601 ● ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82629-245-5 01 1 0602- ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0602- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-738-1 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82625-738-2 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-738-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82629-240-5 01 1 0005- ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-746-0 01 1 9610-9612 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-1 01 1 9701-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-4 01 1 9803-0004 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0005-0210 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0211- ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), EURO2 SPECIFICATION<THN> (B) 		1-82627-076-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82625-695-4 01 1 9510-9607 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82625-695-6 01 1 9608-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82627-078-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-078-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82629-294-2 01 1 0005- ● ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82625-697-6 01 1 9608-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82627-080-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-080-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-747-0 01 1 9610-9612 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-1 01 1 9701-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-244-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82628-143-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) 		1-82629-263-5 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82628-148-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0011-0601 ● ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0011-0601 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-5 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-905-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5) (B) 		1-82629-905-5 01 1 0212- ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-065-3 01 1 9510-9802 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82627-082-2 01 1 9803-9806 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-082-3 01 1 9807-0004 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> (B) 		1-82628-146-1 01 1 9807-0004 ●
486 HARNESS; ALL SPEED ACCEL
6HK1 TCC ENG(81L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 0603- ●
488 HARNESS; EXT,CONVERTER
ELEC OUTLET 12V<TAW> W/FUSE 12V 6.3A 		1-82628-954-0 01 1 0009-0603 ●
488 HARNESS; EXT,CONVERTER
ELEC OUTLET 12V<TAW> 		1-82662-883-0 01 1 0604- ●
573 HARNESS; CONTROL UNIT
6HK1 TCC ENG(81L) (B) 		1-82661-390-2 01 1 0603- ●
573 HARNESS; CONTROL UNIT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) 		1-82629-908-2 01 1 0011- ● ●
573 HARNESS; CONTROL UNIT
EURO2 SPECIFICATION<THN> (A) 		1-82626-745-3 01 1 9610-0004 ●
573 HARNESS; CONTROL UNIT
EURO2 SPECIFICATION<THN> (A) 		1-82626-745-4 01 1 0005- ● ●
573 HARNESS; CONTROL UNIT
(A) 		1-82626-745-4 01 1 0005- ●
çizim 152496
467 14 467 14
BalonParca AdiParca NoAdetTipApplied Date A B C
14 HARNESS; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-82662-226-0 02 1 0602- ●
14 HARNESS; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82628-706-0 01 1 0212- ●
14 HARNESS; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82628-707-0 01 1 0212- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-863-2 01 1 0603- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82662-207-0 01 1 0603- ●
467 HARNESS; FACIA
POWER WINDOW<A30> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-754-2 01 1 0506- ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82661-698-2 01 1 0211- ● ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82661-697-2 01 1 0211- ● ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82661-621-4 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82661-620-4 01 1 0212- ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
ISUZU M/T<X9A> HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
(B) 		1-82629-270-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-708-2 01 1 9510-9609 ● ●
467 HARNESS; FACIA
(A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
(A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
(A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-265-6 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5) ,THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
ISUZU M/T<X9A> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5) ,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-242-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-689-3 01 1 9510-9609 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-689-5 01 1 9610-9802 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-689-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B) 		1-82625-691-5 01 1 9510-9802 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82627-074-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-707-2 01 1 9510-9609 ● ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>, EURO2 SPECIFICATION<THN> (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-7 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-707-7 01 1 0211- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-690-3 01 1 9510-9609 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-690-5 01 1 9610-9802 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. AUSTRALIA EQUIPMENT(RR3),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-690-7 01 1 9803-0004 ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-264-6 01 1 0005- ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-737-1 01 1 9510-9609 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82625-737-2 01 1 9610-9802 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-737-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82627-088-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82627-089-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B) 		1-82625-694-4 01 1 9510-9607 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-694-6 01 1 9608-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82627-079-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-079-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82625-696-6 01 1 9608-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82627-081-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-081-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82628-142-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82628-147-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-1 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-2 01 1 9803-0004 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0005-0601 ● ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82629-245-5 01 1 0602- ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0602- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-738-1 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82625-738-2 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-738-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82629-240-5 01 1 0005- ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-746-0 01 1 9610-9612 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-1 01 1 9701-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-4 01 1 9803-0004 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0005-0210 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0211- ● ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), EURO2 SPECIFICATION<THN> (B) 		1-82627-076-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82625-695-4 01 1 9510-9607 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82625-695-6 01 1 9608-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82627-078-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-078-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82629-294-2 01 1 0005- ● ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82625-697-6 01 1 9608-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82627-080-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-080-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> ,EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-747-0 01 1 9610-9612 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-1 01 1 9701-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-244-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82628-143-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) 		1-82629-263-5 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0211- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82628-148-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0011-0601 ● ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0011-0601 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0602- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-5 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-905-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5) (B) 		1-82629-905-5 01 1 0212- ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-065-3 01 1 9510-9802 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82627-082-2 01 1 9803-9806 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-082-3 01 1 9807-0004 ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> (B) 		1-82628-146-1 01 1 9807-0004 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
