8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#3669) — 36 parça

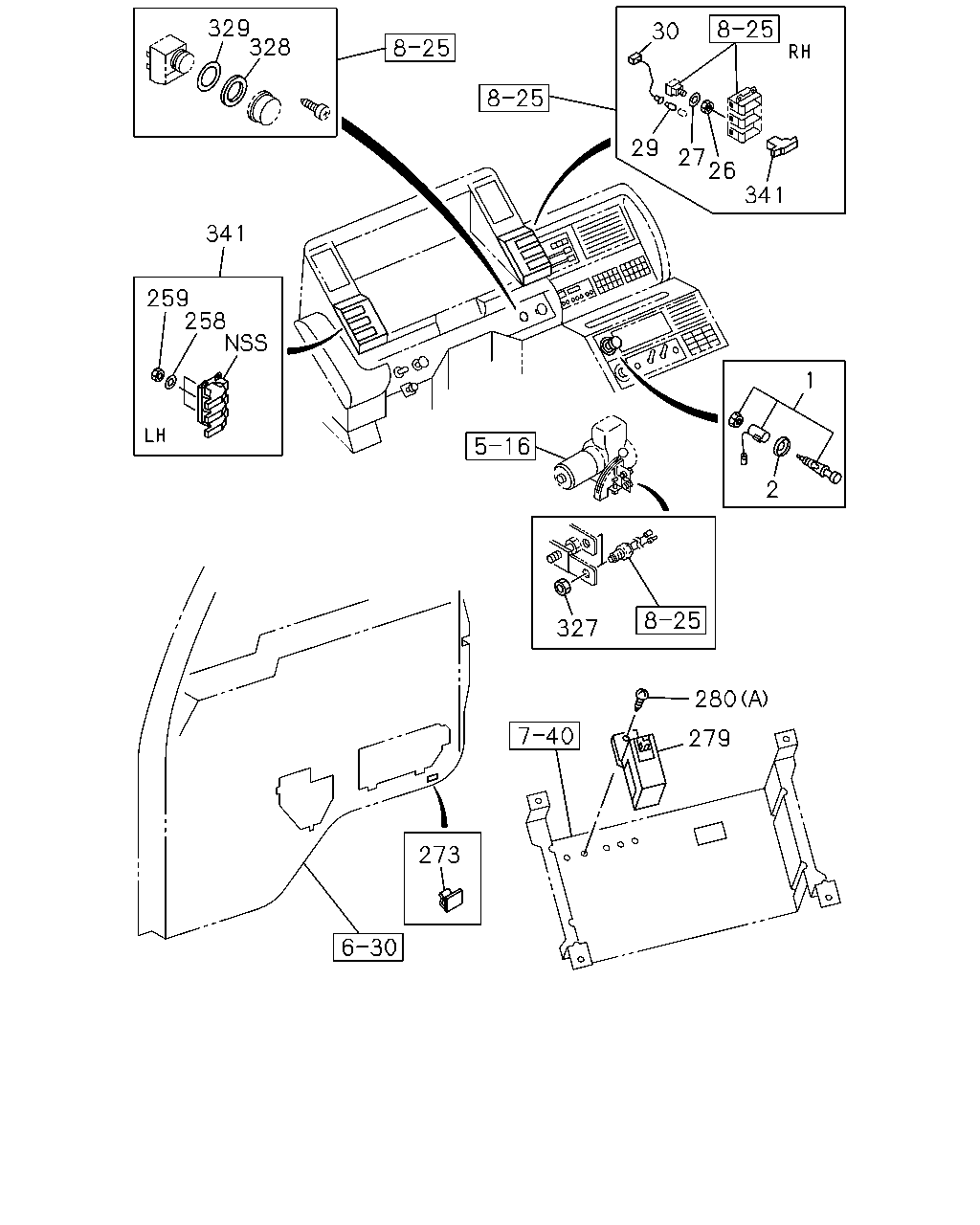

çizim 36604
329 328 30 29 27 26 341 341 259 258 1 2 327 280 279 273
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 1-84190-023-0 01 1 9002-
2 BEZEL; CIGAR LIGHTER 8-94232-213-1 01 1 9002-
26 NUT; METER SW
AIR CON MANUAL CONTROL(C60) M12 		1-09400-066-0 03 1 9002-
26 NUT; METER SW
EXC. AIR CON MANUAL CONTROL(C60) M12 		1-09400-066-0 02 1 9002-
27 WASHER; WAVE,SW
AIR CON MANUAL CONTROL(C60) 		1-09550-006-0 03 1 9002-
27 WASHER; WAVE,SW
EXC. AIR CON MANUAL CONTROL(C60) 		1-09550-006-0 02 1 9002-
29 BULB; METER SW
AIR CON MANUAL CONTROL(C60) 24V 1.2W 		1-82194-027-0 03 1 9002-
29 BULB; METER SW
EXC. AIR CON MANUAL CONTROL(C60) 24V 1.2W 		1-82194-027-0 02 1 9002-
30 CORD ASM; METER SW
AIR CON MANUAL CONTROL(C60) 		1-82359-034-0 01 1 9002-
30 CORD ASM; METER SW
EXC. AIR CON MANUAL CONTROL(C60) 		1-82359-033-0 01 1 9002-
258 WASHER; WAVE,HOLE COVER 1-09550-006-0 01 1 9002-
259 NUT; HOLE COVER
M12 		1-09400-066-0 01 1 9002-
273 CLIP; HARNESS
POWER WINDOW<A30> 1 SET=5 PIECE 		1-09987-214-0 04 1 9009-9306
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 9002-9306
280 SCREW; BUZZER,SEAT BELT
EXH HEAT WARNING<W50> EXC. ENGINE OVERRUN BUZZER<SK4> (B) M5X14 W/PL WASHER 		5-09981-050-0 01 1 9012-
280 SCREW; BUZZER,SEAT BELT
SAUDI ARABIA EQUIPMENT(WH1) (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-9306
327 NUT; SWITCH
AUTO CAB TILT<WV2> M16 		9-99111-416-0 02 1 9307-
328 NUT
INTAKE HEATER<SL2> 		1-09449-037-1 01 1 9002-
329 WASHER
INTAKE HEATER<SL2> 		1-09503-100-0 01 1 9002-
341 COVER ASM 1-82353-011-0 01 1 9002-
341 COVER ASM
EXC. AIR CON MANUAL CONTROL(C60) 		1-82359-059-0 01 1 9002-

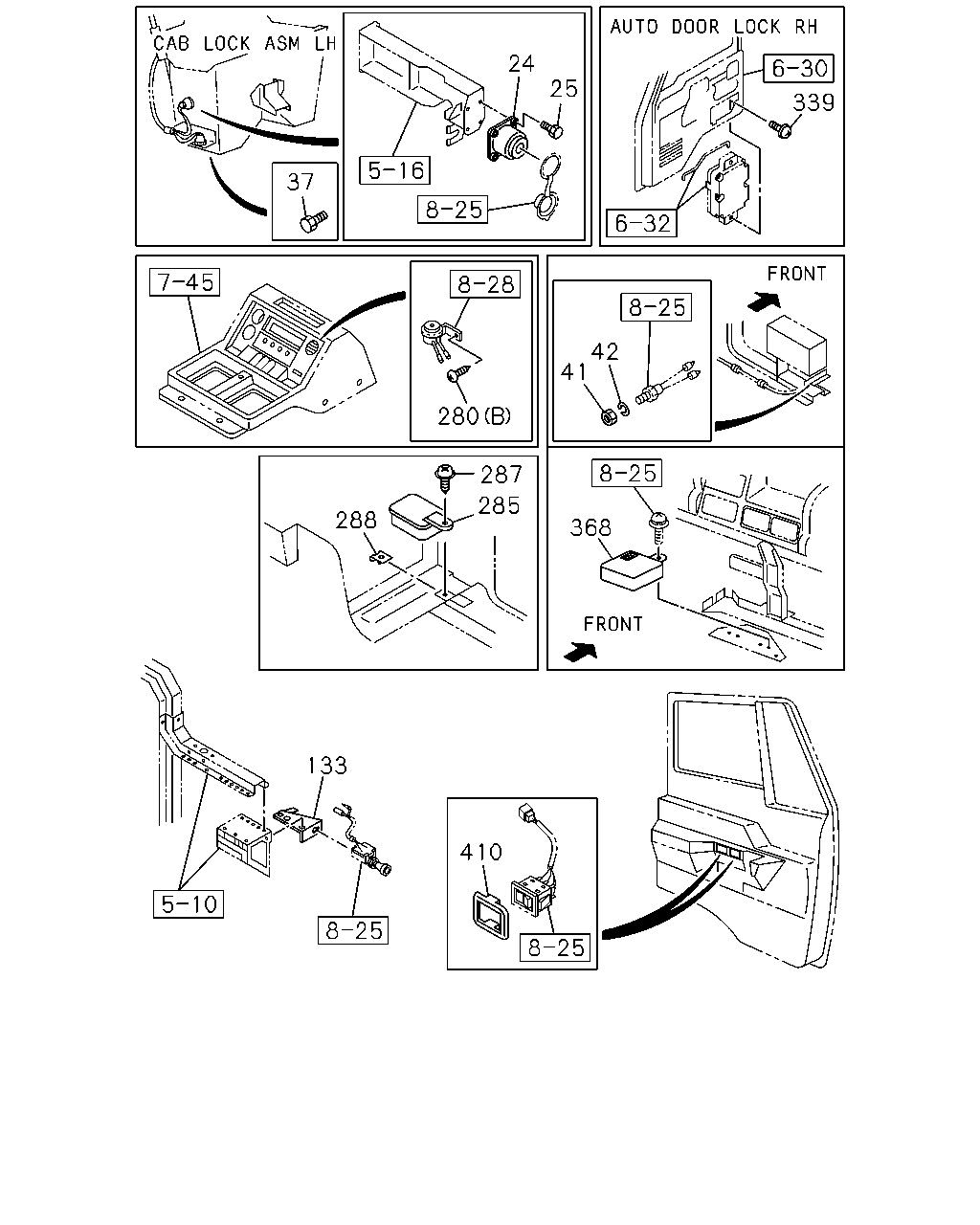

çizim 39175
24 25 339 37 42 41 280 287 285 288 368 133 410
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT
AUTO CAB TILT<WV2> 		1-82389-007-1 01 1 9307-
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9307-
37 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M6X16 W/LK WASHER 		0-50080-616-0 02 1 9307-
41 NUT; SUB STARTER SW 9-82755-020-0 01 1 9002-9306
42 WASHER; LK,SUB STARTER SW
ID=14.2 		9-09150-514-0 01 1 9002-9306
133 BRACKET; SWITCH 1-82345-021-0 01 1 9002-
280 SCREW; BUZZER,SEAT BELT
EXH HEAT WARNING<W50> EXC. ENGINE OVERRUN BUZZER<SK4> (B) M5X14 W/PL WASHER 		5-09981-050-0 01 1 9012-
280 SCREW; BUZZER,SEAT BELT
SAUDI ARABIA EQUIPMENT(WH1) (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-9306
285 BUZZER ASM; ALARM CLOCK
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) 		1-83460-053-0 01 1 9308-
287 SCREW; BUZZER
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) 		1-09981-388-1 01 1 9308-
288 NUT; SPIRE
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) M5 SPIRE NUT 		8-94279-051-0 01 1 9308-
339 SCREW; ACTUATOR
AUTO DOOR LOCK<AU4> M4X30 		8-94279-360-0 02 1 9307-
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-94437-633-1 01 1 9307-
410 BEZEL; SWITCH,POWER WINDOW
POWER WINDOW<A30> 		1-73337-416-0 02 1 9009-9306
410 BEZEL; SWITCH,POWER WINDOW
POWER WINDOW<A30> 		1-73337-381-0 03 1 9307-
