Isuzu WW
▶
TRUCKS
▶
FTR
▶
10702 - FTR(RHD)EXC. EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-55 - REAR SEAT
▶

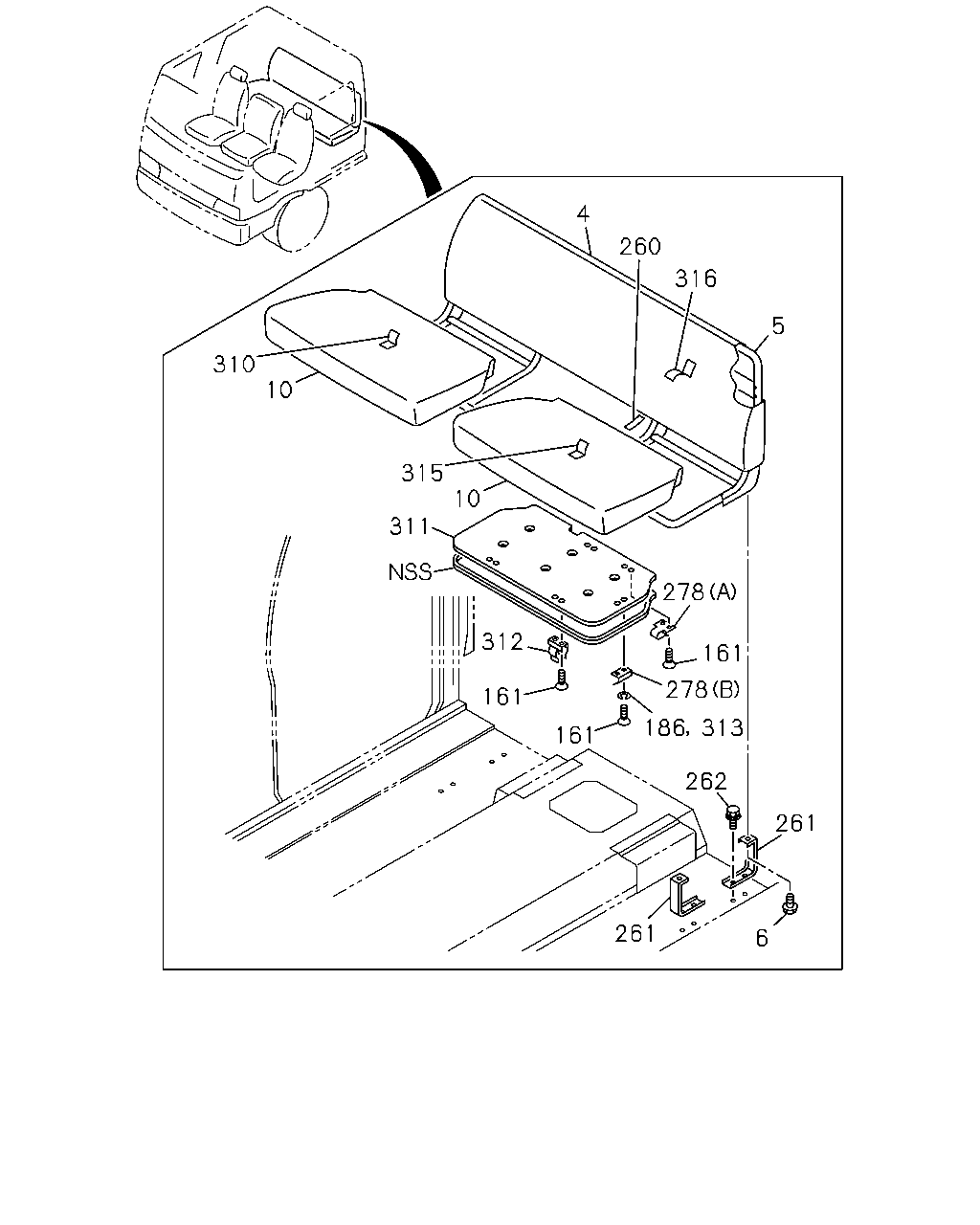

7-55 — REAR SEAT
(#36689) — 24 parça
4
260
316
5
310
10
315
10
311
278
312
161
278
161
186
313
161
262
261
261
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
PAD; RR,SEAT BACK
1-75116-137-1
01
1
9510-
5
FRAME ASM; RR SEAT BACK
1-75148-193-2
01
1
9510-
6
BOLT; RR SEAT
M8X24.5 W/LK&PL WASHER
8-94279-217-0
08
1
9510-0703
6
BOLT; RR SEAT
M8X20 FLANGE
0-28450-820-0
08
1
0704-
10
PAD; CUSHION,RR SEAT
1-75116-135-1
02
1
9510-
161
SCREW; RR SEAT BRKT
M6X16 CK-HEAD
9-03090-616-0
20
1
9510-
186
WASHER; LK,RR SEAT BRKT
ID=6.4 TOOTH LK COUNTERSUNK
9-09152-706-0
10
1
9510-
260
FINISHER; RR SEAT
L=200 SERVICED BY L=880
1-73948-003-0
02
1
9510-0003
260
FINISHER; RR SEAT
L=200 SERVICED BY L=314
8-94262-845-0
02
1
0004-
261
STAND; RR SEAT
1-75558-285-2
04
1
9510-
262
BOLT; STAND TO FLOOR
M8X24.5 W/LK&PL WASHER
8-94279-217-0
08
1
9510-0703
262
BOLT; STAND TO FLOOR
M8X20 FLANGE
0-28450-820-0
08
1
0704-
278
BRACKET; RR SEAT CUSHION
(A)
9-61407-082-0
04
1
9510-
278
BRACKET; RR SEAT CUSHION
(B)
9-61407-083-0
02
1
9510-
310
TRIM COVER ASM; RR SEAT
1-75116-315-1
01
1
9510-0003
310
TRIM COVER ASM; RR SEAT
1-75116-656-1
01
1
0004-
311
PAN ASM; SEAT CUSH,RR SEAT
1-75148-192-1
01
1
9510-
311
PAN ASM; SEAT CUSH,RR SEAT
1-75148-191-1
01
1
9510-
312
BRACKET; STOPPER,RR SEAT
8-94276-841-1
04
1
9510-
313
WASHER; LK,BRKT PAN
ID=6.4 TOOTH LK COUNTERSUNK
9-09152-706-0
10
1
9510-
315
TRIM ASM; CUSH,RR SEAT
1-75116-315-1
01
1
9510-0003
315
TRIM ASM; CUSH,RR SEAT
1-75116-719-1
01
1
0004-
316
COVER ASM; TRIM,RR SEAT
1-75116-314-1
01
1
9510-0003
316
COVER ASM; TRIM,RR SEAT
1-75116-660-1
01
1
0004-
