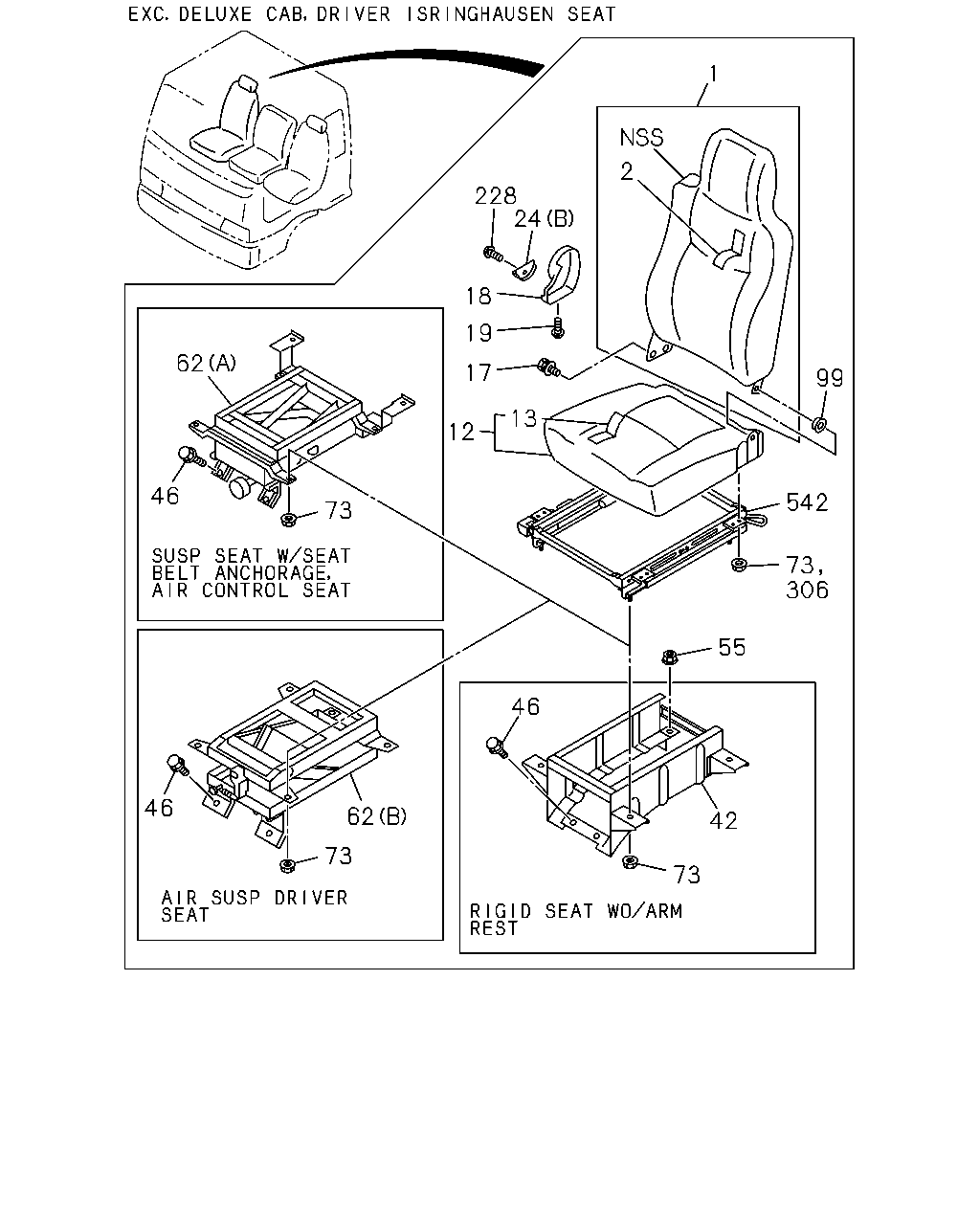

7-50 — FRONT SEAT (#36688) — 1852 parça

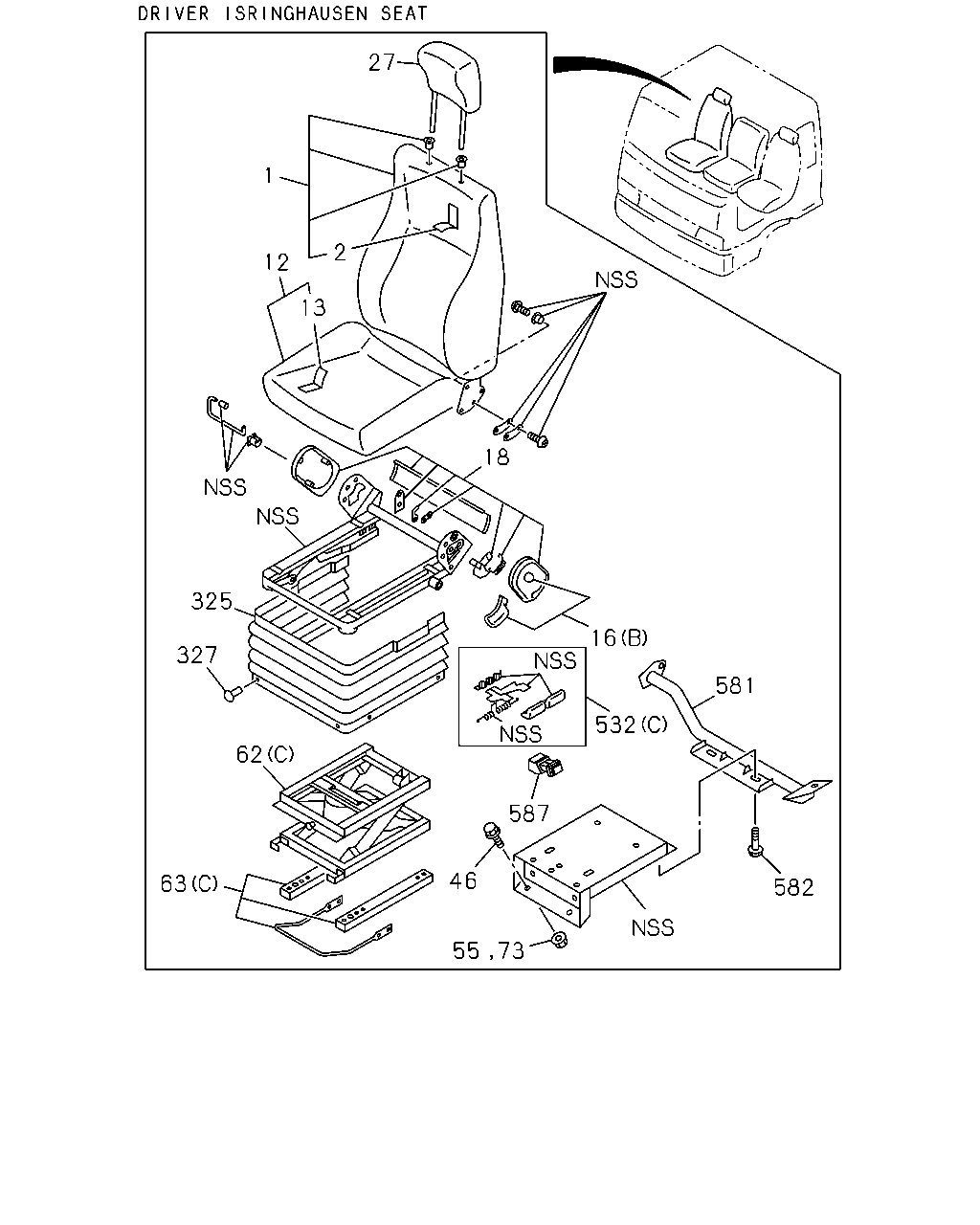

çizim 152340
27 1 2 12 13 18 325 16 327 581 532 62 587 46 63 582 55 73
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75027-392-1 01 1 9510-9802 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75026-025-0 01 1 9803-0003 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75026-716-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75026-729-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75208-068-2 01 1 0106-0901 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		8-98135-612-0 01 1 0902- ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75028-586-1 01 1 9510-9802 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75028-998-0 01 1 9803-0003 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-712-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-723-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75208-062-3 01 1 0106- ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) 		1-75028-760-1 01 1 9510-9802 ● ●
1 BACK ASM; SEAT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-760-1 01 1 9510-9802 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75028-864-2 01 1 9803-0003 ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> 		1-75028-864-2 01 1 9803-0003 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75026-711-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> 		1-75026-711-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) 		1-75026-726-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) 		1-75208-065-2 01 1 0106-0901 ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) 		8-98135-611-0 01 1 0902- ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-267-0 01 1 0011- ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75028-590-2 01 1 9510-0003 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75026-710-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75026-730-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT 1-75026-730-0 01 1 0005-0105 ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75208-069-2 01 1 0106-0901 ● ●
1 BACK ASM; SEAT 1-75208-069-2 01 1 0106-0901 ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		8-98135-615-0 01 1 0902- ● ●
1 BACK ASM; SEAT 8-98135-615-0 01 1 0902- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75028-618-2 01 1 9510-0003 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75026-721-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-728-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75208-067-3 01 1 0106- ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-267-0 01 1 9811-0004 ● ●
1 BACK ASM; SEAT 1-75027-512-2 01 1 9510-9802 ●
1 BACK ASM; SEAT 1-75026-032-0 01 1 9803-9810 ●
1 BACK ASM; SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-032-0 01 1 9811-0003 ●
1 BACK ASM; SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-715-0 01 1 0004-0004 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75116-346-1 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> 		1-75116-346-1 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75116-586-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> 		1-75116-586-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) 		1-75116-594-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) EXC. DELUXE CAB(W14) 		1-75117-837-0 01 1 9510-9602 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75117-837-0 01 1 9510-9602 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75117-837-0 01 1 9603-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75116-256-0 01 1 9510-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-373-0 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-587-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-602-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) 		1-75116-296-0 01 1 9510-9602 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-296-0 01 1 9510-9602 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-296-0 01 1 9603-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) 		1-75116-296-0 01 1 9603-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-296-0 01 1 9603-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) 		1-75116-296-1 01 1 9612-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-296-1 01 1 9612-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-296-1 01 1 9612-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-377-0 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-595-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-703-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-464-0 01 1 0011- ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-277-2 01 1 9510-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK 1-75116-277-2 01 1 9510-9802 ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-277-2 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75127-036-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-704-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK 1-75116-704-1 01 1 0005- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75116-274-1 01 1 9510-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75116-600-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-702-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-464-0 01 1 9811-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK 1-75116-389-0 01 1 9803-9810 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-389-0 01 1 9811-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-593-0 01 1 0004-0004 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75028-770-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-024-0 01 1 9803-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-682-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-698-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) 		1-75026-250-0 01 1 9902-0003 ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-268-0 01 1 0011- ● ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-870-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> 		1-75026-033-0 01 1 9803-0003 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> 		1-75026-681-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75028-764-2 01 1 9510-0003 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75207-147-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75026-695-3 01 1 0005- ● ●
12 CUSHION; SEAT,FRT 1-75026-695-3 01 1 0005- ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75028-799-2 01 1 9510-0003 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75026-686-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-692-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75028-763-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) 		1-75028-763-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75028-763-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75028-838-1 01 1 9803-9901 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75028-838-1 01 1 9902-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75026-677-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75026-693-3 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-268-0 01 1 9811-0004 ● ●
12 CUSHION; SEAT,FRT 1-75028-871-1 01 1 9510-9810 ●
12 CUSHION; SEAT,FRT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75028-871-1 01 1 9811-0003 ●
12 CUSHION; SEAT,FRT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-676-0 01 1 0004-0004 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75116-302-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-378-0 01 1 9803-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-550-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-686-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) 		1-75116-455-0 01 1 9902-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-465-0 01 1 0011- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75117-901-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> 		1-75116-390-0 01 1 9803-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> 		1-75116-548-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-301-1 01 1 9510-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75116-539-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-683-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-683-1 01 1 0005- ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75116-318-1 01 1 9510-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75116-554-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-680-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75117-835-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) 		1-75117-835-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75117-835-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-349-0 01 1 9803-9901 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-349-0 01 1 9902-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-549-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-681-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-465-0 01 1 9811-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-359-0 01 1 9510-9810 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-359-0 01 1 9811-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-545-0 01 1 0004-0004 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-75418-057-1 01 1 9510-9802 ● ●
16 ADJUSTER ASM; RECLINING
(A) 		1-75418-057-1 01 1 9510-9802 ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT 3 CREWS<SA1> (A) 		1-75418-057-1 01 1 9803-9806 ● ●
16 ADJUSTER ASM; RECLINING
(A) 		1-75418-057-1 01 1 9803-9806 ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> (A) 		1-75418-057-1 01 1 9807-0003 ● ●
16 ADJUSTER ASM; RECLINING
(A) 		1-75418-057-1 01 1 9807-0003 ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (A) 		1-75418-062-0 01 1 9807-0003 ● ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT 3 CREWS<SA1> (A) 		1-75418-062-1 01 1 0004- ● ●
16 ADJUSTER ASM; RECLINING
(A) 		1-75418-062-1 01 1 0004- ●
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75418-064-0 01 1 0011- ● ●
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75418-064-0 01 1 9811-0004 ● ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-063-0 01 1 0011- ● ●
18 COVER; RECLINING 1-75418-050-0 01 1 9510-9810 ● ● ●
18 COVER; RECLINING 1-75418-050-0 01 1 9811-0004 ●
18 COVER; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-050-0 01 1 9811-0004 ● ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97867-020-0 01 1 0005- ● ●
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0005- ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-063-0 01 1 9811-0004 ● ●
27 REST; HD,FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75658-052-0 01 1 0011- ● ●
27 REST; HD,FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75658-052-0 01 1 9811-0004 ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9510-0703 ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9510-0703 ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ●

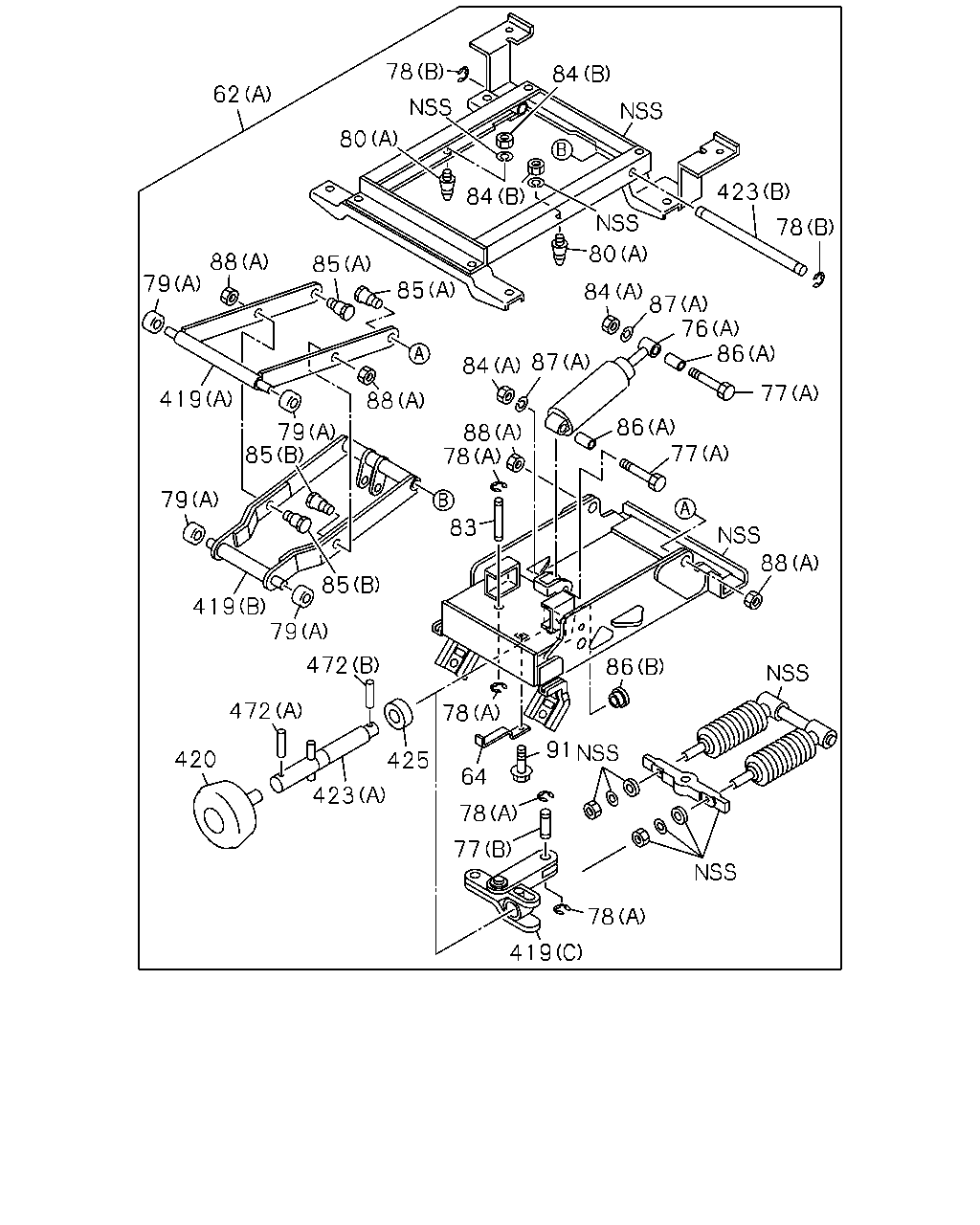

62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-152-1 01 1 9510-9602 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9603-9712 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9804 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-2 01 1 9812-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 0005-1403 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-8 01 1 0005-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		8-98261-448-0 01 1 1404- ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0011- ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9510-9601 ● ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-142-2 01 1 9510-9601 ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9602-9603 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9604-9802 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9803-0004 ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0004 ● ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-160-0 01 1 9602-9603 ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-165-0 01 1 9604-9810 ●
62 DAMPER ASM; SEAT SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75538-165-0 01 1 9811-0004 ●
63 ADJUSTER; SEAT SLIDE
DELUXE CAB(W14) (A) 		1-75518-321-0 01 1 0001-0004 ● ●
63 ADJUSTER; SEAT SLIDE
DELUXE CAB(W14) (A) 		1-75518-323-0 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 0011- ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9510-9810 ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9811-0004 ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75518-199-0 01 1 9811-0004 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) 		1-75518-199-1 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-198-0 01 1 9510-9705 ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9706-9810 ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9811-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75518-294-0 01 1 9811-9912 ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-1 01 1 0001-0004 ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) (A) 		1-75518-294-1 01 1 0001-0004 ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DELUXE CAB(W14) (A) 		1-75518-294-1 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-1 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 9811-0004 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9510-9810 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0005-0501 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9510-9802 ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 08 1 9803-9810 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9803-9810 ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9811-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 08 1 9811-0003 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ● ●
73 NUT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0005-0501 ● ●
73 NUT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 08 1 0502- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-196-0 01 1 0011- ● ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-196-0 01 1 9811-0004 ● ●
327 CLIP; COVER
DELUXE CAB(W14) 		1-09987-249-0 02 1 9510-0004 ● ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-09987-273-0 01 1 0005- ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 0011- ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 9811-0004 ● ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-09987-273-0 02 1 0005- ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) 		1-09987-273-0 02 1 0005- ● ●
532 LEVER ASM; TILT
DELUXE CAB(W14) (A) 		1-75518-203-0 01 1 9510- ● ●
532 LEVER ASM; TILT
DELUXE CAB(W14) (B) 		1-75518-204-1 01 1 9510- ● ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-314-0 01 1 0011- ● ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-314-0 01 1 9811-0004 ● ●
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73907-573-3 01 1 0011- ● ●
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73907-573-3 01 1 9811-0004 ● ●
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09980-619-1 02 1 0011- ● ●
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09980-619-1 02 1 9811-0004 ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-065-0 01 1 0011- ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-065-0 01 1 9811-0004 ● ●

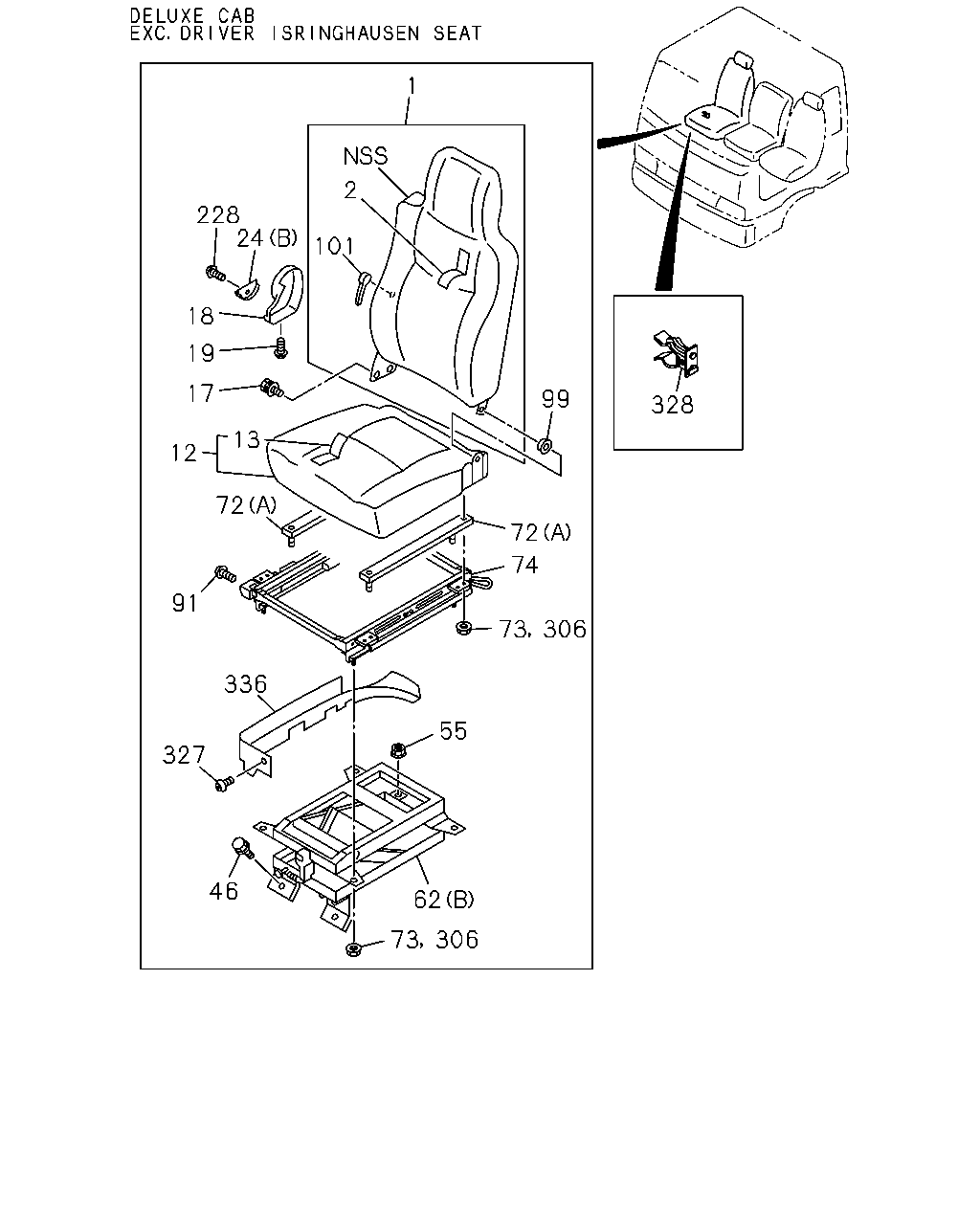

çizim 152343
1 2 228 24 101 18 19 17 99 328 13 12 72 72 74 91 73 306 336 55 327 46 62 73 306
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75027-392-1 01 1 9510-9802 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75026-025-0 01 1 9803-0003 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75026-716-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75026-729-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75208-068-2 01 1 0106-0901 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		8-98135-612-0 01 1 0902- ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75028-586-1 01 1 9510-9802 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75028-998-0 01 1 9803-0003 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-712-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-723-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75208-062-3 01 1 0106- ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) 		1-75028-760-1 01 1 9510-9802 ● ●
1 BACK ASM; SEAT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-760-1 01 1 9510-9802 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75028-864-2 01 1 9803-0003 ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> 		1-75028-864-2 01 1 9803-0003 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75026-711-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> 		1-75026-711-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) 		1-75026-726-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) 		1-75208-065-2 01 1 0106-0901 ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) 		8-98135-611-0 01 1 0902- ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-267-0 01 1 0011- ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75028-590-2 01 1 9510-0003 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75026-710-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75026-730-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT 1-75026-730-0 01 1 0005-0105 ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75208-069-2 01 1 0106-0901 ● ●
1 BACK ASM; SEAT 1-75208-069-2 01 1 0106-0901 ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		8-98135-615-0 01 1 0902- ● ●
1 BACK ASM; SEAT 8-98135-615-0 01 1 0902- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75028-618-2 01 1 9510-0003 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75026-721-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-728-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75208-067-3 01 1 0106- ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-267-0 01 1 9811-0004 ● ●
1 BACK ASM; SEAT 1-75027-512-2 01 1 9510-9802 ●
1 BACK ASM; SEAT 1-75026-032-0 01 1 9803-9810 ●
1 BACK ASM; SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-032-0 01 1 9811-0003 ●

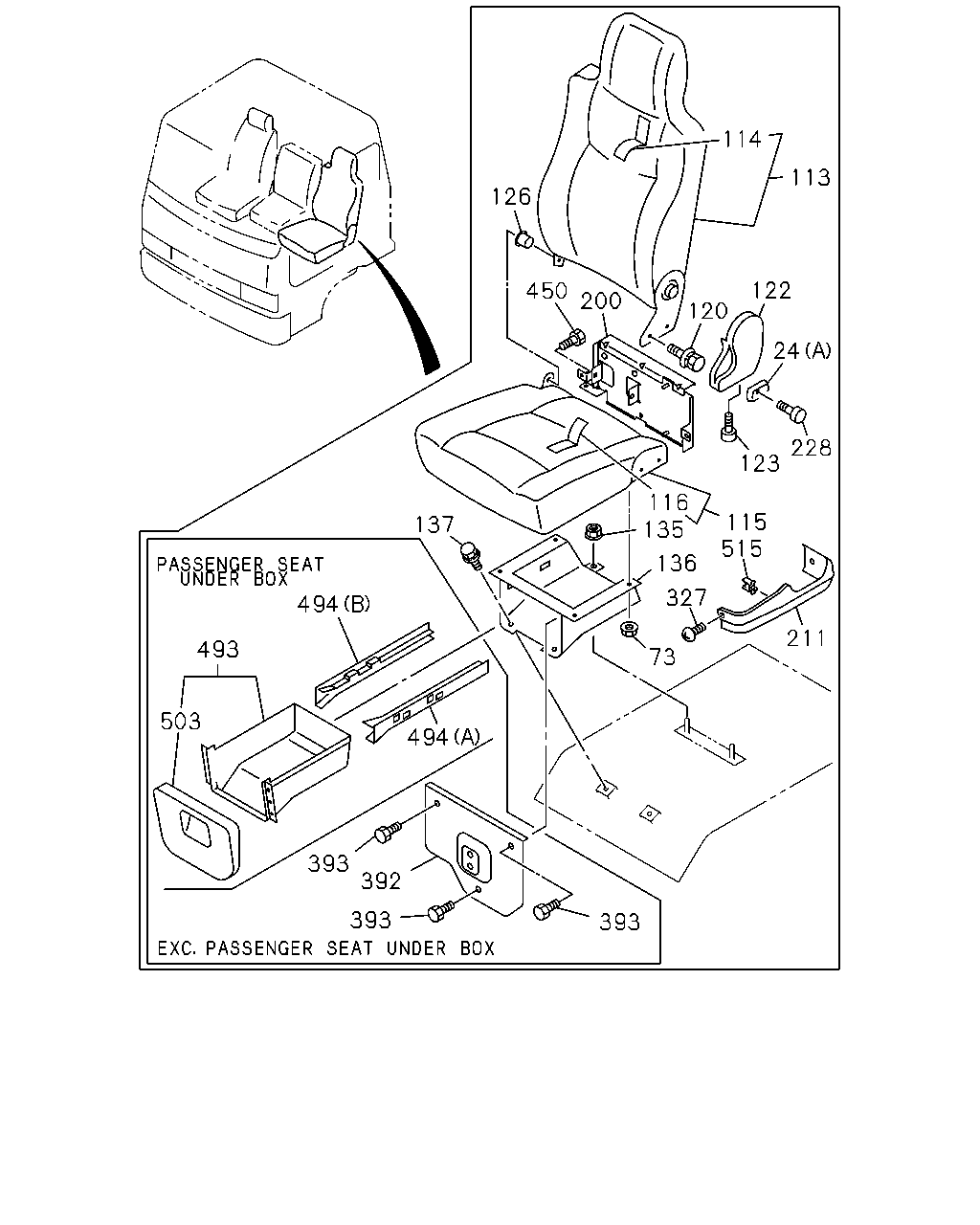

1 BACK ASM; SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-715-0 01 1 0004-0004 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75116-346-1 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> 		1-75116-346-1 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75116-586-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> 		1-75116-586-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) 		1-75116-594-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) EXC. DELUXE CAB(W14) 		1-75117-837-0 01 1 9510-9602 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75117-837-0 01 1 9510-9602 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75117-837-0 01 1 9603-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75116-256-0 01 1 9510-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-373-0 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-587-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-602-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) 		1-75116-296-0 01 1 9510-9602 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-296-0 01 1 9510-9602 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-296-0 01 1 9603-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) 		1-75116-296-0 01 1 9603-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-296-0 01 1 9603-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) 		1-75116-296-1 01 1 9612-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-296-1 01 1 9612-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-296-1 01 1 9612-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-377-0 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-595-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-703-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-464-0 01 1 0011- ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-277-2 01 1 9510-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK 1-75116-277-2 01 1 9510-9802 ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-277-2 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75127-036-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-704-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK 1-75116-704-1 01 1 0005- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75116-274-1 01 1 9510-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75116-600-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-702-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-464-0 01 1 9811-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK 1-75116-389-0 01 1 9803-9810 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-389-0 01 1 9811-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-593-0 01 1 0004-0004 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75028-770-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-024-0 01 1 9803-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-682-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-698-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) 		1-75026-250-0 01 1 9902-0003 ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-268-0 01 1 0011- ● ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-870-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> 		1-75026-033-0 01 1 9803-0003 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> 		1-75026-681-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75028-764-2 01 1 9510-0003 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75207-147-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75026-695-3 01 1 0005- ● ●
12 CUSHION; SEAT,FRT 1-75026-695-3 01 1 0005- ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75028-799-2 01 1 9510-0003 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75026-686-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-692-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75028-763-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) 		1-75028-763-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75028-763-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75028-838-1 01 1 9803-9901 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75028-838-1 01 1 9902-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75026-677-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75026-693-3 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-268-0 01 1 9811-0004 ● ●
12 CUSHION; SEAT,FRT 1-75028-871-1 01 1 9510-9810 ●
12 CUSHION; SEAT,FRT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75028-871-1 01 1 9811-0003 ●
12 CUSHION; SEAT,FRT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-676-0 01 1 0004-0004 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75116-302-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-378-0 01 1 9803-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-550-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-686-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) 		1-75116-455-0 01 1 9902-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-465-0 01 1 0011- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75117-901-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> 		1-75116-390-0 01 1 9803-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> 		1-75116-548-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-301-1 01 1 9510-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75116-539-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-683-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-683-1 01 1 0005- ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75116-318-1 01 1 9510-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75116-554-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-680-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75117-835-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) 		1-75117-835-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75117-835-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-349-0 01 1 9803-9901 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-349-0 01 1 9902-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-549-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-681-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-465-0 01 1 9811-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-359-0 01 1 9510-9810 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-359-0 01 1 9811-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-545-0 01 1 0004-0004 ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9510-9810 ● ● ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9811-0003 ●
17 BOLT; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M8X18 		8-94279-109-1 02 1 9811-0003 ● ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0004-0004 ●
17 BOLT; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 		8-97255-906-0 02 1 0004-0004 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M8X20 		8-97255-906-0 02 1 0005- ● ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0005- ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-063-0 01 1 0011- ● ●
18 COVER; RECLINING 1-75418-050-0 01 1 9510-9810 ● ● ●
18 COVER; RECLINING 1-75418-050-0 01 1 9811-0004 ●
18 COVER; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-050-0 01 1 9811-0004 ● ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97867-020-0 01 1 0005- ● ●
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0005- ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-063-0 01 1 9811-0004 ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9510-9810 ● ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-0004 ●
19 SCREW; COVER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-0004 ● ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0005- ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0005- ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-056-0 01 1 9510-0004 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97867-021-0 01 1 0005-0710 ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97867-021-0 01 1 0005-0710 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) 		1-75418-066-0 01 1 0711- ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-066-0 01 1 0711- ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-059-0 01 1 9510-9810 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-059-0 01 1 9811-0004 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75418-059-0 01 1 9811-0004 ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97859-019-0 01 1 0005- ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9510-0703 ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9510-0703 ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ●

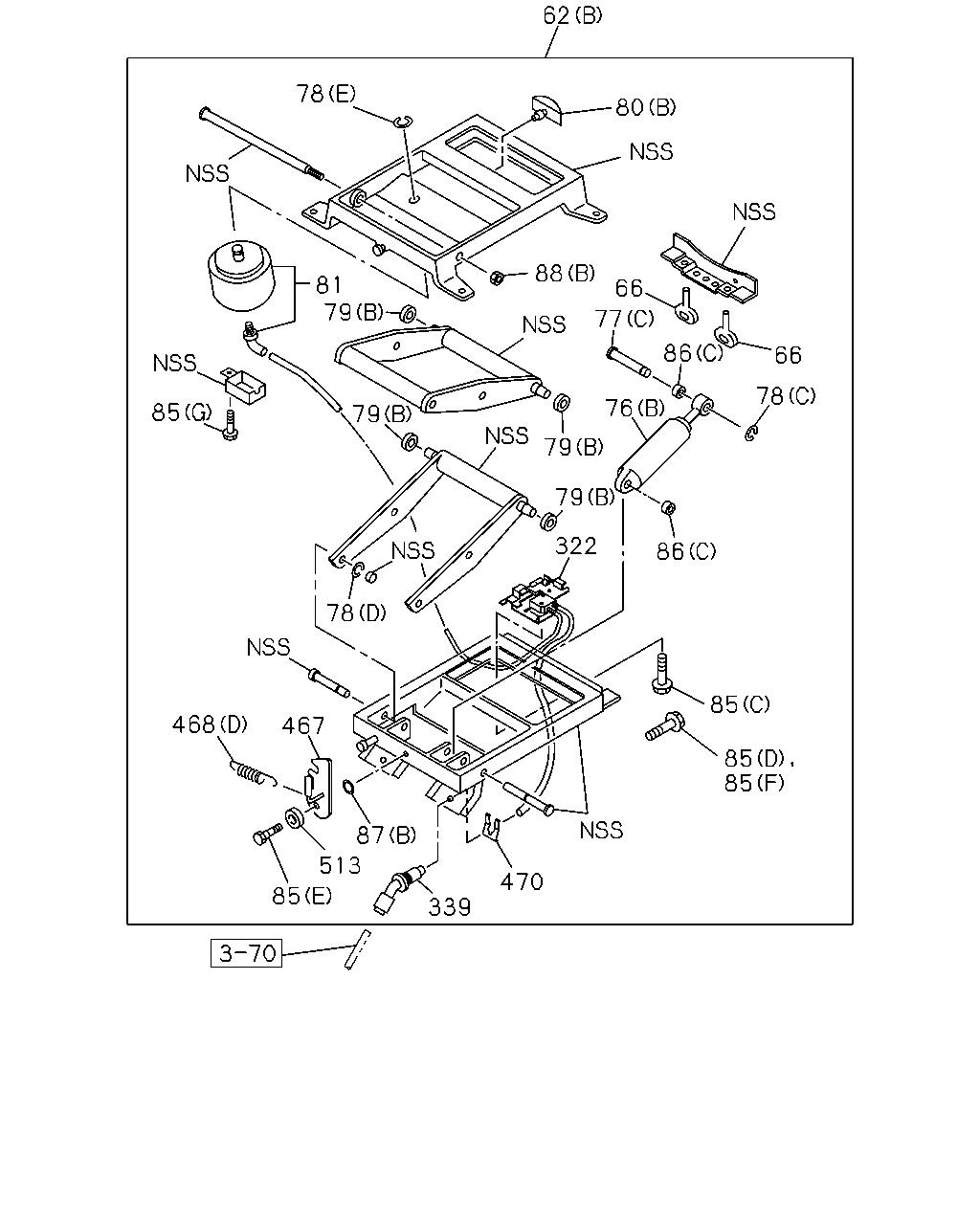

62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-152-1 01 1 9510-9602 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9603-9712 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9804 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-2 01 1 9812-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 0005-1403 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-8 01 1 0005-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		8-98261-448-0 01 1 1404- ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0011- ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9510-9601 ● ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-142-2 01 1 9510-9601 ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9602-9603 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9604-9802 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9803-0004 ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0004 ● ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-160-0 01 1 9602-9603 ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-165-0 01 1 9604-9810 ●
62 DAMPER ASM; SEAT SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75538-165-0 01 1 9811-0004 ●
72 SPACER; SEAT ADJ
DELUXE CAB(W14) (A) 		1-75518-269-0 02 1 9603-0102 ● ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) (A) 		1-75517-911-0 02 1 0103- ● ●
72 SPACER; SEAT ADJ
DELUXE CAB(W14) (B) 		1-75517-911-0 02 1 0005-0102 ● ●
72 SPACER; SEAT ADJ
DELUXE CAB(W14) (B) 		1-75518-334-1 02 1 0103-1502 ● ●
72 SPACER; SEAT ADJ
DELUXE CAB(W14) (B) 		8-98291-668-0 02 1 1503- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9510-9810 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0005-0501 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9510-9802 ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 08 1 9803-9810 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9803-9810 ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9811-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 08 1 9811-0003 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ● ●
73 NUT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0005-0501 ● ●
73 NUT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 08 1 0502- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-75517-955-1 01 1 0005-0102 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-75517-959-3 01 1 0103-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		8-98291-642-0 01 1 1503- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-242-0 01 1 9510-9602 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-259-0 01 1 9603-9705 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-275-0 01 1 9706-9712 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-299-0 01 1 9801-9912 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-317-1 01 1 0001-0004 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-317-1 01 1 0005-0102 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-330-3 01 1 0103-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-644-0 01 1 1503- ● ●
91 SCREW; SEAT ADJ COVER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-081-0 01 1 9510-9802 ● ●
91 SCREW; SEAT ADJ COVER 1-75530-081-0 01 1 9510-9802 ●
91 SCREW; SEAT ADJ COVER
AIR CONTROL SEAT<A60> 		1-75530-081-0 01 1 9803-9810 ● ●
91 SCREW; SEAT ADJ COVER 1-75530-081-0 01 1 9803-9810 ●
91 SCREW; SEAT ADJ COVER
AIR CONTROL SEAT<A60> 		1-75530-081-0 01 1 9811-0004 ● ●
91 SCREW; SEAT ADJ COVER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75530-081-0 01 1 9811-0004 ●
91 SCREW; SEAT ADJ COVER
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0005- ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9510-9810 ● ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9811-0004 ●
99 BUSHING; SEAT BACK
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97854-087-0 01 1 9811-0004 ● ●
99 BUSHING; SEAT BACK
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-97854-087-0 01 1 0005- ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0005- ●
101 LEVER ASM; LUMBAR
DELUXE CAB(W14) 		5-75190-138-0 01 1 9510-9802 ● ●
101 LEVER ASM; LUMBAR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		5-75190-138-0 01 1 9510-9802 ● ●
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 9510-9802 ●
101 LEVER ASM; LUMBAR
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		5-75190-138-0 01 1 9803-9810 ● ●
101 LEVER ASM; LUMBAR
AIR CONTROL SEAT<A60> 		5-75190-138-0 01 1 9803-9810 ● ●
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 9803-9810 ●
101 LEVER ASM; LUMBAR
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		5-75190-138-0 01 1 9811-0004 ● ●
101 LEVER ASM; LUMBAR
AIR CONTROL SEAT<A60> 		5-75190-138-0 01 1 9811-0004 ● ●
101 LEVER ASM; LUMBAR
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		5-75190-138-0 01 1 9811-0004 ●
101 LEVER ASM; LUMBAR
DELUXE CAB(W14) 		5-75190-138-0 01 1 0005- ● ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVER M4 		8-98062-662-0 01 1 0711- ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9510-0710 ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9510-0710 ● ●
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711- ● ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 14 1 0502- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0502- ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 12 1 9803-9912 ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 14 1 0001-0003 ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 14 1 0004-0004 ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 06 1 0005-0501 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> M8 FLANGE 		1-75538-207-0 12 1 0502- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0502- ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 12 1 0502- ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9510-9802 ● ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 04 1 9803-9810 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9803-9810 ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ●
306 NUT; SEAT ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ●
306 NUT; SEAT ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 04 1 0005-0501 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0005-0501 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 18 1 0502- ● ●
327 CLIP; COVER
DELUXE CAB(W14) 		1-09987-249-0 02 1 9510-0004 ● ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-09987-273-0 01 1 0005- ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 0011- ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 9811-0004 ● ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-09987-273-0 02 1 0005- ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) 		1-09987-273-0 02 1 0005- ● ●
328 CLIP; HANDY WARNING
DELUXE CAB(W14) 		8-94149-704-1 01 1 9803-0004 ● ●
336 COVER; DRIVER SEAT
DELUXE CAB(W14) 		1-75518-066-3 01 1 9510-0004 ● ●
336 COVER; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-75518-316-0 01 1 0005- ● ●
336 COVER; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-303-0 01 1 0005- ● ●

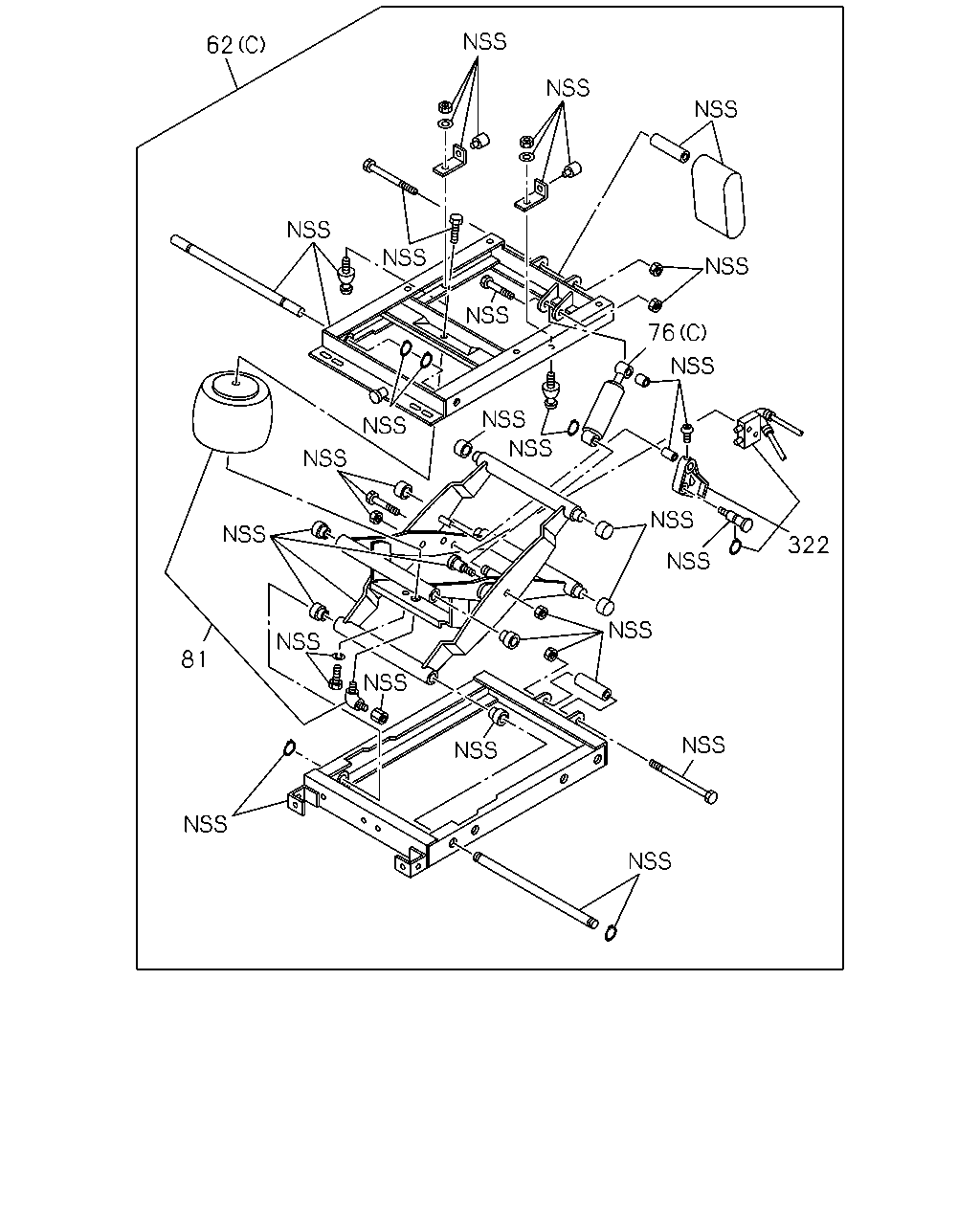

çizim 152345
62 76 322 81
BalonParca AdiParca NoAdetTipApplied Date A B C
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-152-1 01 1 9510-9602 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9603-9712 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9804 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-2 01 1 9812-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 0005-1403 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-8 01 1 0005-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		8-98261-448-0 01 1 1404- ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0011- ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9510-9601 ● ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-142-2 01 1 9510-9601 ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9602-9603 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9604-9802 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9803-0004 ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0004 ● ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-160-0 01 1 9602-9603 ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-165-0 01 1 9604-9810 ●
62 DAMPER ASM; SEAT SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75538-165-0 01 1 9811-0004 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 9510-0004 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 0005- ● ●
76 DAMPER; AIR SUSP
(B) 		1-75538-139-0 01 1 0005- ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 0011- ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-073-0 01 1 9510-9603 ● ●
76 DAMPER; AIR SUSP
(A) 		1-75530-073-0 01 1 9510-9603 ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9604-9802 ● ●
76 DAMPER; AIR SUSP
(A) 		1-75538-166-0 01 1 9604-9802 ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-166-0 01 1 9803-9810 ● ●
76 DAMPER; AIR SUSP
(A) 		1-75538-166-0 01 1 9803-9810 ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-166-0 01 1 9811-0004 ● ●
76 DAMPER; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75538-166-0 01 1 9811-0004 ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 9811-0004 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-1 01 1 9510-0004 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-2 01 1 0005-1312 ● ●
81 SPRING; AIR 1-75538-151-2 01 1 0005-1312 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1401- ● ●
81 SPRING; AIR 8-98242-816-0 01 1 1401- ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-199-0 01 1 0011- ● ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-199-0 01 1 9811-0004 ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-154-0 01 1 9510-9804 ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-186-3 01 1 9805- ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-200-0 01 1 0011- ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-200-0 01 1 9811-0004 ● ●
çizim 152348
506 360 175 176 188 16 189 188 359 403 179 182
BalonParca AdiParca NoAdetTipApplied Date A B C
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-75418-057-1 01 1 9510-9802 ● ●
16 ADJUSTER ASM; RECLINING
(A) 		1-75418-057-1 01 1 9510-9802 ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT 3 CREWS<SA1> (A) 		1-75418-057-1 01 1 9803-9806 ● ●
16 ADJUSTER ASM; RECLINING
(A) 		1-75418-057-1 01 1 9803-9806 ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> (A) 		1-75418-057-1 01 1 9807-0003 ● ●
16 ADJUSTER ASM; RECLINING
(A) 		1-75418-057-1 01 1 9807-0003 ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (A) 		1-75418-062-0 01 1 9807-0003 ● ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT 3 CREWS<SA1> (A) 		1-75418-062-1 01 1 0004- ● ●
16 ADJUSTER ASM; RECLINING
(A) 		1-75418-062-1 01 1 0004- ●
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75418-064-0 01 1 0011- ● ●
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75418-064-0 01 1 9811-0004 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-592-0 01 1 9510-9605 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-924-0 01 1 9606-9802 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75028-924-0 01 1 9803-9806 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75028-867-1 01 1 9807-0003 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75026-850-0 01 1 0004-0004 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75026-854-3 01 1 0005- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-587-1 01 1 9510-9605 ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75028-587-1 01 1 9510-9605 ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-925-0 01 1 9606-9802 ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75028-925-0 01 1 9606-9802 ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75028-925-0 01 1 9803-0003 ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75028-925-0 01 1 9803-0003 ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75207-253-0 01 1 0004-0004 ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75207-253-0 01 1 0004-0004 ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75026-855-3 01 1 0005- ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75026-855-3 01 1 0005- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-257-0 01 1 9510-9802 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75116-257-0 01 1 9803-9806 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75116-351-0 01 1 9807-0003 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75116-646-0 01 1 0004-0004 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75116-650-1 01 1 0005- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-258-1 01 1 9510-9802 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-258-1 01 1 9510-9802 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75116-258-1 01 1 9803-0003 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-258-1 01 1 9803-0003 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75116-641-0 01 1 0004-0004 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-641-0 01 1 0004-0004 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75116-651-1 01 1 0005- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-651-1 01 1 0005- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-310-0 01 1 9510-9802 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-310-0 01 1 9510-9802 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-309-1 01 1 9510-9802 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-309-1 01 1 9510-9802 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75116-309-1 01 1 9510-9802 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
AUSTRALIA EQUIPMENT(RR3) FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-328-0 01 1 9510-9802 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75116-328-0 01 1 9803-9806 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75116-434-0 01 1 9807-0003 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75116-634-0 01 1 0004-0004 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75116-637-1 01 1 0005- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> AUSTRALIA EQUIPMENT(RR3) EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-327-0 01 1 9510-9802 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
AUSTRALIA EQUIPMENT(RR3) 		1-75116-327-0 01 1 9510-9802 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75116-327-0 01 1 9803-0003 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-327-0 01 1 9803-0003 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75116-627-0 01 1 0004-0004 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-627-0 01 1 0004-0004 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75116-638-1 01 1 0005- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-638-1 01 1 0005- ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-766-1 01 1 9510-9802 ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-766-1 01 1 9510-9802 ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-767-2 01 1 9510-9802 ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-767-2 01 1 9510-9802 ●
182 CUSHION ASM; CENTER SEAT
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75028-767-2 01 1 9510-9802 ●
182 CUSHION ASM; CENTER SEAT
AUSTRALIA EQUIPMENT(RR3) FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-825-0 01 1 9510-9802 ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75028-825-0 01 1 9803-9806 ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75026-185-0 01 1 9807-0003 ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75026-836-0 01 1 0004-0004 ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75026-839-4 01 1 0005- ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> AUSTRALIA EQUIPMENT(RR3) EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-821-0 01 1 9510-9802 ●
182 CUSHION ASM; CENTER SEAT
AUSTRALIA EQUIPMENT(RR3) 		1-75028-821-0 01 1 9510-9802 ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75028-821-0 01 1 9803-0003 ● ●
182 CUSHION ASM; CENTER SEAT 1-75028-821-0 01 1 9803-0003 ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75026-829-0 01 1 0004-0004 ● ●
182 CUSHION ASM; CENTER SEAT 1-75026-829-0 01 1 0004-0004 ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75026-840-4 01 1 0005- ● ●
182 CUSHION ASM; CENTER SEAT 1-75026-840-4 01 1 0005- ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M10X16 FLANGE 		1-75198-053-0 04 1 9510-9802 ● ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 9510-9802 ●
188 BOLT; BACK TO CUSHION
CENTER SEAT 3 CREWS<SA1> M10X16 FLANGE 		1-75198-053-0 04 1 9803- ● ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 9803- ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-97854-900-0 01 1 9510-9802 ● ●
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 9510-9802 ●
189 BUSHING; HINGE,CENTER SEAT BACK
CENTER SEAT 3 CREWS<SA1> 		8-97854-900-0 01 1 9803- ● ●
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 9803- ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-157-2 01 1 9510-9802 ● ●
359 BOX; PARCEL 1-72538-157-2 01 1 9510-9802 ●
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		1-72538-157-2 01 1 9803-0004 ● ●
359 BOX; PARCEL 1-72538-157-2 01 1 9803-0004 ●
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		1-72538-275-4 01 1 0005-1006 ● ●
359 BOX; PARCEL 1-72538-275-4 01 1 0005-1006 ●
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		8-98145-114-0 01 1 1007- ● ●
359 BOX; PARCEL 8-98145-114-0 01 1 1007- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9510-9802 ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9510-9802 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9803-0612 ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9803-0612 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 9510-9802 ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9510-9802 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70080-416-0 06 1 9803-0612 ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9803-0612 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0701-1104 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 1105- ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9803-1006 ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9803-1006 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (D) 		1-09983-165-0 02 1 9807-0004 ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (D) 		1-09983-165-0 02 1 0005-0310 ● ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 0005-0310 ●
360 SCREW; PARCEL
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> (D) 		1-09983-165-0 02 1 0311-1006 ● ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 0311-1006 ●
360 SCREW; PARCEL
VINYL SEAT<A83> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9510-9802 ● ● ●
360 SCREW; PARCEL
FABRIC SEAT W/RECLINING<SFQ> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9510-9802 ● ●
360 SCREW; PARCEL
VINYL SEAT<A83> AUSTRALIA EQUIPMENT(RR3) EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9510-9802 ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		8-94279-504-1 04 1 9510-9806 ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-504-1 04 1 9510-9806 ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		8-94279-518-0 04 1 9807-0312 ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-518-0 04 1 9807-0312 ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		1-75538-207-0 04 1 0401-0703 ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		1-75538-207-0 04 1 0401-0703 ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		0-91180-108-0 04 1 0704- ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		0-91180-108-0 04 1 0704- ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-164-0 04 1 9510-9802 ● ●
506 CAP; PARCEL BOX 1-09983-164-0 04 1 9510-9802 ●
506 CAP; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-09983-164-0 04 1 9803-0004 ● ●
506 CAP; PARCEL BOX 1-09983-164-0 04 1 9803-0004 ●
506 CAP; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-09983-180-3 04 1 0005-1006 ● ●
506 CAP; PARCEL BOX 1-09983-180-3 04 1 0005-1006 ●
506 CAP; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-09983-180-3 02 1 1007- ● ●
506 CAP; PARCEL BOX 1-09983-180-3 02 1 1007- ●
çizim 152349
114 113 126 122 450 200 120 24 228 123 116 135 115 515 137 136 494 327 211 493 73 494 503 393 392 393 393
BalonParca AdiParca NoAdetTipApplied Date A B C
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-056-0 01 1 9510-0004 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97867-021-0 01 1 0005-0710 ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97867-021-0 01 1 0005-0710 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) 		1-75418-066-0 01 1 0711- ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-066-0 01 1 0711- ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-059-0 01 1 9510-9810 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-059-0 01 1 9811-0004 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75418-059-0 01 1 9811-0004 ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97859-019-0 01 1 0005- ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9510-9810 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0005-0501 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9510-9802 ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 08 1 9803-9810 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9803-9810 ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9811-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 08 1 9811-0003 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ● ●
73 NUT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0005-0501 ● ●
73 NUT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 08 1 0502- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-761-1 01 1 9510-9802 ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-861-1 01 1 9803-0003 ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75026-719-0 01 1 0004-0004 ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75026-733-0 01 1 0005-0105 ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75208-072-3 01 1 0106- ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> 		1-75028-615-2 01 1 9510-0003 ● ●
113 BACK ASM; SEAT 1-75028-615-2 01 1 9510-0003 ●
113 BACK ASM; SEAT
VINYL SEAT<A83> 		1-75026-720-0 01 1 0004-0004 ● ●
113 BACK ASM; SEAT 1-75026-720-0 01 1 0004-0004 ●
113 BACK ASM; SEAT
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> 		1-75026-735-0 01 1 0005-0105 ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> 		1-75208-074-3 01 1 0106- ● ●
113 BACK ASM; SEAT 1-75208-074-3 01 1 0106- ●
113 BACK ASM; SEAT
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75026-723-0 01 1 0005-0105 ● ●
113 BACK ASM; SEAT 1-75026-723-0 01 1 0005-0105 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-297-1 01 1 9510-9802 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-343-0 01 1 9803-0003 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-598-0 01 1 0004-0004 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-707-1 01 1 0005- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> 		1-75116-273-1 01 1 9510-0003 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-273-1 01 1 9510-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> 		1-75116-599-0 01 1 0004-0004 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-599-0 01 1 0004-0004 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> 		1-75116-592-0 01 1 0005-0105 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> 		1-75116-592-1 01 1 0106- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-592-1 01 1 0106- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75116-602-0 01 1 0005-0105 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-602-0 01 1 0005-0105 ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) 		1-75026-783-1 01 1 0005- ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) EXC. ELEC OUTLET 12V<TAW> 		1-75026-783-1 01 1 0005- ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-765-1 01 1 9510-9802 ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-996-0 01 1 9803-0003 ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75026-684-0 01 1 0004-0004 ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. DELUXE CAB(W14) 		1-75026-700-1 01 1 0005- ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> 		1-75026-700-1 01 1 0005- ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. ELEC OUTLET 12V<TAW>,DELUXE CAB(W14) 		1-75026-700-1 01 1 0005- ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> 		1-75028-800-2 01 1 9510-0003 ● ●
115 CUSHION ASM; PASSENGER SEAT 1-75028-800-2 01 1 9510-0003 ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> 		1-75026-773-0 01 1 0004-0004 ● ●
115 CUSHION ASM; PASSENGER SEAT 1-75026-773-0 01 1 0004-0004 ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75026-698-0 01 1 0005-0105 ● ●
115 CUSHION ASM; PASSENGER SEAT 1-75026-698-0 01 1 0005-0105 ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> 		1-75026-701-0 01 1 0005-0105 ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> 		1-75026-701-1 01 1 0106- ● ●
115 CUSHION ASM; PASSENGER SEAT 1-75026-701-1 01 1 0106- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) 		1-75116-690-1 01 1 0005- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) EXC. ELEC OUTLET 12V<TAW> 		1-75116-690-1 01 1 0005- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-298-0 01 1 9510-9802 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-371-0 01 1 9803-0003 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-552-0 01 1 0004-0004 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> EXC. DELUXE CAB(W14) 		1-75116-688-1 01 1 0005- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> 		1-75116-688-1 01 1 0005- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> EXC. ELEC OUTLET 12V<TAW>,DELUXE CAB(W14) 		1-75116-688-1 01 1 0005- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> 		1-75116-319-1 01 1 9510-0003 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-319-1 01 1 9510-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> 		1-75116-577-0 01 1 0004-0004 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-577-0 01 1 0004-0004 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75116-686-0 01 1 0005-0105 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-686-0 01 1 0005-0105 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> 		1-75116-689-0 01 1 0005-0105 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> 		1-75116-689-1 01 1 0106- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-689-1 01 1 0106- ●
120 BOLT; RECLINING ADJ
M8X18 		8-94279-109-1 02 1 9510-0003 ● ● ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0004- ● ● ●
122 COVER; ADJ,RECLINING
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> DARK GRAY 		8-97867-020-0 01 1 0005-0105 ● ●
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97867-020-0 01 1 0005-0105 ●
122 COVER; ADJ,RECLINING 1-75418-052-0 01 1 9510-0004 ● ● ●
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0005- ● ● ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9510- ● ● ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 9510- ● ● ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9510-0703 ● ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-602-3 01 1 0106-1305 ● ●
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0106-1305 ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> 		8-98242-299-0 01 1 1306- ● ●
136 STAND; PASSENGER SEAT 8-98242-299-0 01 1 1306- ●
136 STAND; PASSENGER SEAT 1-75558-547-1 01 1 9510-9610 ● ● ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> 		1-75558-547-3 01 1 9611-0004 ● ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER SEAT UNDER BOX<TDN> 		1-75558-547-6 01 1 0005-1305 ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER SEAT UNDER BOX<TDN> EXC. ELEC OUTLET 12V<TAW> 		1-75558-547-6 01 1 0005-1305 ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER SEAT UNDER BOX<TDN> 		8-98242-291-0 01 1 1306- ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER SEAT UNDER BOX<TDN> EXC. ELEC OUTLET 12V<TAW> 		8-98242-291-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-4 01 1 9611-0004 ● ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-4 01 1 0005-0105 ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-4 01 1 0005-0105 ●
136 STAND; PASSENGER SEAT 1-75558-550-4 01 1 0005-0105 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-7 01 1 0106-1305 ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		8-98242-292-0 01 1 1306- ● ●
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT UNDER BOX<TDN> 		1-75558-584-0 01 1 9811-0004 ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> PASSENGER SEAT UNDER BOX<TDN> 		1-75558-584-0 01 1 0005-0101 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> PASSENGER SEAT UNDER BOX<TDN> 		1-75558-603-3 01 1 0102-1305 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> PASSENGER SEAT UNDER BOX<TDN> 		8-98242-300-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-585-0 01 1 9811-0004 ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-585-0 01 1 0005-0101 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-601-3 01 1 0102-1305 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> EXC. PASSENGER SEAT UNDER BOX<TDN> 		8-98242-298-0 01 1 1306- ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9510-0703 ● ● ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ●
200 BRACKET; SEAT 1-75558-583-2 01 1 0005- ●
211 COVER; FRT SEAT
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) 		1-72538-274-0 01 1 0005- ● ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVER M4 		8-98062-662-0 01 1 0711- ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9510-0710 ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9510-0710 ● ●
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711- ● ● ●
327 CLIP; COVER
DELUXE CAB(W14) 		1-09987-249-0 02 1 9510-0004 ● ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-09987-273-0 01 1 0005- ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 0011- ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 9811-0004 ● ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-09987-273-0 02 1 0005- ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) 		1-09987-273-0 02 1 0005- ● ●
392 COVER; STAND,PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-523-4 01 1 9611-0111 ● ● ●
392 COVER; STAND,PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-556-1 01 1 0112- ● ● ●
393 BOLT; COVER,SEAT STAND
EXC. PASSENGER SEAT UNDER BOX<TDN> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9611-0703 ● ● ●
393 BOLT; COVER,SEAT STAND
EXC. PASSENGER SEAT UNDER BOX<TDN> M6X16 		0-52000-616-0 03 1 0704- ● ● ●
450 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0005-0703 ●
450 BOLT; BRKT
M6X16 		0-52000-616-0 03 1 0704- ●
493 BOX; SEAT STAND
PASSENGER SEAT UNDER BOX<TDN> 		1-72537-130-1 01 1 9510-0004 ● ● ●
493 BOX; SEAT STAND
PASSENGER SEAT UNDER BOX<TDN> EXC. EURO2 SPECIFICATION<THN> 		1-72537-130-1 01 1 0005- ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (A) 		1-72537-149-0 01 1 9510-0004 ● ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (A) 		1-72537-149-0 01 1 0005- ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (B) 		1-72537-150-0 01 1 9510-0004 ● ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (B) 		1-72537-150-0 01 1 0005- ● ●
503 COVER; BOX
PASSENGER SEAT UNDER BOX<TDN> 		1-72537-136-0 01 1 9510-0004 ● ● ●
503 COVER; BOX
PASSENGER SEAT UNDER BOX<TDN> EXC. EURO2 SPECIFICATION<THN> 		1-72537-136-0 01 1 0005- ● ●
515 CLIP; PIPE
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) BLACK 		8-94227-248-1 01 1 0005- ● ●
çizim 152352
542 529 518 158 471 201 158 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date A B C
63 ADJUSTER; SEAT SLIDE
DELUXE CAB(W14) (A) 		1-75518-321-0 01 1 0001-0004 ● ●
63 ADJUSTER; SEAT SLIDE
DELUXE CAB(W14) (A) 		1-75518-323-0 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 0011- ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9510-9810 ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9811-0004 ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75518-199-0 01 1 9811-0004 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) 		1-75518-199-1 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-198-0 01 1 9510-9705 ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9706-9810 ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9811-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75518-294-0 01 1 9811-9912 ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-1 01 1 0001-0004 ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) (A) 		1-75518-294-1 01 1 0001-0004 ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DELUXE CAB(W14) (A) 		1-75518-294-1 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-1 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 9811-0004 ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9510-9810 ● ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9811-0004 ●
158 BUSHING; LINK ARM
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75518-209-0 02 1 9811-0004 ● ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 0005- ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0005- ●
201 CABLE; ADJ
(A) L=667 		1-75518-201-0 01 1 9510-9705 ● ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 9706-9810 ● ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 9811-0004 ●
201 CABLE; ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=667 		1-75518-288-0 01 1 9811-0004 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 0005- ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0005- ●
201 CABLE; ADJ
(B) L=605 		1-75518-202-1 01 1 9510-9705 ● ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-0 01 1 9706-9810 ● ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 9811-0004 ●
201 CABLE; ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=605 		1-75518-289-1 01 1 9811-0004 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 0005- ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0005- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 14 1 0502- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0502- ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 12 1 9803-9912 ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 14 1 0001-0003 ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 14 1 0004-0004 ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 06 1 0005-0501 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> M8 FLANGE 		1-75538-207-0 12 1 0502- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0502- ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 12 1 0502- ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9510-9802 ● ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 04 1 9803-9810 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9803-9810 ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ●
306 NUT; SEAT ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ●
306 NUT; SEAT ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 04 1 0005-0501 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0005-0501 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 18 1 0502- ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-75518-291-0 01 1 9706-0003 ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-291-0 01 1 9706-0003 ● ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 9706-0003 ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0004-0004 ●
471 LEVER; SEAT ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75518-291-0 01 1 0004-0004 ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-291-0 01 1 0005-0710 ● ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0005-0710 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 0711- ● ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711- ●
471 LEVER; SEAT ADJ 1-75518-205-1 01 1 9510-9705 ● ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75518-205-1 01 1 9706-0003 ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (C) M8 		1-75518-264-0 04 1 9510- ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9510- ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (B) M8 FLANGE 		8-94152-886-0 04 1 9510- ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 9510-9810 ● ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 9811-0004 ●
518 NUT; TILT ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75518-263-0 01 1 9811-0004 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 0005- ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0005- ●
529 PIN; LINK
DELUXE CAB(W14) 		1-75518-262-0 01 1 9510-9705 ● ●
529 PIN; LINK 1-75518-262-0 01 1 9706-9810 ● ● ●
529 PIN; LINK 1-75518-262-0 01 1 9811-0004 ●
529 PIN; LINK
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75518-262-0 01 1 9811-0004 ● ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 0005- ● ●
529 PIN; LINK 1-75518-262-0 01 1 0005- ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-192-1 01 1 9510-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75518-192-1 01 1 9510-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ>,SUSP SEAT W/SEAT BELTANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-192-1 01 1 9510-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-192-2 01 1 9604-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75518-192-2 01 1 9604-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-192-2 01 1 9604-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-282-0 01 1 9706-9802 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75518-282-0 01 1 9706-9802 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-0 01 1 9706-9802 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75518-282-1 01 1 9803-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75518-282-1 01 1 9803-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-1 01 1 9803-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75518-282-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75518-282-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-3 01 1 0005-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-655-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		8-98291-655-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		8-98291-655-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-655-0 01 1 1503- ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-191-2 01 1 9510-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-191-2 01 1 9510-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-1 01 1 9706-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-284-1 01 1 9706-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-284-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-284-3 01 1 0005-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		8-98291-657-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		8-98291-657-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-657-0 01 1 1503- ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-218-2 01 1 9510-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-286-1 01 1 9706-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75518-286-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		8-98291-659-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-231-1 01 1 9510-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE 1-75518-231-1 01 1 9510-9603 ●
542 ADJUSTER ASM; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-231-2 01 1 9604-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE 1-75518-231-2 01 1 9604-9705 ●
542 ADJUSTER ASM; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-285-0 01 1 9706-9802 ● ●
542 ADJUSTER ASM; SEAT SLIDE 1-75518-285-0 01 1 9706-9802 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONTROL SEAT<A60> 		1-75518-285-0 01 1 9803-9810 ● ●
542 ADJUSTER ASM; SEAT SLIDE 1-75518-285-0 01 1 9803-9810 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONTROL SEAT<A60> 		1-75518-285-1 01 1 9811-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75518-285-1 01 1 9811-0004 ●
çizim 152353
85 85 85 470 339 85 87 513 467 468 78 322 79 79 79 85 79 81 78 62 80 88 86 66 78 76 86 66 77
BalonParca AdiParca NoAdetTipApplied Date A B C
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-152-1 01 1 9510-9602 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9603-9712 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9804 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-2 01 1 9812-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 0005-1403 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-8 01 1 0005-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		8-98261-448-0 01 1 1404- ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0011- ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9510-9601 ● ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-142-2 01 1 9510-9601 ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9602-9603 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9604-9802 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9803-0004 ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0004 ● ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-160-0 01 1 9602-9603 ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-165-0 01 1 9604-9810 ●
62 DAMPER ASM; SEAT SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75538-165-0 01 1 9811-0004 ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 9510- ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 9510-0004 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 0005- ● ●
76 DAMPER; AIR SUSP
(B) 		1-75538-139-0 01 1 0005- ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 0011- ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-073-0 01 1 9510-9603 ● ●
76 DAMPER; AIR SUSP
(A) 		1-75530-073-0 01 1 9510-9603 ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9604-9802 ● ●
76 DAMPER; AIR SUSP
(A) 		1-75538-166-0 01 1 9604-9802 ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-166-0 01 1 9803-9810 ● ●
76 DAMPER; AIR SUSP
(A) 		1-75538-166-0 01 1 9803-9810 ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-166-0 01 1 9811-0004 ● ●
76 DAMPER; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75538-166-0 01 1 9811-0004 ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 9811-0004 ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-138-2 01 1 9510-0004 ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-138-2 01 1 0005- ● ●
77 PIN; DAMPER
(C) 		1-75538-138-2 01 1 0005- ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-040-0 02 1 9510-9802 ● ●
77 PIN; DAMPER
(A) 		1-75530-040-0 02 1 9510-9802 ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (A) 		1-75530-040-0 02 1 9803-9810 ● ●
77 PIN; DAMPER
(A) 		1-75530-040-0 02 1 9803-9810 ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (A) 		1-75530-040-0 02 1 9811-0004 ● ●
77 PIN; DAMPER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-040-0 02 1 9811-0004 ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-065-0 01 1 9510-9802 ● ●
77 PIN; DAMPER
(B) 		1-75530-065-0 01 1 9510-9802 ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (B) 		1-75530-065-0 01 1 9803-9810 ● ●
77 PIN; DAMPER
(B) 		1-75530-065-0 01 1 9803-9810 ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (B) 		1-75530-065-0 01 1 9811-0004 ● ●
77 PIN; DAMPER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75530-065-0 01 1 9811-0004 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=8 		9-09185-408-0 01 1 9510-0004 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=8 		9-09185-408-0 01 1 0005- ● ●
78 RING; SNAP
(C) ID=8 		9-09185-408-0 01 1 0005- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (D) ID=10 		9-09185-410-0 02 1 9510-0004 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (D) ID=10 		9-09185-410-0 02 1 0005-0406 ● ●
78 RING; SNAP
(D) ID=10 		9-09185-410-0 02 1 0005-0406 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (E) ID=15 		9-09185-415-0 01 1 9510-0004 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (E) ID=15 		9-09185-415-0 01 1 0005- ● ●
78 RING; SNAP
(E) ID=15 		9-09185-415-0 01 1 0005- ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 04 1 9510-9601 ● ●
78 RING; SNAP
(A) 		1-75530-066-0 04 1 9510-9601 ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 04 1 9602-9802 ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (A) 		1-75530-066-0 04 1 9803-9810 ● ●
78 RING; SNAP
(A) 		1-75530-066-0 04 1 9803-9810 ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (A) 		1-75530-066-0 04 1 9811-0004 ● ●
78 RING; SNAP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-066-0 04 1 9811-0004 ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-069-0 02 1 9510-9802 ● ●
78 RING; SNAP
(B) 		1-75530-069-0 02 1 9510-9802 ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (B) 		1-75530-069-0 02 1 9803-9810 ● ●
78 RING; SNAP
(B) 		1-75530-069-0 02 1 9803-9810 ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (B) 		1-75530-069-0 02 1 9811-0004 ● ●
78 RING; SNAP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75530-069-0 02 1 9811-0004 ●
78 RING; SNAP
(A) 		1-75530-066-0 03 1 9602-9802 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-155-0 04 1 9510-9602 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-159-0 04 1 9603-0004 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-159-0 04 1 0005-1403 ● ●
79 ROLLER ASM; AIR SUSP
(B) 		1-75538-159-0 04 1 0005-1403 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-489-0 04 1 1404- ● ●
79 ROLLER ASM; AIR SUSP
(B) 		8-98261-489-0 04 1 1404- ●
79 ROLLER ASM; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-043-0 04 1 9510-9802 ● ●
79 ROLLER ASM; AIR SUSP
(A) 		1-75530-043-0 04 1 9510-9802 ●
79 ROLLER ASM; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-043-0 04 1 9803-9810 ● ●
79 ROLLER ASM; AIR SUSP
(A) 		1-75530-043-0 04 1 9803-9810 ●
79 ROLLER ASM; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-043-0 04 1 9811-0004 ● ●
79 ROLLER ASM; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-043-0 04 1 9811-0004 ●
80 RUBBER; STOPPER
CENTER SEAT 3 CREWS<SA1> (C) 		1-72538-187-0 02 1 1007- ● ●
80 RUBBER; STOPPER
(C) 		1-72538-187-0 02 1 1007- ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 9510-0004 ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 0005- ● ●
80 RUBBER; STOPPER
(B) 		1-09987-123-0 01 1 0005- ●
80 RUBBER; STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9510-9802 ● ●
80 RUBBER; STOPPER
(A) 		1-75530-062-0 02 1 9510-9802 ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60> (A) 		1-75530-062-0 02 1 9803-9810 ● ●
80 RUBBER; STOPPER
(A) 		1-75530-062-0 02 1 9803-9810 ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60> (A) 		1-75530-062-0 02 1 9811-0004 ● ●
80 RUBBER; STOPPER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-062-0 02 1 9811-0004 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-1 01 1 9510-0004 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-2 01 1 0005-1312 ● ●
81 SPRING; AIR 1-75538-151-2 01 1 0005-1312 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1401- ● ●
81 SPRING; AIR 8-98242-816-0 01 1 1401- ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-199-0 01 1 0011- ● ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-199-0 01 1 9811-0004 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (G) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ● ●
85 BOLT; AIR SUSP
(G) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9510-0004 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9510-0003 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004-0004 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0005-1312 ● ●
85 BOLT; AIR SUSP
(D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0005-1312 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ● ●
85 BOLT; AIR SUSP
(D) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (E) 		1-09980-577-0 01 1 9510-0004 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (E) 		1-09980-577-1 01 1 0005- ● ●
85 BOLT; AIR SUSP
(E) 		1-09980-577-1 01 1 0005- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (F) M6X12 		1-75538-208-1 02 1 0005- ● ●
85 BOLT; AIR SUSP
(F) M6X12 		1-75538-208-1 02 1 0005- ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-048-0 02 1 9510-9802 ● ●
85 BOLT; AIR SUSP
(A) 		1-75530-048-0 02 1 9510-9802 ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-048-0 02 1 9803-9810 ● ●
85 BOLT; AIR SUSP
(A) 		1-75530-048-0 02 1 9803-9810 ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-048-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-048-0 02 1 9811-0004 ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-068-0 02 1 9510-9802 ● ●
85 BOLT; AIR SUSP
(B) 		1-75530-068-0 02 1 9510-9802 ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (B) 		1-75530-068-0 02 1 9803-9810 ● ●
85 BOLT; AIR SUSP
(B) 		1-75530-068-0 02 1 9803-9810 ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (B) 		1-75530-068-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75530-068-0 02 1 9811-0004 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> (C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9510-0004 ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> (C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0005- ● ●
86 BUSHING; GUIDE
(C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0005- ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-041-0 02 1 9510-9802 ● ●
86 BUSHING; GUIDE
(A) 		1-75530-041-0 02 1 9510-9802 ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (A) 		1-75530-041-0 02 1 9803-9810 ● ●
86 BUSHING; GUIDE
(A) 		1-75530-041-0 02 1 9803-9810 ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (A) 		1-75530-041-0 02 1 9811-0004 ● ●
86 BUSHING; GUIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-041-0 02 1 9811-0004 ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-071-0 01 1 9510-9802 ● ●
86 BUSHING; GUIDE
(B) 		1-75530-071-0 01 1 9510-9802 ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (B) 		1-75530-071-0 01 1 9803-9810 ● ●
86 BUSHING; GUIDE
(B) 		1-75530-071-0 01 1 9803-9810 ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (B) 		1-75530-071-0 01 1 9811-0004 ● ●
86 BUSHING; GUIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75530-071-0 01 1 9811-0004 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		9-09150-508-0 01 1 9510-0004 ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		9-09150-508-0 01 1 0005-0710 ● ●
87 WASHER; AIR SUSP
(B) ID=8.2 		9-09150-508-0 01 1 0005-0710 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		0-91510-508-0 01 1 0711- ● ●
87 WASHER; AIR SUSP
(B) ID=8.2 		0-91510-508-0 01 1 0711- ●
87 WASHER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-036-0 02 1 9510-9802 ● ●
87 WASHER; AIR SUSP
(A) 		1-75530-036-0 02 1 9510-9802 ●
87 WASHER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-036-0 02 1 9803-9810 ● ●
87 WASHER; AIR SUSP
(A) 		1-75530-036-0 02 1 9803-9810 ●
87 WASHER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-036-0 02 1 9811-0004 ● ●
87 WASHER; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-036-0 02 1 9811-0004 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		8-94279-519-0 01 1 9510-0003 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> (B) 		1-75537-209-0 01 1 0004-0004 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> (B) M10 		1-75537-273-1 01 1 0004-0004 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		1-75537-273-1 01 1 0005- ● ●
88 NUT; AIR SUSP
(B) M10 		1-75537-273-1 01 1 0005- ●
88 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-039-0 04 1 9510-9802 ● ●
88 NUT; AIR SUSP
(A) 		1-75530-039-0 04 1 9510-9802 ●
88 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-039-0 04 1 9803-9810 ● ●
88 NUT; AIR SUSP
(A) 		1-75530-039-0 04 1 9803-9810 ●
88 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-039-0 04 1 9811-0004 ● ●
88 NUT; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-039-0 04 1 9811-0004 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-154-0 01 1 9510-9804 ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-186-3 01 1 9805- ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-200-0 01 1 0011- ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-200-0 01 1 9811-0004 ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75538-131-3 01 1 9510- ● ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 9510-0004 ● ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 0005- ● ●
467 LEVER; LOCK 1-75538-134-0 01 1 0005- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 9510-0004 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 0005- ● ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0005- ●
468 SPRING; RETURN
DELUXE CAB(W14) (A) 		1-75518-206-0 01 1 9510- ● ●
468 SPRING; RETURN
DELUXE CAB(W14) (B) 		1-75518-207-0 01 1 9510- ● ●
468 SPRING; RETURN
DELUXE CAB(W14) (C) 		1-75518-208-0 02 1 9510- ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 9510-0004 ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 0005- ● ●
470 CLIP; HOSE 1-75538-137-0 01 1 0005- ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 9510-0004 ● ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 0005- ● ●
513 SPACER; LEVER 1-75538-133-0 01 1 0005- ●
çizim 152354
1 2 228 24 18 19 62 17 99 13 12 46 542 73 73 306 55 46 46 62 42 73 73
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75027-392-1 01 1 9510-9802 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75026-025-0 01 1 9803-0003 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75026-716-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75026-729-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75208-068-2 01 1 0106-0901 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		8-98135-612-0 01 1 0902- ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75028-586-1 01 1 9510-9802 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75028-998-0 01 1 9803-0003 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-712-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-723-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75208-062-3 01 1 0106- ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) 		1-75028-760-1 01 1 9510-9802 ● ●
1 BACK ASM; SEAT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-760-1 01 1 9510-9802 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75028-864-2 01 1 9803-0003 ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> 		1-75028-864-2 01 1 9803-0003 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75026-711-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> 		1-75026-711-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) 		1-75026-726-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) 		1-75208-065-2 01 1 0106-0901 ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) 		8-98135-611-0 01 1 0902- ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-267-0 01 1 0011- ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75028-590-2 01 1 9510-0003 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75026-710-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75026-730-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT 1-75026-730-0 01 1 0005-0105 ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75208-069-2 01 1 0106-0901 ● ●
1 BACK ASM; SEAT 1-75208-069-2 01 1 0106-0901 ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		8-98135-615-0 01 1 0902- ● ●
1 BACK ASM; SEAT 8-98135-615-0 01 1 0902- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75028-618-2 01 1 9510-0003 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75026-721-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-728-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75208-067-3 01 1 0106- ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-267-0 01 1 9811-0004 ● ●
1 BACK ASM; SEAT 1-75027-512-2 01 1 9510-9802 ●
1 BACK ASM; SEAT 1-75026-032-0 01 1 9803-9810 ●
1 BACK ASM; SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-032-0 01 1 9811-0003 ●
1 BACK ASM; SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-715-0 01 1 0004-0004 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75116-346-1 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> 		1-75116-346-1 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75116-586-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> 		1-75116-586-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) 		1-75116-594-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) EXC. DELUXE CAB(W14) 		1-75117-837-0 01 1 9510-9602 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75117-837-0 01 1 9510-9602 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75117-837-0 01 1 9603-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75116-256-0 01 1 9510-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-373-0 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-587-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-602-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) 		1-75116-296-0 01 1 9510-9602 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-296-0 01 1 9510-9602 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-296-0 01 1 9603-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) 		1-75116-296-0 01 1 9603-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-296-0 01 1 9603-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) 		1-75116-296-1 01 1 9612-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-296-1 01 1 9612-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-296-1 01 1 9612-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-377-0 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-595-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-703-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-464-0 01 1 0011- ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-277-2 01 1 9510-9802 ● ●
2 COVER; TRIM,FRT SEAT,BACK 1-75116-277-2 01 1 9510-9802 ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-277-2 01 1 9803-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75127-036-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-704-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK 1-75116-704-1 01 1 0005- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75116-274-1 01 1 9510-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75116-600-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-702-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-464-0 01 1 9811-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK 1-75116-389-0 01 1 9803-9810 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-389-0 01 1 9811-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-593-0 01 1 0004-0004 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75028-770-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-024-0 01 1 9803-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-682-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-698-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) 		1-75026-250-0 01 1 9902-0003 ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-268-0 01 1 0011- ● ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-870-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> 		1-75026-033-0 01 1 9803-0003 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> 		1-75026-681-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75028-764-2 01 1 9510-0003 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75207-147-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75026-695-3 01 1 0005- ● ●
12 CUSHION; SEAT,FRT 1-75026-695-3 01 1 0005- ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75028-799-2 01 1 9510-0003 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75026-686-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-692-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75028-763-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) 		1-75028-763-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75028-763-1 01 1 9510-9802 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75028-838-1 01 1 9803-9901 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75028-838-1 01 1 9902-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75026-677-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75026-693-3 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-268-0 01 1 9811-0004 ● ●
12 CUSHION; SEAT,FRT 1-75028-871-1 01 1 9510-9810 ●
12 CUSHION; SEAT,FRT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75028-871-1 01 1 9811-0003 ●
12 CUSHION; SEAT,FRT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-676-0 01 1 0004-0004 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75116-302-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-378-0 01 1 9803-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-550-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-686-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) 		1-75116-455-0 01 1 9902-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-465-0 01 1 0011- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75117-901-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> 		1-75116-390-0 01 1 9803-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> 		1-75116-548-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-301-1 01 1 9510-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75116-539-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-683-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-683-1 01 1 0005- ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75116-318-1 01 1 9510-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75116-554-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-680-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75117-835-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) 		1-75117-835-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75117-835-0 01 1 9510-9802 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-349-0 01 1 9803-9901 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75116-349-0 01 1 9902-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-549-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-681-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-465-0 01 1 9811-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-359-0 01 1 9510-9810 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-359-0 01 1 9811-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-545-0 01 1 0004-0004 ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9510-9810 ● ● ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9811-0003 ●
17 BOLT; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M8X18 		8-94279-109-1 02 1 9811-0003 ● ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0004-0004 ●
17 BOLT; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 		8-97255-906-0 02 1 0004-0004 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M8X20 		8-97255-906-0 02 1 0005- ● ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0005- ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-063-0 01 1 0011- ● ●
18 COVER; RECLINING 1-75418-050-0 01 1 9510-9810 ● ● ●
18 COVER; RECLINING 1-75418-050-0 01 1 9811-0004 ●
18 COVER; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-050-0 01 1 9811-0004 ● ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97867-020-0 01 1 0005- ● ●
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0005- ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-063-0 01 1 9811-0004 ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9510-9810 ● ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-0004 ●
19 SCREW; COVER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-0004 ● ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0005- ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0005- ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-056-0 01 1 9510-0004 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97867-021-0 01 1 0005-0710 ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97867-021-0 01 1 0005-0710 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) 		1-75418-066-0 01 1 0711- ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-066-0 01 1 0711- ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-059-0 01 1 9510-9810 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-059-0 01 1 9811-0004 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75418-059-0 01 1 9811-0004 ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97859-019-0 01 1 0005- ● ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-491-4 01 1 9510-0003 ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 0004- ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9510-0703 ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9510-0703 ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-152-1 01 1 9510-9602 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9603-9712 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9804 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-2 01 1 9812-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 0005-1403 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-8 01 1 0005-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		8-98261-448-0 01 1 1404- ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0011- ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9510-9601 ● ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-142-2 01 1 9510-9601 ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9602-9603 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9604-9802 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9803-0004 ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0004 ● ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-160-0 01 1 9602-9603 ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-165-0 01 1 9604-9810 ●
62 DAMPER ASM; SEAT SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75538-165-0 01 1 9811-0004 ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9510-9810 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0005-0501 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9510-9802 ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 08 1 9803-9810 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9803-9810 ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9811-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 08 1 9811-0003 ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ● ●
73 NUT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0005-0501 ● ●
73 NUT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 08 1 0502- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9510-9810 ● ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9811-0004 ●
99 BUSHING; SEAT BACK
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97854-087-0 01 1 9811-0004 ● ●
99 BUSHING; SEAT BACK
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-97854-087-0 01 1 0005- ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0005- ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVER M4 		8-98062-662-0 01 1 0711- ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9510-0710 ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9510-0710 ● ●
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711- ● ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 14 1 0502- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0502- ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 12 1 9803-9912 ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 14 1 0001-0003 ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 14 1 0004-0004 ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 06 1 0005-0501 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> M8 FLANGE 		1-75538-207-0 12 1 0502- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0502- ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 12 1 0502- ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9510-9802 ● ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 04 1 9803-9810 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9803-9810 ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ●
306 NUT; SEAT ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ●
306 NUT; SEAT ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 04 1 0005-0501 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0005-0501 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 18 1 0502- ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-192-1 01 1 9510-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75518-192-1 01 1 9510-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ>,SUSP SEAT W/SEAT BELTANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-192-1 01 1 9510-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-192-2 01 1 9604-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75518-192-2 01 1 9604-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-192-2 01 1 9604-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-282-0 01 1 9706-9802 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75518-282-0 01 1 9706-9802 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-0 01 1 9706-9802 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75518-282-1 01 1 9803-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75518-282-1 01 1 9803-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-1 01 1 9803-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		1-75518-282-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75518-282-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-3 01 1 0005-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-655-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),DELUXE CAB(W14) 		8-98291-655-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		8-98291-655-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-655-0 01 1 1503- ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-191-2 01 1 9510-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-191-2 01 1 9510-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-1 01 1 9706-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-284-1 01 1 9706-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-284-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-284-3 01 1 0005-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		8-98291-657-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		8-98291-657-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-657-0 01 1 1503- ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-218-2 01 1 9510-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-286-1 01 1 9706-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75518-286-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		8-98291-659-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-231-1 01 1 9510-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE 1-75518-231-1 01 1 9510-9603 ●
542 ADJUSTER ASM; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-231-2 01 1 9604-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE 1-75518-231-2 01 1 9604-9705 ●
542 ADJUSTER ASM; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-285-0 01 1 9706-9802 ● ●
542 ADJUSTER ASM; SEAT SLIDE 1-75518-285-0 01 1 9706-9802 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONTROL SEAT<A60> 		1-75518-285-0 01 1 9803-9810 ● ●
542 ADJUSTER ASM; SEAT SLIDE 1-75518-285-0 01 1 9803-9810 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONTROL SEAT<A60> 		1-75518-285-1 01 1 9811-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75518-285-1 01 1 9811-0004 ●
çizim 152360
78 84 62 80 423 84 78 80 88 85 79 85 84 87 76 86 87 84 88 77 419 86 77 79 85 88 78 79 83 88 85 419 79 472 86 472 78 91 420 425 64 423 78 77 78 419
BalonParca AdiParca NoAdetTipApplied Date A B C
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-152-1 01 1 9510-9602 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9603-9712 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9804 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-2 01 1 9812-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 0005-1403 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-8 01 1 0005-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		8-98261-448-0 01 1 1404- ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0011- ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9510-9601 ● ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-142-2 01 1 9510-9601 ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9602-9603 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9604-9802 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9803-0004 ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0004 ● ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-160-0 01 1 9602-9603 ●
62 DAMPER ASM; SEAT SUSP
(A) 		1-75538-165-0 01 1 9604-9810 ●
62 DAMPER ASM; SEAT SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75538-165-0 01 1 9811-0004 ●
64 STOPPER; LWR,SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-080-0 01 1 9510-9802 ● ●
64 STOPPER; LWR,SUSPENSION DEVICE 1-75530-080-0 01 1 9510-9802 ●
64 STOPPER; LWR,SUSPENSION DEVICE
AIR CONTROL SEAT<A60> 		1-75530-080-0 01 1 9803-9810 ● ●
64 STOPPER; LWR,SUSPENSION DEVICE 1-75530-080-0 01 1 9803-9810 ●
64 STOPPER; LWR,SUSPENSION DEVICE
AIR CONTROL SEAT<A60> 		1-75530-080-0 01 1 9811-0004 ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75530-080-0 01 1 9811-0004 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 9510-0004 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 0005- ● ●
76 DAMPER; AIR SUSP
(B) 		1-75538-139-0 01 1 0005- ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 0011- ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-073-0 01 1 9510-9603 ● ●
76 DAMPER; AIR SUSP
(A) 		1-75530-073-0 01 1 9510-9603 ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9604-9802 ● ●
76 DAMPER; AIR SUSP
(A) 		1-75538-166-0 01 1 9604-9802 ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-166-0 01 1 9803-9810 ● ●
76 DAMPER; AIR SUSP
(A) 		1-75538-166-0 01 1 9803-9810 ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-166-0 01 1 9811-0004 ● ●
76 DAMPER; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75538-166-0 01 1 9811-0004 ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 9811-0004 ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-138-2 01 1 9510-0004 ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-138-2 01 1 0005- ● ●
77 PIN; DAMPER
(C) 		1-75538-138-2 01 1 0005- ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-040-0 02 1 9510-9802 ● ●
77 PIN; DAMPER
(A) 		1-75530-040-0 02 1 9510-9802 ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (A) 		1-75530-040-0 02 1 9803-9810 ● ●
77 PIN; DAMPER
(A) 		1-75530-040-0 02 1 9803-9810 ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (A) 		1-75530-040-0 02 1 9811-0004 ● ●
77 PIN; DAMPER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-040-0 02 1 9811-0004 ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-065-0 01 1 9510-9802 ● ●
77 PIN; DAMPER
(B) 		1-75530-065-0 01 1 9510-9802 ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (B) 		1-75530-065-0 01 1 9803-9810 ● ●
77 PIN; DAMPER
(B) 		1-75530-065-0 01 1 9803-9810 ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (B) 		1-75530-065-0 01 1 9811-0004 ● ●
77 PIN; DAMPER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75530-065-0 01 1 9811-0004 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=8 		9-09185-408-0 01 1 9510-0004 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=8 		9-09185-408-0 01 1 0005- ● ●
78 RING; SNAP
(C) ID=8 		9-09185-408-0 01 1 0005- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (D) ID=10 		9-09185-410-0 02 1 9510-0004 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (D) ID=10 		9-09185-410-0 02 1 0005-0406 ● ●
78 RING; SNAP
(D) ID=10 		9-09185-410-0 02 1 0005-0406 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (E) ID=15 		9-09185-415-0 01 1 9510-0004 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (E) ID=15 		9-09185-415-0 01 1 0005- ● ●
78 RING; SNAP
(E) ID=15 		9-09185-415-0 01 1 0005- ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 04 1 9510-9601 ● ●
78 RING; SNAP
(A) 		1-75530-066-0 04 1 9510-9601 ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 04 1 9602-9802 ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (A) 		1-75530-066-0 04 1 9803-9810 ● ●
78 RING; SNAP
(A) 		1-75530-066-0 04 1 9803-9810 ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (A) 		1-75530-066-0 04 1 9811-0004 ● ●
78 RING; SNAP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-066-0 04 1 9811-0004 ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-069-0 02 1 9510-9802 ● ●
78 RING; SNAP
(B) 		1-75530-069-0 02 1 9510-9802 ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (B) 		1-75530-069-0 02 1 9803-9810 ● ●
78 RING; SNAP
(B) 		1-75530-069-0 02 1 9803-9810 ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (B) 		1-75530-069-0 02 1 9811-0004 ● ●
78 RING; SNAP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75530-069-0 02 1 9811-0004 ●
78 RING; SNAP
(A) 		1-75530-066-0 03 1 9602-9802 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-155-0 04 1 9510-9602 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-159-0 04 1 9603-0004 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-159-0 04 1 0005-1403 ● ●
79 ROLLER ASM; AIR SUSP
(B) 		1-75538-159-0 04 1 0005-1403 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-489-0 04 1 1404- ● ●
79 ROLLER ASM; AIR SUSP
(B) 		8-98261-489-0 04 1 1404- ●
79 ROLLER ASM; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-043-0 04 1 9510-9802 ● ●
79 ROLLER ASM; AIR SUSP
(A) 		1-75530-043-0 04 1 9510-9802 ●
79 ROLLER ASM; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-043-0 04 1 9803-9810 ● ●
79 ROLLER ASM; AIR SUSP
(A) 		1-75530-043-0 04 1 9803-9810 ●
79 ROLLER ASM; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-043-0 04 1 9811-0004 ● ●
79 ROLLER ASM; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-043-0 04 1 9811-0004 ●
80 RUBBER; STOPPER
CENTER SEAT 3 CREWS<SA1> (C) 		1-72538-187-0 02 1 1007- ● ●
80 RUBBER; STOPPER
(C) 		1-72538-187-0 02 1 1007- ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 9510-0004 ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 0005- ● ●
80 RUBBER; STOPPER
(B) 		1-09987-123-0 01 1 0005- ●
80 RUBBER; STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9510-9802 ● ●
80 RUBBER; STOPPER
(A) 		1-75530-062-0 02 1 9510-9802 ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60> (A) 		1-75530-062-0 02 1 9803-9810 ● ●
80 RUBBER; STOPPER
(A) 		1-75530-062-0 02 1 9803-9810 ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60> (A) 		1-75530-062-0 02 1 9811-0004 ● ●
80 RUBBER; STOPPER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-062-0 02 1 9811-0004 ●
83 PIN; LOW & UPR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-070-0 01 1 9510-9802 ● ●
83 PIN; LOW & UPR 1-75530-070-0 01 1 9510-9802 ●
83 PIN; LOW & UPR
AIR CONTROL SEAT<A60> 		1-75530-070-0 01 1 9803-9810 ● ●
83 PIN; LOW & UPR 1-75530-070-0 01 1 9803-9810 ●
83 PIN; LOW & UPR
AIR CONTROL SEAT<A60> 		1-75530-070-0 01 1 9811-0004 ● ●
83 PIN; LOW & UPR
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75530-070-0 01 1 9811-0004 ●
84 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-042-0 02 1 9510-9802 ● ●
84 NUT; AIR SUSP
(A) 		1-75530-042-0 02 1 9510-9802 ●
84 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-042-0 02 1 9803-9810 ● ●
84 NUT; AIR SUSP
(A) 		1-75530-042-0 02 1 9803-9810 ●
84 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-042-0 02 1 9811-0004 ● ●
84 NUT; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-042-0 02 1 9811-0004 ●
84 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-063-0 02 1 9510-9802 ● ●
84 NUT; AIR SUSP
(B) 		1-75530-063-0 02 1 9510-9802 ●
84 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (B) 		1-75530-063-0 02 1 9803-9810 ● ●
84 NUT; AIR SUSP
(B) 		1-75530-063-0 02 1 9803-9810 ●
84 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (B) 		1-75530-063-0 02 1 9811-0004 ● ●
84 NUT; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75530-063-0 02 1 9811-0004 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (G) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ● ●
85 BOLT; AIR SUSP
(G) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9510-0004 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9510-0003 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004-0004 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0005-1312 ● ●
85 BOLT; AIR SUSP
(D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0005-1312 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ● ●
85 BOLT; AIR SUSP
(D) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (E) 		1-09980-577-0 01 1 9510-0004 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (E) 		1-09980-577-1 01 1 0005- ● ●
85 BOLT; AIR SUSP
(E) 		1-09980-577-1 01 1 0005- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (F) M6X12 		1-75538-208-1 02 1 0005- ● ●
85 BOLT; AIR SUSP
(F) M6X12 		1-75538-208-1 02 1 0005- ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-048-0 02 1 9510-9802 ● ●
85 BOLT; AIR SUSP
(A) 		1-75530-048-0 02 1 9510-9802 ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-048-0 02 1 9803-9810 ● ●
85 BOLT; AIR SUSP
(A) 		1-75530-048-0 02 1 9803-9810 ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-048-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-048-0 02 1 9811-0004 ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-068-0 02 1 9510-9802 ● ●
85 BOLT; AIR SUSP
(B) 		1-75530-068-0 02 1 9510-9802 ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (B) 		1-75530-068-0 02 1 9803-9810 ● ●
85 BOLT; AIR SUSP
(B) 		1-75530-068-0 02 1 9803-9810 ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (B) 		1-75530-068-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75530-068-0 02 1 9811-0004 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> (C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9510-0004 ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> (C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0005- ● ●
86 BUSHING; GUIDE
(C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0005- ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-041-0 02 1 9510-9802 ● ●
86 BUSHING; GUIDE
(A) 		1-75530-041-0 02 1 9510-9802 ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (A) 		1-75530-041-0 02 1 9803-9810 ● ●
86 BUSHING; GUIDE
(A) 		1-75530-041-0 02 1 9803-9810 ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (A) 		1-75530-041-0 02 1 9811-0004 ● ●
86 BUSHING; GUIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-041-0 02 1 9811-0004 ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-071-0 01 1 9510-9802 ● ●
86 BUSHING; GUIDE
(B) 		1-75530-071-0 01 1 9510-9802 ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (B) 		1-75530-071-0 01 1 9803-9810 ● ●
86 BUSHING; GUIDE
(B) 		1-75530-071-0 01 1 9803-9810 ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (B) 		1-75530-071-0 01 1 9811-0004 ● ●
86 BUSHING; GUIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75530-071-0 01 1 9811-0004 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		9-09150-508-0 01 1 9510-0004 ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		9-09150-508-0 01 1 0005-0710 ● ●
87 WASHER; AIR SUSP
(B) ID=8.2 		9-09150-508-0 01 1 0005-0710 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		0-91510-508-0 01 1 0711- ● ●
87 WASHER; AIR SUSP
(B) ID=8.2 		0-91510-508-0 01 1 0711- ●
87 WASHER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-036-0 02 1 9510-9802 ● ●
87 WASHER; AIR SUSP
(A) 		1-75530-036-0 02 1 9510-9802 ●
87 WASHER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-036-0 02 1 9803-9810 ● ●
87 WASHER; AIR SUSP
(A) 		1-75530-036-0 02 1 9803-9810 ●
87 WASHER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-036-0 02 1 9811-0004 ● ●
87 WASHER; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-036-0 02 1 9811-0004 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		8-94279-519-0 01 1 9510-0003 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> (B) 		1-75537-209-0 01 1 0004-0004 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> (B) M10 		1-75537-273-1 01 1 0004-0004 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		1-75537-273-1 01 1 0005- ● ●
88 NUT; AIR SUSP
(B) M10 		1-75537-273-1 01 1 0005- ●
88 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-039-0 04 1 9510-9802 ● ●
88 NUT; AIR SUSP
(A) 		1-75530-039-0 04 1 9510-9802 ●
88 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-039-0 04 1 9803-9810 ● ●
88 NUT; AIR SUSP
(A) 		1-75530-039-0 04 1 9803-9810 ●
88 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-039-0 04 1 9811-0004 ● ●
88 NUT; AIR SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-039-0 04 1 9811-0004 ●
91 SCREW; SEAT ADJ COVER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-081-0 01 1 9510-9802 ● ●
91 SCREW; SEAT ADJ COVER 1-75530-081-0 01 1 9510-9802 ●
91 SCREW; SEAT ADJ COVER
AIR CONTROL SEAT<A60> 		1-75530-081-0 01 1 9803-9810 ● ●
91 SCREW; SEAT ADJ COVER 1-75530-081-0 01 1 9803-9810 ●
91 SCREW; SEAT ADJ COVER
AIR CONTROL SEAT<A60> 		1-75530-081-0 01 1 9811-0004 ● ●
91 SCREW; SEAT ADJ COVER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75530-081-0 01 1 9811-0004 ●
91 SCREW; SEAT ADJ COVER
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0005- ● ●
419 LINK ASM; SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-085-0 01 1 9510-9802 ● ●
419 LINK ASM; SUSPENSION DEVICE
(A) 		1-75530-085-0 01 1 9510-9802 ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60> (A) 		1-75530-085-0 01 1 9803-9810 ● ●
419 LINK ASM; SUSPENSION DEVICE
(A) 		1-75530-085-0 01 1 9803-9810 ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60> (A) 		1-75530-085-0 01 1 9811-0004 ● ●
419 LINK ASM; SUSPENSION DEVICE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-085-0 01 1 9811-0004 ●
419 LINK ASM; SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-086-0 01 1 9510-9802 ● ●
419 LINK ASM; SUSPENSION DEVICE
(B) 		1-75530-086-0 01 1 9510-9802 ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60> (B) 		1-75530-086-0 01 1 9803-9810 ● ●
419 LINK ASM; SUSPENSION DEVICE
(B) 		1-75530-086-0 01 1 9803-9810 ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60> (B) 		1-75530-086-0 01 1 9811-0004 ● ●
419 LINK ASM; SUSPENSION DEVICE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75530-086-0 01 1 9811-0004 ●
419 LINK ASM; SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) 		1-75530-087-0 01 1 9510-9802 ● ●
419 LINK ASM; SUSPENSION DEVICE
(C) 		1-75530-087-0 01 1 9510-9802 ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60> (C) 		1-75530-087-0 01 1 9803-9810 ● ●
419 LINK ASM; SUSPENSION DEVICE
(C) 		1-75530-087-0 01 1 9803-9810 ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60> (C) 		1-75530-087-0 01 1 9811-0004 ● ●
419 LINK ASM; SUSPENSION DEVICE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75530-087-0 01 1 9811-0004 ●
420 KNOB; ADJ,SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-067-0 01 1 9510-9802 ● ●
420 KNOB; ADJ,SEAT SUSP 1-75530-067-0 01 1 9510-9802 ●
420 KNOB; ADJ,SEAT SUSP
AIR CONTROL SEAT<A60> 		1-75530-067-0 01 1 9803-9810 ● ●
420 KNOB; ADJ,SEAT SUSP 1-75530-067-0 01 1 9803-9810 ●
420 KNOB; ADJ,SEAT SUSP
AIR CONTROL SEAT<A60> 		1-75530-067-0 01 1 9811-0004 ● ●
420 KNOB; ADJ,SEAT SUSP
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75530-067-0 01 1 9811-0004 ●
423 SHAFT; SEAT DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-064-0 01 1 9510-9802 ● ●
423 SHAFT; SEAT DAMPER
(A) 		1-75530-064-0 01 1 9510-9802 ●
423 SHAFT; SEAT DAMPER
AIR CONTROL SEAT<A60> (A) 		1-75530-064-0 01 1 9803-9810 ● ●
423 SHAFT; SEAT DAMPER
(A) 		1-75530-064-0 01 1 9803-9810 ●
423 SHAFT; SEAT DAMPER
AIR CONTROL SEAT<A60> (A) 		1-75530-064-0 01 1 9811-0004 ● ●
423 SHAFT; SEAT DAMPER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-064-0 01 1 9811-0004 ●
423 SHAFT; SEAT DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-082-0 01 1 9510-9802 ● ●
423 SHAFT; SEAT DAMPER
(B) 		1-75530-082-0 01 1 9510-9802 ●
423 SHAFT; SEAT DAMPER
AIR CONTROL SEAT<A60> (B) 		1-75530-082-0 01 1 9803-9810 ● ●
423 SHAFT; SEAT DAMPER
(B) 		1-75530-082-0 01 1 9803-9810 ●
423 SHAFT; SEAT DAMPER
AIR CONTROL SEAT<A60> (B) 		1-75530-082-0 01 1 9811-0004 ● ●
423 SHAFT; SEAT DAMPER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75530-082-0 01 1 9811-0004 ●
425 BEARING; THRUST,KNOB
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-074-0 01 1 9510-9802 ● ●
425 BEARING; THRUST,KNOB 1-75530-074-0 01 1 9510-9802 ●
425 BEARING; THRUST,KNOB
AIR CONTROL SEAT<A60> 		1-75530-074-0 01 1 9803-9810 ● ●
425 BEARING; THRUST,KNOB 1-75530-074-0 01 1 9803-9810 ●
425 BEARING; THRUST,KNOB
AIR CONTROL SEAT<A60> 		1-75530-074-0 01 1 9811-0004 ● ●
425 BEARING; THRUST,KNOB
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75530-074-0 01 1 9811-0004 ●
472 PIN; SPRING
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-072-0 01 1 9510-9802 ● ●
472 PIN; SPRING
(A) 		1-75530-072-0 01 1 9510-9802 ●
472 PIN; SPRING
AIR CONTROL SEAT<A60> (A) 		1-75530-072-0 01 1 9803-9810 ● ●
472 PIN; SPRING
(A) 		1-75530-072-0 01 1 9803-9810 ●
472 PIN; SPRING
AIR CONTROL SEAT<A60> (A) 		1-75530-072-0 01 1 9811-0004 ● ●
472 PIN; SPRING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-072-0 01 1 9811-0004 ●
472 PIN; SPRING
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-075-0 01 1 9510-9802 ● ●
472 PIN; SPRING
(B) 		1-75530-075-0 01 1 9510-9802 ●
472 PIN; SPRING
AIR CONTROL SEAT<A60> (B) 		1-75530-075-0 01 1 9803-9810 ● ●
472 PIN; SPRING
(B) 		1-75530-075-0 01 1 9803-9810 ●
472 PIN; SPRING
AIR CONTROL SEAT<A60> (B) 		1-75530-075-0 01 1 9811-0004 ● ●
472 PIN; SPRING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75530-075-0 01 1 9811-0004 ●
çizim 152364
359 533 535 365 98 360 537 360 536 534 360 360 534 80 359 360 538
BalonParca AdiParca NoAdetTipApplied Date A B C
80 RUBBER; STOPPER
CENTER SEAT 3 CREWS<SA1> (C) 		1-72538-187-0 02 1 1007- ● ●
80 RUBBER; STOPPER
(C) 		1-72538-187-0 02 1 1007- ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 9510-0004 ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 0005- ● ●
80 RUBBER; STOPPER
(B) 		1-09987-123-0 01 1 0005- ●
80 RUBBER; STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9510-9802 ● ●
80 RUBBER; STOPPER
(A) 		1-75530-062-0 02 1 9510-9802 ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60> (A) 		1-75530-062-0 02 1 9803-9810 ● ●
80 RUBBER; STOPPER
(A) 		1-75530-062-0 02 1 9803-9810 ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60> (A) 		1-75530-062-0 02 1 9811-0004 ● ●
80 RUBBER; STOPPER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75530-062-0 02 1 9811-0004 ●
98 WASHER; HINGE
EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9510-9802 ● ●
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9510-9802 ●
98 WASHER; HINGE
CENTER SEAT 3 CREWS<SA1> ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9803- ● ●
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9803- ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-157-2 01 1 9510-9802 ● ●
359 BOX; PARCEL 1-72538-157-2 01 1 9510-9802 ●
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		1-72538-157-2 01 1 9803-0004 ● ●
359 BOX; PARCEL 1-72538-157-2 01 1 9803-0004 ●
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		1-72538-275-4 01 1 0005-1006 ● ●
359 BOX; PARCEL 1-72538-275-4 01 1 0005-1006 ●
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		8-98145-114-0 01 1 1007- ● ●
359 BOX; PARCEL 8-98145-114-0 01 1 1007- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9510-9802 ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9510-9802 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9803-0612 ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9803-0612 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 9510-9802 ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9510-9802 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70080-416-0 06 1 9803-0612 ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9803-0612 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0701-1104 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 1105- ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9803-1006 ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9803-1006 ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (D) 		1-09983-165-0 02 1 9807-0004 ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (D) 		1-09983-165-0 02 1 0005-0310 ● ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 0005-0310 ●
360 SCREW; PARCEL
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> (D) 		1-09983-165-0 02 1 0311-1006 ● ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 0311-1006 ●
360 SCREW; PARCEL
VINYL SEAT<A83> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9510-9802 ● ● ●
360 SCREW; PARCEL
FABRIC SEAT W/RECLINING<SFQ> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9510-9802 ● ●
360 SCREW; PARCEL
VINYL SEAT<A83> AUSTRALIA EQUIPMENT(RR3) EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9510-9802 ● ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-180-0 01 1 9510-9802 ● ●
365 LOCK ASM; SEAT 1-72538-180-0 01 1 9510-9802 ●
365 LOCK ASM; SEAT
CENTER SEAT 3 CREWS<SA1> 		1-72538-180-0 01 1 9803- ● ●
365 LOCK ASM; SEAT 1-72538-180-0 01 1 9803- ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-194-2 01 1 9510-9802 ● ●
533 LID; PARCEL BOX 1-72538-194-2 01 1 9510-9802 ●
533 LID; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-72538-194-2 01 1 9803-0004 ● ●
533 LID; PARCEL BOX 1-72538-194-2 01 1 9803-0004 ●
533 LID; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-72538-277-1 01 1 0005-1006 ● ●
533 LID; PARCEL BOX 1-72538-277-1 01 1 0005-1006 ●
533 LID; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		8-98145-118-0 01 1 1007- ● ●
533 LID; PARCEL BOX 8-98145-118-0 01 1 1007- ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-181-0 01 1 9510-9802 ● ●
534 STRIKER; PARCEL BOX
(A) 		1-72538-181-0 01 1 9510-9802 ●
534 STRIKER; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> (A) 		1-72538-181-0 01 1 9803-1006 ● ●
534 STRIKER; PARCEL BOX
(A) 		1-72538-181-0 01 1 9803-1006 ●
534 STRIKER; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> (B) 		1-72538-190-0 01 1 1007- ● ●
534 STRIKER; PARCEL BOX
(B) 		1-72538-190-0 01 1 1007- ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72447-391-1 01 1 9510-9802 ● ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 9510-9802 ●
535 HINGE; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-72447-391-1 01 1 9803- ● ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 9803- ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		5-09983-002-1 02 1 9510-9802 ● ●
536 RUBBER; CUSHION 5-09983-002-1 02 1 9510-9802 ●
536 RUBBER; CUSHION
CENTER SEAT 3 CREWS<SA1> 		5-09983-002-1 02 1 9803-1006 ● ●
536 RUBBER; CUSHION 5-09983-002-1 02 1 9803-1006 ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72548-057-1 02 1 9510-9802 ● ●
537 BRACKET; RUBBER 1-72548-057-1 02 1 9510-9802 ●
537 BRACKET; RUBBER
CENTER SEAT 3 CREWS<SA1> 		1-72548-057-1 02 1 9803-1006 ● ●
537 BRACKET; RUBBER 1-72548-057-1 02 1 9803-1006 ●
538 GROMMET; SCREW
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-09983-165-0 02 1 0311-1006 ● ●
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-165-0 02 1 9510-9802 ● ●
538 GROMMET; SCREW 1-09983-165-0 02 1 9510-9802 ●
538 GROMMET; SCREW
CENTER SEAT 3 CREWS<SA1> 		1-09983-165-0 02 1 9803-9806 ● ●
538 GROMMET; SCREW 1-09983-165-0 02 1 9803-9806 ●
538 GROMMET; SCREW
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-09983-165-0 02 1 9807-0004 ● ●
538 GROMMET; SCREW 1-09983-165-0 02 1 9807-0004 ●
çizim 152381
518 74 468 51 518 302 543 543 532 278 512 468 51 51 543 278 512 51 543 543 518 532 278 468 529 468 302 302 518 543 518 543 18 518 471 302 551 543 72 518 302 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 518
BalonParca AdiParca NoAdetTipApplied Date A B C
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-063-0 01 1 0011- ● ●
18 COVER; RECLINING 1-75418-050-0 01 1 9510-9810 ● ● ●
18 COVER; RECLINING 1-75418-050-0 01 1 9811-0004 ●
18 COVER; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-050-0 01 1 9811-0004 ● ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97867-020-0 01 1 0005- ● ●
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0005- ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-063-0 01 1 9811-0004 ● ●
51 SCREW; COVER
DELUXE CAB(W14) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9510-0004 ● ●
51 SCREW; COVER
DELUXE CAB(W14) 		1-75518-325-1 04 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
DELUXE CAB(W14) (A) 		1-75518-321-0 01 1 0001-0004 ● ●
63 ADJUSTER; SEAT SLIDE
DELUXE CAB(W14) (A) 		1-75518-323-0 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 0011- ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9510-9810 ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9811-0004 ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75518-199-0 01 1 9811-0004 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) 		1-75518-199-1 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-198-0 01 1 9510-9705 ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9706-9810 ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9811-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75518-294-0 01 1 9811-9912 ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-1 01 1 0001-0004 ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) (A) 		1-75518-294-1 01 1 0001-0004 ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DELUXE CAB(W14) (A) 		1-75518-294-1 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-1 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 9811-0004 ● ●
72 SPACER; SEAT ADJ
DELUXE CAB(W14) (A) 		1-75518-269-0 02 1 9603-0102 ● ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) (A) 		1-75517-911-0 02 1 0103- ● ●
72 SPACER; SEAT ADJ
DELUXE CAB(W14) (B) 		1-75517-911-0 02 1 0005-0102 ● ●
72 SPACER; SEAT ADJ
DELUXE CAB(W14) (B) 		1-75518-334-1 02 1 0103-1502 ● ●
72 SPACER; SEAT ADJ
DELUXE CAB(W14) (B) 		8-98291-668-0 02 1 1503- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-75517-955-1 01 1 0005-0102 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-75517-959-3 01 1 0103-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		8-98291-642-0 01 1 1503- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-242-0 01 1 9510-9602 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-259-0 01 1 9603-9705 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-275-0 01 1 9706-9712 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-299-0 01 1 9801-9912 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-317-1 01 1 0001-0004 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-317-1 01 1 0005-0102 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-330-3 01 1 0103-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-644-0 01 1 1503- ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9510-9810 ● ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9811-0004 ●
158 BUSHING; LINK ARM
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75518-209-0 02 1 9811-0004 ● ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 0005- ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0005- ●
201 CABLE; ADJ
(A) L=667 		1-75518-201-0 01 1 9510-9705 ● ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 9706-9810 ● ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 9811-0004 ●
201 CABLE; ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=667 		1-75518-288-0 01 1 9811-0004 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 0005- ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0005- ●
201 CABLE; ADJ
(B) L=605 		1-75518-202-1 01 1 9510-9705 ● ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-0 01 1 9706-9810 ● ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 9811-0004 ●
201 CABLE; ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=605 		1-75518-289-1 01 1 9811-0004 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 0005- ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0005- ●
278 COLLAR; FRT SEAT
DELUXE CAB(W14) 		1-75518-244-0 03 1 9510- ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (A) 		1-75518-236-0 04 1 9510-9602 ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (B) 		1-75518-266-2 02 1 9603- ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (A) 		1-75518-270-1 04 1 9603-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (A) 		8-98291-667-0 04 1 1503- ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (C) 		1-75518-271-1 02 1 9603-0102 ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (C) 		1-75518-336-1 02 1 0103- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 14 1 0502- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0502- ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 12 1 9803-9912 ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 14 1 0001-0003 ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 14 1 0004-0004 ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 06 1 0005-0501 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> M8 FLANGE 		1-75538-207-0 12 1 0502- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0502- ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 12 1 0502- ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9510-9802 ● ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 04 1 9803-9810 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9803-9810 ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ●
306 NUT; SEAT ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 04 1 9811-0003 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ●
306 NUT; SEAT ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 04 1 0005-0501 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0005-0501 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 18 1 0502- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 9510-0004 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 0005- ● ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0005- ●
468 SPRING; RETURN
DELUXE CAB(W14) (A) 		1-75518-206-0 01 1 9510- ● ●
468 SPRING; RETURN
DELUXE CAB(W14) (B) 		1-75518-207-0 01 1 9510- ● ●
468 SPRING; RETURN
DELUXE CAB(W14) (C) 		1-75518-208-0 02 1 9510- ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-75518-291-0 01 1 9706-0003 ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-291-0 01 1 9706-0003 ● ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 9706-0003 ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0004-0004 ●
471 LEVER; SEAT ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75518-291-0 01 1 0004-0004 ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-291-0 01 1 0005-0710 ● ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0005-0710 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 0711- ● ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711- ●
471 LEVER; SEAT ADJ 1-75518-205-1 01 1 9510-9705 ● ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F> 		1-75518-205-1 01 1 9706-0003 ● ●
512 COVER; LEVER
DELUXE CAB(W14) 		1-75518-243-1 02 1 9510- ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (C) M8 		1-75518-264-0 04 1 9510- ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9510- ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (B) M8 FLANGE 		8-94152-886-0 04 1 9510- ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 9510-9810 ● ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 9811-0004 ●
518 NUT; TILT ADJ
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75518-263-0 01 1 9811-0004 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 0005- ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0005- ●
529 PIN; LINK
DELUXE CAB(W14) 		1-75518-262-0 01 1 9510-9705 ● ●
529 PIN; LINK 1-75518-262-0 01 1 9706-9810 ● ● ●
529 PIN; LINK 1-75518-262-0 01 1 9811-0004 ●
529 PIN; LINK
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75518-262-0 01 1 9811-0004 ● ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 0005- ● ●
529 PIN; LINK 1-75518-262-0 01 1 0005- ●
532 LEVER ASM; TILT
DELUXE CAB(W14) (A) 		1-75518-203-0 01 1 9510- ● ●
532 LEVER ASM; TILT
DELUXE CAB(W14) (B) 		1-75518-204-1 01 1 9510- ● ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-314-0 01 1 0011- ● ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-314-0 01 1 9811-0004 ● ●
543 WASHER; HEIGHT ADJUSTER
DELUXE CAB(W14) (A) ID=10.5 		9-09164-510-0 02 1 9510-0102 ● ●
543 WASHER; HEIGHT ADJUSTER
DELUXE CAB(W14) (C) 		1-75518-335-0 02 1 0103-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
DELUXE CAB(W14) (C) ID=13 OD=19 		8-98291-669-0 02 1 1503- ● ●
543 WASHER; HEIGHT ADJUSTER
DELUXE CAB(W14) (B) ID=6.4 		9-09160-506-0 04 1 9603-0102 ● ●
543 WASHER; HEIGHT ADJUSTER
DELUXE CAB(W14) (B) ID=8.4 		9-09160-508-0 04 1 0103- ● ●
543 WASHER; HEIGHT ADJUSTER
DELUXE CAB(W14) (A) 		1-75518-337-0 02 1 0103-0406 ● ●
551 SLIDER; HEIGHT ADJ
DELUXE CAB(W14) 		1-75518-265-0 04 1 9603- ● ●
çizim 152386
588
BalonParca AdiParca NoAdetTipApplied Date A B C
588 REPAIR KIT; SUSPENSION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-202-0 01 1 0011- ● ●
588 REPAIR KIT; SUSPENSION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-202-0 01 1 9811-0004 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
