Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#36686) — 370 parça

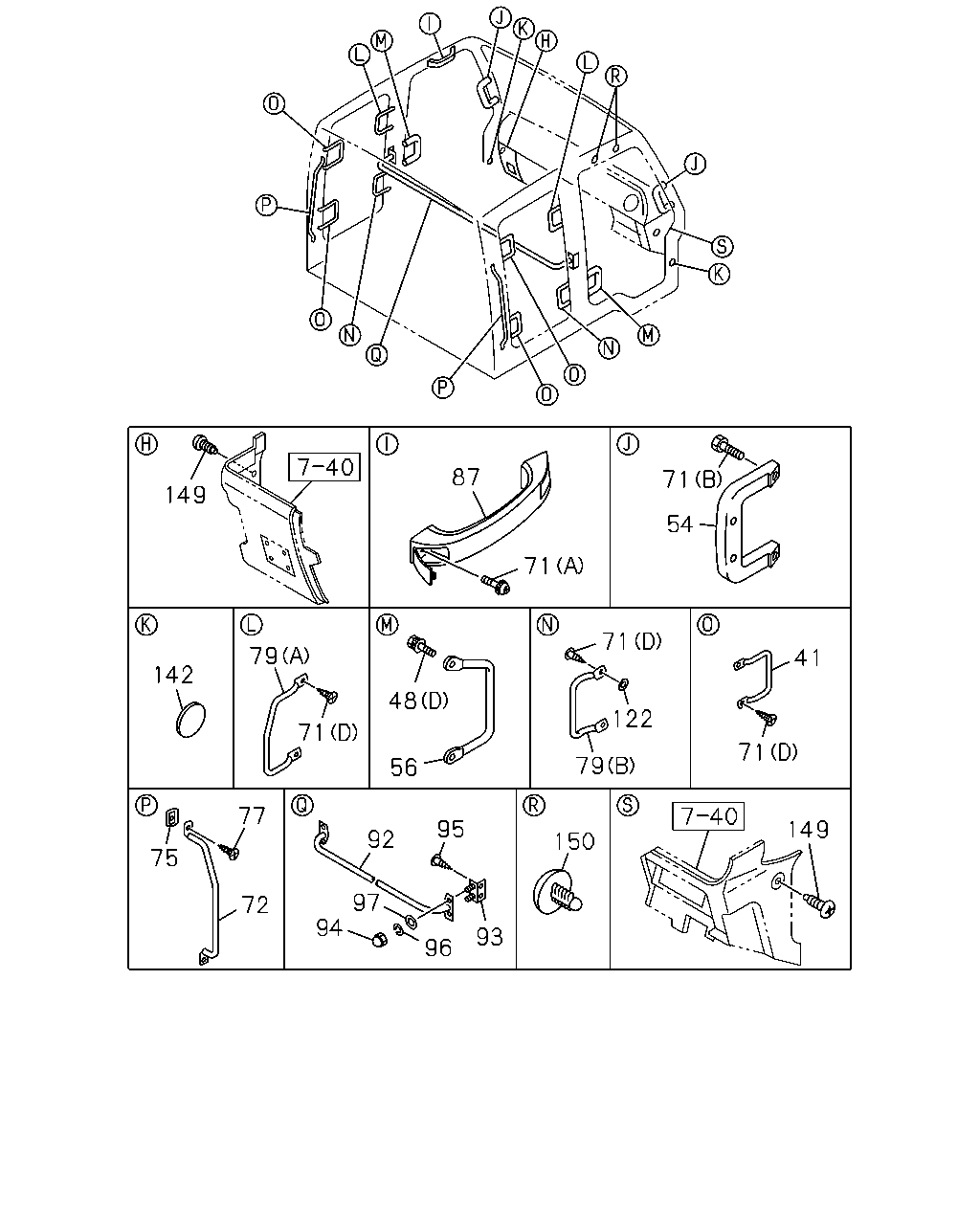

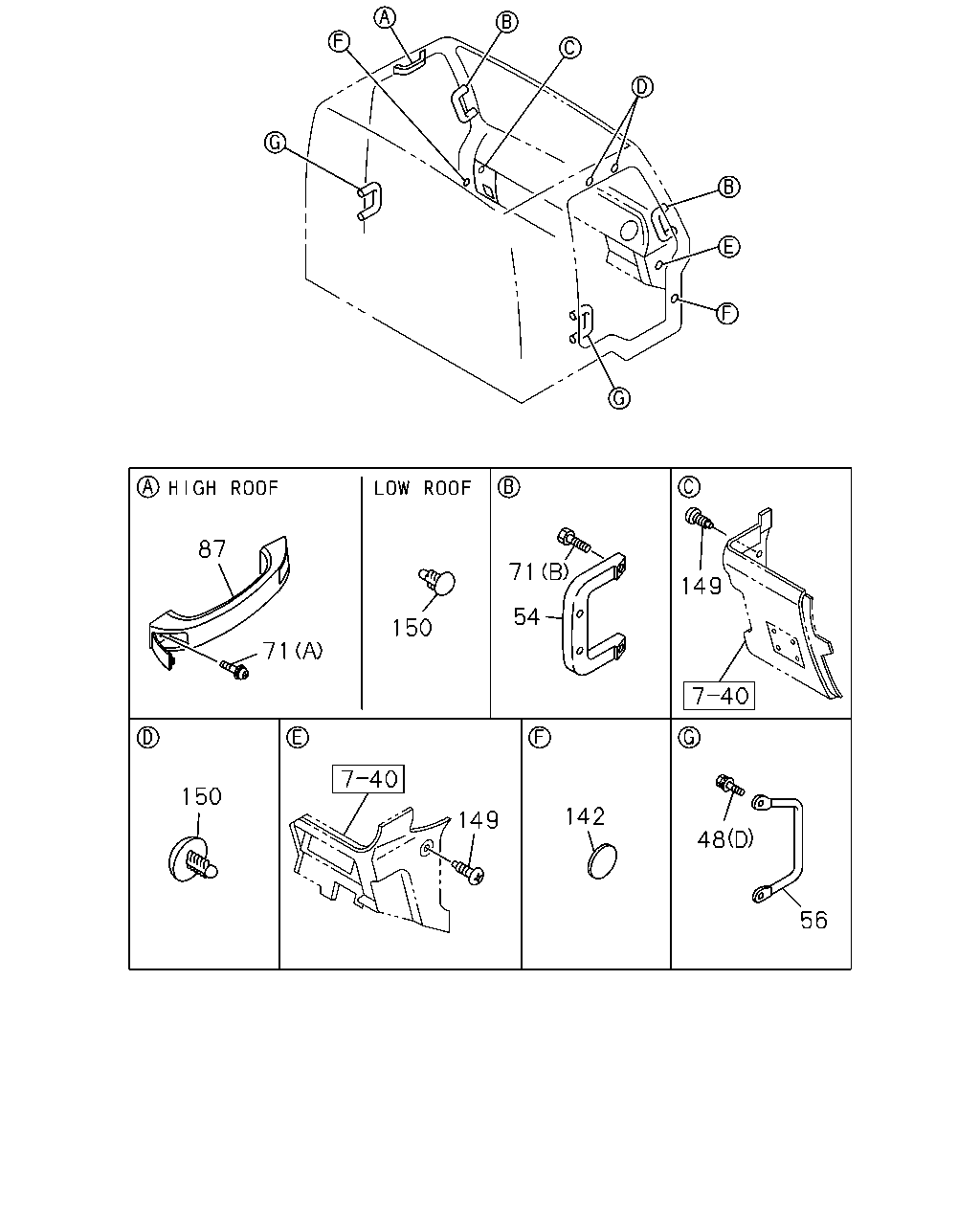

87 71 149 54 150 71 150 142 149 48 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603	●	●
48	BOLT; ASSIST GRIP (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603			●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-			●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9510-9602	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-	●	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9510-	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9510-	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-158-2	02	1	9510-0211	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-185-1	02	1	0212-	●	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9510-0402	●	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804	●	●	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●	●	●
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702	●	●
71	SCREW (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702			●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0212	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0212			●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310			●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-			●
71	SCREW HIGH ROOF<S2F> (C) M5X14	8-94279-325-0	06	1	9510-9512	●	●
71	SCREW (C) M5X14	8-94279-325-0	06	1	9510-9512			●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-			●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9510-0211	●	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	9510-0005			●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-			●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-			●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F>	1-73618-170-0	01	1	9510-0004	●	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	01	1	9510-0004			●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0005-0212	●	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	0005-0212			●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0301-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0301-			●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	9510-	●	●	●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	9510-0302	●	●	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0303-	●	●	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9510-0004	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9510-0004			●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212			●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-			●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	9510-0212	●	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●	●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-			●

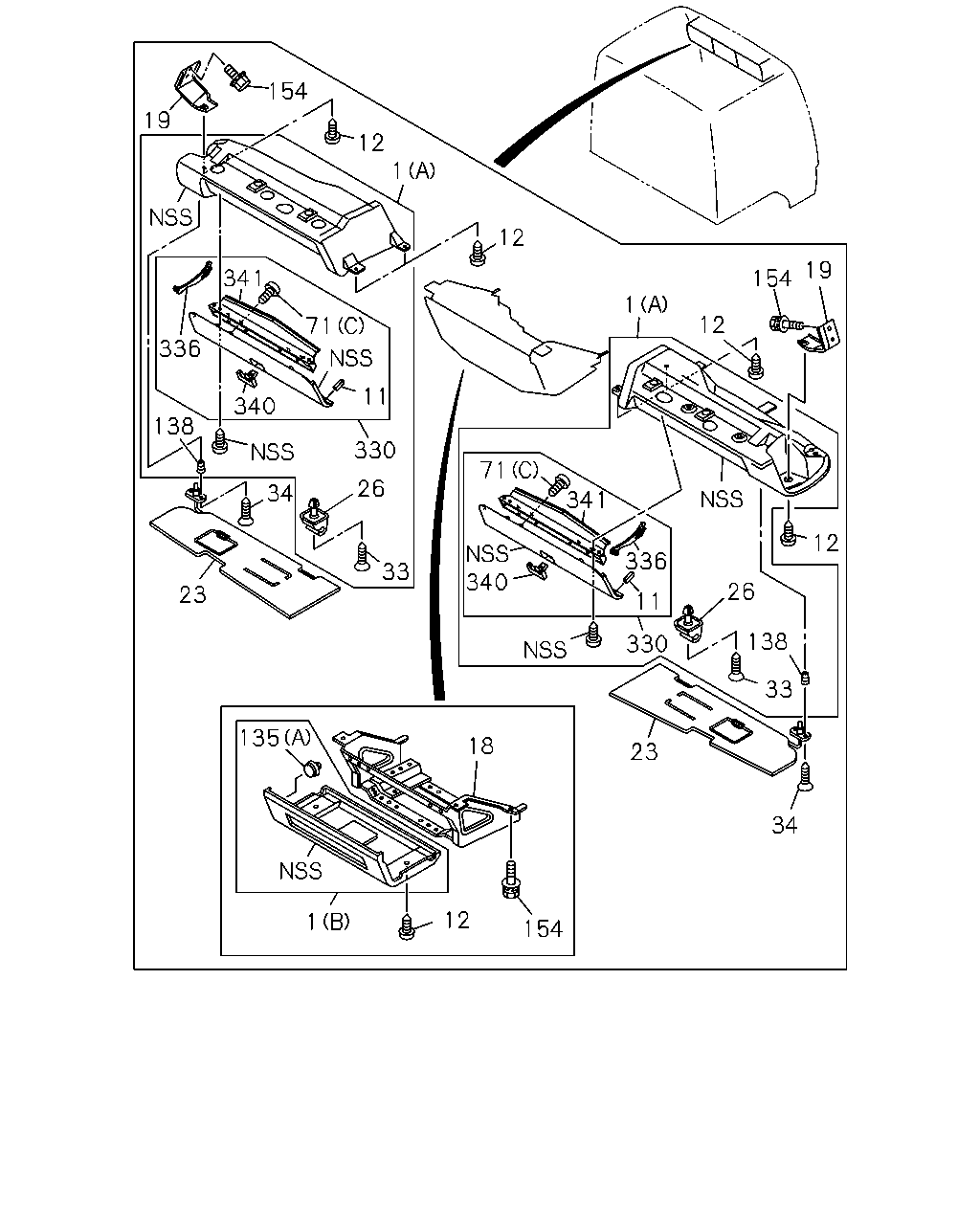

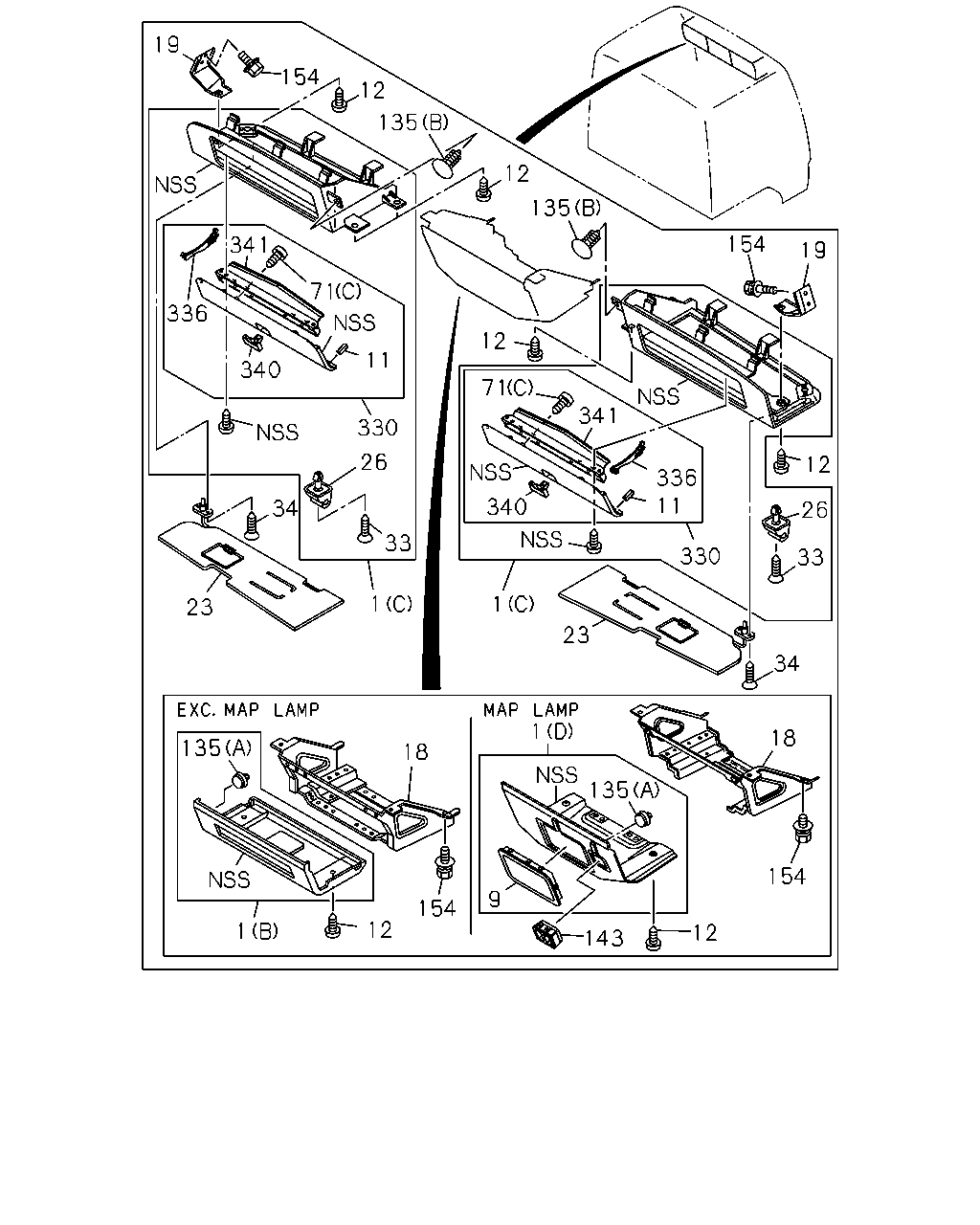

154 19 12 1 12 19 341 154 1 12 71 336 11 340 138 330 71 26 34 341 12 340 336 33 26 23 11 138 330 33 135 18 23 34 12 1 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BOARD; HEADER SHELF MAP LAMP<C85> HIGH ROOF<S2F> (D) CENTER	1-72448-667-0	01	1	0301-		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B) CENTER	1-72448-568-1	01	1	9510-0004	●	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-568-1	01	1	9510-0004			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B) CENTER	1-72448-663-0	01	1	0005-0211	●	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-663-0	01	1	0005-0211			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER	1-72448-663-0	01	1	0212-	●	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-663-0	01	1	0212-			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-597-2	01	1	9510-9802	●	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9510-9802			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-616-1	01	1	9803-0003	●	●
1	BOARD; HEADER SHELF (C)	1-73318-616-1	01	1	9803-0003			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-689-0	01	1	0004-0004	●	●
1	BOARD; HEADER SHELF (C)	1-73318-689-0	01	1	0004-0004			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-691-0	01	1	0005-	●	●
1	BOARD; HEADER SHELF (C)	1-73318-691-0	01	1	0005-			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-596-2	01	1	9510-9802	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9510-9802			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73317-362-1	01	1	9803-0003	●	●
1	BOARD; HEADER SHELF (C)	1-73317-362-1	01	1	9803-0003			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-687-0	01	1	0004-0004	●	●
1	BOARD; HEADER SHELF (C)	1-73318-687-0	01	1	0004-0004			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-690-0	01	1	0005-	●	●
1	BOARD; HEADER SHELF (C)	1-73318-690-0	01	1	0005-			●
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	9510-	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9510-			●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	14	1	9510-9512	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	14	1	9510-9512			●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-			●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F>	1-72448-632-1	01	1	0301-		●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	1-72448-552-4	01	1	9510-9604	●	●
18	SUPPORT; HEADER SHELF CENTER	1-72448-552-4	01	1	9510-9604			●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	8-97865-124-1	01	1	9605-0211	●	●
18	SUPPORT; HEADER SHELF CENTER	8-97865-124-1	01	1	9605-0211			●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F> EXC. MAP LAMP<C85>	8-97865-124-1	01	1	0212-	●	●
18	SUPPORT; HEADER SHELF CENTER	8-97865-124-1	01	1	0212-			●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-324-1	01	1	9510-	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9510-			●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-323-1	01	1	9510-	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9510-			●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-150-1	01	1	9510-0004	●	●
23	SUN VISOR	1-73138-150-1	01	1	9510-0004			●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0005-	●	●
23	SUN VISOR	1-73138-157-1	01	1	0005-			●
23	SUN VISOR	1-73138-148-1	01	1	9510-0004	●	●	●
23	SUN VISOR	1-73138-156-1	01	1	0005-	●	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9510-0004	●	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-	●	●	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0603	●	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9510-0101	●	●	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603			●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-			●
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9510-9704	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9510-9704			●
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9704	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9704	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-	●	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9705-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-			●
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702	●	●
71	SCREW (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702			●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0212	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0212			●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310			●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-			●
71	SCREW HIGH ROOF<S2F> (C) M5X14	8-94279-325-0	06	1	9510-9512	●	●
71	SCREW (C) M5X14	8-94279-325-0	06	1	9510-9512			●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-			●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9510-0211	●	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	9510-0005			●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-			●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-			●
135	CLIP; HEADER SHELF MAP LAMP<C85> HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0301-		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	9510-0005	●	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	03	1	9510-0005			●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-0211	●	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-0211			●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0212-	●	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	06	1	0212-			●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 DARK GRAY	1-09987-238-0	02	1	9803-0209	●	●
135	CLIP; HEADER SHELF (B) D6X23 DARK GRAY	1-09987-238-0	02	1	9803-0209			●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 BLACK	1-09987-114-0	02	1	0210-	●	●
135	CLIP; HEADER SHELF (B) D6X23 BLACK	1-09987-114-0	02	1	0210-			●
138	NUT; BRKT,HEADER SHELF HIGH ROOF<S2F>	1-09984-166-0	04	1	9510-9802	●	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9510-9802			●
154	BOLT; SUPPORT HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-	●	●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-			●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-360-3	02	1	9510-0004	●	●
330	LID; HEADER SHELF	1-72448-360-3	02	1	9510-0004			●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-679-0	02	1	0005-	●	●
330	LID; HEADER SHELF	1-72448-679-0	02	1	0005-			●
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	9510-	●	●
336	STAY; LID	1-72448-379-3	04	1	9510-			●
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	9510-	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9510-			●
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	9510-	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9510-			●

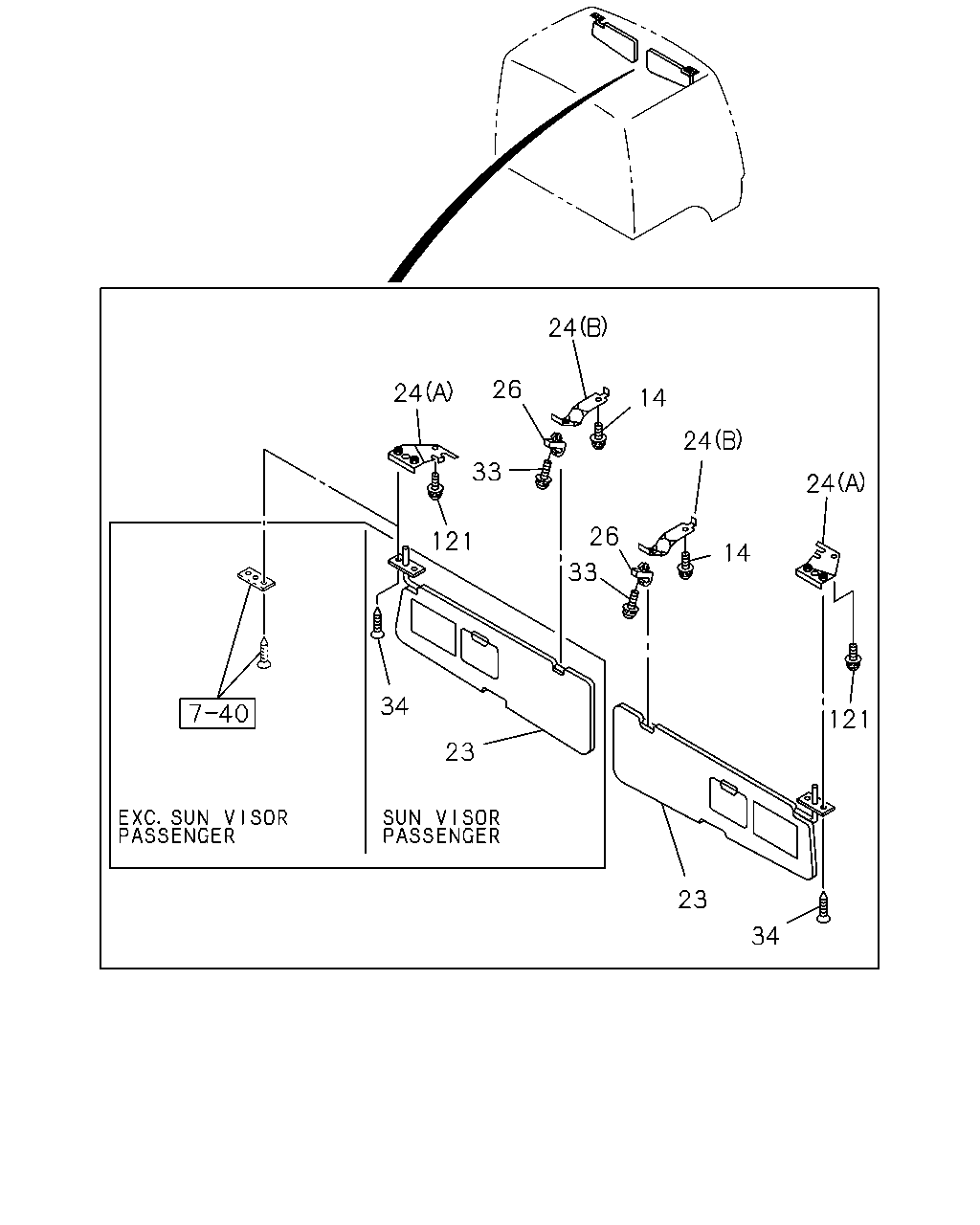

24 26 24 14 24 33 24 26 121 14 33 34 121 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	SCREW; BRKT LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9510-	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-150-1	01	1	9510-0004	●	●
23	SUN VISOR	1-73138-150-1	01	1	9510-0004			●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0005-	●	●
23	SUN VISOR	1-73138-157-1	01	1	0005-			●
23	SUN VISOR	1-73138-148-1	01	1	9510-0004	●	●	●
23	SUN VISOR	1-73138-156-1	01	1	0005-	●	●	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (B)	1-73138-145-0	02	1	9510-	●	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-144-1	01	1	9510-	●	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-143-1	01	1	9510-	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9510-0004	●	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-	●	●	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0603	●	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9510-0101	●	●	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603			●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-			●
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9510-9704	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9510-9704			●
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9704	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9704	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-	●	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9705-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-			●
121	SCREW; BRKT,SUN VISOR LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9510-	●	●

19 154 12 135 12 135 154 341 19 71 336 12 11 340 71 341 330 26 12 336 11 340 34 26 33 330 33 1 1 23 23 34 1 18 135 18 135 154 9 154 12 1 12 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BOARD; HEADER SHELF MAP LAMP<C85> HIGH ROOF<S2F> (D) CENTER	1-72448-667-0	01	1	0301-		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B) CENTER	1-72448-568-1	01	1	9510-0004	●	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-568-1	01	1	9510-0004			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B) CENTER	1-72448-663-0	01	1	0005-0211	●	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-663-0	01	1	0005-0211			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER	1-72448-663-0	01	1	0212-	●	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-663-0	01	1	0212-			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-597-2	01	1	9510-9802	●	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9510-9802			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-616-1	01	1	9803-0003	●	●
1	BOARD; HEADER SHELF (C)	1-73318-616-1	01	1	9803-0003			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-689-0	01	1	0004-0004	●	●
1	BOARD; HEADER SHELF (C)	1-73318-689-0	01	1	0004-0004			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-691-0	01	1	0005-	●	●
1	BOARD; HEADER SHELF (C)	1-73318-691-0	01	1	0005-			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-596-2	01	1	9510-9802	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9510-9802			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73317-362-1	01	1	9803-0003	●	●
1	BOARD; HEADER SHELF (C)	1-73317-362-1	01	1	9803-0003			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-687-0	01	1	0004-0004	●	●
1	BOARD; HEADER SHELF (C)	1-73318-687-0	01	1	0004-0004			●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-690-0	01	1	0005-	●	●
1	BOARD; HEADER SHELF (C)	1-73318-690-0	01	1	0005-			●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F>	1-72448-547-2	01	1	0301-		●
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	9510-	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9510-			●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	14	1	9510-9512	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	14	1	9510-9512			●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-			●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F>	1-72448-632-1	01	1	0301-		●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	1-72448-552-4	01	1	9510-9604	●	●
18	SUPPORT; HEADER SHELF CENTER	1-72448-552-4	01	1	9510-9604			●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	8-97865-124-1	01	1	9605-0211	●	●
18	SUPPORT; HEADER SHELF CENTER	8-97865-124-1	01	1	9605-0211			●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F> EXC. MAP LAMP<C85>	8-97865-124-1	01	1	0212-	●	●
18	SUPPORT; HEADER SHELF CENTER	8-97865-124-1	01	1	0212-			●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-324-1	01	1	9510-	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9510-			●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-323-1	01	1	9510-	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9510-			●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-150-1	01	1	9510-0004	●	●
23	SUN VISOR	1-73138-150-1	01	1	9510-0004			●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0005-	●	●
23	SUN VISOR	1-73138-157-1	01	1	0005-			●
23	SUN VISOR	1-73138-148-1	01	1	9510-0004	●	●	●
23	SUN VISOR	1-73138-156-1	01	1	0005-	●	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9510-0004	●	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-	●	●	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0603	●	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9510-0101	●	●	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603			●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-			●
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9510-9704	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9510-9704			●
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9704	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9704	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-	●	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9705-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-			●
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702	●	●
71	SCREW (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702			●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0212	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0212			●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310			●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-			●
71	SCREW HIGH ROOF<S2F> (C) M5X14	8-94279-325-0	06	1	9510-9512	●	●
71	SCREW (C) M5X14	8-94279-325-0	06	1	9510-9512			●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-			●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9510-0211	●	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	9510-0005			●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-			●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-			●
135	CLIP; HEADER SHELF MAP LAMP<C85> HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0301-		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	9510-0005	●	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	03	1	9510-0005			●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-0211	●	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-0211			●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0212-	●	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	06	1	0212-			●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 DARK GRAY	1-09987-238-0	02	1	9803-0209	●	●
135	CLIP; HEADER SHELF (B) D6X23 DARK GRAY	1-09987-238-0	02	1	9803-0209			●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 BLACK	1-09987-114-0	02	1	0210-	●	●
135	CLIP; HEADER SHELF (B) D6X23 BLACK	1-09987-114-0	02	1	0210-			●
143	BEZEL MAP LAMP<C85> HIGH ROOF<S2F>	1-72448-532-0	01	1	0408-		●
154	BOLT; SUPPORT HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-	●	●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-			●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-360-3	02	1	9510-0004	●	●
330	LID; HEADER SHELF	1-72448-360-3	02	1	9510-0004			●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-679-0	02	1	0005-	●	●
330	LID; HEADER SHELF	1-72448-679-0	02	1	0005-			●
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	9510-	●	●
336	STAY; LID	1-72448-379-3	04	1	9510-			●
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	9510-	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9510-			●
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	9510-	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9510-			●

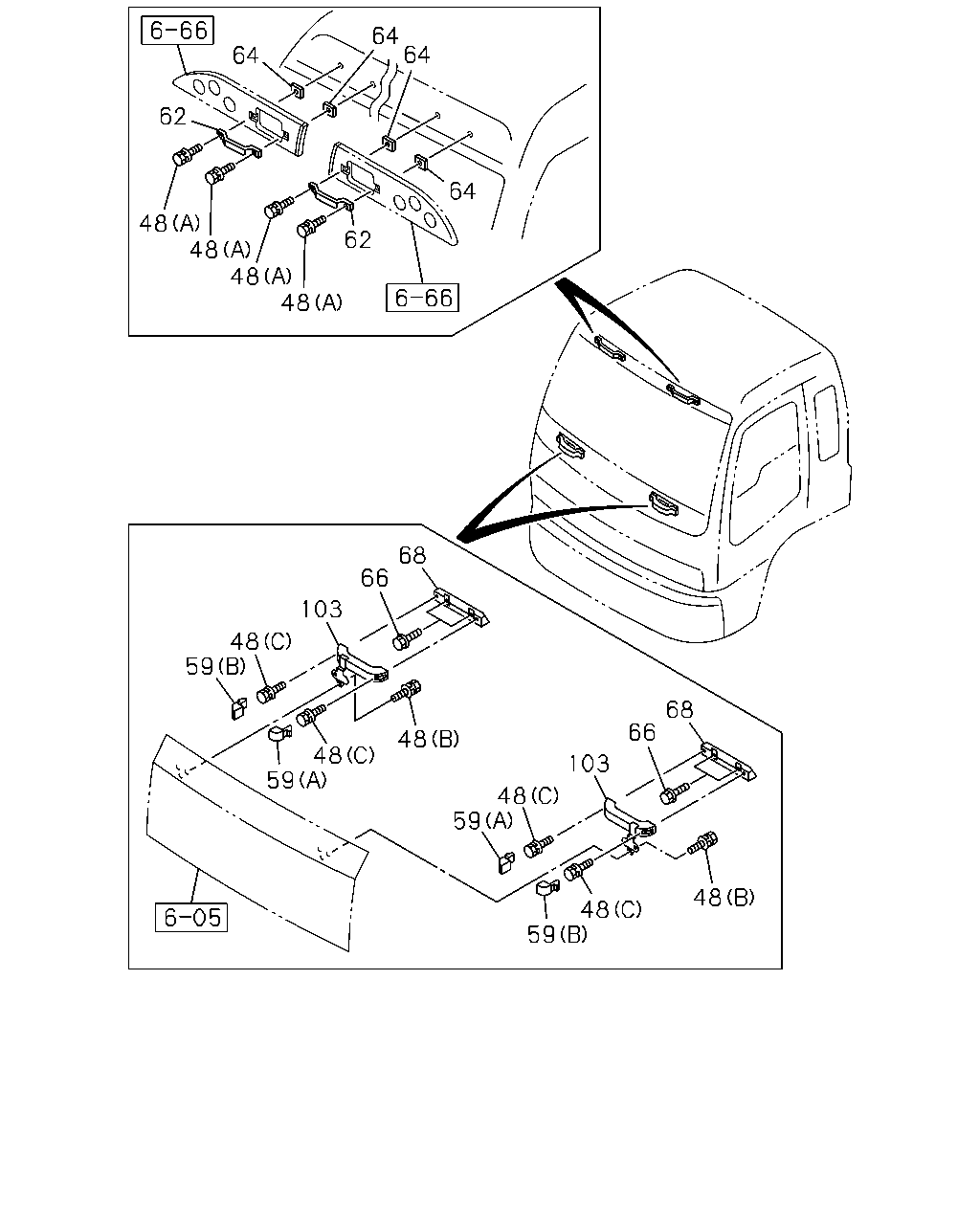

64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603	●	●
48	BOLT; ASSIST GRIP (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603			●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-			●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9510-9602	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-	●	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9510-	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9510-	●	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9510-	●	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9510-	●	●	●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	1-71997-895-1	02	1	9510-9610	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71997-895-1	02	1	9510-9610			●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	1-71907-492-0	02	1	9611-0907	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	9611-0907			●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	8-97630-819-0	02	1	0908-	●	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-			●
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	9510-	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9510-			●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9510-	●	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9510-	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	9510-	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	9510-	●	●	●

87 71 149 54 71 71 79 41 142 48 122 71 71 79 56 77 95 149 92 150 75 97 94 72 93 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
41	GRIP; ASSIST,BACK SIDE	1-71998-467-0	04	1	9510-			●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603	●	●
48	BOLT; ASSIST GRIP (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603			●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-			●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9510-9602	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-	●	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9510-	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9510-	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-158-2	02	1	9510-0211	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-185-1	02	1	0212-	●	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9510-0402	●	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804	●	●	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●	●	●
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702	●	●
71	SCREW (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9702			●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0212	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0212			●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310			●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-			●
71	SCREW HIGH ROOF<S2F> (C) M5X14	8-94279-325-0	06	1	9510-9512	●	●
71	SCREW (C) M5X14	8-94279-325-0	06	1	9510-9512			●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-			●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9510-0211	●	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	9510-0005			●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-			●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-			●
72	GRIP; ASSIST,CAB ENTRY,BACK WHITE	1-71998-278-0	02	1	9510-			●
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-478-1	04	1	9510-			●
77	SCREW; ASSIST GRIP	8-94279-407-0	04	1	9510-			●
79	GRIP; ASSIST (A)	1-71996-134-0	02	1	9510-			●
79	GRIP; ASSIST (B)	1-71998-467-0	02	1	9510-			●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F>	1-73618-170-0	01	1	9510-0004	●	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	01	1	9510-0004			●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0005-0212	●	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	0005-0212			●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0301-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0301-			●
92	BAR; ASSIST	1-73618-123-2	01	1	9510-			●
93	BRACKET; ASSIST BAR	1-73618-126-1	02	1	9510-			●
94	NUT; CAP,ASSIST BAR M8 FLANGE	1-09984-126-0	04	1	9510-			●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9510-0904			●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-			●
96	WASHER; LK,ASSIST BAR ID=8.2	1-09985-177-0	04	1	9510-			●
97	WASHER; PL,ASSIST BAR ID=8.4 OD=16	1-09985-174-0	04	1	9510-			●
122	WASHER; PL,ASSIST GRIP ID=10.2 OD=22 T=6	1-09989-009-1	02	1	9510-			●
122	WASHER; PL,ASSIST GRIP ID=6.4 OD=14 T=1	1-09985-187-0	08	1	0006-			●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	9510-	●	●	●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	9510-0302	●	●	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0303-	●	●	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9510-0004	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9510-0004			●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212			●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-			●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	9510-0212	●	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●	●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
