7-40 — INSTRUMENT PANEL AND BOX (#36685) — 262 parça

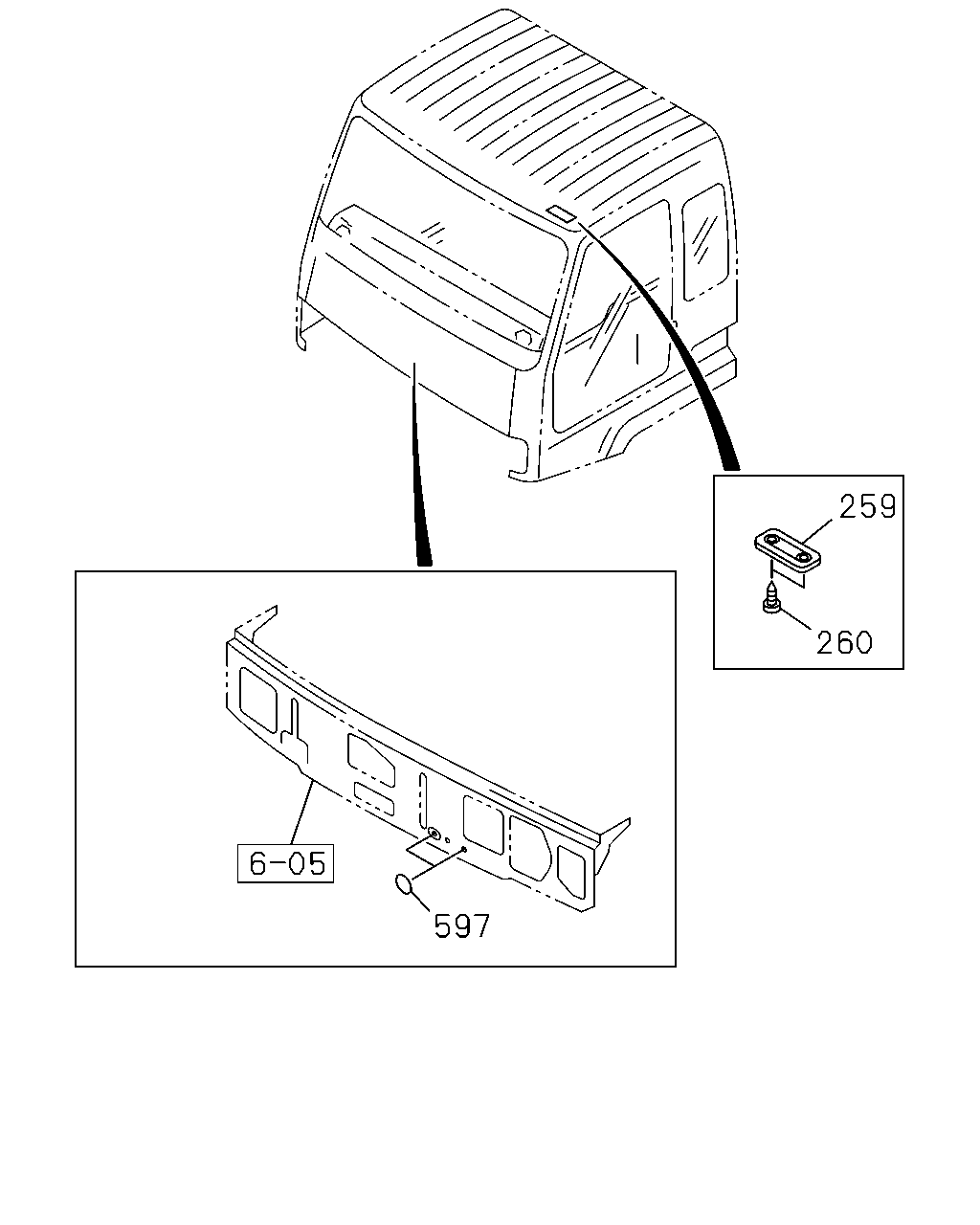

çizim 152339
259 260 597
BalonParca AdiParca NoAdetTipApplied Date A B C
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9510-0004 ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0005- ● ●
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9510- ● ●
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 9510-0004 ●
597 SEAL; HOLE,DASH
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> OD=16 BLACK 		1-76798-037-0 02 1 9510-0004 ● ●
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0005- ● ● ●

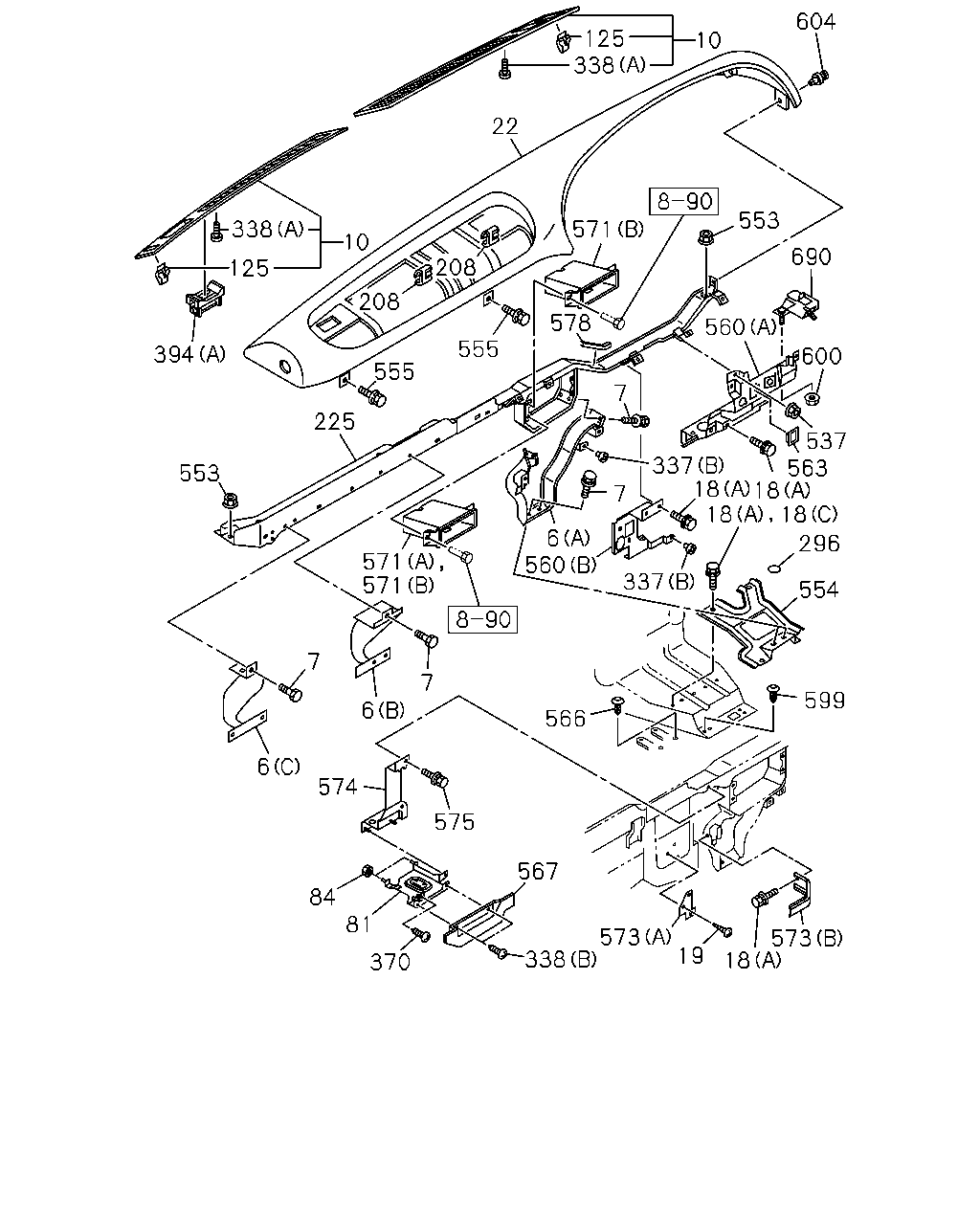

çizim 152363
125 10 604 338 22 338 394 10 553 690 571 208 208 555 555 578 560 600 225 7 537 337 18 18 7 18 18 6 553 571 571 560 337 296 554 599 7 6 7 6 574 575 566 84 81 370 567 338 573 19 18 573 563 125
BalonParca AdiParca NoAdetTipApplied Date A B C
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 9510-9802 ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 9803-0004 ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 0005-0210 ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 0005-0210 ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 0211- ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 9510-9802 ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 9803-0004 ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 0005-0210 ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 0005-0210 ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 0211- ● ●
6 SUPPORT; INST PANEL
(A) 		1-65680-961-4 01 1 9510-9904 ● ● ●
6 SUPPORT; INST PANEL
(A) 		1-65681-165-2 01 1 9905- ● ● ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9510-9802 ● ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9803-0210 ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9803-0210 ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0211- ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9510- ● ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72437-089-8 01 1 9510-9601 ● ●
10 PANEL ASM; GARNISH 1-72437-089-8 01 1 9510-9601 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-1 01 1 9602-9802 ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-1 01 1 9602-9802 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 9803-0210 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 9803-0210 ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 9803-0210 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 0211- ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 0211- ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-150-2 01 1 9510-9601 ● ●
10 PANEL ASM; GARNISH 1-72438-150-2 01 1 9510-9601 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-1 01 1 9602-9802 ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-1 01 1 9602-9802 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 9803-0210 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 9803-0210 ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 9803-0210 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 0211- ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 0211- ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-142-0 01 1 9510-9601 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-0 01 1 9602-9802 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 9803-0210 ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 9803-0210 ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 0211- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-141-0 01 1 9510-9601 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-0 01 1 9602-9802 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 9803-0210 ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 9803-0210 ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 0211- ● ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-9802 ● ●
18 BOLT; BRKT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-9802 ● ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9803-0210 ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9803-0210 ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0211- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510- ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9510-9801 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9802- ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9510- ● ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9802-9804 ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 9805-0512 ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601- ● ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9510-9802 ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9510-9802 ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9510-9802 ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9803- ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9803- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9803- ●
22 PAD; INST 1-72318-421-2 01 1 9510-0004 ● ● ●
22 PAD; INST 1-72318-433-4 01 1 0005- ● ● ●
81 BRACKET; ELEC CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-73908-156-4 01 1 9510-0004 ● ●
84 NUT; CONT UNIT BRKT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9510-0004 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0005- ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9510-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-0004 ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9510-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901- ● ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9510- ● ● ●
225 FRAME; FACIA 1-65680-890-9 01 1 9510-9512 ● ● ●
225 FRAME; FACIA 1-65681-096-2 01 1 9601-1002 ● ● ●
225 FRAME; FACIA 8-98142-102-0 01 1 1003- ● ● ●
296 SEAL; INST CENTER BEZEL
OD=25 BLACK 		1-76798-019-0 01 1 9510-9806 ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0005- ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9510-0004 ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9510- ● ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 9510-9802 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 9510-9802 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 9803-0004 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 9803-0004 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 9803-0004 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 0005-0208 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 0005-0208 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94148-576-1 10 1 0209-0210 ● ●
338 SCREW; COVER
(A) M5X14 		8-94148-576-1 10 1 0209-0210 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94148-576-1 10 1 0211-0309 ● ●
338 SCREW; COVER
(A) M5X14 		8-94148-576-1 10 1 0211-0309 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 20 1 0310-0405 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 20 1 0310-0405 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 0406-0801 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 0406-0801 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 15 1 0802- ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 15 1 0802- ●
338 SCREW; COVER
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M6X16 		8-94479-534-0 02 1 9510-0004 ● ●
370 SCREW; BRKT,ELEC CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M5X14 		8-94279-325-0 01 1 9510-0004 ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9510- ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9510- ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9510-0602 ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9510-0602 ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 9510- ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9510-0512 ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605- ● ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9510- ● ● ●
560 BRACKET
6HK1 TCC ENG(81L) (A) 		1-65681-179-4 01 1 0603- ●
560 BRACKET
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-65681-197-2 01 1 0604- ●
560 BRACKET
THAILAND EQUIPMENT(PM9) (A) 		1-65671-717-8 01 1 9510-9802 ● ●
560 BRACKET
EXC. THAILAND EQUIPMENT(PM9) (A) 		1-65681-078-3 01 1 9510-9802 ● ●
560 BRACKET
(A) 		1-65681-078-3 01 1 9510-9802 ●
560 BRACKET
(A) 		1-65681-078-3 01 1 9803-0012 ● ● ●
560 BRACKET
(A) 		1-65681-078-7 01 1 0101-0602 ● ●
560 BRACKET
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65681-078-7 01 1 0101-0602 ●
560 BRACKET
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65681-078-7 01 1 0101-0602 ●
560 BRACKET
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (A) 		1-65681-078-7 01 1 0603- ●
560 BRACKET
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65681-078-7 01 1 0603- ●
560 BRACKET
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65681-078-7 01 1 0603- ●
560 BRACKET
(A) 		1-65681-078-7 01 1 0603- ●
560 BRACKET
(B) 		1-65680-976-3 01 1 9510-0603 ● ● ●
560 BRACKET
(B) 		1-65680-976-3 01 1 0604- ● ●
560 BRACKET
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-65680-976-3 01 1 0604- ●
560 BRACKET
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65671-717-8 01 1 0101-0302 ●
560 BRACKET
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65671-786-2 01 1 0303-0602 ●
560 BRACKET
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCC ENG(76L) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-65671-786-2 01 1 0603- ●
563 BEZEL; BRKT
6HK1 TCC ENG(81L) 		1-72448-410-3 01 1 0707- ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9510-0602 ● ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0603- ● ● ●
566 PLUG; HOLE
6HK1 TCC ENG(81L) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0603- ●
567 COVER; CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-65681-022-1 01 1 9510-0004 ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPEPLAYER(UN3) (B) 		1-72438-151-0 01 1 9510-9812 ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-0 01 1 9510-9812 ●
571 BEZEL; POCKET
(B) 		1-72438-151-3 01 1 9901- ● ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPEPLAYER(UN3) (B) 		1-72438-151-3 01 1 9901- ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-3 01 1 9901- ●
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9510-9812 ● ● ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 9510-9802 ● ●
573 BRACKET; PANEL,RELAY BOX
(A) 		1-73908-023-2 01 1 9510-9802 ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 9803-0210 ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 9803-0210 ●
573 BRACKET; PANEL,RELAY BOX
(A) 		1-73908-023-2 01 1 9803-0210 ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 0211- ● ●
573 BRACKET; PANEL,RELAY BOX
(A) 		1-73908-023-2 01 1 0211- ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 9510-0004 ● ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 0005-0210 ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 0005-0210 ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 0211- ● ●
574 PANEL; RELAY BOX 1-73908-011-3 01 1 9510-9910 ● ● ●
574 PANEL; RELAY BOX 1-73908-252-3 01 1 9911- ● ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510- ● ● ●
578 SEAL; PROTECTOR,HARNESS
100X30 		1-72498-014-1 01 1 9510-9903 ● ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 9904- ● ● ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 9510- ● ● ●
600 NUT; PANEL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> M6 FLANGE 		0-91180-106-0 02 1 0604- ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9510- ● ● ●
690 PANEL; RELAY,HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-65681-196-1 01 1 0604- ●

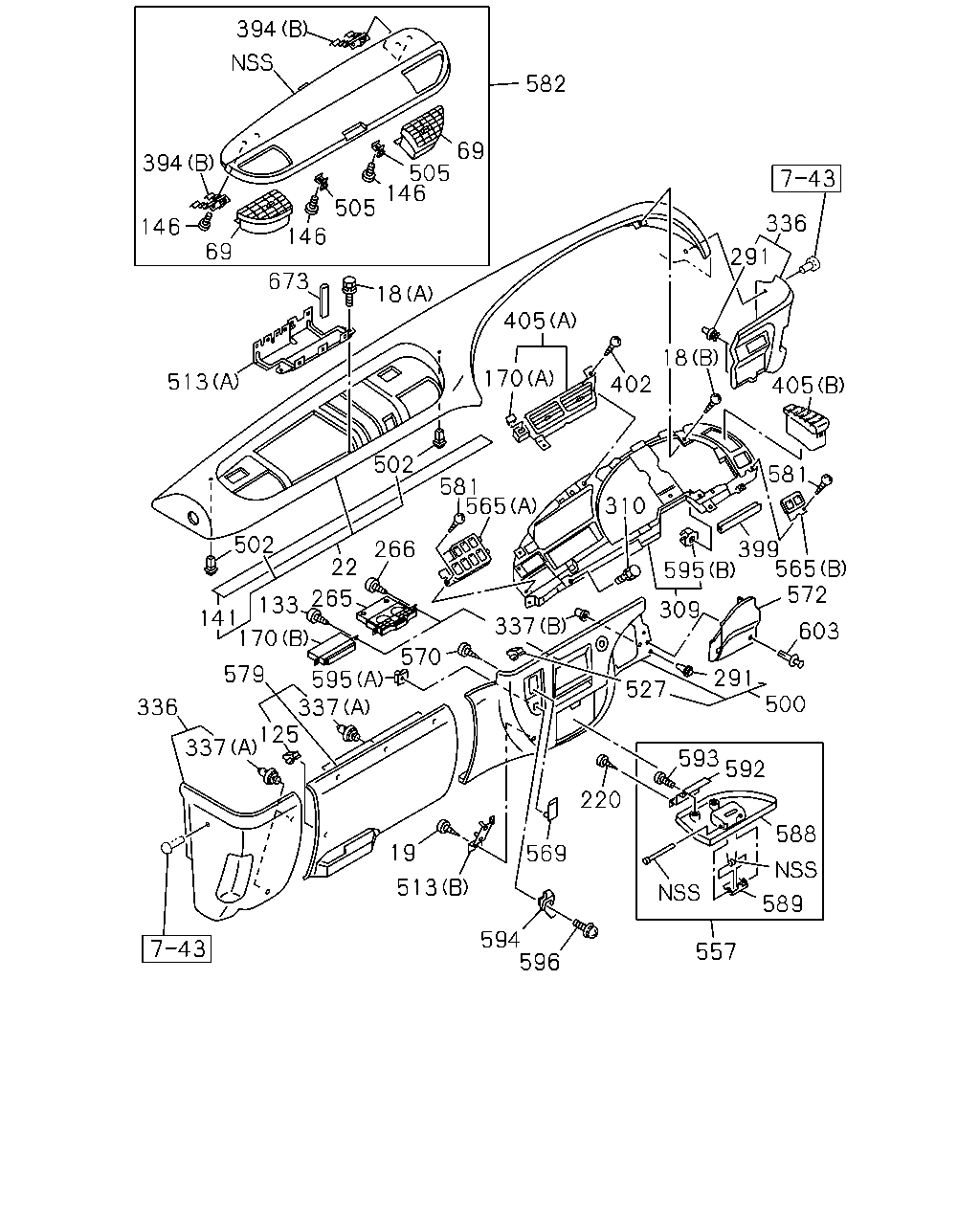

çizim 152511
394 582 69 505 146 394 505 336 146 146 69 291 673 18 405 18 170 513 402 405 502 581 581 565 310 502 266 399 595 565 572 22 265 133 309 141 170 337 603 570 595 337 125 579 291 527 500 336 337 593 592 220 588 19 569 513 589 594 596 557
BalonParca AdiParca NoAdetTipApplied Date A B C
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-9802 ● ●
18 BOLT; BRKT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-9802 ● ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9803-0210 ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9803-0210 ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0211- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510- ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9510-9801 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9802- ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9510- ● ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9802-9804 ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 9805-0512 ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601- ● ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9510-9802 ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9510-9802 ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9510-9802 ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9803- ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9803- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9803- ●
22 PAD; INST 1-72318-421-2 01 1 9510-0004 ● ● ●
22 PAD; INST 1-72318-433-4 01 1 0005- ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9510-0004 ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0005- ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9510-0004 ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0005- ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0005- ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9510-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-0004 ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9510-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901- ● ● ●
133 SCREW; COVER,INST PNL
EXC. INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9510- ● ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9510- ● ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9510- ● ● ●
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 9510- ● ● ●
170 COVER; HOLE
EXC. INTERIOR ORNAMENT HOLDER<TEJ> (B) 		1-72438-139-1 01 1 9510- ● ● ●
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 9510- ● ● ●
265 HOLDER; CUP
INTERIOR ORNAMENT HOLDER<TEJ> 		8-97853-172-8 01 1 9510- ● ● ●
266 SCREW; CUP STAND
INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9510- ● ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 9510- ● ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 9510- ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9510- ● ● ●
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9510-0004 ● ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0005- ● ● ●
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9510-0004 ● ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0005- ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0005- ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9510-0004 ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9510- ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9510- ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9510- ● ● ●
399 FINISHER; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9803-9807 ● ●
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9808-0004 ● ●
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 0005-0210 ●
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 0005-0210 ●
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 0211- ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9510-0604 ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 9510- ● ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 9510- ● ● ●
500 CLUSTER; INST CENTER 1-72438-117-9 01 1 9510-0004 ● ● ●
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0005- ● ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9510- ● ● ●
505 LOCK; LID 1-72558-024-2 02 1 9510- ● ● ●
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 9510-0205 ● ● ●
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206- ● ● ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 9510- ● ● ●
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9510-9812 ● ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901- ● ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 9510- ● ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 9510- ● ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 9510- ● ● ●
569 HOLDER; CARD 1-72498-015-2 01 1 9510- ● ● ●
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 9510- ● ● ●
572 COVER; INSPECTION 1-72438-054-3 01 1 9510-0004 ● ● ●
572 COVER; INSPECTION 1-72438-183-0 01 1 0005- ● ● ●
579 COVER; INST PNL 1-72438-113-4 01 1 9510-0004 ● ● ●
579 COVER; INST PNL 1-72438-184-1 01 1 0005- ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9510-0604 ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ●
582 LID; FUSE & RELAY 1-72548-127-8 01 1 9510-0004 ● ● ●
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0005- ● ● ●
588 LID; BOX 1-72548-135-3 01 1 9510- ● ● ●
589 KNOB; LID 1-72548-143-0 01 1 9510- ● ● ●
592 HINGE; LID 1-72548-133-3 01 1 9510- ● ● ●
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 9510- ● ● ●
594 HOOK; COAT 1-72498-013-0 01 1 9510- ● ● ●
595 NUT; HOOK
(A) W/NUT M5 		1-09984-162-0 01 1 9510-0012 ● ● ●
595 NUT; HOOK
(A) WO/NUT 		8-97810-118-0 01 1 0101-0110 ● ● ●
595 NUT; HOOK
(A) W/NUT M5 		1-09984-162-0 01 1 0111- ● ● ●
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 9510- ● ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 9510-0012 ● ● ●
596 SCREW; HOOK
M5X14 		8-94279-325-0 01 1 0101-0110 ● ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0111- ● ● ●
603 CLIP; COVER 1-09987-245-1 01 1 9510-0004 ● ● ●
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0005- ● ● ●
673 FINISHER; BRKT,RELAY
L=30 SERVICED BY L=50 		8-94270-377-1 01 1 0006-0009 ● ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
