◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#36684) — 22 parça

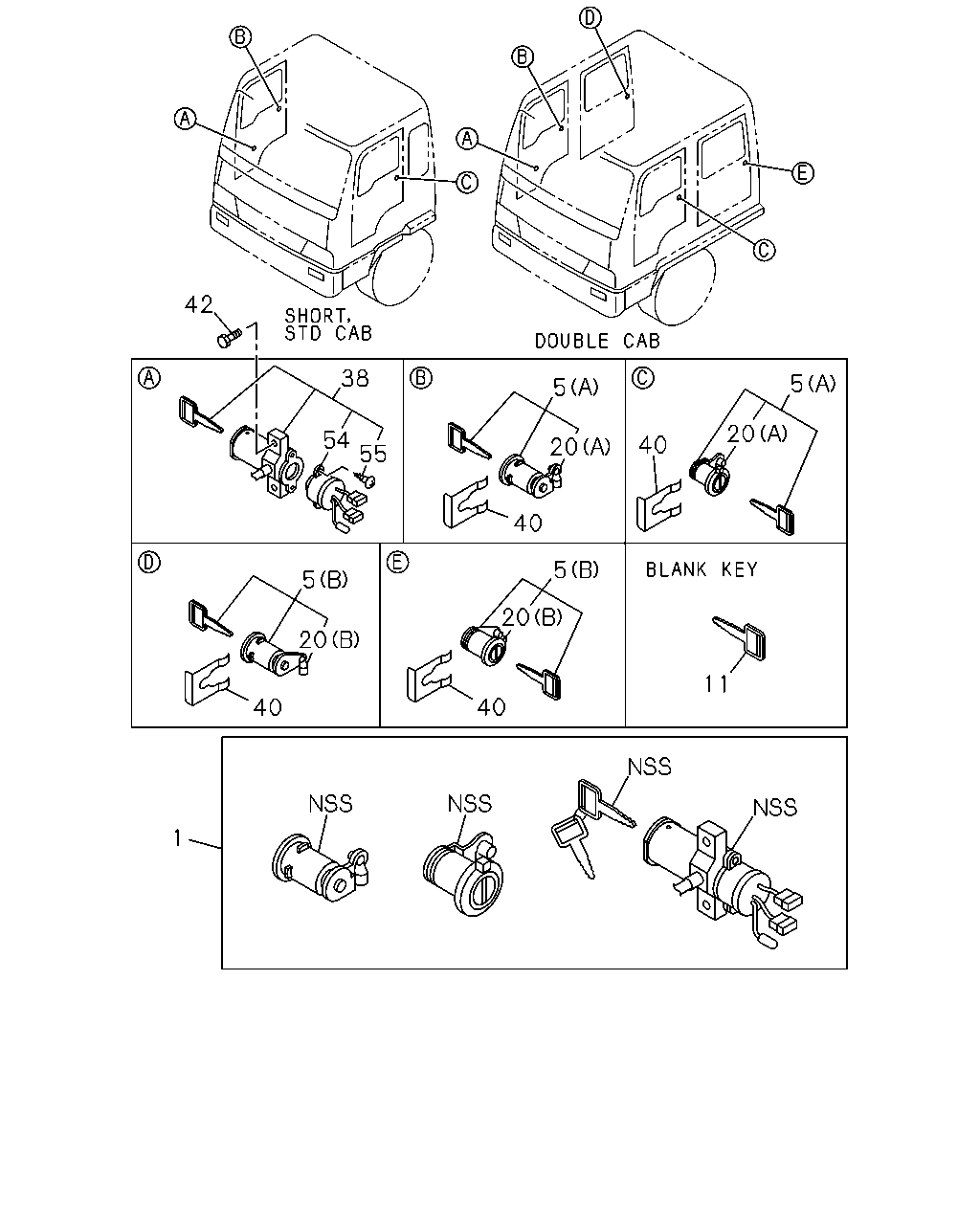

çizim 152162
42 38 5 5 20 54 55 40 20 40 5 5 20 20 11 40 40 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER SET; CAR LOCK
EQUIPMENT-ADDITIONAL KEY<Z1V> 		1-79138-239-1 01 1 0506- ● ●
1 CYLINDER SET; CAR LOCK 1-79138-199-0 01 1 9510-9511 ● ● ●
1 CYLINDER SET; CAR LOCK 1-79138-199-3 01 1 9512-0505 ● ●
1 CYLINDER SET; CAR LOCK
EXC. EQUIPMENT-ADDITIONAL KEY<Z1V> 		1-79138-199-5 01 1 0506- ● ●
1 CYLINDER SET; CAR LOCK 1-79138-200-5 01 1 9512- ●
5 CYLINDER ASM; DOOR LOCK
(A) 		1-79138-203-2 01 1 9510- ● ● ●
5 CYLINDER ASM; DOOR LOCK
(A) 		1-79138-202-2 01 1 9510- ● ● ●
5 CYLINDER ASM; DOOR LOCK
(B) 		1-79137-099-2 01 1 9510- ●
5 CYLINDER ASM; DOOR LOCK
(B) 		1-79137-096-2 01 1 9510- ●
11 KEY; BLANK
WO/ROSIN 		1-79137-129-1 AR 1 9510- ● ● ●
11 KEY; BLANK
W/ROSIN 		1-79137-130-1 AR 1 9510- ● ● ●
20 SNAP; DOOR LOCK CYL
(A) GREEN 		1-79138-193-0 01 1 9510- ● ● ●
20 SNAP; DOOR LOCK CYL
(A) PINK 		1-79138-192-0 01 1 9510- ● ● ●
20 SNAP; DOOR LOCK CYL
(B) NATURAL FOR D=3.5 		1-79138-167-0 01 1 9510- ●
20 SNAP; DOOR LOCK CYL
(B) YELLOW 		1-79138-166-0 01 1 9510- ●
38 LOCK ASM; STRG 1-79138-201-2 01 1 9510- ● ● ●
40 CLIP; CYL LK 1-79137-033-1 02 1 9510- ● ● ●
40 CLIP; CYL LK 1-79137-033-1 02 1 9510- ●
42 BOLT; STRG LOCK
M8X30 W/PL WASHER 		1-09981-482-2 02 1 9510-0106 ● ● ●
42 BOLT; STRG LOCK
CUT BOLT M8X30 TORQUE SHEAR BOLT 		1-09980-621-1 02 1 0107- ● ● ●
54 SWITCH ASM; STRG LOCK CYL 1-79137-050-2 01 1 9510- ● ● ●
55 SCREW; SWITCH
M3X10 W/LK WASHER 		9-03910-310-0 02 1 9510- ● ● ●
