13 |
MIRROR ASM; OUTSIDE RR VIEW

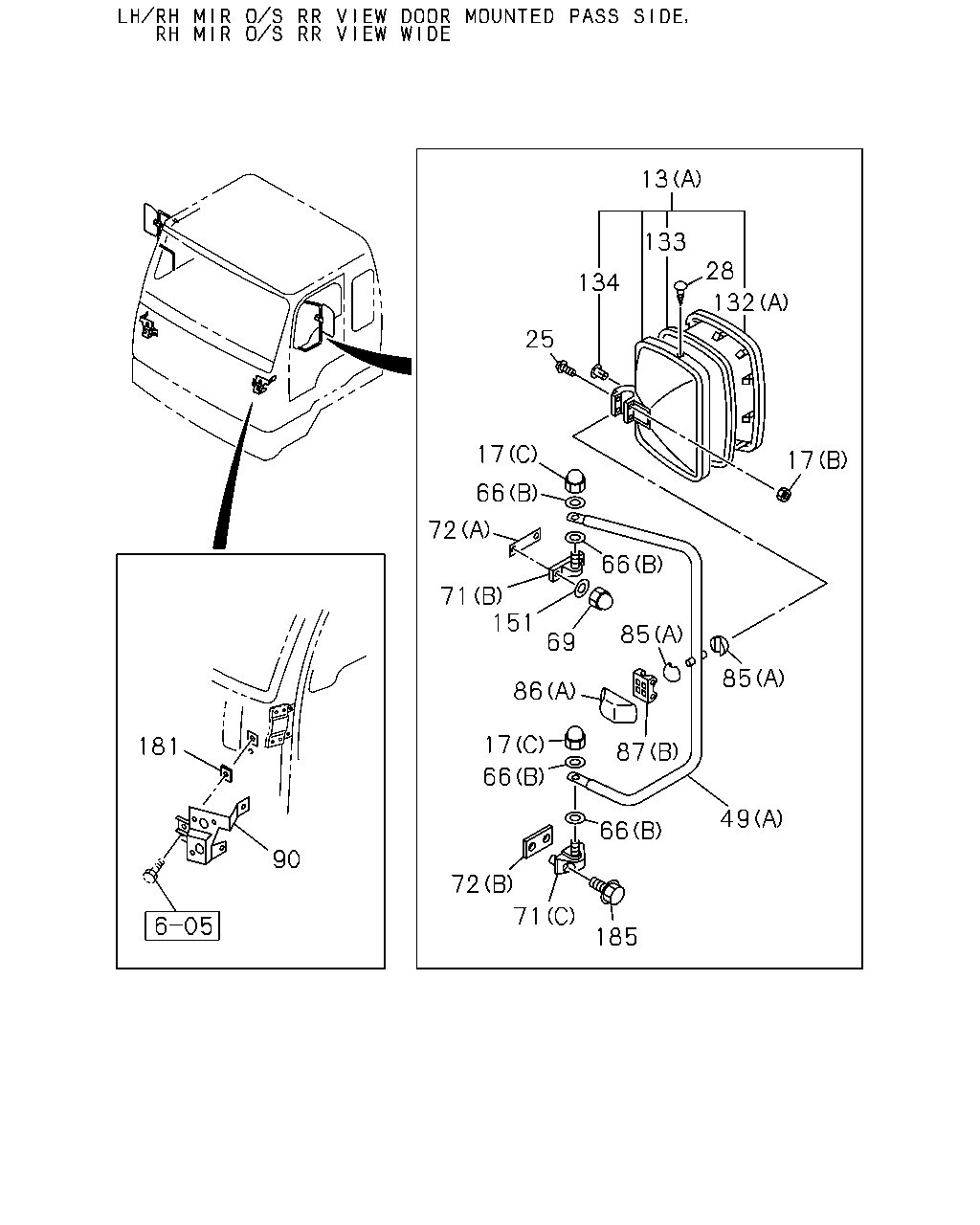

MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71737-918-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71737-918-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
|
1-71737-918-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S UNDER VIEW<RR9>
(A)
|
1-71737-918-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
|
1-71737-918-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S UNDER VIEW<RR9>
(A)
|
1-71737-918-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71737-918-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-918-1 |
01 |
1 |
9802-9802 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71737-918-1 |
01 |
1 |
9802-9802 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2),MIR O/S UNDER VIEW<RR9>
,MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71737-918-1 |
01 |
1 |
9802-9802 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW

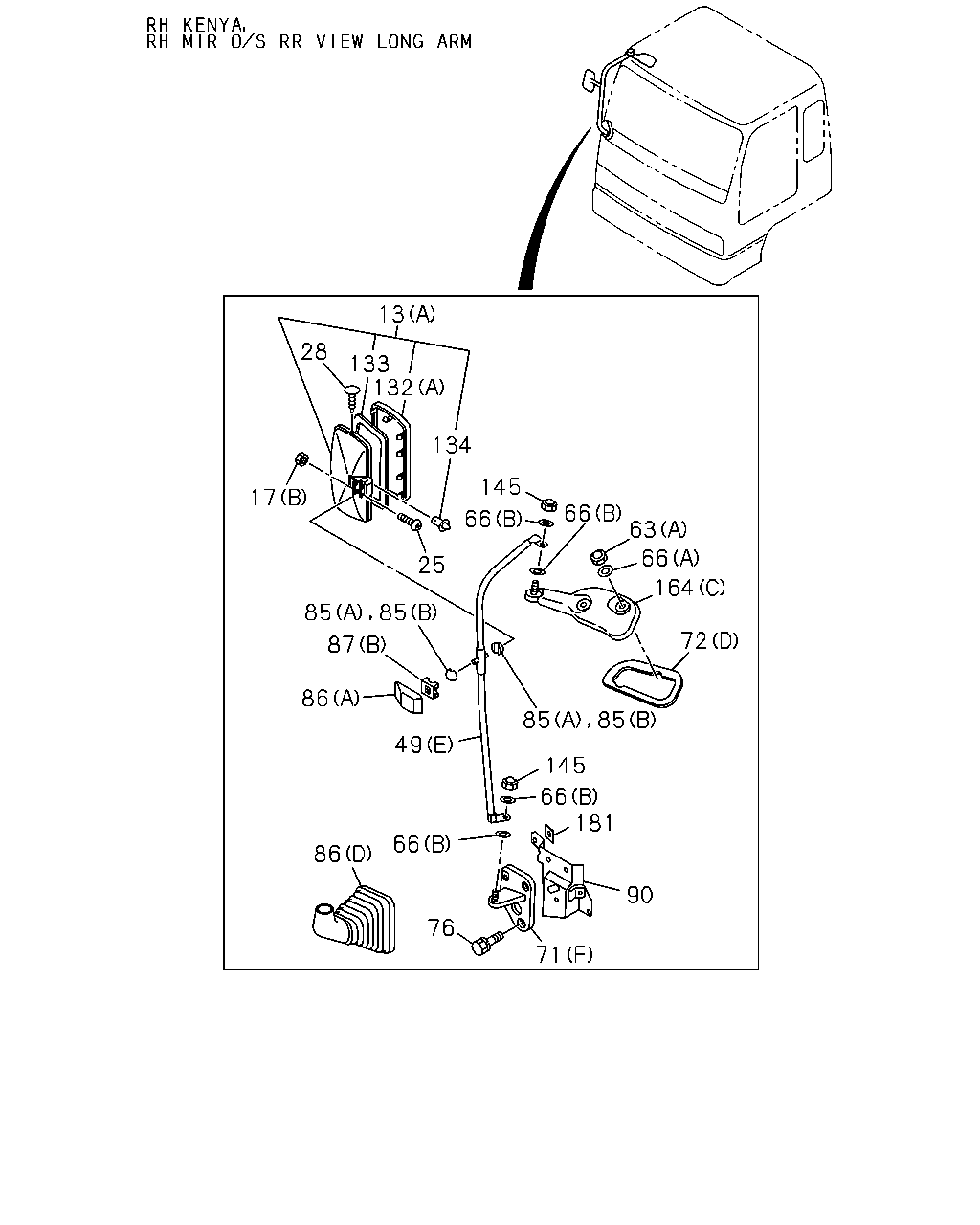

KENYA EQUIPMENT(PQ2)
(A)
|
1-71737-918-1 |
01 |
1 |
9802-9802 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW

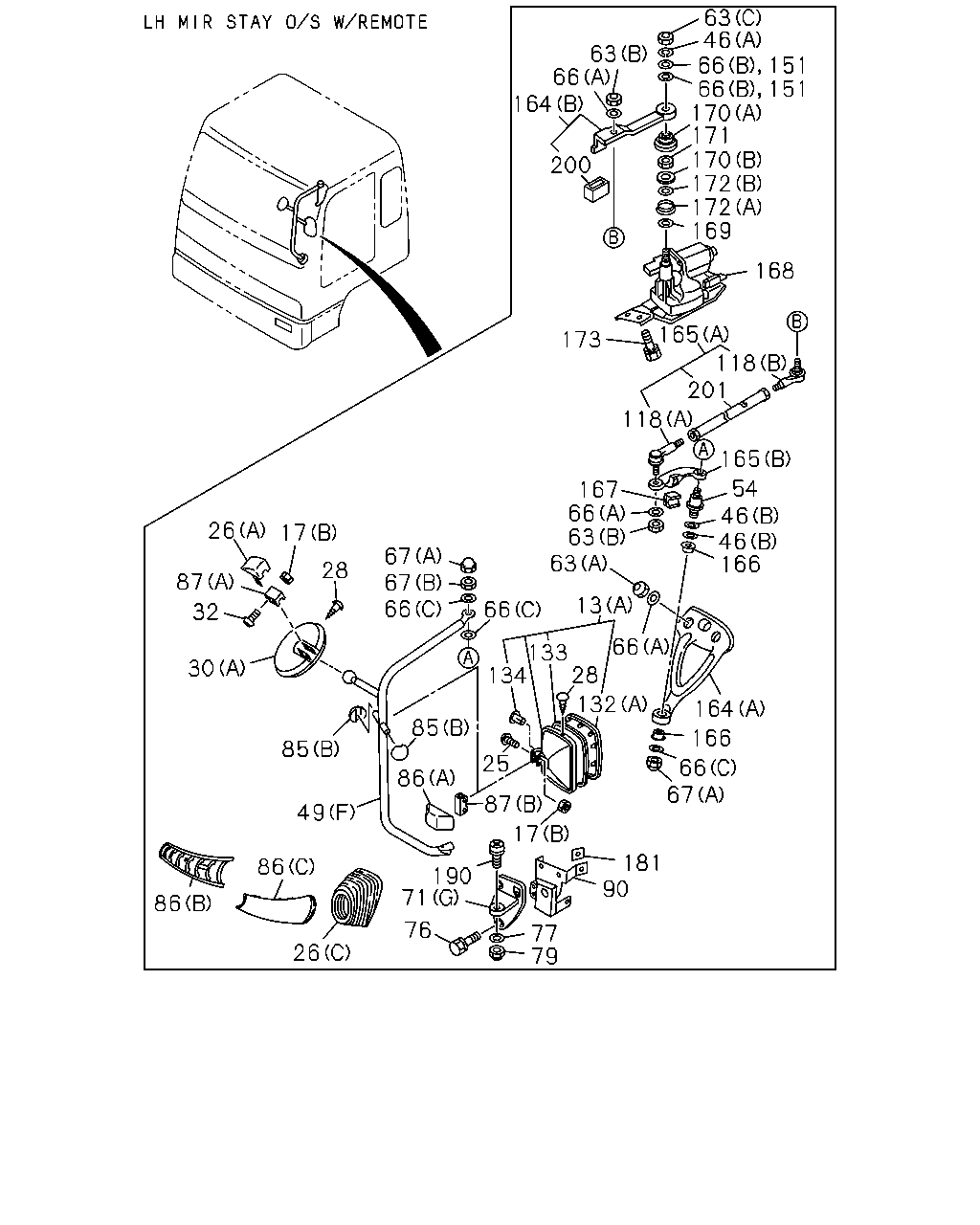

MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-918-1 |
01 |
1 |
9802-9802 |
|
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW

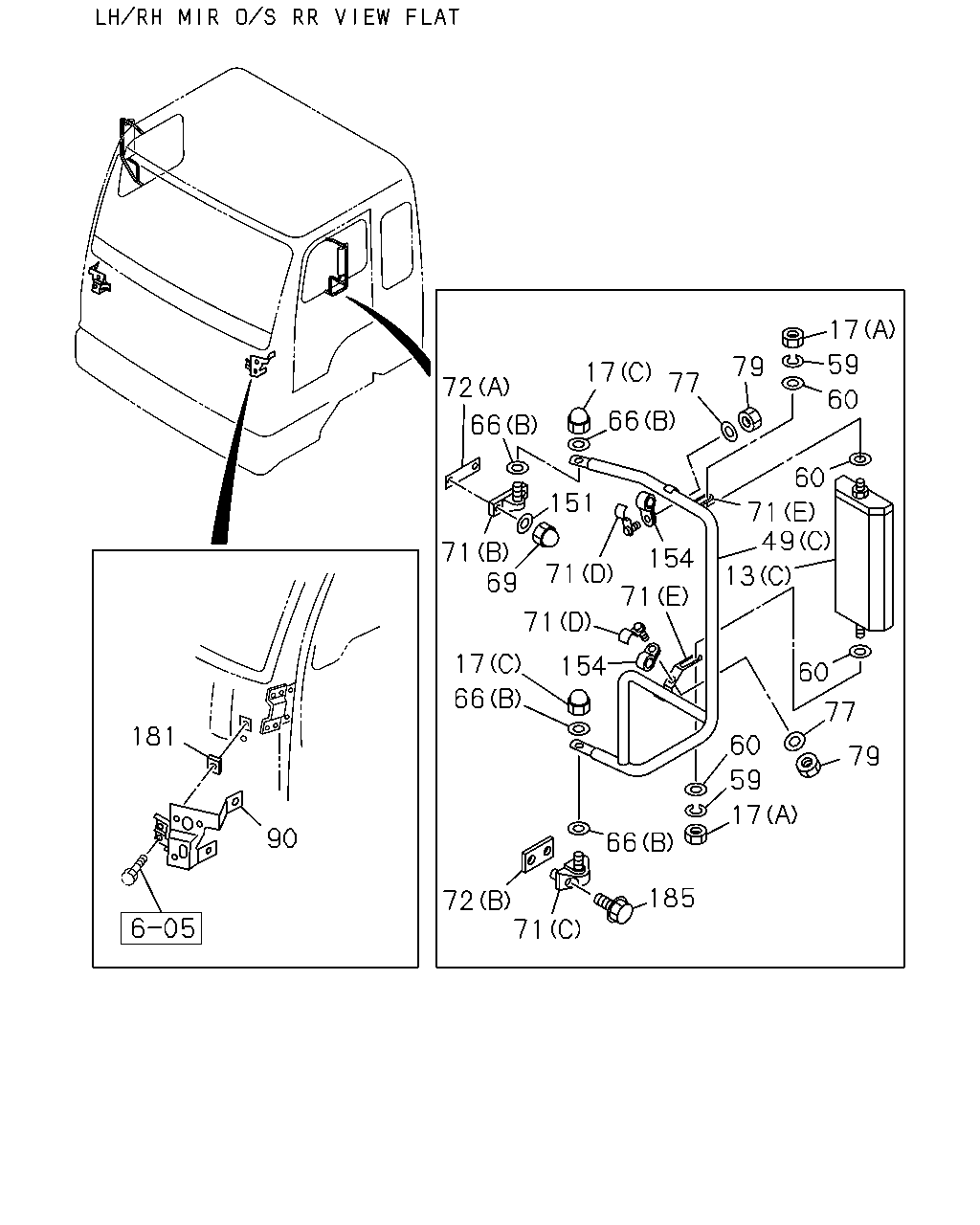

MIR O/S RR VIEW FLAT<YS1>
(C)
|
1-71737-487-3 |
02 |
1 |
9510-0004 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
(C)
|
1-71737-487-3 |
02 |
1 |
9510-0004 |
|
|
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW FLAT<YS1>
(C)
|
1-71737-487-3 |
02 |
1 |
0005- |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW

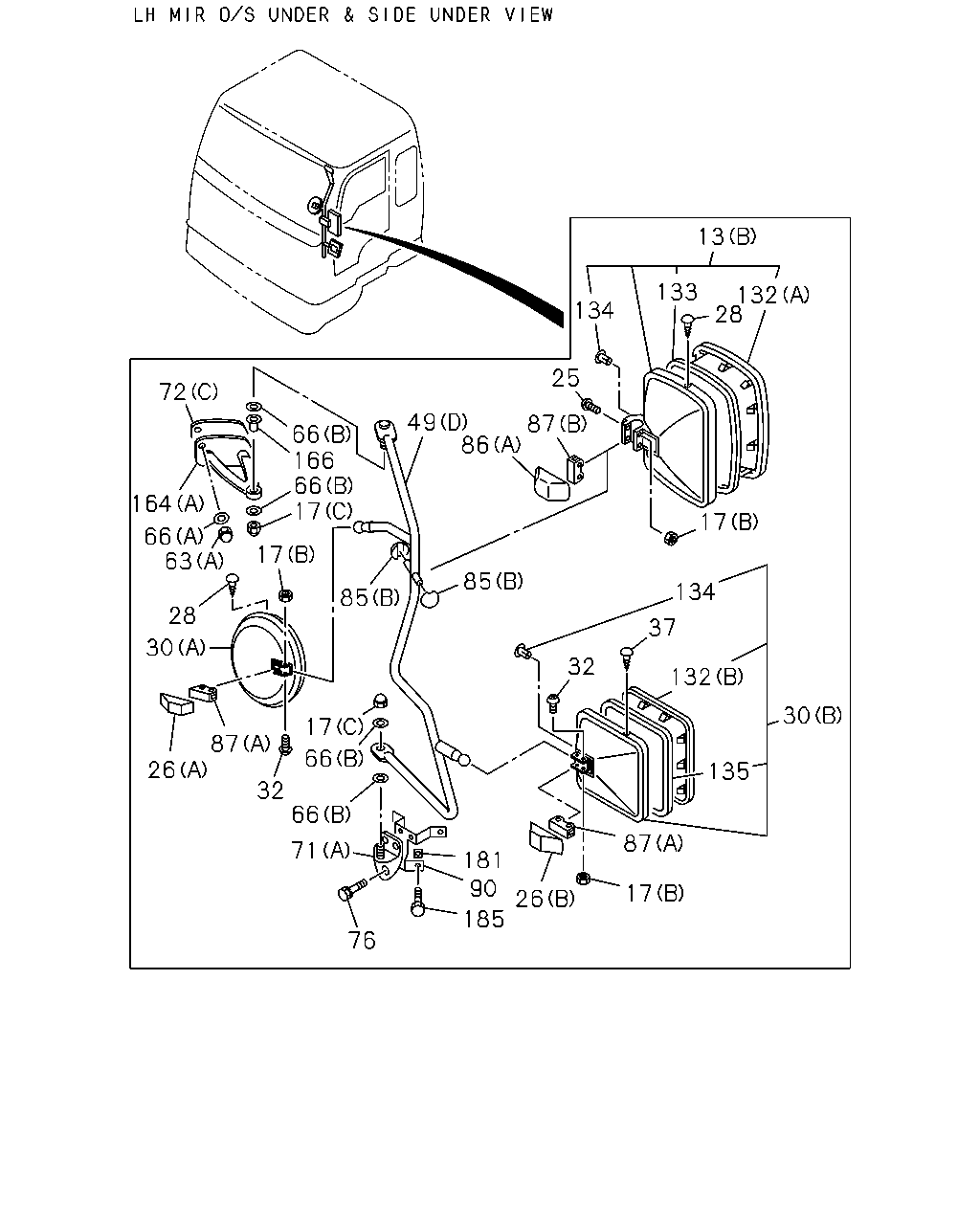

MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71737-917-1 |
01 |
1 |
9510-0004 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71737-917-3 |
01 |
1 |
0005- |
● |
● |
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S UNDER VIEW<RR9>
(A)
|
1-71737-918-1 |
01 |
1 |
9803-0004 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
(A)
|
1-71737-918-1 |
01 |
1 |
9803-0004 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71737-918-1 |
01 |
1 |
9803-0004 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW

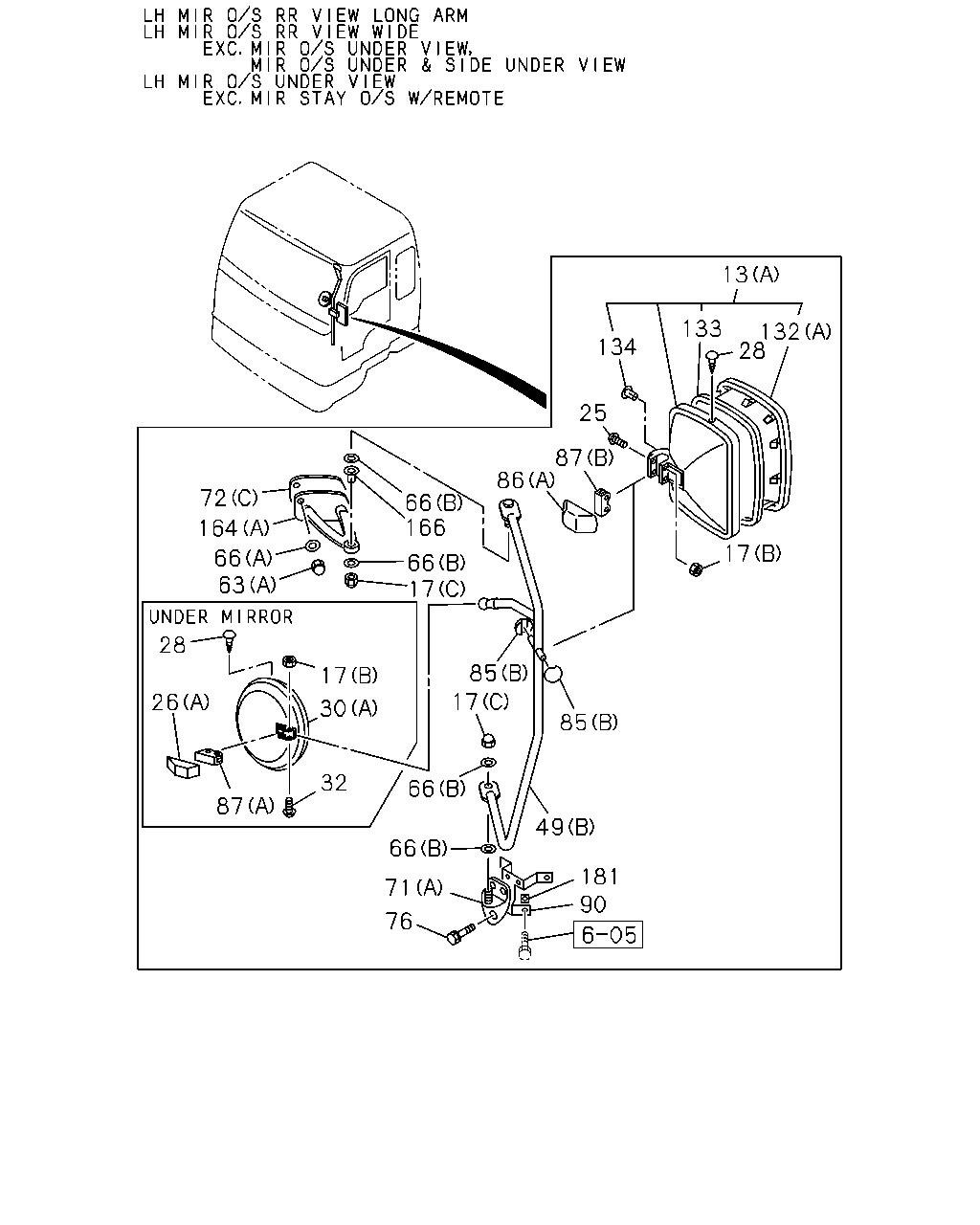

MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
|
1-71737-918-1 |
01 |
1 |
9803-0004 |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-918-1 |
01 |
1 |
9803-0004 |
|
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71737-918-3 |
01 |
1 |
0005- |
● |
● |
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
|
1-71737-918-3 |
01 |
1 |
0005- |
● |
● |
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-918-3 |
01 |
1 |
0005- |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
(A)
|
1-71737-918-3 |
01 |
1 |
0005- |
● |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-918-3 |
01 |
1 |
0005- |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
EXC. KENYA EQUIPMENT(PQ2)
(C)
M10
|
1-09984-183-0 |
04 |
1 |
9802-9803 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
(C)
M10
|
1-09984-183-0 |
04 |
1 |
9802-9803 |
|
|
● |
| |
17 |
NUT; CAP,MIRROR STAY
EXC. MIR O/S RR VIEW LONG ARM<DH2>
(C)
M10
|
1-09984-183-0 |
04 |
1 |
9804-0208 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
(C)
M10
|
1-09984-183-0 |
04 |
1 |
9804-0208 |
|
|
● |
| |
17 |
NUT; CAP,MIRROR STAY
EXC. MIR O/S RR VIEW LONG ARM<DH2>
(C)
M10 CAP NUT
|
1-09984-134-0 |
04 |
1 |
0209- |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
(C)
M10 CAP NUT
|
1-09984-134-0 |
04 |
1 |
0209- |
|
|
● |
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9510-9612 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9510-9612 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9510-9612 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9701-9802 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
KENYA EQUIPMENT(PQ2)
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9701-9802 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9701-9802 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9701-9802 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9803-0004 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9803-0004 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9803-0004 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
0005- |
● |
● |
● |
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
0005- |
● |
● |
● |
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
0005- |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
M5
|
1-09984-124-0 |
06 |
1 |
9510-0004 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
M5
|
1-09984-124-0 |
06 |
1 |
0005- |
● |
● |
● |
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW FLAT<YS1>
(A)
M8 FLANGE
|
1-09984-122-0 |
04 |
1 |
9510-0004 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
(A)
M8 FLANGE
|
1-09984-122-0 |
04 |
1 |
9510-0004 |
|
|
● |
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW FLAT<YS1>
(A)
M8 FLANGE
|
1-09984-122-0 |
04 |
1 |
0005- |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S UNDER VIEW<RR9>
(B)
M5
|
1-09984-124-0 |
04 |
1 |
9510-9802 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR STAY O/S W/REMOTE<TBA>
(B)
M5
|
1-09984-124-0 |
04 |
1 |
9510-9802 |
|
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
M5
|
1-09984-124-0 |
04 |
1 |
9803-9910 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(B)
M5
|
1-09984-124-0 |
04 |
1 |
9803-9910 |
|
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
M5
|
1-09984-124-0 |
04 |
1 |
9911- |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR STAY O/S W/REMOTE<TBA>
(B)
M5
|
1-09984-124-0 |
04 |
1 |
9911- |
|
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
(C)
M10
|
1-09984-183-0 |
04 |
1 |
9510-9801 |
● |
● |
● |
| |
17 |
NUT; CAP,MIRROR STAY
KENYA EQUIPMENT(PQ2)
(C)
M10
|
1-09984-183-0 |
02 |
1 |
9802-9803 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW LONG ARM<DH2>
(C)
M10
|
1-09984-183-0 |
02 |
1 |
9804-0208 |
● |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW LONG ARM<DH2>
(C)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0209- |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
M5X50
|
1-09981-444-0 |
04 |
1 |
9510-9612 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
M5X50
|
1-09981-444-0 |
04 |
1 |
9510-9612 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
M5X50
|
1-09981-444-0 |
04 |
1 |
9510-9612 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
M5X50
|
1-09981-444-0 |
02 |
1 |
9701-9801 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
M5X50
|
1-09981-444-0 |
02 |
1 |
9701-9801 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
M5X50
|
1-09981-444-0 |
02 |
1 |
9701-9801 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
KENYA EQUIPMENT(PQ2)
M5X50
|
1-09981-444-0 |
02 |
1 |
9802-9802 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
M5X50
|
1-09981-444-0 |
02 |
1 |
9802-9802 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
M5X50
|
1-09981-444-0 |
02 |
1 |
9802-9802 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
M5X50
|
1-09981-444-0 |
02 |
1 |
9802-9802 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
M5X50
|
1-09981-444-0 |
02 |
1 |
9802-9802 |
|
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
M5X50
|
1-09981-444-0 |
02 |
1 |
9803-0004 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
M5X50
|
1-09981-444-0 |
02 |
1 |
9803-0004 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
M5X50
|
1-09981-444-0 |
02 |
1 |
9803-0004 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
M5X50
|
1-09981-444-0 |
02 |
1 |
9803-0004 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
M5X50
|
1-09981-444-0 |
02 |
1 |
9803-0004 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
M5X50
|
1-09981-444-0 |
02 |
1 |
0005-0404 |
● |
● |
● |
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
M5X50
|
1-09981-444-0 |
02 |
1 |
0005-0404 |
● |
● |
● |
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
M5X50
|
1-09981-444-0 |
02 |
1 |
0005-0404 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
M5X50
|
1-09981-444-0 |
02 |
1 |
0005-0404 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
M5X50
|
1-09981-444-0 |
02 |
1 |
0005-0404 |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
|
1-09981-541-0 |
02 |
1 |
0405- |
● |
● |
● |
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
|
1-09981-541-0 |
02 |
1 |
0405- |
● |
● |
● |
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
|
1-09981-541-0 |
02 |
1 |
0405- |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
|
1-09981-541-0 |
02 |
1 |
0405- |
● |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
|
1-09981-541-0 |
02 |
1 |
0405- |
● |
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
BLACK
|
1-71737-652-1 |
01 |
1 |
9510-0004 |
● |
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
BLACK
|
1-71737-652-1 |
01 |
1 |
0005- |
● |
● |
● |
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
9803-0004 |
● |
|
|
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
9803-0004 |
|
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
9803-0004 |
|
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
9803-0004 |
|
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
0005- |
● |
● |
● |
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
0005- |
● |
● |
● |
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
0005- |
● |
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
0005- |
● |
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
0005- |
● |
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(C)
|
1-71798-316-2 |
01 |
1 |
9803- |
|
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
BLACK
|
1-71737-678-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
BLACK
|
1-71737-678-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
BLACK
|
1-71737-678-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
BLACK
|
1-71737-678-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
BLACK
|
1-71737-678-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
BLACK
|
1-71737-678-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
KENYA EQUIPMENT(PQ2)
BLACK
|
1-71737-678-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
BLACK
|
1-71737-678-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
BLACK
|
1-71737-678-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
BLACK
|
1-71737-678-0 |
01 |
1 |
9804-9910 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
BLACK
|
1-71737-678-0 |
01 |
1 |
9804-9910 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
BLACK
|
1-71737-678-0 |
01 |
1 |
9804-9910 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
BLACK
|
1-71737-678-0 |
02 |
1 |
9510-9802 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
BLACK
|
1-71737-678-0 |
02 |
1 |
9803-9910 |
● |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
BLACK
|
1-71737-678-0 |
02 |
1 |
9803-9910 |
|
● |
|
| |
30 |
MIRROR; UNDER
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71798-592-0 |
01 |
1 |
9510-0004 |
● |
● |
|
| |
30 |
MIRROR; UNDER
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71798-592-1 |
01 |
1 |
0005- |
● |
● |
● |
| |
30 |
MIRROR; UNDER
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
(A)
|
1-71798-591-0 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
30 |
MIRROR; UNDER
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71798-591-0 |
01 |
1 |
9803-0004 |
● |
● |
|
| |
30 |
MIRROR; UNDER
MIR STAY O/S W/REMOTE<TBA>
HIGH ROOF<S2F>
(A)
|
1-71798-591-0 |
01 |
1 |
9803-0004 |
|
● |
|
| |
30 |
MIRROR; UNDER
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71798-591-1 |
01 |
1 |
0005- |
● |
● |
● |
| |
30 |
MIRROR; UNDER
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71798-591-1 |
01 |
1 |
0005- |
|
● |
|
| |
32 |
SCREW; UNDER MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
M5X40 W/PL WASHER
|
1-71737-797-0 |
04 |
1 |
9510-0004 |
● |
● |
|
| |
32 |
SCREW; UNDER MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
M5X40 W/PL WASHER
|
1-71737-797-0 |
04 |
1 |
0005- |
● |
● |
● |
| |
32 |
SCREW; UNDER MIRROR
MIR O/S UNDER VIEW<RR9>
M5X40 W/PL WASHER
|
1-71737-797-0 |
02 |
1 |
9510-9802 |
● |
● |
|
| |
32 |
SCREW; UNDER MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
M5X40 W/PL WASHER
|
1-71737-797-0 |
02 |
1 |
9803-9910 |
● |
● |
|
| |
32 |
SCREW; UNDER MIRROR
MIR STAY O/S W/REMOTE<TBA>
HIGH ROOF<S2F>
M5X40 W/PL WASHER
|
1-71737-797-0 |
02 |
1 |
9803-9910 |
|
● |
|
| |
32 |
SCREW; UNDER MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
M5X40 W/PL WASHER
|
1-71737-797-0 |
02 |
1 |
9911- |
● |
● |
● |
| |
32 |
SCREW; UNDER MIRROR
MIR STAY O/S W/REMOTE<TBA>
M5X40 W/PL WASHER
|
1-71737-797-0 |
02 |
1 |
9911- |
|
● |
|
| |
46 |
WASHER; LK,STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
ID=10
|
1-09985-180-0 |
01 |
1 |
9803-0206 |
|
● |
|
| |
46 |
WASHER; LK,STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
ID=10
|
1-09985-345-0 |
01 |
1 |
0207- |
|
● |
|
| |
46 |
WASHER; LK,STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(B)
ID=16.7 OD=22.5 WAVE WASHER
|
9-61166-107-0 |
02 |
1 |
9803- |
|
● |
|
| |
49 |

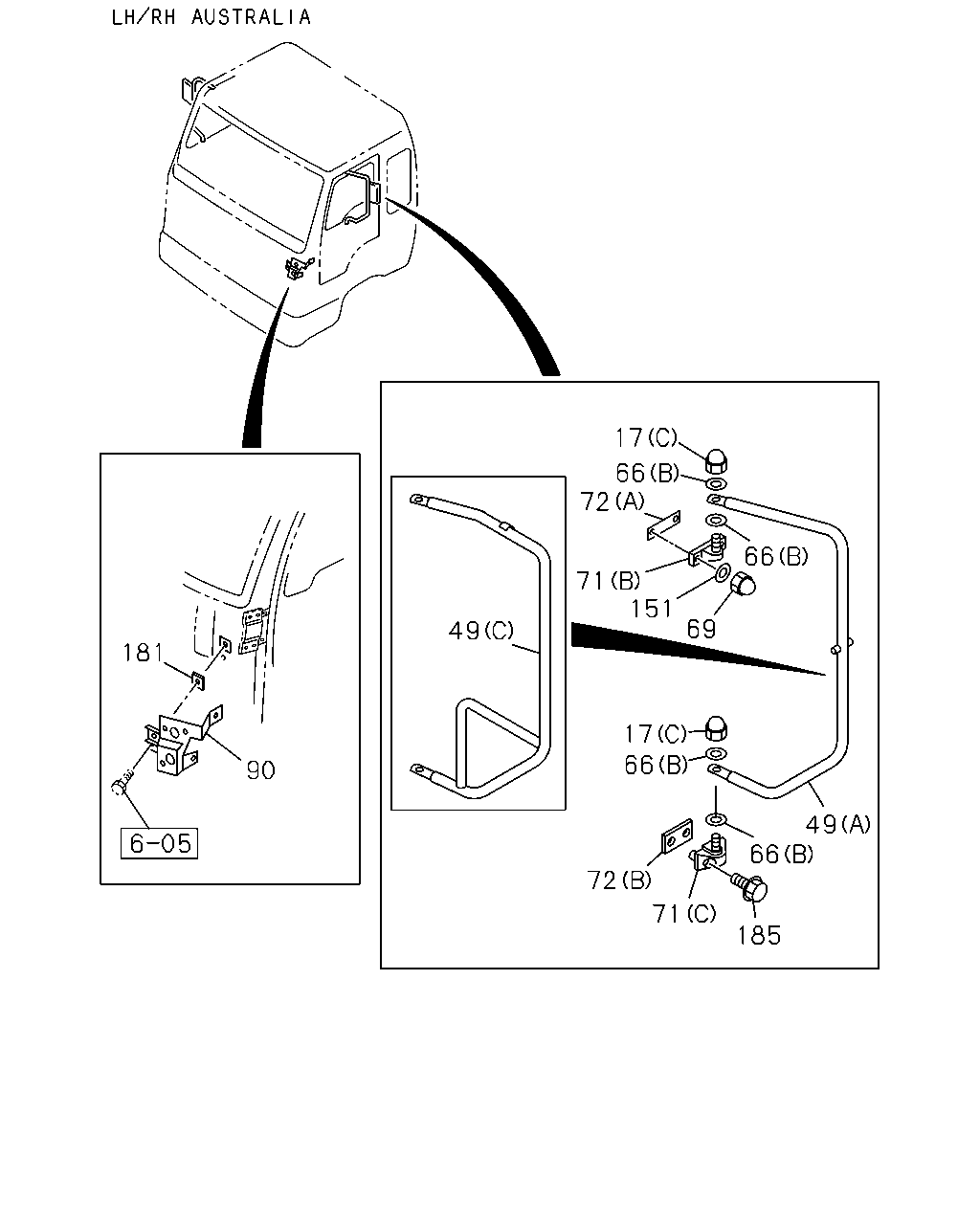

STAY; MIRROR SIDE
MIR O/S RR VIEW FLAT<YS1>
(C)
|
1-71798-483-2 |
01 |
1 |
9510-9608 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW FLAT<YS1>
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
|
1-71798-483-2 |
01 |
1 |
9510-9608 |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(RR3)
(C)
|
1-71798-483-2 |
01 |
1 |
9510-9608 |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
(C)
|
1-71798-483-2 |
01 |
1 |
9510-9608 |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW FLAT<YS1>
(C)
|
1-71798-483-2 |
01 |
1 |
9609-0004 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW FLAT<YS1>
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
|
1-71798-483-2 |
01 |
1 |
9609-0004 |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
|
1-71798-483-2 |
01 |
1 |
9609-0004 |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW FLAT<YS1>
(C)
|
1-71798-483-3 |
01 |
1 |
0005- |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW FLAT<YS1>
(C)
|
1-71798-482-2 |
01 |
1 |
9510-9608 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW FLAT<YS1>
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
|
1-71798-482-2 |
01 |
1 |
9510-9608 |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(RR3)
(C)
|
1-71798-482-2 |
01 |
1 |
9510-9608 |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
(C)
|
1-71798-482-2 |
01 |
1 |
9510-9608 |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW FLAT<YS1>
(C)
|
1-71798-482-2 |
01 |
1 |
9609-0004 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW FLAT<YS1>
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
|
1-71798-482-2 |
01 |
1 |
9609-0004 |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
|
1-71798-482-2 |
01 |
1 |
9609-0004 |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW FLAT<YS1>
(C)
|
1-71798-482-3 |
01 |
1 |
0005- |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S UNDER VIEW<RR9>
(B)
|
1-71797-856-2 |
01 |
1 |
9803- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71797-856-2 |
01 |
1 |
9803- |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
KENYA EQUIPMENT(PQ2)
(E)
|
1-71798-667-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
(E)
|
1-71798-667-0 |
01 |
1 |
9804-0101 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
(E)
|
1-71798-599-1 |
01 |
1 |
0102- |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71798-491-2 |
01 |
1 |
9510-9702 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71798-491-2 |
01 |
1 |
9703-0004 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(RR3)
(A)
|
1-71798-491-2 |
01 |
1 |
9703-0004 |
|
● |
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71798-491-3 |
01 |
1 |
0005- |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-490-2 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
(A)
|
1-71798-490-2 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(RR3)
(A)
|
1-71798-490-2 |
01 |
1 |
9802-9803 |
|
● |
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-490-2 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(RR3)
(A)
|
1-71798-490-2 |
01 |
1 |
9804-0004 |
|
● |
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-490-2 |
01 |
1 |
0005-0104 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-490-2 |
01 |
1 |
0005-0104 |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-490-3 |
01 |
1 |
0105- |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
(A)
|
1-71798-490-3 |
01 |
1 |
0105- |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
|
1-71798-516-2 |
01 |
1 |
9510-9803 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
|
1-71798-516-2 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
|
1-71798-516-4 |
01 |
1 |
0005-0104 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71798-516-4 |
01 |
1 |
0005-0104 |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
|
1-71798-516-4 |
01 |
1 |
0105- |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71798-516-4 |
01 |
1 |
0105- |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(D)
|
1-71798-517-2 |
01 |
1 |
9510-0004 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(D)
|
1-71798-517-4 |
01 |
1 |
0005- |
● |
● |
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S UNDER VIEW<RR9>
(B)
|
1-71797-856-0 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
49 |
STAY; MIRROR SIDE
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(F)
|
1-71798-778-1 |
01 |
1 |
9803-0004 |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR STAY O/S W/REMOTE<TBA>
(F)
|
1-71798-778-2 |
01 |
1 |
0005- |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(RR3)
(A)
|
1-71798-741-0 |
01 |
1 |
9609-9702 |
|
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(RR3)
(A)
|
1-71798-740-0 |
01 |
1 |
9609-9702 |
|
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(RR3)
(A)
|
1-71798-490-2 |
01 |
1 |
9703-9801 |
|
● |
● |
| |
54 |
BOLT; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
|
1-09980-618-0 |
01 |
1 |
9803- |
|
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
(A)
M8
|
1-09984-187-0 |
03 |
1 |
9510-9802 |
● |
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
(A)
M8
|
1-09984-187-0 |
03 |
1 |
9803-0004 |
● |
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
M8
|
1-09984-187-0 |
03 |
1 |
9803-0004 |
|
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
(A)
M8
|
1-09984-187-0 |
03 |
1 |
0005- |
● |
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
M8
|
1-09984-187-0 |
03 |
1 |
0005- |
|
● |
|
| |
63 |
NUT; STAY
(A)
M8
|
1-09984-187-0 |
03 |
1 |
0005- |
|
|
● |
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
(A)
M8
|
1-71707-105-0 |
03 |
1 |
0003-0004 |
● |
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
M8
|
1-71707-105-0 |
03 |
1 |
0003-0004 |
|
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
(A)
M8
|
1-71707-105-0 |
03 |
1 |
0005-0005 |
● |
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
M8
|
1-71707-105-0 |
03 |
1 |
0005-0005 |
|
● |
|
| |
63 |
NUT; STAY
(A)
M8
|
1-71707-105-0 |
03 |
1 |
0005-0005 |
|
|
● |
| |
63 |
NUT; STAY
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
LOW ROOF<6XQ>
(A)
M8
|
1-71707-105-0 |
02 |
1 |
0004-0005 |
● |
● |
|
| |
63 |
NUT; STAY
MIR O/S RR VIEW LONG ARM<DH2>
(A)
M8
|
1-71707-105-0 |
02 |
1 |
0004-0005 |
● |
● |
|
| |
63 |
NUT; STAY
MIR O/S RR VIEW WIDE<WU4>
LOW ROOF<6XQ>
(A)
M8
|
1-09984-187-0 |
02 |
1 |
9510-9801 |
● |
● |
|
| |
63 |
NUT; STAY
KENYA EQUIPMENT(PQ2)
(A)
M8
|
1-09984-187-0 |
02 |
1 |
9802-9803 |
● |
● |
|
| |
63 |
NUT; STAY
MIR O/S RR VIEW WIDE<WU4>
LOW ROOF<6XQ>
(A)
M8
|
1-09984-187-0 |
02 |
1 |
9802-9803 |
● |
● |
|
| |
63 |
NUT; STAY
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
LOW ROOF<6XQ>
(A)
M8
|
1-09984-187-0 |
02 |
1 |
9804- |
● |
● |
|
| |
63 |
NUT; STAY
MIR O/S RR VIEW LONG ARM<DH2>
(A)
M8
|
1-09984-187-0 |
02 |
1 |
9804- |
● |
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(C)
M10
|
1-09984-183-0 |
01 |
1 |
9803-9910 |
|
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(C)
M10
|
1-71798-833-0 |
01 |
1 |
9911-0206 |
|
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(C)
M10 CAP NUT
|
1-71798-859-0 |
01 |
1 |
0207- |
|
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(B)
M8
|
1-71798-603-1 |
02 |
1 |
9803- |
|
● |
|
| |
66 |
WASHER; PL
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
03 |
1 |
9510-9802 |
● |
● |
|
| |
66 |
WASHER; PL
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
03 |
1 |
9803-0004 |
● |
● |
|
| |
66 |
WASHER; PL
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
03 |
1 |
9803-0004 |
|
● |
|
| |
66 |
WASHER; PL
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
03 |
1 |
0005- |
● |
● |
|
| |
66 |
WASHER; PL
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
03 |
1 |
0005- |
|
● |
|
| |
66 |
WASHER; PL
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
03 |
1 |
0005- |
|
|
● |
| |
66 |
WASHER; PL
KENYA EQUIPMENT(PQ2)
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
9802-9803 |
● |
● |
|
| |
66 |
WASHER; PL
MIR O/S RR VIEW LONG ARM<DH2>
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
9804- |
● |
● |
|
| |
66 |
WASHER; PL
EXC. KENYA EQUIPMENT(PQ2)
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
08 |
1 |
9802-9803 |
● |
● |
|
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
08 |
1 |
9802-9803 |
|
|
● |
| |
66 |
WASHER; PL
EXC. MIR O/S RR VIEW LONG ARM<DH2>
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
08 |
1 |
9804- |
● |
● |
|
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
08 |
1 |
9804- |
|
|
● |
| |
66 |
WASHER; PL
MIR O/S RR VIEW WIDE<WU4>
LOW ROOF<6XQ>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9510-9801 |
● |
● |
|
| |
66 |
WASHER; PL
KENYA EQUIPMENT(PQ2)
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9802-9802 |
● |
● |
|
| |
66 |
WASHER; PL
MIR O/S RR VIEW WIDE<WU4>
LOW ROOF<6XQ>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9802-9802 |
● |
● |
|
| |
66 |
WASHER; PL
KENYA EQUIPMENT(PQ2)
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9803-9803 |
● |
● |
|
| |
66 |
WASHER; PL
MIR O/S RR VIEW WIDE<WU4>
LOW ROOF<6XQ>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9803-9803 |
● |
● |
|
| |
66 |
WASHER; PL
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9803-9803 |
|
● |
|
| |
66 |
WASHER; PL
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
LOW ROOF<6XQ>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9804- |
● |
● |
|
| |
66 |
WASHER; PL
MIR O/S RR VIEW LONG ARM<DH2>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9804- |
● |
● |
|
| |
66 |
WASHER; PL
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9804- |
|
● |
|
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
08 |
1 |
9510-9710 |
● |
● |
● |
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
08 |
1 |
9711-9801 |
● |
● |
● |
| |
66 |
WASHER; PL
KENYA EQUIPMENT(PQ2)
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
04 |
1 |
9802-9803 |
● |
● |
|
| |
66 |
WASHER; PL
MIR O/S RR VIEW LONG ARM<DH2>
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
04 |
1 |
9804- |
● |
● |
|
| |
66 |
WASHER; PL
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(C)
ID=12.5
|
1-09985-334-0 |
03 |
1 |
9803- |
|
● |
|
| |
67 |
NUT; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
M12
|
1-09984-178-1 |
02 |
1 |
9803- |
|
● |
|
| |
67 |
NUT; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(B)
M12
|
1-09984-184-1 |
01 |
1 |
9803- |
|
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW FLAT<YS1>
(D)
|
1-71736-224-3 |
04 |
1 |
9510-0004 |
● |
|
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW FLAT<YS1>
EXC. AUSTRALIA EQUIPMENT(RR3)
(D)
|
1-71736-224-3 |
04 |
1 |
9510-0004 |
|
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. AUSTRALIA EQUIPMENT(RR3)
(D)
|
1-71736-224-3 |
04 |
1 |
9510-0004 |
|
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW FLAT<YS1>
(D)
|
1-71736-224-3 |
04 |
1 |
0005- |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW FLAT<YS1>
(E)
|
1-71736-404-1 |
04 |
1 |
9510-0004 |
● |
|
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW FLAT<YS1>
EXC. AUSTRALIA EQUIPMENT(RR3)
(E)
|
1-71736-404-1 |
04 |
1 |
9510-0004 |
|
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. AUSTRALIA EQUIPMENT(RR3)
(E)
|
1-71736-404-1 |
04 |
1 |
9510-0004 |
|
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW FLAT<YS1>
(E)
|
1-71736-404-1 |
04 |
1 |
0005- |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
KENYA EQUIPMENT(PQ2)
(E)
|
1-71798-309-3 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>
(F)
|
1-71798-309-4 |
01 |
1 |
9804- |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW FLAT<YS1>
(B)
|
1-71798-484-1 |
02 |
1 |
9510-0004 |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(B)
|
1-71798-484-1 |
02 |
1 |
9510-0004 |
|
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW FLAT<YS1>
(B)
|
1-71798-484-1 |
02 |
1 |
0005- |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW FLAT<YS1>
(C)
|
1-71798-486-2 |
02 |
1 |
9510-0004 |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(C)
|
1-71798-486-2 |
02 |
1 |
9510-0004 |
|
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW FLAT<YS1>
(C)
|
1-71798-486-2 |
02 |
1 |
0005- |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(B)
|
1-71798-484-1 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(C)
|
1-71798-486-1 |
01 |
1 |
9510-9709 |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-581-3 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-581-3 |
01 |
1 |
9803-9803 |
● |
|
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71798-581-3 |
01 |
1 |
9803-9803 |
|
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
(A)
|
1-71798-581-3 |
01 |
1 |
9804-0004 |
● |
|
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71798-581-3 |
01 |
1 |
9804-0004 |
|
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71798-581-3 |
01 |
1 |
0005-0104 |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-581-3 |
01 |
1 |
0005-0104 |
|
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71798-581-3 |
01 |
1 |
0105- |
● |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
(B)
|
1-71798-484-1 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(B)
|
1-71798-484-1 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(B)
|
1-71798-484-1 |
01 |
1 |
0005-0104 |
● |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(B)
|
1-71798-484-1 |
01 |
1 |
0105- |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(B)
|
1-71798-484-1 |
01 |
1 |
0105- |
|
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
(C)
|
1-71798-486-2 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(C)
|
1-71798-486-2 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(C)
|
1-71798-486-2 |
01 |
1 |
0005-0104 |
● |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(C)
|
1-71798-486-2 |
01 |
1 |
0105- |
● |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(C)
|
1-71798-486-2 |
01 |
1 |
0105- |
|
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(G)
|
1-71798-310-2 |
01 |
1 |
9803- |
|
● |
|
| |
76 |
BOLT; STAY BRKT
KENYA EQUIPMENT(PQ2)
M8X40 FLANGE
|
0-28680-840-0 |
03 |
1 |
9802-9803 |
● |
● |
|
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW LONG ARM<DH2>
M8X40 FLANGE
|
0-28680-840-0 |
03 |
1 |
9804-9807 |
● |
● |
|
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW LONG ARM<DH2>
M8X40 FLANGE
|
0-28680-840-0 |
03 |
1 |
9808-0009 |
● |
● |
|
| |
76 |
BOLT; STAY BRKT
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
EXC. MIR O/S RR VIEW WIDE<WU4>
M8X40 FLANGE
|
0-28680-840-0 |
03 |
1 |
9808-0009 |
|
● |
|
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW LONG ARM<DH2>
M8X40 W/LK&PL WASHER
|
0-50140-840-0 |
03 |
1 |
0010-0512 |
● |
● |
|
| |
76 |
BOLT; STAY BRKT
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
EXC. MIR O/S RR VIEW WIDE<WU4>
M8X40 W/LK&PL WASHER
|
0-50140-840-0 |
03 |
1 |
0010-0512 |
|
● |
|
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW LONG ARM<DH2>
M8X40 W/LK&PL WASHER
|
0-50640-840-0 |
03 |
1 |
0601- |
● |
● |
|
| |
76 |
BOLT; STAY BRKT
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
EXC. MIR O/S RR VIEW WIDE<WU4>
M8X40 W/LK&PL WASHER
|
0-50640-840-0 |
03 |
1 |
0601- |
|
● |
|
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW WIDE<WU4>
M8X30 W/LK WASHER
|
8-94279-183-0 |
03 |
1 |
9510-9802 |
● |
● |
|
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW WIDE<WU4>
M8X30 W/LK WASHER
|
8-94279-183-0 |
03 |
1 |
9803-9803 |
● |
|
|
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR STAY O/S W/REMOTE<TBA>
M8X30 W/LK WASHER
|
8-94279-183-0 |
03 |
1 |
9803-9803 |
|
● |
|
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
M8X30 W/LK WASHER
|
8-94279-183-0 |
03 |
1 |
9804-0004 |
● |
|
|
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR STAY O/S W/REMOTE<TBA>
M8X30 W/LK WASHER
|
8-94279-183-0 |
03 |
1 |
9804-0004 |
|
● |
|
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR STAY O/S W/REMOTE<TBA>
M8X30 W/LK WASHER
|
8-94279-183-1 |
03 |
1 |
0005-0104 |
● |
● |
|
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW WIDE<WU4>
M8X30 W/LK WASHER
|
8-94279-183-1 |
03 |
1 |
0005-0104 |
|
|
● |
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR STAY O/S W/REMOTE<TBA>
M8X30 W/LK WASHER
|
8-94279-183-1 |
03 |
1 |
0105- |
● |
● |
● |
| |
76 |
BOLT; STAY BRKT
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
M8X40 FLANGE
|
0-28680-840-0 |
01 |
1 |
9803-9807 |
|
● |
|
| |
77 |
WASHER; PL,BRKT,STAY
MIR O/S RR VIEW FLAT<YS1>
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
04 |
1 |
9510-0004 |
● |
|
|
| |
77 |
WASHER; PL,BRKT,STAY
MIR O/S RR VIEW FLAT<YS1>
EXC. AUSTRALIA EQUIPMENT(RR3)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
04 |
1 |
9510-0004 |
|
● |
|
| |
77 |
WASHER; PL,BRKT,STAY
EXC. AUSTRALIA EQUIPMENT(RR3)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
04 |
1 |
9510-0004 |
|
|
● |
| |
77 |
WASHER; PL,BRKT,STAY
MIR O/S RR VIEW FLAT<YS1>
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
04 |
1 |
0005- |
● |
● |
|
| |
77 |
WASHER; PL,BRKT,STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
01 |
1 |
9803- |
|
● |
|
| |
79 |
NUT; BRKT,STAY
MIR O/S RR VIEW FLAT<YS1>
M8 FLANGE
|
1-09984-122-0 |
04 |
1 |
9510-0004 |
● |
|
|
| |
79 |
NUT; BRKT,STAY
MIR O/S RR VIEW FLAT<YS1>
EXC. AUSTRALIA EQUIPMENT(RR3)
M8 FLANGE
|
1-09984-122-0 |
04 |
1 |
9510-0004 |
|
● |
|
| |
79 |
NUT; BRKT,STAY
EXC. AUSTRALIA EQUIPMENT(RR3)
M8 FLANGE
|
1-09984-122-0 |
04 |
1 |
9510-0004 |
|
|
● |
| |
79 |
NUT; BRKT,STAY
MIR O/S RR VIEW FLAT<YS1>
M8 FLANGE
|
1-09984-122-0 |
04 |
1 |
0005- |
● |
● |
|
| |
79 |
NUT; BRKT,STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
M10 H=8.3
|
1-09984-146-0 |
01 |
1 |
9803- |
|
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9510-9612 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9510-9612 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9701-9801 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9802-9803 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
KENYA EQUIPMENT(PQ2)
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9802-9803 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9802-9803 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9804-9806 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9804-9806 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9807-0004 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9807-0004 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0005-0104 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0005-0104 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW WIDE<WU4>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0005-0104 |
|
|
● |
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0105- |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0105- |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0105- |
|
|
● |
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW WIDE<WU4>
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
9510-9802 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
9803-0004 |
● |
● |
● |
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
9803-0004 |
● |
● |
● |
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW LONG ARM<DH2>
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
9803-0004 |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
9803-0004 |
|
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR STAY O/S W/REMOTE<TBA>
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
9803-0004 |
|
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
0005- |
● |
● |
● |
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
0005- |
● |
● |
● |
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW LONG ARM<DH2>
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
0005- |
● |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR STAY O/S W/REMOTE<TBA>
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
0005- |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
KENYA EQUIPMENT(PQ2)
(D)
|
1-71798-695-0 |
01 |
1 |
9803-9803 |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>
(D)
|
1-71798-695-0 |
01 |
1 |
9804- |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
BLACK
|
1-71737-760-0 |
02 |
1 |
9510-9612 |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
KENYA EQUIPMENT(PQ2)
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9802-9803 |
● |
|
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9802-9803 |
|
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9802-9803 |
|
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9802-9803 |
|
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9804-0004 |
● |
|
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9804-0004 |
|
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9804-0004 |
|
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
BLACK
|
1-71737-760-0 |
01 |
1 |
9804-0004 |
|
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
BLACK
|
1-71737-760-1 |
01 |
1 |
0005- |
● |
● |
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
BLACK
|
1-71737-760-1 |
01 |
1 |
0005- |
● |
● |
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
(A)
BLACK
|
1-71737-760-1 |
01 |
1 |
0005- |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
BLACK
|
1-71737-760-1 |
01 |
1 |
0005- |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
(A)
BLACK
|
1-71737-760-1 |
01 |
1 |
0005- |
● |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71798-732-0 |
01 |
1 |
9803- |
|
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(C)
|
1-71798-733-0 |
01 |
1 |
9803- |
|
● |
|
| |
87 |
SPACER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(B)
|
1-71737-704-0 |
02 |
1 |
9510-9612 |
● |
● |
|
| |
87 |
SPACER
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
|
1-71737-704-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
87 |
SPACER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(B)
|
1-71737-704-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
87 |
SPACER
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
(B)
|
1-71737-704-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
87 |
SPACER
KENYA EQUIPMENT(PQ2)
(B)
|
1-71737-704-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
87 |
SPACER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
(B)
|
1-71737-704-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
87 |
SPACER
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
|
1-71737-704-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
87 |
SPACER
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-704-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
87 |
SPACER
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-704-0 |
01 |
1 |
9802-9803 |
|
● |
|
| |
87 |
SPACER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
(B)
|
1-71737-704-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
87 |
SPACER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(B)
|
1-71737-704-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
87 |
SPACER
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-704-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
87 |
SPACER
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-704-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
87 |
SPACER
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
|
1-71737-704-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
87 |
SPACER
MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-704-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
87 |
SPACER
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(B)
|
1-71737-704-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
87 |
SPACER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
(B)
|
1-71737-704-0 |
01 |
1 |
0005- |
● |
● |
|
| |
87 |
SPACER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(B)
|
1-71737-704-0 |
01 |
1 |
0005- |
● |
● |
|
| |
87 |
SPACER
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-704-0 |
01 |
1 |
0005- |
● |
● |
|
| |
87 |
SPACER
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71737-646-2 |
02 |
1 |
9510-0004 |
● |
● |
|
| |
87 |
SPACER
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71737-646-2 |
02 |
1 |
0005- |
● |
● |
● |
| |
87 |
SPACER
MIR O/S UNDER VIEW<RR9>
(A)
|
1-71737-646-2 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
87 |
SPACER
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-646-2 |
01 |
1 |
9803-9910 |
● |
● |
|
| |
87 |
SPACER
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-646-2 |
01 |
1 |
9803-9910 |
|
● |
|
| |
87 |
SPACER
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-646-2 |
01 |
1 |
9911- |
● |
● |
|
| |
87 |
SPACER
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-646-2 |
01 |
1 |
9911- |
|
● |
|
| |
90 |
BRACKET; MIRROR STAY
|
1-71798-229-4 |
01 |
1 |
9510-9903 |
● |
● |
● |
| |
90 |
BRACKET; MIRROR STAY
|
1-71798-829-1 |
01 |
1 |
9904- |
● |
● |
● |
| |
90 |
BRACKET; MIRROR STAY
|
1-71798-228-4 |
01 |
1 |
9510-9903 |
● |
● |
● |
| |
90 |
BRACKET; MIRROR STAY
|
1-71798-828-1 |
01 |
1 |
9904-0809 |
● |
● |
● |
| |
90 |
BRACKET; MIRROR STAY
|
1-71707-237-0 |
01 |
1 |
0810- |
● |
● |
● |
| |
118 |
JOINT ASM; BALL
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(B)
RH THREAD
|
1-71798-819-2 |
01 |
1 |
9805- |
|
● |
|
| |
118 |
JOINT ASM; BALL
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
LH THREAD
|
1-71798-820-2 |
01 |
1 |
9805- |
|
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71737-934-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71737-934-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
|
1-71737-934-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S UNDER VIEW<RR9>
(A)
|
1-71737-934-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
|
1-71737-934-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S UNDER VIEW<RR9>
(A)
|
1-71737-934-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71737-934-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-934-0 |
01 |
1 |
9802-9802 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71737-934-0 |
01 |
1 |
9802-9802 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2),MIR O/S UNDER VIEW<RR9>
,MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71737-934-0 |
01 |
1 |
9802-9802 |
● |
● |
|
| |
132 |
RING; MIRROR
KENYA EQUIPMENT(PQ2)
(A)
|
1-71737-934-0 |
01 |
1 |
9802-9802 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-934-0 |
01 |
1 |
9802-9802 |
|
● |
|
| |
132 |
RING; MIRROR
MIR O/S UNDER VIEW<RR9>
(A)
|
1-71737-934-0 |
01 |
1 |
9803-0004 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
(A)
|
1-71737-934-0 |
01 |
1 |
9803-0004 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71737-934-0 |
01 |
1 |
9803-0004 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
|
1-71737-934-0 |
01 |
1 |
9803-0004 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-934-0 |
01 |
1 |
9803-0004 |
|
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71737-934-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
132 |
RING; MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
(A)
|
1-71737-934-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
132 |
RING; MIRROR
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-934-0 |
01 |
1 |
0005- |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
(A)
|
1-71737-934-0 |
01 |
1 |
0005- |
● |
● |
|
| |
132 |
RING; MIRROR
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-934-0 |
01 |
1 |
0005- |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71737-933-0 |
01 |
1 |
9510-0004 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71737-933-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
132 |
RING; MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71737-935-0 |
01 |
1 |
9510-0004 |
● |
● |
|
| |
132 |
RING; MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71737-935-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
|
1-71737-927-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
|
1-71737-927-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
|
1-71737-927-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S UNDER VIEW<RR9>
|
1-71737-927-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
|
1-71737-927-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S UNDER VIEW<RR9>
|
1-71737-927-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
|
1-71737-927-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
|
1-71737-927-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
|
1-71737-927-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2),MIR O/S UNDER VIEW<RR9>
,MIR O/S UNDER & SIDE UNDER VIEW<TAF>
|
1-71737-927-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
KENYA EQUIPMENT(PQ2)
|
1-71737-927-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR STAY O/S W/REMOTE<TBA>
|
1-71737-927-0 |
01 |
1 |
9802-9803 |
|
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S UNDER VIEW<RR9>
|
1-71737-927-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
|
1-71737-927-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
|
1-71737-927-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
|
1-71737-927-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR STAY O/S W/REMOTE<TBA>
|
1-71737-927-0 |
01 |
1 |
9804-0004 |
|
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
|
1-71737-927-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
|
1-71737-927-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
|
1-71737-927-0 |
01 |
1 |
0005- |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
|
1-71737-927-0 |
01 |
1 |
0005- |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR STAY O/S W/REMOTE<TBA>
|
1-71737-927-0 |
01 |
1 |
0005- |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
|
1-71737-926-0 |
01 |
1 |
9510-0004 |
● |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
|
1-71737-926-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
|
1-71737-936-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
|
1-71737-936-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
|
1-71737-936-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S UNDER VIEW<RR9>
|
1-71737-936-0 |
01 |
1 |
9510-9612 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
|
1-71737-936-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S UNDER VIEW<RR9>
|
1-71737-936-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
|
1-71737-936-0 |
01 |
1 |
9701-9801 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
|
1-71737-936-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
|
1-71737-936-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2),MIR O/S UNDER VIEW<RR9>
,MIR O/S UNDER & SIDE UNDER VIEW<TAF>
|
1-71737-936-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
KENYA EQUIPMENT(PQ2)
|
1-71737-936-0 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR STAY O/S W/REMOTE<TBA>
|
1-71737-936-0 |
01 |
1 |
9802-9803 |
|
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S UNDER VIEW<RR9>
|
1-71737-936-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
|
1-71737-936-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
|
1-71737-936-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
|
1-71737-936-0 |
01 |
1 |
9804-0004 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR STAY O/S W/REMOTE<TBA>
|
1-71737-936-0 |
01 |
1 |
9804-0004 |
|
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
|
1-71737-936-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDEUNDER VIEW<TAF>
|
1-71737-936-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
134 |
CLIP; MIRROR LENS
MIR O/S UNDER VIEW<RR9>
EXC. MIR STAY O/S W/REMOTE<TBA>
|
1-71737-936-0 |
01 |
1 |
0005- |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW LONG ARM<DH2>
|
1-71737-936-0 |
01 |
1 |
0005- |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR STAY O/S W/REMOTE<TBA>
|
1-71737-936-0 |
01 |
1 |
0005- |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
|
1-71737-936-0 |
02 |
1 |
9510-0004 |
● |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
|
1-71737-936-0 |
02 |
1 |
0005- |
● |
● |
● |
| |
151 |
WASHER; PL,MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW FLAT<YS1>
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
04 |
1 |
9510-0004 |
● |
● |
|
| |
151 |
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
04 |
1 |
9510-0004 |
|
|
● |
| |
151 |
WASHER; PL,MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW FLAT<YS1>
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
04 |
1 |
0005- |
● |
● |
|
| |
151 |
WASHER; PL,MIRROR
MIR O/S RR VIEW WIDE<WU4>
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9510-9612 |
● |
● |
|
| |
151 |
WASHER; PL,MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9802-9803 |
● |
● |
|
| |
151 |
WASHER; PL,MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9804-0004 |
● |
● |
|
| |
151 |
WASHER; PL,MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
0005-0104 |
● |
● |
|
| |
151 |
WASHER; PL,MIRROR
MIR O/S RR VIEW WIDE<WU4>
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
0005-0104 |
|
|
● |
| |
151 |
WASHER; PL,MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. KENYA EQUIPMENT(PQ2)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
0105-0307 |
● |
● |
● |
| |
151 |
WASHER; PL,MIRROR
MIR O/S RR VIEW WIDE<WU4>
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
0308- |
● |
● |
|
| |
151 |
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
0308- |
|
|
● |
| |
151 |
WASHER; PL,MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
02 |
1 |
9803-9910 |
|
● |
|
| |
151 |
WASHER; PL,MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
01 |
1 |
9911- |
|
● |
|
| |
164 |
STAY; ROOF
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-299-4 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
164 |
STAY; ROOF
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-299-4 |
01 |
1 |
9803-0004 |
● |
● |
|
| |
164 |
STAY; ROOF
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71798-299-4 |
01 |
1 |
9803-0004 |
|
● |
|
| |
164 |
STAY; ROOF
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-299-4 |
01 |
1 |
0005- |
● |
● |
|
| |
164 |
STAY; ROOF
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71798-299-4 |
01 |
1 |
0005- |
|
● |
|
| |
164 |
STAY; ROOF
(A)
|
1-71798-299-4 |
01 |
1 |
0005- |
|
|
● |
| |
164 |
STAY; ROOF
KENYA EQUIPMENT(PQ2)
(A)
|
1-71798-210-4 |
01 |
1 |
9802-9803 |
● |
● |
|
| |
164 |
STAY; ROOF
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
1-71798-210-4 |
01 |
1 |
9804- |
● |
● |
|
| |
164 |
STAY; ROOF
MIR O/S RR VIEW WIDE<WU4>
LOW ROOF<6XQ>
(A)
|
1-71798-211-4 |
01 |
1 |
9510-9803 |
● |
● |
|
| |
164 |
STAY; ROOF
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
LOW ROOF<6XQ>
(A)
|
1-71798-211-4 |
01 |
1 |
9804- |
● |
● |
|
| |
164 |
STAY; ROOF
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71798-602-1 |
01 |
1 |
9803- |
|
● |
|
| |
165 |
LINK; POWER MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71798-600-1 |
01 |
1 |
9803- |
|
● |
|
| |
165 |
LINK; POWER MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71798-782-2 |
01 |
1 |
9803- |
|
● |
|
| |
166 |
BUSHING; STAY
MIR O/S RR VIEW WIDE<WU4>
|
1-09983-175-1 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
166 |
BUSHING; STAY
MIR O/S RR VIEW WIDE<WU4>
|
1-09983-175-1 |
01 |
1 |
9803-9803 |
● |
|
|
| |
166 |
BUSHING; STAY
MIR O/S RR VIEW WIDE<WU4>
EXC. MIR STAY O/S W/REMOTE<TBA>
|
1-09983-175-1 |
01 |
1 |
9803-9803 |
|
● |
|
| |
166 |
BUSHING; STAY
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
|
1-09983-175-1 |
01 |
1 |
9804-0004 |
● |
|
|
| |
166 |
BUSHING; STAY
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR STAY O/S W/REMOTE<TBA>
|
1-09983-175-1 |
01 |
1 |
9804-0004 |
|
● |
|
| |
166 |
BUSHING; STAY
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR STAY O/S W/REMOTE<TBA>
|
1-09983-175-1 |
01 |
1 |
0005-0104 |
● |
● |
|
| |
166 |
BUSHING; STAY
MIR O/S RR VIEW WIDE<WU4>
|
1-09983-175-1 |
01 |
1 |
0005-0104 |
|
|
● |
| |
166 |
BUSHING; STAY
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. MIR STAY O/S W/REMOTE<TBA>
|
1-09983-175-1 |
01 |
1 |
0105- |
● |
● |
● |
| |
166 |
BUSHING; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
|
1-09983-179-0 |
02 |
1 |
9803- |
|
● |
|
| |
167 |
RUBBER; STOPPER
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
|
1-71798-308-0 |
01 |
1 |
9803- |
|
● |
|
| |
168 |
POWER UNIT; MIRROR STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
|
1-86855-025-1 |
01 |
1 |
9803-9907 |
|
● |
|
| |
168 |
POWER UNIT; MIRROR STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
|
1-86855-027-0 |
01 |
1 |
9908-0009 |
|
● |
|
| |
168 |
POWER UNIT; MIRROR STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
|
1-86855-031-0 |
01 |
1 |
0010-0202 |
|
● |
|
| |
168 |
POWER UNIT; MIRROR STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
|
1-86855-035-0 |
01 |
1 |
0203-0204 |
|
● |
|
| |
168 |
POWER UNIT; MIRROR STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
|
1-86855-031-0 |
01 |
1 |
0205-1311 |
|
● |
|
| |
168 |
POWER UNIT; MIRROR STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
|
8-98251-163-0 |
01 |
1 |
1312- |
|
● |
|
| |
169 |
WASHER; PL,POWER UNIT
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
ID=26.2 OD=44 T=2
|
1-86855-011-1 |
01 |
1 |
9803- |
|
● |
|
| |
170 |
CAP; POWER UNIT
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-86855-012-0 |
01 |
1 |
9803- |
|
● |
|
| |
170 |
CAP; POWER UNIT
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-86855-014-1 |
01 |
1 |
9803- |
|
● |
|
| |
171 |
NUT; POWER UNIT
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
M26
|
1-86855-013-1 |
01 |
1 |
9803- |
|
● |
|
| |
172 |
SEAL; RUBBER,POWER UNIT
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-79928-003-1 |
01 |
1 |
9803- |
|
● |
|
| |
172 |
SEAL; RUBBER,POWER UNIT
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-86855-015-0 |
01 |
1 |
9803- |
|
● |
|
| |
173 |
BOLT; POWER UNIT
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
M6X16 W/LK&PL WASHER
|
1-09980-574-0 |
04 |
1 |
9803- |
|
● |
|
| |
181 |
SEAL; BRKT
25X25
|
8-94272-533-0 |
02 |
1 |
9510- |
● |
● |
● |
| |
190 |
SCREW; COVER
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
M6X16 W/LK&PL WASHER
|
8-94279-402-0 |
01 |
1 |
9803- |
|
● |
|
| |
200 |
STOPPER; STAY
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
|
1-71798-597-0 |
01 |
1 |
9803- |
|
● |
|
| |
201 |
ROD; MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
|
1-71798-821-0 |
01 |
1 |
9805- |
|
● |
|
