◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

7-10 — CAUTION PLATE AND LABEL (#36682) — 83 parça

49 109 51 51 60 60 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85888-558-0	01	1	9510-0109	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-224-0	01	1	0110-	●	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-85888-554-2	01	1	9510-9802	●	●
49	PLATE; CAUTION,FUSE BOX	1-85888-554-2	01	1	9510-9802			●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-85877-623-0	01	1	9803-9806	●	●
49	PLATE; CAUTION,FUSE BOX	1-85877-623-0	01	1	9803-9806			●
49	PLATE; CAUTION,FUSE BOX EXC. ELEC OUTLET 12V<TAW>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>	1-85877-623-0	01	1	9807-0004		●	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-85878-278-0	01	1	0005-0010	●	●
49	PLATE; CAUTION,FUSE BOX	1-85878-278-0	01	1	0005-0010			●
49	PLATE; CAUTION,FUSE BOX EXC. NEW ZEALAND EQUIPMENT(PK5),CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-85878-278-0	01	1	0011-	●	●
49	PLATE; CAUTION,FUSE BOX 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-85878-278-0	01	1	0011-		●
49	PLATE; CAUTION,FUSE BOX	1-85878-278-0	01	1	0011-			●
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85888-557-0	01	1	9510-	●	●
49	PLATE; CAUTION,FUSE BOX 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-85878-324-0	01	1	0011-0602		●
49	PLATE; CAUTION,FUSE BOX 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5)	1-85878-324-0	01	1	0603-		●
49	PLATE; CAUTION,FUSE BOX ELEC OUTLET 12V<TAW> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-85878-077-0	01	1	9807-0004		●	●
51	PLATE; CAUTION,WARNING 6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (B)	1-85878-472-0	01	1	0603-		●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-709-1	01	1	9510-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-560-2	01	1	9510-	●	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85880-707-1	01	1	9510-	●	●
51	PLATE; CAUTION,WARNING (A)	1-85880-707-1	01	1	9510-			●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-559-2	01	1	9510-0010	●	●
51	PLATE; CAUTION,WARNING (B)	1-85888-559-2	01	1	9510-0010			●
51	PLATE; CAUTION,WARNING EXC. NEW ZEALAND EQUIPMENT(PK5),CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-559-2	01	1	0011-	●	●
51	PLATE; CAUTION,WARNING 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (B)	1-85888-559-2	01	1	0011-		●
51	PLATE; CAUTION,WARNING (B)	1-85888-559-2	01	1	0011-			●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-710-1	01	1	9510-	●	●
51	PLATE; CAUTION,WARNING 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B)	1-85878-325-0	01	1	0011-		●
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7> (C)	1-85883-172-0	01	1	9510-	●	●
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85883-169-0	01	1	9510-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8> (A)	1-85883-173-0	01	1	9510-	●	●
60	PLATE; CAUTION,CAB TILT (B)	1-85883-178-0	01	1	9510-			●
109	PLATE; CAUTION,TIRE PLACARD AUSTRALIA EQUIPMENT(RR3)	1-85881-741-0	01	1	9510-0004		●	●

119 156 260 193 4 7 4

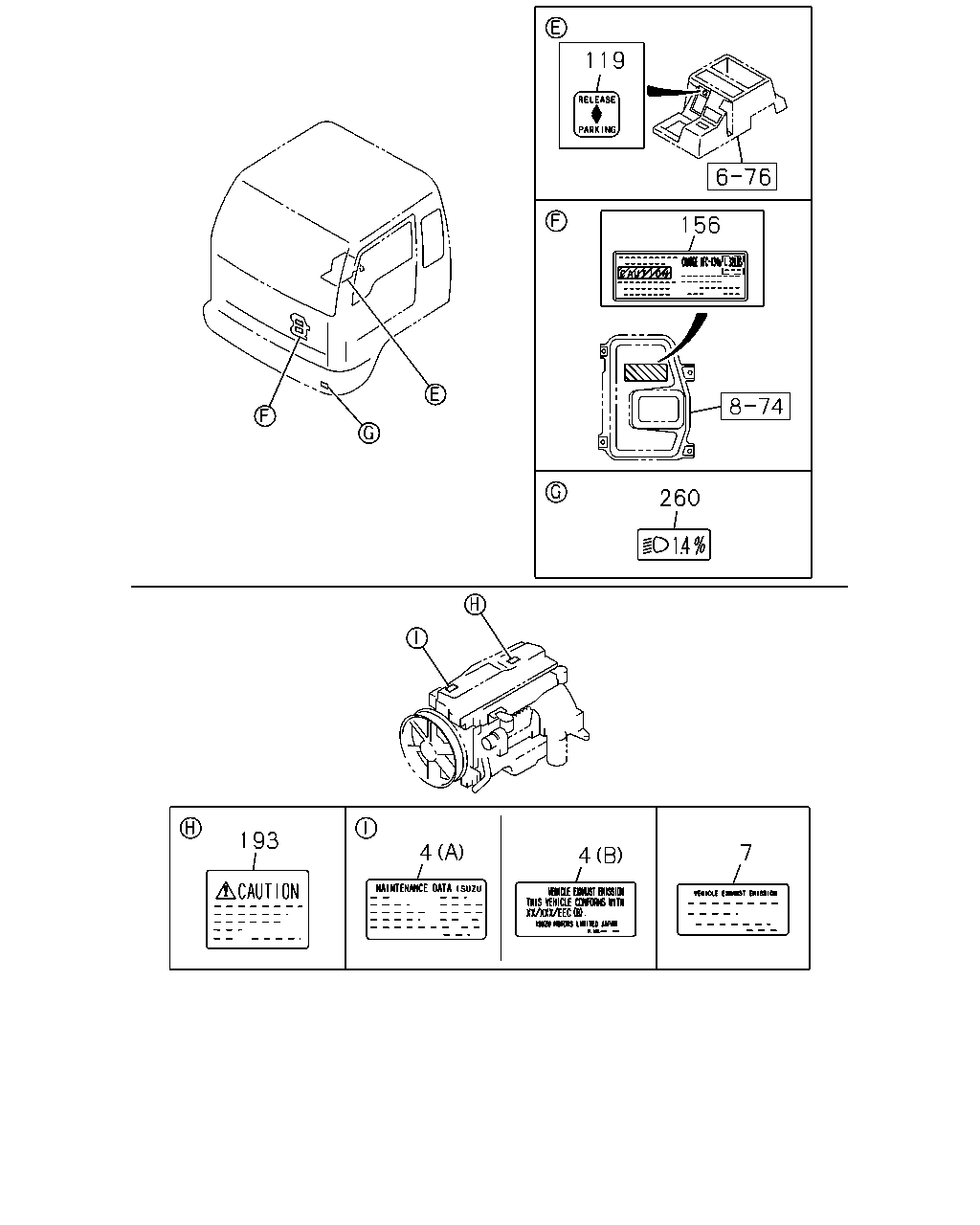

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	LABEL; ENG MAINTENANCE 6HK1 TCC ENG(81L) (A)	8-94391-524-0	01	1	0603-		●
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) (B)	8-97601-293-0	01	1	0005-0602	●
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> (B)	8-97601-293-0	01	1	0005-0602		●
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (B)	8-97601-293-0	01	1	0603-	●	●
4	LABEL; ENG MAINTENANCE AUSTRALIA EQUIPMENT(RR3),CAUTIONS ECE<WX4>, CAUTIONS ADR30<WX6> (A)	8-94395-931-0	01	1	9510-9510	●	●
4	LABEL; ENG MAINTENANCE EXC. CAUTIONS ECE<WX4> (A)	8-94395-931-0	01	1	9511-9802	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EXC. AUSTRALIA EQUIPMENT(RR3),CAUTIONS ECE<WX4>, CAUTIONS ADR30<WX6> (A)	8-94395-931-0	01	1	9511-9802		●
4	LABEL; ENG MAINTENANCE (A)	8-94395-931-0	01	1	9803-0004	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EXC. AUSTRALIA EQUIPMENT(RR3),CAUTIONS ECE<WX4>, CAUTIONS ADR30<WX6> (A)	8-94395-931-0	01	1	9803-0004		●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) (A)	8-94395-931-0	01	1	0005-0009	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-931-0	01	1	0005-0009		●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-931-0	01	1	0010-0205	●	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) (A)	8-94395-931-0	01	1	0206-	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-931-0	01	1	0206-		●
4	LABEL; ENG MAINTENANCE CAUTIONS ECE<WX4> (A)	8-94395-932-1	01	1	9510-9802	●	●
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B)	8-97601-727-0	01	1	0011-	●	●
4	LABEL; ENG MAINTENANCE AUSTRALIA EQUIPMENT(RR3) (A)	8-94390-517-0	01	1	9510-9510		●
4	LABEL; ENG MAINTENANCE (A)	8-94390-517-0	01	1	9510-9510			●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) CAUTIONS ADR30<WX6> AUSTRALIA EQUIPMENT(RR3) (A)	8-94390-517-0	01	1	9511-0004		●
4	LABEL; ENG MAINTENANCE (A)	8-94390-517-0	01	1	9511-0004			●
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A)	8-97600-783-0	01	1	0005-	●	●
4	LABEL; ENG MAINTENANCE (A)	8-97600-783-0	01	1	0005-			●
4	LABEL; ENG MAINTENANCE 6HE1 TC ENG(57L) (A)	8-94390-763-0	01	1	9603-		●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) CAUTIONS ECE<WX4> (A)	8-94390-593-0	01	1	9611-0004		●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) CAUTIONS ECE<WX4> (A)	8-94390-593-0	01	1	0005-	●	●
7	LABEL; EMISSION 6HH1 STD ENG(65L) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-418-0	01	1	9803-	●	●
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-726-0	01	1	9510-9606	●	●	●
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-759-0	01	1	9607-	●	●	●
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97065-990-0	01	1	9803-0210		●
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97065-990-0	01	1	0211-0603	●	●
193	PLATE; CAUTION,EGR 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN>	8-97601-728-0	01	1	0011-	●	●
260	PLATE; CAUTION,HEAD LAMP LEVELING LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>	8-98008-779-0	01	1	0602-		●

6 6 69 69 2 228

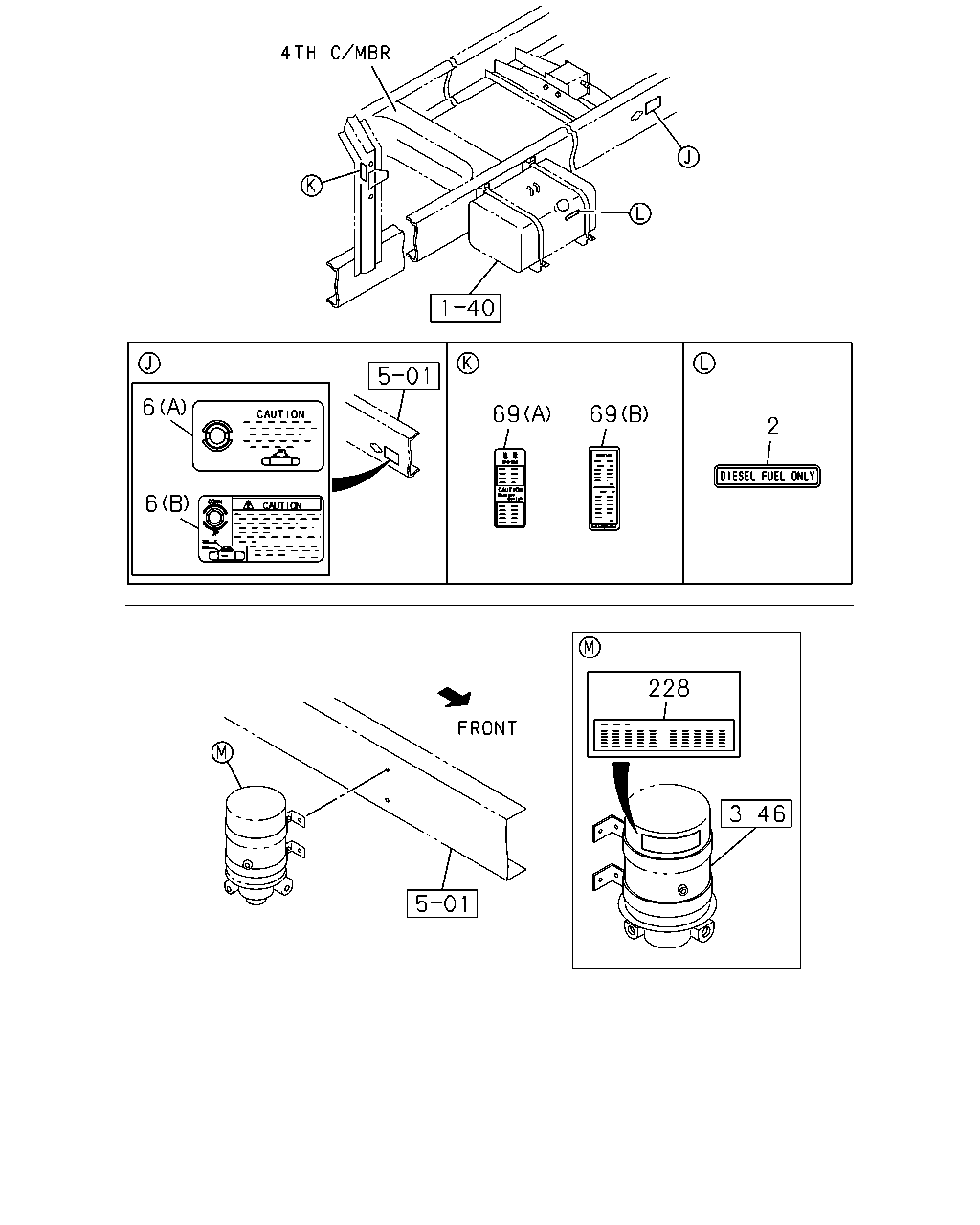

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LABEL; FUEL CAUTION FUEL TANK 200L FMCSR<PK6>	8-94414-353-0	01	1	9510-9802		●	●
2	LABEL; FUEL CAUTION FUEL TANK 200L FMCSR<PK6>	8-97135-605-0	01	1	9803-0004		●	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (A)	1-85883-108-0	01	1	9510-0708	●	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (B)	8-98082-440-0	01	1	0709-	●	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A)	1-85883-114-0	01	1	9510-0708	●	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (B)	8-98082-441-0	01	1	0709-	●	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-53639-004-0	01	1	9510-0708	●	●	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	8-98082-437-0	01	1	0709-	●	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7> (B)	1-85887-537-0	01	1	9803-0302	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7> EXC. STARTER SWITCH DELETION<E5D> (B)	1-85887-537-0	01	1	0303-	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS FRENCH<WJ8> (B)	1-85887-535-0	01	1	9803-0302	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS FRENCH<WJ8> EXC. STARTER SWITCH DELETION<E5D> (B)	1-85887-535-0	01	1	0303-	●	●
69	PLATE; CAUTION,STARTER SW NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85887-389-0	01	1	9510-0004		●
69	PLATE; CAUTION,STARTER SW AUSTRALIA EQUIPMENT(RR3) (A)	1-85887-389-0	01	1	9510-0004			●
69	PLATE; CAUTION,STARTER SW NEW ZEALAND EQUIPMENT(PK5) EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85887-389-0	01	1	0005-0302		●
69	PLATE; CAUTION,STARTER SW NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85887-389-0	01	1	0303-		●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS FRENCH<WJ8>	1-48199-326-0	01	1	9803-1001	●	●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS FRENCH<WJ8>	1-48199-325-0	01	1	9803-1001	●	●	●
