Isuzu WW
▶
TRUCKS
▶
FTR
▶
10702 - FTR(RHD)EXC. EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-01 - EMBLEM AND NAME PLATE
▶

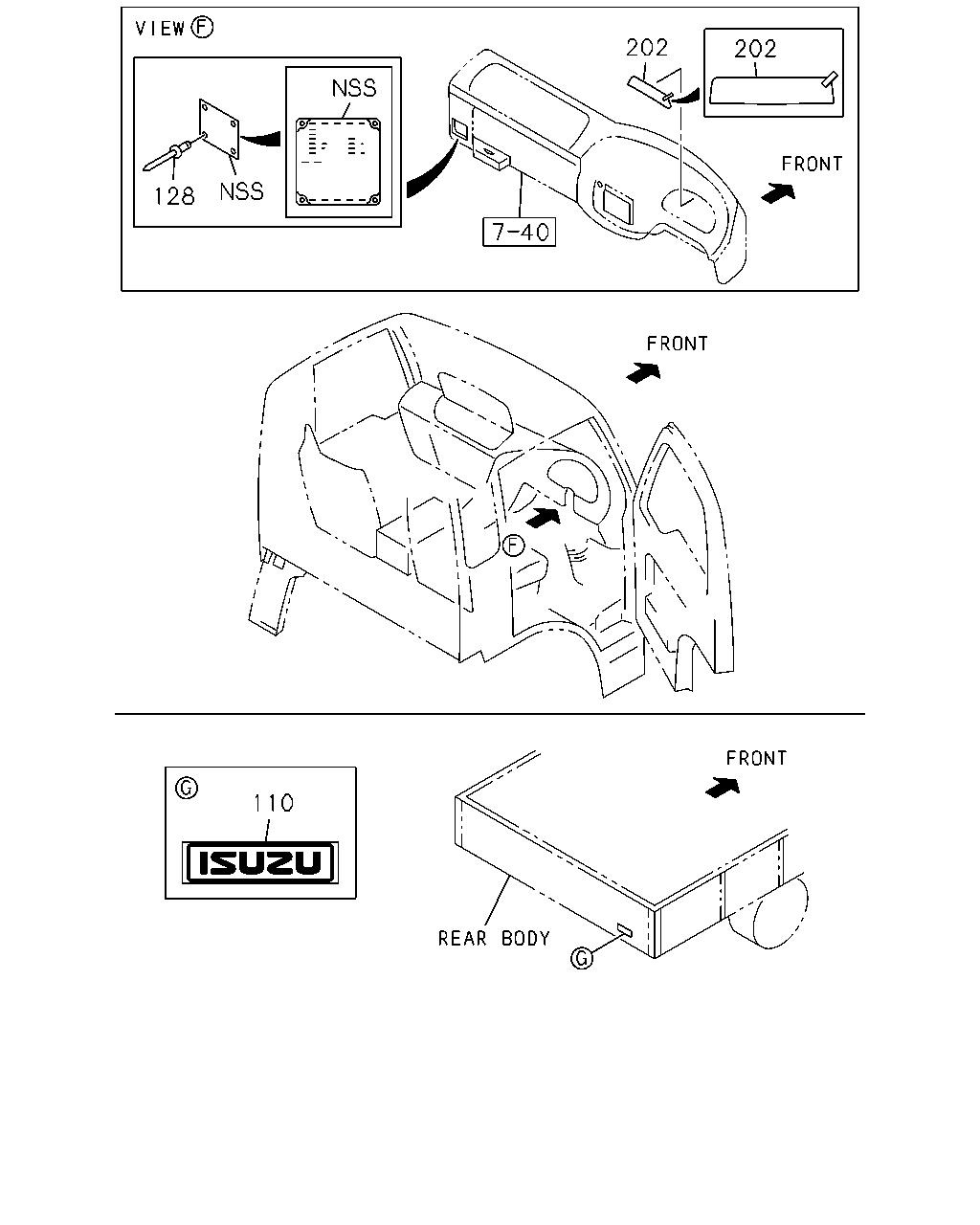

7-01 — EMBLEM AND NAME PLATE
(#36681) — 24 parça
Tümü
A - FTR5MC
B - FTR5MF
C - FTR5WF
◀
[701A] CAB FRONT AND BOTH SIDE (20 parça)
[701A] CAB INSIDE AND REAR BODY (4 parça)
▶
100
245
137
128
4
48
4
100
245
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
4
EMBLEM; RAD GRILLE
(A)
1-76210-634-0
01
1
9510-9802
●
●
●
4
EMBLEM; RAD GRILLE
(B)
1-76210-668-3
01
1
9803-
●
●
●
48
DECAL; TURBOCHARGER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L)
1-76218-114-0
01
1
9601-0607
●
48
DECAL; TURBOCHARGER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L)
1-76218-114-0
01
1
0608-
●
100
EMBLEM; PET NAME
KENYA EQUIPMENT(PQ2) (B) FSR
1-76218-109-0
01
1
9701-9802
●
100
EMBLEM; PET NAME
6HH1 STD ENG(65L) KENYA EQUIPMENT(PQ2) (B) FSR
1-76218-109-0
01
1
9701-9802
●
100
EMBLEM; PET NAME
(A) FTR
1-76218-110-0
01
1
9511-9512
●
●
●
100
EMBLEM; PET NAME
EXC. KENYA EQUIPMENT(PQ2),AUSTRALIA EQUIPMENT(RR3) (A) FTR
1-76218-110-0
01
1
9510-9802
●
●
●
128
RIVET; POP,NAME PLATE
5-09734-001-0
04
1
9510-
●
●
●
128
RIVET; POP,NAME PLATE
ENGINE NO PLATE<E6D>
5-09734-001-0
04
1
9510-
●
●
137
DECAL; DOOR
BLACK
1-74998-049-3
01
1
9510-
●
●
●
137
DECAL; DOOR
BLACK
1-74998-048-3
01
1
9510-
●
●
●
245
DECAL; MODEL
(A) FTR
1-76218-110-0
01
1
9803-9805
●
245
DECAL; MODEL
EXC. AUSTRALIA EQUIPMENT(RR3) (A) FTR
1-76218-110-0
01
1
9803-9805
●
245
DECAL; MODEL
EXC. KENYA EQUIPMENT(PQ2) (A) FTR
1-76218-110-0
01
1
9806-0004
●
245
DECAL; MODEL
EXC. KENYA EQUIPMENT(PQ2),AUSTRALIA EQUIPMENT(RR3) (A) FTR
1-76218-110-0
01
1
9806-0004
●
245
DECAL; MODEL
(A) FTR
1-76218-110-0
01
1
0005-
●
●
245
DECAL; MODEL
EXC. KENYA EQUIPMENT(PQ2) (A) FTR
1-76218-110-0
01
1
0005-
●
245
DECAL; MODEL
KENYA EQUIPMENT(PQ2) (B) FSR
1-76218-109-0
01
1
9803-0004
●
●
245
DECAL; MODEL
KENYA EQUIPMENT(PQ2) (B) FSR
1-76218-109-0
01
1
0005-
●
202
202
128
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
110
EMBLEM; "ISUZU",RR BODY
1-76210-663-0
01
1
9510-0004
●
●
●
128
RIVET; POP,NAME PLATE
5-09734-001-0
04
1
9510-
●
●
●
128
RIVET; POP,NAME PLATE
ENGINE NO PLATE<E6D>
5-09734-001-0
04
1
9510-
●
●
202
DECAL; METER CLUSTER
METER PANEL GRAIN OF WOOD<NAY>
1-72418-016-1
01
1
0212-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
