Isuzu WW
▶
TRUCKS
▶
FTR
▶
10702 - FTR(RHD)EXC. EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

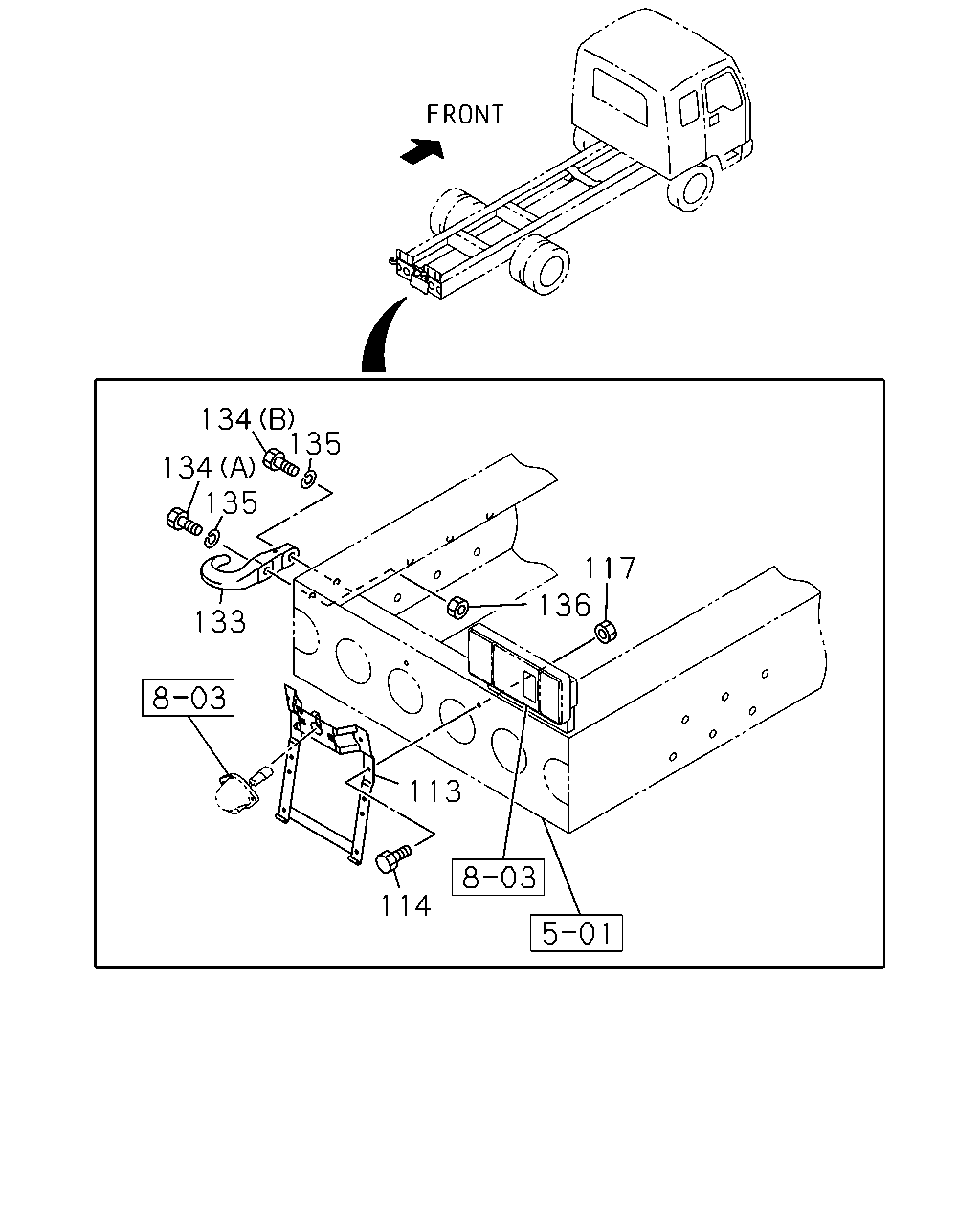

6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#36680) — 20 parça
Tümü
A - FTR5MC
B - FTR5MF
C - FTR5WF
134
135
134
135
117
136
133
113
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
113
BRACKET; LICENSE PLATE
1-53485-048-2
01
1
9510-9608
●
●
●
113
BRACKET; LICENSE PLATE
1-53485-065-0
01
1
9609-0302
●
●
●
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
0303-
●
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X20 FLANGE
0-28080-820-0
02
1
9510-9606
●
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28680-825-0
02
1
9607-0512
●
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
●
117
NUT; BRKT
M8
9-09110-408-0
02
1
9510-9606
●
●
●
117
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
9607-0602
●
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
●
133
HOOK
1-57181-027-1
01
1
9510-
●
●
●
134
BOLT; HOOK
(A) M16X70
0-10811-670-0
01
1
9510-0004
●
●
●
134
BOLT; HOOK
(A) M16X60
0-10811-660-0
01
1
0005-0512
●
●
●
134
BOLT; HOOK
(A) M16X60
0-10861-660-0
01
1
0601-
●
●
●
134
BOLT; HOOK
(B) M16X50
0-20801-650-0
01
1
9510-0512
●
●
●
134
BOLT; HOOK
(B) M16X50
0-20851-650-0
01
1
0601-
●
●
●
135
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
9510-0603
●
●
●
135
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
0604-
●
●
●
136
NUT; HOOK
M16
9-99110-416-0
02
1
9510-0206
●
●
●
136
NUT; HOOK
M16
9-99110-516-0
02
1
0207-0512
●
●
●
136
NUT; HOOK
M16
0-91110-516-0
02
1
0601-
●
●
●
