6-76 — FLOOR EQUIPMENT AND SEALING (#36675) — 69 parça

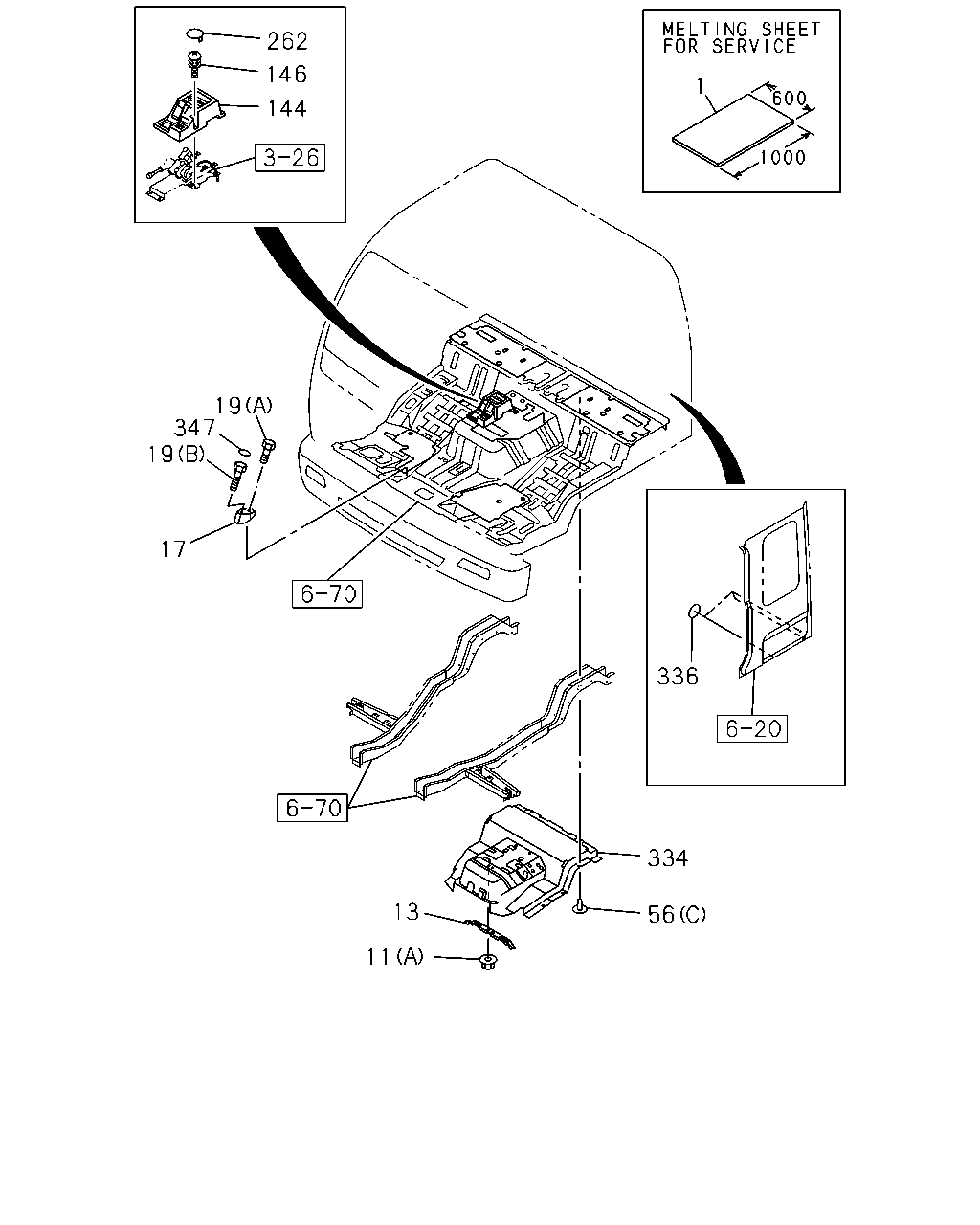

262 146 1 144 19 347 19 17 336 334 13 56 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHEET; MELTING,FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	AR	1	9510-	●	●	●
11	NUT; HEAT INSULATOR (A) M8 FLANGE	8-94279-504-1	02	1	9510-9705	●	●	●
11	NUT; HEAT INSULATOR (A) M8 FLANGE	8-94279-518-0	02	1	9706-0401	●	●	●
11	NUT; HEAT INSULATOR (A) M8 FLANGE	1-75538-207-0	02	1	0402-	●	●	●
11	NUT; HEAT INSULATOR (B) M6 FLANGE	1-09984-141-0	02	1	9510-			●
13	PLATE; HEAT INSULATOR	1-71998-812-4	01	1	9510-	●	●	●
17	REST; FOOT,DRIVER	1-73907-176-1	01	1	9510-	●	●	●
19	BOLT; FOOT REST (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9510-	●	●	●
19	BOLT; FOOT REST (B) M6X47	8-94407-876-1	01	1	9510-	●	●	●
56	CLIP; HEAT INSULATOR,ENG HOOD (C) ID=6.2 L=11.4	8-97808-623-0	17	1	9510-	●	●
56	CLIP; HEAT INSULATOR,ENG HOOD (A) D6X23 BLACK	1-09987-114-0	10	1	9510-			●
56	CLIP; HEAT INSULATOR,ENG HOOD (B) ID=6.2 L=11.4	8-97808-623-0	12	1	9510-			●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-075-3	01	1	9510-9802	●	●	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-308-0	01	1	9803-9810	●	●	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-308-1	01	1	9811-0004	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FULL TRACTOR TRUCK(RD6),ELEC OUTLET 12V<TAW>	1-73908-308-1	01	1	9811-0004		●	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-307-2	01	1	0005-	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ELEC OUTLET 12V<TAW>	1-73908-307-2	01	1	0005-		●
144	COVER; HAND BRK VLV	1-73908-307-2	01	1	0005-			●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ELEC OUTLET 12V<TAW> EXC. FULL TRACTOR TRUCK(RD6)	1-73908-351-0	01	1	9811-0004		●	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ELEC OUTLET 12V<TAW>	1-73908-372-1	01	1	0005-		●
146	BOLT; COVER BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	9510-	●	●	●
262	COVER; CHECK HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-72538-166-0	04	1	9510-0004	●	●	●
262	COVER; CHECK HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-76337-461-0	04	1	0005-	●	●	●
334	INSULATOR; ENG HOOD	1-71996-034-4	01	1	0005-	●	●
334	INSULATOR; ENG HOOD DUAL AIR GAUGE<UG2>	1-71996-034-4	01	1	9510-0004	●	●
334	INSULATOR; ENG HOOD EXC. DUAL AIR GAUGE<UG2>	1-71998-811-9	01	1	9510-0004	●	●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	04	1	9510-	●	●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	02	1	9510-			●
347	SEAL; FOOT RESTR OD=25 BLACK	1-76798-019-0	02	1	9703-0004	●	●
347	SEAL; FOOT RESTR OD=25 BLACK	1-76798-019-0	02	1	0005-	●	●	●

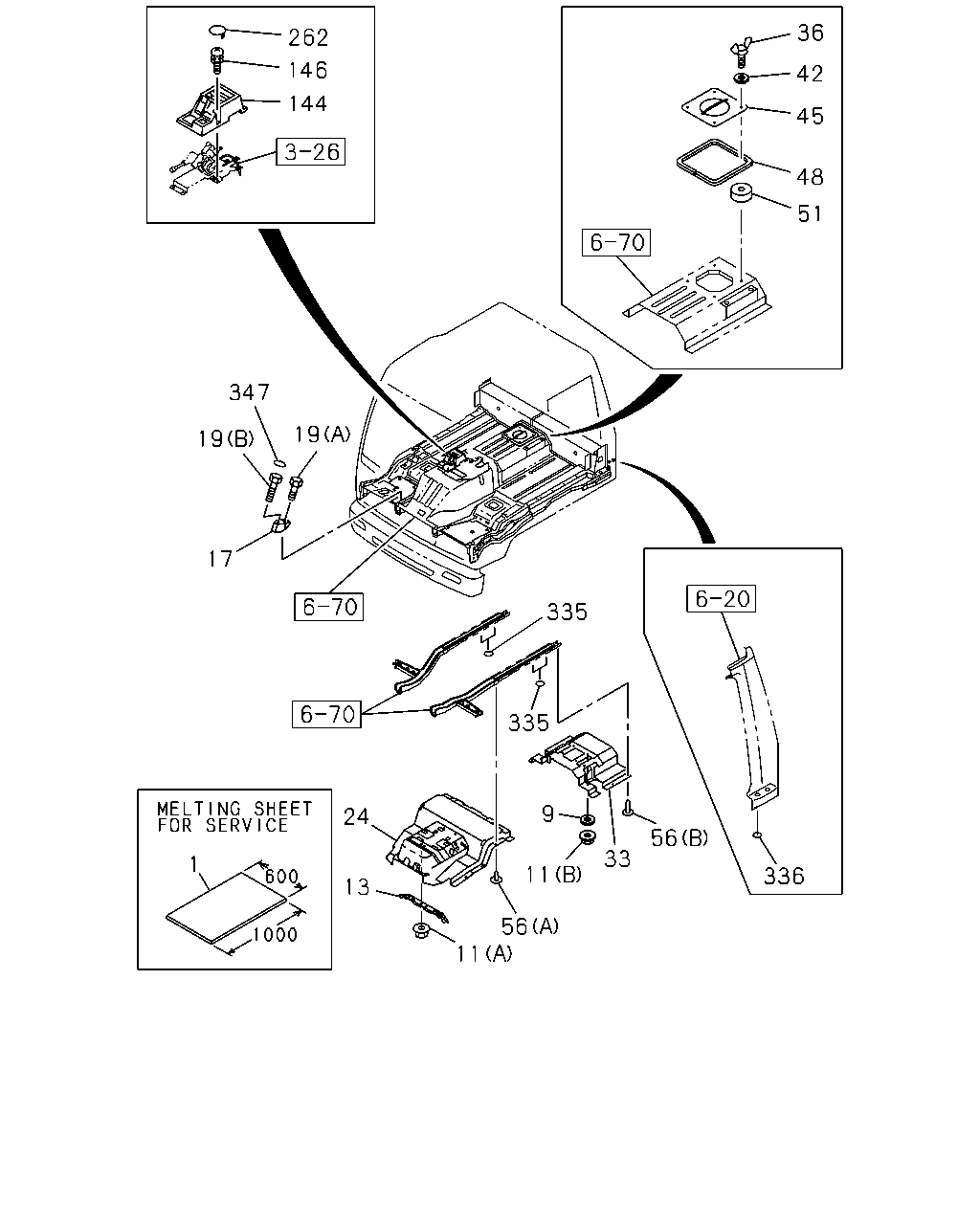

36 262 146 42 144 45 48 51 347 19 19 17 335 335 9 24 56 33 1 11 336 13 56 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHEET; MELTING,FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	AR	1	9510-	●	●	●
9	WASHER; HEAT INSULATOR	1-73377-052-2	02	1	9510-			●
11	NUT; HEAT INSULATOR (A) M8 FLANGE	8-94279-504-1	02	1	9510-9705	●	●	●
11	NUT; HEAT INSULATOR (A) M8 FLANGE	8-94279-518-0	02	1	9706-0401	●	●	●
11	NUT; HEAT INSULATOR (A) M8 FLANGE	1-75538-207-0	02	1	0402-	●	●	●
11	NUT; HEAT INSULATOR (B) M6 FLANGE	1-09984-141-0	02	1	9510-			●
13	PLATE; HEAT INSULATOR	1-71998-812-4	01	1	9510-	●	●	●
17	REST; FOOT,DRIVER	1-73907-176-1	01	1	9510-	●	●	●
19	BOLT; FOOT REST (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9510-	●	●	●
19	BOLT; FOOT REST (B) M6X47	8-94407-876-1	01	1	9510-	●	●	●
24	INSULATOR; HEAT,FRT	1-71998-901-9	01	1	9510-			●
33	INSULATOR; HEAT,RR	1-71996-090-0	01	1	9510-			●
36	BOLT; WING,COVER	9-61405-010-0	04	1	9510-			●
42	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	04	1	9510-0605			●
42	WASHER; PL,COVER ID=10.5	0-91610-510-0	04	1	0606-			●
45	COVER; CENTER,CHECK HOLE	1-65380-056-0	01	1	9510-			●
48	SEAL; CHECK HOLE LID,CENTER	1-65380-091-0	01	1	9510-			●
51	SEAL; LID,CHECK HOLE	1-65380-121-0	04	1	9510-			●
56	CLIP; HEAT INSULATOR,ENG HOOD (C) ID=6.2 L=11.4	8-97808-623-0	17	1	9510-	●	●
56	CLIP; HEAT INSULATOR,ENG HOOD (A) D6X23 BLACK	1-09987-114-0	10	1	9510-			●
56	CLIP; HEAT INSULATOR,ENG HOOD (B) ID=6.2 L=11.4	8-97808-623-0	12	1	9510-			●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-075-3	01	1	9510-9802	●	●	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-308-0	01	1	9803-9810	●	●	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-308-1	01	1	9811-0004	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FULL TRACTOR TRUCK(RD6),ELEC OUTLET 12V<TAW>	1-73908-308-1	01	1	9811-0004		●	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-307-2	01	1	0005-	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ELEC OUTLET 12V<TAW>	1-73908-307-2	01	1	0005-		●
144	COVER; HAND BRK VLV	1-73908-307-2	01	1	0005-			●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ELEC OUTLET 12V<TAW> EXC. FULL TRACTOR TRUCK(RD6)	1-73908-351-0	01	1	9811-0004		●	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ELEC OUTLET 12V<TAW>	1-73908-372-1	01	1	0005-		●
146	BOLT; COVER BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	9510-	●	●	●
262	COVER; CHECK HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-72538-166-0	04	1	9510-0004	●	●	●
262	COVER; CHECK HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-76337-461-0	04	1	0005-	●	●	●
335	SEAL; UNDER FRAME OD=25 BLACK	1-76798-019-0	08	1	9510-			●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	04	1	9510-	●	●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	02	1	9510-			●
347	SEAL; FOOT RESTR OD=25 BLACK	1-76798-019-0	02	1	9703-0004	●	●
347	SEAL; FOOT RESTR OD=25 BLACK	1-76798-019-0	02	1	0005-	●	●	●
