◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#36674) — 65 parça

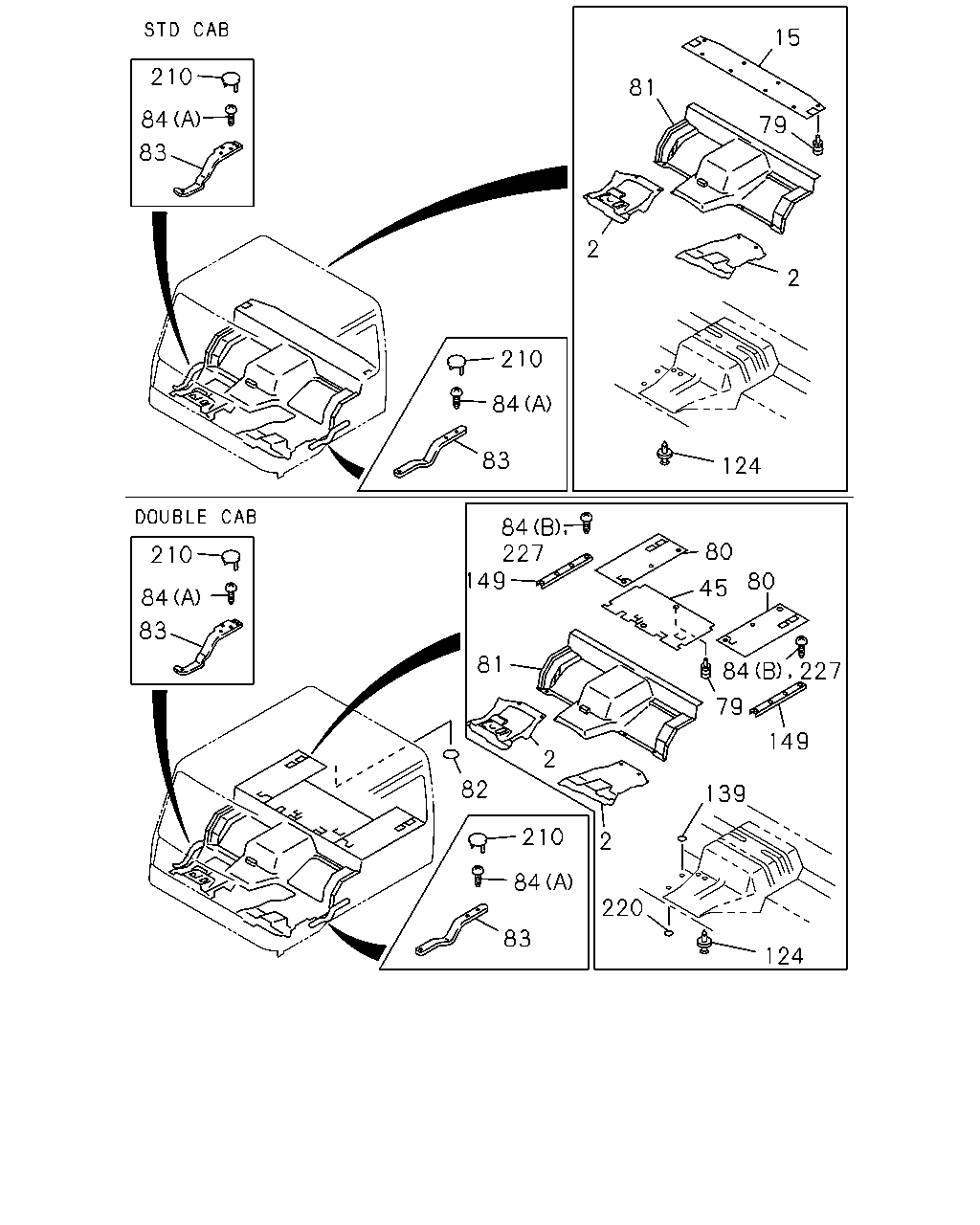

çizim 152148
15 210 81 79 84 83 2 2 210 84 83 124 84 227 149 80 210 80 45 84 83 81 149 2 82 139 210 2 84 220 83 124 84 227 79
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-016-0 01 1 9510-0004 ● ●
2 MAT; FLOOR 1-73236-016-0 01 1 9510-0004 ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-180-0 01 1 0005-0202 ● ●
2 MAT; FLOOR 1-73236-180-0 01 1 0005-0202 ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-469-1 01 1 0203- ● ●
2 MAT; FLOOR 1-73236-469-1 01 1 0203- ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-015-0 01 1 9510-0004 ● ●
2 MAT; FLOOR 1-73236-015-0 01 1 9510-0004 ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-178-0 01 1 0005-0006 ● ●
2 MAT; FLOOR 1-73236-178-0 01 1 0005-0006 ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-357-0 01 1 0007-0202 ● ●
2 MAT; FLOOR 1-73236-357-0 01 1 0007-0202 ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-470-1 01 1 0203- ● ●
2 MAT; FLOOR 1-73236-470-1 01 1 0203- ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-017-0 01 1 9510-0004 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-293-0 01 1 0005-0006 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-359-0 01 1 0007-0202 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-474-1 01 1 0203- ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-043-0 01 1 9510-0004 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-294-0 01 1 0005-0202 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-473-1 01 1 0203- ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> 		1-73238-945-2 01 1 9510-9802 ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> 		1-73238-945-2 01 1 9803-0004 ● ●
15 MAT; FLOOR REAR
MATTRESS SLEEPER CAB<E40> LOW ROOF<6XQ> 		1-73238-945-2 01 1 9803-0004 ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> 		1-73236-245-0 01 1 0005-0202 ● ●
15 MAT; FLOOR REAR
MATTRESS SLEEPER CAB<E40> LOW ROOF<6XQ> 		1-73236-245-0 01 1 0005-0202 ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> 		1-73236-522-1 01 1 0203- ● ●
15 MAT; FLOOR REAR
MATTRESS SLEEPER CAB<E40> LOW ROOF<6XQ> 		1-73236-522-1 01 1 0203- ● ●
45 MAT; FLOOR,ENG COVER 1-73238-972-1 01 1 9510-0004 ●
45 MAT; FLOOR,ENG COVER 1-73236-182-0 01 1 0005-0202 ●
45 MAT; FLOOR,ENG COVER 1-73236-512-0 01 1 0203- ●
79 HOOK; MALE
BLACK 		8-94279-089-0 08 1 9510- ● ●
79 HOOK; MALE
BLACK 		8-94279-089-0 12 1 9510- ●
80 MAT; FLOOR,RR 1-73236-065-0 01 1 9510-0004 ●
80 MAT; FLOOR,RR 1-73236-187-0 01 1 0005-0202 ●
80 MAT; FLOOR,RR 1-73236-526-1 01 1 0203- ●
80 MAT; FLOOR,RR 1-73236-064-0 01 1 9510-0004 ●
80 MAT; FLOOR,RR 1-73236-184-0 01 1 0005-0202 ●
80 MAT; FLOOR,RR 1-73236-525-1 01 1 0203- ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73238-999-7 01 1 9510-0004 ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73236-303-5 01 1 0005-0202 ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73236-491-2 01 1 0203-0212 ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73236-547-3 01 1 0301- ● ●
81 MAT; FLOOR,CENTER
EXC. VINYL CARPET<B30> 		1-73236-050-3 01 1 9510-0004 ● ●
81 MAT; FLOOR,CENTER
EXC. VINYL CARPET<B30> 		1-73236-297-1 01 1 0005-0202 ● ●
81 MAT; FLOOR,CENTER
EXC. VINYL CARPET<B30> 		1-73236-510-3 01 1 0203- ● ●
81 MAT; FLOOR,CENTER 1-73238-971-5 01 1 9510-0004 ●
81 MAT; FLOOR,CENTER 1-73236-191-6 01 1 0005-0202 ●
81 MAT; FLOOR,CENTER 1-73236-487-5 01 1 0203- ●
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 01 1 9510- ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9510-0004 ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0005- ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9510-0004 ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0005- ● ● ●
84 SCREW; PLATE TO FLOOR
(A) M5X16 		8-94279-312-0 08 1 9510- ● ● ●
84 SCREW; PLATE TO FLOOR
(B) M6X24 W/PL WASHER 		1-09981-504-0 08 1 9510-9808 ●
124 FASTENER 1-09470-007-0 04 1 9510- ● ● ●
139 SEAL; FLOOR 1-76798-018-0 01 1 9510-9802 ●
139 SEAL; FLOOR
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9803- ●
149 PLATE; KICKING,RR 1-76798-010-4 02 1 9510- ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9510-0004 ● ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0005- ● ● ●
220 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9510- ●
227 SCREW; KICKING PLATE
M6X24 W/PL WASHER 		1-09981-504-0 08 1 9809-0103 ●
227 SCREW; KICKING PLATE
M6X16 W/PL WASHER 		1-09981-505-0 08 1 0104- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
