◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#36673) — 163 parça

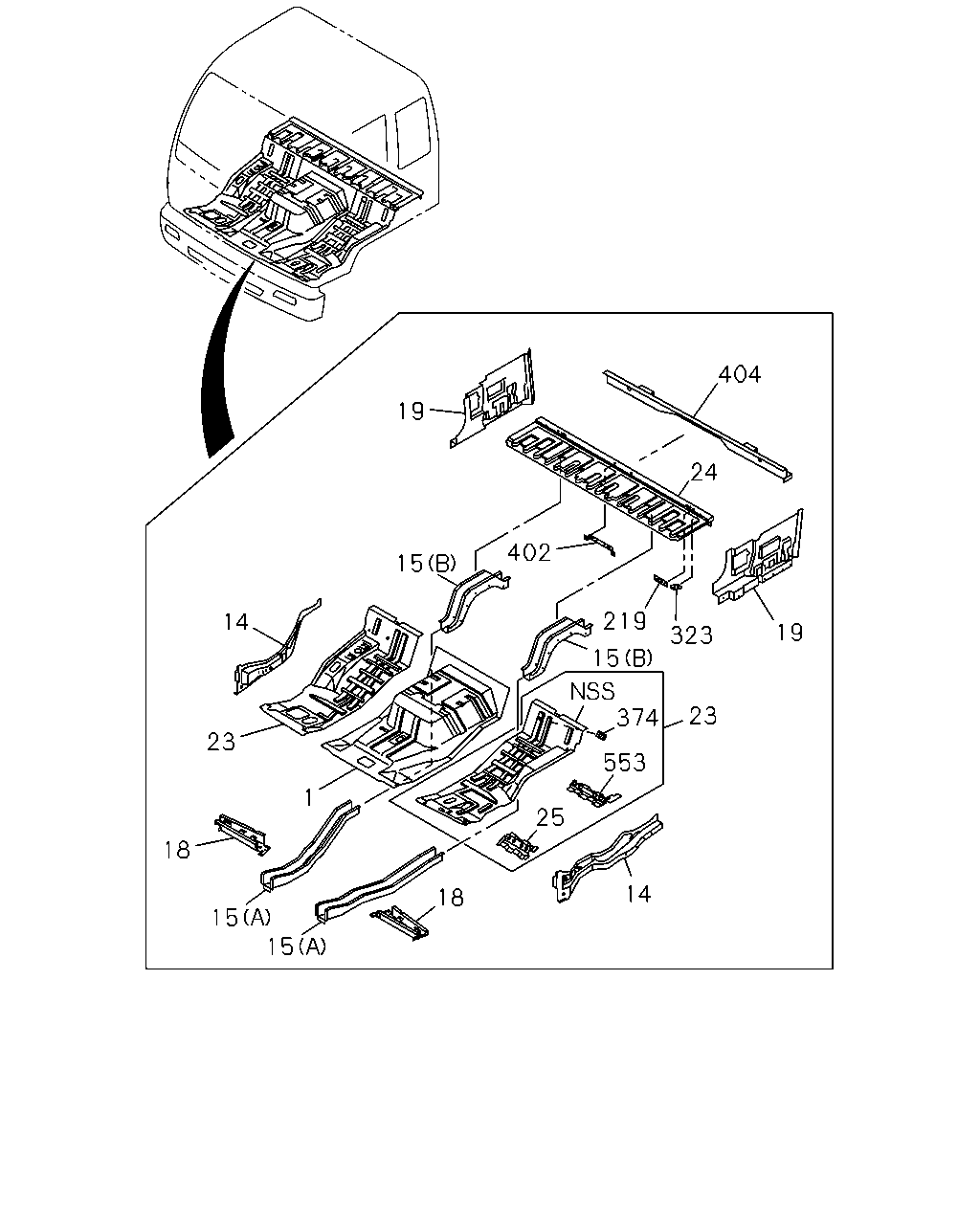

çizim 152137
404 24 19 323 23 219 15 374 553 25 14 18 15 15 18 1 23 14 15 402 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR
EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 0005-0110 ● ●
1 PANEL; FLOOR
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 0111-0601 ● ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 0602- ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 0602- ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0005-0601 ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> 		1-62183-405-2 01 1 0005-0601 ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0602- ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> 		1-62183-405-2 01 1 0602- ●
1 PANEL; FLOOR
A/T<X9D> 		1-62183-318-6 01 1 0005-0601 ●
1 PANEL; FLOOR
A/T<X9D> 		1-62183-318-6 01 1 0602- ●
1 PANEL; FLOOR 1-62183-225-3 01 1 0005- ●
1 PANEL; FLOOR
6HK1 TCC ENG(81L) 		1-62183-668-0 01 1 0603- ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-138-9 01 1 9510-9607 ● ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-138-9 01 1 9608-9706 ●
1 PANEL; FLOOR
ISUZU M/T<X9A> DUAL AIR GAUGE<UG2> 		1-62183-138-9 01 1 9608-9706 ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 9707-0004 ●
1 PANEL; FLOOR
ISUZU M/T<X9A> DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 9707-0004 ●
1 PANEL; FLOOR
EXC. DUAL AIR GAUGE<UG2> 		1-62182-900-9 01 1 9510-9601 ● ●
1 PANEL; FLOOR
EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 9602-0004 ● ●
1 PANEL; FLOOR
A/T<X9D> DUAL AIR GAUGE<UG2> 		1-62183-318-6 01 1 9608-0004 ●
1 PANEL; FLOOR 1-62183-225-3 01 1 9510-0004 ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9510- ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9510- ● ● ●
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 9510-0401 ● ●
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402- ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 9510- ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 9510-0103 ● ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104- ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 9510- ● ●
15 FRAME; UNDER
(B) 		1-62482-568-2 02 1 9510-9802 ●
15 FRAME; UNDER
(A) 		1-62483-018-3 01 1 9510- ●
15 FRAME; UNDER
(A) 		1-62483-017-3 01 1 9510- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 9510- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 9510- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-023-6 01 1 9510- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 9510- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 9510- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 9510- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-191-3 01 1 9510- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 9510- ●
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> 		1-62183-270-4 01 1 9510-0212 ● ●
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0301-0601 ● ● ●
23 PANEL; FLOOR,SIDE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0602-0602 ● ●
23 PANEL; FLOOR,SIDE
A/T<X9D> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0602-0602 ●
23 PANEL; FLOOR,SIDE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0603- ● ●
23 PANEL; FLOOR,SIDE
A/T<X9D> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0603- ●
23 PANEL; FLOOR,SIDE
6HK1 TCC ENG(81L) 		1-62183-270-4 01 1 0603- ●
23 PANEL; FLOOR,SIDE
THAILAND EQUIPMENT(PM9) 		1-62183-266-5 01 1 9510-9802 ● ●
23 PANEL; FLOOR,SIDE
THAILAND EQUIPMENT(PM9) 		1-62183-265-5 01 1 9510-9802 ● ●
23 PANEL; FLOOR,SIDE
EXC. THAILAND EQUIPMENT(PM9) 		1-62183-273-4 01 1 9510-9802 ● ●
23 PANEL; FLOOR,SIDE 1-62183-273-4 01 1 9803-9904 ● ●
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 9905- ● ●
23 PANEL; FLOOR,SIDE
EXC. THAILAND EQUIPMENT(PM9),DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 9510-9802 ● ●
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 9803-0110 ● ●
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0111-0212 ● ●
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0301-0601 ● ●
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-271-4 01 1 0301-0601 ●
23 PANEL; FLOOR,SIDE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0602- ● ●
23 PANEL; FLOOR,SIDE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> 		1-62183-271-4 01 1 0602- ●
23 PANEL; FLOOR,SIDE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> A/T<X9D> 		1-62183-271-4 01 1 0602- ●
23 PANEL; FLOOR,SIDE 1-62183-311-0 01 1 9510- ●
23 PANEL; FLOOR,SIDE 1-62183-310-0 01 1 9510- ●
24 PANEL; BED PAN 1-62182-940-9 01 1 9510- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0005- ● ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 9510- ● ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 9510- ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 9510- ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 0005- ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 9510- ● ●
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 9510- ● ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 0005- ● ●

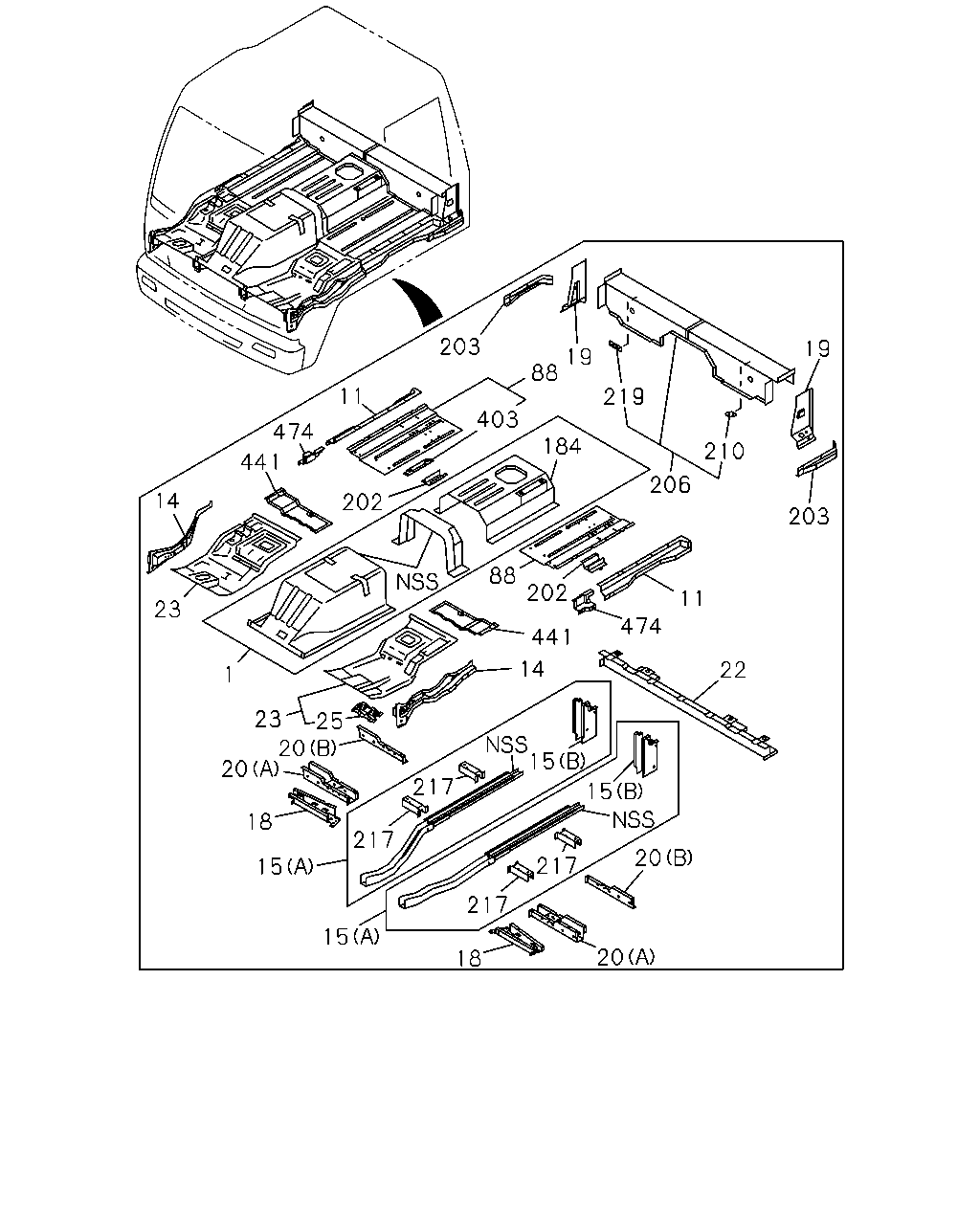

çizim 152165
203 19 210 206 219 19 88 203 403 184 11 474 441 14 202 88 202 11 474 441 14 15 15 22 20 217 20 217 18 15 15 18 217 217 25 20 23 20 1 23
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR
EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 0005-0110 ● ●
1 PANEL; FLOOR
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 0111-0601 ● ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 0602- ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 0602- ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0005-0601 ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> 		1-62183-405-2 01 1 0005-0601 ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0602- ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> 		1-62183-405-2 01 1 0602- ●
1 PANEL; FLOOR
A/T<X9D> 		1-62183-318-6 01 1 0005-0601 ●
1 PANEL; FLOOR
A/T<X9D> 		1-62183-318-6 01 1 0602- ●
1 PANEL; FLOOR 1-62183-225-3 01 1 0005- ●
1 PANEL; FLOOR
6HK1 TCC ENG(81L) 		1-62183-668-0 01 1 0603- ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-138-9 01 1 9510-9607 ● ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-138-9 01 1 9608-9706 ●
1 PANEL; FLOOR
ISUZU M/T<X9A> DUAL AIR GAUGE<UG2> 		1-62183-138-9 01 1 9608-9706 ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 9707-0004 ●
1 PANEL; FLOOR
ISUZU M/T<X9A> DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 9707-0004 ●
1 PANEL; FLOOR
EXC. DUAL AIR GAUGE<UG2> 		1-62182-900-9 01 1 9510-9601 ● ●
1 PANEL; FLOOR
EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 9602-0004 ● ●
1 PANEL; FLOOR
A/T<X9D> DUAL AIR GAUGE<UG2> 		1-62183-318-6 01 1 9608-0004 ●
1 PANEL; FLOOR 1-62183-225-3 01 1 9510-0004 ●
11 PANEL; FLOOR SIDE RR 1-62483-047-0 01 1 9510-9708 ●
11 PANEL; FLOOR SIDE RR 1-62483-265-0 01 1 9709-0008 ●
11 PANEL; FLOOR SIDE RR 1-62483-318-0 01 1 0009- ●
11 PANEL; FLOOR SIDE RR 1-62483-046-0 01 1 9510-9708 ●
11 PANEL; FLOOR SIDE RR 1-62483-264-0 01 1 9709-0008 ●
11 PANEL; FLOOR SIDE RR 1-62483-317-0 01 1 0009- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9510- ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9510- ● ● ●
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 9510-0401 ● ●
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402- ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 9510- ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 9510-0103 ● ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104- ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 9510- ● ●
15 FRAME; UNDER
(B) 		1-62482-568-2 02 1 9510-9802 ●
15 FRAME; UNDER
(A) 		1-62483-018-3 01 1 9510- ●
15 FRAME; UNDER
(A) 		1-62483-017-3 01 1 9510- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 9510- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 9510- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-023-6 01 1 9510- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 9510- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 9510- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 9510- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-191-3 01 1 9510- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 9510- ●
20 FRAME; FLOOR SIDE,REAR
(B) 		1-62482-303-3 01 1 9510- ●
20 FRAME; FLOOR SIDE,REAR
(A) 		1-62482-778-1 01 1 9510- ●
20 FRAME; FLOOR SIDE,REAR
(B) 		1-62482-302-3 01 1 9510- ●
20 FRAME; FLOOR SIDE,REAR
(A) 		1-62482-315-3 01 1 9510- ●
22 FRAME; FLOOR REAR 1-62482-066-5 01 1 9510- ●
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> 		1-62183-270-4 01 1 9510-0212 ● ●
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0301-0601 ● ● ●
23 PANEL; FLOOR,SIDE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0602-0602 ● ●
23 PANEL; FLOOR,SIDE
A/T<X9D> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0602-0602 ●
23 PANEL; FLOOR,SIDE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0603- ● ●
23 PANEL; FLOOR,SIDE
A/T<X9D> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0603- ●
23 PANEL; FLOOR,SIDE
6HK1 TCC ENG(81L) 		1-62183-270-4 01 1 0603- ●
23 PANEL; FLOOR,SIDE
THAILAND EQUIPMENT(PM9) 		1-62183-266-5 01 1 9510-9802 ● ●
23 PANEL; FLOOR,SIDE
THAILAND EQUIPMENT(PM9) 		1-62183-265-5 01 1 9510-9802 ● ●
23 PANEL; FLOOR,SIDE
EXC. THAILAND EQUIPMENT(PM9) 		1-62183-273-4 01 1 9510-9802 ● ●
23 PANEL; FLOOR,SIDE 1-62183-273-4 01 1 9803-9904 ● ●
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 9905- ● ●
23 PANEL; FLOOR,SIDE
EXC. THAILAND EQUIPMENT(PM9),DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 9510-9802 ● ●
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 9803-0110 ● ●
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0111-0212 ● ●
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0301-0601 ● ●
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-271-4 01 1 0301-0601 ●
23 PANEL; FLOOR,SIDE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0602- ● ●
23 PANEL; FLOOR,SIDE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> 		1-62183-271-4 01 1 0602- ●
23 PANEL; FLOOR,SIDE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> A/T<X9D> 		1-62183-271-4 01 1 0602- ●
23 PANEL; FLOOR,SIDE 1-62183-311-0 01 1 9510- ●
23 PANEL; FLOOR,SIDE 1-62183-310-0 01 1 9510- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0005- ● ● ●
88 BOARD ASM; FLOOR 1-62483-038-1 01 1 9510- ●
88 BOARD ASM; FLOOR 1-62483-037-1 01 1 9510- ●
184 HOOD ASM; ENG RR 1-62183-036-1 01 1 9510- ●
202 PANEL; CENTER MTG REINF 1-62482-254-3 01 1 9510- ●
202 PANEL; CENTER MTG REINF 1-62482-253-2 01 1 9510- ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-313-0 01 1 9510- ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-312-0 01 1 9510- ●
206 PANEL; FLOOR BOARD RR 1-62182-689-0 01 1 9510- ●
210 PANEL; HAND BRAKE LEVER BRKT 1-62182-085-0 01 1 9510- ●
217 PANEL; SEAT STAND
WO/NUT 		1-62482-181-2 03 1 9510- ●
217 PANEL; SEAT STAND
W/NUT 		1-62482-425-0 01 1 9510- ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 9510- ● ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 9510- ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 9510- ●
441 PANEL; EXTENSION,FLOOR SIDE 1-62483-031-4 01 1 9510-0004 ●
441 PANEL; EXTENSION,FLOOR SIDE 1-62483-030-5 01 1 9510-0004 ●
474 EXTENSION; FLOOR SIDE 1-62182-992-2 01 1 9510- ●
474 EXTENSION; FLOOR SIDE 1-62182-991-2 01 1 9510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
