Isuzu WW
▶
TRUCKS
▶
FTR
▶
10702 - FTR(RHD)EXC. EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-55 - REAR DOOR TRIM
▶

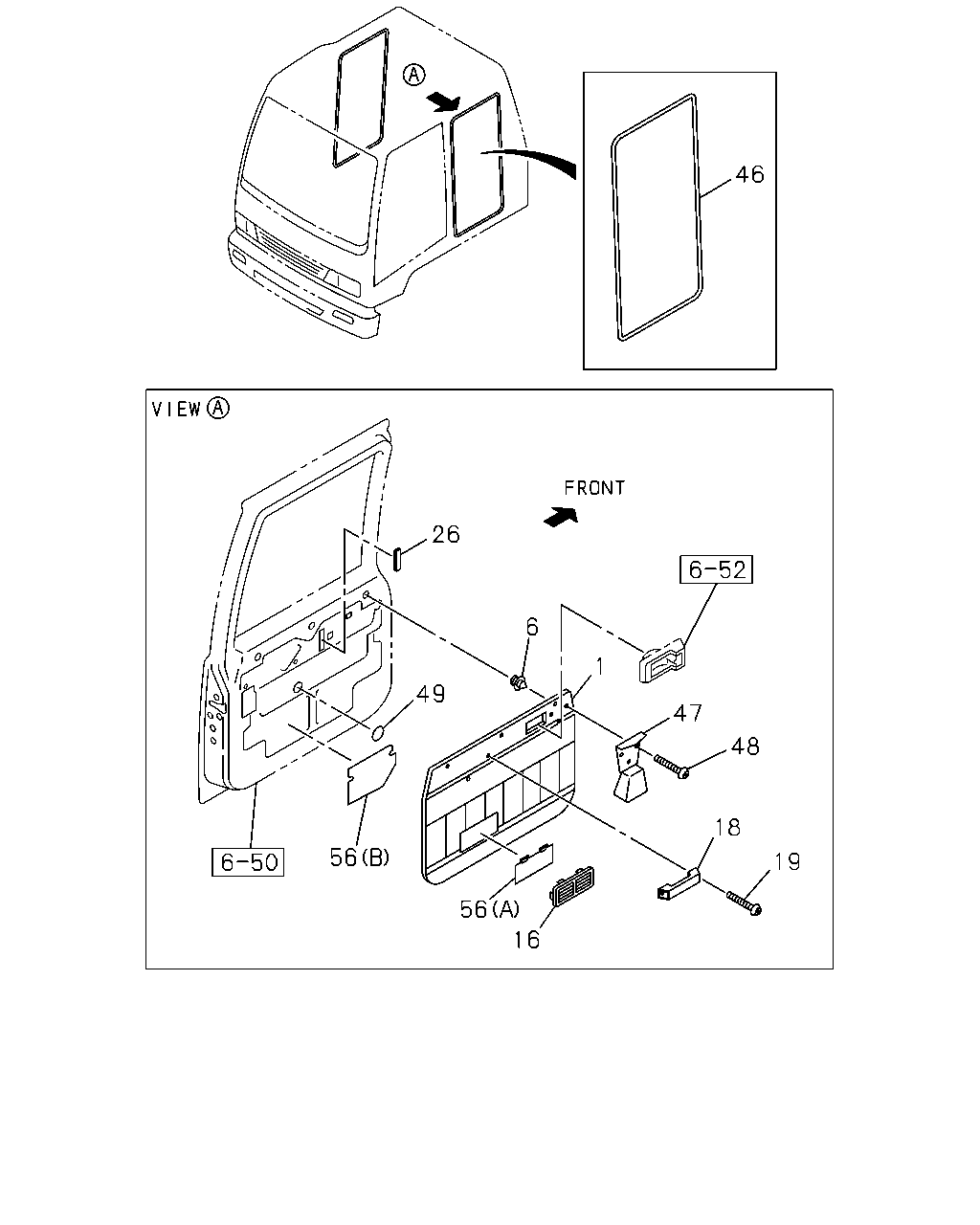

6-55 — REAR DOOR TRIM
(#36670) — 20 parça
46
26
6
1
49
47
48
18
56
19
56
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,RR DOOR
1-73338-490-0
01
1
9510-0004
1
PAD; TRIM,RR DOOR
1-73337-488-1
01
1
0005-
1
PAD; TRIM,RR DOOR
1-73338-489-0
01
1
9510-0004
1
PAD; TRIM,RR DOOR
1-73337-487-1
01
1
0005-
6
CLIP; DOOR PAD
1-09987-119-1
18
1
9510-
16
GRILLE; OUTLET,RR DOOR
1-73338-491-0
02
1
9510-0004
16
GRILLE; OUTLET,RR DOOR
8-94351-763-0
02
1
0005-
18
HANDLE; DOOR PULL
BLACK
8-94142-589-2
02
1
9510-
19
SCREW; DOOR PULL HANDLE
M6X30
8-94279-327-0
04
1
9510-
26
SEAL; WAIST,RR DOOR INNER
1-76777-051-2
02
1
9510-
46
SEAL; DOOR,UPR,CAB SIDE
1-76718-124-5
02
1
9510-
47
TRAY; ASH,RR
5-76457-001-0
02
1
9510-
48
SCREW; RET,ASH TRAY
M4X12 TAPPING OVAL-HEAD
9-07045-412-0
06
1
9510-9709
48
SCREW; RET,ASH TRAY
M4X10 TAPPING OVAL-HEAD
0-70680-410-0
06
1
9710-0603
48
SCREW; RET,ASH TRAY
M4X10 TAPPING OVAL-HEAD
0-70640-410-0
06
1
0604-
49
SEAL; DOOR
1-76798-018-0
02
1
9510-9802
49
SEAL; DOOR
OD=36 T=0.05 BLACK
5-76777-035-0
02
1
9803-
56
SHUTTER; DOOR TRIM
(A)
1-76718-134-1
02
1
9510-
56
SHUTTER; DOOR TRIM
(B)
1-76718-147-3
01
1
9510-
56
SHUTTER; DOOR TRIM
(B)
1-76718-146-3
01
1
9510-
