Sayfa 8-21 - Isuzu EPC

8-21 — METER ASM (#3667) — 131 parça

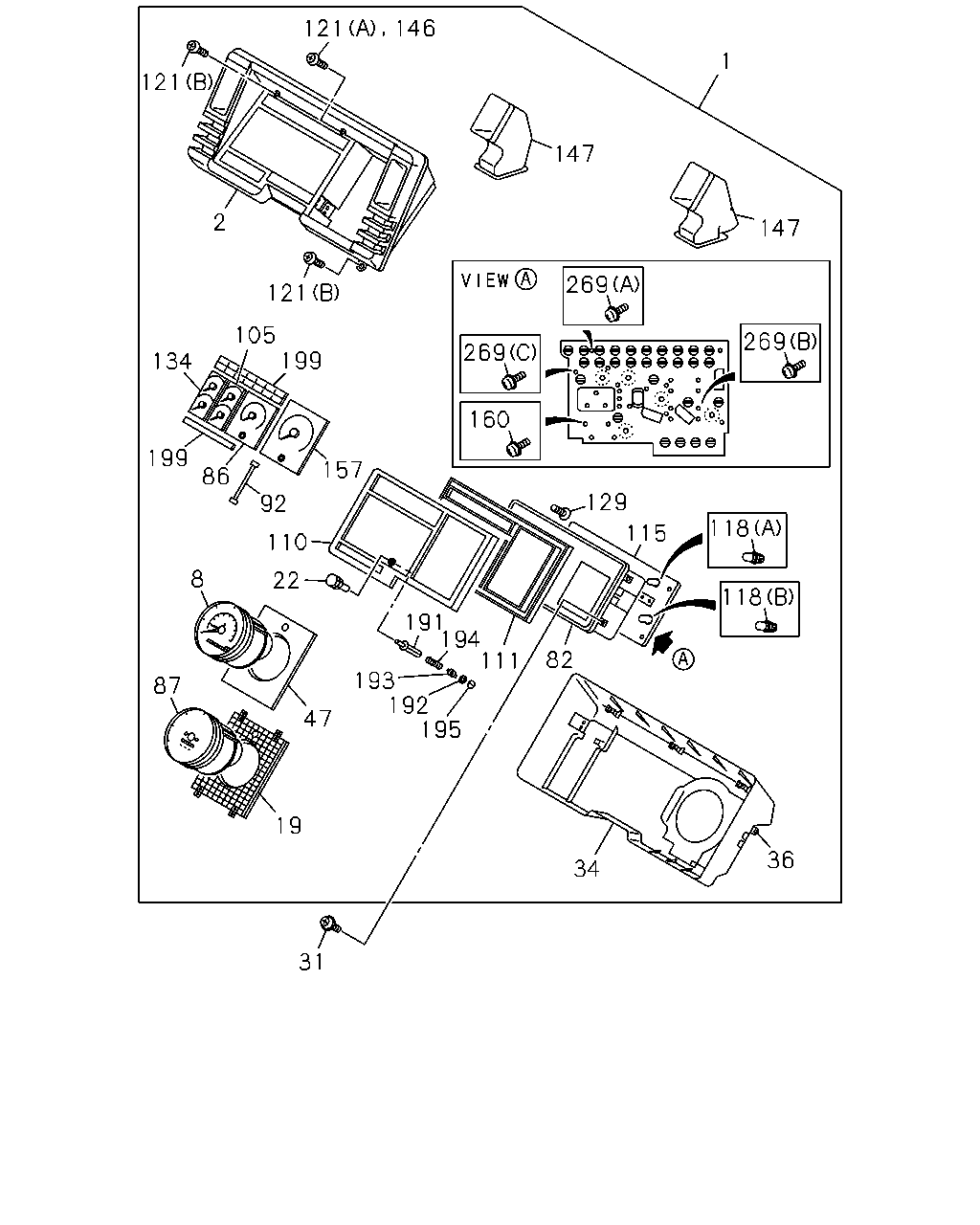

121 146 1 121 147 2 147 269 121 105 199 269 269 134 160 199 157 86 129 92 118 115 110 8 22 118 191 194 111 82 193 192 195 87 47 19 36 34 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, TACHOGRAPH MILES/HOUR<UC5>	1-83114-087-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>	1-83114-104-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2>	1-83114-099-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) TACHOGRAPH MILES/HOUR<UC5> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>	1-83114-129-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) TACHOGRAPH MILES/HOUR<UC5> EXC. DUAL AIR GAUGE<UG2>	1-83114-124-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>	1-83114-114-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>	1-83114-109-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2>	1-83114-095-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L),12PD1 C ENG(43L) DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>	1-83114-579-0	01	1	9307-
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L),12PD1 C ENG(43L) MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>	1-83114-596-0	01	1	9307-
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L),12PD1 C ENG(43L) MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8>,DUAL AIR GAUGE<UG2>	1-83114-591-0	01	1	9307-
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L),12PD1 C ENG(43L) TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>	1-83114-606-0	01	1	9307-
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L),12PD1 C ENG(43L) TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>	1-83114-601-0	01	1	9307-
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, DUAL AIR GAUGE<UG2>	1-83114-587-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, TACHOGRAPH MILES/HOUR<UC5>	1-83114-086-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>	1-83114-578-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>	1-83114-103-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>	1-83114-595-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8>,DUAL AIR GAUGE<UG2>	1-83114-590-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2>	1-83114-098-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH MILES/HOUR<UC5> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>	1-83114-128-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH MILES/HOUR<UC5> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>	1-83114-123-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>	1-83114-113-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>	1-83114-605-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>	1-83114-108-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>	1-83114-600-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, DUAL AIR GAUGE<UG2>	1-83114-575-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2>	1-83114-083-0	01	1	9002-9306
2	PANEL; CLUSTER	1-83117-439-0	01	1	9002-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH MILES/HOUR<UC5>	1-83120-249-0	01	1	9002-9306
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-250-0	01	1	9002-
19	COVER; SPEEDOMETER,CLUSTER METER EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>	1-83129-081-0	01	1	9002-
22	RHEOSTAT; CLUSTER METER	1-82380-075-0	01	1	9002-
31	SCREW; METER,INST PANEL M4X14 TAPPING	1-09140-009-0	03	1	9002-
31	SCREW; METER,INST PANEL M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-
34	HOOD; CLUSTER METER 10PD1 STD ENG(40L) TACHOGRAPH MILES/HOUR<UC5> EXC. DUAL AIR GAUGE<UG2>	1-83117-440-0	01	1	9002-9306
34	HOOD; CLUSTER METER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	1-83117-441-0	01	1	9002-9306
34	HOOD; CLUSTER METER 10PD1 STD ENG(40L) TACHOGRAPH MILES/HOUR<UC5> DUAL AIR GAUGE<UG2>	1-83117-441-0	01	1	9002-9306
34	HOOD; CLUSTER METER 10PD1 STD ENG(40L) EXC. TACHOGRAPH MILES/HOUR<UC5>	1-83117-441-0	01	1	9002-9306
34	HOOD; CLUSTER METER	1-83117-451-0	01	1	9307-
36	BRACKET; CLUSTER METER	1-83119-118-0	01	1	9307-
36	BRACKET; CLUSTER METER	1-83119-117-0	01	1	9307-
47	COVER; TACHOGRAPH,CLUSTER METER TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>	1-83129-034-1	01	1	9002-
82	CASE ASM; CLUSTER METER TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>	1-83180-092-0	01	1	9002-
82	CASE ASM; CLUSTER METER EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>	1-83180-135-0	01	1	9002-
86	TACHOMETER; CLUSTER METER 10PD1 STD ENG(40L) EXC. MILE SPEEDOMETER<UC1>	1-83120-419-0	01	1	9002-
86	TACHOMETER; CLUSTER METER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. MILE SPEEDOMETER<UC1>	1-83120-434-0	01	1	9002-
87	SPEEDOMETER MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>	1-83120-224-0	01	1	9002-
87	SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, TACHOGRAPH MILES/HOUR<UC5> 120KM/H	1-83120-233-0	01	1	9002-
92	RETAINER; CLUSTER METER	1-83119-049-0	02	1	9002-
105	GAUGE; THERMO & FUEL,CLUSTER METER MILE SPEEDOMETER<UC1>	1-83180-061-0	01	1	9002-
105	GAUGE; THERMO & FUEL,CLUSTER METER TACHOGRAPH MILES/HOUR<UC5>	1-83180-061-0	01	1	9002-
105	GAUGE; THERMO & FUEL,CLUSTER METER EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5> THERMO & FUEL	1-83180-050-0	01	1	9002-
110	GLASS; CLUSTER METER	1-83119-046-0	01	1	9002-
111	RIM; GLASS,CLUSTER METER	1-83119-047-0	01	1	9002-
115	CIRCUIT; PRINTED,CLUSTER METER	1-83189-150-0	01	1	9002-
118	BULB; CLUSTER METER EXC. TACHOGRAPH 120KM/H<SM8> (A) 24V 3W	1-82194-043-0	27	1	9307-
118	BULB; CLUSTER METER TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) 24V 3W	1-82258-003-0	28	1	9002-9306
118	BULB; CLUSTER METER TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) 24V 3W	1-82194-043-0	28	1	9307-
118	BULB; CLUSTER METER EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (B) 24V 3W	1-82194-022-0	02	1	9002-9306
118	BULB; CLUSTER METER EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) 24V 3W	1-82258-003-0	27	1	9002-9306
121	SCREW; PANEL FIX,CLUSTER METER (B) M4 TAPPING	1-87590-049-0	02	1	9002-
121	SCREW; PANEL FIX,CLUSTER METER (A) M4X16 TAPPING	1-83119-033-0	04	1	9307-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER M3 TAPPING	1-83119-052-0	09	1	9002-
134	GAUGE; OIL PRESSURE & VOLTAGE MILE SPEEDOMETER<UC1>	1-83180-134-0	01	1	9002-
134	GAUGE; OIL PRESSURE & VOLTAGE TACHOGRAPH MILES/HOUR<UC5>	1-83180-134-0	01	1	9002-
134	GAUGE; OIL PRESSURE & VOLTAGE EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5>	1-83180-122-0	01	1	9002-
146	SCREW; AIR DUCT FIX,METER FOOD M4X16 TAPPING	1-83119-033-0	06	1	9307-
147	DUCT; AIR,CLUSTER METER	1-83119-045-0	01	1	9002-
147	DUCT; AIR,CLUSTER METER	1-83119-044-0	01	1	9002-
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5>	1-83150-130-0	01	1	9002-
157	METER; AIR PRESSURE,CLUSTER METER MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2>	1-83150-135-0	01	1	9002-
157	METER; AIR PRESSURE,CLUSTER METER TACHOGRAPH MILES/HOUR<UC5> DUAL AIR GAUGE<UG2>	1-83150-135-0	01	1	9002-
157	METER; AIR PRESSURE,CLUSTER METER MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2>	1-83150-134-0	01	1	9002-
157	METER; AIR PRESSURE,CLUSTER METER TACHOGRAPH MILES/HOUR<UC5> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>	1-83150-134-0	01	1	9002-
157	METER; AIR PRESSURE,CLUSTER METER EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2>	1-83150-128-0	01	1	9002-
160	SCREW; RHEOSTAT,CLUSTER METER	1-83119-050-0	03	1	9002-
191	KNOB; BULB CHECK	1-83119-316-0	01	1	9307-
192	WASHER; BULB CHECK KNOB	1-83119-317-0	01	1	9307-
193	PLATE; BULB CHECK	1-83119-318-0	01	1	9307-
194	SPRING; BULB CHECK KNOB	1-83119-319-0	01	1	9307-
195	RING; SNAP,KNOB	1-83119-320-0	01	1	9307-
199	LENS; WARNING LAMP	1-83119-297-0	01	1	9002-9306
199	LENS; WARNING LAMP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH 120KM/H<SM8> EXC. DUAL AIR GAUGE<UG2>	1-83119-297-0	01	1	9307-
199	LENS; WARNING LAMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) TACHOGRAPH 120KM/H<SM8>	1-83119-297-0	01	1	9307-
199	LENS; WARNING LAMP EXC. TACHOGRAPH 120KM/H<SM8>	1-83119-297-0	01	1	9307-
199	LENS; WARNING LAMP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2>	1-83119-299-0	01	1	9307-
269	SCREW; METER CLUSTER (A) M4X10	1-83119-051-0	05	1	9002-
269	SCREW; METER CLUSTER (B) M3X8	1-83119-058-0	14	1	9002-
269	SCREW; METER CLUSTER (C) M4 TAPPING	1-83119-059-0	04	1	9002-9306
269	SCREW; METER CLUSTER EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (C) M3 TAPPING	1-83119-084-0	04	1	9002-

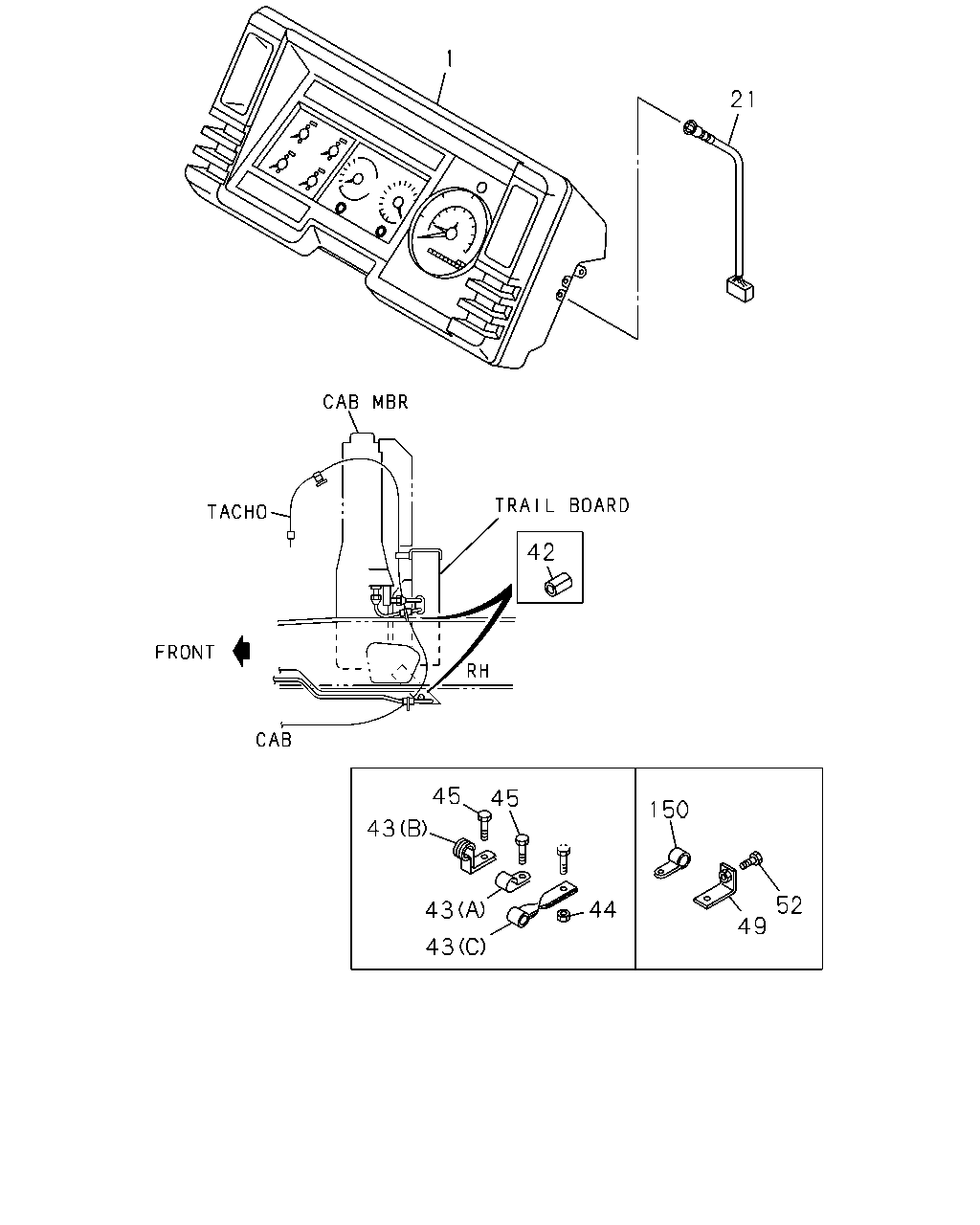

1 21 42 45 45 150 43 52 43 44 49 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, TACHOGRAPH MILES/HOUR<UC5>	1-83114-087-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>	1-83114-104-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2>	1-83114-099-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) TACHOGRAPH MILES/HOUR<UC5> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>	1-83114-129-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) TACHOGRAPH MILES/HOUR<UC5> EXC. DUAL AIR GAUGE<UG2>	1-83114-124-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>	1-83114-114-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>	1-83114-109-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2>	1-83114-095-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L),12PD1 C ENG(43L) DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>	1-83114-579-0	01	1	9307-
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L),12PD1 C ENG(43L) MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>	1-83114-596-0	01	1	9307-
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L),12PD1 C ENG(43L) MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8>,DUAL AIR GAUGE<UG2>	1-83114-591-0	01	1	9307-
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L),12PD1 C ENG(43L) TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>	1-83114-606-0	01	1	9307-
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L),12PD1 C ENG(43L) TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>	1-83114-601-0	01	1	9307-
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, DUAL AIR GAUGE<UG2>	1-83114-587-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, TACHOGRAPH MILES/HOUR<UC5>	1-83114-086-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>	1-83114-578-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>	1-83114-103-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>	1-83114-595-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8>,DUAL AIR GAUGE<UG2>	1-83114-590-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2>	1-83114-098-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH MILES/HOUR<UC5> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>	1-83114-128-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH MILES/HOUR<UC5> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>	1-83114-123-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>	1-83114-113-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>	1-83114-605-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>	1-83114-108-0	01	1	9002-9306
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>	1-83114-600-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, DUAL AIR GAUGE<UG2>	1-83114-575-0	01	1	9307-
1	METER COMPL; CLUSTER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1>, TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2>	1-83114-083-0	01	1	9002-9306
21	HARNESS; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5>	1-82621-815-1	01	1	9002-
42	SLEEVE 10PD1 STD ENG(40L),12PD1 C ENG(43L) ID=15 OD=19 L=20	1-09337-007-0	01	1	9002-
43	CLIP; SHAFT TO TACHOMETER 10PD1 STD ENG(40L) FULLER M/T<X9B> (A) ID=11 L=40	9-09525-075-0	01	1	9002-9306
43	CLIP; SHAFT TO TACHOMETER 10PD1 STD ENG(40L) ISUZU M/T<X9A> (A) ID=11 L=16	9-09525-025-0	01	1	9002-
43	CLIP; SHAFT TO TACHOMETER 12PD1 C ENG(43L) (C) ID=11 L=58	9-09917-135-2	01	1	9307-
43	CLIP; SHAFT TO TACHOMETER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	9002-9306
44	NUT; SHAFT CLIP TO TACHOMETER 12PD1 C ENG(43L) M8	9-09110-408-0	01	1	9307-
45	BOLT; FLEX SHAFT CLIP M8X25 W/LK&PL WASHER	9-01960-825-0	01	1	9002-9204
45	BOLT; FLEX SHAFT CLIP M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9205-
49	BRACKET; SENSOR 6RB1TC-N ENG(29L)	1-15419-097-0	01	1	9012-9306
52	BOLT; SENSOR 6RB1TC-N ENG(29L) M8X12 W/LK WASHER	0-50040-812-0	01	1	9012-9306
150	CLIP; TACHO SENSOR 6RB1TC-N ENG(29L)	9-09524-515-0	01	1	9012-9306
