Isuzu WW
▶
TRUCKS
▶
FTR
▶
10702 - FTR(RHD)EXC. EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-52 - REAR DOOR LOCK AND HANDLE
▶

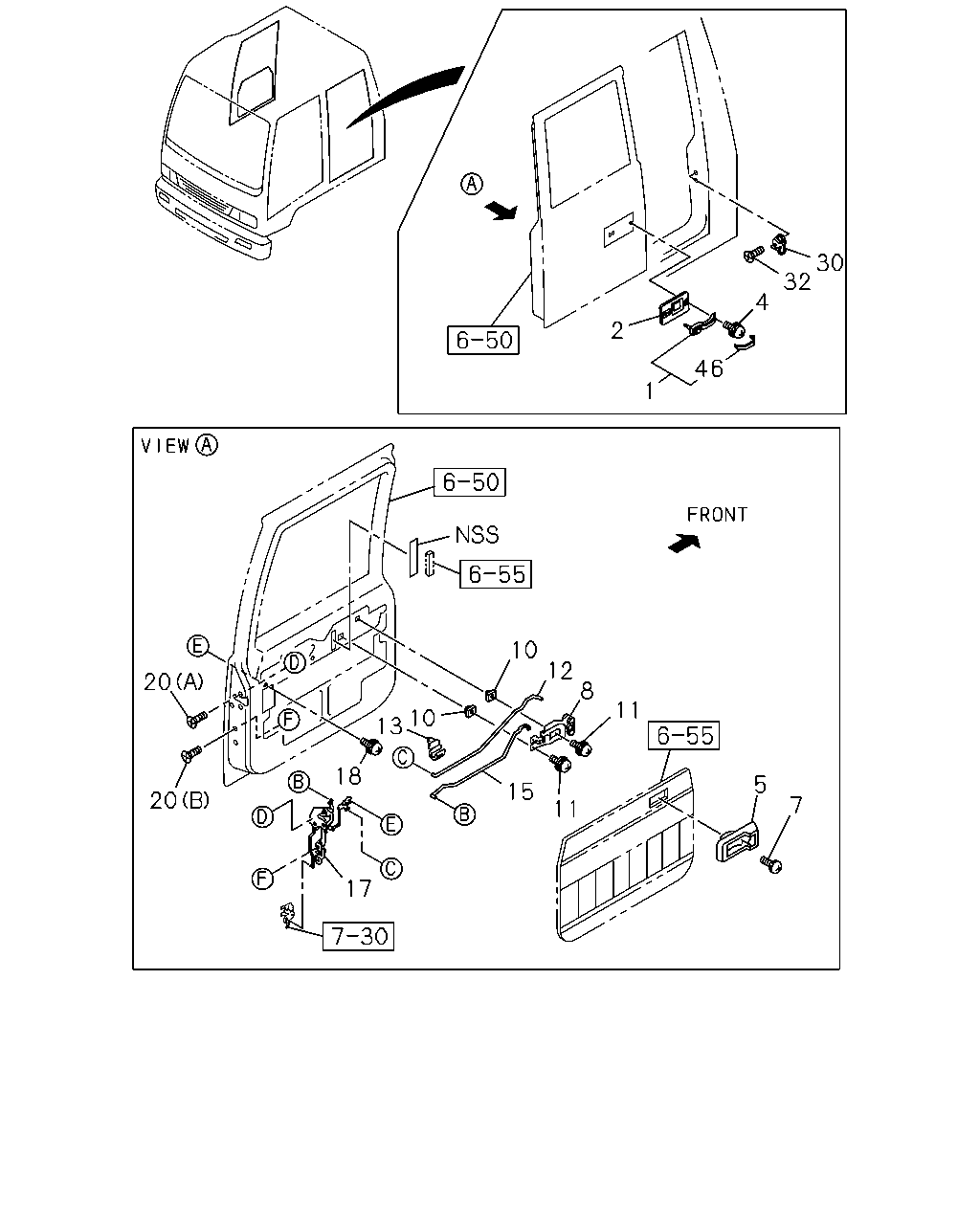

6-52 — REAR DOOR LOCK AND HANDLE
(#36669) — 27 parça
30
32
4
2
46
1
10
12
8
20
11
10
13
18
5
15
20
7
11
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; OUTSIDE,RR DOOR
1-74617-038-2
02
1
9510-
2
BASE; DOOR OUTSIDE HANDLE
1-74617-024-6
02
1
9510-
4
SCREW; DOOR OUTSIDE HANDLE
M6X16 W/LK&PL WASHER
1-09981-439-0
04
1
9510-
5
ESCUTCHEON; INSIDE HANDLE,RR DOOR
BLACK
8-94201-500-1
01
1
9510-
5
ESCUTCHEON; INSIDE HANDLE,RR DOOR
BLACK
8-94201-499-1
01
1
9510-
7
SCREW; ESCUTCHEON
M4X10 TAPPING OVAL-HEAD
0-70580-410-0
02
1
9510-0603
7
SCREW; ESCUTCHEON
M4X10 TAPPING OVAL-HEAD
0-70540-410-0
02
1
0604-
8
HANDLE; INSIDE,RR DOOR
1-74717-019-4
01
1
9510-
8
HANDLE; INSIDE,RR DOOR
1-74717-018-4
01
1
9510-
10
GROMMET; SCREW,INSIDE LEVER,RR DOOR
1-09983-061-0
04
1
9510-0202
10
GROMMET; SCREW,INSIDE LEVER,RR DOOR
D=9.7X9.7 L=8
8-94222-314-0
04
1
0203-
11
SCREW; INSIDE HANDLE
M6X16 TAPPING W/PL WASHER
0-74110-616-0
04
1
9510-0604
11
SCREW; INSIDE HANDLE
M6X16 TAPPING W/PL WASHER
0-74160-616-0
04
1
0605-
12
ROD; DOOR LK RR
1-74518-082-1
01
1
9510-
12
ROD; DOOR LK RR
1-74518-081-1
01
1
9510-
13
CLAMP; DOOR INSIDE LOCKING ROD
1-74517-116-0
02
1
9510-
15
LINK; RR DOOR LK
1-74518-080-0
01
1
9510-
15
LINK; RR DOOR LK
1-74518-079-0
01
1
9510-
17
LOCK; DOOR,RR DOOR
1-74517-162-0
01
1
9510-
17
LOCK; DOOR,RR DOOR
1-74517-158-0
01
1
9510-
18
SCREW; BELLCRANK,DOOR LOCK
M6X16 W/LK&PL WASHER
8-94279-402-0
02
1
9510-
20
SCREW; DOOR LK
(A) M6X16
1-09981-447-1
06
1
9510-0805
20
SCREW; DOOR LK
(A) M6X16
8-97581-217-0
06
1
0806-
20
SCREW; DOOR LK
(B) M6X14
1-09981-512-1
04
1
9510-
30
STRIKER; RR DOOR
1-74527-001-1
02
1
9510-
32
SCREW; DOOR STRIKER
M8X20
1-09981-450-3
04
1
9510-
46
COVER; OUTSIDE HANDLE
1-74617-033-1
02
1
9510-
