◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#36663) — 143 parça

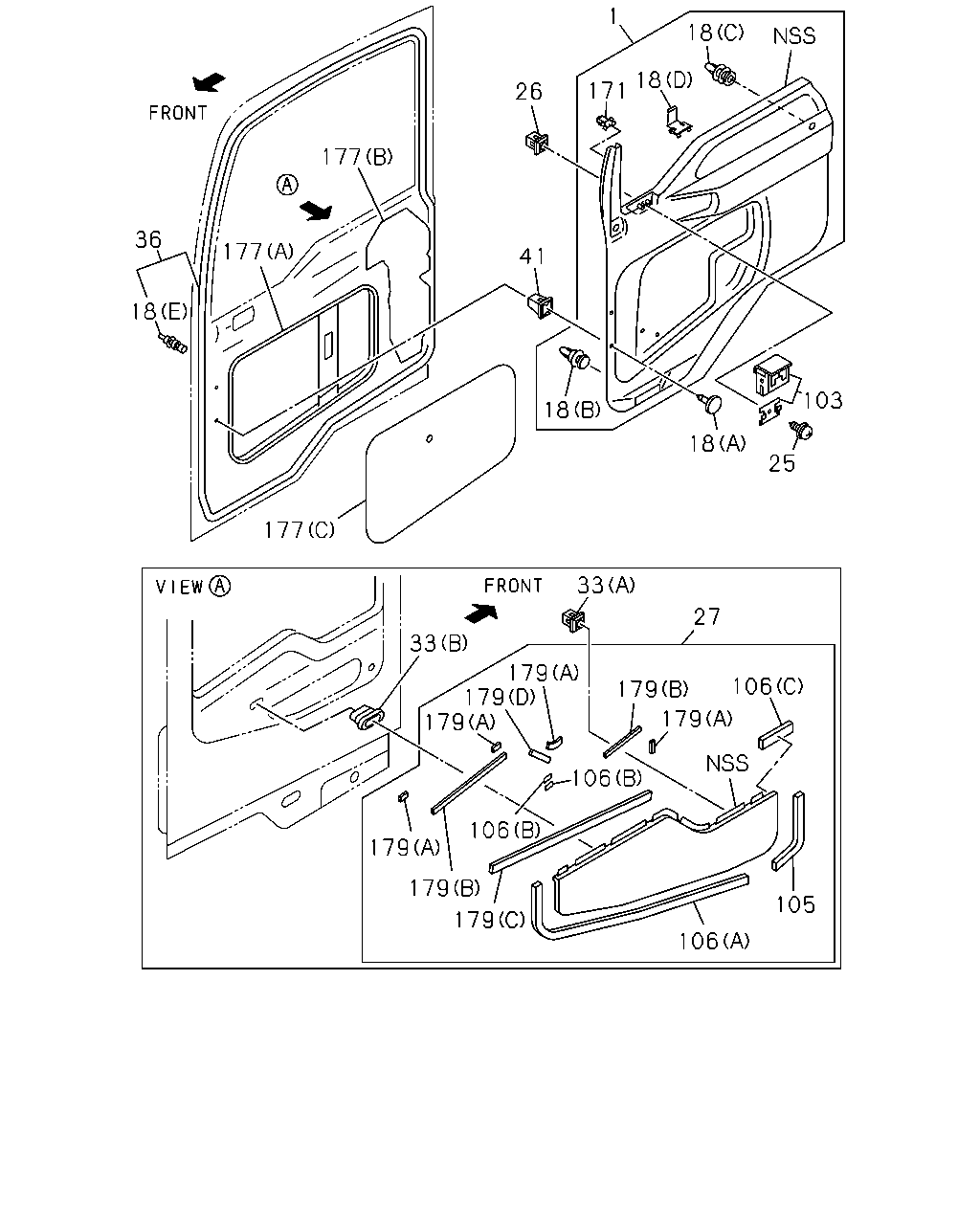

çizim 152133
177 26 1 171 18 18 41 177 36 18 177 18 18 25 103 27 33 33 179 179 179 179 179 179 106 106 179 106 179 105 106
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-467-4 01 1 9510-9911 ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73338-467-4 01 1 9510-9911 ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-467-4 01 1 9912-0004 ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73338-467-4 01 1 9912-0004 ●
1 PAD; TRIM,FRT DOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73338-467-4 01 1 9912-0004 ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-485-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-485-0 01 1 0005-0012 ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-510-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-510-0 01 1 0101-0702 ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-514-1 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR 1-73337-514-1 01 1 0703- ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-465-4 01 1 9510-0004 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73338-465-4 01 1 9510-0004 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-484-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-509-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-513-1 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-449-4 01 1 9510-0004 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-449-4 01 1 9510-0004 ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-506-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-506-0 01 1 0005-0012 ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-538-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-538-0 01 1 0101-0702 ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-515-1 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR 1-73337-515-1 01 1 0703- ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-466-4 01 1 9510-0004 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-509-0 01 1 0005-0010 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-73338-509-0 01 1 0011-0012 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-73338-539-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-73337-516-1 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR
AUSTRALIA EQUIPMENT(RR3) DOOR WINDOW MANUAL CONT<SKF> 		1-73338-471-4 01 1 9510-0004 ●
1 PAD; TRIM,FRT DOOR
AUSTRALIA EQUIPMENT(RR3) 		1-73338-471-4 01 1 9510-0004 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> AUSTRALIA EQUIPMENT(RR3) 		1-73338-472-4 01 1 9510-0004 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-73337-486-0 01 1 0011-0012 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-73337-511-1 01 1 0101- ●
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (D) 		1-09987-262-0 10 1 0011- ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0011- ●
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-94126-768-0 10 1 0011-0012 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 0011-0012 ●
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101- ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101- ●
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (C) OD=7.9 BLACK 		8-94279-974-1 02 1 0011- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0011- ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101- ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9510-0004 ● ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0005-0010 ● ● ●
18 CLIP; DOOR PAD
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0011- ● ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 46 1 9510- ● ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9510-0005 ● ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006-0010 ● ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 05 1 0011- ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 05 1 0011- ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9510-0010 ● ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012 ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012 ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9510-0010 ● ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=7.9 BLACK 		8-94279-974-1 01 1 0011- ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=7.9 BLACK 		8-94279-974-1 01 1 0011- ● ●
18 CLIP; DOOR PAD
DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY 		1-09987-272-0 02 1 0011- ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9510- ● ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510- ● ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2> 		1-76218-125-7 01 1 0005-1210 ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98229-329-0 01 1 1211- ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2> 		1-76218-125-5 01 1 9802-0004 ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-099-4 01 1 9510-9801 ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-76218-099-5 01 1 9802-0004 ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-76218-099-5 01 1 0005-0010 ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-099-5 01 1 0005-0010 ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76218-099-7 01 1 0011- ● ● ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-76218-096-4 01 1 9510-9801 ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-4 01 1 9510-9801 ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-76218-096-5 01 1 9802-0004 ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-5 01 1 9802-0004 ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-76218-096-5 01 1 0005-0104 ● ● ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-76218-096-7 01 1 0105- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-4 01 1 9510-9801 ● ● ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-76218-095-7 01 1 9802-1210 ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-7 01 1 9802-1210 ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		8-98229-328-0 01 1 1211- ● ●
27 PANEL; ORNAMENT,DOOR 8-98229-328-0 01 1 1211- ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9510-0010 ● ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0011-0802 ● ●
33 GROMMET; DOOR ORNAMENT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-09983-149-1 02 1 0011-0802 ●
33 GROMMET; DOOR ORNAMENT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803- ● ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9510-0010 ● ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0011- ● ●
33 GROMMET; DOOR ORNAMENT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74998-111-0 02 1 0011- ●
33 GROMMET; DOOR ORNAMENT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-09983-149-1 01 1 0011-0802 ●
33 GROMMET; DOOR ORNAMENT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 0803- ●
33 GROMMET; DOOR ORNAMENT
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74998-111-0 01 1 0011- ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9510-1010 ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011- ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9510-1010 ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011- ● ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9510-0010 ● ● ●
41 GROMMET; SCREW,DOOR PAD
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0011- ● ● ●
41 GROMMET; SCREW,DOOR PAD
DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0011- ●
103 TRAY ASM; ASH,DOOR 1-76458-070-6 01 1 9510-9612 ● ● ●
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9701-0004 ● ● ●
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0005-0111 ● ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112- ● ● ●
103 TRAY ASM; ASH,DOOR 1-76458-069-6 01 1 9510-9612 ● ● ●
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9701-0004 ● ● ●
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0005-0111 ● ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112- ● ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 9510-0010 ● ● ●
105 SEAL; DOOR ORNAMENT,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76218-082-2 01 1 0011- ● ● ●
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211- ● ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 9510-0010 ● ● ●
106 SEAL; DOOR ORNAMENT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76218-083-2 01 1 0011- ● ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9510-9801 ● ● ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 9510-9801 ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9510-9801 ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 9802-0004 ● ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) 		1-76218-104-0 02 1 9802-0004 ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9802-0004 ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9802-0004 ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 0005-0104 ● ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) 		1-76218-104-0 02 1 0005-0104 ● ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 0005-0104 ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0005-0104 ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 0105- ● ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) 		1-76218-104-0 02 1 0105- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0105- ●
171 RETAINER; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> 		1-09987-264-0 02 1 0011- ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0011- ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 9510-0010 ● ● ●
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 01 1 0011- ● ●
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 01 1 0011- ● ●
177 SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF> (C) 		1-76778-047-3 02 1 9510- ● ●
177 SEAL; WATER,DOOR
(C) 		1-76778-047-3 02 1 9510- ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-0 01 1 9510-0010 ● ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76778-052-2 01 1 0011- ● ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-6 01 1 9510- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9510- ● ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 08 1 9510-0010 ● ● ●
179 TAPE; ORNAMENT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=45 		1-76218-063-2 04 1 0011- ● ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-1 02 1 9510-0010 ● ● ●
179 TAPE; ORNAMENT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) L=770 		1-76218-091-2 01 1 0011- ● ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-0 02 1 9510-0010 ● ● ●
179 TAPE; ORNAMENT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (D) L=160 		1-76218-094-1 01 1 0011- ● ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-0 04 1 9510-0010 ● ● ●
179 TAPE; ORNAMENT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=235 		1-76218-127-1 02 1 0011- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
