◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶

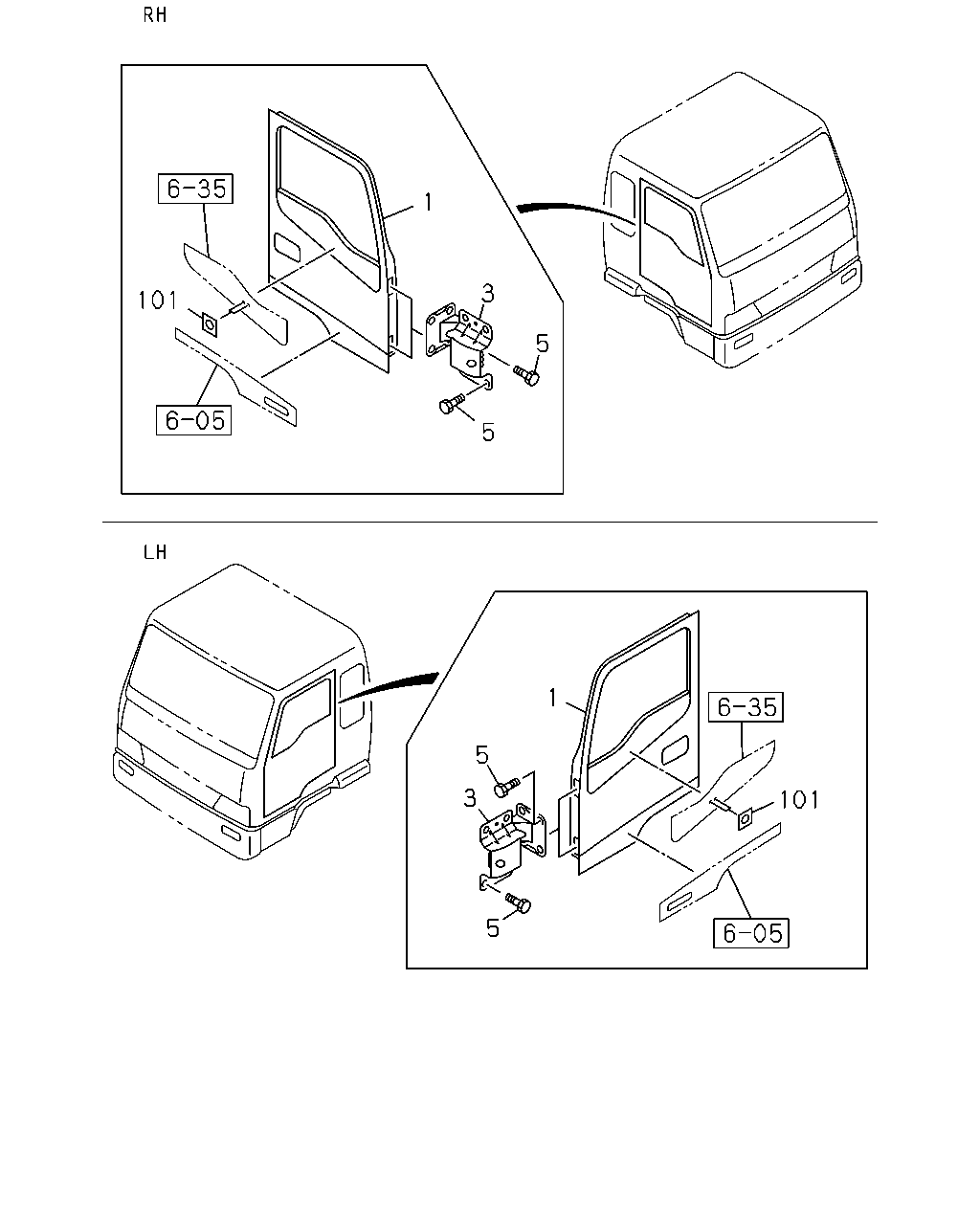

6-30 — FRONT DOOR AND HINGE (#36660) — 42 parça

1 3 101 5 5 1 5 3 101 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW LONG ARM<DH2> PRIMER	1-64080-333-0	01	1	9802-9901	●	●
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW LONG ARM<DH2>	1-64080-388-2	01	1	9902-	●	●
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW WIDE<WU4>	1-64080-328-0	01	1	9510-9801	●	●
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-64080-328-0	01	1	9802-9901	●	●
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-64080-392-0	01	1	9902-0004	●	●
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-64080-392-0	01	1	0005-0010	●	●
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW WIDE<WU4>	1-64080-392-0	01	1	0005-0010			●
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-64080-392-2	01	1	0011-	●	●	●
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW WIDE<WU4>	1-64080-326-0	01	1	9510-9801	●	●
1	DOOR ASM; FRT,WO/TRIM	1-64080-326-0	01	1	9510-9801			●
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-64080-326-0	01	1	9802-9901	●	●
1	DOOR ASM; FRT,WO/TRIM	1-64080-326-0	01	1	9802-9901			●
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-64080-391-0	01	1	9902-0004	●	●
1	DOOR ASM; FRT,WO/TRIM	1-64080-391-0	01	1	9902-0004			●
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-64080-391-1	01	1	0005-0104	●	●	●
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-64080-391-2	01	1	0105-	●	●
1	DOOR ASM; FRT,WO/TRIM	1-64080-325-0	01	1	9510-9801	●	●	●
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW LONG ARM<DH2>	1-64080-325-0	01	1	9802-9901	●	●
1	DOOR ASM; FRT,WO/TRIM	1-64080-325-0	01	1	9802-9901			●
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW LONG ARM<DH2>	1-64080-390-2	01	1	9902-	●	●
1	DOOR ASM; FRT,WO/TRIM	1-64080-390-2	01	1	9902-			●
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> DOOR WITH UNDER VIEW WINDOW<YD8>	1-64080-389-2	01	1	0011-		●
3	HINGE; DOOR FRT MIR O/S RR VIEW LONG ARM<DH2> LOWER	1-64780-090-2	01	1	9805-	●	●
3	HINGE; DOOR FRT MIR O/S RR VIEW LONG ARM<DH2> UPPER	1-64780-091-2	01	1	9805-	●	●
3	HINGE; DOOR FRT UPPER	1-64780-088-2	02	1	9510-9804	●	●	●
3	HINGE; DOOR FRT UPPER	1-64780-088-3	01	1	9805-	●	●	●
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW LONG ARM<DH2> UPPER	1-64780-088-3	01	1	9805-	●	●
3	HINGE; DOOR FRT UPPER	1-64780-088-3	01	1	9805-			●
3	HINGE; DOOR FRT LOWER	1-64780-089-2	02	1	9510-9804	●	●	●
3	HINGE; DOOR FRT LOWER	1-64780-089-4	01	1	9805-	●	●	●
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW LONG ARM<DH2> LOWER	1-64780-089-4	01	1	9805-	●	●
3	HINGE; DOOR FRT LOWER	1-64780-089-4	01	1	9805-			●
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	32	1	9510-9802	●	●	●
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	9803-9804	●	●	●
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9805-	●	●	●
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9805-	●	●	●
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	9803-	●	●	●
101	SEAL; BODY METAL EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 14X14 ID=10 T=0.7	1-61281-427-0	04	1	9802-9806	●	●
101	SEAL; BODY METAL 14X14 ID=10 T=0.7	1-61281-427-0	04	1	9802-9806			●
101	SEAL; BODY METAL EXC. MIR O/S RR VIEW WIDE<WU4> 14X14 ID=10 T=0.7	1-61281-427-0	04	1	9510-9801	●	●
101	SEAL; BODY METAL 14X14 ID=10 T=0.7	1-61281-427-0	04	1	9510-9801			●
101	SEAL; BODY METAL MIR O/S RR VIEW WIDE<WU4> 14X14 ID=10 T=0.7	1-61281-427-0	02	1	9802-9806	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
