Sayfa 8-20 - Isuzu EPC

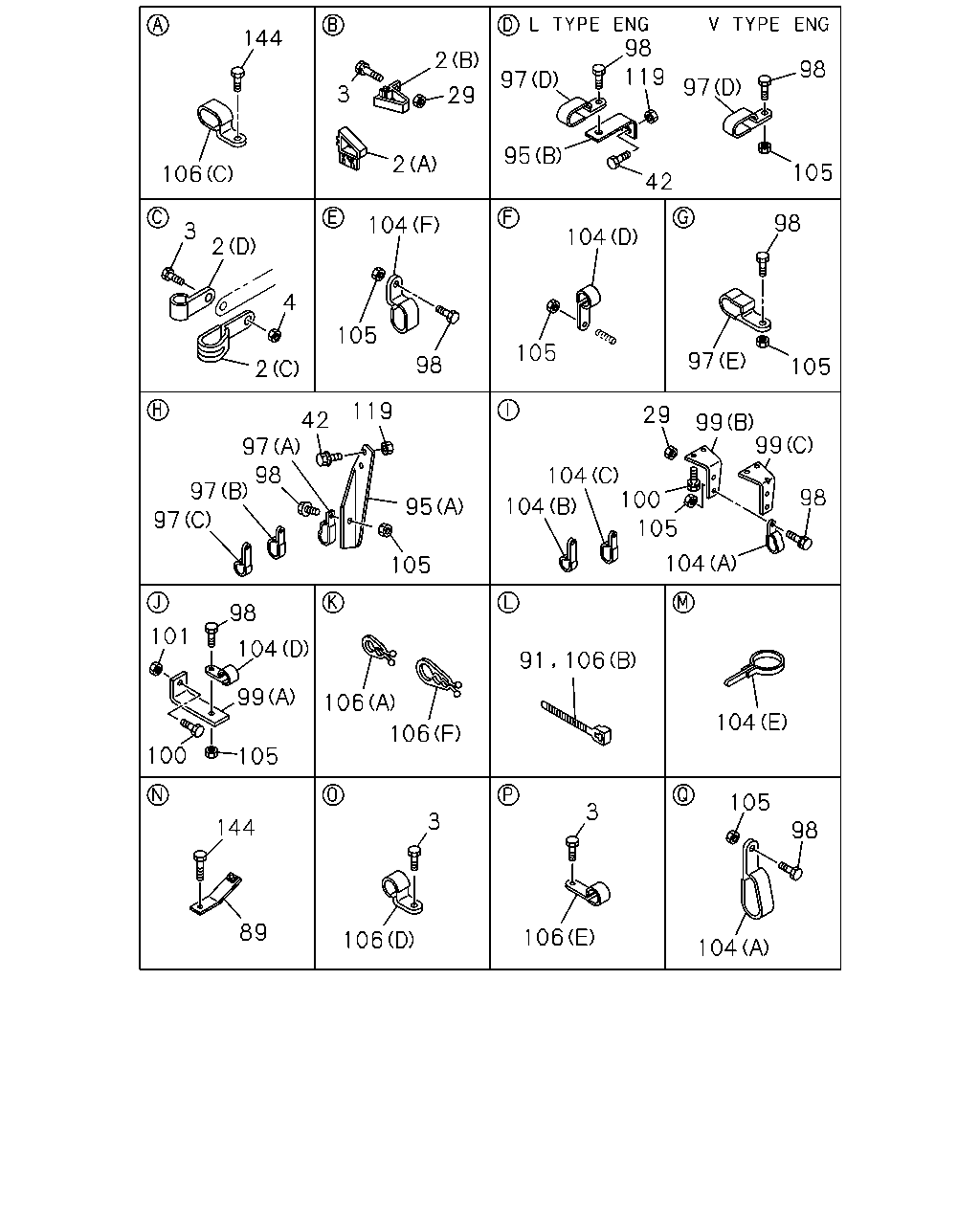

8-20 — METER CABLE (#3666) — 196 parça

98 144 2 98 119 97 97 3 29 95 2 105 106 42 98 104 3 104 2 4 105 105 97 98 105 2 119 29 42 99 99 97 98 97 104 100 98 104 95 97 105 104 105 98 101 104 91 106 99 106 104 106 100 105 105 3 3 144 98 89 106 106 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CLIP; FLEX SHAFT (D) ID=8 L=31	1-09700-112-1	01	1	9002-
2	CLIP; FLEX SHAFT (C)	1-09701-085-0	01	1	9002-
2	CLIP; FLEX SHAFT REINFORCEMENT BUMPER<VG7> (A)	1-09700-780-1	01	1	9002-
2	CLIP; FLEX SHAFT EXC. REINFORCEMENT BUMPER<VG7> (B)	1-09700-772-2	01	1	9002-
3	BOLT; FLEX SHAFT,CLIP REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204
3	BOLT; FLEX SHAFT,CLIP REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-
3	BOLT; FLEX SHAFT,CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
3	BOLT; FLEX SHAFT,CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
3	BOLT; FLEX SHAFT,CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X25 FLANGE	0-28080-825-0	01	1	9303-
3	BOLT; FLEX SHAFT,CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
3	BOLT; FLEX SHAFT,CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
3	BOLT; FLEX SHAFT,CLIP V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	01	1	9303-
4	NUT; FLEX SHAFT CLIP M8	9-09110-408-0	01	1	9002-
29	NUT; CLIP,METER FLEX SHAFT REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	02	1	9002-
29	NUT; CLIP,METER FLEX SHAFT EXC. REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	01	1	9002-
42	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
42	BOLT; BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
42	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
42	BOLT; BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
42	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9303-
42	BOLT; BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28080-825-0	02	1	9303-
89	BRACKET; CLIP TACHOMETER 10PD1 STD ENG(40L)	1-83129-037-1	01	1	9002-
91	CLIP; BAND V TYPE ENG<91L> L=140	5-09707-031-1	01	1	9002-
95	BRACKET; CLIP,UNDER MEMBER (A)	1-47465-665-2	01	1	9002-
95	BRACKET; CLIP,UNDER MEMBER L TYPE ENG<90L> (B)	1-83129-063-0	02	1	9002-
97	CLIP; SHAFT UNDER MEMBER (D) ID=11X2 L=32	9-09535-066-0	02	1	9002-
97	CLIP; SHAFT UNDER MEMBER ANTI NOISE EQUIPMENT<SV9> ISUZU M/T<X9A> V TYPE ENG<91L> (E)	1-09700-962-0	01	1	9307-9310
97	CLIP; SHAFT UNDER MEMBER ISUZU M/T<X9A> L TYPE ENG<90L> (C) ID=11 L=16	9-09525-026-0	01	1	9002-9306
97	CLIP; SHAFT UNDER MEMBER ISUZU M/T<X9A> L TYPE ENG<90L> (C) ID=11 L=16	9-09525-025-0	01	1	9307-
97	CLIP; SHAFT UNDER MEMBER L TYPE ENG<90L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9002-
97	CLIP; SHAFT UNDER MEMBER V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9002-
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) ISUZU M/T<X9A> EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=11X2 L=16	9-09535-026-0	01	1	9002-9306
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) ISUZU M/T<X9A> EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=11X2 L=16	9-09535-025-0	01	1	9307-9310
97	CLIP; SHAFT UNDER MEMBER ISUZU M/T<X9A> V TYPE ENG<91L> (B) ID=11X2 L=16	9-09535-025-0	01	1	9311-
98	BOLT; CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
98	BOLT; CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
98	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9303-
98	BOLT; CLIP M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
98	BOLT; CLIP M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
98	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	02	1	9303-
98	BOLT; CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	03	1	9002-9204
98	BOLT; CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9205-
98	BOLT; CLIP ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-
98	BOLT; CLIP FRONT STABILIZER SHAFT<F59> M8X20 FLANGE	0-28080-820-0	01	1	9307-9501
98	BOLT; CLIP FRONT STABILIZER SHAFT<F59> L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9502-
98	BOLT; CLIP FRONT STABILIZER SHAFT<F59> V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	01	1	9502-
98	BOLT; CLIP FULLER M/T<X9B> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204
98	BOLT; CLIP FULLER M/T<X9B> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-
99	BRACKET; FRAME (B)	1-46147-049-1	03	1	9002-9110
99	BRACKET; FRAME (C)	1-46147-183-0	03	1	9111-9306
99	BRACKET; FRAME EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-46147-183-0	03	1	9307-
99	BRACKET; FRAME 6RB1TC-N ENG(29L) (C)	1-46147-183-0	03	1	9307-
99	BRACKET; FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. TAIWAN EQUIPMENT(WW5) (C)	1-46147-183-0	02	1	9502-
99	BRACKET; FRAME FULLER M/T<X9B> (A) L=105 B=25	1-47476-161-0	01	1	9010-9306
99	BRACKET; FRAME L TYPE ENG<90L> FULLER M/T<X9B> (A) L=105 B=25	1-47476-161-0	01	1	9307-
100	BOLT; BRKT FRAME M8X20 W/LK&PL WASHER	9-01960-820-0	06	1	9002-9002
100	BOLT; BRKT FRAME M8X20 W/LK WASHER	9-01900-820-0	06	1	9003-9204
100	BOLT; BRKT FRAME M8X20 W/LK WASHER	0-50040-820-0	06	1	9205-9302
100	BOLT; BRKT FRAME M8X20 FLANGE	0-28080-820-0	06	1	9303-9306
100	BOLT; BRKT FRAME EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	06	1	9307-9312
100	BOLT; BRKT FRAME 6RB1TC-N ENG(29L) M8X20 FLANGE	0-28080-820-0	06	1	9307-9312
100	BOLT; BRKT FRAME EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28080-825-0	06	1	9401-
100	BOLT; BRKT FRAME 6RB1TC-N ENG(29L) M8X25 FLANGE	0-28080-825-0	06	1	9401-
100	BOLT; BRKT FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. TAIWAN EQUIPMENT(WW5) M8X25 FLANGE	0-28080-825-0	04	1	9502-
100	BOLT; BRKT FRAME FULLER M/T<X9B> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
100	BOLT; BRKT FRAME FULLER M/T<X9B> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
100	BOLT; BRKT FRAME FULLER M/T<X9B> M8X25 FLANGE	0-28080-825-0	01	1	9303-9306
100	BOLT; BRKT FRAME L TYPE ENG<90L> FULLER M/T<X9B> M8X25 FLANGE	0-28080-825-0	01	1	9307-
101	NUT; BRKT FRAME FULLER M/T<X9B> M8	9-09110-408-0	01	1	9002-9306
101	NUT; BRKT FRAME L TYPE ENG<90L> FULLER M/T<X9B> M8	9-09110-408-0	01	1	9307-
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (F) ID=11 & 11	1-09700-734-0	01	1	9307-
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B) ID=11X2 L=16	9-09535-025-0	02	1	9307-9501
104	CLIP; SHAFT,FRAME ISUZU M/T<X9A> V TYPE ENG<91L> (B) ID=11X2 L=16	9-09535-025-0	02	1	9307-9501
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (B) ID=11X2 L=16	9-09535-025-0	02	1	9502-
104	CLIP; SHAFT,FRAME ISUZU M/T<X9A> V TYPE ENG<91L> (B) ID=11X2 L=16	9-09535-025-0	02	1	9502-
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. TAIWAN EQUIPMENT(WW5) (B) ID=11X2 L=16	9-09535-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME ISUZU M/T<X9A> (E) ID=11 L=41	1-09700-403-0	01	1	9002-
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> FRONT STABILIZER SHAFT<F59> (D) ID=11 L=16	9-09525-025-0	01	1	9307-9501
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (D) ID=11 L=16	9-09525-025-0	01	1	9307-9501
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> (D) ID=11 L=16	9-09525-025-0	01	1	9307-9501
104	CLIP; SHAFT,FRAME FRONT STABILIZER SHAFT<F59> L TYPE ENG<90L> (D) ID=11 L=16	9-09525-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (D) ID=11 L=16	9-09525-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. TAIWAN EQUIPMENT(WW5) (D) ID=11 L=16	9-09525-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME ISUZU M/T<X9A>,FULLER M/T<X9B> L TYPE ENG<90L> (D) ID=11 L=16	9-09525-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	03	1	9002-9306
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9307-
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	02	1	9307-
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> ISUZU M/T<X9A> (C) ID=11 L=16	9-09525-026-0	03	1	9002-9306
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> ISUZU M/T<X9A> (C) ID=11 L=16	9-09525-025-0	02	1	9307-
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=21	1-09701-084-0	02	1	9002-
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9002-9306
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (C) ID=11 L=16	9-09525-026-0	01	1	9002-9009
104	CLIP; SHAFT,FRAME FULLER M/T<X9B> (C) ID=11 L=16	9-09525-026-0	01	1	9010-9306
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (C) ID=11 L=16	9-09525-026-0	01	1	9010-9306
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (B) ID=11X2 L=16	9-09535-026-0	02	1	9002-9306
105	NUT; CLIP M8	9-09110-408-0	04	1	9002-9306
105	NUT; CLIP M8	9-09110-408-0	01	1	9307-9501
105	NUT; CLIP FRONT STABILIZER SHAFT<F59> M8	9-09110-408-0	01	1	9307-9501
105	NUT; CLIP FULLER M/T<X9B> M8	9-09110-408-0	01	1	9307-9501
105	NUT; CLIP M8	9-09110-408-0	01	1	9502-
105	NUT; CLIP FRONT STABILIZER SHAFT<F59> L TYPE ENG<90L> M8	9-09110-408-0	01	1	9502-
105	NUT; CLIP FRONT STABILIZER SHAFT<F59> V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	01	1	9502-
105	NUT; CLIP ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	01	1	9502-
105	NUT; CLIP FULLER M/T<X9B> M8	9-09110-408-0	01	1	9502-
105	NUT; CLIP ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8	9-09110-408-0	02	1	9307-9311
105	NUT; CLIP V TYPE ENG<91L> M8	9-09110-408-0	02	1	9307-9311
105	NUT; CLIP M8	9-09110-408-0	03	1	9312-
105	NUT; CLIP FULLER M/T<X9B> M8	9-09110-408-0	01	1	9010-9306
105	NUT; CLIP V TYPE ENG<91L> M8	9-09110-408-0	02	1	9002-9306
105	NUT; CLIP EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	03	1	9307-9311
105	NUT; CLIP 6RB1TC-N ENG(29L) M8	9-09110-408-0	03	1	9307-9311
105	NUT; CLIP V TYPE ENG<91L> M8	9-09110-408-0	02	1	9312-
106	CLIP; SPEEDOMETER CABLE (C) ID=11 & 11	1-09700-734-0	01	1	9002-
106	CLIP; SPEEDOMETER CABLE FULLER M/T<X9B> (B) L=140	5-09707-031-1	01	1	9008-
106	CLIP; SPEEDOMETER CABLE L TYPE ENG<90L> FULLER M/T<X9B> (A) ID=13.5 & 11	1-09709-123-0	04	1	9002-9007
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=13.5 & 11	1-09709-123-0	02	1	9002-9007
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=13.5 & 11	1-09709-123-0	01	1	9008-
106	CLIP; SPEEDOMETER CABLE L TYPE ENG<90L> FULLER M/T<X9B> (A) ID=13.5 & 11	1-09709-123-0	03	1	9008-
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> FULLER M/T<X9B> (F) ID=13.5 & 9.5 & 11	1-09709-124-0	02	1	9002-
106	CLIP; SPEEDOMETER CABLE 10PD1 STD ENG(40L) (D) ID=11 L=28	9-09525-055-0	01	1	9002-9306
106	CLIP; SPEEDOMETER CABLE 10PD1 STD ENG(40L) (D) ID=11 H=20 L=20	5-09700-351-0	01	1	9307-
106	CLIP; SPEEDOMETER CABLE 12PD1 C ENG(43L) (E) ID=11 L=28	9-09525-055-0	01	1	9307-
119	NUT; BRKT M8	9-09110-408-0	02	1	9002-
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9007
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	9-01900-820-0	02	1	9008-9204
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
144	BOLT; CLIP SHAFT M8X20 FLANGE	0-28080-820-0	02	1	9303-
144	BOLT; CLIP SHAFT V TYPE ENG<91L> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9007
144	BOLT; CLIP SHAFT V TYPE ENG<91L> M8X20 W/LK WASHER	9-01900-820-0	01	1	9008-9204
144	BOLT; CLIP SHAFT V TYPE ENG<91L> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
144	BOLT; CLIP SHAFT V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	01	1	9303-

5 74 1 5 32 155 164 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> L=1300	1-83123-665-1	01	1	9002-9306
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> FULLER M/T<X9B>,MJA6 M/T<X9S> EXC. TACHOGRAPH 120KM/H<SM8> L=5000	1-83123-623-1	01	1	9307-
1	SHAFT; FLEX,SPD TO CONN TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=1960	1-83123-654-0	01	1	9002-9306
1	SHAFT; FLEX,SPD TO CONN EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=2020	1-83123-653-0	01	1	9002-9306
1	SHAFT; FLEX,SPD TO CONN V TYPE ENG<91L> L=3230	1-83123-666-0	01	1	9002-9306
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MJA6 M/T<X9S> EXC. TACHOGRAPH 120KM/H<SM8> L=4800	1-83123-609-1	01	1	9307-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00-20<97X> EXC. TACHOGRAPH 120KM/H<SM8> L=4800	1-83123-609-1	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MJA6 M/T<X9S> EXC. TACHOGRAPH 120KM/H<SM8> L=4800	1-83123-609-1	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MJA7 M/T<X9Q> EXC. TACHOGRAPH 120KM/H<SM8>,ANTI NOISE EQUIPMENT<SV9> L=4900	1-83123-613-1	01	1	9307-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E) EXC. TACHOGRAPH 120KM/H<SM8> L=5000	1-83123-589-1	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> EXC. TACHOGRAPH 120KM/H<SM8> L=4850	1-83123-611-0	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> L=4800	1-83123-612-0	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> ANTI NOISE EQUIPMENT<SV9> MJA7 M/T<X9Q> L=4900	1-83124-130-0	01	1	9307-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> MJA6 M/T<X9S> L=4750	1-83123-610-1	01	1	9307-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8> RR TIRE 11.00-20<97X> L=4750	1-83123-610-1	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> MJA6 M/T<X9S> L=4750	1-83123-610-1	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> MJA7 M/T<X9Q> EXC. ANTI NOISE EQUIPMENT<SV9> L=4850	1-83123-614-1	01	1	9307-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E) TACHOGRAPH 120KM/H<SM8> L=4850	1-83123-614-1	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> MJA7 M/T<X9Q> EXC. ANTI NOISE EQUIPMENT<SV9> L=4850	1-83123-614-1	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN 12PD1 C ENG(43L) TACHOGRAPH 120KM/H<SM8> L=5000	1-83123-577-1	01	1	9307-
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L) FULLER M/T<X9B>,MJA6 M/T<X9S> TACHOGRAPH 120KM/H<SM8> L=4950	1-83123-624-1	01	1	9307-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MJA7 M/T<X9Q> ANTI NOISE EQUIPMENT<SV9> EXC. TACHOGRAPH 120KM/H<SM8> L=4950	1-83123-624-1	01	1	9307-
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L) MJA6 M/T<X9S> TACHOGRAPH 120KM/H<SM8> L=5050	1-83123-576-1	01	1	9307-9402
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L) RTX11609B M/T FULLER(X8W) EXC. TACHOGRAPH 120KM/H<SM8> L=5050	1-83123-576-1	01	1	9307-9402
1	SHAFT; FLEX,SPD TO CONN 12PD1 C ENG(43L) MJA7 M/T<X9Q> TACHOGRAPH 120KM/H<SM8> L=5050	1-83123-576-1	01	1	9307-9402
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) TACHOGRAPH 120KM/H<SM8> MJA7 M/T<X9Q> L=5050	1-83123-576-1	01	1	9403-
1	SHAFT; FLEX,SPD TO CONN 12PD1 C ENG(43L) EXC. TACHOGRAPH 120KM/H<SM8>,MJA7 M/T<X9Q> L=5050	1-83123-576-1	01	1	9403-
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L) MJA7 M/T<X9Q> EXC. TACHOGRAPH 120KM/H<SM8> L=5100	1-83123-595-1	01	1	9307-9402
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) MJA7 M/T<X9Q> EXC. TACHOGRAPH 120KM/H<SM8> L=5100	1-83123-595-1	01	1	9403-
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (A) L=5400	1-83123-542-4	01	1	9307-
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) L=5300	1-83123-521-2	01	1	9307-
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) L=200	1-83123-450-1	01	1	9002-
5	SHAFT; FLEX,TACHOMETER TO ENG 12PD1 C ENG(43L) (A) L=5550	1-83123-523-4	01	1	9307-
5	SHAFT; FLEX,TACHOMETER TO ENG 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (A) L=3400	1-83123-641-1	01	1	9307-
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 38/7 18.5"(W3E) FULLER M/T<X9B> RR TIRE 10.00R20<87X>	1-83126-109-0	01	1	9307-
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 38/7 18.5"(W3E) FULLER M/T<X9B> RR TIRE 11.00-20<97X>	1-83126-110-0	01	1	9002-9601
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 39/8 18.5"(W3D) FULLER M/T<X9B> RR TIRE 10.00R20<87X>	1-83126-110-0	01	1	9602-
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 38/7 18.5"(W3E) FULLER M/T<X9B> RR TIRE 11.00-20<97X>	1-83126-110-0	01	1	9602-
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 38/7 18.5"(W3E) FULLER M/T<X9B> RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>	1-83126-285-0	01	1	9005-
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 38/7 18.5"(W3E) FULLER M/T<X9B> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X>	1-83126-109-0	01	1	9002-9004
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 38/7 18.5"(W3E) FULLER M/T<X9B> RR TIRE 10.00R20<87X>	1-83126-109-0	01	1	9005-9306
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 39/8 18.5"(W3D) FULLER M/T<X9B> RR TIRE 11.00-20<97X>	1-83126-107-0	01	1	9002-
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 41/8 18.5"(W3M) FULLER M/T<X9B> RR TIRE 10.00-20<96X>	1-83126-286-0	01	1	9005-
48	GROMMET; FLEX SHAFT	1-09333-093-1	01	1	9002-
74	SHAFT; FLEX,METER TO CONN L=2110	1-83123-657-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS MJA6 M/T<X9S> L TYPE ENG<90L> L=3060	1-83123-659-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS MJA7 M/T<X9Q> V TYPE ENG<91L> L=2960	1-83123-777-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS MJA7 M/T<X9Q> V TYPE ENG<91L> L=3180	1-83123-854-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00-20<97X> L TYPE ENG<90L> L=3010	1-83123-660-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 38/7 18.5"(W3E) L TYPE ENG<90L> L=3010	1-83123-660-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> L TYPE ENG<90L> L=3060	1-83123-668-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E) RR TIRE 10.00-20<96X>,RR TIRE 11.00-20<97X> V TYPE ENG<91L> L=2870	1-83123-662-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RTO11613 M/T FULLER(MV6) FINAL GEAR 41/8 18.5"(W3M) RR TIRE 10.00-20<96X> V TYPE ENG<91L> L=2870	1-83123-662-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS MJA6 M/T<X9S> V TYPE ENG<91L> L=2870	1-83123-662-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) L TYPE ENG<90L> RR TIRE 11.00-20<97X> L=3110	1-83123-661-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E) L TYPE ENG<90L> L=3110	1-83123-661-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00-20<97X> V TYPE ENG<91L> L=2910	1-83123-664-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X> V TYPE ENG<91L> L=2910	1-83123-664-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RTO11613 M/T FULLER(MV6) FINAL GEAR 41/8 18.5"(W3M) V TYPE ENG<91L> L=2910	1-83123-664-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> L TYPE ENG<90L> L=3160	1-83123-669-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> V TYPE ENG<91L> L=2960	1-83123-671-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00-20<97X> V TYPE ENG<91L> L=2810	1-83123-663-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RT11609A M/T FULLER(PQ4) FINAL GEAR 38/7 18.5"(W3E) V TYPE ENG<91L> L=2810	1-83123-663-0	01	1	9002-9306
155	SHAFT; FLEX,CONN TO TRANS RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> V TYPE ENG<91L> L=2860	1-83123-670-0	01	1	9002-9306
164	COVER; GROMMET	1-73997-758-0	01	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
