◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#36651) — 85 parça
çizim 179820
125 126 127 129 143 144 151 153 154 156 157 158 159 163 163 163 158
BalonParca AdiParca NoAdetTipApplied Date A B C
125 PULLER ASM; KING PIN
EXC. HUB LUBRICATION OIL BATH<C5K> L=450 		1-85210-009-0 01 1 0712- ●
126 WRENCH; FRT HUB BRG NUT
EXC. HUB LUBRICATION OIL BATH<C5K> L=350 B=75 		1-85110-002-1 01 1 0712- ●
127 WRENCH ASM; HUB BRG NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=400 B=116 		9-85113-524-0 01 1 0712-0808 ●
127 WRENCH ASM; HUB BRG NUT
EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=400 B=116 		9-85113-524-0 01 1 0712-0808 ●
127 WRENCH ASM; HUB BRG NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=400 B=116 		8-98119-000-1 01 1 0809- ●
127 WRENCH ASM; HUB BRG NUT
EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=400 B=116 		8-98119-000-1 01 1 0809- ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0710- ● ● ●
143 GUIDE; BOOT,TIE ROD END
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-85229-013-0 01 1 0712- ●
144 BASE; BOOT GUIDE,TIE ROD END
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-85229-009-0 01 1 0712- ●
151 REMOVER; OIL BRK,FRT RETURN SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> ID=16 		1-85237-002-0 01 1 0712- ●
153 DRIVER; WASHER,THRUST WASHER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-85238-002-0 01 1 0712- ●
154 SLEEPER; KING PIN
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-85238-003-0 01 1 0712- ●
156 PULLER; ANCHOR PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-85210-025-0 01 1 0712- ●
157 REPLACER KIT; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-85231-554-0 01 1 0712- ●
158 SETTING TOOL; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-85221-231-0 01 1 0712-1002 ●
158 SETTING TOOL; RETURN SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		9-85221-231-0 01 1 0712-1002 ●
158 SETTING TOOL; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-85221-231-0 01 1 1003- ●
159 REMOVER; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.5 		9-85231-555-0 01 1 0712- ●
163 TOOL; SETTING
MZX6P M/T(RSW) (B) L=195 		1-85221-162-1 01 1 0712-0805 ●
163 TOOL; SETTING
MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) L=195 		1-85221-162-1 01 1 0806-0906 ●
163 TOOL; SETTING
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) L=195 		1-85221-162-1 01 1 0907- ●
163 TOOL; SETTING
MZX6P M/T(RSW) (C) L=150 		1-85221-163-0 01 1 0712-0805 ●
163 TOOL; SETTING
MZX6P M/T(RSW),MLD6W M/T(Y2C) (C) L=150 		1-85221-163-0 01 1 0806-0906 ●
163 TOOL; SETTING
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (C) L=150 		1-85221-163-0 01 1 0907- ●
163 TOOL; SETTING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		9-85221-231-0 01 1 1003- ●

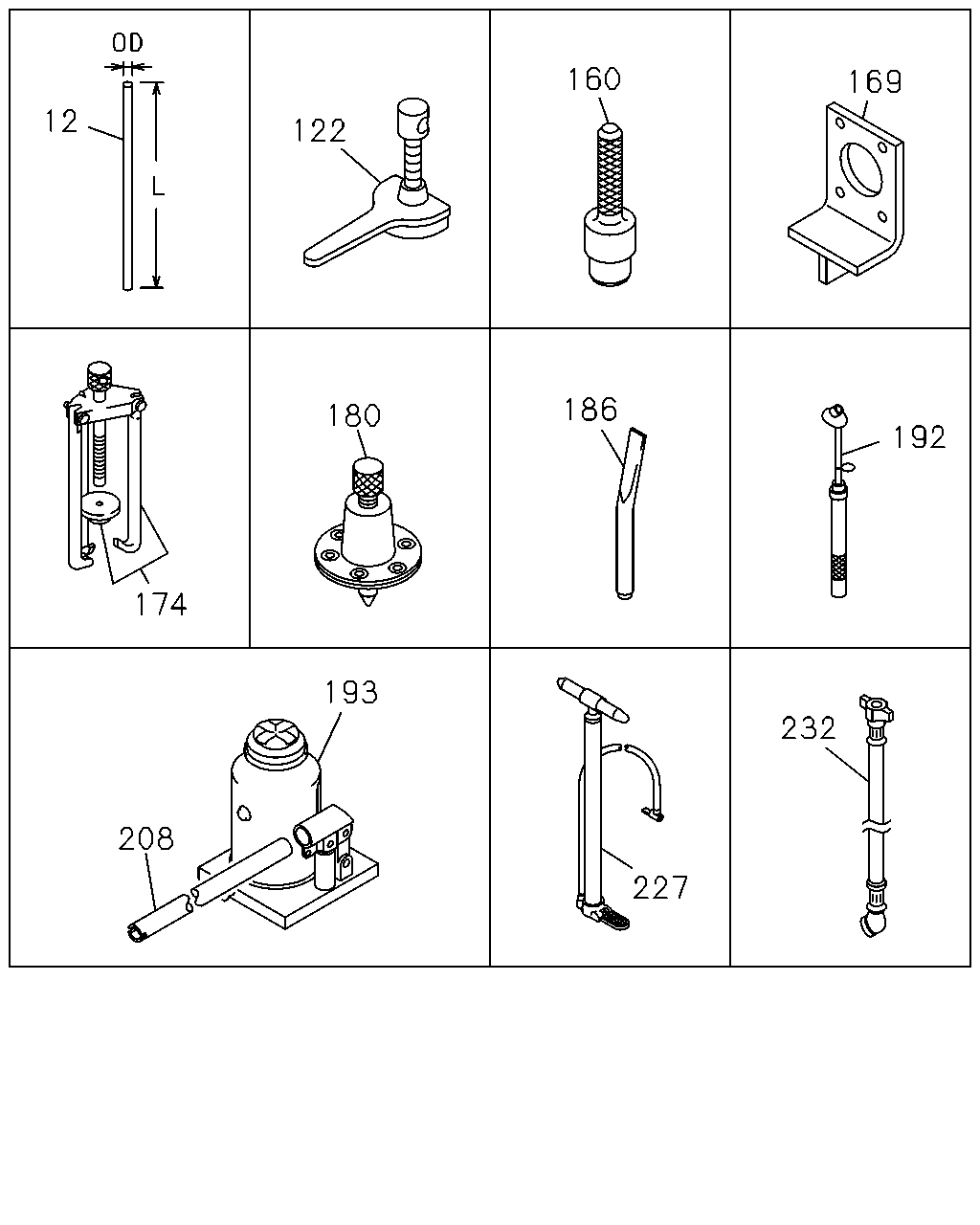

çizim 179825
160 169 12 122 186 180 192 174 193 232 208 227
BalonParca AdiParca NoAdetTipApplied Date A B C
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0710-1501 ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502- ● ● ●
122 PULLER ASM; COUNTER FRT
MLD6W M/T(Y2C) 		9-85210-168-0 01 1 0910- ●
160 REMOVER; NEEDLE BRG
EXC. HUB LUBRICATION OIL BATH<C5K> L=220 		1-85238-001-0 01 1 0712- ●
169 BRACKET; SPLINE YOKE
ZF9S1110 M/T(Y5E) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-85221-317-0 01 1 0710-0711 ●
169 BRACKET; SPLINE YOKE
ZF9S1110 M/T(Y5E) 		1-85221-317-0 01 1 0710-0711 ●
169 BRACKET; SPLINE YOKE
ZF9S1110 M/T(Y5E) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-85221-317-0 01 1 0712- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0710-0711 ● ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0712- ● ●
174 PULLER ASM; MAIN CLU SHAFT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-85210-148-0 01 1 0712- ●
180 PULLER; FRT & RR HUB
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-85210-002-0 01 1 0712-1008 ●
186 ADJUSTER; BRAKE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-85269-008-0 01 1 0712- ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0710- ● ● ●
193 JACK ASM
10TON 		8-97607-599-0 01 1 0710- ● ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0710-1107 ● ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108- ● ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0710- ● ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 1007- ● ●
çizim 179897
9 1 23 13 22 21 20 17 115 29 29 29 230 237
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 0710- ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> 		9-23110-018-0 01 1 0710- ●
1 HANDLE; SPARE TIRE CARRIER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 0710- ●
9 WRENCH; WHEEL PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) B=41X21 L=440 		1-85113-015-1 01 1 0712-1601 ●
9 WRENCH; WHEEL PIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) B=41X21 L=440 		1-85113-015-1 01 1 0712-1601 ●
9 WRENCH; WHEEL PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) B=41X21 L=445 		8-98316-703-0 01 1 1602- ●
9 WRENCH; WHEEL PIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) B=41X21 L=445 		8-98316-703-0 01 1 1602- ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0710-0711 ● ● ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0712-1601 ● ●
9 WRENCH; WHEEL PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) B=33X30 L=450 		1-85111-033-1 01 1 0712-1601 ●
9 WRENCH; WHEEL PIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) B=33X30 L=450 		1-85111-033-1 01 1 0712-1601 ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		8-98316-700-0 01 1 1602- ● ●
9 WRENCH; WHEEL PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) B=33X30 L=450 		8-98316-700-0 01 1 1602- ●
9 WRENCH; WHEEL PIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) B=33X30 L=450 		8-98316-700-0 01 1 1602- ●
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 0710-1407 ● ● ●
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408- ● ● ●
17 HAMMER 9-85121-406-0 01 1 0710- ● ● ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0710- ● ● ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0710- ● ● ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0710- ● ● ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0710- ● ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0710- ● ● ●
29 DRIVER; SCREW
(B) <-> L=275 		8-98061-105-0 01 1 0710- ● ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 0710- ● ● ●
115 PLIER 5-85171-002-0 01 1 0710-1410 ● ● ●
115 PLIER 8-98282-845-0 01 1 1411- ● ● ●
230 PUMP; GREASE 1-85556-007-5 01 1 0710- ● ● ●
237 BAG; TOOL 8-97130-902-1 01 1 0710- ● ● ●
çizim 179942
274 271 268 209 311 285 281 283 282 284
BalonParca AdiParca NoAdetTipApplied Date A B C
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0710- ● ● ●
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0710-1108 ● ● ●
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1109-1212 ● ● ●
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0710- ● ● ●
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0710-1108 ● ● ●
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1109-1212 ● ● ●
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL<RC5> 		1-53459-665-2 02 1 0710- ● ●
282 NUT; BRKT
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 0710- ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL<RC5> ID=10.2 		0-91510-510-0 04 1 0710- ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 0710- ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 0710- ● ●
311 BOX ASM; TOOL
KEY LOCK TOOL<RC5> 		1-85561-006-3 01 1 0710- ● ●
