Isuzu WW
▶
TRUCKS
▶
FVR
▶
11106 - FVR/GVR-RHD EURO2/4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
▶

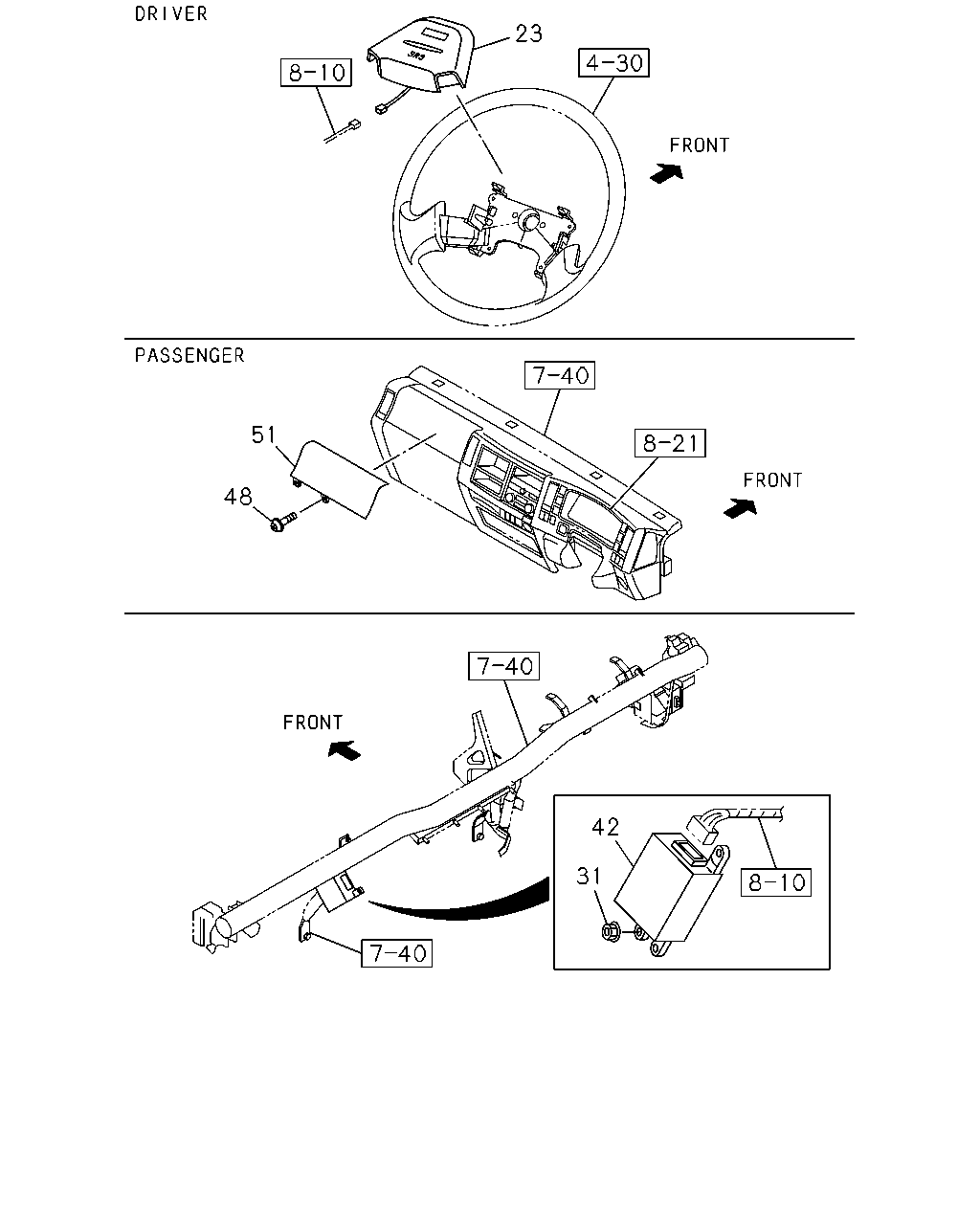

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
(#36638) — 12 parça
Tümü
A - FGD5MV
B - FGR5MV
C - GGD5MV
23
51
48
42
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
23
AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY
8-97407-721-1
01
1
0710-1004
●
●
●
23
AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY
8-97418-100-0
01
1
1005-1210
●
●
●
23
AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY
8-97423-999-1
01
1
1211-
●
●
●
31
NUT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6 FLANGE
0-91180-106-0
03
1
0710-
●
●
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER(AK5)
8-98051-605-0
01
1
0710-0710
●
●
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER(AK5)
8-98094-570-0
01
1
0711-0903
●
●
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER(AK5)
8-98120-071-2
01
1
0904-
●
●
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER(AJ3)
8-98051-604-0
01
1
0710-0710
●
●
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER(AJ3)
8-98094-569-0
01
1
0711-0903
●
●
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER(AJ3)
8-98120-070-2
01
1
0904-
●
●
●
48
BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) M6X16 W/LK&PL WASHER
0-52010-616-0
02
1
0710-
●
●
●
51
AIR BAG ASM; P/S
AIR BAG DRIVER & PASSENGER(AK5) GRAY
8-97405-266-4
01
1
0710-
●
●
●
