◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#36637) — 443 parça

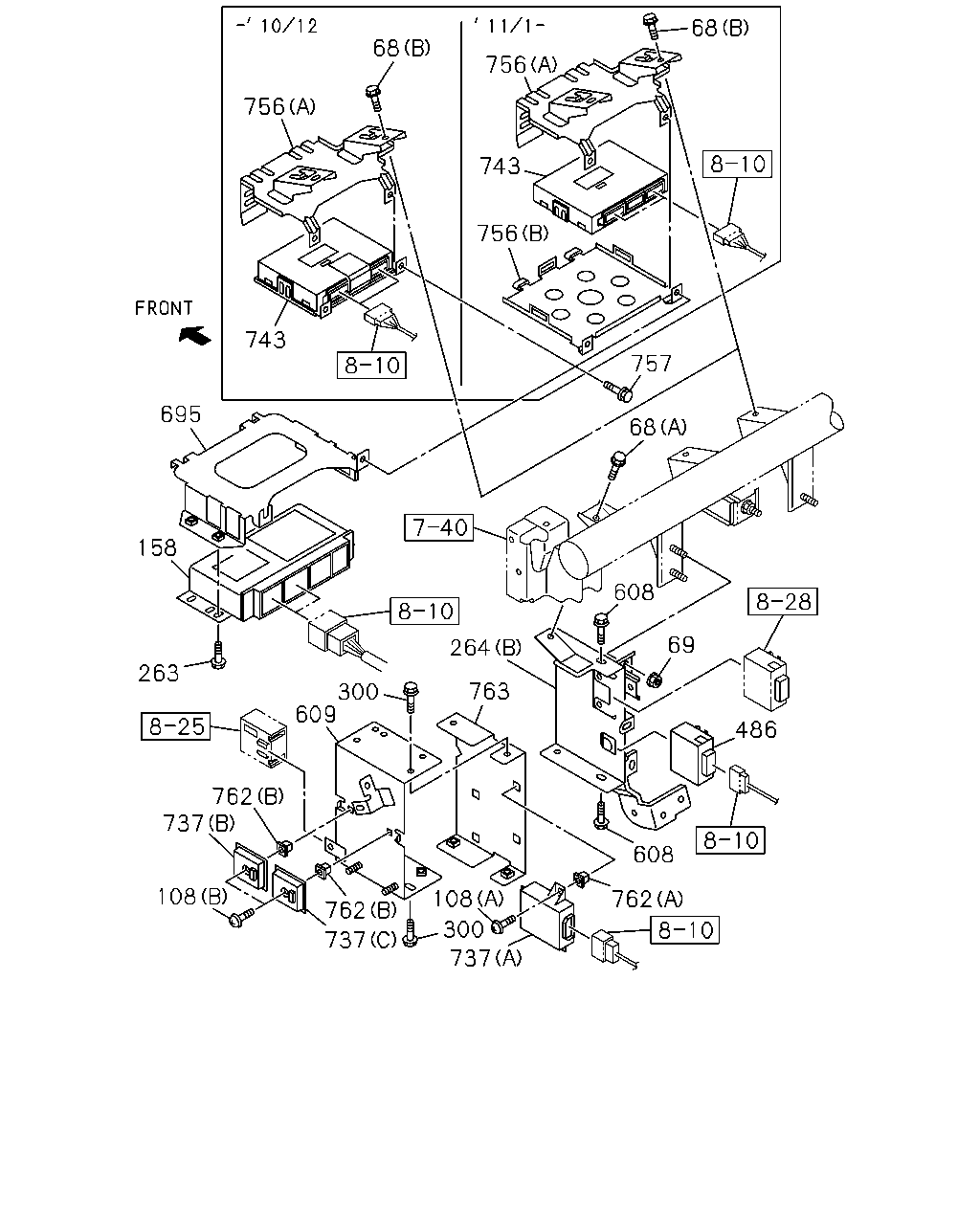

çizim 179794
68 68 756 756 743 756 743 757 695 68 158 608 69 264 263 763 300 609 486 762 737 608 108 108 762 762 300 737 737
BalonParca AdiParca NoAdetTipApplied Date A B C
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0710-0711 ● ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0712- ● ●
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0712- ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> EXC. ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0712- ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0710- ● ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0902-0906 ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SCREW M4X25 TAPPING 		0-74160-425-0 02 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) SCREW M4X25 TAPPING 		0-74160-425-0 02 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SCREW M4X25 TAPPING 		0-74160-425-0 02 1 0712- ● ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3060P A/T(Y4G) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3060P A/T(Y4G) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0712-0901 ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0712-0901 ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3060P A/T(Y4G) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0902-0906 ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3060P A/T(Y4G) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0907- ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0907- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712- ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) KD PREPARATORY PACK<6HF> 		1-80119-229-2 01 1 1008-1201 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) KD PREPARATORY PACK<6HF> 		1-80119-261-0 01 1 1008-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11.00R-22.5-16 RIB(55N),TI RE 10.00R20-16 RIB(55R),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) KD PREPARATORY PACK<6HF> 		1-80119-261-0 01 1 1008-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		1-80119-229-2 01 1 0712-0803 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		1-80119-229-2 01 1 0804-1005 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		8-98170-647-0 01 1 1006-1007 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) EXC. KD PREPARATORY PACK<6HF> 		8-98170-647-0 01 1 1008-1201 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		8-98170-647-0 01 1 1202- ● ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 0710-0711 ● ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> 		1-80119-261-0 01 1 0712-0803 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE FRT 10.00-20-14 RIB RR 10.00-20-14 LUG(11X), TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-16 RIB(40T),TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00-20-16 LUG(51R), TIRE 11.00R-22.5-16 RIB(55N),TIRE 11.00-20-16 RIB(80R),TIRE 11.00-20-16 LUG(81R),TIRE 11.00R20-16RIB(85R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 0712-0803 ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 0712-0803 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 0804-0805 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE FRT 10.00-20-14 RIB RR 10.00-20-14 LUG(11X), TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-16 RIB(40T),TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00-20-16 LUG(51R), TIRE 11.00R-22.5-16 RIB(55N),TIRE 11.00-20-16 RIB(80R),TIRE 11.00-20-16 LUG(81R),TIRE 11.00R20-16RIB(85R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 0804-0805 ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 0804-0805 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 0806-0812 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE FRT 10.00-20-14 RIB RR 10.00-20-14 LUG(11X), TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-16 RIB(40T),TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00-20-16 LUG(51R), TIRE 11.00R-22.5-16 RIB(55N),TIRE 11.00-20-16 RIB(80R),TIRE 11.00-20-16 LUG(81R),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE 11.00R20-16 RIB(85R),T IRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 0806-0812 ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 0806-0812 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 0901-0901 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE 11.00R20-16 RIB(85R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 0901-0901 ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 0901-0901 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 0901-0912 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE 11.00R20-16 RIB(85R),TI RE 11.00R20-16 SPECIAL MIDDLE EAST(89R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 0901-0912 ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 0901-0912 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 1001-1005 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11.00R-22.5-16 RIB(55N),TI RE 10.00R20-16 RIB(55R),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 1001-1005 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 1001-1005 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98170-648-0 01 1 1006-1007 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11.00R-22.5-16 RIB(55N),TI RE 10.00R20-16 RIB(55R),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98170-648-0 01 1 1006-1007 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98170-648-0 01 1 1006-1007 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) EXC. KD PREPARATORY PACK<6HF> 		8-98170-648-0 01 1 1008-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11.00R-22.5-16 RIB(55N),TI RE 10.00R20-16 RIB(55R),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) EXC. KD PREPARATORY PACK<6HF> 		8-98170-648-0 01 1 1008-1201 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98170-648-0 01 1 1008-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98170-648-0 01 1 1202- ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11.00R-22.5-16 RIB(55N),TI RE 10.00R20-16 RIB(55R),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98170-648-0 01 1 1202- ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98170-648-0 01 1 1202- ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 0710-0711 ● ● ●
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 04 1 0712- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 0712- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
A/T<X9D> (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 0710-0711 ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> (A) 		8-98064-901-0 01 1 0712- ●
264 BRACKET; CONT UNIT
A/T<X9D> (A) 		8-98064-901-0 01 1 0712- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 0712- ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710- ● ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 04 1 0710-0711 ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 04 1 0710-0711 ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 04 1 0712- ● ●
486 CONTROL UNIT; MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-97610-202-1 01 1 0712- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 0710-0711 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 05 1 0710-0711 ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 0710-0711 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 0712-0805 ●
608 BOLT; CONT UNIT,AIR SUS
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0712-0805 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0712-0805 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0712-0805 ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 0712-0805 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 0806-0906 ●
608 BOLT; CONT UNIT,AIR SUS
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0806-0906 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0806-0906 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0806-0906 ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 0806-0906 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 0907- ●
608 BOLT; CONT UNIT,AIR SUS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0907- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0907- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0907- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 0907- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-97611-240-3 01 1 0710-0710 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) 		8-97611-240-3 01 1 0710-0710 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-97611-240-3 01 1 0710-0710 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98095-337-0 01 1 0710-0711 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) 		8-98095-337-0 01 1 0710-0711 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 0710-0711 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98095-337-0 01 1 0712-0805 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0712-0805 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0712-0805 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0712-0805 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 0712-0805 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98095-337-0 01 1 0806-0906 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0806-0906 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0806-0906 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0806-0906 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 0806-0906 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98095-337-0 01 1 0907-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0907-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0907-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0907-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 0907-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98169-737-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1309- ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 0710-0711 ● ● ●
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> 		8-98045-016-1 01 1 0712- ● ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 0712- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 0712- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 0712- ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98096-824-0 01 1 0712-0904 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98139-015-0 01 1 0905-0906 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98139-015-0 01 1 0907-1008 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98164-519-0 01 1 1009-1212 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98230-117-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98269-476-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98288-017-0 01 1 1412- ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98096-825-0 01 1 0712-0904 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98139-016-0 01 1 0905-0906 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98139-016-0 01 1 0907-1008 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98164-520-0 01 1 1009-1107 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98164-520-0 01 1 1108-1212 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98230-118-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98269-477-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98288-018-0 01 1 1412- ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3060P A/T(Y4G) (D) 		8-98081-208-0 01 1 0710-0904 ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3060P A/T(Y4G) (D) 		8-98143-055-0 01 1 0905- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 0712- ● ●
743 CONTROL UNIT; BCM 8-98089-297-0 01 1 0710-0711 ● ● ●
743 CONTROL UNIT; BCM 8-98089-297-0 01 1 0712-0802 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98089-297-0 01 1 0712-0802 ●
743 CONTROL UNIT; BCM 8-98102-484-0 01 1 0803-0901 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98102-484-0 01 1 0803-0901 ●
743 CONTROL UNIT; BCM 8-98125-904-0 01 1 0902-1005 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98125-904-0 01 1 0902-1005 ●
743 CONTROL UNIT; BCM 8-98155-169-1 01 1 1006-1007 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98155-169-1 01 1 1006-1007 ●
743 CONTROL UNIT; BCM 8-98176-213-0 01 1 1008-1012 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1008-1012 ●
743 CONTROL UNIT; BCM 8-98182-026-3 01 1 1101- ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ●
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 0710-0711 ● ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 0712- ● ●
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> (A) 		8-98056-411-3 01 1 0712- ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTI LOCK BRAKE<JE5> (A) 		8-98056-411-3 01 1 0712- ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ● ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 0712- ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 0712- ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0710-0711 ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0710-0711 ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0712- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0710-0711 ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0710-0711 ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0712- ● ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-587-0 01 1 0710-0711 ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) 		8-98085-587-0 01 1 0710-0711 ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-587-0 01 1 0712- ● ●

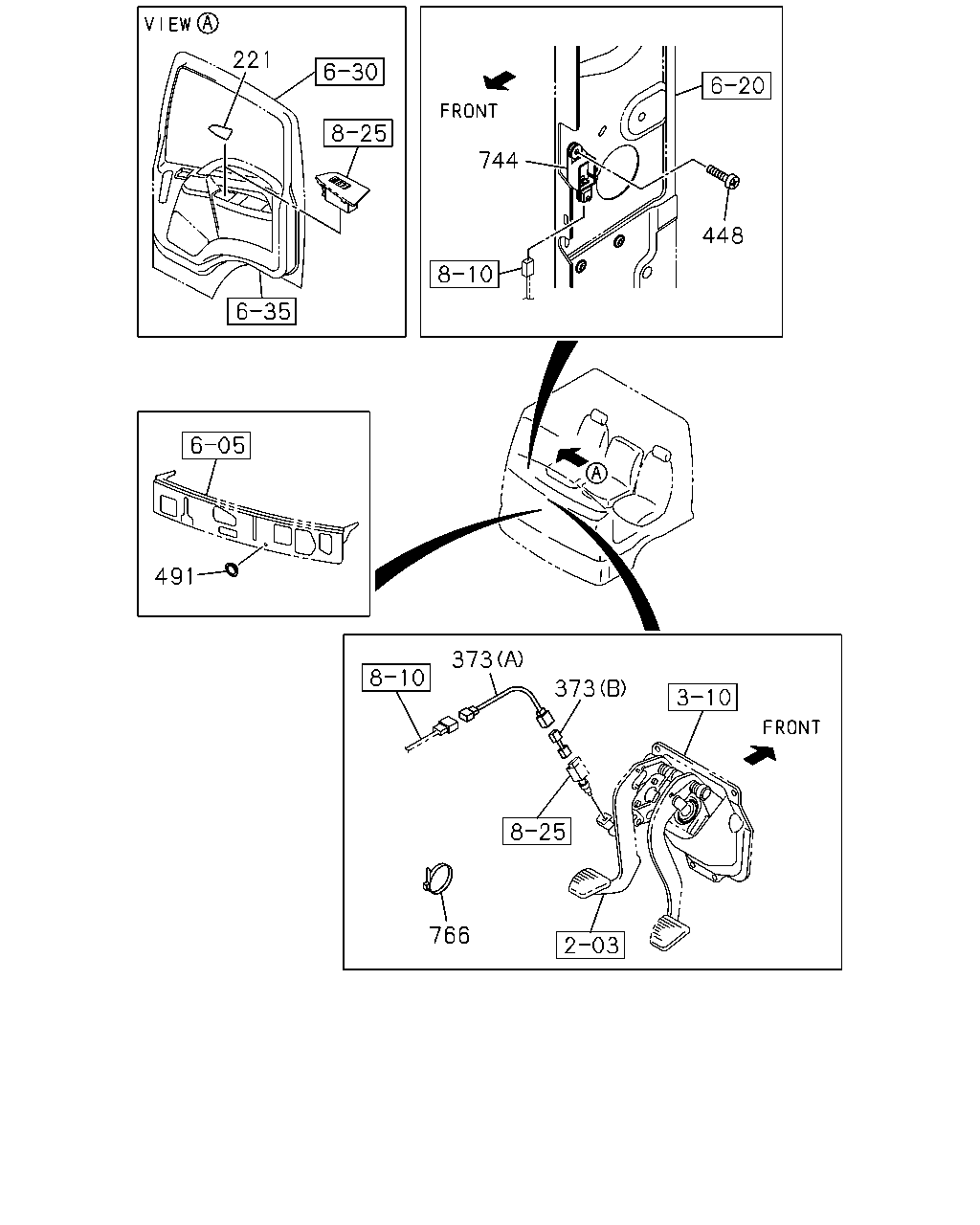

çizim 179813
221 744 448 491 373 373 766
BalonParca AdiParca NoAdetTipApplied Date A B C
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0712- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0712- ●
373 HARNESS; CLU SWITCH
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98105-661-0 01 1 0712-0809 ● ●
373 HARNESS; CLU SWITCH
(B) 		8-98105-661-0 01 1 0712-0809 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98053-829-2 01 1 0710-0711 ●
373 HARNESS; CLU SWITCH
(A) 		8-98053-829-2 01 1 0710-0711 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98053-829-3 01 1 0712- ● ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98059-419-1 01 1 0710-0711 ●
373 HARNESS; CLU SWITCH
FULLER FS8209HD DD M/T(Y3A) (A) 		8-98059-419-1 01 1 0710-0711 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98059-419-1 01 1 0712-0805 ● ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98059-419-1 01 1 0712-0805 ●
373 HARNESS; CLU SWITCH
FULLER FSO5206B OD M/T(Y4V) (A) 		8-98059-419-1 01 1 0712-0805 ●
373 HARNESS; CLU SWITCH
FULLER FS8209HD DD M/T(Y3A) (A) 		8-98059-419-1 01 1 0712-0805 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98059-419-2 01 1 0806-0906 ● ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98059-419-2 01 1 0806-0906 ●
373 HARNESS; CLU SWITCH
FULLER FSO5206B OD M/T(Y4V) (A) 		8-98059-419-2 01 1 0806-0906 ●
373 HARNESS; CLU SWITCH
FULLER FS8209HD DD M/T(Y3A) (A) 		8-98059-419-2 01 1 0806-0906 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98059-419-2 01 1 0907- ● ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98059-419-2 01 1 0907- ●
373 HARNESS; CLU SWITCH
FULLER FSO5206B OD M/T(Y4V) (A) 		8-98059-419-2 01 1 0907- ●
373 HARNESS; CLU SWITCH
FULLER FS8209HD DD M/T(Y3A) (A) 		8-98059-419-2 01 1 0907- ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710- ● ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0710- ● ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0710- ● ● ●
766 BAND; CLIP
MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0711-0711 ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0711-0711 ●
766 BAND; CLIP
MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0712- ● ●

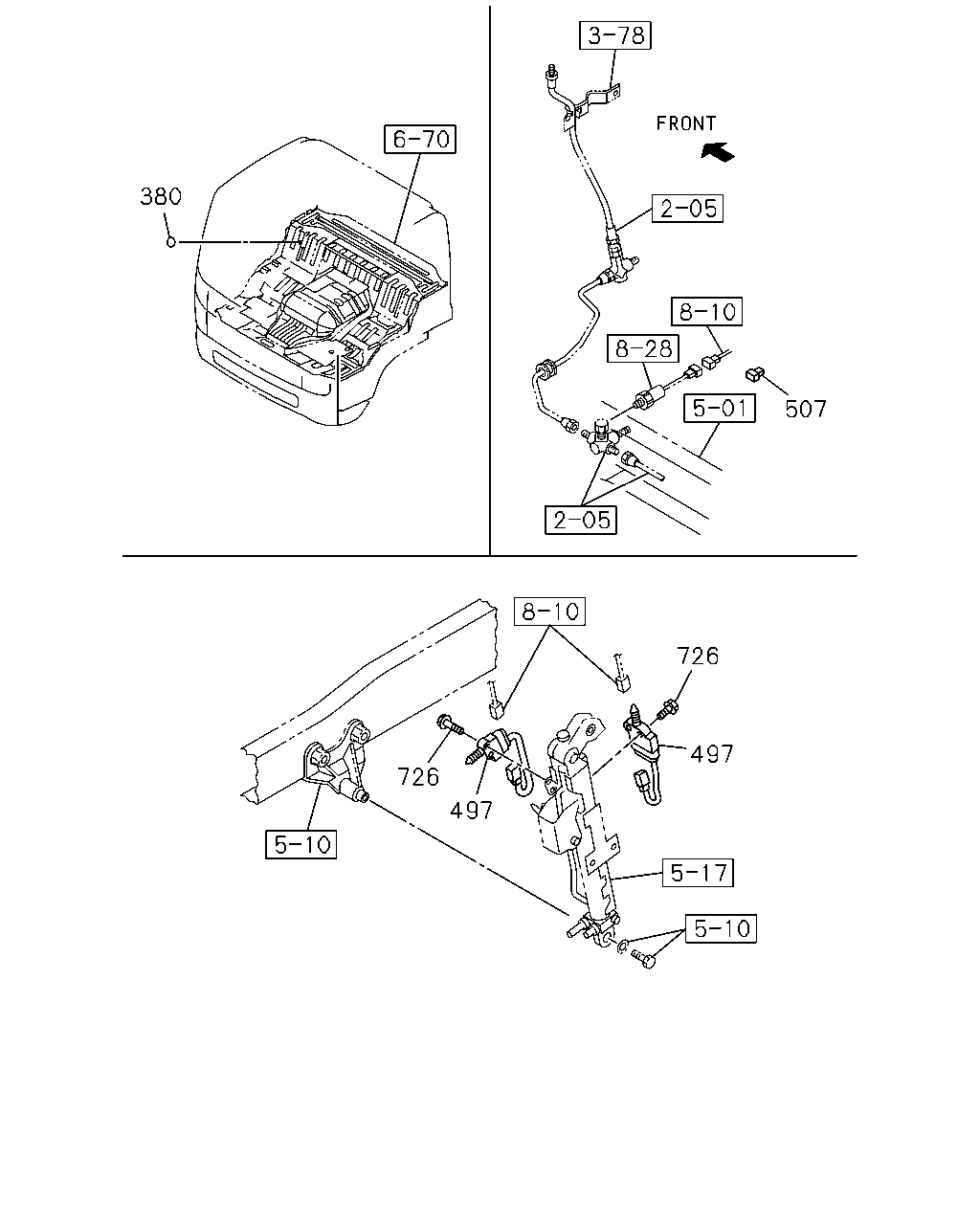

çizim 179844
380 507 726 497 726 497
BalonParca AdiParca NoAdetTipApplied Date A B C
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0711-0711 ● ● ●
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0712- ● ●
497 SWITCH; CAB TILT
AUTO CAB TILT<WV2> STAMP NO 		1-82380-172-1 02 1 0712- ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ● ●
507 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0711-0711 ● ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0712- ● ●
726 BOLT; SW,CAB TILT
AUTO CAB TILT<WV2> M6X25 FLANGE 		0-28050-625-0 04 1 0712- ●

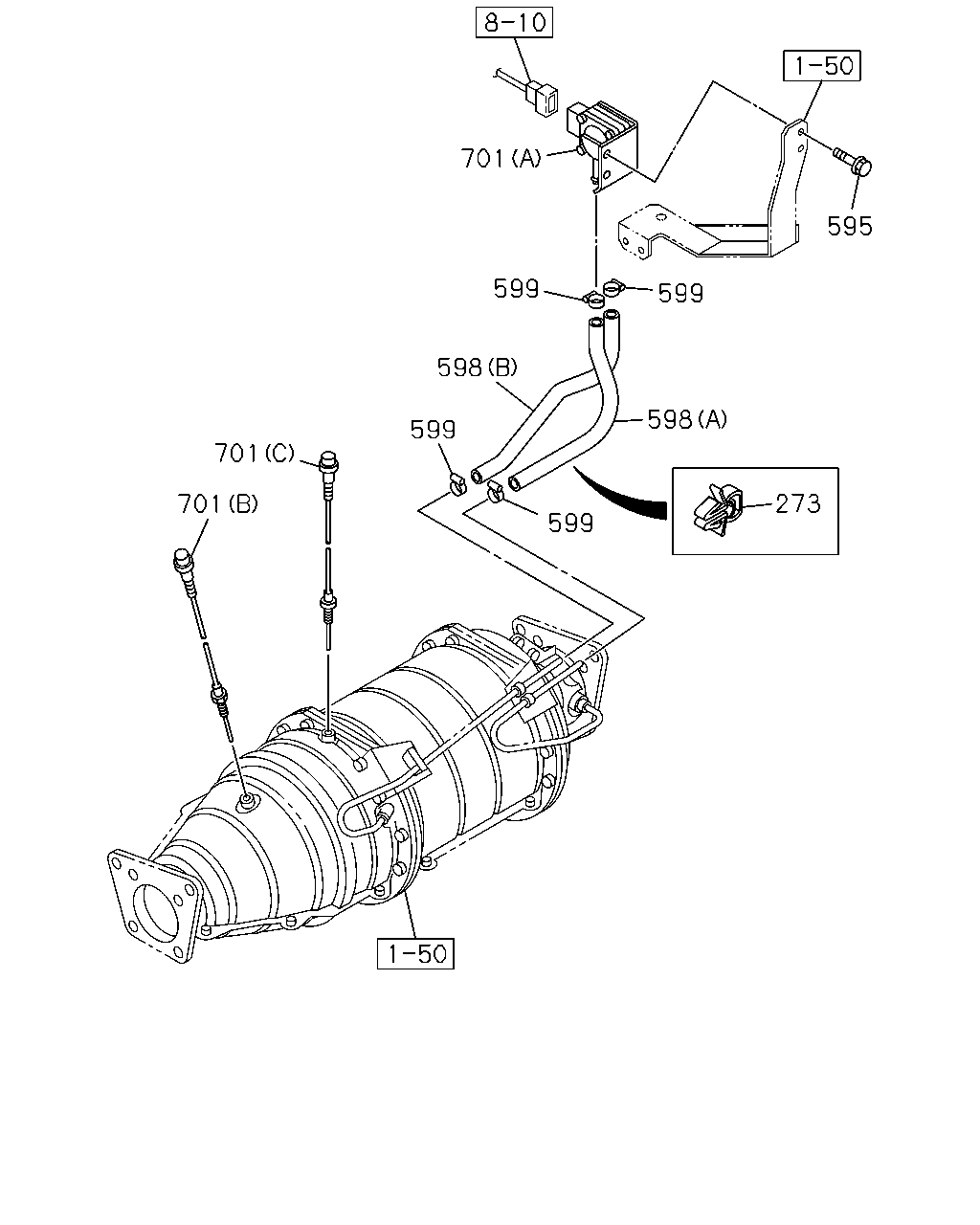

çizim 179857
701 595 599 599 598 598 599 701 273 701 599
BalonParca AdiParca NoAdetTipApplied Date A B C
273 CLIP; HARNESS 8-94225-098-0 01 1 0710-0711 ● ● ●
273 CLIP; HARNESS
6HK1-TCS ENG(80L) 		8-94225-098-0 01 1 0712-0802 ● ●
273 CLIP; HARNESS 8-94225-098-0 01 1 0712-0802 ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0808 ● ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0809- ● ●
595 BOLT; SENSOR
EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (B) 		8-98072-087-1 01 1 0712-0805 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (B) 		8-98072-087-1 01 1 0806-0808 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) 		8-98072-087-1 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) 		8-98072-087-1 01 1 0907- ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (A) 		8-98072-088-0 01 1 0712-0805 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (A) 		8-98072-088-0 01 1 0806-0808 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (A) 		8-98072-088-0 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (A) 		8-98072-088-0 01 1 0907- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98075-388-0 01 1 0712-0805 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) 		8-98075-388-0 01 1 0712-0805 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98075-388-0 01 1 0806-0808 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) 		8-98075-388-0 01 1 0806-0808 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (A) 		8-98075-388-0 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (A) 		8-98075-388-0 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (A) 		8-98075-388-0 01 1 0907- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (A) 		8-98075-388-0 01 1 0907- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98075-389-0 01 1 0712-0805 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) 		8-98075-389-0 01 1 0712-0805 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98075-389-0 01 1 0806-0808 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) 		8-98075-389-0 01 1 0806-0808 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (B) 		8-98075-389-0 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (B) 		8-98075-389-0 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (B) 		8-98075-389-0 01 1 0907- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (B) 		8-98075-389-0 01 1 0907- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) (B) 		8-98088-940-0 01 1 0710-0808 ● ● ●
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) (B) 		8-98088-940-0 01 1 0809- ● ●
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) 		8-98088-940-0 01 1 0809- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) (A) 		8-98088-941-0 01 1 0710-0808 ● ● ●
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) (A) 		8-98088-941-0 01 1 0809- ● ●
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) 		8-98088-941-0 01 1 0809- ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0710-0808 ● ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0809- ● ●
599 CLIP; HOSE
EURO4 SPECIFICATION<NT4> ID=13 		8-97329-627-0 04 1 0809- ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0710-0711 ● ● ●
701 SENSOR; DPD
6HK1-TCS ENG(80L) (B) 		8-97359-987-5 01 1 0712-0808 ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0712-0808 ●
701 SENSOR; DPD
6HK1-TCS ENG(80L) (B) 		8-97359-987-5 01 1 0809- ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97359-987-5 01 1 0809- ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0710-0711 ● ● ●
701 SENSOR; DPD
6HK1-TCS ENG(80L) (C) 		8-97359-989-5 01 1 0712-0808 ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0712-0808 ●
701 SENSOR; DPD
6HK1-TCS ENG(80L) (C) 		8-97359-989-5 01 1 0809- ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97359-989-5 01 1 0809- ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0710-0711 ● ● ●
701 SENSOR; DPD
6HK1-TCS ENG(80L) (A) 		8-97360-368-2 01 1 0712-0808 ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0712-0808 ●
701 SENSOR; DPD
6HK1-TCS ENG(80L) (A) 		8-97360-368-2 01 1 0809- ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97360-368-2 01 1 0809- ●

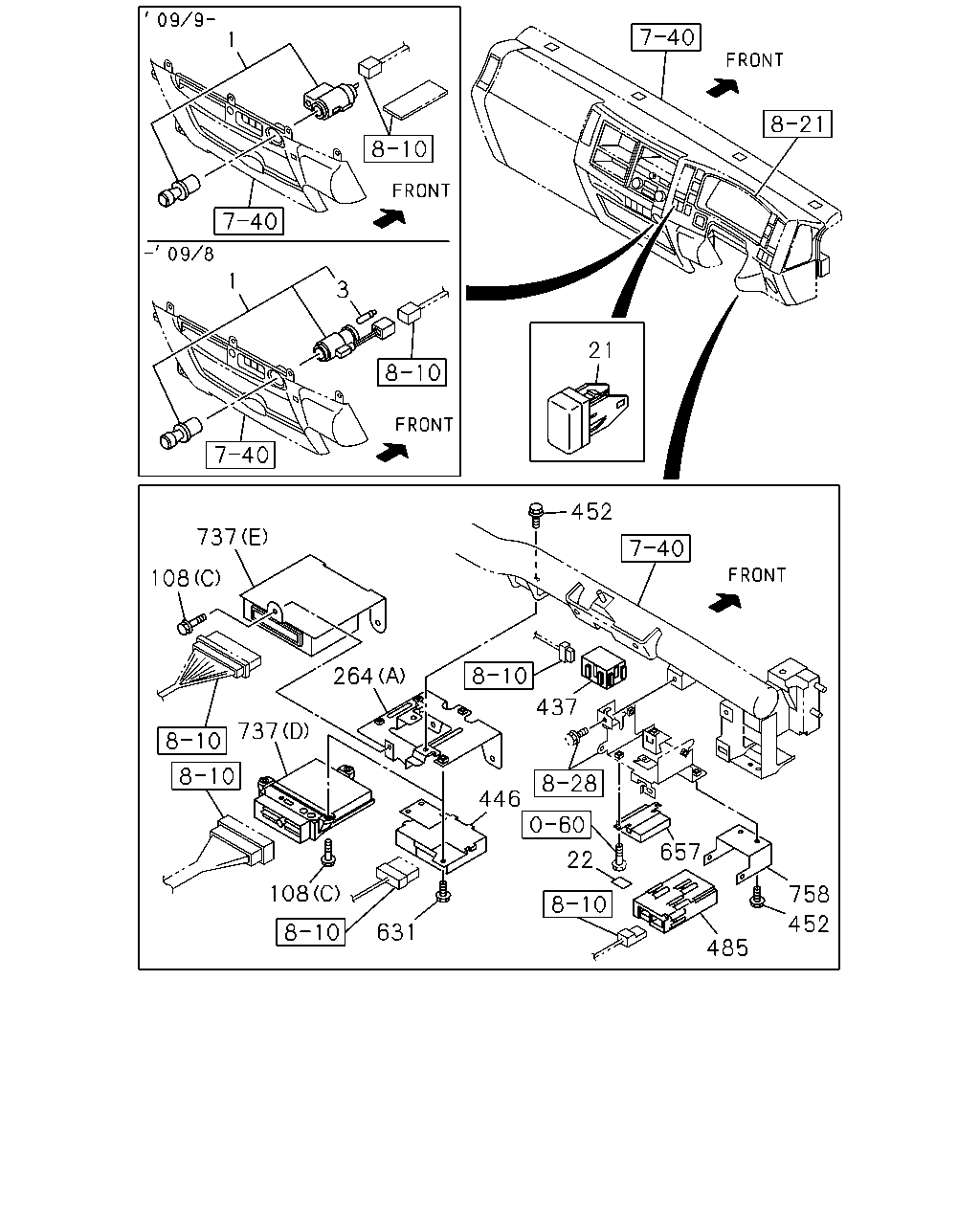

çizim 179887
1 1 3 21 452 437 446 264 737 737 108 108 631 485 657 758 452 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0710-0908 ● ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909- ● ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0710-0908 ● ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0710-0711 ● ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0712- ● ●
21 COVER; HOLE
EXC. O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-98025-954-1 01 1 0712- ●
22 SEAL; TAPE
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) 		1-80199-006-0 01 1 0710-0710 ●
22 SEAL; TAPE
ZF9S1110 M/T(Y5E) 		1-80199-006-0 01 1 0710-0710 ●
22 SEAL; TAPE
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) 		1-80199-006-0 01 1 0710-0711 ●
22 SEAL; TAPE
ZF9S1110 M/T(Y5E) 		1-80199-006-0 01 1 0710-0711 ●
22 SEAL; TAPE
FULLER FS8209HD DD M/T(Y3A) 		1-80199-006-0 01 1 0710-0711 ●
22 SEAL; TAPE
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) 		1-80199-006-0 01 1 0712-0805 ●
22 SEAL; TAPE
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) 		1-80199-006-0 01 1 0712-0805 ●
22 SEAL; TAPE
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) 		1-80199-006-0 01 1 0712-0805 ●
22 SEAL; TAPE
FULLER FS8209HD DD M/T(Y3A) 		1-80199-006-0 01 1 0712-0805 ●
22 SEAL; TAPE
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) 		1-80199-006-0 01 1 0806-0906 ●
22 SEAL; TAPE
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) 		1-80199-006-0 01 1 0806-0906 ●
22 SEAL; TAPE
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) 		1-80199-006-0 01 1 0806-0906 ●
22 SEAL; TAPE
FULLER FS8209HD DD M/T(Y3A) 		1-80199-006-0 01 1 0806-0906 ●
22 SEAL; TAPE
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) 		1-80199-006-0 01 1 0907-1212 ●
22 SEAL; TAPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) 		1-80199-006-0 01 1 0907-1212 ●
22 SEAL; TAPE
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) 		1-80199-006-0 01 1 0907-1212 ●
22 SEAL; TAPE
FULLER FS8209HD DD M/T(Y3A) 		1-80199-006-0 01 1 0907-1212 ●
22 SEAL; TAPE
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) 		8-98166-639-0 01 1 1301- ●
22 SEAL; TAPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) 		8-98166-639-0 01 1 1301- ●
22 SEAL; TAPE
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) 		8-98166-639-0 01 1 1301- ●
22 SEAL; TAPE
FULLER FS8209HD DD M/T(Y3A) 		8-98166-639-0 01 1 1301- ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0902-0906 ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SCREW M4X25 TAPPING 		0-74160-425-0 02 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) SCREW M4X25 TAPPING 		0-74160-425-0 02 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SCREW M4X25 TAPPING 		0-74160-425-0 02 1 0712- ● ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3060P A/T(Y4G) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3060P A/T(Y4G) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0712-0901 ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0712-0901 ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3060P A/T(Y4G) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0902-0906 ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3060P A/T(Y4G) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0907- ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0907- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
A/T<X9D> (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 0710-0711 ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> (A) 		8-98064-901-0 01 1 0712- ●
264 BRACKET; CONT UNIT
A/T<X9D> (A) 		8-98064-901-0 01 1 0712- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 0712- ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710- ● ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0710- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-116-1 01 1 0710-0711 ● ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-116-1 01 1 0712-0812 ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80111-116-1 01 1 0712-0812 ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98136-318-1 01 1 0901- ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-318-1 01 1 0901- ●
452 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ●
452 BOLT; BRKT
A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ● ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0711-0711 ●
452 BOLT; BRKT
A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0711-0711 ●
452 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0711-0711 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0711-0711 ● ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0711-0711 ●
452 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) M6X16 FLANGE 		0-28650-616-0 02 1 0711-0711 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
452 BOLT; BRKT
A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
452 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
452 BOLT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
452 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0710-0711 ●
485 CONTROL UNIT; SPEED SENSOR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) 		1-80190-059-1 01 1 0712-0805 ●
485 CONTROL UNIT; SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		1-80190-059-1 01 1 0712-0805 ●
485 CONTROL UNIT; SPEED SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) 		1-80190-059-1 01 1 0806-0906 ●
485 CONTROL UNIT; SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		1-80190-059-1 01 1 0806-0906 ●
485 CONTROL UNIT; SPEED SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) 		1-80190-059-1 01 1 0907-1008 ●
485 CONTROL UNIT; SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		1-80190-059-1 01 1 0907-1008 ●
485 CONTROL UNIT; SPEED SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) 		8-98140-862-0 01 1 1009-1109 ●
485 CONTROL UNIT; SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		8-98140-862-0 01 1 1009-1109 ●
485 CONTROL UNIT; SPEED SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) 		1-80190-059-1 01 1 1110- ●
485 CONTROL UNIT; SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		1-80190-059-1 01 1 1110- ●
485 CONTROL UNIT; SPEED SENSOR
ALLISON MD3060P A/T(Y4G) 		1-80190-061-0 01 1 0710- ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-80190-063-0 01 1 0710- ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ● ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0712-0812 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0812 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0901-0906 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0901-0906 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0907- ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 0712-1401 ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-1 01 1 1402- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 0712- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 0712- ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98096-824-0 01 1 0712-0904 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98139-015-0 01 1 0905-0906 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98139-015-0 01 1 0907-1008 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98164-519-0 01 1 1009-1212 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98230-117-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98269-476-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98288-017-0 01 1 1412- ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98096-825-0 01 1 0712-0904 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98139-016-0 01 1 0905-0906 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98139-016-0 01 1 0907-1008 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98164-520-0 01 1 1009-1107 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98164-520-0 01 1 1108-1212 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98230-118-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98269-477-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98288-018-0 01 1 1412- ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3060P A/T(Y4G) (D) 		8-98081-208-0 01 1 0710-0904 ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3060P A/T(Y4G) (D) 		8-98143-055-0 01 1 0905- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 0712- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 0710-0710 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 0710-0710 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 0710-0711 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 0710-0711 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		8-98048-743-1 01 1 0710-0711 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 0712-0805 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) 		8-98048-743-1 01 1 0712-0805 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 0712-0805 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		8-98048-743-1 01 1 0712-0805 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 0806-0906 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) 		8-98048-743-1 01 1 0806-0906 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 0806-0906 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		8-98048-743-1 01 1 0806-0906 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 0907- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) SPEED LIMITER 100KM(NMU) 		8-98048-743-1 01 1 0907- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 0907- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		8-98048-743-1 01 1 0907- ●

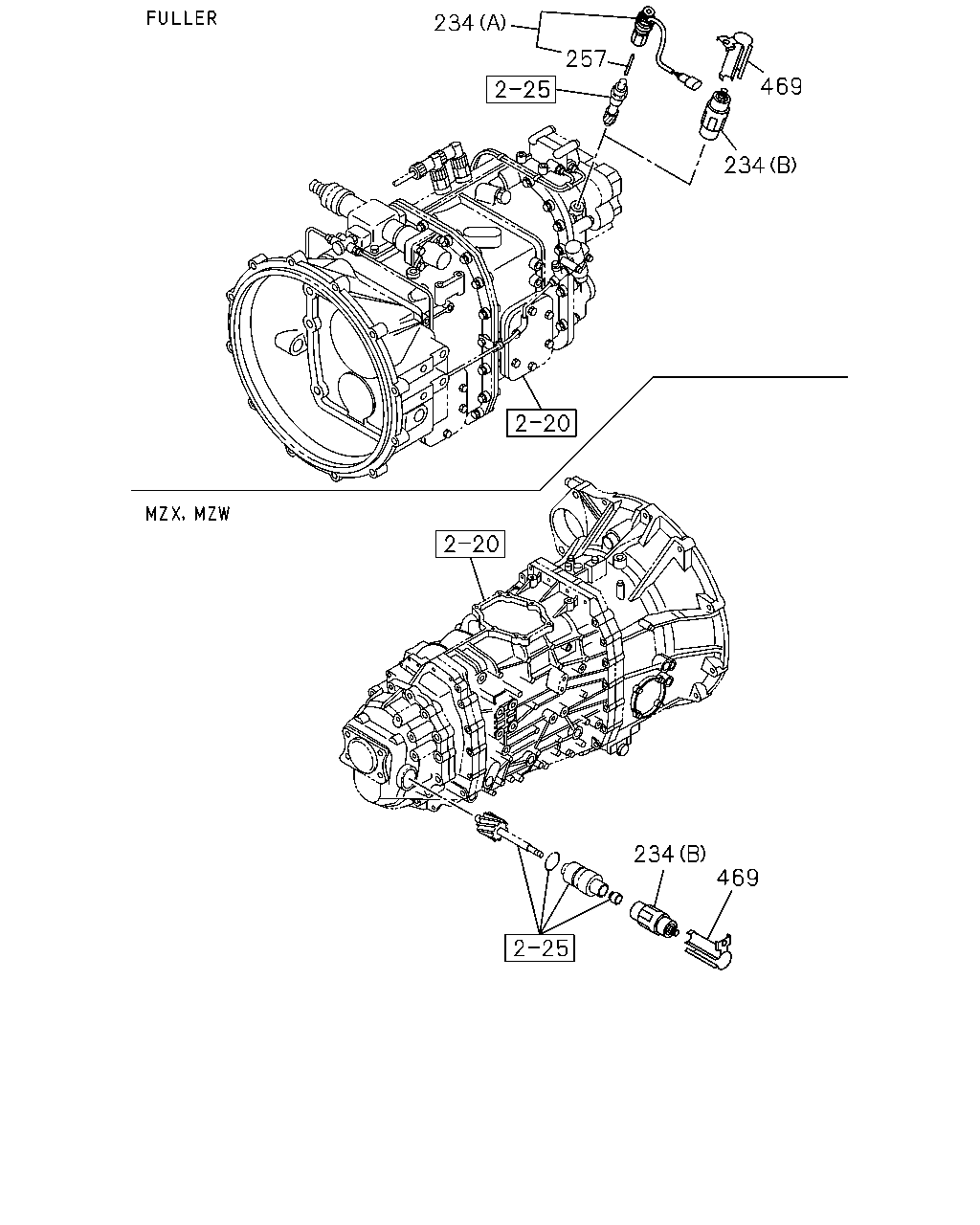

çizim 179909
234 257 469 234 234 469
BalonParca AdiParca NoAdetTipApplied Date A B C
234 SENSOR; VEHICLE SPD
FULLER FSO5206B OD M/T(Y4V) TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) 		8-98035-238-0 01 1 0801-0803 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (B) 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0712-0805 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (B) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0806-0906 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) (B) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0907- ●
234 SENSOR; VEHICLE SPD
(A) 25 PULSE 		1-83127-414-1 01 1 0710- ●
257 KEY; SPEED SENSOR 1-83129-073-0 01 1 0710- ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) 		8-97168-308-0 01 1 0712-0805 ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) 		8-97168-308-0 01 1 0806-0808 ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) 		8-98119-901-0 01 1 0809-0906 ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) 		8-98119-901-0 01 1 0907- ●

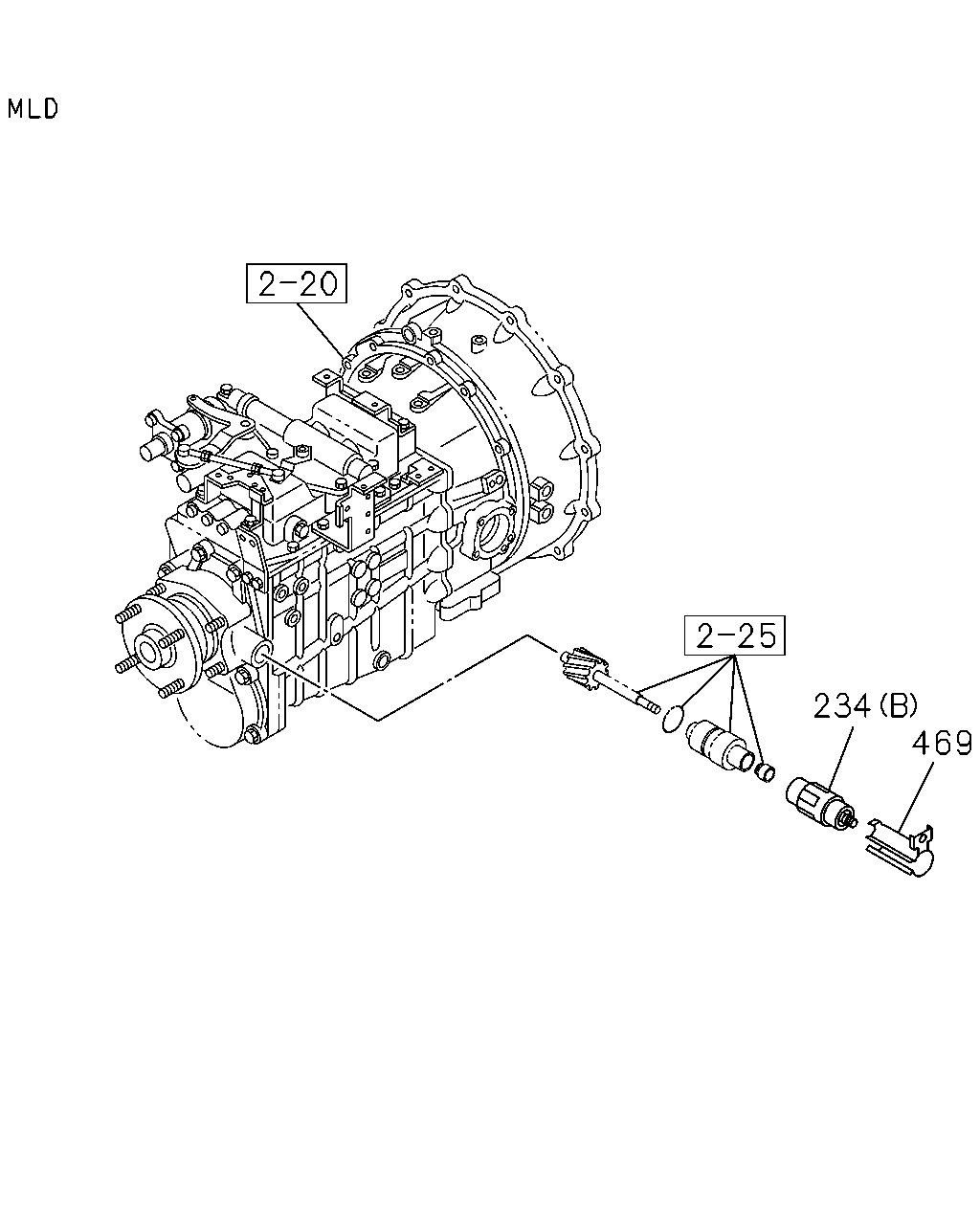

çizim 179988
234 469
BalonParca AdiParca NoAdetTipApplied Date A B C
234 SENSOR; VEHICLE SPD
FULLER FSO5206B OD M/T(Y4V) TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) 		8-98035-238-0 01 1 0801-0803 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (B) 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0712-0805 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (B) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0806-0906 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) (B) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0907- ●
234 SENSOR; VEHICLE SPD
(A) 25 PULSE 		1-83127-414-1 01 1 0710- ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) 		8-97168-308-0 01 1 0712-0805 ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) 		8-97168-308-0 01 1 0806-0808 ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) 		8-98119-901-0 01 1 0809-0906 ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) 		8-98119-901-0 01 1 0907- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
