◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#36636) — 271 parça

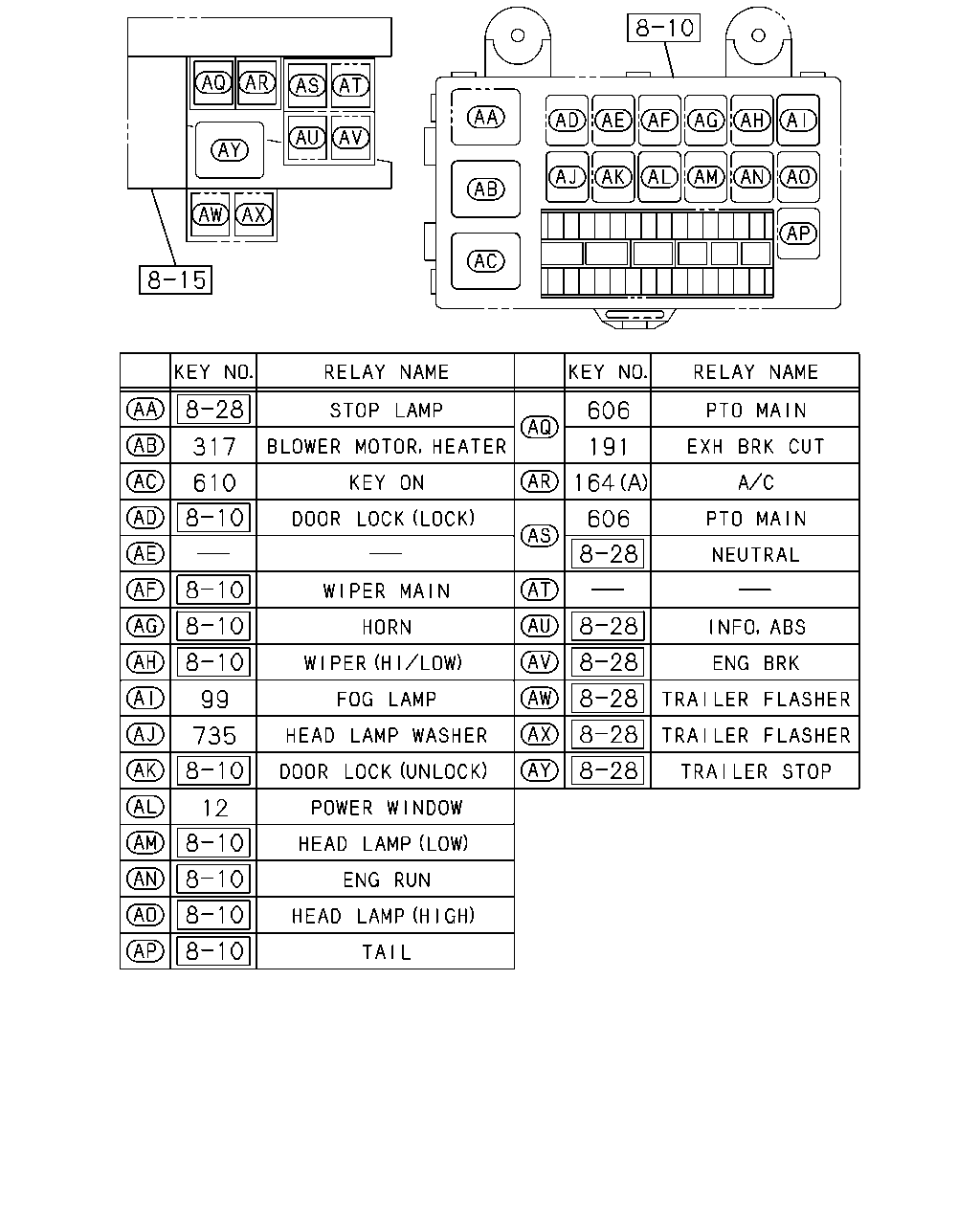

çizim 179801
606 317 191 610 164 606 99 735 12
BalonParca AdiParca NoAdetTipApplied Date A B C
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0711 ● ● ●
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0712- ● ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0712- ●
99 RELAY; FOG LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0908 ● ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 0909- ● ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710- ● ● ●
191 RELAY; EXH BRK CUT
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ●
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-0806 ● ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0807- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0807- ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0711 ● ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) MANUAL TRANSMISSION<X9C> 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0711 ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0711 ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A PANASONIC 		8-97173-035-1 01 1 0712- ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) MANUAL TRANSMISSION<X9C> 24V 10A PANASONIC 		8-97173-035-1 01 1 0712- ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 0712- ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 10A PANASONIC 		8-97173-035-1 01 1 0712- ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710- ● ● ●
735 RELAY; HEAD LAMP WASHER
HEAD LAMP WASHER<CE4> 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0711 ● ●
735 RELAY; HEAD LAMP WASHER
HEAD LAMP WASHER<CE4> 24V 10A PANASONIC 		8-97173-035-1 01 1 0712-1003 ● ● ●
735 RELAY; HEAD LAMP WASHER
HEAD LAMP WASHER<CE4> 24V 10A PANASONIC 		8-97173-035-1 01 1 1004- ●

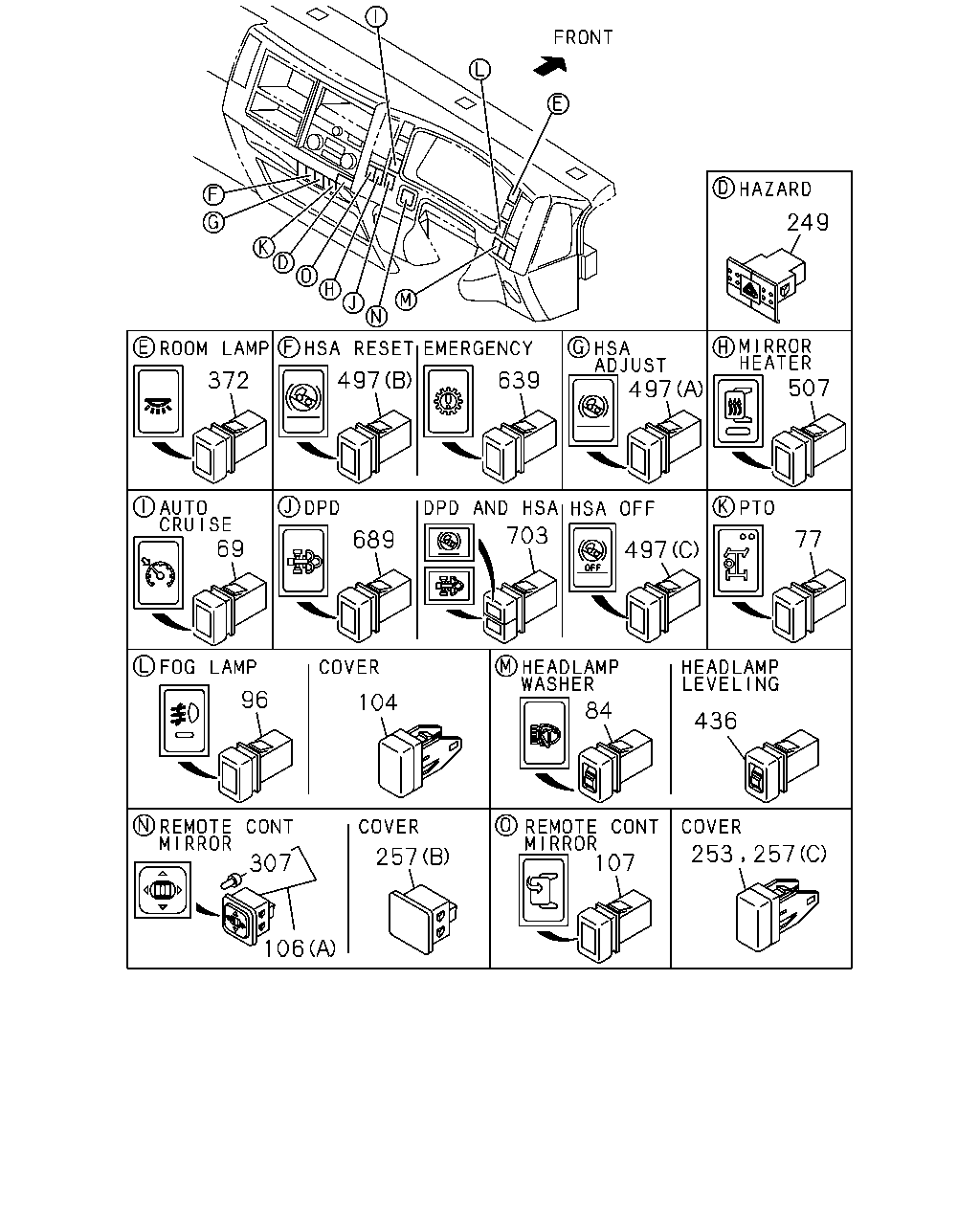

çizim 179817
249 507 497 372 497 639 69 703 689 77 497 84 96 104 436 107 257 307 106 253 257
BalonParca AdiParca NoAdetTipApplied Date A B C
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 0710- ● ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 0712- ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-1 01 1 0710-0711 ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM) 		8-97615-488-1 01 1 0710-0711 ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 0712- ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 0712- ●
84 SWITCH; WASHER,HEADLAMP
HEAD LAMP WASHER<CE4> 		8-97614-052-0 01 1 0710-0711 ● ●
84 SWITCH; WASHER,HEADLAMP
HEAD LAMP WASHER<CE4> 		8-97614-052-1 01 1 0712-1003 ● ● ●
84 SWITCH; WASHER,HEADLAMP
HEAD LAMP WASHER<CE4> 		8-97614-052-1 01 1 1004- ●
96 SWITCH; FOG LAMP 8-97387-031-3 01 1 0710-0908 ● ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0909- ● ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 0909- ● ● ●
104 COVER; SW HOLE,FOG LAMP 8-98025-954-1 01 1 0710-0710 ● ● ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-97173-294-1 01 1 0712- ●
106 SWITCH; REMOTE CONT MIRROR
(B) 		1-82350-223-0 02 1 0710-0711 ● ● ●
106 SWITCH; REMOTE CONT MIRROR
(B) 		1-82350-223-0 02 1 0712- ● ●
106 SWITCH; REMOTE CONT MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		1-82350-223-0 02 1 0712- ●
107 SWITCH; REMOTE CONT,MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-98011-343-2 01 1 0712- ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 0710- ● ● ●
253 COVER; SW HOLE 8-98025-954-1 02 1 0710- ● ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 0710- ● ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 0710- ● ● ●
257 COVER; HOLE,SW
(D) 		8-97619-254-1 01 1 0801- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (E) 		8-98029-917-0 01 1 0712- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0710- ● ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0710-0711 ● ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0710-0711 ● ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 0710-0711 ● ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4> (C) 		8-98025-954-1 01 1 0710-0711 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0710-0711 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0710-0711 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0712-0808 ● ● ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4> (C) 		8-98025-954-1 01 1 0712-0808 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0712-0808 ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0809-1003 ● ● ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4> (C) 		8-98025-954-1 01 1 0809-1003 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0809-1003 ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1004- ● ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1004- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1004- ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
(A) GRAY 		8-97409-339-0 01 1 0710-0710 ● ● ●
257 COVER; HOLE,SW
(D) 		8-97619-254-1 02 1 0710-0711 ● ● ●
257 COVER; HOLE,SW
(D) 		8-97619-254-1 02 1 0712-0712 ● ●
257 COVER; HOLE,SW
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-97619-254-1 02 1 0712-0712 ●
257 COVER; HOLE,SW
(D) 		8-97619-254-1 02 1 0801- ●
257 COVER; HOLE,SW
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-97619-254-1 02 1 0801- ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0710-0711 ● ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0712- ● ●
257 COVER; HOLE,SW
AUSTRALIA EQUIPMENT(B13) (B) 		8-98029-914-1 01 1 0712- ●
257 COVER; HOLE,SW
EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 0712- ●
307 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) 24V 		8-98226-896-0 01 1 0712- ●
372 SWITCH; ROOM LAMP 8-97386-917-1 01 1 0710-0711 ● ● ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 0712- ● ●
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 0712- ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 0710- ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) OFF 		8-97386-923-2 01 1 0809- ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-97386-967-2 01 1 0710-0806 ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 0807- ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-97386-985-1 01 1 0710-0711 ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-97386-985-1 01 1 0712-0806 ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) RESET 		8-97386-985-1 01 1 0712-0806 ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-98119-946-0 01 1 0807- ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) RESET 		8-98119-946-0 01 1 0807- ●
507 SWITCH; MIRROR HEATER 8-97386-924-2 01 1 0710-0711 ● ● ●
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 0712- ● ●
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97386-924-3 01 1 0712- ●
639 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97387-000-2 01 1 0712-0806 ●
639 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0807- ●
689 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-1 01 1 0710-0808 ● ● ●
689 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 0809- ● ●
689 SWITCH; DPD
CATALYSIS CONTROL WITH DPD<8JM> EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 0809- ●
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-1 01 1 0710-0808 ● ● ●
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 0809- ● ●
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> CATALYSIS CONTROL WITH DPD<8JM> 		8-98011-346-2 01 1 0809- ●

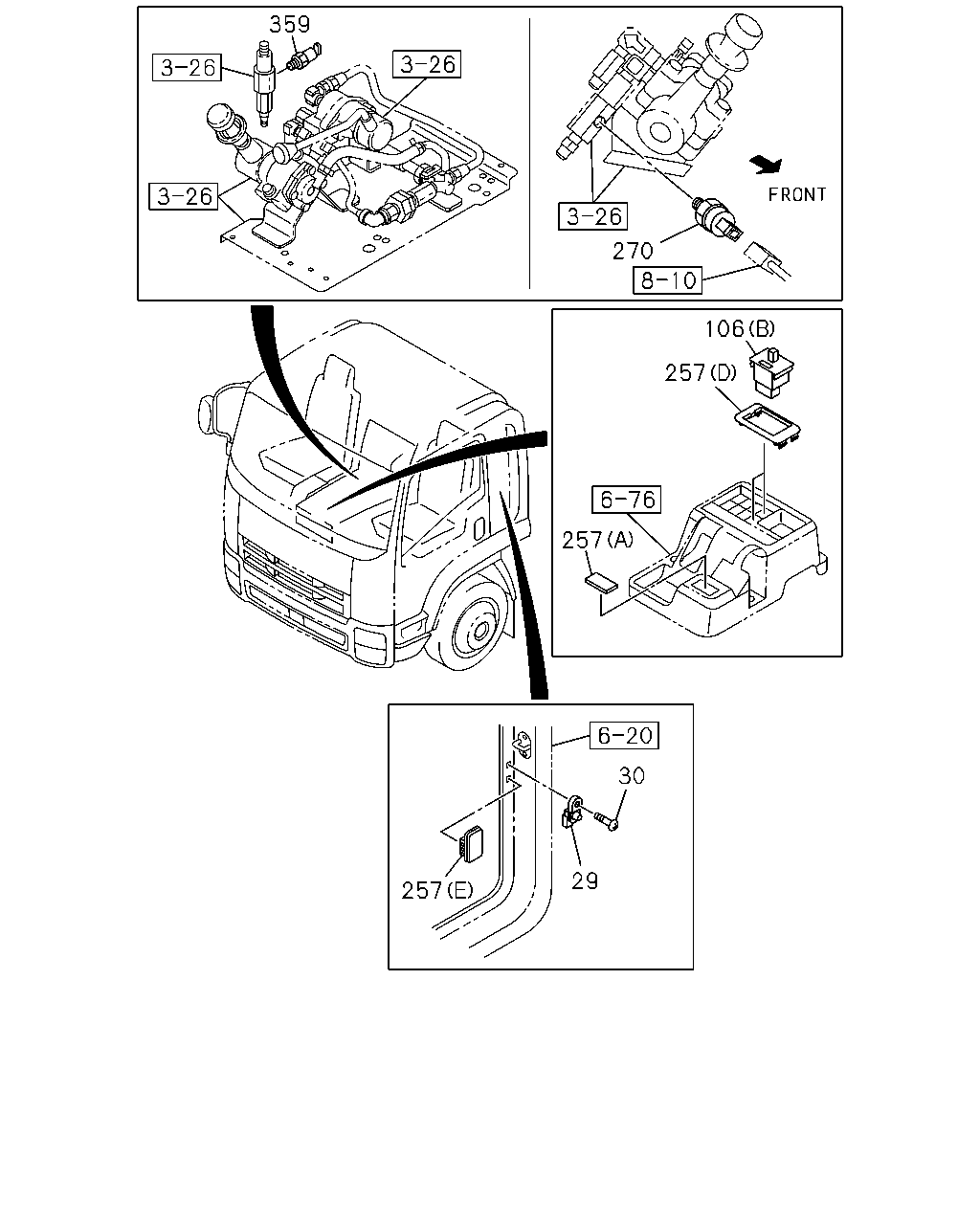

çizim 179819
359 270 106 257 257 30 29 257
BalonParca AdiParca NoAdetTipApplied Date A B C
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0710-0711 ● ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0710-0711 ● ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0712- ● ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0712- ● ●
29 SWITCH; DOOR
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> BLACK 		8-98022-211-0 01 1 0712- ●
29 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> BLACK 		8-98022-211-0 01 1 0712- ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0710-0711 ● ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0710-0711 ● ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0712- ● ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0712- ● ●
30 SCREW; DOOR SW
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> M5X18 		8-98047-201-0 01 1 0712- ●
30 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> M5X18 		8-98047-201-0 01 1 0712- ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-97173-294-1 01 1 0712- ●
106 SWITCH; REMOTE CONT MIRROR
(B) 		1-82350-223-0 02 1 0710-0711 ● ● ●
106 SWITCH; REMOTE CONT MIRROR
(B) 		1-82350-223-0 02 1 0712- ● ●
106 SWITCH; REMOTE CONT MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		1-82350-223-0 02 1 0712- ●
257 COVER; HOLE,SW
(D) 		8-97619-254-1 01 1 0801- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (E) 		8-98029-917-0 01 1 0712- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0710- ● ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0710-0711 ● ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0710-0711 ● ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 0710-0711 ● ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4> (C) 		8-98025-954-1 01 1 0710-0711 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0710-0711 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0710-0711 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0712-0808 ● ● ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4> (C) 		8-98025-954-1 01 1 0712-0808 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0712-0808 ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0712-0808 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0809-1003 ● ● ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4> (C) 		8-98025-954-1 01 1 0809-1003 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0809-1003 ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0809-1003 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1004- ● ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1004- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1004- ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
(A) GRAY 		8-97409-339-0 01 1 0710-0710 ● ● ●
257 COVER; HOLE,SW
(D) 		8-97619-254-1 02 1 0710-0711 ● ● ●
257 COVER; HOLE,SW
(D) 		8-97619-254-1 02 1 0712-0712 ● ●
257 COVER; HOLE,SW
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-97619-254-1 02 1 0712-0712 ●
257 COVER; HOLE,SW
(D) 		8-97619-254-1 02 1 0801- ●
257 COVER; HOLE,SW
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-97619-254-1 02 1 0801- ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0710-0711 ● ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0712- ● ●
257 COVER; HOLE,SW
AUSTRALIA EQUIPMENT(B13) (B) 		8-98029-914-1 01 1 0712- ●
257 COVER; HOLE,SW
EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 0712- ●
270 SWITCH; PRESS,WHEEL PARKING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 2.0 		8-98010-856-2 01 1 0712- ●
359 SWITCH; TRAILER BRAKE
STAMP 0.3 		8-98010-857-0 01 1 0710- ●

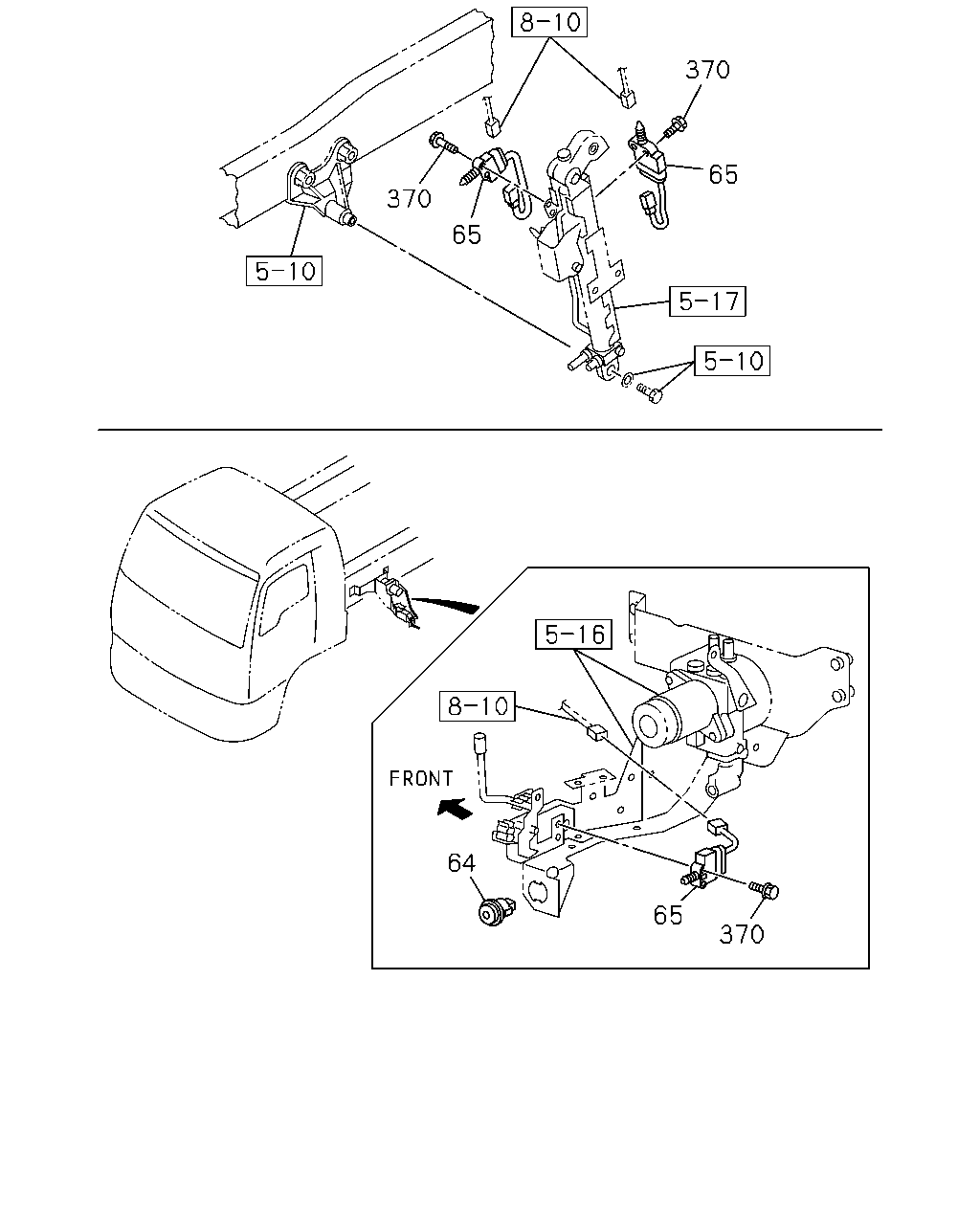

çizim 179821
370 65 370 65 64 65 370
BalonParca AdiParca NoAdetTipApplied Date A B C
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 0710-0711 ● ● ●
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 0712- ● ●
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-173-2 01 1 0712- ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 03 1 0710-0710 ● ● ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 0711-0711 ● ● ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 0712- ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> STAMP NO 		1-82380-172-1 01 1 0712- ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 06 1 0710-0710 ● ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 0711-0711 ● ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 0712- ● ●
370 BOLT; SW
AUTO CAB TILT<WV2> M6X30 FLANGE 		0-28650-630-0 02 1 0712- ●

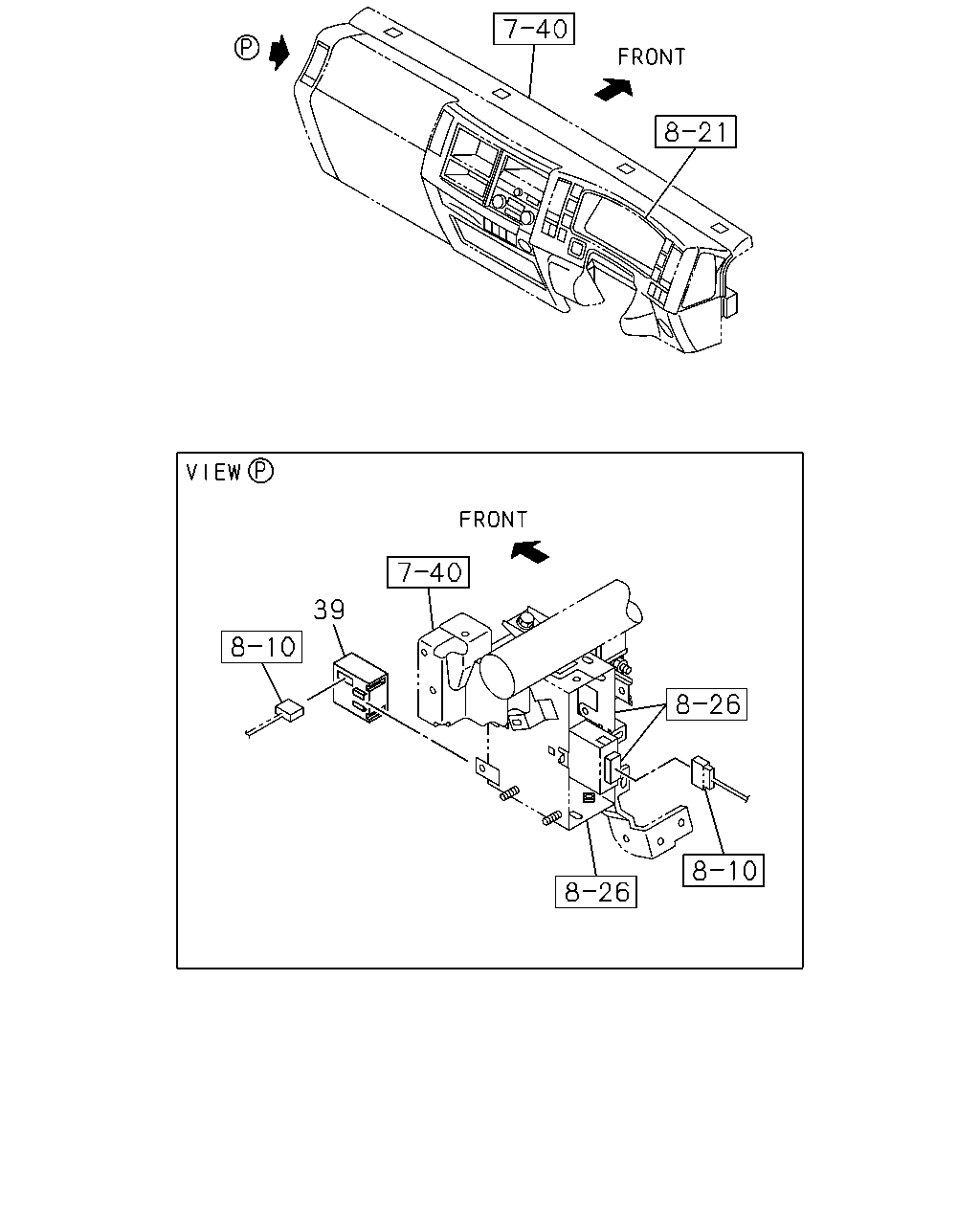

çizim 179851
39
BalonParca AdiParca NoAdetTipApplied Date A B C
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0712- ●
çizim 179859
237
BalonParca AdiParca NoAdetTipApplied Date A B C
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ●

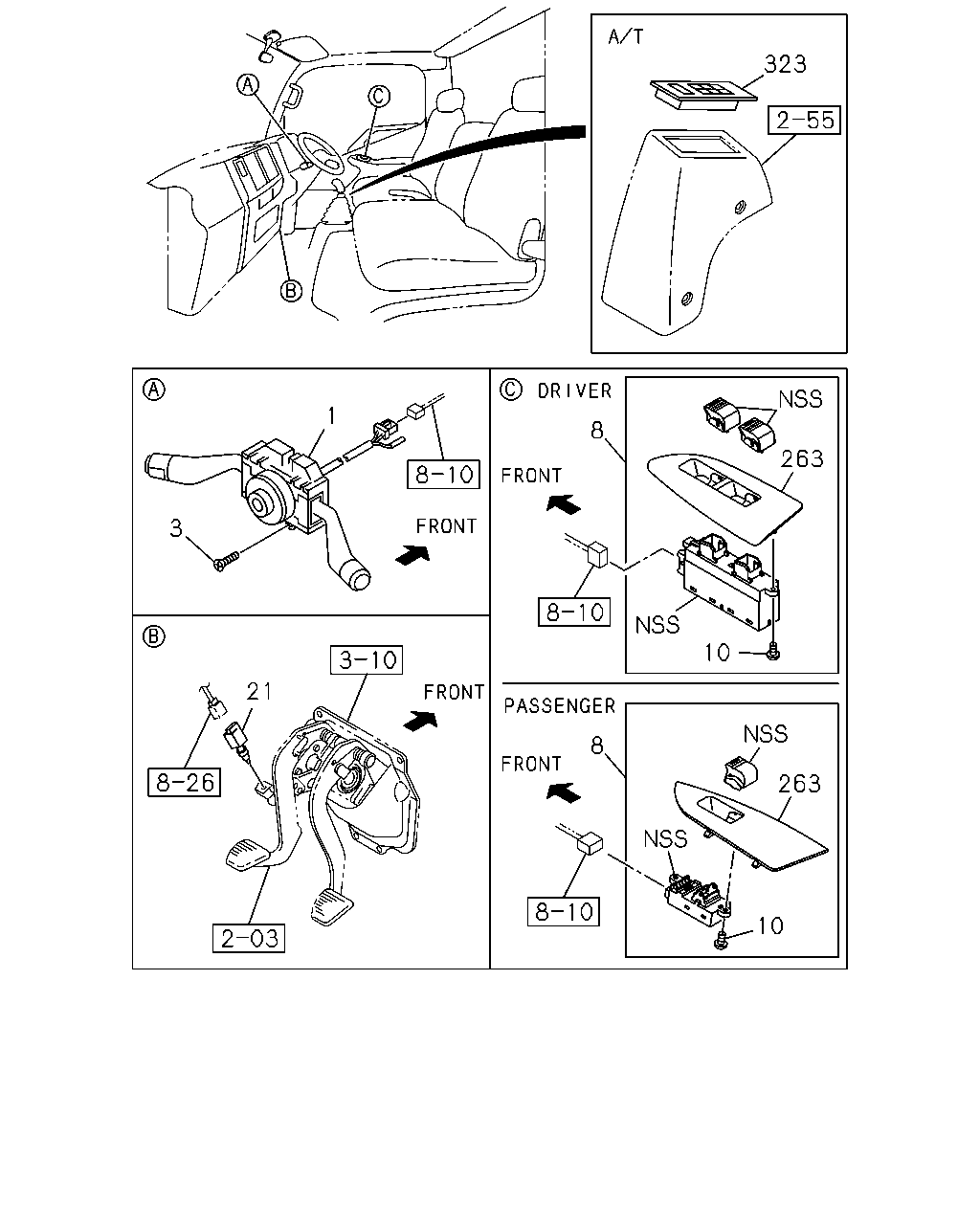

çizim 179863
323 1 8 263 3 10 21 8 263 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,AUTO CRUISE<K30> 		8-98064-894-2 01 1 0712-1310 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,AUTO CRUISE<K30> 		8-98243-706-0 01 1 1311- ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98064-763-1 01 1 0710-0711 ● ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98064-763-1 01 1 0712-0905 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> AUTO CRUISE<K30> 		8-98064-763-1 01 1 0712-0905 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98146-619-0 01 1 0906-1210 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> AUTO CRUISE<K30> 		8-98146-619-0 01 1 0906-1210 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98217-821-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> AUTO CRUISE<K30> 		8-98217-821-0 01 1 1211-1310 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98243-692-0 01 1 1311- ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> AUTO CRUISE<K30> 		8-98243-692-0 01 1 1311- ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98064-764-1 01 1 0710-0711 ● ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98064-764-1 01 1 0712-0905 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30> 		8-98064-764-1 01 1 0712-0905 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98146-618-0 01 1 0906-1210 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30> 		8-98146-618-0 01 1 0906-1210 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98217-820-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30> 		8-98217-820-0 01 1 1211-1310 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1311- ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1311- ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30> 		8-98060-302-1 01 1 0710-0711 ● ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30> 		8-98060-302-1 01 1 0712-1310 ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30> 		8-98060-302-1 01 1 0712-1310 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30> 		8-98243-704-0 01 1 1311- ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30> 		8-98243-704-0 01 1 1311- ●
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98024-269-1 01 1 0710-0711 ● ● ●
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98024-269-1 01 1 0712-1310 ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98024-269-1 01 1 0712-1310 ●
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98243-705-0 01 1 1311- ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98243-705-0 01 1 1311- ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0710- ● ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-97387-034-2 01 1 0710-0711 ● ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-97387-034-2 01 1 0712-1509 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-97387-034-2 01 1 0712-1509 ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98298-750-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98298-750-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98003-785-1 01 1 0710-0711 ● ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98003-785-1 01 1 0712-0809 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98003-785-1 01 1 0712-0809 ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98129-844-0 01 1 0810-1001 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98129-844-0 01 1 0810-1001 ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-543-0 01 1 1002-1509 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98159-543-0 01 1 1002-1509 ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-98316-415-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98316-415-0 01 1 1510- ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 0710-0711 ● ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 0712- ● ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 0712- ●
21 SWITCH; CLU
PTO ZF TRANS RR(BDM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 0710-0711 ●
21 SWITCH; CLU
PTO ZF TRANS RR(BDM) 		8-94337-761-0 01 1 0710-0711 ●
21 SWITCH; CLU
PTO ZF TRANS RR(BDM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 0712- ●
21 SWITCH; CLU
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 0712- ●
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO ZF TRANS RR(BDM) 		8-97358-248-0 01 1 0710-0711 ●
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM) 		8-97358-248-0 01 1 0710-0711 ●
21 SWITCH; CLU 8-97358-248-0 01 1 0710-0711 ●
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO ZF TRANS RR(BDM) 		8-97358-248-0 01 1 0712- ●
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 0712- ●
21 SWITCH; CLU 8-97358-248-0 01 1 0712- ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 0710-0711 ● ● ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 0712- ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98153-836-0 01 1 0712- ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 0710-0711 ● ● ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 0712- ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98153-841-0 01 1 0712- ●
263 COVER; SW
DRIVER 		8-98153-865-0 01 1 0710-0711 ● ● ●
323 SWITCH ASM; SELECTOR
ALLISON MD3060P A/T(Y4G) 		8-98143-058-0 01 1 0907- ●
323 SWITCH ASM; SELECTOR
ALLISON MD3060P A/T(Y4G) 		8-98017-397-0 01 1 0710-0903 ●
323 SWITCH ASM; SELECTOR
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) 		8-98017-397-0 01 1 0904-0904 ●
çizim 179866
164
BalonParca AdiParca NoAdetTipApplied Date A B C
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
