◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#36634) — 45 parça

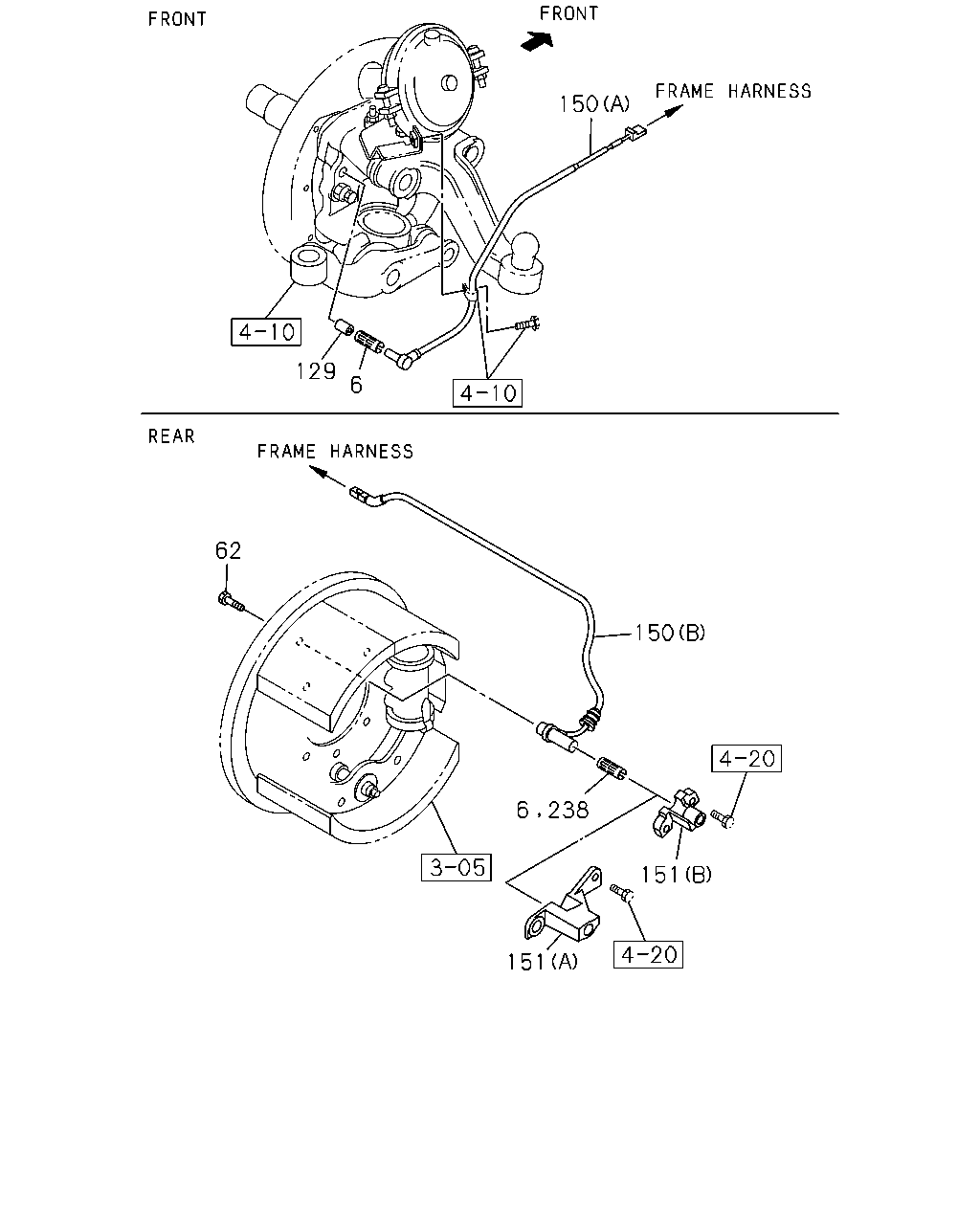

çizim 179783
150 129 6 62 150 151 151 6 238
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 0712-0803 ●
6 HOLDER; SPD SENSOR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 0712-0803 ●
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> 		1-83129-260-1 02 1 0804-0804 ●
6 HOLDER; SPD SENSOR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 0804-0804 ●
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> 		1-83129-260-1 02 1 0805-1004 ●
6 HOLDER; SPD SENSOR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 0805-1004 ●
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> 		1-83129-260-1 02 1 1005- ●
6 HOLDER; SPD SENSOR
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 1005- ●
62 BOLT; SENSOR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 		9-05820-816-0 02 1 0712-0804 ●
62 BOLT; SENSOR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 		9-05820-816-0 02 1 0805-1506 ●
62 BOLT; SENSOR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507- ●
129 COLLAR
ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> 		1-83129-471-0 02 1 0712- ●
150 SENSOR; SPEED,ABS
(B) 		8-98076-288-1 01 1 0710- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98076-289-1 01 1 0710- ● ●
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-83227-024-1 02 1 0712- ●
150 SENSOR; SPEED,ABS
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98089-383-0 01 1 0712-0804 ●
150 SENSOR; SPEED,ABS
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98089-383-0 01 1 0805- ●
150 SENSOR; SPEED,ABS
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98089-384-0 01 1 0712-0804 ●
150 SENSOR; SPEED,ABS
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98089-384-0 01 1 0805- ●
150 SENSOR; SPEED,ABS
(A) 		8-98037-375-0 02 1 0710-0711 ● ● ●
150 SENSOR; SPEED,ABS
(A) 		8-98037-375-0 02 1 0712- ● ●
150 SENSOR; SPEED,ABS
HUB LUBRICATION OIL BATH<C5K> (A) 		8-98037-375-0 02 1 0712- ●
150 SENSOR; SPEED,ABS
(B) 		8-98049-812-0 01 1 0710-0711 ●
150 SENSOR; SPEED,ABS
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98049-812-0 01 1 0712- ●
150 SENSOR; SPEED,ABS
(B) 		8-98049-813-0 01 1 0710-0711 ●
150 SENSOR; SPEED,ABS
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98049-813-0 01 1 0712- ●
151 BRACKET; SPD SENSOR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-83129-403-0 01 1 0712-0804 ●
151 BRACKET; SPD SENSOR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-83129-403-0 01 1 0805-1504 ●
151 BRACKET; SPD SENSOR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98299-396-0 01 1 1505- ●
151 BRACKET; SPD SENSOR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-83129-404-0 01 1 0712-0804 ●
151 BRACKET; SPD SENSOR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-83129-404-0 01 1 0805-1504 ●
151 BRACKET; SPD SENSOR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98299-397-0 01 1 1505- ●
151 BRACKET; SPD SENSOR
(A) 		1-42319-210-0 01 1 0710-0711 ● ● ●
151 BRACKET; SPD SENSOR
(A) 		1-42319-210-0 01 1 0712-1306 ● ●
151 BRACKET; SPD SENSOR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42319-210-0 01 1 0712-1306 ●
151 BRACKET; SPD SENSOR
ZF9S1110 M/T(Y5E) (A) 		1-42319-210-0 01 1 1307-1307 ●
151 BRACKET; SPD SENSOR
(A) 		1-42319-211-0 01 1 0710-0711 ● ● ●
151 BRACKET; SPD SENSOR
(A) 		1-42319-211-0 01 1 0712-1306 ● ●
151 BRACKET; SPD SENSOR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42319-211-0 01 1 0712-1306 ●
151 BRACKET; SPD SENSOR
ZF9S1110 M/T(Y5E) (A) 		1-42319-211-0 01 1 1307-1307 ●
238 BUSHING; BRKT 1-42319-213-0 02 1 0710-0711 ● ● ●
238 BUSHING; BRKT 1-42319-213-0 02 1 0712- ● ●
238 BUSHING; BRKT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42319-213-0 02 1 0712- ●

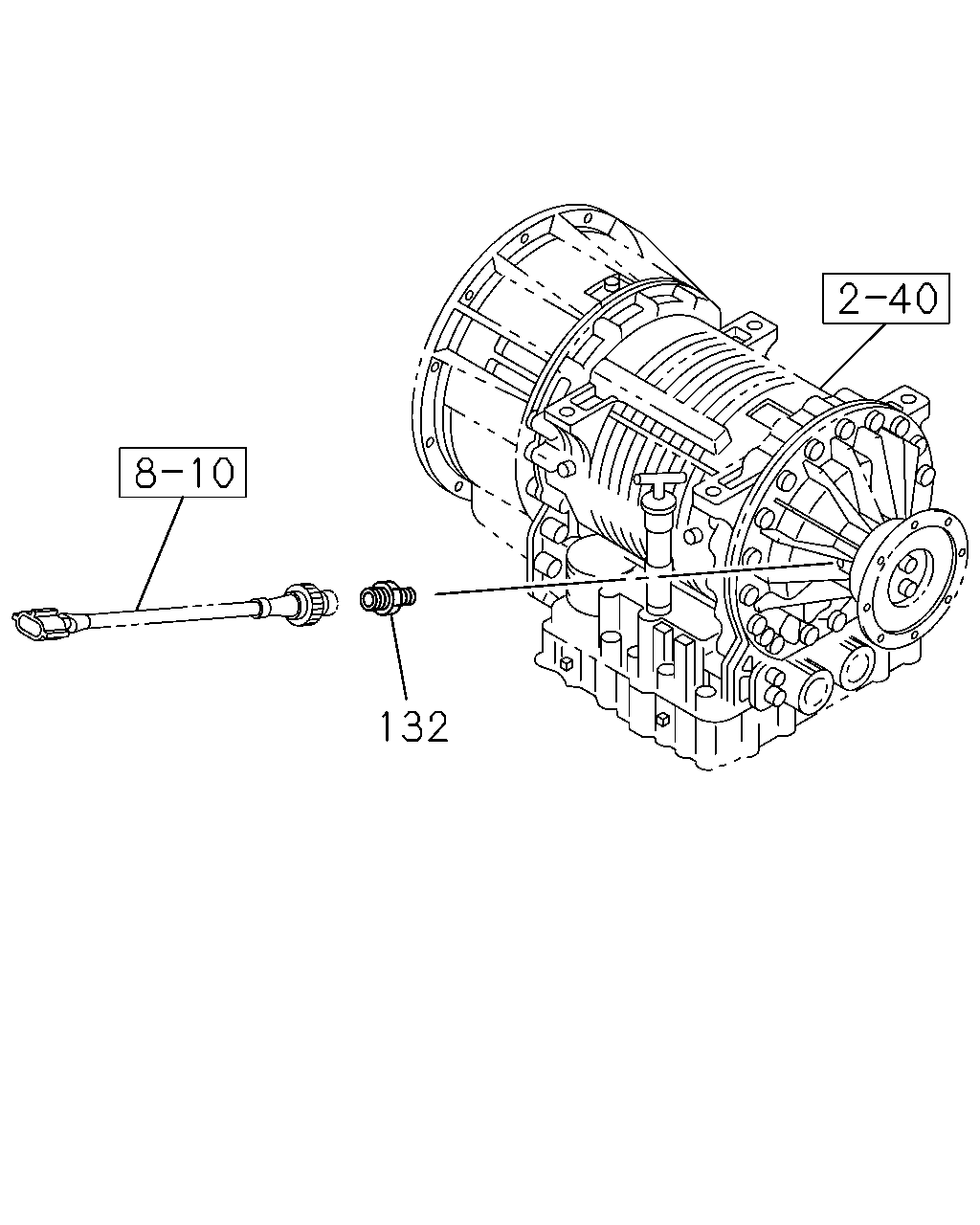

çizim 179822
132
BalonParca AdiParca NoAdetTipApplied Date A B C
132 SENSOR; SPD,SPEEDOMETER
ALLISON MD3060P A/T(Y4G) 		1-80240-013-0 01 1 0710-0912 ●
132 SENSOR; SPD,SPEEDOMETER
ALLISON MD3060P A/T(Y4G) 		8-98151-663-0 01 1 1001- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
