◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#36633) — 2478 parça

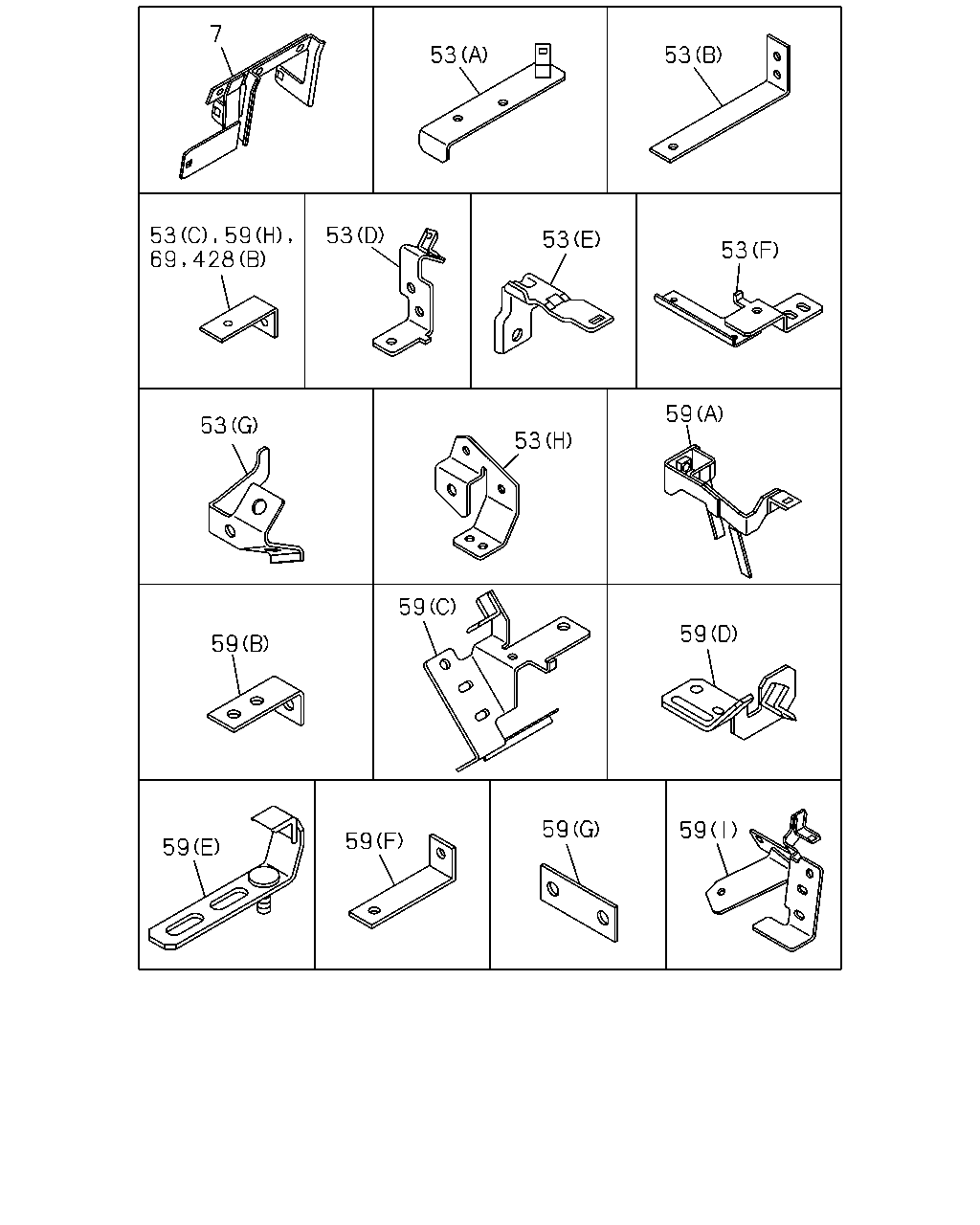

çizim 179774
7 53 53 53 53 53 59 53 53 59 59 59 59 59 59 59 53 59 69 428
BalonParca AdiParca NoAdetTipApplied Date A B C
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0710- ● ● ●
53 BRACKET; HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98129-543-0 01 1 0809-0809 ● ●
53 BRACKET; HARNESS
ALLISON MD3060P A/T(Y4G) (D) 		8-98129-543-0 01 1 0809-0809 ●
53 BRACKET; HARNESS
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (D) 		8-98129-543-0 01 1 0809-0809 ●
53 BRACKET; HARNESS
FULLER FS8209HD DD M/T(Y3A) (D) 		8-98129-543-0 01 1 0809-0809 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) 		8-98084-590-0 01 1 0801- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (H) 		8-98084-590-0 01 1 0801- ●
53 BRACKET; HARNESS
EXC. IMMOBILIZER SYSTEM<7KC> (G) 		8-98074-502-0 01 1 0712-0807 ● ●
53 BRACKET; HARNESS
(C) L=95 		1-82699-085-0 04 1 0710-0711 ●
53 BRACKET; HARNESS
WHEEL BASE 6500MM(65W) (C) L=95 		1-82699-085-0 04 1 0710-0711 ●
53 BRACKET; HARNESS
(C) L=95 		1-82699-085-0 04 1 0712- ●
53 BRACKET; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) L=95 		1-82699-085-0 04 1 0712- ●
53 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=55 		1-47475-304-0 01 1 0710-0711 ●
53 BRACKET; HARNESS
(C) L=55 		1-47475-304-0 01 1 0710-0711 ● ●
53 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=55 		1-47475-304-0 01 1 0712-0712 ● ●
53 BRACKET; HARNESS
(C) L=55 		1-47475-304-0 01 1 0712-0712 ●
53 BRACKET; HARNESS
(F) 		8-97620-485-0 01 1 0710-0711 ● ● ●
53 BRACKET; HARNESS
(F) 		8-97620-485-0 01 1 0712-0712 ● ●
53 BRACKET; HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (F) 		8-97620-485-0 01 1 0712-0712 ●
53 BRACKET; HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (F) 		8-97620-485-0 01 1 0712-0805 ●
53 BRACKET; HARNESS
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) 		8-97620-485-0 01 1 0712-0805 ●
53 BRACKET; HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (F) 		8-97620-485-0 01 1 0712-0805 ●
53 BRACKET; HARNESS
FULLER FS8209HD DD M/T(Y3A) (F) 		8-97620-485-0 01 1 0712-0805 ●
53 BRACKET; HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (F) 		8-97620-485-0 01 1 0806-0808 ●
53 BRACKET; HARNESS
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) 		8-97620-485-0 01 1 0806-0808 ●
53 BRACKET; HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (F) 		8-97620-485-0 01 1 0806-0808 ●
53 BRACKET; HARNESS
FULLER FS8209HD DD M/T(Y3A) (F) 		8-97620-485-0 01 1 0806-0808 ●
53 BRACKET; HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (F) 		8-97620-485-0 01 1 0809-0906 ●
53 BRACKET; HARNESS
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-97620-485-0 01 1 0809-0906 ●
53 BRACKET; HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-97620-485-0 01 1 0809-0906 ●
53 BRACKET; HARNESS
FULLER FS8209HD DD M/T(Y3A) (F) 		8-97620-485-0 01 1 0809-0906 ●
53 BRACKET; HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (F) 		8-97620-485-0 01 1 0907- ●
53 BRACKET; HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-97620-485-0 01 1 0907- ●
53 BRACKET; HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-97620-485-0 01 1 0907- ●
53 BRACKET; HARNESS
FULLER FS8209HD DD M/T(Y3A) (F) 		8-97620-485-0 01 1 0907- ●
53 BRACKET; HARNESS
(E) 		8-98052-458-0 01 1 0710- ● ● ●
53 BRACKET; HARNESS
(B) 		1-47479-674-0 01 1 0710-0711 ● ● ●
53 BRACKET; HARNESS
(B) 		1-47479-674-0 01 1 0712- ● ●
53 BRACKET; HARNESS
CAB SUSPENSION FULL FLOATING<W16> (B) 		1-47479-674-0 01 1 0712- ●
53 BRACKET; HARNESS
(A) 		8-97616-959-0 01 1 0710-0711 ● ● ●
53 BRACKET; HARNESS
(A) 		8-97616-959-0 01 1 0712- ● ●
53 BRACKET; HARNESS
CAB SUSPENSION FULL FLOATING<W16> (A) 		8-97616-959-0 01 1 0712- ●
59 BRACKET; FRAME HARNESS
MLD6W M/T(Y2C) (A) 		8-97627-325-0 01 1 0806- ●
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 0710- ● ● ●
59 BRACKET; FRAME HARNESS
(F) 		1-46147-082-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 6500MM(65W) (F) 		1-46147-082-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(H) L=95 		1-82699-085-0 01 1 0712-0802 ●
59 BRACKET; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (H) L=95 		1-82699-085-0 01 1 0712-0802 ●
59 BRACKET; FRAME HARNESS
(G) L=85 		8-98044-743-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 6500MM(65W) (G) L=85 		8-98044-743-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0710-0803 ● ● ●
59 BRACKET; FRAME HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) 		8-97609-264-2 01 1 0804-0906 ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) (A) 		8-97609-264-2 01 1 0804-0906 ●
59 BRACKET; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (A) 		8-97609-264-2 01 1 0804-0906 ●
59 BRACKET; FRAME HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) 		8-97609-264-2 01 1 0907- ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) 		8-97609-264-2 01 1 0907- ●
59 BRACKET; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (A) 		8-97609-264-2 01 1 0907- ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0710-1502 ● ● ●
59 BRACKET; FRAME HARNESS
(J) 		8-98254-592-0 01 1 1503- ● ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97620-482-1 01 1 0710-0905 ● ● ●
59 BRACKET; FRAME HARNESS
(I) 		8-98107-611-0 01 1 0906- ● ● ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) L=62 		1-21464-170-2 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) L=62 		1-21464-170-2 01 1 0712- ●
59 BRACKET; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=62 		1-21464-170-2 01 1 0712- ●
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 0712- ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55 		1-47475-304-0 01 1 0712- ● ●
69 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 0712- ●
428 BRACKET
EURO2 SPECIFICATION<NT2> (A) 		1-47476-658-0 01 1 0809- ●
428 BRACKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=55 		1-47475-304-0 01 1 0801-0804 ●
428 BRACKET
(C) 		8-97620-514-0 01 1 0710- ● ● ●

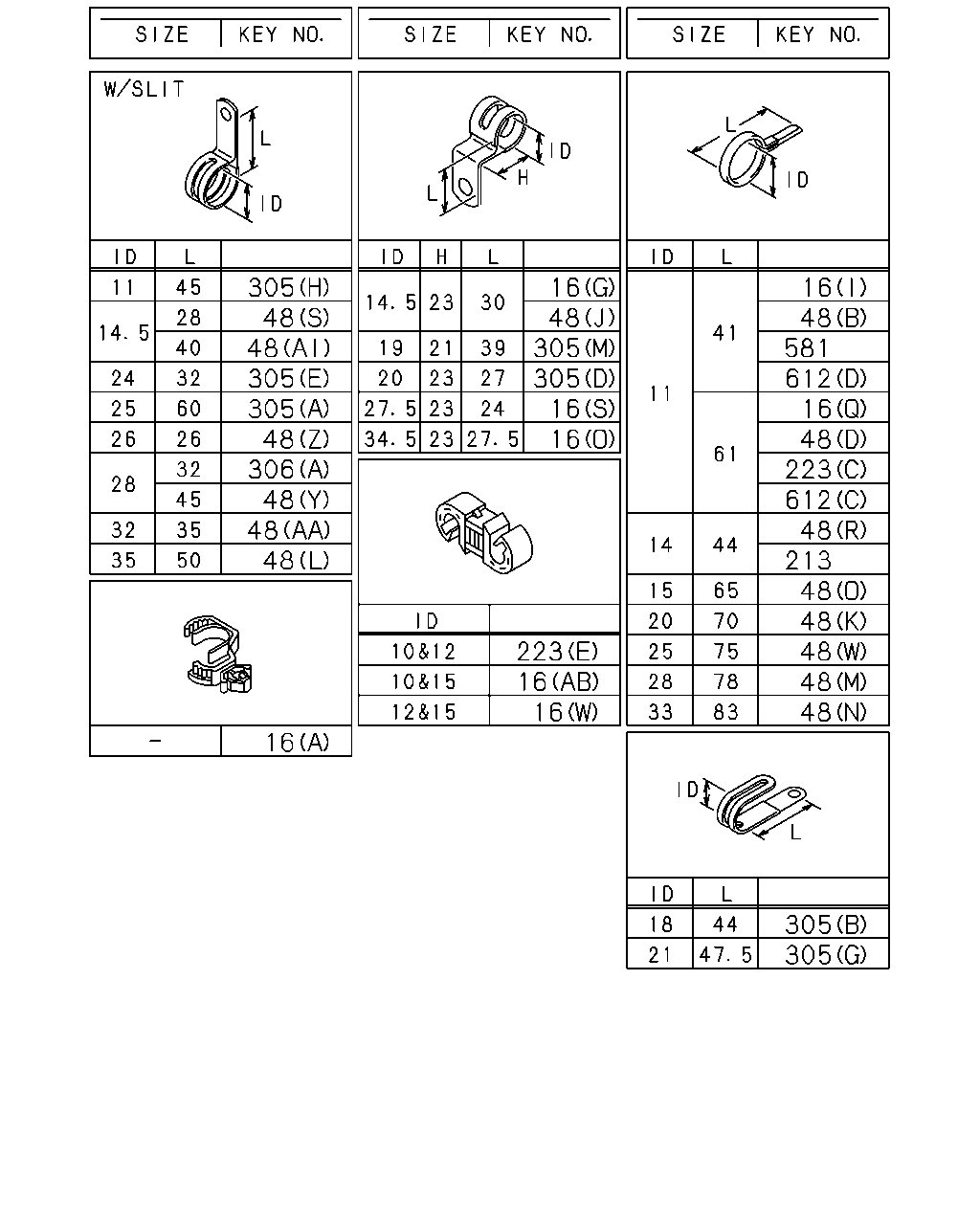

çizim 179777
305 48 48 305 305 48 306 48 48 48 16 48 305 305 16 16 16 48 581 612 16 48 223 612 48 213 48 48 48 48 48 223 16 16 16 305 305
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
(AE) ID=21 L=24 		8-98019-191-0 01 1 1101- ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (AD) L=350 		1-09707-183-0 01 1 0903-0907 ●
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (U) OD=9 H=6 		1-09709-178-0 01 1 0809-1011 ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (U) OD=9 H=6 		1-09709-178-0 01 1 1012-1405 ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (T) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. H.S.A SYSTEM<6EP> (U) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 02 1 0803- ●
16 CLIP; HARNESS
(V) L=213.5 		8-98000-506-0 01 1 0803-0806 ●
16 CLIP; HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (F) L=250 		5-09707-030-1 04 1 0710-0802 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 03 1 0803-0806 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0902- ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (F) L=250 		5-09707-030-1 02 1 0710-0711 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (F) L=250 		5-09707-030-1 02 1 0712-0802 ●
16 CLIP; HARNESS
(W) ID=12 & 15 		1-09709-281-1 02 1 0803-0806 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (S) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=11 L=61 		1-09700-484-0 01 1 0712-0810 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=61 		1-09700-484-0 01 1 0712-0810 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
16 CLIP; HARNESS
WHEEL BASE 6500MM(65W) (I) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0712- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (I) ID=11 L=41 		1-09700-403-0 03 1 0712- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 0712-1509 ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0712-1509 ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 1510- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 1510- ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0803-1509 ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803-1509 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 1510- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 1510- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-1509 ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-1509 ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1510- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1510- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0710-0711 ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0712-0802 ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 01 1 0803-0806 ●
16 CLIP; HARNESS
(Y) 		8-94377-313-1 01 1 0807- ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (I) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (I) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 01 1 0803-1509 ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 0803-1509 ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 1510- ● ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ● ●
16 CLIP; HARNESS
(Z) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ● ●
16 CLIP; HARNESS
(AC) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 05 1 0710-0810 ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 0811- ● ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ● ●

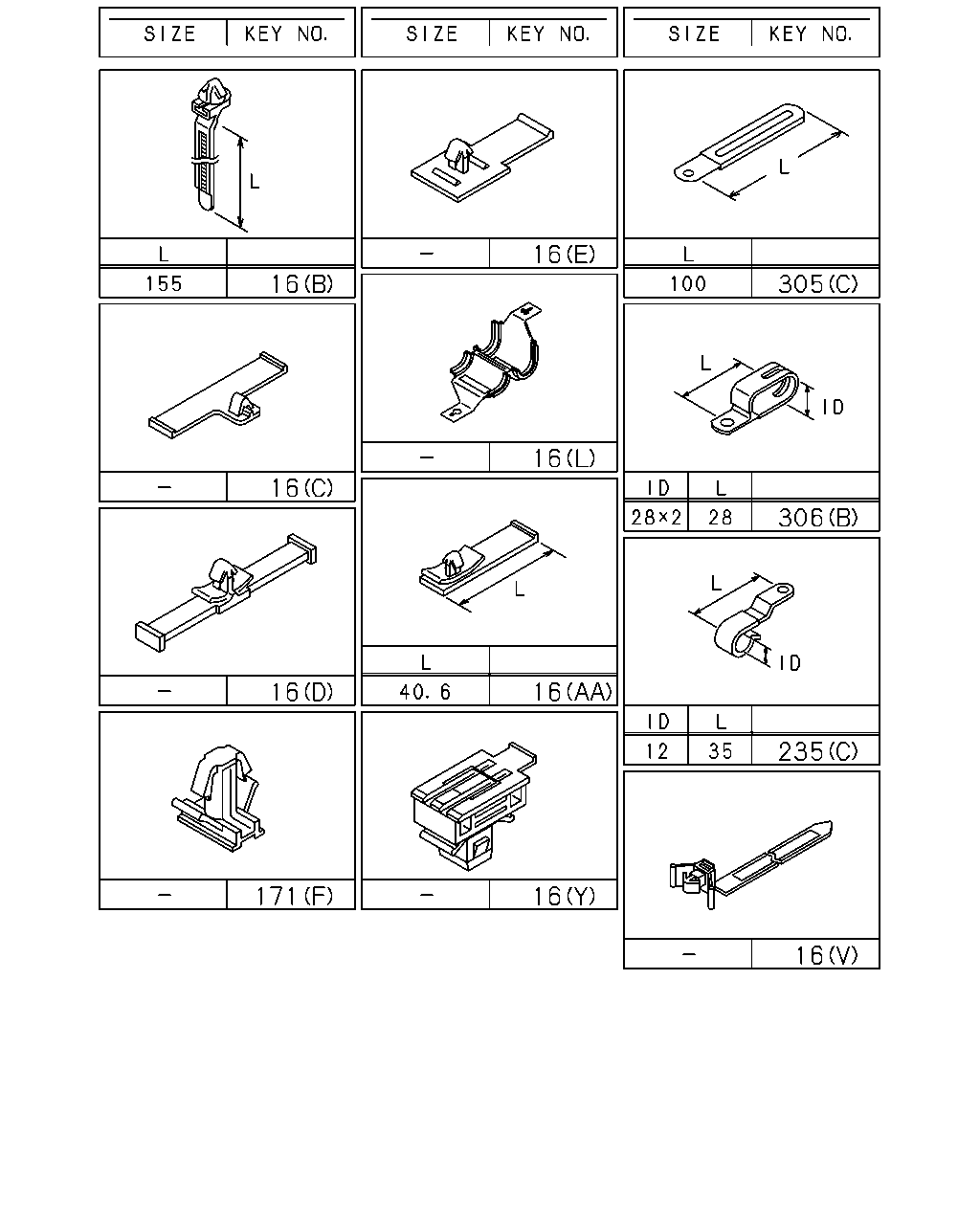

16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(AA) L=40.6 		8-97229-357-0 02 1 0803-1202 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (AA) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AA) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
(AA) L=40.6 		8-97229-357-0 02 1 1203- ● ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (AA) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87> (AA) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (AA) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-1202 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ● ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-1202 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ● ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(L) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710- ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0710-0802 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 02 1 0803-0806 ●
16 CLIP; HARNESS
(AB) ID=10 & 15 		1-09709-279-1 01 1 0807- ●

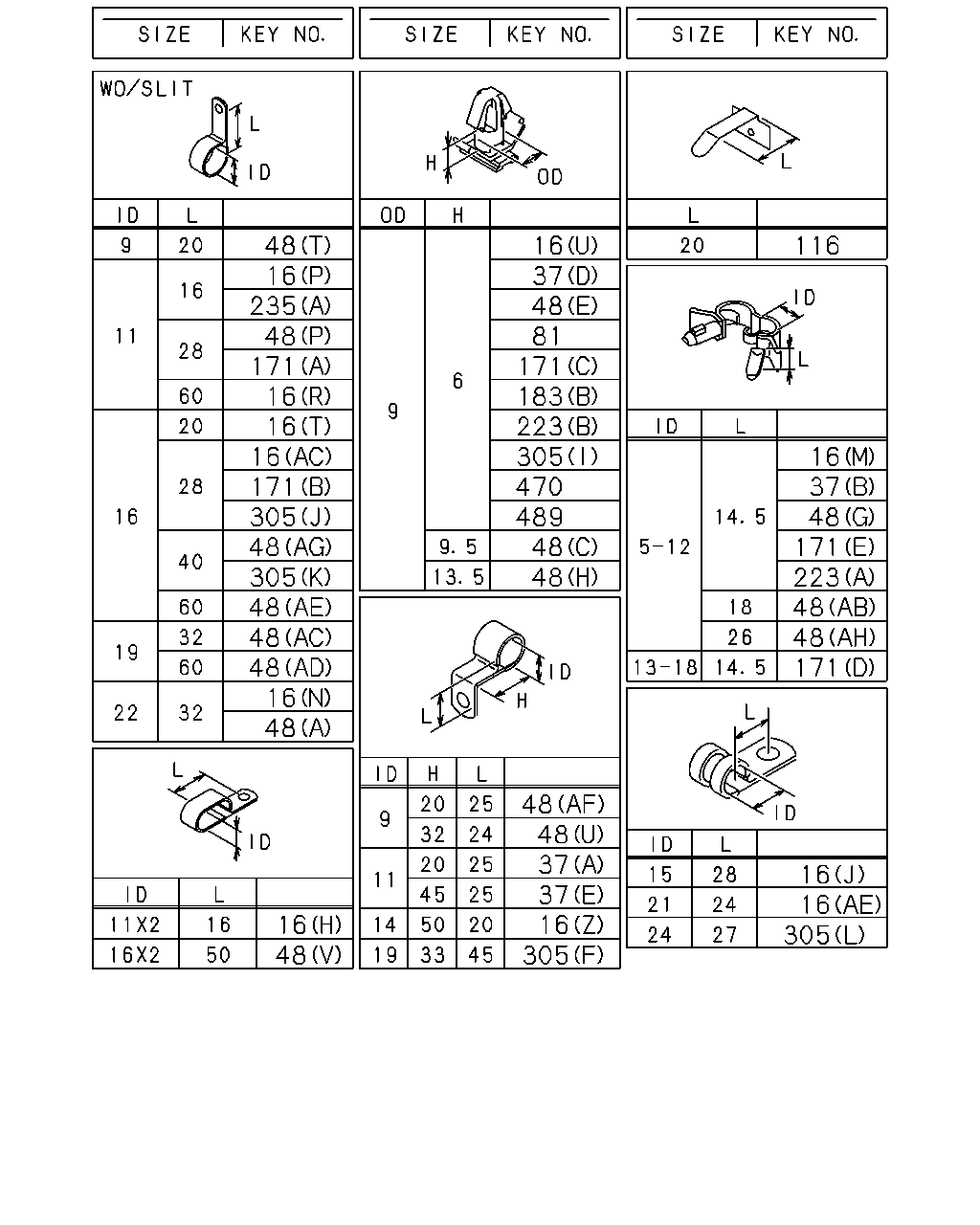

48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 03 1 1012- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (O) ID=15 L=65 		1-09700-466-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 11 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (O) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (O) ID=15 L=65 		1-09700-466-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (O) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 19 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 10 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 05 1 0903- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=61 		1-09700-484-0 05 1 0903- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 02 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 11 1 0809-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (K) ID=20 L=70 		1-09700-485-0 16 1 0712-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (K) ID=20 L=70 		1-09700-485-0 17 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (K) ID=20 L=70 		1-09700-485-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 19 1 0802-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 20 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 21 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0903-1011 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 04 1 0903-1011 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0903-1011 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 24 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 23 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (K) ID=20 L=70 		1-09700-485-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (A) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AD) ID=19 L=60 		0-95235-896-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) L=250 		5-09707-030-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (I) L=250 		5-09707-030-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (I) L=250 		5-09707-030-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) L=250 		5-09707-030-1 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (I) L=250 		5-09707-030-1 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (I) L=250 		5-09707-030-1 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (S) ID=14.5 L=28 		1-09701-013-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (S) ID=14.5 L=28 		1-09701-013-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (AE) ID=16 L=60 		0-95235-596-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (AE) ID=16 L=60 		0-95235-596-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (T) ID=9 L=20 		0-95234-835-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (U) ID=9 H=32 L=24 		1-09701-221-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AF) ID=9 H=20 L=25 		1-09701-073-0 01 1 0803- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (V) ID=16X2 L=50 		0-95325-586-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (B) ID=11 L=41 		1-09700-403-0 05 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 05 1 0712- ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0712-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 04 1 0712-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=15 L=65 		1-09700-466-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
(W) ID=25 L=75 		1-09701-275-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (W) ID=25 L=75 		1-09701-275-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(W) ID=25 L=75 		1-09701-275-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (W) ID=25 L=75 		1-09701-275-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (X) L=350 		1-09707-183-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) (Y) ID=28 L=45 		1-09700-825-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (P) ID=11 L=28 		0-95235-055-0 03 1 0712-0712 ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (AG) ID=16 L=40 		0-95235-575-0 03 1 0712-0803 ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (AG) ID=16 L=40 		0-95235-576-0 03 1 0804- ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (Q) L=180 		1-09707-162-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (Z) ID=26 L=26 		1-09701-236-0 01 1 0712-0810 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (AA) ID=32 L=35 		1-09701-244-0 01 1 0712-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 15 1 0712-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 22 1 0712-0810 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 06 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 06 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 06 1 0712-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=61 		1-09700-484-0 06 1 0712-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 06 1 0903- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=61 		1-09700-484-0 06 1 0903- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (O) ID=15 L=65 		1-09700-466-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0712-0805 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0712-0805 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (O) ID=15 L=65 		1-09700-466-0 01 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0806-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (O) ID=15 L=65 		1-09700-466-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (AB) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
(AH) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (AH) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (A) ID=22 L=32 		1-09700-126-1 02 1 0710-0710 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AC) ID=19 L=32 		0-95235-866-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (E) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (E) OD=9 H=6 		1-09709-178-0 01 1 0712-0905 ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 0712-0905 ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0712-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0712-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (H) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 19 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 19 1 0712-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 20 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 21 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 21 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 27 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 17 1 1008- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (AI) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0710-0711 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0712-0802 ● ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ● ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ● ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0710-0805 ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0806-0901 ● ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (M) ID=28 L=78 		1-09700-858-0 02 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (M) ID=28 L=78 		1-09700-858-0 02 1 0806-0901 ●

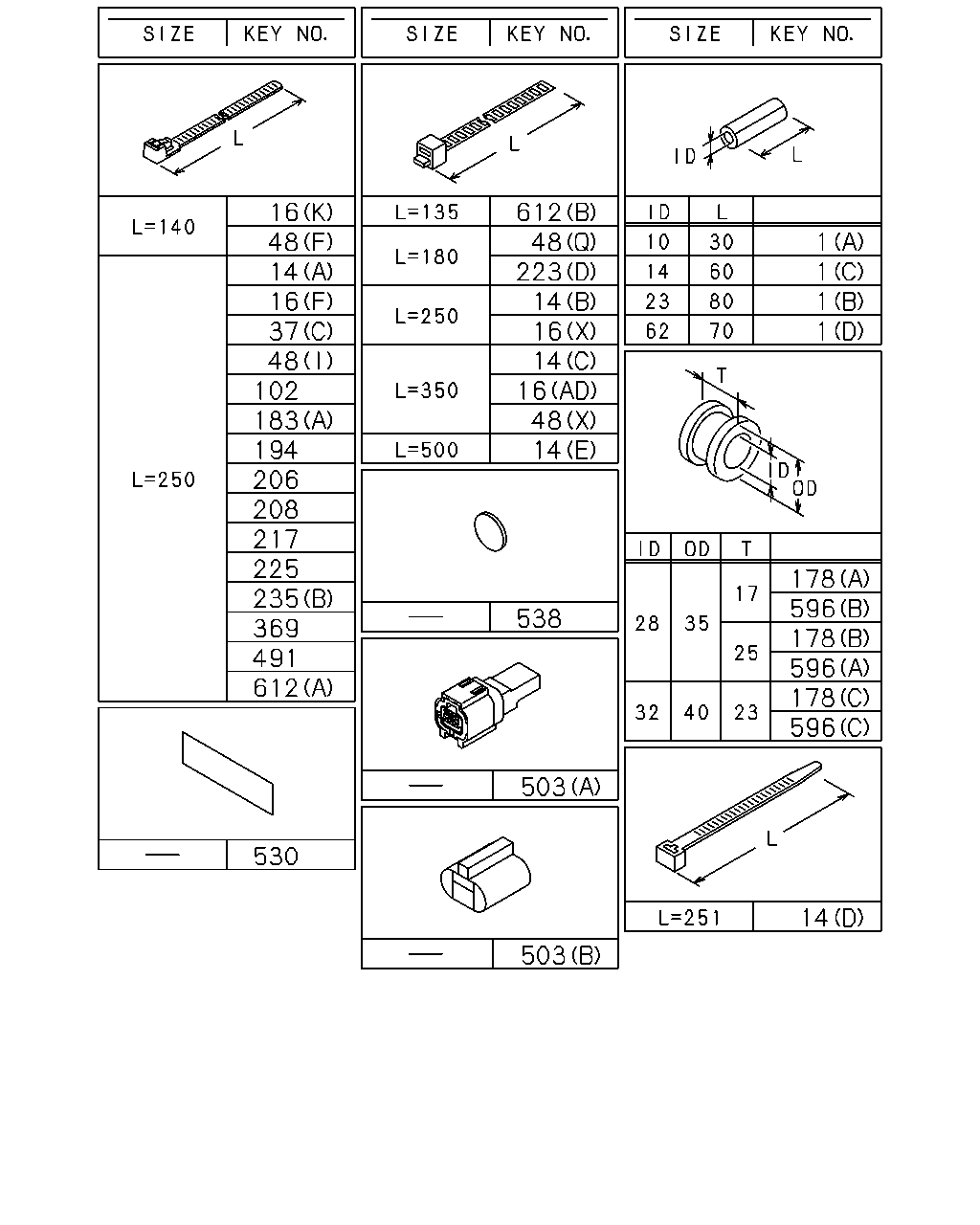

48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (M) ID=28 L=78 		1-09700-858-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (M) ID=28 L=78 		1-09700-858-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0710-0711 ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (L) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0710-0805 ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0806-0901 ● ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (N) ID=33 L=83 		1-09701-291-0 03 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (N) ID=33 L=83 		1-09701-291-0 03 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (N) ID=33 L=83 		1-09701-291-0 03 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (N) ID=33 L=83 		1-09701-291-0 03 1 0902- ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0710- ● ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (B) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (B) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0911- ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 13 1 0710-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=28 		0-95235-055-0 01 1 0710-0806 ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=20 		0-95235-035-0 02 1 0807- ●
48 CLIP; FRAME HARNESS
(Q) L=180 		1-09707-162-1 02 1 0710- ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 05 1 0710-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 11 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 12 1 0712-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 18 1 1008- ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0710- ● ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=180 		1-09707-162-1 01 1 0805-0805 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=10 & 12 		1-09709-278-1 01 1 0805-0906 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=10 & 12 		1-09709-278-1 01 1 0907- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0805-0808 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0809-0902 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) (C) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0805-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0805-1011 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0805-1011 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ● ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ● ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0805-0805 ● ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0805-0808 ● ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0805-0808 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0811 ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0811 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0811 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0811 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812-0902 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1311- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (C) L=100 		8-94443-021-1 01 1 1311- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (L) ID=24 L=27 		1-09700-809-0 03 1 0809- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0710-1310 ● ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=100 		8-94443-021-1 02 1 1311- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0808 ● ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0808 ● ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802-0808 ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0710-0808 ● ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (H) ID=11 L=45 		8-94296-897-1 01 1 0809- ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0710- ● ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0710- ● ● ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0802- ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 6500MM(65W) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0712-0712 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=11 L=41 		1-09700-403-0 03 1 0712-0712 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=11 L=41 		1-09700-403-0 03 1 0712-0801 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=11 L=41 		1-09700-403-0 03 1 0712-0801 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0712-0801 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 04 1 0802- ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=11 L=41 		1-09700-403-0 04 1 0802- ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4200MM(42W) ID=11 L=41 		1-09700-403-0 02 1 0710-0711 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 02 1 0710-0711 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=11 L=41 		1-09700-403-0 02 1 0712-0712 ●
581 CLIP; HARNESS,REAR SUSP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) ID=11 L=41 		1-09700-403-0 02 1 0712-0712 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 02 1 0712-0712 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=11 L=41 		1-09700-403-0 01 1 0712- ●
581 CLIP; HARNESS,REAR SUSP
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) ID=11 L=41 		1-09700-403-0 01 1 0712- ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W) (C) ID=11 L=61 		1-09700-484-0 02 1 0712-0802 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W) (D) ID=11 L=41 		1-09700-403-0 02 1 0803-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) (D) ID=11 L=41 		1-09700-403-0 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 02 1 0907-0907 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> EXC. AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 02 1 0908- ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=11 L=41 		1-09700-403-0 01 1 0805-0808 ●
612 CLIP; HARNESS DPD
(D) ID=11 L=41 		1-09700-403-0 01 1 0805-0808 ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 01 1 0809-0910 ●
612 CLIP; HARNESS DPD
(D) ID=11 L=41 		1-09700-403-0 01 1 0809-0910 ●
612 CLIP; HARNESS DPD
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
612 CLIP; HARNESS DPD
(D) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=250 		5-09707-030-1 01 1 0805-0808 ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 01 1 0805-0808 ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CATALYSIS CONTROL WITH DPD<8JM> (A) L=250 		5-09707-030-1 01 1 0809-0910 ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 01 1 0809-0910 ●
612 CLIP; HARNESS DPD
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) L=250 		5-09707-030-1 01 1 0911- ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CATALYSIS CONTROL WITH DPD<8JM> (A) L=250 		5-09707-030-1 01 1 0911- ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 01 1 0911- ●
612 CLIP; HARNESS DPD
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=250 		5-09707-030-1 02 1 0710-0711 ●
612 CLIP; HARNESS DPD
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (A) L=250 		5-09707-030-1 02 1 0710-0711 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) (A) L=250 		5-09707-030-1 02 1 0710-0711 ●
612 CLIP; HARNESS DPD
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=250 		5-09707-030-1 02 1 0712-0802 ●
612 CLIP; HARNESS DPD
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) L=250 		5-09707-030-1 02 1 0712-0802 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) L=250 		5-09707-030-1 02 1 0712-0802 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) (B) L=135 		1-09987-143-1 01 1 0712-0712 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (B) L=135 		1-09987-143-1 01 1 0712-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (B) L=135 		1-09987-143-1 01 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 01 1 0809-0906 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 01 1 0907- ●
612 CLIP; HARNESS DPD
(B) L=135 		1-09987-143-1 02 1 0710-0711 ● ● ●
612 CLIP; HARNESS DPD
(B) L=135 		1-09987-143-1 02 1 0712-0712 ● ●
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0712-0712 ●
612 CLIP; HARNESS DPD
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0712-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) L=135 		1-09987-143-1 02 1 0712-0805 ●
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0712-0805 ●
612 CLIP; HARNESS DPD
FULLER FS8209HD DD M/T(Y3A) (B) L=135 		1-09987-143-1 02 1 0712-0805 ●
612 CLIP; HARNESS DPD
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) L=135 		1-09987-143-1 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
FULLER FS8209HD DD M/T(Y3A) (B) L=135 		1-09987-143-1 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
FULLER FS8209HD DD M/T(Y3A) (B) L=135 		1-09987-143-1 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0907- ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 02 1 0907- ●
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 02 1 0907- ●
612 CLIP; HARNESS DPD
FULLER FS8209HD DD M/T(Y3A) (B) L=135 		1-09987-143-1 02 1 0907- ●
çizim 179779
48 16 235 48 171 16 16 16 171 305 48 305 48 48 48 16 48 16 37 48 81 171 183 223 305 470 489 48 48 116 16 37 48 171 223 48 48 171 48 48 37 37 16 305 16 16 305 16 48
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
(AE) ID=21 L=24 		8-98019-191-0 01 1 1101- ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (AD) L=350 		1-09707-183-0 01 1 0903-0907 ●
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (U) OD=9 H=6 		1-09709-178-0 01 1 0809-1011 ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (U) OD=9 H=6 		1-09709-178-0 01 1 1012-1405 ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (T) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. H.S.A SYSTEM<6EP> (U) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 02 1 0803- ●
16 CLIP; HARNESS
(V) L=213.5 		8-98000-506-0 01 1 0803-0806 ●
16 CLIP; HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (F) L=250 		5-09707-030-1 04 1 0710-0802 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 03 1 0803-0806 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0902- ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (F) L=250 		5-09707-030-1 02 1 0710-0711 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (F) L=250 		5-09707-030-1 02 1 0712-0802 ●
16 CLIP; HARNESS
(W) ID=12 & 15 		1-09709-281-1 02 1 0803-0806 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (S) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=11 L=61 		1-09700-484-0 01 1 0712-0810 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=61 		1-09700-484-0 01 1 0712-0810 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
16 CLIP; HARNESS
WHEEL BASE 6500MM(65W) (I) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0712- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (I) ID=11 L=41 		1-09700-403-0 03 1 0712- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 0712-1509 ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0712-1509 ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 1510- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 1510- ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0803-1509 ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803-1509 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 1510- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 1510- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-1509 ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-1509 ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1510- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1510- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0710-0711 ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0712-0802 ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 01 1 0803-0806 ●
16 CLIP; HARNESS
(Y) 		8-94377-313-1 01 1 0807- ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (I) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (I) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 01 1 0803-1509 ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 0803-1509 ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 1510- ● ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ● ●
16 CLIP; HARNESS
(Z) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ● ●
16 CLIP; HARNESS
(AC) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 05 1 0710-0810 ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 0811- ● ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(AA) L=40.6 		8-97229-357-0 02 1 0803-1202 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (AA) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AA) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
(AA) L=40.6 		8-97229-357-0 02 1 1203- ● ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (AA) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87> (AA) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (AA) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-1202 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ● ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-1202 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ● ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(L) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710- ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0710-0802 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 02 1 0803-0806 ●
16 CLIP; HARNESS
(AB) ID=10 & 15 		1-09709-279-1 01 1 0807- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0711 ● ● ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0802 ● ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0802 ●
37 CLIP; HARNESS,POWER TILT
(E) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ● ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (E) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ● ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0710-0711 ● ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0712- ● ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0710-0711 ● ● ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0712- ● ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (D) OD=9 H=6 		8-97368-793-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 03 1 1012- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (O) ID=15 L=65 		1-09700-466-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 11 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (O) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (O) ID=15 L=65 		1-09700-466-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (O) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 19 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 10 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 05 1 0903- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=61 		1-09700-484-0 05 1 0903- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 02 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 11 1 0809-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (K) ID=20 L=70 		1-09700-485-0 16 1 0712-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (K) ID=20 L=70 		1-09700-485-0 17 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (K) ID=20 L=70 		1-09700-485-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 19 1 0802-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 20 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 21 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0903-1011 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 04 1 0903-1011 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0903-1011 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 24 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 23 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (K) ID=20 L=70 		1-09700-485-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (A) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AD) ID=19 L=60 		0-95235-896-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) L=250 		5-09707-030-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (I) L=250 		5-09707-030-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (I) L=250 		5-09707-030-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) L=250 		5-09707-030-1 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (I) L=250 		5-09707-030-1 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (I) L=250 		5-09707-030-1 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (S) ID=14.5 L=28 		1-09701-013-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (S) ID=14.5 L=28 		1-09701-013-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (AE) ID=16 L=60 		0-95235-596-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (AE) ID=16 L=60 		0-95235-596-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (T) ID=9 L=20 		0-95234-835-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (U) ID=9 H=32 L=24 		1-09701-221-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AF) ID=9 H=20 L=25 		1-09701-073-0 01 1 0803- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (V) ID=16X2 L=50 		0-95325-586-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (B) ID=11 L=41 		1-09700-403-0 05 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 05 1 0712- ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0712-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 04 1 0712-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=15 L=65 		1-09700-466-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
(W) ID=25 L=75 		1-09701-275-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (W) ID=25 L=75 		1-09701-275-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(W) ID=25 L=75 		1-09701-275-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (W) ID=25 L=75 		1-09701-275-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (X) L=350 		1-09707-183-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) (Y) ID=28 L=45 		1-09700-825-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (P) ID=11 L=28 		0-95235-055-0 03 1 0712-0712 ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (AG) ID=16 L=40 		0-95235-575-0 03 1 0712-0803 ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (AG) ID=16 L=40 		0-95235-576-0 03 1 0804- ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (Q) L=180 		1-09707-162-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (Z) ID=26 L=26 		1-09701-236-0 01 1 0712-0810 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (AA) ID=32 L=35 		1-09701-244-0 01 1 0712-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 15 1 0712-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 22 1 0712-0810 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 06 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 06 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 06 1 0712-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=61 		1-09700-484-0 06 1 0712-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 06 1 0903- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=61 		1-09700-484-0 06 1 0903- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (O) ID=15 L=65 		1-09700-466-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0712-0805 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0712-0805 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (O) ID=15 L=65 		1-09700-466-0 01 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0806-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (O) ID=15 L=65 		1-09700-466-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (AB) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
(AH) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (AH) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (A) ID=22 L=32 		1-09700-126-1 02 1 0710-0710 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AC) ID=19 L=32 		0-95235-866-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (E) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (E) OD=9 H=6 		1-09709-178-0 01 1 0712-0905 ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 0712-0905 ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0712-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0712-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (H) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 19 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 19 1 0712-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 20 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 21 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 21 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 27 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 17 1 1008- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (AI) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0710-0711 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0712-0802 ● ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ● ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ● ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0710-0805 ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0806-0901 ● ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (M) ID=28 L=78 		1-09700-858-0 02 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (M) ID=28 L=78 		1-09700-858-0 02 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (M) ID=28 L=78 		1-09700-858-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (M) ID=28 L=78 		1-09700-858-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0710-0711 ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (L) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0710-0805 ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0806-0901 ● ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (N) ID=33 L=83 		1-09701-291-0 03 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (N) ID=33 L=83 		1-09701-291-0 03 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (N) ID=33 L=83 		1-09701-291-0 03 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (N) ID=33 L=83 		1-09701-291-0 03 1 0902- ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0710- ● ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (B) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (B) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0911- ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 13 1 0710-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=28 		0-95235-055-0 01 1 0710-0806 ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=20 		0-95235-035-0 02 1 0807- ●
48 CLIP; FRAME HARNESS
(Q) L=180 		1-09707-162-1 02 1 0710- ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 05 1 0710-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 11 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 12 1 0712-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 18 1 1008- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 0712-1010 ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> OD=9 H=6 		1-09709-178-0 01 1 0712-1010 ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
81 CLIP; HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1011- ●
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0712- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-0711 ● ● ●
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 04 1 0712- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0712- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0806- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (F) OD=8.95 H=6.25 		8-97375-754-0 01 1 0806-0809 ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0710-0712 ● ● ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0801- ● ●
183 CLIP; CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0801- ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0710-0712 ● ● ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0801-0810 ● ●
183 CLIP; CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0801-0810 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=180 		1-09707-162-1 01 1 0805-0805 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=10 & 12 		1-09709-278-1 01 1 0805-0906 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=10 & 12 		1-09709-278-1 01 1 0907- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0805-0808 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0809-0902 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) (C) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0805-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0805-1011 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0805-1011 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ● ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ● ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0805-0805 ● ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0805-0808 ● ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0805-0808 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0811 ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0811 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0811 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0811 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812-0902 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6W M/T(Y2C) (C) ID=12 L=35 		5-09700-206-0 01 1 0806- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 0712- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0710-0711 ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-1 01 1 0712-0909 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0712-0909 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 02 1 0710- ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1311- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (C) L=100 		8-94443-021-1 01 1 1311- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (L) ID=24 L=27 		1-09700-809-0 03 1 0809- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0710-1310 ● ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=100 		8-94443-021-1 02 1 1311- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0808 ● ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0808 ● ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802-0808 ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0710-0808 ● ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (H) ID=11 L=45 		8-94296-897-1 01 1 0809- ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0710-1205 ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
470 CLIP; HARNESS,LICENSE LAMP
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1206- ●
489 CLIP; HARNESS,OIL PRESS SW
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
489 CLIP; HARNESS,OIL PRESS SW
H.S.A SYSTEM<6EP> OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ● ●
489 CLIP; HARNESS,OIL PRESS SW
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ● ●
489 CLIP; HARNESS,OIL PRESS SW
H.S.A SYSTEM<6EP> OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ●
çizim 179803
16 16 305 16 16 306 16 16 235 171 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
(AE) ID=21 L=24 		8-98019-191-0 01 1 1101- ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (AD) L=350 		1-09707-183-0 01 1 0903-0907 ●
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (U) OD=9 H=6 		1-09709-178-0 01 1 0809-1011 ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (U) OD=9 H=6 		1-09709-178-0 01 1 1012-1405 ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (T) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. H.S.A SYSTEM<6EP> (U) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 02 1 0803- ●
16 CLIP; HARNESS
(V) L=213.5 		8-98000-506-0 01 1 0803-0806 ●
16 CLIP; HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (F) L=250 		5-09707-030-1 04 1 0710-0802 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 03 1 0803-0806 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0902- ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (F) L=250 		5-09707-030-1 02 1 0710-0711 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (F) L=250 		5-09707-030-1 02 1 0712-0802 ●
16 CLIP; HARNESS
(W) ID=12 & 15 		1-09709-281-1 02 1 0803-0806 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (S) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=11 L=61 		1-09700-484-0 01 1 0712-0810 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=61 		1-09700-484-0 01 1 0712-0810 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
16 CLIP; HARNESS
WHEEL BASE 6500MM(65W) (I) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0712- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (I) ID=11 L=41 		1-09700-403-0 03 1 0712- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 0712-1509 ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0712-1509 ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 1510- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 1510- ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0803-1509 ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803-1509 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 1510- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 1510- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-1509 ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-1509 ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1510- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1510- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0710-0711 ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0712-0802 ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 01 1 0803-0806 ●
16 CLIP; HARNESS
(Y) 		8-94377-313-1 01 1 0807- ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (I) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (I) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 01 1 0803-1509 ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 0803-1509 ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 1510- ● ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ● ●
16 CLIP; HARNESS
(Z) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ● ●
16 CLIP; HARNESS
(AC) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 05 1 0710-0810 ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 0811- ● ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(AA) L=40.6 		8-97229-357-0 02 1 0803-1202 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (AA) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AA) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
(AA) L=40.6 		8-97229-357-0 02 1 1203- ● ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (AA) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87> (AA) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (AA) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-1202 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ● ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-1202 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ● ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(L) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710- ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0710-0802 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 02 1 0803-0806 ●
16 CLIP; HARNESS
(AB) ID=10 & 15 		1-09709-279-1 01 1 0807- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0806- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (F) OD=8.95 H=6.25 		8-97375-754-0 01 1 0806-0809 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6W M/T(Y2C) (C) ID=12 L=35 		5-09700-206-0 01 1 0806- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 0712- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0710-0711 ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-1 01 1 0712-0909 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0712-0909 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 02 1 0710- ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1311- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (C) L=100 		8-94443-021-1 01 1 1311- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (L) ID=24 L=27 		1-09700-809-0 03 1 0809- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0710-1310 ● ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=100 		8-94443-021-1 02 1 1311- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0808 ● ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0808 ● ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802-0808 ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0710-0808 ● ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (H) ID=11 L=45 		8-94296-897-1 01 1 0809- ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0710- ● ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0710- ● ● ●
çizim 179843
304 304 139 304 38 139 304 516 304 313 38 139 38 38 139 150 242 313 19 38 139 150 313 38 139 313 139 242 313 139 38 139 139 139 38 38 516 358 38 377 386 38 386
BalonParca AdiParca NoAdetTipApplied Date A B C
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ● ● ●
19 BOLT; PROTECTOR
ANTI LOCK BRAKE<JE5> M8X25 FLANGE 		0-28650-825-0 02 1 0712-0801 ● ●
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0801 ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1101- ●
38 BOLT; CLIP,HARNESS
MLD6W M/T(Y2C) (J) M10X20 FLANGE 		0-28751-020-0 01 1 0806- ●
38 BOLT; CLIP,HARNESS
(I) M8X16 FLANGE 		8-98076-109-0 01 1 0710-0710 ● ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (H) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0710- ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0806 ●
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0806 ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0807- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ● ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ● ● ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ● ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0803-1509 ● ● ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0803-1509 ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0803-1509 ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0803-1509 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0803-1509 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1510- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1510- ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1510- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1510- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1510- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0710 ● ● ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ●
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803 ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803 ●
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803 ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-0711 ● ● ●
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0806 ●
38 BOLT; CLIP,HARNESS
FULLER FS8209HD DD M/T(Y3A) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0806 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ● ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (D) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0710-1201 ● ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (F) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0710-1201 ●
38 BOLT; CLIP,HARNESS
(K) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (K) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0712- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> (D) M8X30 FLANGE 		0-28650-830-0 01 1 0712- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) M8X16 FLANGE 		0-28050-816-0 03 1 0712- ●
38 BOLT; CLIP,HARNESS
(E) M10X16 FLANGE 		0-28151-016-0 01 1 0710-0806 ●
38 BOLT; CLIP,HARNESS
(G) M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 0710- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ● ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (L) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (L) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
139 BOLT; BRKT
(J) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
139 BOLT; BRKT
WHEEL BASE 6500MM(65W) (J) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
139 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (K) M10X16 FLANGE 		0-28051-016-0 03 1 0712- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0710-0711 ● ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 0810-0906 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0810-0906 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ●
139 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (H) M10X20 FLANGE 		0-28751-020-0 01 1 0712- ●
139 BOLT; BRKT
WHEEL BASE 4200MM(42W) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0711 ●
139 BOLT; BRKT
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0711 ●
139 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0802 ●
139 BOLT; BRKT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0802 ●
139 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0802 ●
139 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0802 ●
139 BOLT; BRKT
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0802 ●
139 BOLT; BRKT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0803- ●
139 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0803- ●
139 BOLT; BRKT
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0803- ●
139 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (D) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0802 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (D) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0802 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (D) M8X16 FLANGE 		0-28050-816-0 02 1 0803- ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ● ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0809 ● ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0811-0906 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0811-0906 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 0907-1509 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0907-1509 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1510- ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 1510- ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0710- ● ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ●
139 BOLT; BRKT
(G) M10X16 FLANGE 		0-28151-016-0 01 1 0710- ●
139 BOLT; BRKT
(H) M10X20 FLANGE 		0-28651-020-0 01 1 0710- ●
150 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ● ●
150 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ● ●
242 BOLT; BRKT,HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ● ●
242 BOLT; BRKT,HARNESS
ALLISON MD3060P A/T(Y4G) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ●
242 BOLT; BRKT,HARNESS
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ●
242 BOLT; BRKT,HARNESS
FULLER FS8209HD DD M/T(Y3A) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ●
242 BOLT; BRKT,HARNESS
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0711 ● ● ●
242 BOLT; BRKT,HARNESS
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0712 ● ●
242 BOLT; BRKT,HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0712 ●
242 BOLT; BRKT,HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0805 ●
242 BOLT; BRKT,HARNESS
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0805 ●
242 BOLT; BRKT,HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0805 ●
242 BOLT; BRKT,HARNESS
FULLER FS8209HD DD M/T(Y3A) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0805 ●
242 BOLT; BRKT,HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0806-0808 ●
242 BOLT; BRKT,HARNESS
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0806-0808 ●
242 BOLT; BRKT,HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0806-0808 ●
242 BOLT; BRKT,HARNESS
FULLER FS8209HD DD M/T(Y3A) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0806-0808 ●
242 BOLT; BRKT,HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0809-0906 ●
242 BOLT; BRKT,HARNESS
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) M8X35 FLANGE 		0-28650-835-0 01 1 0809-0906 ●
242 BOLT; BRKT,HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (A) M8X35 FLANGE 		0-28650-835-0 01 1 0809-0906 ●
242 BOLT; BRKT,HARNESS
FULLER FS8209HD DD M/T(Y3A) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0809-0906 ●
242 BOLT; BRKT,HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0907- ●
242 BOLT; BRKT,HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) M8X35 FLANGE 		0-28650-835-0 01 1 0907- ●
242 BOLT; BRKT,HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (A) M8X35 FLANGE 		0-28650-835-0 01 1 0907- ●
242 BOLT; BRKT,HARNESS
FULLER FS8209HD DD M/T(Y3A) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0907- ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ● ● ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
242 BOLT; BRKT,HARNESS
CAB SUSPENSION FULL FLOATING<W16> (B) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE 		0-28050-812-0 06 1 0809- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE 		0-28050-816-0 05 1 0809- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE 		0-28050-820-0 04 1 0809-1404 ●
304 BOLT; ENG HARNESS CLIP
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE 		0-28050-820-0 02 1 1405- ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0710-0808 ● ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0809- ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE 		0-28050-812-0 03 1 0809- ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0710-0808 ● ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0809- ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE 		0-28050-816-0 03 1 0809- ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0710-0808 ● ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0809-1404 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28050-820-0 01 1 0809-1404 ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1405- ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28050-820-0 01 1 1405- ●
304 BOLT; ENG HARNESS CLIP
GENERATOR 24V90A(K44) EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE 		0-28050-820-0 01 1 1405- ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0808 ● ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0809- ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (E) M6X12 FLANGE 		0-28050-612-0 01 1 0809- ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0710-0808 ● ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0809-1010 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (D) M8X10 FLANGE 		0-28050-810-0 01 1 0809-1010 ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 04 1 0710-0711 ●
313 BOLT; BRKT
WHEEL BASE 6500MM(65W) (A) M8X30 FLANGE 		0-28650-830-0 04 1 0710-0711 ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 04 1 0712- ●
313 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8X30 FLANGE 		0-28650-830-0 04 1 0712- ●
313 BOLT; BRKT
(C) M8X45 FLANGE 		0-28050-845-0 01 1 0710- ● ● ●
313 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ● ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0712 ● ● ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0801-0804 ● ● ●
313 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M8X35 FLANGE 		0-28650-835-0 01 1 0801-0804 ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0805-0808 ● ● ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ● ●
313 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (E) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ●
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ● ●
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
313 BOLT; BRKT
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0710-0711 ● ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0712- ● ●
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0712- ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0710- ● ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-1202 ● ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ● ●
516 BOLT; HARNESS
MLD6W M/T(Y2C) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0806- ●
516 BOLT; HARNESS
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0710- ● ● ●
çizim 179845
139 127 524 294 219 525 184 47 294
BalonParca AdiParca NoAdetTipApplied Date A B C
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ● ●
127 SCREW; FACIA HARNESS CLIP
EXC. IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0712- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ● ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (L) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (L) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
139 BOLT; BRKT
(J) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
139 BOLT; BRKT
WHEEL BASE 6500MM(65W) (J) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
139 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (K) M10X16 FLANGE 		0-28051-016-0 03 1 0712- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0710-0711 ● ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 0810-0906 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0810-0906 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ●
139 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (H) M10X20 FLANGE 		0-28751-020-0 01 1 0712- ●
139 BOLT; BRKT
WHEEL BASE 4200MM(42W) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0711 ●
139 BOLT; BRKT
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0711 ●
139 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0802 ●
139 BOLT; BRKT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0802 ●
139 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0802 ●
139 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0802 ●
139 BOLT; BRKT
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0802 ●
139 BOLT; BRKT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0803- ●
139 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0803- ●
139 BOLT; BRKT
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0803- ●
139 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (D) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0802 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (D) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0802 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (D) M8X16 FLANGE 		0-28050-816-0 02 1 0803- ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ● ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0809 ● ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0811-0906 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0811-0906 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 0907-1509 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0907-1509 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1510- ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 1510- ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0710- ● ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ●
139 BOLT; BRKT
(G) M10X16 FLANGE 		0-28151-016-0 01 1 0710- ●
139 BOLT; BRKT
(H) M10X20 FLANGE 		0-28651-020-0 01 1 0710- ●
184 WASHER; PL,STARTER EARTH
EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 0810- ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0806-0809 ● ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0810- ● ●
184 WASHER; PL,STARTER EARTH
EURO4 SPECIFICATION<NT4> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0810- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ● ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 04 1 0803-1509 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0803-1509 ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1510- ● ● ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1510- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1510- ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0710-0711 ● ● ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 05 1 0712-0802 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0712-0802 ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 01 1 0803-1509 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0803-1509 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0803-1509 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1510- ● ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 01 1 1510- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1510- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-1509 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
294 NUT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0801-0804 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0801-0804 ● ●
294 NUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0801-0804 ●
294 NUT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0801-0804 ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0801-0804 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0801-0804 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0808 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0808 ● ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0805-0808 ●
294 NUT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0805-0808 ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0805-0808 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0808 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
EURO2 SPECIFICATION<NT2> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ● ●
294 NUT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
ALLISON MD3060P A/T(Y4G) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
EURO2 SPECIFICATION<NT2> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
FULLER FS8209HD DD M/T(Y3A) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
294 NUT
EURO2 SPECIFICATION<NT2> (A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
294 NUT
WHEEL BASE 6500MM(65W) (B) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
294 NUT
FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE 		0-91180-210-0 01 1 0712- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
294 NUT
WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0712-0809 ●
294 NUT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 04 1 0712-0809 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ● ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ● ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ● ●
294 NUT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
294 NUT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0809 ● ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0803-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ● ●
294 NUT
WHEEL BASE 4200MM(42W) (A) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ● ●
294 NUT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
294 NUT
WHEEL BASE 4200MM(42W) (A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
294 NUT
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 06 1 0712-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0712-0809 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 04 1 0810-1509 ● ●
294 NUT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 04 1 0810-1509 ●
294 NUT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 04 1 0810-1509 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0810-1509 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 1510- ● ●
294 NUT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 04 1 1510- ●
294 NUT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 04 1 1510- ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 04 1 1510- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 07 1 0710-0710 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 0710-0711 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0712-0901 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0902-0905 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0906- ● ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0710- ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0710- ● ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
525 NUT; CLIP
AUTO CAB TILT<WV2> T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712- ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0710-0808 ● ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0809- ● ●
525 NUT; CLIP
EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0809- ●
çizim 179885
16 14 48 16 530 612 369 491 235 1 1 1 1 14 596 178 596 178 596 178 503 503 538 14 48 16 14 16 14 223 48 612 225 208 37 102 48 183 206 194 217
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SLEEVE; RUBBER
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> GENERATOR 24V90A(K44) (D) ID=62 OD=69 L=70 		8-98254-614-0 01 1 1405- ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0809- ● ● ●
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0710-0808 ● ● ●
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0809- ● ●
1 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> (B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0809- ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0710-0808 ● ● ●
1 SLEEVE; RUBBER
EURO2 SPECIFICATION<NT2> (C) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0809- ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> GENERATOR 24V90A(K44) (E) L=500 		8-98216-422-0 01 1 1405- ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (A) L=250 		8-98216-430-0 01 1 1312- ●
14 CLIP; BAND,HARNESS
FULLER FSO5206B OD M/T(Y4V) (A) L=250 		5-09707-030-1 01 1 0911- ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 0910- ● ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> (D) L=251 		8-97619-917-0 01 1 0910- ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> (A) L=250 		5-09707-030-1 08 1 0809-1205 ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> (A) L=250 		8-98216-430-0 08 1 1206- ●
14 CLIP; BAND,HARNESS
WHEEL BASE 5500MM(55W) (A) L=250 		5-09707-030-1 03 1 0710-0802 ●
14 CLIP; BAND,HARNESS
ALLISON MD3060P A/T(Y4G) (A) L=250 		5-09707-030-1 14 1 0710-0712 ●
14 CLIP; BAND,HARNESS
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (A) L=250 		5-09707-030-1 15 1 0801-0805 ● ●
14 CLIP; BAND,HARNESS
ALLISON MD3060P A/T(Y4G) (A) L=250 		5-09707-030-1 15 1 0801-0805 ●
14 CLIP; BAND,HARNESS
ALLISON MD3060P A/T(Y4G) (A) L=250 		5-09707-030-1 15 1 0806-0909 ●
14 CLIP; BAND,HARNESS
ALLISON MD3060P A/T(Y4G) (A) L=250 		5-09707-030-1 14 1 0910-1205 ●
14 CLIP; BAND,HARNESS
ALLISON MD3060P A/T(Y4G) (A) L=250 		8-98216-430-0 14 1 1206- ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (A) L=250 		5-09707-030-1 13 1 0710-0712 ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 13 1 0710-0712 ● ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (A) L=250 		5-09707-030-1 14 1 0801-0808 ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 14 1 0801-0808 ● ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (A) L=250 		5-09707-030-1 14 1 0809-0909 ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> (A) L=250 		5-09707-030-1 14 1 0809-0909 ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 14 1 0809-0909 ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (A) L=250 		5-09707-030-1 13 1 0910-1205 ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> (A) L=250 		5-09707-030-1 13 1 0910-1205 ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 13 1 0910-1205 ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (A) L=250 		8-98216-430-0 13 1 1206- ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> (A) L=250 		8-98216-430-0 13 1 1206- ●
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 13 1 1206- ●
14 CLIP; BAND,HARNESS
ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> (B) L=250 		1-09707-126-0 02 1 0712- ●
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 0710- ● ● ●
16 CLIP; HARNESS
(AE) ID=21 L=24 		8-98019-191-0 01 1 1101- ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (AD) L=350 		1-09707-183-0 01 1 0903-0907 ●
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (U) OD=9 H=6 		1-09709-178-0 01 1 0809-1011 ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (U) OD=9 H=6 		1-09709-178-0 01 1 1012-1405 ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (T) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. H.S.A SYSTEM<6EP> (U) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 02 1 0803- ●
16 CLIP; HARNESS
(V) L=213.5 		8-98000-506-0 01 1 0803-0806 ●
16 CLIP; HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (F) L=250 		5-09707-030-1 04 1 0710-0802 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 03 1 0803-0806 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0902- ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (F) L=250 		5-09707-030-1 02 1 0710-0711 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (F) L=250 		5-09707-030-1 02 1 0712-0802 ●
16 CLIP; HARNESS
(W) ID=12 & 15 		1-09709-281-1 02 1 0803-0806 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (S) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=11 L=61 		1-09700-484-0 01 1 0712-0810 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=61 		1-09700-484-0 01 1 0712-0810 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
16 CLIP; HARNESS
WHEEL BASE 6500MM(65W) (I) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0712- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (I) ID=11 L=41 		1-09700-403-0 03 1 0712- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 0712-1509 ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0712-1509 ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 1510- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 1510- ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0803-1509 ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803-1509 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 1510- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 1510- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-1509 ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-1509 ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1510- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1510- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0710-0711 ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0712-0802 ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 01 1 0803-0806 ●
16 CLIP; HARNESS
(Y) 		8-94377-313-1 01 1 0807- ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (I) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (I) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 01 1 0803-1509 ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 0803-1509 ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 1510- ● ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ● ●
16 CLIP; HARNESS
(Z) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ● ●
16 CLIP; HARNESS
(AC) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 05 1 0710-0810 ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 0811- ● ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(AA) L=40.6 		8-97229-357-0 02 1 0803-1202 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (AA) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AA) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
(AA) L=40.6 		8-97229-357-0 02 1 1203- ● ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (AA) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87> (AA) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (AA) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-1202 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ● ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-1202 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ● ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(L) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710- ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0710-0802 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 02 1 0803-0806 ●
16 CLIP; HARNESS
(AB) ID=10 & 15 		1-09709-279-1 01 1 0807- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0711 ● ● ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0802 ● ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0802 ●
37 CLIP; HARNESS,POWER TILT
(E) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ● ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (E) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ● ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0710-0711 ● ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0712- ● ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0710-0711 ● ● ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0712- ● ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (D) OD=9 H=6 		8-97368-793-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 03 1 1012- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (O) ID=15 L=65 		1-09700-466-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 11 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (O) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (O) ID=15 L=65 		1-09700-466-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (O) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 19 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 10 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 05 1 0903- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=61 		1-09700-484-0 05 1 0903- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 02 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 11 1 0809-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (K) ID=20 L=70 		1-09700-485-0 16 1 0712-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (K) ID=20 L=70 		1-09700-485-0 17 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (K) ID=20 L=70 		1-09700-485-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 19 1 0802-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 20 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 21 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0903-1011 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 04 1 0903-1011 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0903-1011 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 24 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 23 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (K) ID=20 L=70 		1-09700-485-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (A) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AD) ID=19 L=60 		0-95235-896-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) L=250 		5-09707-030-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (I) L=250 		5-09707-030-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (I) L=250 		5-09707-030-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) L=250 		5-09707-030-1 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (I) L=250 		5-09707-030-1 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (I) L=250 		5-09707-030-1 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (S) ID=14.5 L=28 		1-09701-013-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (S) ID=14.5 L=28 		1-09701-013-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (AE) ID=16 L=60 		0-95235-596-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (AE) ID=16 L=60 		0-95235-596-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (T) ID=9 L=20 		0-95234-835-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (U) ID=9 H=32 L=24 		1-09701-221-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AF) ID=9 H=20 L=25 		1-09701-073-0 01 1 0803- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (V) ID=16X2 L=50 		0-95325-586-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (B) ID=11 L=41 		1-09700-403-0 05 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 05 1 0712- ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0712-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 04 1 0712-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=15 L=65 		1-09700-466-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
(W) ID=25 L=75 		1-09701-275-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (W) ID=25 L=75 		1-09701-275-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(W) ID=25 L=75 		1-09701-275-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (W) ID=25 L=75 		1-09701-275-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (X) L=350 		1-09707-183-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) (Y) ID=28 L=45 		1-09700-825-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (P) ID=11 L=28 		0-95235-055-0 03 1 0712-0712 ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (AG) ID=16 L=40 		0-95235-575-0 03 1 0712-0803 ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (AG) ID=16 L=40 		0-95235-576-0 03 1 0804- ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (Q) L=180 		1-09707-162-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (Z) ID=26 L=26 		1-09701-236-0 01 1 0712-0810 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (AA) ID=32 L=35 		1-09701-244-0 01 1 0712-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 15 1 0712-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 22 1 0712-0810 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 06 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 06 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 06 1 0712-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=61 		1-09700-484-0 06 1 0712-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 06 1 0903- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=61 		1-09700-484-0 06 1 0903- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (O) ID=15 L=65 		1-09700-466-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0712-0805 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0712-0805 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (O) ID=15 L=65 		1-09700-466-0 01 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0806-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (O) ID=15 L=65 		1-09700-466-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (O) ID=15 L=65 		1-09700-466-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (AB) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
(AH) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (AH) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (A) ID=22 L=32 		1-09700-126-1 02 1 0710-0710 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AC) ID=19 L=32 		0-95235-866-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (E) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (E) OD=9 H=6 		1-09709-178-0 01 1 0712-0905 ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 0712-0905 ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0712-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0712-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (H) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 19 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 19 1 0712-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 20 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 21 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 21 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 27 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 17 1 1008- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (AI) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0710-0711 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0712-0802 ● ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ● ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0803 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ● ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0807-0810 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0811-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0710-0805 ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0806-0901 ● ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (M) ID=28 L=78 		1-09700-858-0 02 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (M) ID=28 L=78 		1-09700-858-0 02 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (M) ID=28 L=78 		1-09700-858-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (M) ID=28 L=78 		1-09700-858-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0710-0711 ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (L) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0710-0805 ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0806-0901 ● ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (N) ID=33 L=83 		1-09701-291-0 03 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (N) ID=33 L=83 		1-09701-291-0 03 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (N) ID=33 L=83 		1-09701-291-0 03 1 0902- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (N) ID=33 L=83 		1-09701-291-0 03 1 0902- ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0710- ● ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (B) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (B) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0905 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0906-0910 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0911- ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 13 1 0710-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0806-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=28 		0-95235-055-0 01 1 0710-0806 ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=20 		0-95235-035-0 02 1 0807- ●
48 CLIP; FRAME HARNESS
(Q) L=180 		1-09707-162-1 02 1 0710- ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 05 1 0710-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 11 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 12 1 0712-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (K) ID=20 L=70 		1-09700-485-0 18 1 1008- ●
102 CLIP; BAND
H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 0710-0901 ● ● ●
178 GROMMET; HARNESS
EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0712-1011 ●
178 GROMMET; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1012-1102 ●
178 GROMMET; HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1012-1102 ●
178 GROMMET; HARNESS
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1012-1102 ●
178 GROMMET; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1103- ●
178 GROMMET; HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1103- ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SINGAPORE EQUIPMENT(2G0) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1103- ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0710-0711 ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0712- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0710-0711 ● ● ●
178 GROMMET; HARNESS
ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0712-0712 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0712-0712 ●
178 GROMMET; HARNESS
ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0712- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0712- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0712- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-0711 ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-0711 ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712-0712 ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712-0712 ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712-0712 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 0710-0711 ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0712 ●
178 GROMMET; HARNESS
AUSTRALIA EQUIPMENT(B13) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0712 ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0801-1011 ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AUSTRALIA EQUIPMENT(B13) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0801-1011 ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1012-1102 ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1012-1102 ●
178 GROMMET; HARNESS
AUSTRALIA EQUIPMENT(B13) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1012-1102 ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1103- ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1103- ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SINGAPORE EQUIPMENT(2G0) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1103- ●
178 GROMMET; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1103- ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0710-0712 ● ● ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0801- ● ●
183 CLIP; CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0801- ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0710-0712 ● ● ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0801-0810 ● ●
183 CLIP; CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0801-0810 ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0710-0711 ● ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0712- ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> L=250 		5-09707-030-1 02 1 0712- ●
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 0710-0710 ●
194 CLIP; BAND
ALLISON MD3060P A/T(Y4G) L=250 		5-09707-030-1 01 1 0710-0802 ●
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 0710-0802 ●
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 0803-0901 ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0710- ● ● ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 04 1 0710-0711 ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 6500MM(65W) L=250 		5-09707-030-1 04 1 0710-0711 ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 04 1 0712-0802 ●
208 CLIP; HARNESS,MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 04 1 0712-0802 ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 0710-0711 ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 6500MM(65W) L=250 		5-09707-030-1 01 1 0710-0711 ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 0712-0712 ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0712-0712 ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=250 		5-09707-030-1 01 1 0801- ●
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0801- ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 01 1 0812-0812 ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0710-0811 ● ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0812-0812 ● ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0812-0812 ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0901- ● ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=180 		1-09707-162-1 01 1 0805-0805 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=10 & 12 		1-09709-278-1 01 1 0805-0906 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=10 & 12 		1-09709-278-1 01 1 0907- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0805-0808 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0809-0902 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) (C) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0805-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0805-1011 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0805-1011 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ● ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ● ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0805-0805 ● ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0805-0808 ● ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0805-0808 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0811 ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0811 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0811 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0811 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812-0902 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250 		5-09707-030-1 05 1 0801-0804 ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250 		5-09707-030-1 03 1 0805- ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 03 1 0805- ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 03 1 0805- ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) L=250 		5-09707-030-1 03 1 0710-0711 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 03 1 0710-0711 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 03 1 0712-0804 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 03 1 0712-0804 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 01 1 0710-0711 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6500MM(65W) L=250 		5-09707-030-1 01 1 0710-0711 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 01 1 0712-0804 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0712-0804 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=250 		5-09707-030-1 01 1 0805-0907 ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 0805-0907 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0805-0907 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 01 1 0908- ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0908- ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) L=250 		5-09707-030-1 04 1 0710-0711 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 0710-0711 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 04 1 0712-1011 ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 04 1 0712-1011 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 0712-1011 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 04 1 1012- ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 04 1 1012- ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> L=250 		5-09707-030-1 04 1 1012- ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 1012- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6W M/T(Y2C) (C) ID=12 L=35 		5-09700-206-0 01 1 0806- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 0712- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0710-0711 ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-1 01 1 0712-0909 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0712-0909 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 02 1 0710- ●
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 02 1 0710-0802 ● ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 05 1 0710-0710 ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 06 1 0710-0804 ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 07 1 0805- ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (B) 		1-82690-666-0 01 1 0809-1011 ●
503 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) 		1-82690-666-0 01 1 1012-1405 ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60), FULLAUTOAIR CONDITIONER(C68) (B) 		1-82690-668-0 01 1 0710- ● ● ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0710-0712 ● ● ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0801-0804 ● ● ●
503 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0801-0804 ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0805-0810 ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0710-1305 ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ● ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0710-1305 ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
A/T<X9D> 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
O/SIDE MIRROR RR VIEW FLAT<YS1> 180X40 		1-72498-019-1 01 1 1306- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ● ●
596 GROMMET
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0712-0805 ●
596 GROMMET
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0712-0805 ●
596 GROMMET
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0806-0808 ●
596 GROMMET
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0806-0808 ●
596 GROMMET
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0809-0906 ●
596 GROMMET
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0809-0906 ●
596 GROMMET
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0907- ●
596 GROMMET
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0907- ●
596 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0710-0711 ● ●
596 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0712 ●
596 GROMMET
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0712 ●
596 GROMMET
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0805 ●
596 GROMMET
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0805 ●
596 GROMMET
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0805 ●
596 GROMMET
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0806-0808 ●
596 GROMMET
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0806-0808 ●
596 GROMMET
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0806-0808 ●
596 GROMMET
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0809-0906 ●
596 GROMMET
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) CATALYSIS CONTROL WITH DPD<8JM> (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0809-0906 ●
596 GROMMET
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) CATALYSIS CONTROL WITH DPD<8JM> (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0809-0906 ●
596 GROMMET
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0907- ●
596 GROMMET
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) CATALYSIS CONTROL WITH DPD<8JM> (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0907- ●
596 GROMMET
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) CATALYSIS CONTROL WITH DPD<8JM> (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0907- ●
596 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710- ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W) (C) ID=11 L=61 		1-09700-484-0 02 1 0712-0802 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W) (D) ID=11 L=41 		1-09700-403-0 02 1 0803-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) (D) ID=11 L=41 		1-09700-403-0 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 02 1 0907-0907 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> EXC. AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 02 1 0908- ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=11 L=41 		1-09700-403-0 01 1 0805-0808 ●
612 CLIP; HARNESS DPD
(D) ID=11 L=41 		1-09700-403-0 01 1 0805-0808 ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 01 1 0809-0910 ●
612 CLIP; HARNESS DPD
(D) ID=11 L=41 		1-09700-403-0 01 1 0809-0910 ●
612 CLIP; HARNESS DPD
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
612 CLIP; HARNESS DPD
(D) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=250 		5-09707-030-1 01 1 0805-0808 ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 01 1 0805-0808 ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CATALYSIS CONTROL WITH DPD<8JM> (A) L=250 		5-09707-030-1 01 1 0809-0910 ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 01 1 0809-0910 ●
612 CLIP; HARNESS DPD
6HK1-TCS ENG(80L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) L=250 		5-09707-030-1 01 1 0911- ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CATALYSIS CONTROL WITH DPD<8JM> (A) L=250 		5-09707-030-1 01 1 0911- ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 01 1 0911- ●
612 CLIP; HARNESS DPD
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=250 		5-09707-030-1 02 1 0710-0711 ●
612 CLIP; HARNESS DPD
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (A) L=250 		5-09707-030-1 02 1 0710-0711 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) (A) L=250 		5-09707-030-1 02 1 0710-0711 ●
612 CLIP; HARNESS DPD
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=250 		5-09707-030-1 02 1 0712-0802 ●
612 CLIP; HARNESS DPD
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) L=250 		5-09707-030-1 02 1 0712-0802 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) L=250 		5-09707-030-1 02 1 0712-0802 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) (B) L=135 		1-09987-143-1 01 1 0712-0712 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (B) L=135 		1-09987-143-1 01 1 0712-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (B) L=135 		1-09987-143-1 01 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 01 1 0809-0906 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 01 1 0907- ●
612 CLIP; HARNESS DPD
(B) L=135 		1-09987-143-1 02 1 0710-0711 ● ● ●
612 CLIP; HARNESS DPD
(B) L=135 		1-09987-143-1 02 1 0712-0712 ● ●
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0712-0712 ●
612 CLIP; HARNESS DPD
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0712-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) L=135 		1-09987-143-1 02 1 0712-0805 ●
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0712-0805 ●
612 CLIP; HARNESS DPD
FULLER FS8209HD DD M/T(Y3A) (B) L=135 		1-09987-143-1 02 1 0712-0805 ●
612 CLIP; HARNESS DPD
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) L=135 		1-09987-143-1 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
FULLER FS8209HD DD M/T(Y3A) (B) L=135 		1-09987-143-1 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
FULLER FS8209HD DD M/T(Y3A) (B) L=135 		1-09987-143-1 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 0907- ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 02 1 0907- ●
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 02 1 0907- ●
612 CLIP; HARNESS DPD
FULLER FS8209HD DD M/T(Y3A) (B) L=135 		1-09987-143-1 02 1 0907- ●
çizim 180057
59 137 137 137 137 137 308 308 308 308 308 308 334
BalonParca AdiParca NoAdetTipApplied Date A B C
59 BRACKET; FRAME HARNESS
MLD6W M/T(Y2C) (A) 		8-97627-325-0 01 1 0806- ●
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 0710- ● ● ●
59 BRACKET; FRAME HARNESS
(F) 		1-46147-082-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 6500MM(65W) (F) 		1-46147-082-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(H) L=95 		1-82699-085-0 01 1 0712-0802 ●
59 BRACKET; FRAME HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (H) L=95 		1-82699-085-0 01 1 0712-0802 ●
59 BRACKET; FRAME HARNESS
(G) L=85 		8-98044-743-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 6500MM(65W) (G) L=85 		8-98044-743-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0710-0803 ● ● ●
59 BRACKET; FRAME HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) 		8-97609-264-2 01 1 0804-0906 ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) (A) 		8-97609-264-2 01 1 0804-0906 ●
59 BRACKET; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (A) 		8-97609-264-2 01 1 0804-0906 ●
59 BRACKET; FRAME HARNESS
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) 		8-97609-264-2 01 1 0907- ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) 		8-97609-264-2 01 1 0907- ●
59 BRACKET; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (A) 		8-97609-264-2 01 1 0907- ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0710-1502 ● ● ●
59 BRACKET; FRAME HARNESS
(J) 		8-98254-592-0 01 1 1503- ● ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97620-482-1 01 1 0710-0905 ● ● ●
59 BRACKET; FRAME HARNESS
(I) 		8-98107-611-0 01 1 0906- ● ● ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) L=62 		1-21464-170-2 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) L=62 		1-21464-170-2 01 1 0712- ●
59 BRACKET; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=62 		1-21464-170-2 01 1 0712- ●
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97622-657-0 01 1 0710-0710 ● ● ●
137 BRACKET; HARNESS CLAMP
(E) 		8-97624-013-0 01 1 0711- ● ● ●
137 BRACKET; HARNESS CLAMP
(A) 		1-82698-140-0 01 1 0710-0711 ● ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (A) 		1-82698-140-0 01 1 0712-0802 ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) 		1-82698-140-0 01 1 0712-0802 ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) 		1-82698-140-0 01 1 0803- ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 0710-0711 ● ● ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (B) 		8-97609-797-1 02 1 0712- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 0712- ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 0710- ● ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (A) 		8-97601-310-0 02 1 0809-1010 ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (E) 		8-98032-178-0 01 1 0809- ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (F) 		8-98075-824-0 01 1 0809- ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0710-0808 ● ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0809-1010 ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> (A) 		8-97601-310-0 03 1 0809-1010 ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0710-0808 ● ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0809- ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) 		8-97614-078-0 01 1 0809- ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0710-0808 ● ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0809- ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> (C) 		8-98021-291-2 01 1 0809- ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0710- ● ● ●
334 BRACKET
(E) 		8-98098-890-0 01 1 0710- ●
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (A) 		1-82699-639-1 01 1 0712- ●
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (C) 		1-47475-868-0 02 1 0712- ●
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (B) 		1-47477-698-0 02 1 0712- ●
334 BRACKET
(B) 		1-47477-698-0 01 1 0710-0806 ●
334 BRACKET
(D) 		1-82698-630-0 01 1 0807- ●
çizim 180063
324 334 334 334 428 334 335 428 600 312 312 312
BalonParca AdiParca NoAdetTipApplied Date A B C
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0710- ● ● ●
312 BRACKET; CLIP HARNESS
(C) 		8-97609-110-1 01 1 0710- ● ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97620-519-0 01 1 0710-0711 ● ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97620-519-0 01 1 0712- ● ●
312 BRACKET; CLIP HARNESS
AUTO CAB TILT<WV2> (A) 		8-97620-519-0 01 1 0712- ●
324 BRACKET; CLIP 1-47479-430-0 02 1 0710-0711 ● ● ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		1-47479-430-0 02 1 0712-1211 ● ●
324 BRACKET; CLIP 1-47479-430-0 02 1 0712-1211 ●
324 BRACKET; CLIP 1-47479-430-0 02 1 1212-1212 ● ● ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		1-47479-430-0 02 1 1212-1509 ● ●
324 BRACKET; CLIP 1-47479-430-0 02 1 1212-1509 ●
324 BRACKET; CLIP 1-47479-430-0 02 1 1510- ● ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		1-47479-430-0 02 1 1510- ●
334 BRACKET
(E) 		8-98098-890-0 01 1 0710- ●
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (A) 		1-82699-639-1 01 1 0712- ●
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (C) 		1-47475-868-0 02 1 0712- ●
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (B) 		1-47477-698-0 02 1 0712- ●
334 BRACKET
(B) 		1-47477-698-0 01 1 0710-0806 ●
334 BRACKET
(D) 		1-82698-630-0 01 1 0807- ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0710- ● ●
428 BRACKET
EURO2 SPECIFICATION<NT2> (A) 		1-47476-658-0 01 1 0809- ●
428 BRACKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=55 		1-47475-304-0 01 1 0801-0804 ●
428 BRACKET
(C) 		8-97620-514-0 01 1 0710- ● ● ●
600 PROTECTOR; HEAT 8-98073-436-0 01 1 0710-0711 ● ● ●
600 PROTECTOR; HEAT
ANTI LOCK BRAKE<JE5> 		8-98073-436-0 01 1 0712-0801 ● ●
600 PROTECTOR; HEAT 8-98073-436-0 01 1 0712-0801 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
