◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#3662) — 78 parça

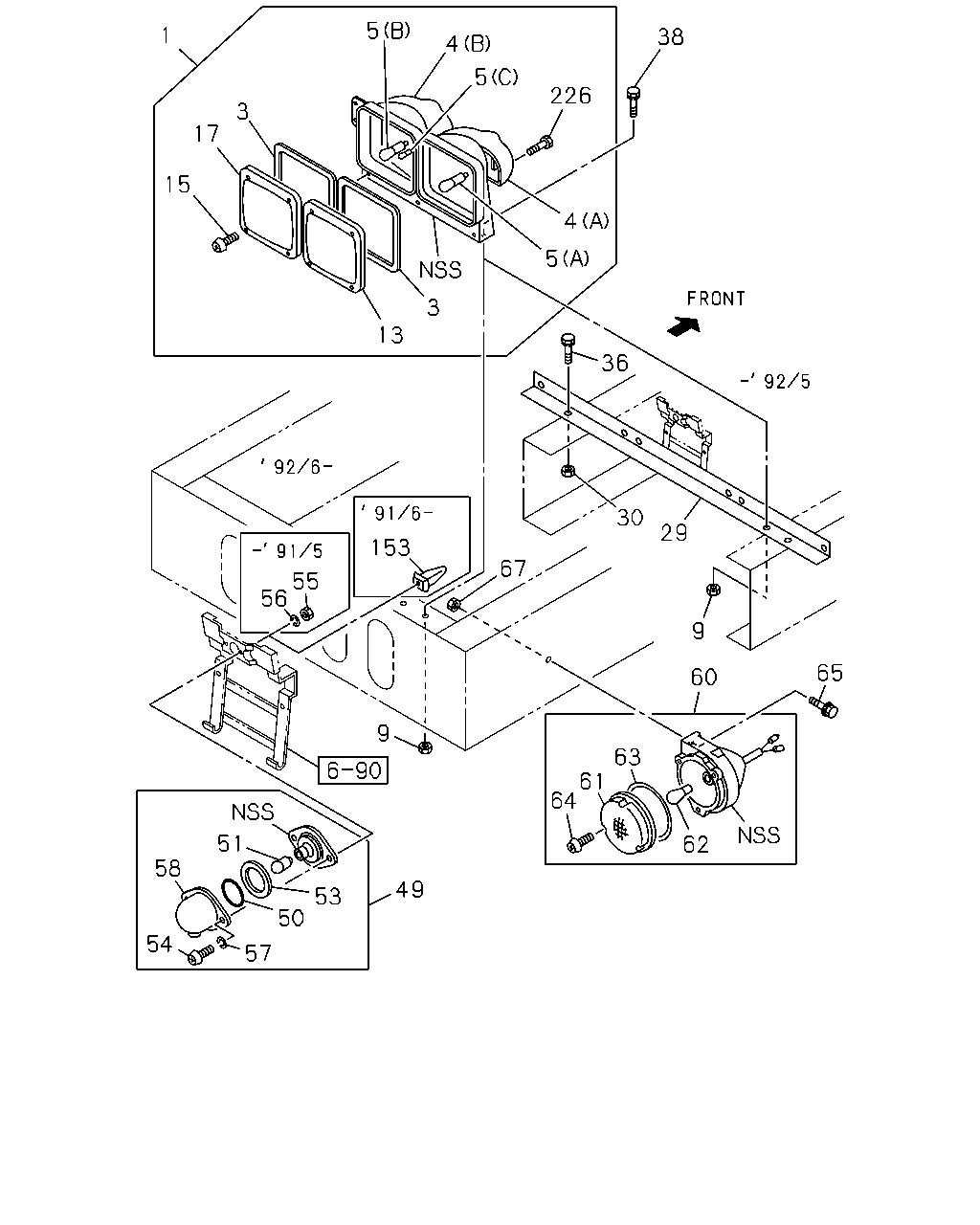

çizim 3528
5 1 38 4 5 226 3 17 15 4 5 3 13 36 30 29 153 67 55 56 9 65 60 9 63 61 64 51 62 58 49 53 50 54 57
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
W/REFLECTOR 		1-82230-118-2 01 1 9002-9509
1 LAMP ASM; RR COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) W/REFLECTOR 		1-82230-118-3 01 1 9510-
1 LAMP ASM; RR COMB
W/REFLECTOR 		1-82230-117-2 01 1 9002-9509
1 LAMP ASM; RR COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) W/REFLECTOR 		1-82230-117-3 01 1 9510-
1 LAMP ASM; RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82230-160-2 01 1 9510-
1 LAMP ASM; RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82230-159-2 01 1 9510-
3 GASKET; RR COMB LAMP 1-82236-003-0 04 1 9002-
4 COVER; RR,RR COMB LAMP
(A) TURN SIGNAL 		1-82239-033-0 02 1 9002-
4 COVER; RR,RR COMB LAMP
(B) STOP PARKING 		1-82239-034-0 02 1 9002-
5 BULB; RR COMB LAMP
(B) 24V 25/10W 		1-82194-028-0 02 1 9002-9509
5 BULB; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 24V 25/10W 		1-82194-028-0 02 1 9510-
5 BULB; RR COMB LAMP
(A) 24V 25W 		1-82194-029-0 02 1 9002-9509
5 BULB; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 24V 25W 		1-82194-029-0 02 1 9510-
5 BULB; RR COMB LAMP
(C) 24V 3W 		9-82691-603-0 02 1 9002-9509
5 BULB; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 24V 3W 		9-82691-603-0 02 1 9510-
5 BULB; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 21W 		1-82194-036-0 02 1 9510-
5 BULB; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 21/5W 		1-82194-038-0 02 1 9510-
9 NUT; LAMP,RR COMB
M8 		9-09110-508-0 04 1 9002-9205
9 NUT; LAMP,RR COMB
M8 		9-09110-408-0 02 1 9206-9302
9 NUT; LAMP,RR COMB
M8 FLANGE 		0-91150-108-0 02 1 9303-
13 LENS; TURN SIGNAL 1-82235-016-0 02 1 9002-
15 SCREW; RR COMB LAMP 1-82239-019-0 16 1 9002-
17 LENS; STOP,RR COMB LAMP 1-82235-002-0 02 1 9002-
29 BRACKET; LAMP,RR COMB 1-82237-035-1 02 1 9002-9205
30 NUT; BRKT,RR COMB
M8 		9-09110-408-0 02 1 9002-9205
36 BOLT; BRKT,RR COMB
M8X25 W/LK&PL WASHER 		9-01960-825-0 02 1 9002-9204
36 BOLT; BRKT,RR COMB
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9205-9205
38 BOLT; LAMP,RR COMB
M8X25 W/LK&PL WASHER 		9-01960-825-0 04 1 9002-9204
38 BOLT; LAMP,RR COMB
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9205-9205
38 BOLT; LAMP,RR COMB
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9206-9302
38 BOLT; LAMP,RR COMB
M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 9303-
49 LAMP; LICENSE PLATE 1-82120-011-1 01 1 9002-9105
49 LAMP; LICENSE PLATE 1-82120-021-0 01 1 9106-9306
49 LAMP; LICENSE PLATE 1-82120-020-0 01 1 9307-
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 9002-
51 BULB; LICENSE PLATE LAMP
24V 12W 		1-82194-030-0 01 1 9002-
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 9002-
54 SCREW; LICENSE PLATE LAMP 1-82129-004-0 02 1 9002-9105
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 9106-
55 NUT; LICENSE PLATE LAMP
M5 		9-99110-405-0 02 1 9002-9105
56 WASHER; LK,LICENSE PLATE LAMP
ID=5.1 		9-09150-505-0 02 1 9002-9105
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-006-0 02 1 9002-9105
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 9106-
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 9002-
60 LAMP; BACKUP 1-82130-013-1 01 1 9002-9306
60 LAMP; BACKUP 1-82130-017-0 01 1 9307-9509
60 LAMP; BACKUP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82130-017-1 01 1 9510-
60 LAMP; BACKUP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82130-023-1 01 1 9510-
61 LENS; BACKUP LAMP 1-82135-003-0 01 1 9002-
62 BULB; BACKUP LAMP
24V 25W 		9-82691-347-0 01 1 9002-9509
62 BULB; BACKUP LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 25W 		9-82691-347-0 01 1 9510-
62 BULB; BACKUP LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 01 1 9510-
63 GASKET; BACKUP LAMP 1-82136-002-0 01 1 9002-
64 SCREW; BACKUP LAMP 1-82139-002-0 03 1 9002-
65 BOLT; LAMP,BACKUP
M10X30 W/LK&PL WASHER 		9-01961-030-0 02 1 9002-9204
65 BOLT; LAMP,BACKUP
M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9205-
67 NUT; FLANGE
M10 		9-09110-510-0 02 1 9002-
153 BOLT; LICENSE PLATE LAMP
?????? D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 9106-
226 SCREW; PROTECTOR 1-82239-032-0 08 1 9002-

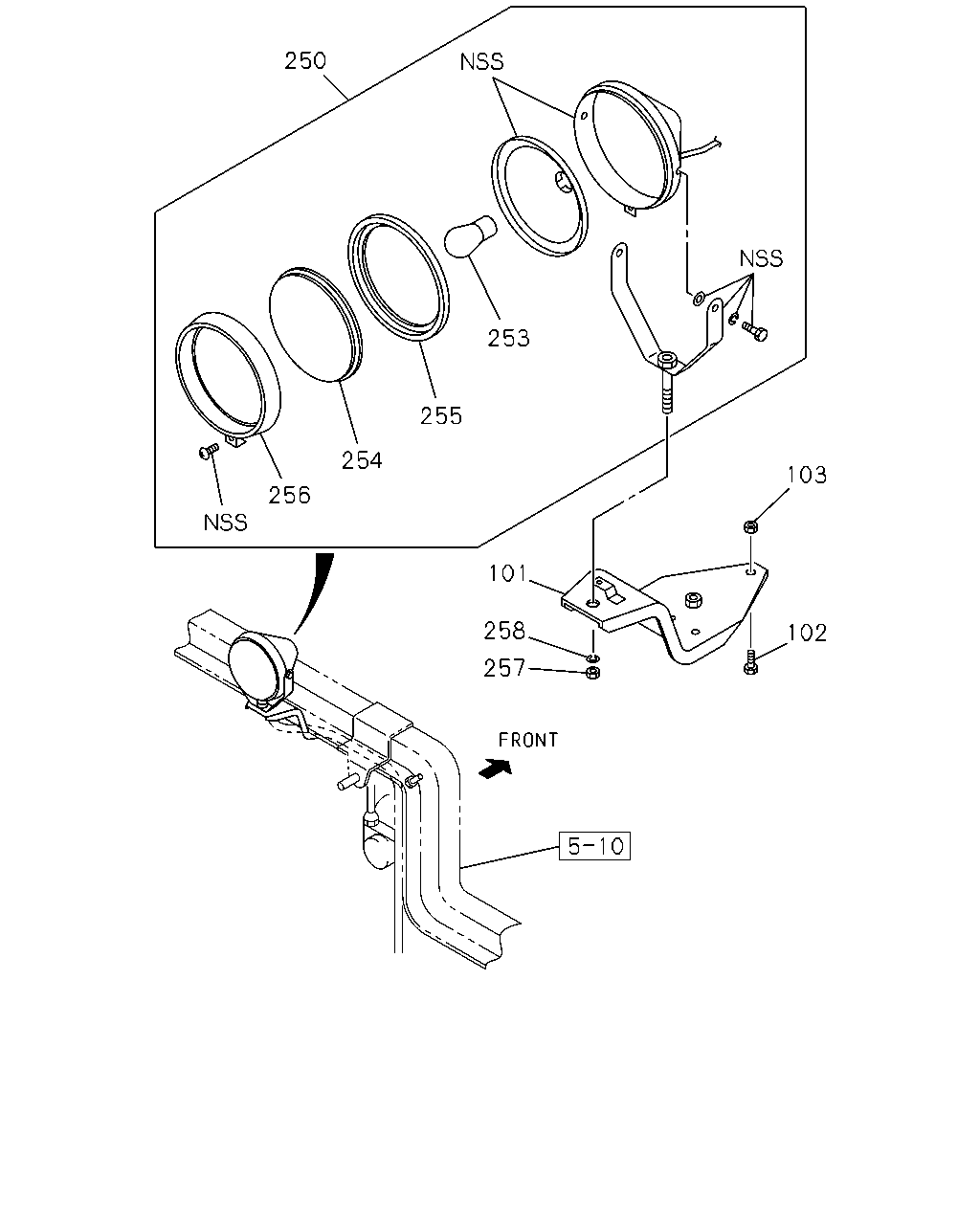

çizim 36961
250 253 255 254 103 256 101 258 102 257
BalonParca AdiParca NoAdetTipApplied Date
101 BRACKET; SEARCH LIGHT 1-53497-220-4 01 1 9002-
102 BOLT; BRKT
M8X25 W/LK WASHER 		9-01900-825-0 04 1 9002-9204
102 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205-9210
102 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9211-9302
102 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306
102 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 04 1 9307-9412
102 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 03 1 9501-
103 NUT
M8 		9-09110-408-0 04 1 9002-9412
103 NUT
M8 		9-09110-408-0 03 1 9501-
250 LAMP ASM; SEARCH LIGHT 1-82180-007-0 01 1 9002-9306
250 LAMP ASM; SEARCH LIGHT 1-82180-012-0 01 1 9307-9412
250 LAMP ASM; SEARCH LIGHT 1-82180-013-0 01 1 9501-
253 BULB; SEARCH LIGHT
24V 60W 		9-82691-605-0 01 1 9002-9412
253 BULB; SEARCH LIGHT
24V 70W 		1-82194-087-0 01 1 9501-
254 LENS; SEARCH LIGHT 9-82681-207-0 01 1 9002-9412
255 GASKET; SEARCH LIGHT 9-82681-706-0 01 1 9002-9412
256 RIM; SEARCH LIGHT 9-82681-402-0 01 1 9002-9412
257 NUT; SEARCH LIGHT
M10 		9-09110-510-0 01 1 9002-
258 WASHER; LK,SEARCH LIGHT
ID=10.2 		9-09150-510-0 01 1 9002-
