6-76 — FLOOR EQUIPMENT AND SEALING (#36611) — 43 parça

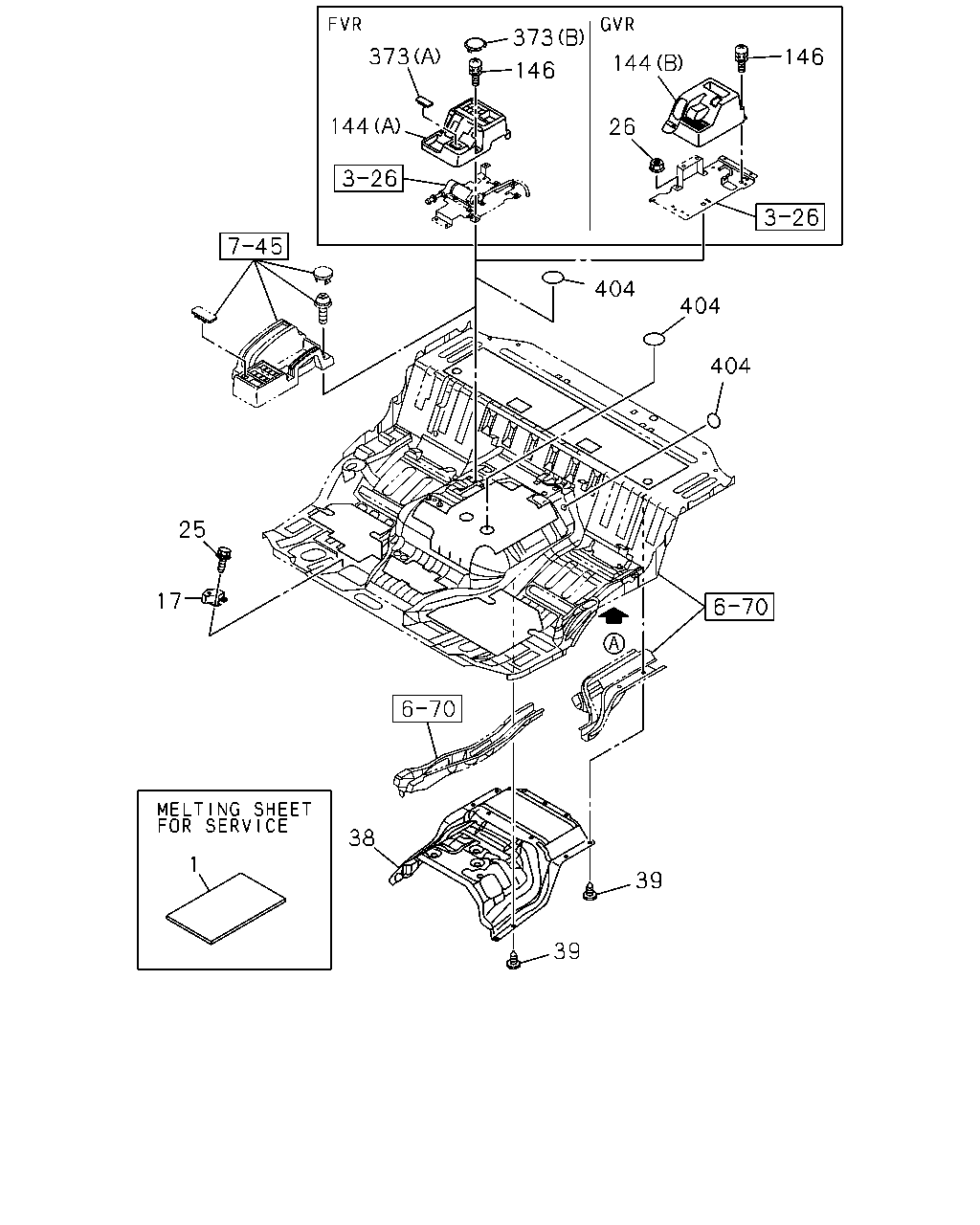

çizim 179791
373 373 146 144 146 144 26 404 404 404 25 17 38 1 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0710- ● ● ●
17 REST; FOOT,DRIVER 8-98076-322-1 01 1 0710- ● ● ●
25 SCREW; FOOT REST
BOLT M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0710- ● ● ●
26 NUT; FLANGE
M8 FLANGE 		0-91180-108-0 02 1 0710- ●
38 INSULATOR; ENG COVER 8-98240-137-1 01 1 1311-1405 ● ●
38 INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>, MALAYSIA EQUIPMENT(B10) 		8-98240-137-1 01 1 1311-1405 ●
38 INSULATOR; ENG COVER 8-98240-137-1 01 1 1406- ● ●
38 INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98240-137-1 01 1 1406- ●
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> EXC. MALAYSIA EQUIPMENT(B10) 		8-98248-305-0 01 1 1311-1405 ●
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98248-305-0 01 1 1406- ●
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98180-258-0 01 1 1012-1310 ●
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> MALAYSIA EQUIPMENT(B10) 		8-98180-258-0 01 1 1311-1405 ●
38 INSULATOR; ENG COVER 8-97586-180-6 01 1 0710-1011 ● ● ●
38 INSULATOR; ENG COVER 8-97586-180-6 01 1 1012-1310 ● ●
38 INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-97586-180-6 01 1 1012-1310 ●
38 INSULATOR; ENG COVER
MALAYSIA EQUIPMENT(B10) EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-97586-180-6 01 1 1311-1405 ●
39 CLIP; INSULATOR,COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4 		8-97808-623-0 17 1 1012- ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 24 1 0710-1011 ● ● ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 24 1 1012- ● ●
39 CLIP; INSULATOR,COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4 		8-97808-623-0 24 1 1012- ●
144 COVER; HAND BRK VLV
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) GRAY 		8-97407-974-0 01 1 0712- ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13) (A) GRAY 		8-97407-974-0 01 1 0712- ●
144 COVER; HAND BRK VLV
(A) GRAY 		8-97409-812-0 01 1 0710-0711 ● ●
144 COVER; HAND BRK VLV
(A) GRAY 		8-97409-812-0 01 1 0712- ●
144 COVER; HAND BRK VLV
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) GRAY 		8-97409-812-0 01 1 0712- ●
144 COVER; HAND BRK VLV
(B) GRAY 		8-97413-110-0 01 1 0710- ●
146 BOLT; COVER BRKT
SCREW M6X16 		0-38050-616-0 04 1 0710-0711 ● ● ●
146 BOLT; COVER BRKT
SCREW M6X16 		0-38050-616-0 04 1 0712-1011 ● ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SCREW M6X16 		0-38050-616-0 04 1 0712-1011 ●
146 BOLT; COVER BRKT
SCREW M6X16 		0-38050-616-0 04 1 1012- ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SCREW M6X16 		0-38050-616-0 04 1 1012- ●
146 BOLT; COVER BRKT
SCREW M6X16 		0-38050-616-0 03 1 0710- ●
373 COVER; HOLE
(A) GRAY 		8-97409-339-0 01 1 0711-0711 ● ●
373 COVER; HOLE
(A) GRAY 		8-97409-339-0 01 1 0712- ●
373 COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY 		8-97409-339-0 01 1 0712- ●
373 COVER; HOLE
(B) GRAY 		8-97407-951-0 04 1 0710-0711 ● ●
373 COVER; HOLE
(B) GRAY 		8-97407-951-0 04 1 0712- ●
373 COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) GRAY 		8-97407-951-0 04 1 0712- ●
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 11 1 0710-0711 ● ● ●
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 12 1 0712- ● ● ●
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK 		1-76798-019-0 02 1 0710- ● ● ●
çizim 180026
370 370 370
BalonParca AdiParca NoAdetTipApplied Date A B C
370 SEAL; LOCATION HOLE
OD=30 T=1.0 		8-98051-161-0 08 1 0710-1211 ● ● ●
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1212- ● ● ●
