6-47 — MUD GUARD AND INSULATOR (#36606) — 278 parça

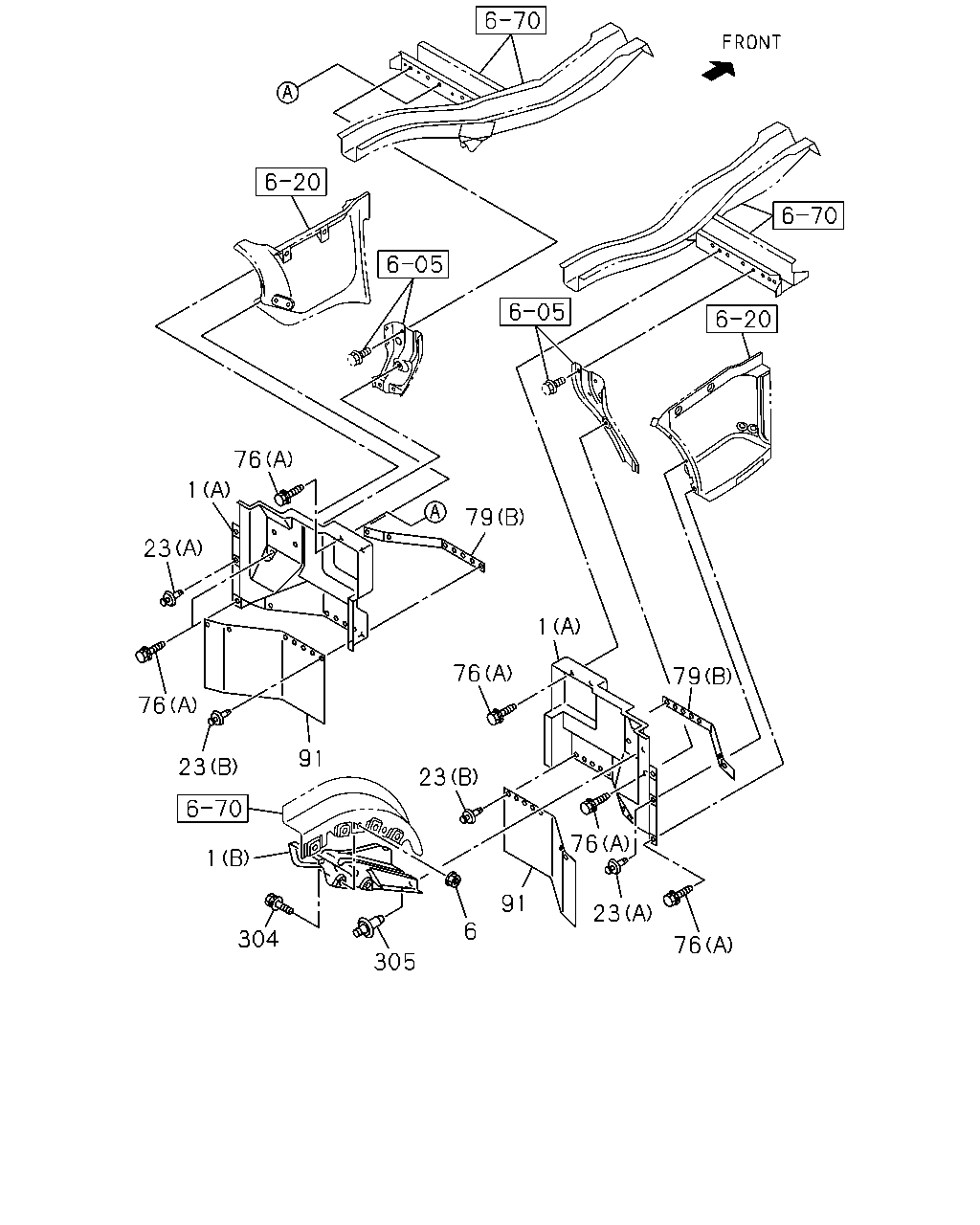

76 1 79 23 1 76 79 76 91 23 23 1 91 23 6 304 76 305 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GUARD; MUD,FRT (A)	8-98039-851-1	01	1	0710-	●	●	●
1	GUARD; MUD,FRT (A)	8-98039-850-1	01	1	0710-	●	●	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98076-271-0	01	1	0710-	●	●	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0710-	●	●	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	10	1	0710-	●	●	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	0710-	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0710-0805	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0806-1211	●	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0908	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●	●
79	RETAINER; MUD COVER (A)	8-98094-500-0	01	1	0710-0710	●	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	0710-	●	●	●
79	RETAINER; MUD COVER (A)	8-98094-501-0	01	1	0710-0710	●	●	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	0710-	●	●	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0710-	●	●	●
91	COVER; MUD,FRT	8-98060-067-1	02	1	0710-	●	●	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0710-	●	●	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0710-	●	●	●

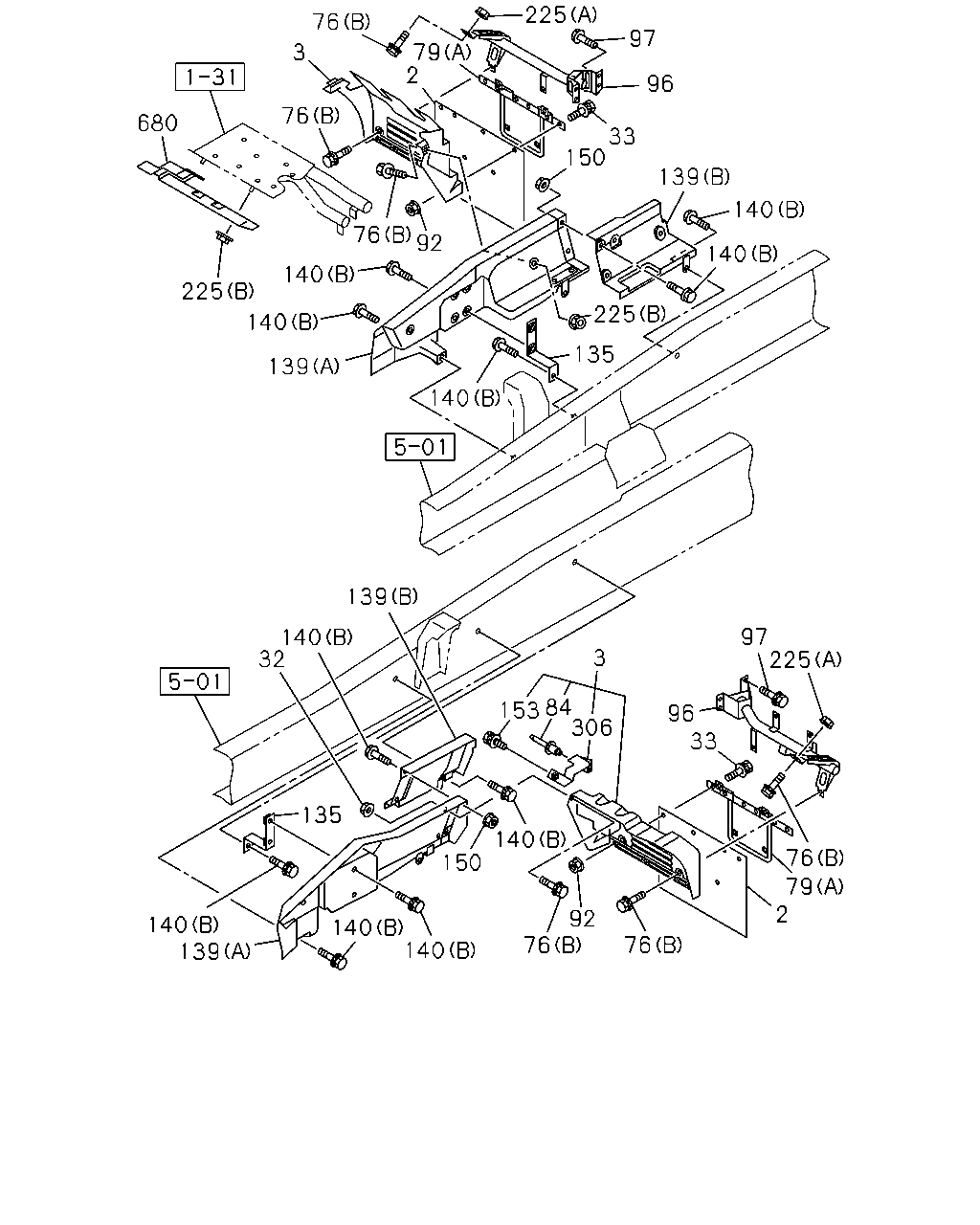

140 140 150 140 76 76 2 76 33 96 97 225 3 306 84 153 140 82 135 32 139 140 140 140 225 135 140 139 150 33 96 97 139 140 140 76 225 79 92 2 76 3 76 680 225 79 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	0710-	●	●	●
3	GUARD; MUD,RR	1-79931-473-1	01	1	0710-1211	●	●	●
3	GUARD; MUD,RR	8-98196-109-0	01	1	1212-	●	●	●
3	GUARD; MUD,RR	8-98076-257-0	01	1	0710-1302	●	●	●
3	GUARD; MUD,RR	8-98219-767-0	01	1	1303-	●	●	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0710-	●	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	0710-0711	●	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	0712-	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0710-0805	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0806-1211	●	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0908	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●	●
79	RETAINER; MUD COVER (A)	8-98094-500-0	01	1	0710-0710	●	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	0710-	●	●	●
79	RETAINER; MUD COVER (A)	8-98094-501-0	01	1	0710-0710	●	●	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	0710-	●	●	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0710-	●	●	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1212-	●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0710-	●	●	●
96	STAY; MUD GUARD	1-79931-519-4	01	1	0710-	●	●	●
96	STAY; MUD GUARD	1-79931-540-3	01	1	0710-	●	●	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	0710-	●	●	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0710-	●	●	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0710-	●	●	●
139	PANEL; SIDE (A)	1-53194-620-5	01	1	0710-	●	●	●
139	PANEL; SIDE (B)	1-53194-590-1	01	1	0710-	●	●	●
139	PANEL; SIDE (A)	1-53194-619-4	01	1	0710-	●	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-		●
140	BOLT; SIDE PANEL (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906		●
140	BOLT; SIDE PANEL (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-		●
140	BOLT; SIDE PANEL (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-		●
140	BOLT; SIDE PANEL (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-		●
140	BOLT; SIDE PANEL (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-			●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-0906		●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	01	1	0907-		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	07	1	0710-0711	●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	07	1	0710-0711		●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	07	1	0712-0712	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	07	1	0712-0712		●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	07	1	0712-0712			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	08	1	0712-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	08	1	0712-		●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	08	1	0712-			●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	03	1	0710-0711	●	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (A) M8X30 FLANGE	0-28050-830-0	03	1	0710-0711			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	03	1	0712-	●
140	BOLT; SIDE PANEL FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0712-		●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0712-		●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	03	1	0712-			●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0710-	●	●	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0710-	●	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1212-	●	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	0710-	●	●	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1212-	●	●	●
680	GUARD; MUD,UPPER	1-79931-494-1	01	1	0710-0808	●	●	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	0809-	●	●	●

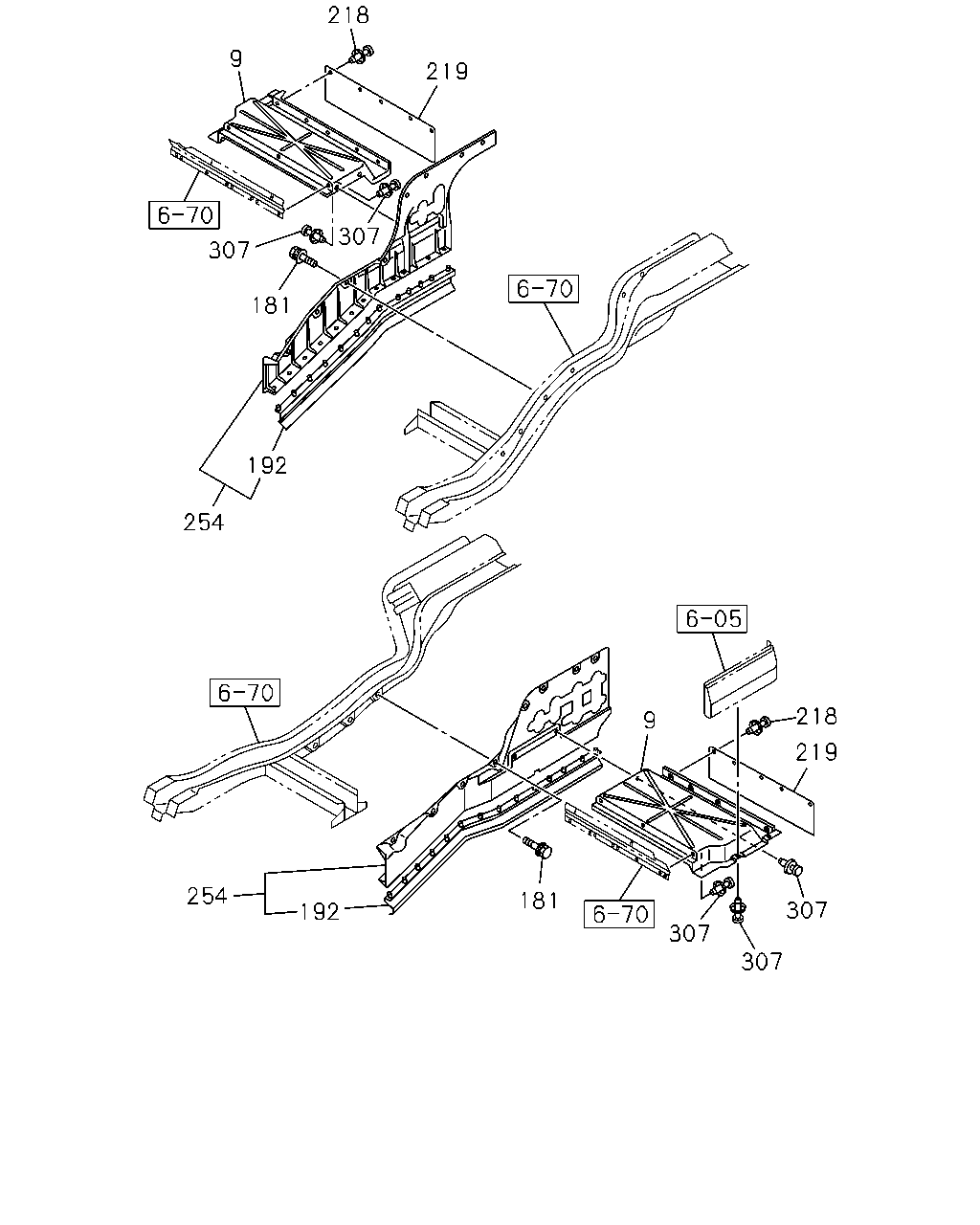

218 9 219 307 307 181 192 254 218 9 219 254 181 307 192 307 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-120-2	01	1	0710-	●	●	●
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-119-2	01	1	0710-	●	●	●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0710-0906	●	●	●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0907-	●	●	●
192	SEAL; MUD COVER EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98041-158-1	01	1	0712-		●
192	SEAL; MUD COVER EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98041-159-2	01	1	0712-		●
192	SEAL; MUD COVER	8-98069-361-0	01	1	0710-0711	●	●	●
192	SEAL; MUD COVER	8-98069-361-0	01	1	0712-	●		●
192	SEAL; MUD COVER CAB SUSPENSION FULL FLOATING<W16>	8-98069-361-0	01	1	0712-		●
192	SEAL; MUD COVER	8-98069-360-0	01	1	0710-0711	●	●	●
192	SEAL; MUD COVER	8-98069-360-0	01	1	0712-	●		●
192	SEAL; MUD COVER CAB SUSPENSION FULL FLOATING<W16>	8-98069-360-0	01	1	0712-		●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	10	1	0710-	●	●	●
219	FLAP; MUD GUARD EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98041-149-1	02	1	0712-		●
219	FLAP; MUD GUARD	8-98041-151-1	02	1	0710-0711	●	●	●
219	FLAP; MUD GUARD	8-98041-151-1	02	1	0712-	●		●
219	FLAP; MUD GUARD CAB SUSPENSION FULL FLOATING<W16>	8-98041-151-1	02	1	0712-		●
254	COVER; MUD,VALANCE EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98039-925-2	01	1	0712-		●
254	COVER; MUD,VALANCE EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98039-926-1	01	1	0712-		●
254	COVER; MUD,VALANCE	8-98039-928-1	01	1	0710-0711	●	●	●
254	COVER; MUD,VALANCE	8-98039-928-1	01	1	0712-	●		●
254	COVER; MUD,VALANCE CAB SUSPENSION FULL FLOATING<W16>	8-98039-928-1	01	1	0712-		●
254	COVER; MUD,VALANCE	8-98039-927-2	01	1	0710-0711	●	●	●
254	COVER; MUD,VALANCE	8-98039-927-3	01	1	0712-	●		●
254	COVER; MUD,VALANCE CAB SUSPENSION FULL FLOATING<W16>	8-98039-927-3	01	1	0712-		●
307	RETAINER D8X13.5	1-09987-248-1	14	1	0710-	●	●	●

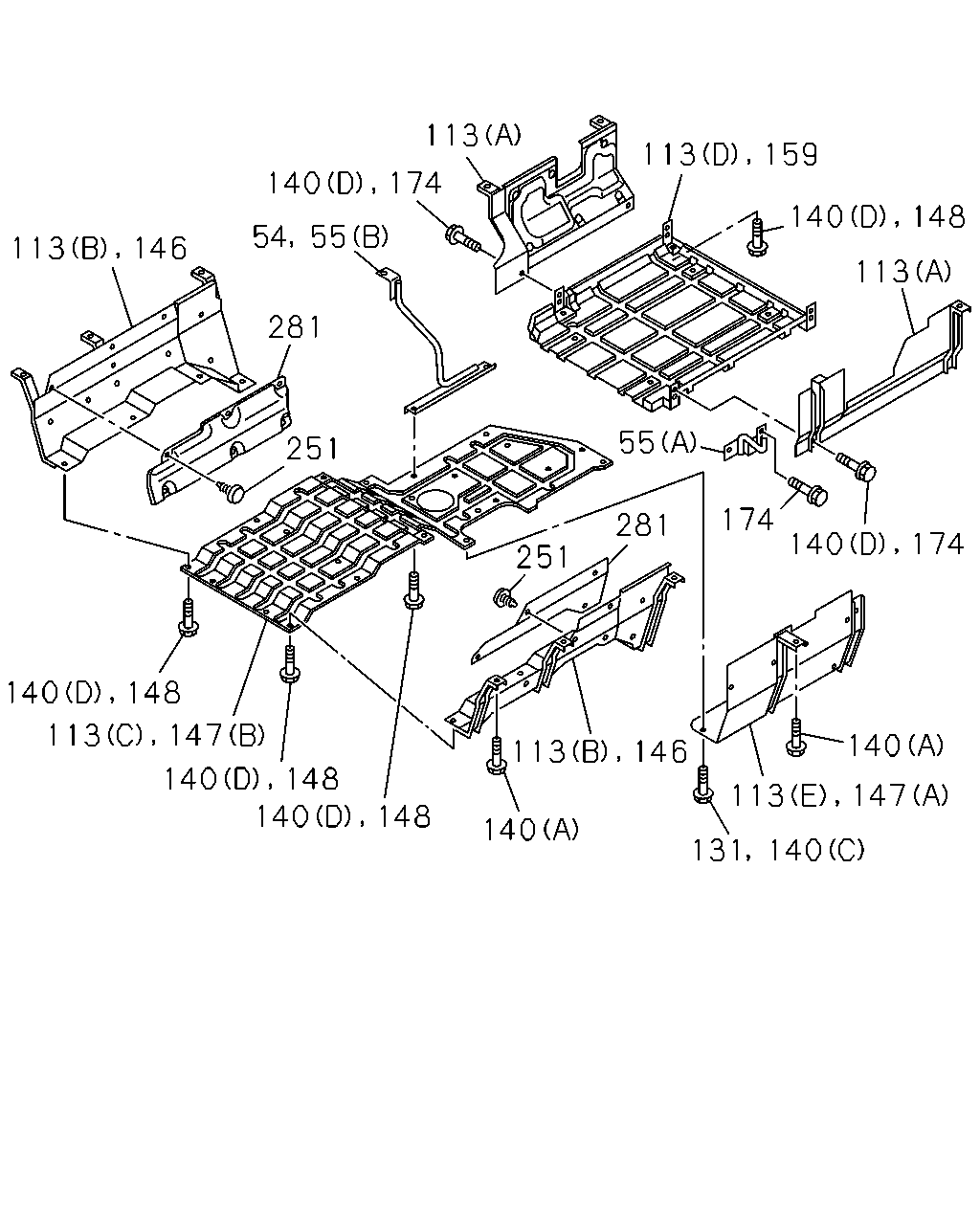

113 113 159 140 174 140 148 55 54 113 146 113 281 55 251 174 281 140 174 251 140 148 113 147 140 113 146 140 148 140 113 147 148 140 131 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	STAY; UNDER COVER,FRT ZF9S1110 M/T(Y5E)	8-98064-086-2	01	1	0710-0711	●
54	STAY; UNDER COVER,FRT	8-98064-086-2	01	1	0710-0711		●	●
54	STAY; UNDER COVER,FRT ZF9S1110 M/T(Y5E)	8-98064-086-2	01	1	0712-0808	●
54	STAY; UNDER COVER,FRT 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98064-086-2	01	1	0712-0808		●
54	STAY; UNDER COVER,FRT	8-98064-086-2	01	1	0712-0808			●
55	STAY; UNDER COVER,RR ZF9S1110 M/T(Y5E) (B)	8-98064-086-2	01	1	0809-	●
55	STAY; UNDER COVER,RR 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98064-086-2	01	1	0809-		●
55	STAY; UNDER COVER,RR (B)	8-98064-086-2	01	1	0809-			●
55	STAY; UNDER COVER,RR 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A)	8-98078-177-2	01	1	0710-0711	●	●
55	STAY; UNDER COVER,RR 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (A)	8-98078-177-2	01	1	0710-0711			●
55	STAY; UNDER COVER,RR ZF9S1110 M/T(Y5E) (A)	8-98078-177-2	01	1	0712-	●
55	STAY; UNDER COVER,RR FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-177-2	01	1	0712-		●
55	STAY; UNDER COVER,RR 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-177-2	01	1	0712-		●
55	STAY; UNDER COVER,RR (A)	8-98078-177-2	01	1	0712-			●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (E)	8-98078-182-0	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E)	8-98078-182-0	01	1	0809-		●
113	PANEL; SIDE (E)	8-98078-182-0	01	1	0809-			●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (B)	8-98017-756-2	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98017-756-2	01	1	0809-		●
113	PANEL; SIDE (B)	8-98017-756-2	01	1	0809-			●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (C)	8-98017-762-1	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98017-762-1	01	1	0809-		●
113	PANEL; SIDE (C)	8-98017-762-1	01	1	0809-			●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (D)	8-98017-772-1	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98017-772-1	01	1	0809-		●
113	PANEL; SIDE (D)	8-98017-772-1	01	1	0809-			●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (B)	8-98114-851-0	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98114-851-0	01	1	0809-		●
113	PANEL; SIDE (B)	8-98114-851-0	01	1	0809-			●
113	PANEL; SIDE 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A)	8-98078-185-3	01	1	0710-0711	●	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (A)	8-98078-185-3	01	1	0710-0711			●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (A)	8-98078-185-3	01	1	0712-	●
113	PANEL; SIDE FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-185-3	01	1	0712-		●
113	PANEL; SIDE 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-185-3	01	1	0712-		●
113	PANEL; SIDE (A)	8-98078-185-3	01	1	0712-			●
113	PANEL; SIDE 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A)	8-98078-188-3	01	1	0710-0711	●	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (A)	8-98078-188-3	01	1	0710-0711			●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (A)	8-98078-188-3	01	1	0712-	●
113	PANEL; SIDE FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-188-3	01	1	0712-		●
113	PANEL; SIDE 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-188-3	01	1	0712-		●
113	PANEL; SIDE (A)	8-98078-188-3	01	1	0712-			●
131	BOLT; PANEL ZF9S1110 M/T(Y5E) M8X12 FLANGE	0-28050-812-0	02	1	0710-0711	●
131	BOLT; PANEL M8X12 FLANGE	0-28050-812-0	02	1	0710-0711		●	●
131	BOLT; PANEL ZF9S1110 M/T(Y5E) M8X12 FLANGE	0-28050-812-0	02	1	0712-0808	●
131	BOLT; PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X12 FLANGE	0-28050-812-0	02	1	0712-0808		●
131	BOLT; PANEL M8X12 FLANGE	0-28050-812-0	02	1	0712-0808			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-		●
140	BOLT; SIDE PANEL (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906		●
140	BOLT; SIDE PANEL (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-		●
140	BOLT; SIDE PANEL (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-		●
140	BOLT; SIDE PANEL (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-		●
140	BOLT; SIDE PANEL (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-			●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-0906		●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	01	1	0907-		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	07	1	0710-0711	●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	07	1	0710-0711		●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	07	1	0712-0712	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	07	1	0712-0712		●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	07	1	0712-0712			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	08	1	0712-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	08	1	0712-		●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	08	1	0712-			●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	03	1	0710-0711	●	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (A) M8X30 FLANGE	0-28050-830-0	03	1	0710-0711			●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	03	1	0712-	●
140	BOLT; SIDE PANEL FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0712-		●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0712-		●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	03	1	0712-			●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0710-	●	●	●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E)	8-98017-756-2	01	1	0710-0711	●
146	PANEL; SIDE,UNDER,FRT	8-98017-756-2	01	1	0710-0711		●	●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E)	8-98017-756-2	01	1	0712-0808	●
146	PANEL; SIDE,UNDER,FRT 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98017-756-2	01	1	0712-0808		●
146	PANEL; SIDE,UNDER,FRT	8-98017-756-2	01	1	0712-0808			●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E)	8-98017-759-4	01	1	0710-0711	●
146	PANEL; SIDE,UNDER,FRT	8-98017-759-4	01	1	0710-0711		●	●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E)	8-98017-759-4	01	1	0712-0802	●
146	PANEL; SIDE,UNDER,FRT 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98017-759-4	01	1	0712-0802		●
146	PANEL; SIDE,UNDER,FRT	8-98017-759-4	01	1	0712-0802			●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E)	8-98114-851-0	01	1	0803-0808	●
146	PANEL; SIDE,UNDER,FRT 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98114-851-0	01	1	0803-0808		●
146	PANEL; SIDE,UNDER,FRT	8-98114-851-0	01	1	0803-0808			●
147	PANEL; SIDE,UNDER,RR ZF9S1110 M/T(Y5E) (A)	8-98078-182-0	01	1	0710-0711	●
147	PANEL; SIDE,UNDER,RR (A)	8-98078-182-0	01	1	0710-0711		●	●
147	PANEL; SIDE,UNDER,RR ZF9S1110 M/T(Y5E) (A)	8-98078-182-0	01	1	0712-0808	●
147	PANEL; SIDE,UNDER,RR 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-182-0	01	1	0712-0808		●
147	PANEL; SIDE,UNDER,RR (A)	8-98078-182-0	01	1	0712-0808			●
147	PANEL; SIDE,UNDER,RR ZF9S1110 M/T(Y5E) (B)	8-98017-762-0	01	1	0710-0711	●
147	PANEL; SIDE,UNDER,RR (B)	8-98017-762-0	01	1	0710-0711		●	●
147	PANEL; SIDE,UNDER,RR ZF9S1110 M/T(Y5E) (B)	8-98017-762-0	01	1	0712-0808	●
147	PANEL; SIDE,UNDER,RR 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98017-762-0	01	1	0712-0808		●
147	PANEL; SIDE,UNDER,RR (B)	8-98017-762-0	01	1	0712-0808			●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	04	1	0710-0711	●
148	BOLT; PANEL TO PANEL M8X20 FLANGE	0-28050-820-0	04	1	0710-0711		●	●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	04	1	0712-0712	●
148	BOLT; PANEL TO PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28050-820-0	04	1	0712-0712		●
148	BOLT; PANEL TO PANEL M8X20 FLANGE	0-28050-820-0	04	1	0712-0712			●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28050-825-0	04	1	0712-0808	●
148	BOLT; PANEL TO PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28050-825-0	04	1	0712-0808		●
148	BOLT; PANEL TO PANEL M8X25 FLANGE	0-28050-825-0	04	1	0712-0808			●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) M8X25 W/LK&PL WASHER	1-09030-093-0	10	1	0710-0711	●
148	BOLT; PANEL TO PANEL M8X25 W/LK&PL WASHER	1-09030-093-0	10	1	0710-0711		●	●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) M8X25 W/LK&PL WASHER	1-09030-093-0	10	1	0712-0712	●
148	BOLT; PANEL TO PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 W/LK&PL WASHER	1-09030-093-0	10	1	0712-0712		●
148	BOLT; PANEL TO PANEL M8X25 W/LK&PL WASHER	1-09030-093-0	10	1	0712-0712			●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0712-0808	●
148	BOLT; PANEL TO PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0712-0808		●
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0712-0808			●
159	PANEL; SIDE,TRANS,CTR ZF9S1110 M/T(Y5E)	8-98017-772-1	01	1	0710-0711	●
159	PANEL; SIDE,TRANS,CTR	8-98017-772-1	01	1	0710-0711		●	●
159	PANEL; SIDE,TRANS,CTR ZF9S1110 M/T(Y5E)	8-98017-772-1	01	1	0712-0808	●
159	PANEL; SIDE,TRANS,CTR 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98017-772-1	01	1	0712-0808		●
159	PANEL; SIDE,TRANS,CTR	8-98017-772-1	01	1	0712-0808			●
174	BOLT; STAY FIX 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	01	1	0710-0711	●	●
174	BOLT; STAY FIX 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) M8X20 FLANGE	0-28050-820-0	01	1	0710-0711			●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	01	1	0712-0712	●
174	BOLT; STAY FIX FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28050-820-0	01	1	0712-0712		●
174	BOLT; STAY FIX 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28050-820-0	01	1	0712-0712		●
174	BOLT; STAY FIX M8X20 FLANGE	0-28050-820-0	01	1	0712-0712			●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28050-830-0	01	1	0712-	●
174	BOLT; STAY FIX FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X30 FLANGE	0-28050-830-0	01	1	0712-		●
174	BOLT; STAY FIX 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X30 FLANGE	0-28050-830-0	01	1	0712-		●
174	BOLT; STAY FIX M8X30 FLANGE	0-28050-830-0	01	1	0712-			●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	02	1	0710-0711	●
174	BOLT; STAY FIX M8X20 FLANGE	0-28050-820-0	02	1	0710-0711		●	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	02	1	0712-0712	●
174	BOLT; STAY FIX 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28050-820-0	02	1	0712-0712		●
174	BOLT; STAY FIX M8X20 FLANGE	0-28050-820-0	02	1	0712-0712			●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28050-825-0	01	1	0712-0808	●
174	BOLT; STAY FIX 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28050-825-0	01	1	0712-0808		●
174	BOLT; STAY FIX M8X25 FLANGE	0-28050-825-0	01	1	0712-0808			●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28050-830-0	02	1	0710-0711	●
174	BOLT; STAY FIX M8X30 FLANGE	0-28050-830-0	02	1	0710-0711		●	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28050-830-0	02	1	0712-0712	●
174	BOLT; STAY FIX 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X30 FLANGE	0-28050-830-0	02	1	0712-0712		●
174	BOLT; STAY FIX M8X30 FLANGE	0-28050-830-0	02	1	0712-0712			●
174	BOLT; STAY FIX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28050-825-0	02	1	0712-0808		●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0710-0711	●
174	BOLT; STAY FIX M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0710-0711		●	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0712-0712	●
174	BOLT; STAY FIX 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0712-0712		●
174	BOLT; STAY FIX M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0712-0712			●
251	CLIP; NOISE INSULATOR ZF9S1110 M/T(Y5E)	8-94165-394-0	10	1	0710-0711	●
251	CLIP; NOISE INSULATOR	8-94165-394-0	10	1	0710-0711		●	●
251	CLIP; NOISE INSULATOR ZF9S1110 M/T(Y5E)	8-94165-394-0	10	1	0712-0808	●
251	CLIP; NOISE INSULATOR 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-94165-394-0	10	1	0712-0808		●
251	CLIP; NOISE INSULATOR	8-94165-394-0	10	1	0712-0808			●
281	INSULATOR; NOISE ZF9S1110 M/T(Y5E)	8-98064-148-0	01	1	0710-0711	●
281	INSULATOR; NOISE	8-98064-148-0	01	1	0710-0711		●	●
281	INSULATOR; NOISE ZF9S1110 M/T(Y5E)	8-98064-148-0	01	1	0712-0808	●
281	INSULATOR; NOISE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98064-148-0	01	1	0712-0808		●
281	INSULATOR; NOISE	8-98064-148-0	01	1	0712-0808			●
281	INSULATOR; NOISE ZF9S1110 M/T(Y5E)	8-98064-149-1	01	1	0710-0711	●
281	INSULATOR; NOISE	8-98064-149-1	01	1	0710-0711		●	●
281	INSULATOR; NOISE ZF9S1110 M/T(Y5E)	8-98064-149-1	01	1	0712-0808	●
281	INSULATOR; NOISE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98064-149-1	01	1	0712-0808		●
281	INSULATOR; NOISE	8-98064-149-1	01	1	0712-0808			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
