◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#36599) — 22 parça

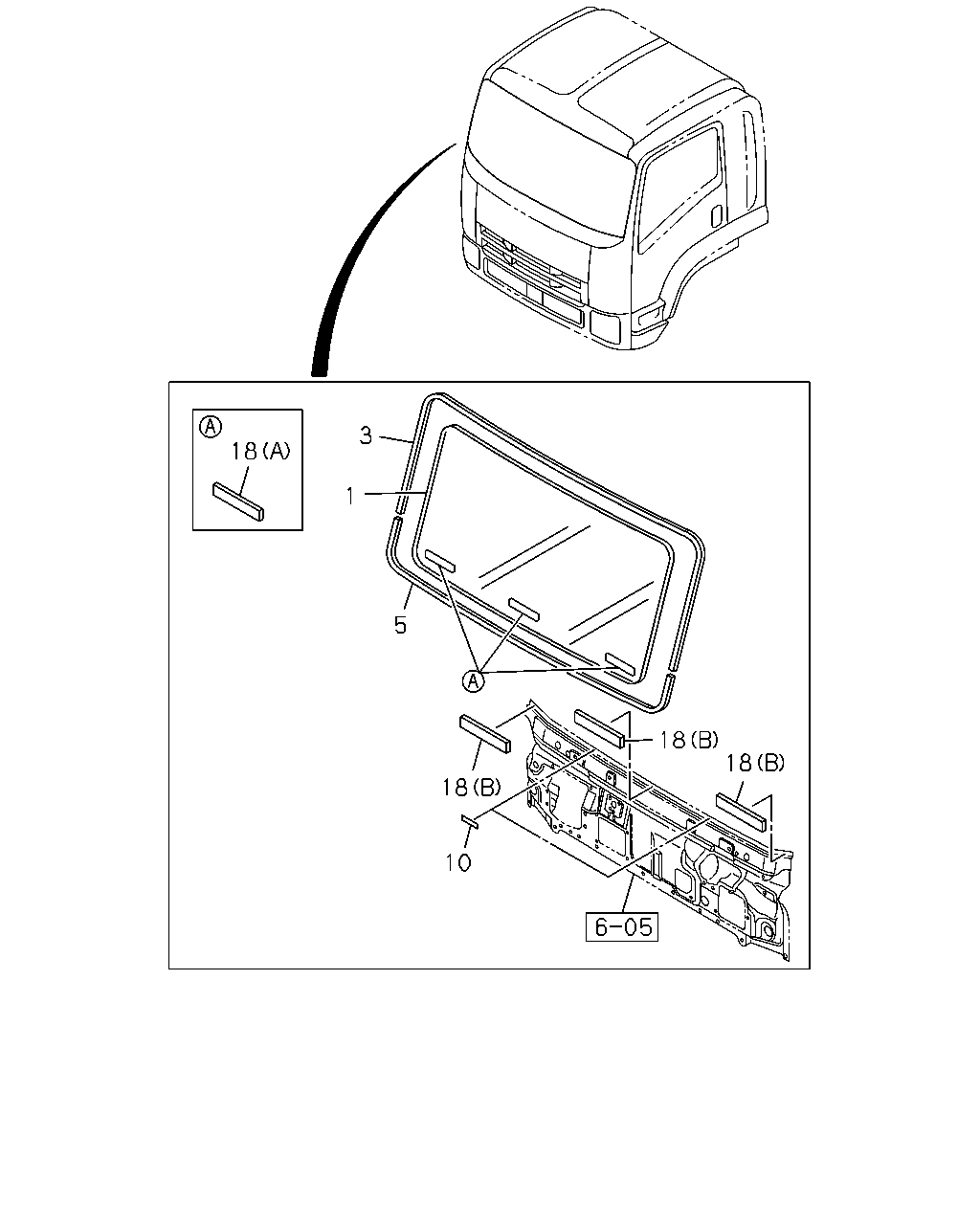

çizim 179786
3 18 1 5 18 18 18 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; WINDSHIELD
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98041-647-2 01 1 0712-0805 ●
1 GLASS; WINDSHIELD
COUNTRY NEW ZEALAND(CX6) 		8-98041-647-3 01 1 0806- ●
1 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) 		8-98041-647-3 01 1 0806- ●
1 GLASS; WINDSHIELD
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98041-647-3 01 1 0806- ●
1 GLASS; WINDSHIELD 8-98070-079-2 01 1 0710-0711 ● ● ●
1 GLASS; WINDSHIELD 8-98070-079-2 01 1 0712-0805 ● ●
1 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(B13) 		8-98070-079-2 01 1 0712-0805 ●
1 GLASS; WINDSHIELD
EXC. COUNTRY NEW ZEALAND(CX6) 		8-98070-079-3 01 1 0806- ●
1 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(B13) EXC. COUNTRY NEW ZEALAND(CX6) 		8-98070-079-3 01 1 0806- ●
1 GLASS; WINDSHIELD 8-98070-079-3 01 1 0806- ●
3 MOLDING; WINDSHIELD 8-98041-651-3 01 1 0710- ● ● ●
5 MOLDING; WINDSHIELD,LWR 8-98041-654-2 01 1 0710-1209 ● ● ●
5 MOLDING; WINDSHIELD,LWR 8-98222-159-0 01 1 1210- ● ● ●
10 SPACER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> L=100 B=1.5 		8-98095-044-0 02 1 0712- ● ●
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 10 1 0712- ● ●
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 10 1 0712- ● ●
18 SEAL; WINDSHIELD
(A) L=100 B=8 		8-98029-086-1 06 1 0710-0711 ● ● ●
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 06 1 0712- ● ●
18 SEAL; WINDSHIELD
(A) L=100 B=8 		8-98029-086-1 06 1 0712- ●
18 SEAL; WINDSHIELD
(B) L=100 B=10 		8-98083-198-1 06 1 0710-0711 ● ● ●
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 06 1 0712- ● ●
18 SEAL; WINDSHIELD
(B) L=100 B=10 		8-98083-198-1 06 1 0712- ●
