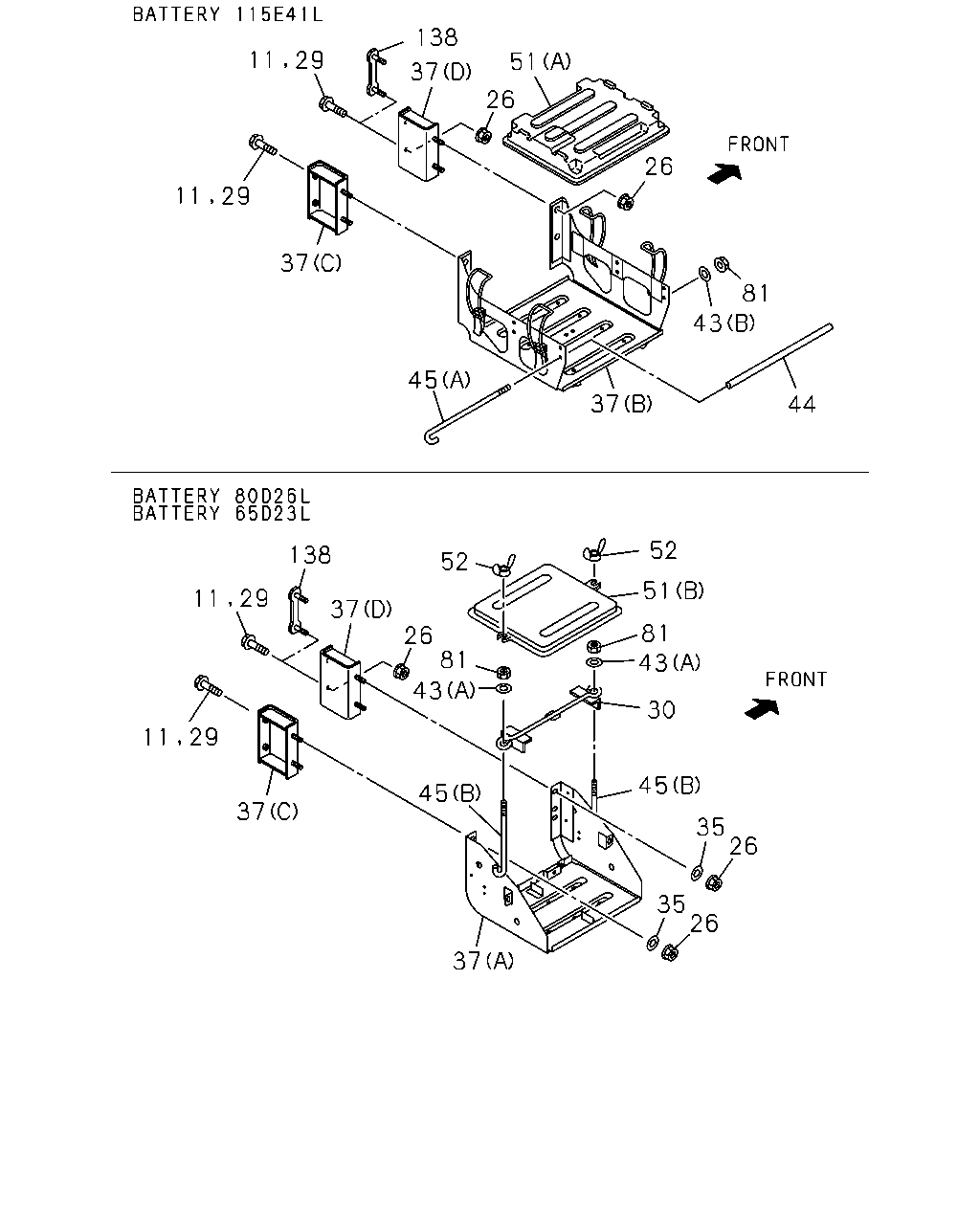

11 |
BOLT; BRKT FIX
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W),
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
EURO4 SPECIFICATION<NT4>
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1008- |
● |
|
|
| |
11 |
BOLT; BRKT FIX
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1008- |
● |
|
|
| |
11 |
BOLT; BRKT FIX
6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1008- |
● |
|
|
| |
11 |
BOLT; BRKT FIX
EURO2 SPECIFICATION<NT2>
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1008- |
● |
|
|
| |
11 |
BOLT; BRKT FIX
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1008- |
|
● |
|
| |
26 |
NUT; BRKT
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0903- |
● |
|
|
| |
26 |
NUT; BRKT
EXC. AUSTRALIA EQUIPMENT(B13)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0903- |
● |
|
|
| |
26 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0903- |
|
● |
|
| |
26 |
NUT; BRKT
WHEEL BASE 4200MM(42W)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0711-0711 |
● |
|
|
| |
26 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0711-0711 |
|
● |
|
| |
26 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0712-0808 |
● |
|
|
| |
26 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
EXC. AUSTRALIA EQUIPMENT(B13)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0712-0808 |
● |
|
|
| |
26 |
NUT; BRKT
6HK1-TCN ENG(82L)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0712-0808 |
● |
|
|
| |
26 |
NUT; BRKT
6HK1-TCS ENG(80L)
WHEEL BASE 3700MM(37W)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0712-0808 |
|
● |
|
| |
26 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W),
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
EURO4 SPECIFICATION<NT4>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-1007 |
● |
|
|
| |
26 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-1007 |
● |
|
|
| |
26 |
NUT; BRKT
6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-1007 |
● |
|
|
| |
26 |
NUT; BRKT
EURO2 SPECIFICATION<NT2>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-1007 |
● |
|
|
| |
26 |
NUT; BRKT
6HK1-TCS ENG(80L)
WHEEL BASE 3700MM(37W)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0809-1007 |
|
● |
|
| |
26 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W),
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
EURO4 SPECIFICATION<NT4>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1008- |
● |
|
|
| |
26 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1008- |
● |
|
|
| |
26 |
NUT; BRKT
6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1008- |
● |
|
|
| |
26 |
NUT; BRKT
EURO2 SPECIFICATION<NT2>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1008- |
● |
|
|
| |
26 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1008- |
|
● |
|
| |
26 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0710-0710 |
● |
● |
● |
| |
26 |
NUT; BRKT
WHEEL BASE 4200MM(42W)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0710-0710 |
● |
|
|
| |
26 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0710-0710 |
|
● |
|
| |
26 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0711-0809 |
● |
● |
● |
| |
29 |
BOLT; BRKT TO FRAME
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0804-1007 |
|
● |
|
| |
29 |
BOLT; BRKT TO FRAME
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0710-0803 |
● |
● |
● |
| |
29 |
BOLT; BRKT TO FRAME
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0804-1007 |
● |
|
● |
| |
29 |
BOLT; BRKT TO FRAME
6HK1-TCS ENG(80L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1008- |
|
|
● |
| |
29 |
BOLT; BRKT TO FRAME
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
EURO4 SPECIFICATION<NT4>
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1008- |
● |
|
|
| |
30 |
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
5-53615-004-1 |
01 |
1 |
0710- |
● |
● |
● |
| |
35 |
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
04 |
1 |
0710-0711 |
● |
● |
● |
| |
35 |
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
0712- |
● |
● |
● |
| |
37 |
BRACKET; BATTERY
BATTERY 115E41L<8MA>
(B)
|
8-98091-497-0 |
01 |
1 |
0712-1405 |
● |
|
|
| |
37 |
BRACKET; BATTERY
BATTERY 115E41L<8MA>
(B)
|
8-98261-636-0 |
01 |
1 |
1406- |
● |
|
|
| |
37 |
BRACKET; BATTERY
BATTERY 80D26L<TM1>
(A)
|
8-97384-067-2 |
01 |
1 |
0710- |
● |
● |
● |
| |
37 |
BRACKET; BATTERY
BATTERY 65D23L<8EJ>
(A)
|
8-97384-068-2 |
01 |
1 |
0710- |
● |
● |
● |
| |
37 |
BRACKET; BATTERY
WHEEL BASE 4200MM(42W)
(C)
|
8-98070-047-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
37 |
BRACKET; BATTERY
(C)
|
8-98070-047-0 |
01 |
1 |
0710-0711 |
|
● |
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
(C)
|
8-98070-047-0 |
01 |
1 |
0712-0808 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98070-047-0 |
01 |
1 |
0712-0808 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCN ENG(82L)
(C)
|
8-98070-047-0 |
01 |
1 |
0712-0808 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L)
WHEEL BASE 3700MM(37W)
(C)
|
8-98070-047-0 |
01 |
1 |
0712-0808 |
|
● |
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W),
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
EURO4 SPECIFICATION<NT4>
(C)
|
8-98070-047-0 |
01 |
1 |
0809-0905 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98070-047-0 |
01 |
1 |
0809-0905 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
(C)
|
8-98070-047-0 |
01 |
1 |
0809-0905 |
● |
|
|
| |
37 |
BRACKET; BATTERY
EURO2 SPECIFICATION<NT2>
(C)
|
8-98070-047-0 |
01 |
1 |
0809-0905 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L)
WHEEL BASE 3700MM(37W)
(C)
|
8-98070-047-0 |
01 |
1 |
0809-0905 |
|
● |
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W),
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
EURO4 SPECIFICATION<NT4>
(C)
|
8-98144-194-0 |
01 |
1 |
0906-1007 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98144-194-0 |
01 |
1 |
0906-1007 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
(C)
|
8-98144-194-0 |
01 |
1 |
0906-1007 |
● |
|
|
| |
37 |
BRACKET; BATTERY
EURO2 SPECIFICATION<NT2>
(C)
|
8-98144-194-0 |
01 |
1 |
0906-1007 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L)
WHEEL BASE 3700MM(37W)
(C)
|
8-98144-194-0 |
01 |
1 |
0906-1007 |
|
● |
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W),
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
EURO4 SPECIFICATION<NT4>
(C)
|
8-98144-194-0 |
01 |
1 |
1008- |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98144-194-0 |
01 |
1 |
1008- |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
(C)
|
8-98144-194-0 |
01 |
1 |
1008- |
● |
|
|
| |
37 |
BRACKET; BATTERY
EURO2 SPECIFICATION<NT2>
(C)
|
8-98144-194-0 |
01 |
1 |
1008- |
● |
|
|
| |
37 |
BRACKET; BATTERY
(C)
|
8-98144-194-0 |
01 |
1 |
1008- |
|
● |
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L)
WHEEL BASE 4200MM(42W)
(D)
|
8-98088-828-0 |
01 |
1 |
0710-0710 |
● |
|
|
| |
37 |
BRACKET; BATTERY
WHEEL BASE 4200MM(42W)
(D)
|
8-98088-828-0 |
01 |
1 |
0711-0711 |
● |
|
|
| |
37 |
BRACKET; BATTERY
(D)
|
8-98088-828-0 |
01 |
1 |
0711-0711 |
|
● |
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
(D)
|
8-98088-828-0 |
01 |
1 |
0712-0808 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
EXC. AUSTRALIA EQUIPMENT(B13)
(D)
|
8-98088-828-0 |
01 |
1 |
0712-0808 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCN ENG(82L)
(D)
|
8-98088-828-0 |
01 |
1 |
0712-0808 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L)
WHEEL BASE 3700MM(37W)
(D)
|
8-98088-828-0 |
01 |
1 |
0712-0808 |
|
● |
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W),
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
EURO4 SPECIFICATION<NT4>
(D)
|
8-98088-828-0 |
01 |
1 |
0809-1007 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(D)
|
8-98088-828-0 |
01 |
1 |
0809-1007 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
(D)
|
8-98088-828-0 |
01 |
1 |
0809-1007 |
● |
|
|
| |
37 |
BRACKET; BATTERY
EURO2 SPECIFICATION<NT2>
(D)
|
8-98088-828-0 |
01 |
1 |
0809-1007 |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L)
WHEEL BASE 3700MM(37W)
(D)
|
8-98088-828-0 |
01 |
1 |
0809-1007 |
|
● |
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W),
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
EURO4 SPECIFICATION<NT4>
(D)
|
8-98088-828-0 |
01 |
1 |
1008- |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(D)
|
8-98088-828-0 |
01 |
1 |
1008- |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
(D)
|
8-98088-828-0 |
01 |
1 |
1008- |
● |
|
|
| |
37 |
BRACKET; BATTERY
EURO2 SPECIFICATION<NT2>
(D)
|
8-98088-828-0 |
01 |
1 |
1008- |
● |
|
|
| |
37 |
BRACKET; BATTERY
(D)
|
8-98088-828-0 |
01 |
1 |
1008- |
|
● |
|
| |
37 |
BRACKET; BATTERY
BATTERY 115E41L<8MA>
(B)
|
8-98091-497-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
43 |
WASHER; PL,CLAMP
BATTERY 115E41L<8MA>
(B)
ID=8.4 OD=16
|
0-91610-508-0 |
02 |
1 |
0712- |
● |
|
|
| |
43 |
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(A)
ID=8.4 OD=22
|
0-91614-708-0 |
02 |
1 |
0710- |
● |
● |
● |
| |
43 |
WASHER; PL,CLAMP
BATTERY 115E41L<8MA>
(B)
ID=8.4 OD=16
|
0-91610-508-0 |
02 |
1 |
0710-0711 |
● |
● |
● |
| |
44 |
SPACER; BATTERY
BATTERY 115E41L<8MA>
|
8-98261-682-0 |
02 |
1 |
1406- |
● |
|
|
| |
45 |
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA>
(A)
L=430
|
8-97134-740-0 |
02 |
1 |
0712- |
● |
|
|
| |
45 |
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
L=120
|
9-53616-615-0 |
02 |
1 |
0710- |
● |
● |
● |
| |
45 |
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA>
(A)
L=430
|
8-97134-740-0 |
02 |
1 |
0710-0711 |
● |
● |
● |
| |
51 |
COVER; BATTERY
BATTERY 115E41L<8MA>
(A)
|
1-53612-037-2 |
01 |
1 |
0712- |
● |
|
|
| |
51 |
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
|
8-97120-747-0 |
01 |
1 |
0710- |
● |
● |
● |
| |
51 |
COVER; BATTERY
BATTERY 115E41L<8MA>
(A)
|
1-53612-037-2 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
52 |
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
M8 WING NUT
|
0-91118-408-0 |
02 |
1 |
0710- |
● |
● |
● |
| |
81 |
NUT; BATTERY
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0805 |
● |
● |
● |
| |
81 |
NUT; BATTERY
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0806-0810 |
● |
● |
● |
| |
81 |
NUT; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0806-0810 |
|
● |
● |
| |
81 |
NUT; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0806-0810 |
● |
|
|
| |
81 |
NUT; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0811- |
|
● |
● |
| |
81 |
NUT; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0811- |
● |
|
|
| |
138 |
STUD
|
8-98066-802-0 |
01 |
1 |
0804-1010 |
|
● |
|
| |
138 |
STUD
|
8-98178-497-0 |
01 |
1 |
1011-1311 |
|
● |
|
| |
138 |
STUD
|
8-98255-710-0 |
01 |
1 |
1312- |
|
● |
|
