◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#36580) — 101 parça

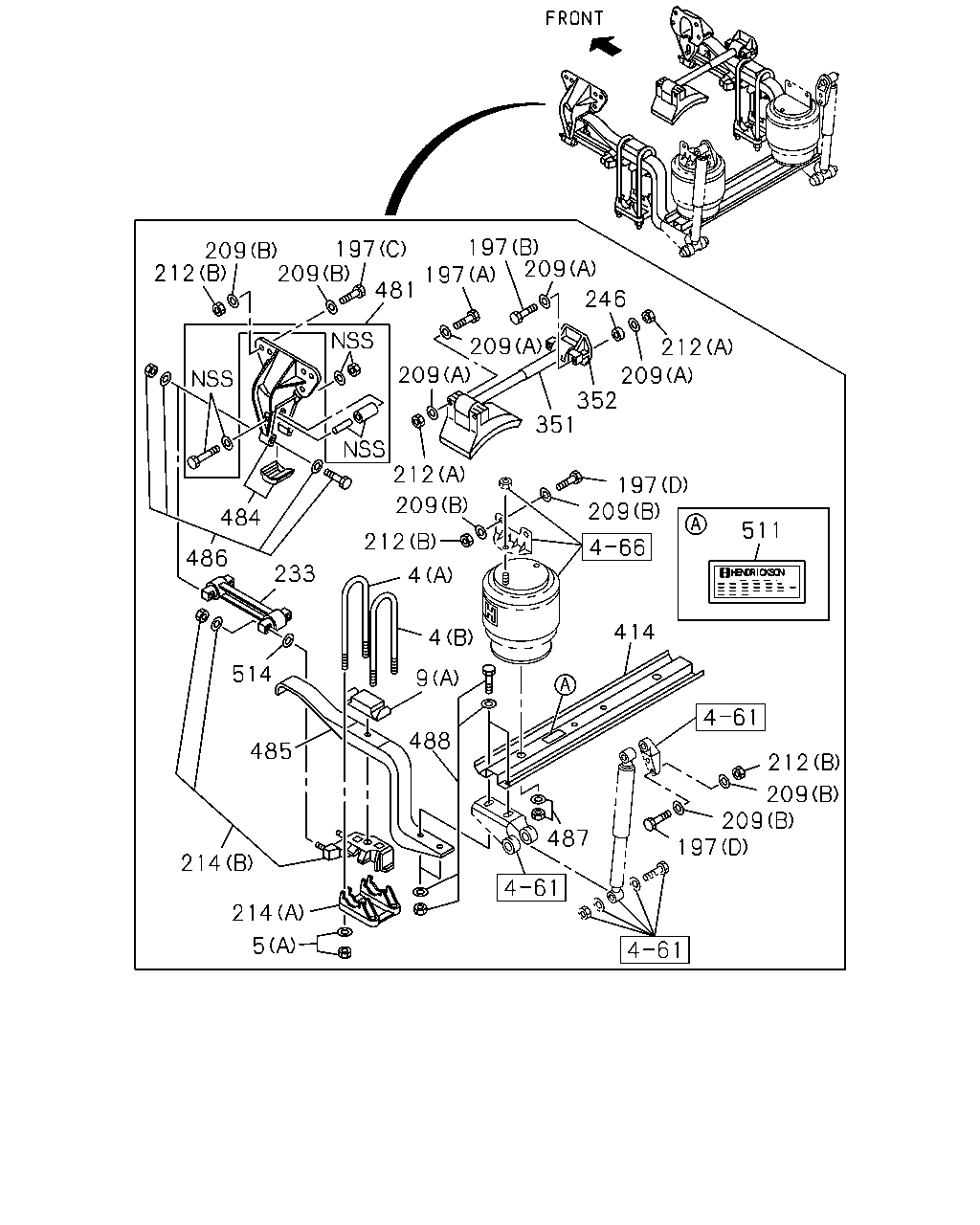

çizim 179659
197 209 197 209 197 212 209 481 246 209 212 209 209 352 351 212 197 209 209 484 511 212 486 233 4 414 4 514 9 488 485 212 209 209 197 487 214 214 5
BalonParca AdiParca NoAdetTipApplied Date A B C
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 02 1 0710- ● ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 02 1 0710- ● ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 01 1 0710- ● ●
5 NUT; U-BOLT,RR SPR
(B) M24 		0-91112-824-0 08 1 0710- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 02 1 0710- ● ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-030-0 02 1 0710- ●
197 BOLT
(A) 		1-09000-767-0 02 1 0710- ● ●
197 BOLT
(B) 		1-09000-768-0 02 1 0710- ● ●
197 BOLT
(C) M20X65 		1-09000-769-0 12 1 0710- ● ●
197 BOLT
(D) 		1-09000-771-0 08 1 0710- ● ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 08 1 0710- ● ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 40 1 0710- ● ●
212 NUT
(A) M16 		1-09400-160-0 04 1 0710- ● ●
212 NUT
(B) M20 		1-09400-161-0 20 1 0710- ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0710- ● ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0710- ● ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 02 1 0710- ● ●
246 WASHER; TORQUE ROD 8-97372-224-0 02 1 1101- ● ●
351 ROD ASM; RADIUS 1-51510-867-0 01 1 0710- ● ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 01 1 0710- ● ●
414 BEAM; AIR SPR 1-52172-036-0 01 1 0710- ● ●
481 ROLLER; REBOUND 1-53357-043-0 01 1 0710- ● ●
484 BRACKET; REAR SPRING 1-53353-131-0 02 1 0710- ● ●
485 SPRING; LEAF 1-51410-259-0 02 1 0710- ● ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 01 1 0710- ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0710- ● ●
488 FIXING KIT; BEAM 1-52000-164-0 01 1 0710- ● ●
511 LABEL 1-51399-034-0 01 1 0710- ● ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 0710- ● ●

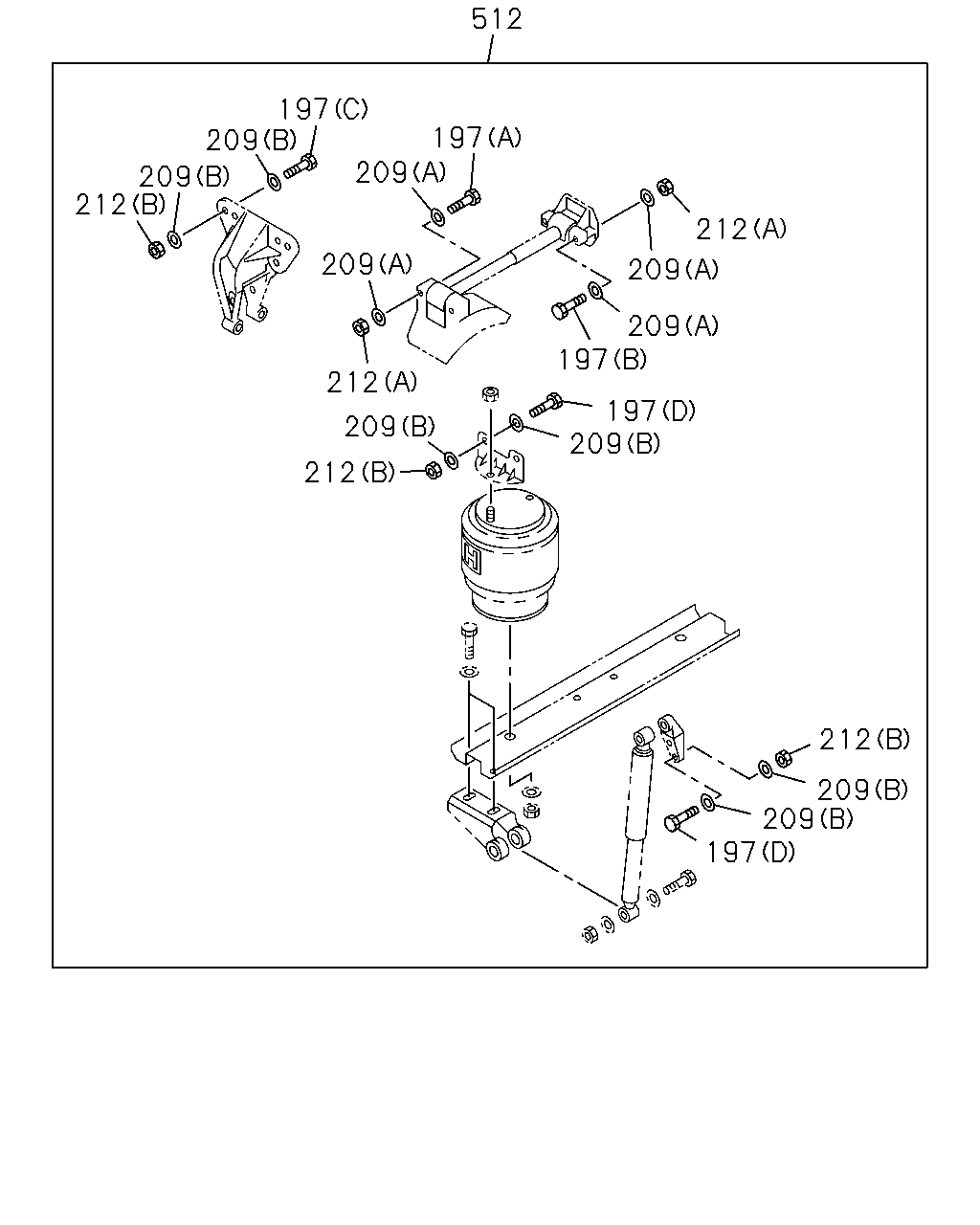

çizim 179672
512 197 209 197 209 209 212 212 209 209 209 197 212 197 209 209 212 212 209 209 197
BalonParca AdiParca NoAdetTipApplied Date A B C
197 BOLT
(A) 		1-09000-767-0 02 1 0710- ● ●
197 BOLT
(B) 		1-09000-768-0 02 1 0710- ● ●
197 BOLT
(C) M20X65 		1-09000-769-0 12 1 0710- ● ●
197 BOLT
(D) 		1-09000-771-0 08 1 0710- ● ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 08 1 0710- ● ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 40 1 0710- ● ●
212 NUT
(A) M16 		1-09400-160-0 04 1 0710- ● ●
212 NUT
(B) M20 		1-09400-161-0 20 1 0710- ● ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 01 1 0710- ● ●

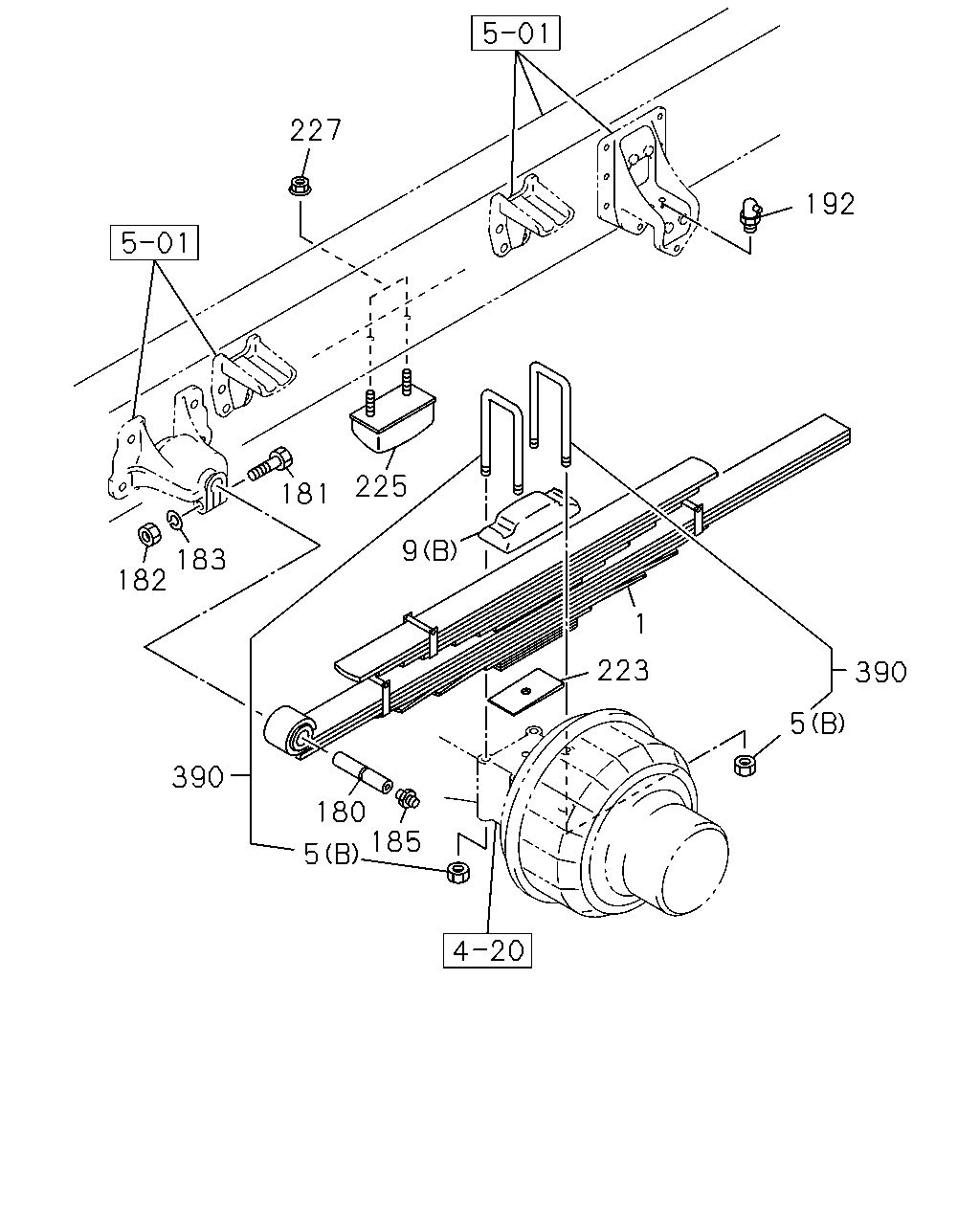

çizim 179740
227 192 225 9 181 183 182 1 223 390 5 390 180 185 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98017-566-1 02 1 0712- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98017-565-0 02 1 0710-0711 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98017-565-0 02 1 0712- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 01 1 0710- ● ●
5 NUT; U-BOLT,RR SPR
(B) M24 		0-91112-824-0 08 1 0710- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 02 1 0710- ● ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-030-0 02 1 0710- ●
180 PIN; RR SPR 1-51361-020-0 02 1 0710- ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 0710- ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0710- ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0710- ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0710- ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710- ●
223 SPACER; U BOLT,RR SPR
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) 		1-51377-385-0 02 1 1006- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3900MM(39W) 		1-51377-369-1 02 1 0809-1005 ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) 		1-51377-369-1 02 1 1006-1312 ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) 		1-51377-369-1 02 1 1006-1312 ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) 		8-98220-149-0 02 1 1401- ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) 		8-98220-149-0 02 1 1401- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-1 02 1 0710-0710 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		8-98091-873-0 02 1 0711-1005 ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) 		8-98091-873-0 02 1 1006- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6500MM(65W) 		1-51377-371-1 02 1 0710-0711 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) 		1-51377-371-1 02 1 0712-1005 ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) 		1-51377-371-1 02 1 1006-1212 ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1006-1212 ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1006-1212 ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) P60 PROP SHAFT(C2M) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1006-1212 ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1006-1212 ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) 		1-51377-371-1 02 1 1301- ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) P60 PROP SHAFT(C2M) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1301- ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1301- ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1301- ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P60 PROP SHAFT(C2M) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1301- ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53366-045-1 02 1 0712-0906 ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53366-045-1 02 1 0907- ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-1 02 1 0710-0711 ●
225 RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53366-081-1 02 1 0712- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0710- ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 0710- ● ● ●

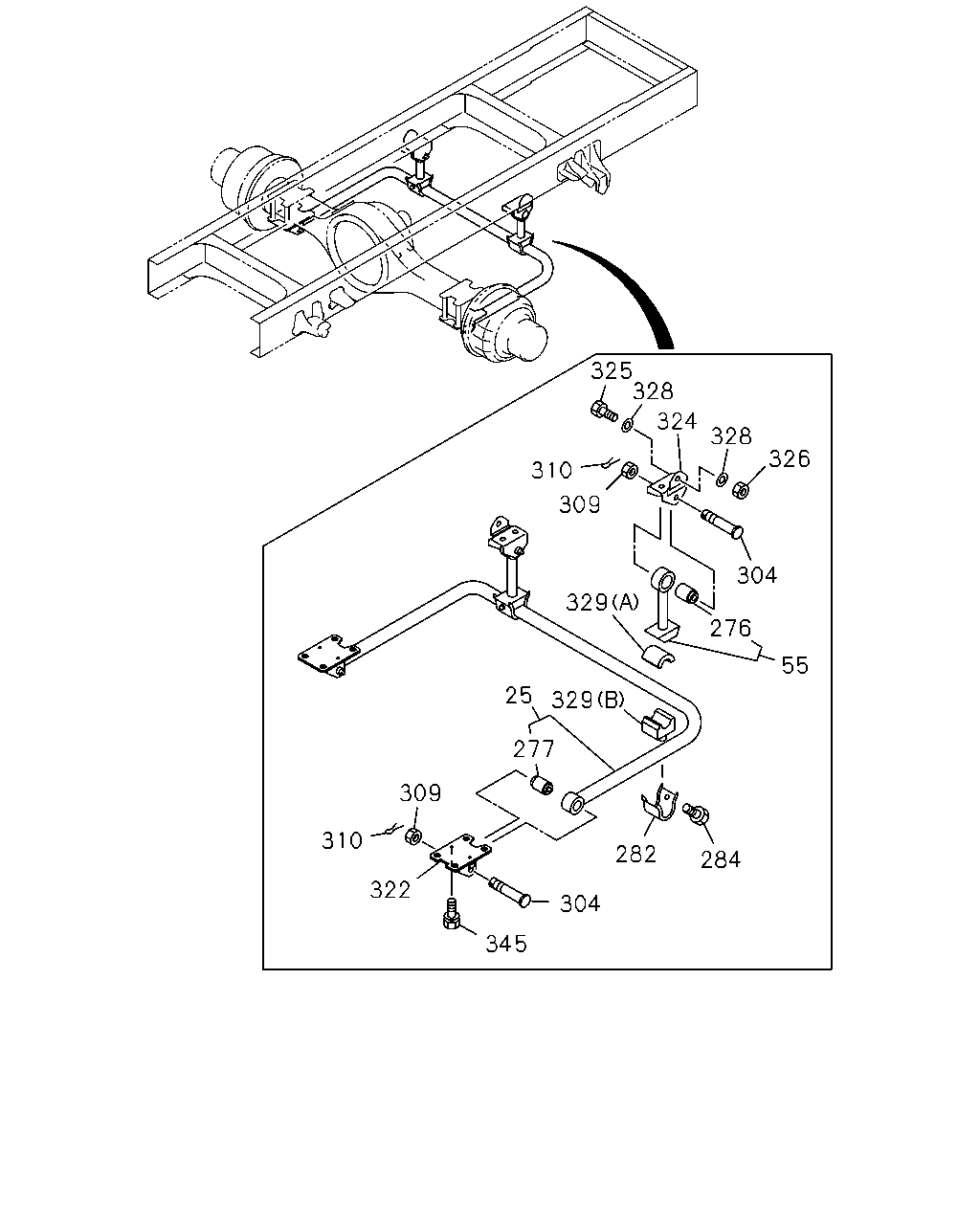

çizim 179761
325 328 324 328 326 310 309 304 329 276 55 25 329 277 309 310 282 284 322 304 345
BalonParca AdiParca NoAdetTipApplied Date A B C
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-030-2 01 1 0710- ●
55 ROD; STAB
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-035-1 02 1 0710- ●
276 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-019-0 02 1 0710- ●
277 BUSHING; STAB,RR UPR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-067-0 02 1 0710- ●
282 RETAINER; STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-015-2 02 1 0710- ●
284 BOLT; RET TO RET
STABILIZER REAR LIGHT DUTY<GN1> M10X25 		8-94463-351-0 08 1 0710- ●
304 PIN; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-020-2 04 1 0710- ●
309 NUT; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> M24 		9-99116-424-0 04 1 0710- ●
310 PIN; SPLIT,STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45 		0-81125-045-0 04 1 0710- ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-127-0 01 1 0710- ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-048-4 01 1 0710- ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-059-0 02 1 0710- ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X40 		0-20951-440-0 02 1 0710- ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X45 		9-92061-445-0 04 1 0710- ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		0-91110-514-0 04 1 0908- ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14 		0-91110-514-0 06 1 0710-0907 ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		0-91110-514-0 06 1 0908- ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-1 10 1 0908- ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> ID=15 		8-98010-627-0 12 1 0710-0907 ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-1 12 1 0908- ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (A) 		1-51789-051-1 02 1 0710- ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (B) 		1-51789-052-0 02 1 0710- ●
345 BOLT; BRKT
STABILIZER REAR LIGHT DUTY<GN1> M10X16 FLANGE 		0-28051-016-0 04 1 0710- ●
