◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#36578) — 107 parça
çizim 179769
140 138 377 377 137 377 140 137 377 138
BalonParca AdiParca NoAdetTipApplied Date A B C
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98012-957-0 02 1 0710-0912 ● ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98128-356-1 02 1 1001- ● ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 06 1 0710- ● ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 		9-92061-445-0 06 1 0710- ● ● ●
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 12 1 0710-0910 ● ● ●
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 0911- ● ● ●

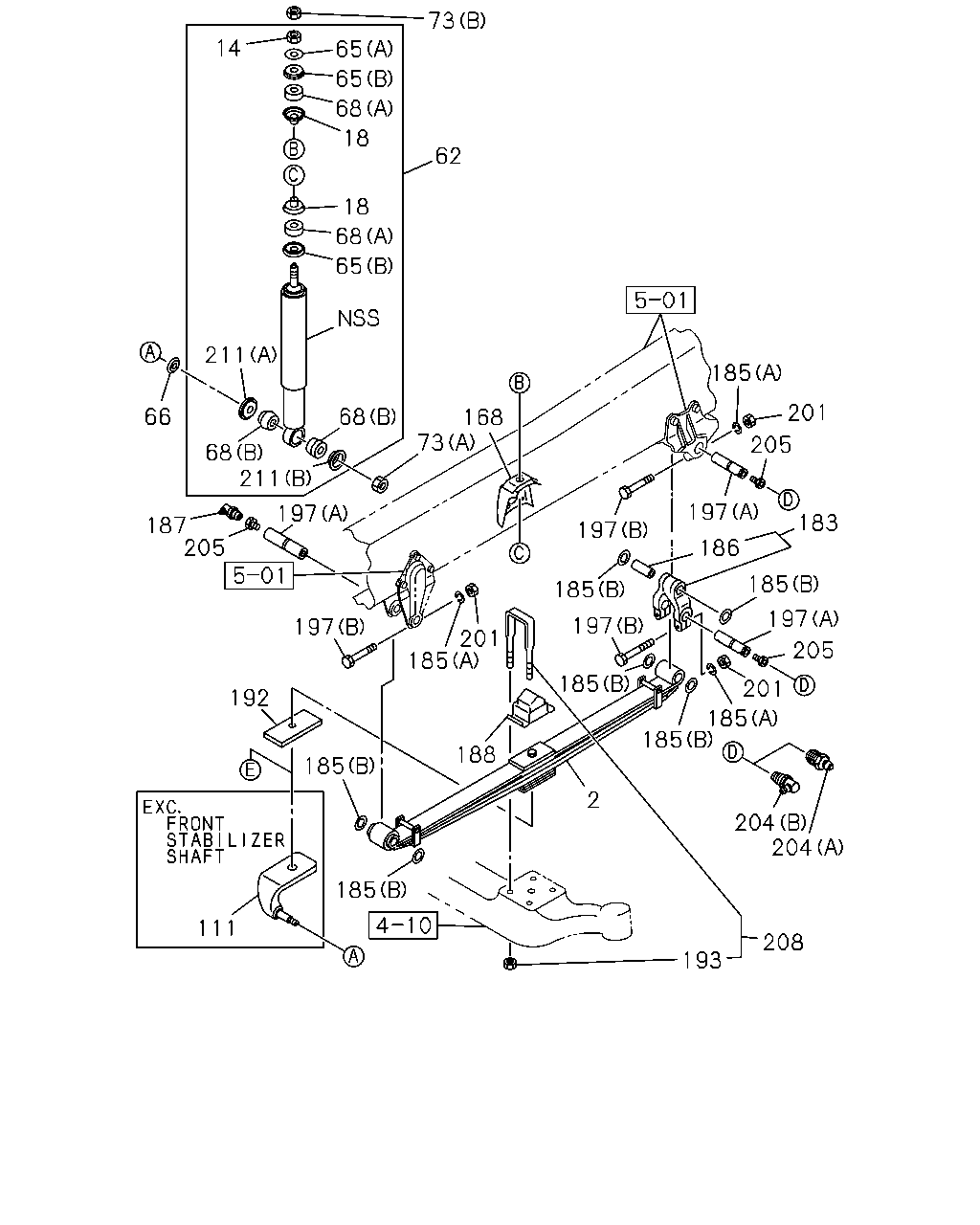

çizim 179775
73 14 65 65 68 18 62 18 68 65 211 185 201 68 66 168 205 73 68 211 183 197 197 187 205 197 186 185 185 197 197 197 201 185 205 185 201 192 185 185 188 185 2 204 204 185 111 208 193
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98010-512-0 02 1 0712- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98029-096-0 02 1 0712-1302 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98029-096-0 02 1 0712-1302 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98029-096-0 02 1 1303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98029-096-0 02 1 1303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98069-483-0 02 1 0710-0711 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98069-483-0 02 1 0710-0711 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98069-483-0 02 1 0712-1302 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98069-483-0 02 1 0712-1302 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98069-483-0 02 1 0712-1302 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98069-483-0 02 1 1303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98069-483-0 02 1 1303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98069-483-0 02 1 1303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98069-483-0 02 1 1303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98023-053-0 02 1 0710- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0710- ● ● ●
18 WASHER; CENTERING,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> ID=20.8 		9-51631-041-0 04 1 0712- ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0710-0711 ● ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0712- ● ●
18 WASHER; CENTERING,S/ABS
FRT TAPER LEAF SUSPENSION<SAR> ID=24 		1-51631-067-0 04 1 0712- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> 		8-98029-372-0 02 1 0712- ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-579-0 02 1 0712- ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS 		1-87610-155-0 02 1 0712- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98029-369-0 02 1 0710-0711 ● ● ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98029-369-0 02 1 0712- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> 		8-98029-369-0 02 1 0712- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51600-415-0 02 1 0710-0711 ● ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51600-415-0 02 1 0712- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> EXC. FRONT STABILIZER SHAFT<F59> 		1-51600-415-0 02 1 0712- ●
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (B) ID=16.5 		9-51631-040-0 04 1 0712- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0710-0711 ● ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0712- ● ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16.5 		1-09503-266-0 02 1 0712- ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0710-0711 ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0712- ● ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=16.5 		1-51631-068-0 04 1 0712- ●
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 0710- ● ● ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (A) 		9-51631-039-0 04 1 0712- ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0710- ● ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0710-0711 ● ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0712- ● ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16 T=25 		1-51631-069-0 04 1 0712- ●
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 0710- ● ● ●
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 0710- ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-1 01 1 0710-1004 ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1005- ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-1 01 1 0710-1004 ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1005- ● ● ●
168 BRACKET; S/ABS,FRT SUSP
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W) 		1-51681-306-0 02 1 0712-0805 ●
168 BRACKET; S/ABS,FRT SUSP
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) 		1-51681-306-0 02 1 0806-0808 ●
168 BRACKET; S/ABS,FRT SUSP
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> 		1-51681-306-0 02 1 0809-0906 ●
168 BRACKET; S/ABS,FRT SUSP
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> 		1-51681-306-0 02 1 0907-0910 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0710-0711 ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0712-0808 ● ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) 		1-51681-616-0 02 1 0712-0808 ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 5500MM(55W) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		1-51681-616-0 02 1 0712-0808 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0809-0906 ● ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) 		1-51681-616-0 02 1 0809-0906 ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 5500MM(55W) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		1-51681-616-0 02 1 0809-0906 ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 5500MM(55W) MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> 		1-51681-616-0 02 1 0809-0906 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0907-0910 ● ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) 		1-51681-616-0 02 1 0907-0910 ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 5500MM(55W) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		1-51681-616-0 02 1 0907-0910 ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 5500MM(55W) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> 		1-51681-616-0 02 1 0907-0910 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0911- ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0710- ● ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 0710- ● ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 0710- ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0710-0902 ● ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0710- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-096-2 02 1 0712- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-125-1 02 1 0710-0711 ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-125-1 02 1 0712- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-125-1 02 1 0712- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT TAPER LEAF SUSPENSION<SAR> 		1-51172-125-1 02 1 0712- ●
192 PIECE; DIST
KD PREPARATORY PACK<6HF> EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 1205- ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 AR 1 0710-0811 ● ● ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 AR 1 0812-1204 ● ● ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 AR 1 1205- ● ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59>,KD PREPARATORY PACK<6HF> 80X144 ID=17.5 		1-51177-284-1 AR 1 1205- ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0710-1206 ● ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ● ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 0710- ● ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 0710- ● ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0710- ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0710- ● ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710- ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0710- ● ● ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-269-2 04 1 0712-1206 ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-493-0 04 1 1207-1302 ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-493-0 04 1 1303- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0710-0711 ● ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0712-1206 ● ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-380-1 04 1 0712-1206 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207-1302 ● ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-498-0 04 1 1207-1302 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1303- ● ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-498-0 04 1 1303- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0710- ● ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0710- ● ● ●
