◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#36573) — 48 parça

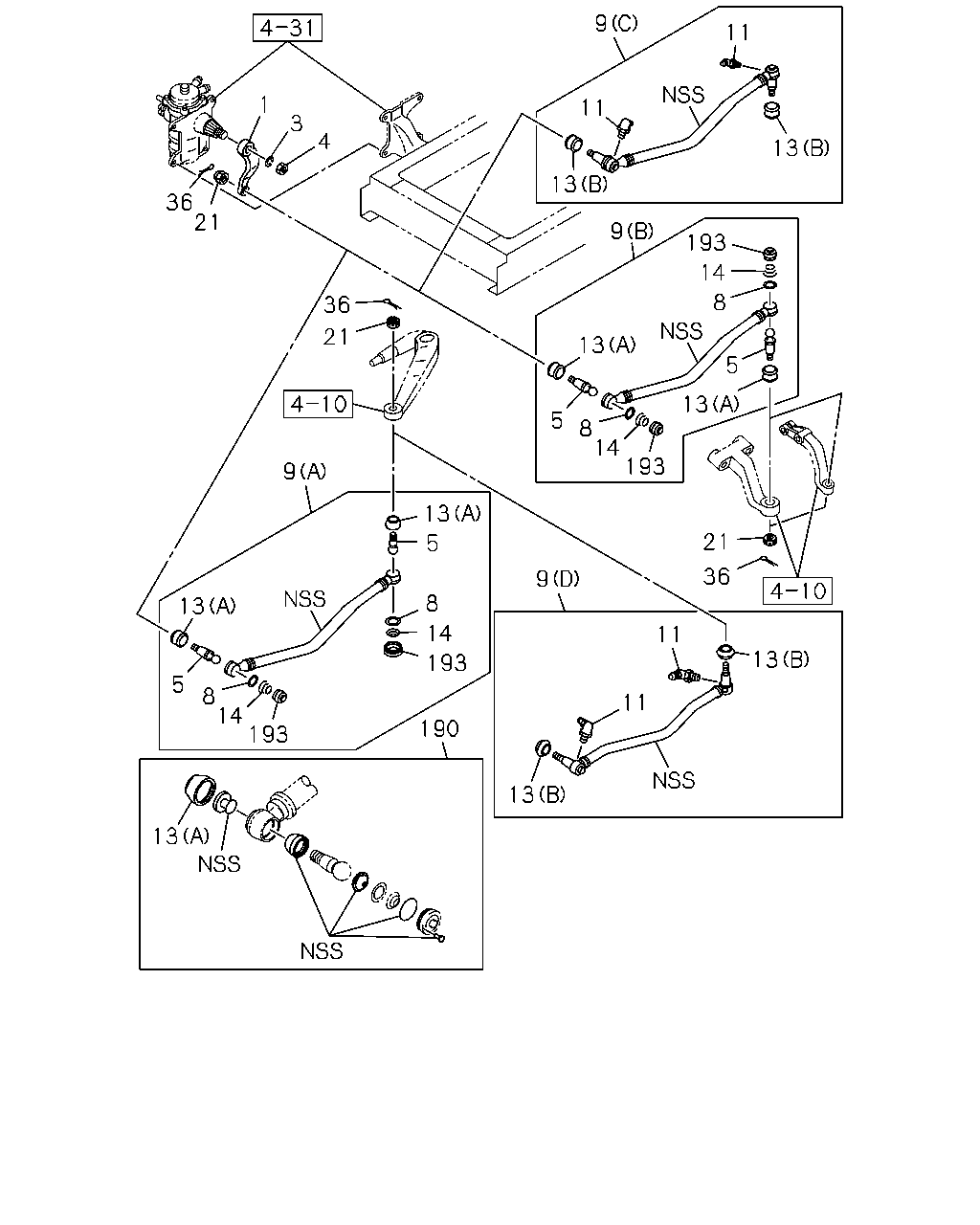

çizim 179749
1 36 3 21 4 9 36 9 11 11 13 13 9 21 13 5 13 13 5 8 14 5 8 14 193 9 190 193 13 13 11 11 13 21 36 8 193 8 5 13 14 193 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; PITMAN,STRG 1-44341-423-1 01 1 0710- ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-056-0 01 1 0710- ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0710- ● ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 0710-1103 ● ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 1104-1311 ● ●
5 BALL; JOINT,DRAG LINK
AUSTRALIA EQUIPMENT(B13) 		1-44361-105-1 02 1 1104-1311 ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 0710-1103 ● ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 1104-1311 ● ●
8 SEAT; SPR,ROD END
AUSTRALIA EQUIPMENT(B13) 		1-43159-075-0 02 1 1104-1311 ●
9 LINK; DRAG
EXC. HUB LUBRICATION OIL BATH<C5K> (B) 		1-44380-326-1 01 1 0712-1009 ●
9 LINK; DRAG
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-44380-326-1 01 1 1010-1103 ●
9 LINK; DRAG
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98181-399-0 01 1 1104- ●
9 LINK; DRAG
(A) 		1-44380-306-1 01 1 0710-0711 ● ● ●
9 LINK; DRAG
(A) 		1-44380-306-1 01 1 0712-1009 ● ●
9 LINK; DRAG
HUB LUBRICATION OIL BATH<C5K> (A) 		1-44380-306-1 01 1 0712-1009 ●
9 LINK; DRAG
(A) 		1-44380-306-1 01 1 1010-1311 ● ●
9 LINK; DRAG
AUSTRALIA EQUIPMENT(B13) (A) 		1-44380-306-1 01 1 1010-1311 ●
9 LINK; DRAG
(D) 		8-98251-664-0 01 1 1312-1509 ● ●
9 LINK; DRAG
AUSTRALIA EQUIPMENT(B13) (D) 		8-98251-664-0 01 1 1312-1509 ●
9 LINK; DRAG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98251-664-0 01 1 1510- ●
9 LINK; DRAG
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98251-664-0 01 1 1510- ●
9 LINK; DRAG 8-98251-664-0 01 1 1510- ●
11 NIPPLE; GREASE,DRAG LINK
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98160-122-0 02 1 1104-1311 ●
11 NIPPLE; GREASE,DRAG LINK 8-98160-122-0 02 1 1312-1509 ● ● ●
11 NIPPLE; GREASE,DRAG LINK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98160-122-0 02 1 1510- ●
11 NIPPLE; GREASE,DRAG LINK
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98160-122-0 02 1 1510- ●
11 NIPPLE; GREASE,DRAG LINK
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98160-122-0 02 1 1510- ●
11 NIPPLE; GREASE,DRAG LINK 8-98160-122-0 02 1 1510- ●
13 BOOT; DRAG LINK
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-43159-131-0 02 1 1104-1311 ●
13 BOOT; DRAG LINK
(B) 		1-43159-131-0 02 1 1312-1509 ● ● ●
13 BOOT; DRAG LINK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-43159-131-0 02 1 1510- ●
13 BOOT; DRAG LINK
EXC. AUSTRALIA EQUIPMENT(B13) 		1-43159-131-0 02 1 1510- ●
13 BOOT; DRAG LINK
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-43159-131-0 02 1 1510- ●
13 BOOT; DRAG LINK 1-43159-131-0 02 1 1510- ●
13 BOOT; DRAG LINK
(A) 		1-43159-107-0 02 1 0710-1103 ● ● ●
13 BOOT; DRAG LINK
(A) 		1-43159-107-0 02 1 1104-1311 ● ●
13 BOOT; DRAG LINK
AUSTRALIA EQUIPMENT(B13) (A) 		1-43159-107-0 02 1 1104-1311 ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 0710-1103 ● ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 1104-1311 ● ●
14 SPRING; COIL,DRAG LINK
AUSTRALIA EQUIPMENT(B13) 		1-43159-074-0 02 1 1104-1311 ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0710- ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0710- ● ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 0710-1103 ● ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 1104-1311 ● ●
190 REPAIR KIT; DRAG LINK
AUSTRALIA EQUIPMENT(B13) 		1-85574-041-0 02 1 1104-1311 ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 0710-1103 ● ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 1104-1311 ● ●
193 PLUG; END,DRAG LINK
AUSTRALIA EQUIPMENT(B13) 		1-43159-093-0 02 1 1104-1311 ●
