7-45 — CONSOLE BOX (#3657) — 26 parça

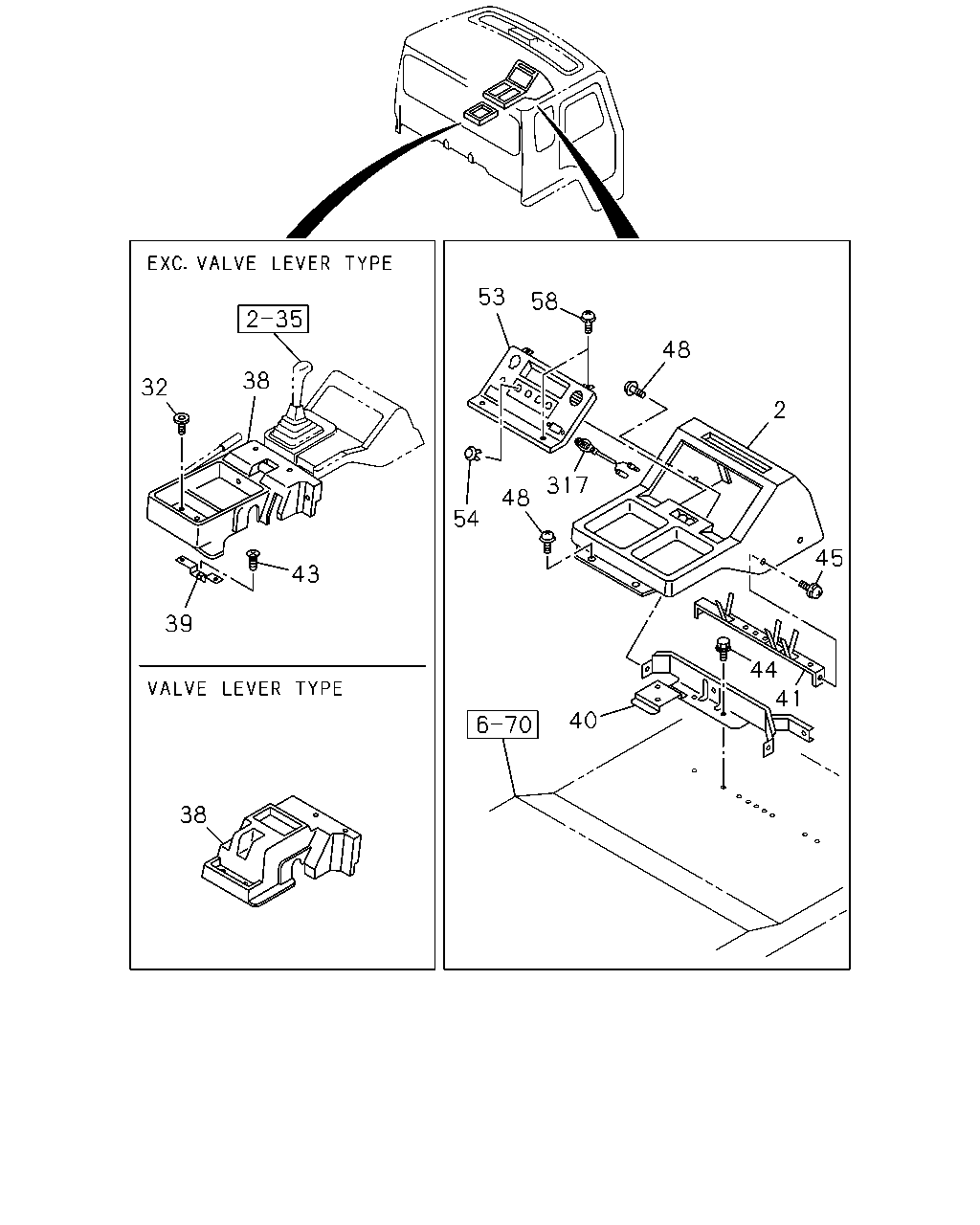

çizim 37058
53 58 48 38 32 2 317 48 54 45 43 39 44 41 40 38
BalonParca AdiParca NoAdetTipApplied Date
2 CONSOLE; CENTER
EXC. POWER WINDOW<A30> 		1-72447-417-1 01 1 9002-9306
2 CONSOLE; CENTER
EXC. POWER WINDOW<A30> 		1-72447-538-1 01 1 9307-
32 SCREW; PARCEL BOX
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M6X20 W/PL WASHER 		5-09981-023-0 03 1 9403-
32 SCREW; PARCEL BOX
EXC. POWER WINDOW<A30> M6X30 W/PL WASHER 		1-09981-448-0 01 1 9002-
32 SCREW; PARCEL BOX
EXC. POWER WINDOW<A30> M6X20 W/PL WASHER 		5-09981-023-0 03 1 9002-9402
32 SCREW; PARCEL BOX
PARKING BRAKE VALVE LEVER TYPE<W48> M6X20 W/PL WASHER 		5-09981-023-0 04 1 9403-
38 TRAY; PARCEL,PIPING COVER
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-72497-059-1 01 1 9403-
38 TRAY; PARCEL,PIPING COVER
EXC. POWER WINDOW<A30> 		1-72497-037-2 01 1 9002-9306
38 TRAY; PARCEL,PIPING COVER
EXC. POWER WINDOW<A30> 		1-72497-056-0 01 1 9307-9402
38 TRAY; PARCEL,PIPING COVER
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-72497-056-0 01 1 9403-
39 BRACKET; TRAY,PIPE COVER
EXC. POWER WINDOW<A30> 		1-72497-016-1 01 1 9002-
40 BRACKET; SUPPORT,CENTER CONSOLE
POWER WINDOW<A30> 		1-65671-481-0 01 1 9009-9505
40 BRACKET; SUPPORT,CENTER CONSOLE 1-65671-481-0 01 1 9506-
40 BRACKET; SUPPORT,CENTER CONSOLE
EXC. POWER WINDOW<A30> 		1-65670-689-2 01 1 9002-9505
41 STRUT ASM; CENTER CONSOLE
EXC. POWER WINDOW<A30> 		1-65670-599-2 01 1 9002-
43 SCREW; BRKT,PARCEL BOX
EXC. POWER WINDOW<A30> M6X20 W/PL WASHER 		5-09981-023-0 01 1 9002-
44 BOLT; SUPPORT,CTR CONSOLE
EXC. POWER WINDOW<A30> M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9002-9301
44 BOLT; SUPPORT,CTR CONSOLE
EXC. POWER WINDOW<A30> M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9302-
45 SCREW; STRUT,CENTER CONSOLE
EXC. POWER WINDOW<A30> M6X16 W/LK&PL WASHER 		1-09981-367-0 02 1 9002-
48 SCREW; BRKT,CENTER CONSOLE
EXC. POWER WINDOW<A30> M6X16 W/LK&PL WASHER 		1-09981-367-0 04 1 9002-
53 PANEL; SW,CENTER CONSOLE
EXC. POWER WINDOW<A30> 		1-65670-883-3 01 1 9002-
54 BUTTON; CLIP,CTR CONSOLE
MARKER LAMP THREE AMBER<WD9> EXC. EXH HEAT WARNING<W50> 		1-72447-390-0 01 1 9503-
54 BUTTON; CLIP,CTR CONSOLE
EXH HEAT WARNING<W50> EXC. MARKER LAMP THREE AMBER<WD9> 		1-72447-390-0 01 1 9503-
54 BUTTON; CLIP,CTR CONSOLE
EXC. MARKER LAMP THREE AMBER<WD9>,EXH HEAT WARNING<W50> 		1-72447-390-0 02 1 9503-
58 SCREW; SW PNL
EXC. POWER WINDOW<A30> M5X14 W/PL WASHER 		5-09981-050-0 04 1 9002-
317 CONSENT
EXC. POWER WINDOW<A30> 		1-82523-010-2 01 1 9002-
