◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25B - REAR FINAL DRIVE ▶
4-25B — REAR FINAL DRIVE (#36569) — 115 parça

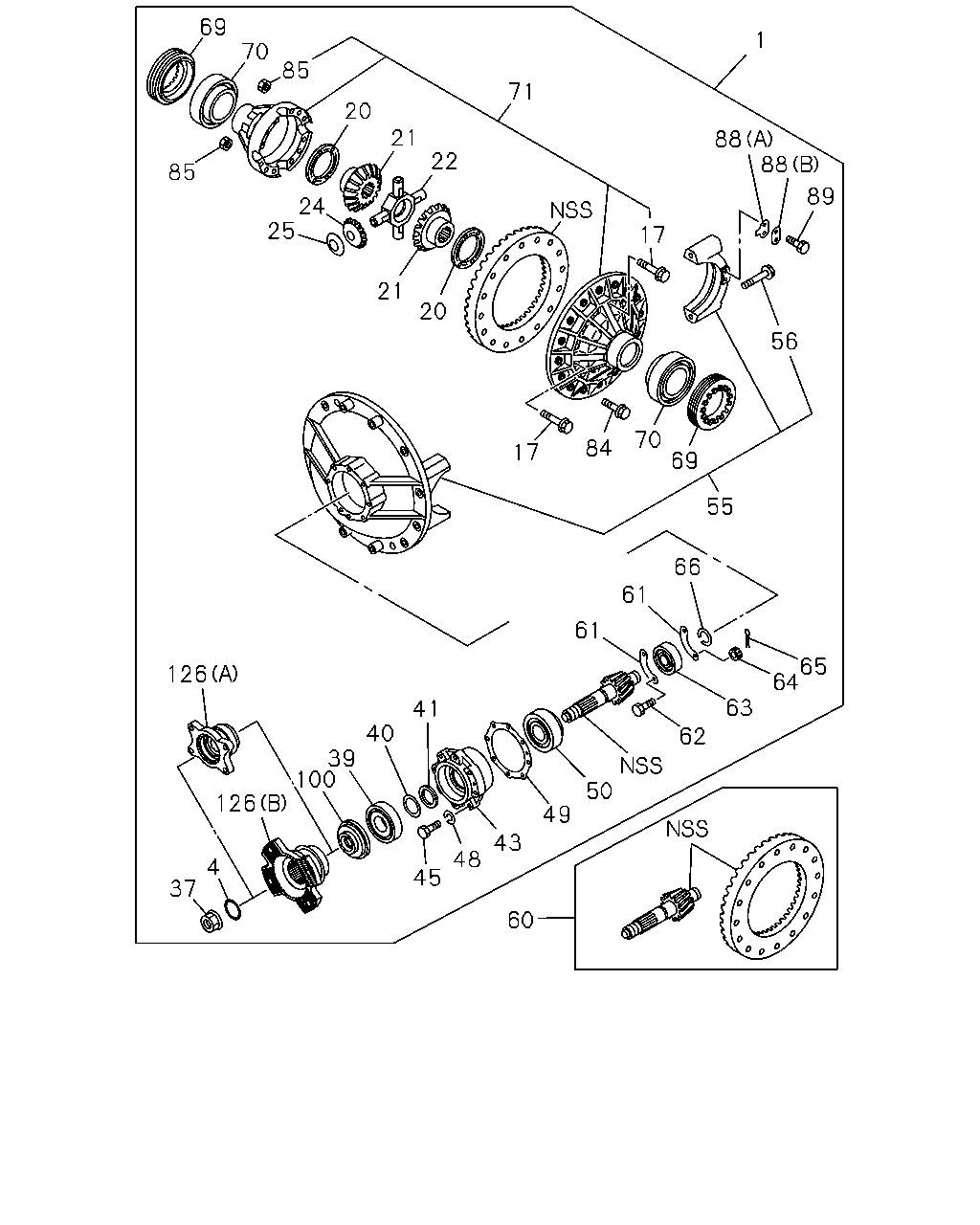

çizim 179940
69 1 70 85 71 20 21 88 88 22 85 89 24 25 17 21 20 56 70 84 17 69 55 66 61 61 65 64 126 63 41 40 62 39 100 126 50 49 43 48 4 45 37 60
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
P46 PROP SHAFT(C4Z) 39/6 		1-41001-060-0 01 1 0805-0809 ●
1 DRIVE ASM; FINAL,RR
41/8 		1-41002-416-0 01 1 0712- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 39/6 		1-41002-771-0 01 1 0712-0905 ●
1 DRIVE ASM; FINAL,RR
39/6 		1-41002-771-0 01 1 0906- ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 43/7 		1-41001-356-0 01 1 0712-0805 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B ODM/T(Y4V) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 43/7 		1-41001-356-0 01 1 0806-0906 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 43/7 		1-41001-356-0 01 1 0907- ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) 39/7 		1-41001-031-0 01 1 0712-0805 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B ODM/T(Y4V) 39/7 		1-41001-031-0 01 1 0806-0906 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) 39/7 		1-41001-031-0 01 1 0907- ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) P46 PROP SHAFT(C4Z) 43/7 		1-41000-923-0 01 1 0712-0805 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B ODM/T(Y4V) P46 PROP SHAFT(C4Z) 43/7 		1-41000-923-0 01 1 0806-0906 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) P46 PROP SHAFT(C4Z) 43/7 		1-41000-923-0 01 1 0907- ●
1 DRIVE ASM; FINAL,RR
ZF9S1110 M/T(Y5E) 39/7 		1-41002-545-0 01 1 0712- ●
1 DRIVE ASM; FINAL,RR
ZF9S1110 M/T(Y5E) 43/7 		1-41002-544-0 01 1 0712- ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 0712- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 08 1 0712- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 0712- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-169-0 AR 1 0712- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-170-0 AR 1 0712- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-171-0 AR 1 0712- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-172-0 AR 1 0712- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-173-0 AR 1 0712- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-174-0 AR 1 0712- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-175-0 AR 1 0712- ● ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-123-0 02 1 0712-0911 ● ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-162-0 02 1 0912- ● ● ● ●
22 SPIDER; DIFF PINION
OD=32 		1-41521-002-1 01 1 0712- ● ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-040-0 04 1 0712-0911 ● ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-052-0 04 1 0912- ● ● ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-001-0 04 1 0712- ● ● ● ●
37 NUT; DRIVING PINION
M39 FLANGE 		1-09449-056-2 01 1 0712- ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-086-0 01 1 0712- ● ● ● ●
39 BEARING; FINAL PINION
NTN 		9-00093-072-1 01 1 0712- ● ● ● ●
39 BEARING; FINAL PINION
JTEKT 		9-00093-206-2 01 1 0712- ● ● ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-106-0 AR 1 0712- ● ● ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-107-0 AR 1 0712- ● ● ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-108-0 AR 1 0712- ● ● ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-109-0 AR 1 0712- ● ● ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-110-0 AR 1 0712- ● ● ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-111-0 AR 1 0712- ● ● ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-112-0 AR 1 0712- ● ● ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-113-0 AR 1 0712- ● ● ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-114-0 AR 1 0712- ● ● ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-115-0 AR 1 0712- ● ● ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-116-0 AR 1 0712- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.600 		1-41229-101-0 AR 1 0712- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.800 		1-41229-102-0 AR 1 0712- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.000 		1-41229-103-0 AR 1 0712- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.200 		1-41229-104-0 AR 1 0712- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.400 		1-41229-105-0 AR 1 0712- ● ● ● ●
43 CAGE; FINAL PINION
T=75 		1-41151-005-0 01 1 0712- ● ● ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 0712- ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 0712- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-009-0 AR 1 0712- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-010-0 AR 1 0712- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.300 		1-41154-104-0 AR 1 0712- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.400 		1-41154-105-0 AR 1 0712- ● ● ● ●
50 BEARING; FINAL PINION
NTN 		1-09812-013-0 01 1 0712- ● ● ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-070-1 01 1 0712- ● ● ● ●
55 CARRIER; DIFF 1-41110-120-1 01 1 0712- ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0712-0804 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0805- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-378-2 01 1 0712- ●
60 GEAR SET; FINAL DRIVE,RR
39/6 		1-41210-371-2 01 1 0712- ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-517-0 01 1 0712- ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-549-0 01 1 0712- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-015-0 02 1 0712- ● ● ● ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0712- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 0712- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 0712- ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0712-0804 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0805- ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0712-0804 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0805-0805 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0806- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 0712- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0712-0804 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0805-0908 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0909- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0712-0804 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0805-0908 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0909- ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 0712-0804 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 0805- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-270-0 01 1 0712- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 0712- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 0712- ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0712-0804 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0805- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0712-0804 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0805- ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0712-0804 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0805- ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 0712- ● ● ● ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (A) 		1-37245-390-0 01 1 0712-0805 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0712-0805 ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0806-0906 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B ODM/T(Y4V) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0806-0906 ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0907- ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0907- ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (A) 		1-37245-387-0 01 1 0712-0804 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0712-0804 ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0805-0805 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (A) 		1-37245-387-0 01 1 0805-0805 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0805-0805 ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0806-0809 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B ODM/T(Y4V) (A) 		1-37245-387-0 01 1 0806-0809 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B ODM/T(Y4V) P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0806-0809 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B ODM/T(Y4V) (A) 		1-37245-387-0 01 1 0810-0906 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B ODM/T(Y4V) P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0810-0906 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) (A) 		1-37245-387-0 01 1 0907- ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0907- ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (B) 		1-37245-397-0 01 1 0712- ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-397-0 01 1 0712- ●
