4-25A — REAR FINAL DRIVE (#36568) — 73 parça

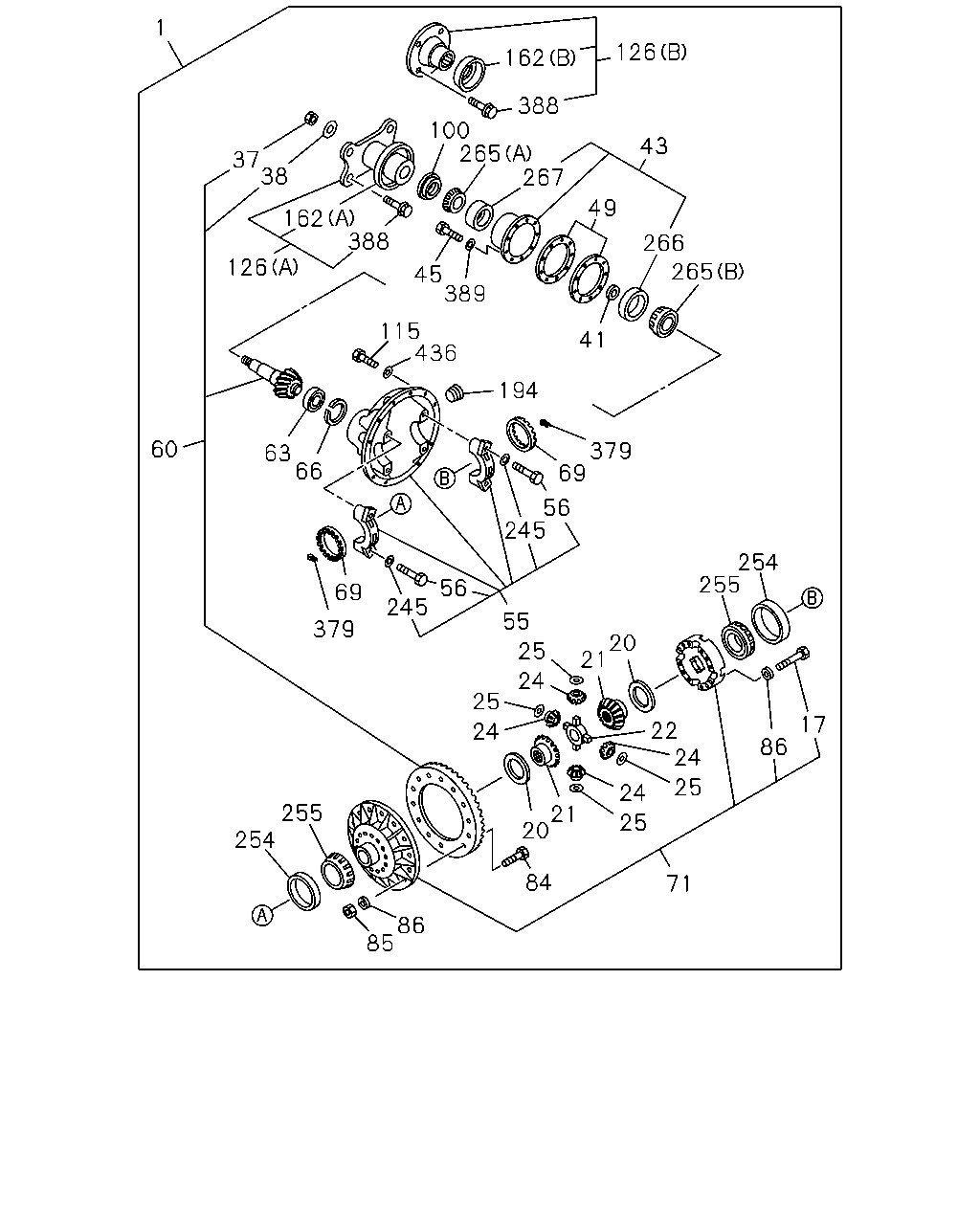

çizim 179747
1 126 162 388 100 265 43 267 37 38 49 162 388 266 126 265 45 389 115 436 41 194 60 379 69 63 66 56 245 254 255 56 69 245 55 379 20 21 25 24 25 17 22 24 24 86 25 24 255 254 21 20 25 84 71 86 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DRIVE ASM; FINAL,RR
41/6 		1-41002-747-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
44/9 		1-41003-348-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
41/9 		1-41002-900-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
43/7 		1-41002-745-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
45/7 		1-41002-746-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
45/8 		1-41002-744-0 01 1 0710- ●
17 BOLT; DIFF CAGE SETTING 1-41519-095-0 12 1 0710- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 0710- ● ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 02 1 0710- ● ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 0710- ● ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 0710- ● ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 0710- ● ● ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 0710- ● ● ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 0710- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 0710- ● ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-098-0 01 1 0710- ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-008-0 08 1 0710- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 0710- ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-126-0 01 1 0710- ● ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 0710- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/6 		1-41210-654-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
44/9 		1-41210-662-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-661-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-652-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
45/7 		1-41210-653-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
45/8 		1-41210-651-0 01 1 0710- ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 0710- ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 0710- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 01 1 0710- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-049-0 01 1 0710- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-285-0 01 1 0710- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-286-0 01 1 0710- ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 0710- ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 0710- ● ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41229-168-0 24 1 0710- ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 0710- ● ● ● ● ● ●
115 BOLT; DIFF CARRIER 1-41119-072-0 01 1 0710- ● ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0710-0710 ● ● ●
126 COUPLING; DRIVING PINION
ALLISON MD3060P A/T(Y4G) (A) 		1-37245-301-0 01 1 0710-0710 ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0710- ● ● ●
126 COUPLING; DRIVING PINION
ALLISON MD3060P A/T(Y4G) (A) 		1-37245-301-0 01 1 0710- ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-364-0 01 1 0710-0710 ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (B) 		1-37245-364-0 01 1 0710-0710 ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-364-0 01 1 0710- ● ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (B) 		1-37245-364-0 01 1 0710- ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 0710-0710 ● ● ●
162 COVER; DUST,INPUT FLANGE
ALLISON MD3060P A/T(Y4G) (A) 		1-37249-161-0 01 1 0710-0710 ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 0710- ● ● ●
162 COVER; DUST,INPUT FLANGE
ALLISON MD3060P A/T(Y4G) (A) 		1-37249-161-0 01 1 0710- ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-190-0 01 1 0710-0710 ●
162 COVER; DUST,INPUT FLANGE
ZF9S1110 M/T(Y5E) (B) 		1-37249-190-0 01 1 0710-0710 ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-190-0 01 1 0710- ● ●
162 COVER; DUST,INPUT FLANGE
ZF9S1110 M/T(Y5E) (B) 		1-37249-190-0 01 1 0710- ●
194 PLUG 1-41119-077-0 01 1 0710- ● ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 0710- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41229-131-0 01 1 0710- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-083-0 01 1 0710- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 01 1 0710- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-084-0 01 1 0710- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 0710- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-124-0 01 1 0710- ● ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-032-0 01 1 0710- ● ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41349-050-0 01 1 0710- ● ● ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 01 1 0710- ● ● ● ● ● ●
379 PIN; SPLIT 1-41129-013-0 01 1 0710- ● ● ● ● ● ●
388 BOLT; COUPLING 1-37249-160-0 04 1 0710-0710 ● ● ●
388 BOLT; COUPLING
ALLISON MD3060P A/T(Y4G) 		1-37249-160-0 04 1 0710-0710 ●
388 BOLT; COUPLING 1-37249-160-0 04 1 0710- ● ● ●
388 BOLT; COUPLING
ALLISON MD3060P A/T(Y4G) 		1-37249-160-0 04 1 0710- ●
388 BOLT; COUPLING 1-37249-204-0 04 1 0710- ● ●
388 BOLT; COUPLING
ZF9S1110 M/T(Y5E) 		1-37249-204-0 04 1 0710- ●
389 WASHER; FINAL PINION CAGE 1-41329-084-0 08 1 0710- ● ● ● ● ● ●
436 WASHER; PL,DIFF CARRIER 1-41229-168-0 01 1 0710- ● ● ● ● ● ●
